BPM F-15 Quick start guide

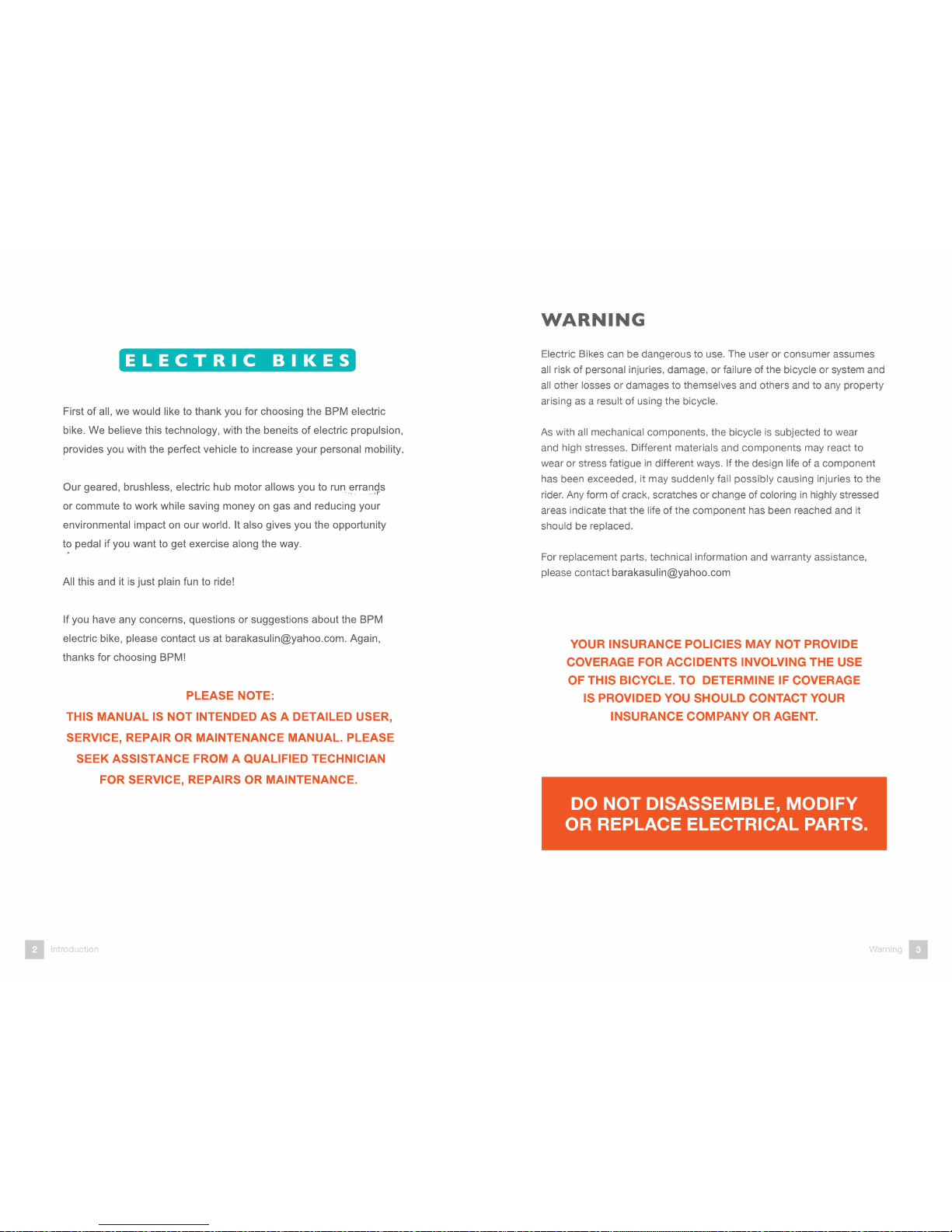

First of all, we would like to thank you for choosing the BPM electric
bike. We believe this technology, with the beneits of electric propulsion,
provides you with the perfect vehicle to increase your personal mobility.
Our geared, brushless, electric hub motor allows you to run errands
or commute to work while saving money on gas and reducing your
environmental impact on our world. It also gives you the opportunity
to pedal if you want to get exercise along the way.to pedal if you want to get exercise along the way.
All this and it is just plain fun to ride!
If you have any concerns, questions or suggestions about the BPM
electric bike, please contact us at [email protected]. Again,
thanks for choosing BPM!
PLEASE NOTE:
THIS MANUAL IS NOT INTENDED AS A DETAILED USER,
SERVICE, REPAIR OR MAINTENANCE MANUAL. PLEASE SERVICE, REPAIR OR MAINTENANCE MANUAL. PLEASE
SEEK ASSISTANCE FROM A QUALIFIED TECHNICIAN
FOR SERVICE, REPAIRS OR MAINTENANCE.
4 5
6. Insert the 6 mm allen wrench (supplied in the kit) into the hole and
tighten the screw clockwise until the stem does not move separately
from the front wheel (Figure 3).
7. Make sure the handlebars are aligned with the front wheel before
tightening, and the stem is not set above the maximum height indicator.
In order to get the bolt securely tight, you may need to use a pair
of pliers for leverage
8. Position the handlebars to your desired comfort level and lock them
into place by pushing the handle back down. If there is movement after
pushing the handle down or it is too tight to push down, you can tighten
or loosen the screw (Figure 4) with a 14 mm wrench provided in your kit.
Continued on Page 12
ASSEMBLY INSTRUCTIONS
For City Commuter and Stretch
Your bike has been pre-assembled and requires only a few simple steps
to get it ready for you to ride:
1. Remove the outside carton after cutting the nylon bands and lift off the
entire box from the tray at the bottom. Carefully remove your bike from the
bottom tray and gently rest it in place with the kickstand down.
2. Remove all of the inside cardboard protection and bubble wrap.
3. Please locate and set aside the kit box containing the battery
charger, pedals, and tool kit.
4. Insert the handlebar stem into the frame of the bicycle. You may
adjust the height of the handlebars by moving the stem up or down to
your comfort level. Place your thumb on the black locking mechanism
on top of the stem, push up and lift the lever up exposing the
adjustment screws (Figure 1).
5. Move the stem so that you can see directly down the hole (Figure 2).
Assembly Instructions Assembly Instructions
Figure 3
Figure 1
Figure 4
Figure 2
6 7
ASSEMBLY INSTRUCTIONS
For Boomerang, Boomerang Plus,
Comfort Cruiser, Interceptor, & Tandem
Your bike has been pre-assembled and requires only a few simple steps
to get it ready for you to ride:
1. Remove the outside carton after cutting the nylon bands and lift off the
entire box from the tray at the bottom. Carefully remove your bike from the
bottom tray and gently rest it in place with the kickstand down.
2. Remove all of the inside cardboard protection and bubble wrap.
3. Please locate and set aside the kit box containing the battery charger,
pedals, and tool kit.
4. The handlebars must be adjusted for height and alignment. First,
remove the rubber protective cap and insert the handlebar stem into the
frame of the bicycle (Figures 1 & 2).
5. With the 6 mm allen wrench provided in the tool kit, tighten the screw
on top of the stem underneath the rubber protective cap to secure the
handlebars in place. Make sure the handlebars are aligned with the front
wheel before tightening and that the stem is not set above the maximum
height indicator.
6. If need be, the angle of the handlebars may be positioned to your personal
preference. Loosen the front 2 bolts on the front stem plate and angle the han-
dlebars to your liking (Figure 3), then securely tighten the 2 bolts on the front
stem plate. Make sure that, when tightening, there is even spacing between
the top and bottom bolts to ensure maximum stability (Figure 4).
Continued on Page 12
Assembly Instructions Assembly Instructions
Figure 1 Figure 2
Figure 3 Figure 4
8 9
5. If necessary, align the stem with the front wheel and tighten the
top stem bolt enough to hold the stem in place. Once the handlebars
top bolt. After all 3 bolts have been securely fastened, make sure there
is no play in the headset.
Be careful to not tighten the top bolt too much as the steering will feel rigid
and sluggish.
Continued on Page 12
ASSEMBLY INSTRUCTIONS
For Trail Tracker
Your bike has been pre-assembled and requires only a few simple steps
to get it ready for you to ride:
1. Remove the outside carton after cutting the nylon bands and lift
off the entire box from the tray at the bottom. Carefully remove your
bike from the bottom tray and gently rest it in place.
2. Remove all of the inside cardboard protection and bubble wrap.
3. Please locate and set aside the kit box containing the battery
charger, pedals, and tool kit.
4. Install the front wheel by aligning the brake and fork and
tightening the axle nuts with the 15 mm wrench provided with
your kit. Make sure that the hooked washers are on the outside
of the fork and are properly secured.
Assembly Instructions Assembly Instructions
Figure 3
TOP BOLT
SIDE
BOLT
SIDE
BOLT
Figure 4
10 11
ASSEMBLY INSTRUCTIONS CONT.
For All Bikes
Make sure the seat is tight enough so that you can’t twist it out of alignment.
Pull the seat clamp handle away from the seat post and slide the seat up
or down to adjust it (Figure 1). Move the clamp handle inward toward the
seat post so it is held tight by the clamp (Figure 2).
If necessary, tighten the clamp by twisting the clamp handle clockwise while
in the unclamped position. Then, fold the handle in toward the seat post.
This should require a fair amount of force to ensure the seat post is held
tight. If necessary, the clamp can be further tightened with a 5 mm allen
wrench while in the clamped position. Make sure the seat is not set with
the vertical maximum height marks above the clamp.
If the disc brakes are rubbing after installation, refer to Customer Help
on our website at www.pedegoelectricbikes.com/faqs/customerhelp/
Item Nm
Handlebars 18N.m (Trail Tracker 12N.m)
Handlebar Stem 12N.m (Trail Tracker 8N.m)
Seatpost Quick Release
Seat 18N.m
Front Wheel 18N.m (If Applicable)
Rear Wheel 30N.m or above
TORQUE SPECIFICATIONS
Assembly Instructions
Figure 1 Figure 2
Using the 15 mm wrench provided in the tool
kit, attach and tighten the pedals. PLEASE
NOTE – The pedals are marked “L” for Left
and “R” for Right. The left pedal is attached
by turning it counterclockwise and the right
pedal is tightened by turning it clockwise.
Make sure the pedals are tightly attached
to the crank arms to prevent stripping.
12 13
OPERATING PROCEDURES
For Boomerang, Boomerang Plus, City Commuter
Comfort Cruiser, Interceptor, & Tandem
To be able to use the electric motor, the battery must be mounted by sliding
the fully charged battery forward into the battery holder.
The battery automatically locks into the bike when fully inserted in the
battery holder. The locking mechanism is spring loaded and unlocks when
the key is turned to the open position, allowing the battery to slide out. The
battery must be locked when riding or it may fall out. The key does not have
to be in to operate the bike.
The on/off switch is located on the bottom of battery. After fully inserting
position. Be sure to turn off the power when the Pedego is not in use or
is recharging by clicking the battery switch to the off “O” position.
SAFETY
Helmet:
Always wear an approved helmet while riding your Pedego and follow
It is your responsibility to familiarize yourself with the laws of where you
ride your Pedego and to comply with all applicable laws.
Mechanical Safety Check:
Check the condition of your Pedego before every ride. Make sure
the recommended air pressure that is located on the side wall of every
tire. Check the brakes for proper operation.
mechanic before 100 miles (161 kilometers) of riding. This is a standard good
practice for any new bike as cables will stretch and components will ‘bed in’.
The service must include spoke tensioning for both front and rear wheels.
Your First Ride:
to pick an area away from cars, other cyclists, obstacles or other hazards
in order to become familiar with the controls, features and performance
of your new Pedego.
Additional Passengers:
The Pedego bikes are designed for one passenger only (excluding Tandems).
DO NOT carry any additional passengers on the front or rear of the bike.
The rear rack holding the battery is not designed to carry the weight
of any additional passengers, including baby carriers.
Weight Capacity:
Pedego Electric Bikes are designed with a maximum weight capacity of 250
pounds for all models. The rear rack maximum weight capacity of a Pedego
(if applicable) is 25 pounds. Exceeding the maximum weight capacity can
result in damage of the bike which can lead to serious injury.
Safety Operating Procedures
Locked
On Off
Open
18 19
PEDAL ASSIST MODE
For Boomerang Plus, City Commuter,
Interceptor, Stretch & Trail Tracker
Press the power button (top button) on the four button selector
located near the left grip on the handlebars to turn the meter on.
You can adjust the pedal assist power level to have more power by
hitting the [+] button (third button) and can move to a lower level
power by hitting the [-] button (fourth button).
If you set the pedal assist power level to “0”, then the pedal assist
function of the bike is disengaged and the bike can be powered by the
that when the pedal assist function is activated, the motor will supply
power when you turn the pedals forward.
In pedal assist level 1, you will get assistance at around 40% of the
maximum power from the motor. In level 5, you will get 100% assistance
from the motor. Experiment with the different levels of pedal assist to
become familiar with how much power you want. You will need
different levels of assist for different riding conditions.
When not riding the bike, you can turn off the meter by holding down
the power button (top button) for several seconds.
METER PROGRAMMING & USE
For Boomerang Plus, City Commuter,
Interceptor, Stretch & Trail Tracker
The LCD meter on your Pedego can be programmed
to change various functions.
Hold “SET” for 2 seconds to enter the setup interface.
“SET 1” - Press [-] and the Trip will reset to 0.
“SET 2” - Set the max speed.
“SET 3” - Set the wheel size.
“SET 4” - Set the bike in either MPH or KPH
Hold “SET” for 2 seconds to exit the setup interface.
Press the set button (second button) to switch the display information.
The order is: Trip Distance (TRIP), Riding Time (TIME), and Odometer (ODO).
Press the power button (top button) once while the meter is on to turn on
the backlight, as well as the integrated front and rear lights on the Pedego.
Press it once more to turn the lights and backlight off.
The bars are an indicator that displays the amount of power that is being
drawn from the battery. The more bars that are displayed, the more
battery power is being used to power the Pedego.
After 5 minutes of inactivity, the LCD Meter will automatically turn
off to conserve power.
Operating Procedures Operating Procedures
Your Pedego is equipped with
an LCD meter that monitors pedal
assist, speed, odometer, trip distance,
riding time, and battery energy level.
To turn the meter on, make sure
the battery is fully inserted into the
Pedego and the on/off switch is
Each LCD Meter comes with a
USB port attached to the bottom
of the meter to charge your mobile
devices. Hold down the [+] and set
buttons for 2 seconds to turn on
the USB charging. Hold the same
buttons again for 2 seconds
to turn this feature off.
SPEEDOMETERBATTERY
INDICATOR (V)
PEDAL
ASSIST
DISTANCE/
RIDING TIME/
ODOMETER
20 21
HAND THROTTLE CONTROL
For Boomerang Plus, City Commuter,
Interceptor, Stretch & Trail Tracker
When the pedal assist mode is set to “0”, the pedal assist function does
not engage and the throttle will accelerate the bike forward. The throttle
control is operated on the right hand side. You control the throttle by
twisting it from its resting position. The farther the throttle switch is from
its resting position, the more power is delivered to the motor to accelerate
the Pedego. When you want to slow down, you simply release the throttle
and let it return to its resting position and simultaneously apply the
brakes. The Pedego also comes with a Throttle Override function
which allows the throttle to work in pedal assist modes.
For Boomerang and Comfort Cruiser
The red power button located on the right handle toggles on/off.
The throttle control is operated on the right hand side. You control
the throttle by twisting it from its resting position. The farther the throttle
switch is from its resting position, the more power is delivered to the
motor to accelerate the Pedego. When you want to slow down, you
simply release the throttle and let it return to its resting position
and simultaneously apply the brakes.
LIGHTS
For Interceptor, City Commuter and Boomerang Plus:
Your Pedego comes equipped with integrated front and rear lights
that operate from the battery. To turn the lights on, push the power
button on the LCD meter. To turn the lights off, repeat pushing
down the power button on the LCD meter.
For Comfort Cruiser and Boomerang:
Your Pedego comes with an integrated rear light that operates
from the battery. To turn the light on simply press the “Rear Light”
button located on the battery.
For Stretch and Trail Tracker:
Your Pedego comes with an integrated front light that operates from
the battery. To turn the light on press the power button on the LCD meter.
To turn the light off repeat pushing the power button on the LCD meter.
Operating Procedures Operating Procedures
Twist Throttle
Rear Light
Power Button
Front Light
22 23
BATTERY AND CHARGER CARE
The charger will charge a fully depleted battery in 5—6 hours.
The indicator light on the charger will be red / orange when battery
is charging and will turn green when fully charged.
Avoid subjecting the battery to high temperatures, such as directly
under the sun, for prolonged periods of time. Recharge the battery
before it becomes completely discharged. Completely discharging
will reduce the numbers of recharging cycles during the battery’s life
and limit the capacity. Never store the battery in a discharged state.
After much use, your battery’s charge-holding capacity will decrease.
should contact your local dealer to order a replacement.
If the battery will not be used for an extended period of time, charge
it fully and recharge it every 2 months. Store it in a cool, dry place. Your
Pedego battery is engineered with precision for high capacity and a long,
useful life. Do not use it to power other electrical devices. Improper use
of the battery will damage the battery and shorten its useful life and may
coming from the charger or the battery, unplug charger immediately
and contact Pedego customer service.
Operating Procedures
The Pedego battery may be charged
while on the bike or removed and
charged at a location away from the
Pedego. The battery is easily removed
by turning the key switch to the open/
unlock position, grasping the rear
of the battery, and sliding the battery
to the rear of the Pedego.
To charge the battery, plug the charger
into an AC outlet. The LED indication
light should be green showing the
charger is working normally. Then
plug the charger into the charging
port located on the bottom of the
battery by sliding open the charger
cover (Figure 1) or lifting the handle
(Figure 2) and inserting the plug.
CHARGER
Included with your new Pedego is a lithium ion battery, along with
a charger, which plugs into a standard household electric receptacle.
A lithium ion battery requires specially designed chargers. You should
never charge your battery with a substitute charger that is not designed
for this use. Use of an unsuitable charger to charge a lithium ion battery
Recharging the Battery
48V Charging Plug 36V Charging Plug 48V Charging Plug
Figure 1
Figure 2
• Recharge battery after every use.
• Do not disassemble or alter the battery or battery charger.
• Do not allow any liquids on or inside the battery/charger.
• Do not expose the battery/charger to extreme weather conditions.
• Do not operate the battery/charger if damaged.
• Do not use the battery/charger for any use other than its intended purpose.
• Only use the battery/charger on Pedego approved products.
24 25
GEARS
and uphill pedaling, and the last gear is for maximum speed on level
or downhill terrain. Change gears only while pedaling. The rear wheel
contains seven chain sprockets. When the chain is around the largest
sprocket, you are in 1st gear, or the lowest gear. The high gear will
have the derailleur positioned so that the chain is directed around
the smallest gear. Every position on the gear selector should cause
or vice versa. If you change multiple gears too quickly, you could
have the chain come off the front sprocket.
Operating Procedures
FUSE
The fuse is designed to protect the battery. If the fuse blows, there will
be no power to any of the electrical components powered by the battery.
You can replace the fuse with a standard automotive 40 amp fuse
or contact Pedego customer service at support@pedego.com.
For Boomerang, Boomerang Plus, City Commuter,
Comfort Cruiser, Interceptor & Tandem
The fuse is located on the bottom of the battery, between the charging
port and the On/Off switch (Figure 1).
For Trail Tracker
The fuse is located on the end cap opposite of the key slot where
you turn the battery on and off (Figure 2).
For Stretch
The fuse is located on the bottom on the battery, opposite of the handle.
It is the same style fuse as shown in Figure 1.
Thumb Shifter
Figure 1
7 Gears
Figure 2
26 27
A quick adjustment may be made by screwing or unscrewing the
for safe stopping (Figure 1). If the brakes are still not operating correctly,
they may require further adjustment by an experienced bicycle mechanic.
WARNING:
• Disc brake rotors become hot during use. Do not touch or come
in contact with the disc rotor shortly after use.
• Wet weather will require a longer distance to stop. Brake earlier
and avoid sudden stops when riding in wet conditions.
The rear brake should always be applied before and while the front brake
is applied. Applying only the front brake to slow or stop at high speeds
may result in the rider being ejected from the saddle and continuing
forward over the handlebars. It is best to apply even pressure to both
brake levers when slowing or stopping.
Bicycles equipped with disc brakes will occasionally make a slight
scraping noise when the wheels are turning without the brakes being
applied. This is normal.
Make sure that the brake lever does not contact the handle bar
when full hand pressure is applied (Figure 2). If so, then the
brakes must be adjusted by increasing the tension on the cable.
BRAKES
Operating Procedures
Figure 1 Figure 2
Your Pedego is equipped with disc
brakes for maximum reliability. Applying
hand pressure to the brake levers will
cause the wheel brake to cause friction
against the brake disc, slowing the wheel.
The more hand pressure applied to the
brake lever, the faster the Pedego
will come to a stop.
28 29
KICKSTAND
For Boomerang, Boomerang Plus, City Commuter,
Comfort Cruiser, Interceptor, & Trail Tracker
out to one side and allows the bike to lean against it.
For Stretch & Tandem
The motorcycle style kickstand has two legs that are designed
to expand as the kickstand is put in the down position and contract
as it goes into the up position.
Please do not sit on your Pedego with the kickstand in the down position.
TIRES & INNER TUBES
Pedego inner tubes (excluding Trail Tracker models) contain a chemical
it is ingested. To minimize tire wear and for maximum riding safety, com-
fort and handling, maintain recommended tire air pressure which can be
found on the side wall of all tires. Use a reliable tire air pressure gauge to
for excessive wear and cracks. Replace tires if necessary.
KEYS
The keys are used to lock the battery into place. Always make sure
that the key position is in the “open” setting when removing or inserting
the battery. Move the key to the “lock” position to secure battery before
operating bike. Riding the bike with the key in the “open” position risks
allowing the battery to slide out and damage the battery when dropped
(Refer to page 12 or 16).Always remove battery from bike when
transporting on a bike rack.
APPEARANCE CARE
Periodically clean your Pedego electric bike with a damp cloth.
Avoid spraying the Pedego with a water hose to avoid electrical issues.
Store your Pedego in a dry shelter area away from direct sunlight and
wet or damp environment. It is also recommended to apply chain lube
(such as Tri-Flow or ProLink) to the drivetrain of your Pedego when
you clean it or wipe it down to keep it in good running condition.
Operating Procedures
30 31
TROUBLESHOOTING
to make sure they did not come loose or unplugged.
1. Throttle - Black (Boomerang & Comfort Cruiser) or Yellow (Boomerang
Plus, City Commuter, Interceptor, Stretch, & Trail Tracker)
2. Left Brake Lever - Red
3. Right Brake Lever - Red
4. Motor
5. LCD Meter - Green (If Applicable)
Simply unwrap the black spiral wire covering until the Quick Disconnect
Make sure that the battery is inserted fully into the bicycle. If it is not, the
bicycle will receive no power causing all of the electronics to not turn on.
For any additional troubleshooting help, refer to the Customer Help page
at www.pedegoelectricbikes.com/faqs/customerhelp/ or contact your
local Pedego dealer.
Operating Procedures Operating Procedures
BAD
Quick Disconnects
GOOD
Motor Disconnect
4
1
5
23

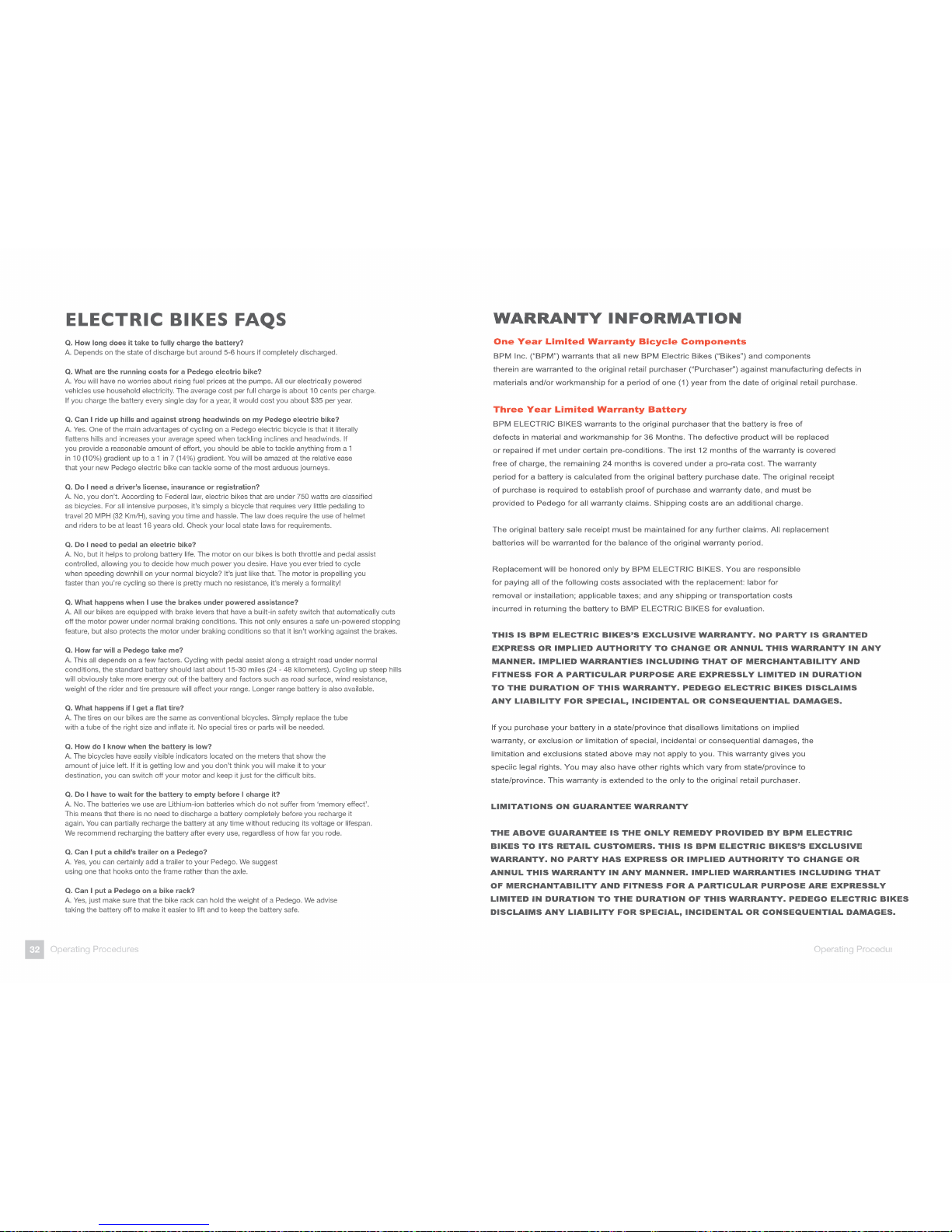

WARRANTY INFORMATION
One Year Limited Warranty Bicycle Components
BPM Inc. (“BPM”) warrants that all new BPM Electric Bikes (“Bikes”) and components
therein are warranted to the original retail purchaser (“Purchaser”) against manufacturing defects in
materials and/or workmanship for a period of one (1) year from the date of original retail purchase.
Three Year Limited Warranty Battery
BPM ELECTRIC BIKES warrants to the original purchaser that the battery is free of BPM ELECTRIC BIKES warrants to the original purchaser that the battery is free of
defects in material and workmanship for 36 Months. The defective product will be replaced
or repaired if met under certain pre-conditions. The irst 12 months of the warranty is covered
free of charge, the remaining 24 months is covered under a pro-rata cost. The warranty
period for a battery is calculated from the original battery purchase date. The original receipt
of purchase is required to establish proof of purchase and warranty date, and must be
provided to Pedego for all warranty claims. Shipping costs are an additional charge.
The original battery sale receipt must be maintained for any further claims. All replacement The original battery sale receipt must be maintained for any further claims. All replacement
batteries will be warranted for the balance of the original warranty period.
Replacement will be honored only by BPM ELECTRIC BIKES. You are responsible
for paying all of the following costs associated with the replacement: labor for
removal or installation; applicable taxes; and any shipping or transportation costs
incurred in returning the battery to BMP ELECTRIC BIKES for evaluation.
THIS IS BPM ELECTRIC BIKES’S EXCLUSIVE WARRANTY. NO PARTY IS GRANTED
EXPRESS OR IMPLIED AUTHORITY TO CHANGE OR ANNUL THIS WARRANTY IN ANYEXPRESS OR IMPLIED AUTHORITY TO CHANGE OR ANNUL THIS WARRANTY IN ANY
MANNER. IMPLIED WARRANTIES INCLUDING THAT OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY LIMITED IN DURATION
TO THE DURATION OF THIS WARRANTY. PEDEGO ELECTRIC BIKES DISCLAIMS
ANY LIABILITY FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
If you purchase your battery in a state/province that disallows limitations on implied
warranty, or exclusion or limitation of special, incidental or consequential damages, the
limitation and exclusions stated above may not apply to you. This warranty gives you limitation and exclusions stated above may not apply to you. This warranty gives you
speciic legal rights. You may also have other rights which vary from state/province to
state/province. This warranty is extended to the only to the original retail purchaser.
LIMITATIONS ON GUARANTEE WARRANTY
THE ABOVE GUARANTEE IS THE ONLY REMEDY PROVIDED BY BPM ELECTRIC
BIKES TO ITS RETAIL CUSTOMERS. THIS IS BPM ELECTRIC BIKES’S EXCLUSIVE
WARRANTY. NO PARTY HAS EXPRESS OR IMPLIED AUTHORITY TO CHANGE OR
ANNUL THIS WARRANTY IN ANY MANNER. IMPLIED WARRANTIES INCLUDING THATANNUL THIS WARRANTY IN ANY MANNER. IMPLIED WARRANTIES INCLUDING THAT
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY
LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. PEDEGO ELECTRIC BIKES
DISCLAIMS ANY LIABILITY FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
BPM
BPM BPM
BPM
BPM
BPM
BPM
BPM
BPMBPM
BPM
BPM
This warranty becomes effective on the date of original retail purchase. This warranty is not meant
to suggest or imply that the Bikes cannot be broken or will last forever. It does mean that the
Bicycle is covered subject to the terms of the warranty. This warranty applies only to the original
Purchaser of a Bicycle and is not transferable to subsequent owners or any other party. This
warranty is void if the Bicycle is subjected to abuse, neglect, improper repair, improper
maintenance, alteration, modiication, an accident or other abnormal, excessive, or improper use,
at the sole discretion of BPM. During the duration of this warranty, BPM, at their cost, at the sole discretion of BPM. During the duration of this warranty, BPM, at their cost,
will either repair the Bicycle or Bicycle component(s), or at BPM’S sole discretion, will replace
any defective Bicycle or component(s) with the same or equivalent component(s). The foregoing
warranties are in lieu of and exclude all other warranties not expressly set forth herein, whether
express or implied by operation of law or otherwise, including, but not limited to any warranties of
merchantability or itness for a particular purpose. In no event shall BPM be liable for
incidental, consequential or punitive damages arising from use or unavailability of the Bicycle or
component(s) in any manner, including, without limitation, damages for personal injury, property component(s) in any manner, including, without limitation, damages for personal injury, property
damage, or economic losses, whether based on contract, warranty, negligence, product liability, or
any other theory. BPM’S liability hereunder is expressly limited to the repair or replacement of
Bikes or component(s), or at BPM’S sole discretion, to the net amount paid by the original
retail purchaser. If the original retail Purchaser elects to repair a defective Bicycle or component(s)
himself or use the services of someone other than BPM (or its designee) to repair the
Bicycle, or if Purchaser uses a replacement part not authorized by BPM, BPM will not be
liable for any damage, failure or loss caused by the use of such unauthorized service or parts. If liable for any damage, failure or loss caused by the use of such unauthorized service or parts. If
the Purchaser has a valid warranty claim as set forth in the Procedures and Terms and Conditions
(the “PTC”), this limited warranty includes the cost of shipment or transportation of the Bicycle or
Bicycle component(s) to or from BPM in accordance with the PTC. If the Purchaser does not
have a valid warranty claim as set forth in the PTC, this limited warranty does not include such
shipment or transportation costs. Under this Limited Warranty, BPM products purchased in one
country or region may not be transferred to another country or region where BPM or its
authorized service providers offer warranty service for the same product model number. Warranty authorized service providers offer warranty service for the same product model number. Warranty
terms, service availability, and service response times may vary from country or region to country
or region. Warranty service response time is subject to change due to local parts availability. Your
BPM authorized service provider can provide you with details. BPM will not alter form, it, or
function of this BPM product to make it operate in a country for which it was never intended to
function for legal or regulatory reasons. BPM is not responsible for any tariffs or duties that
may be incurred in transferring the products. Transfer of the products may be covered by export
controls issued by the United States or other governments.controls issued by the United States or other governments.
Table of contents
