TVS ETFI Jupiter User manual

Customer’s Name And Address
..................................................................................................
..................................................................................................
..................................................................................................

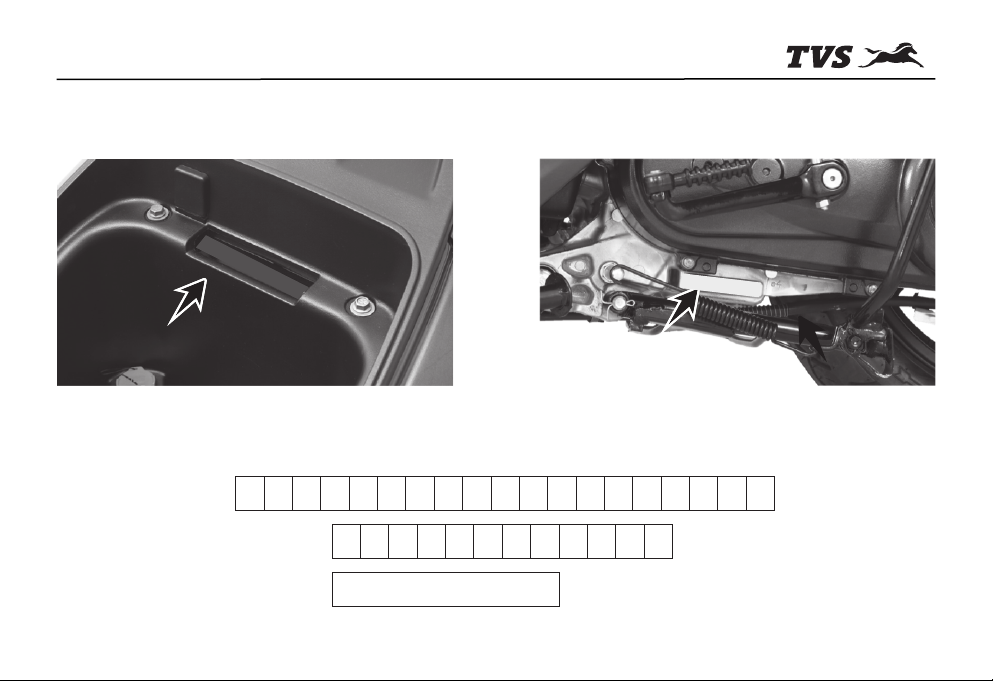

Frame Number..................................................................
..................................................................................................
Engine Number.................................................................
..................................................................................................
Key Number.......................................................................
Colour....................................................................................
Date Of Sale........................................................................
Registration Number.....................................................
Selling Distributor / Dealer’s Address Stamp:
..................................................................................................
..................................................................................................
..................................................................................................

UNIQUE FEATURES OF TVS JUPITER
-I-
®

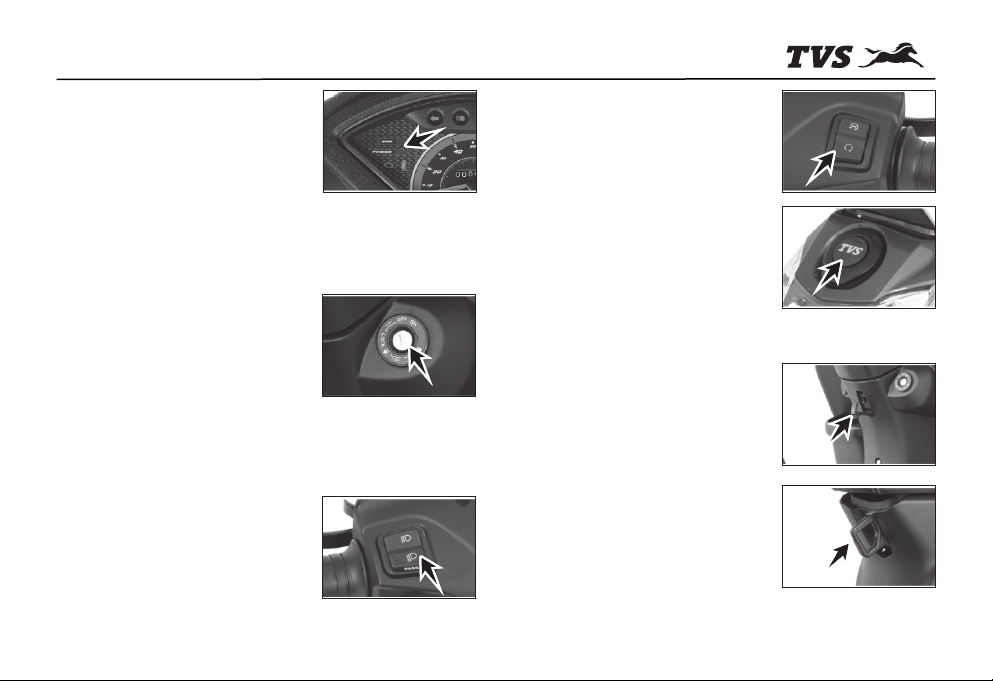

ECONOMETER
Y o u r s p e e d o m e t e r h a s
®
ECONOMETER which indicates
whether you are riding in Economy
Mode or Power mode. This is unique
feature of your scooter which guides
you to ride your scooter fuel
efficiently. Refer page no. 13 for
details.
ALL IN ONE LOCK
Your scooter has all in one lock that
unlocks the seat and fuel tank cap at
the ignition lock itself. Refer page
No. 12 for details.
UNIQUE PASS-BY SWITCH (First
Time in Scooters)
Pass-by Switch is a feature first time
introduced in scooters ever. It allows
you to easily switch between high &
low beam of the head lamp with
easy press and auto release. It is
helpful especially while overtaking.
Refer page No. 15 for details.
ENGINE Kill SWITCH
'Engine Kill Switch' is an another
unique feature in scooter which
allows you to shut the engine
without switching OFF the ignition.
EXTERNAL FUEL FILL
No other Scooter offers you this
unique facility. You can get gasoline
filled without even getting out of
your seat.
RETRACTABLE BAG HOOKS
Your scooter has two retractable
Bag Hooks to carry light luggage like
carry bags weighing upto 3 kg.
One hook is located below the
handle bar on the rear panel and the
other one is located on the cover
front below the front end of seat.

UNIQUE FEATURES OF TVS JUPITER

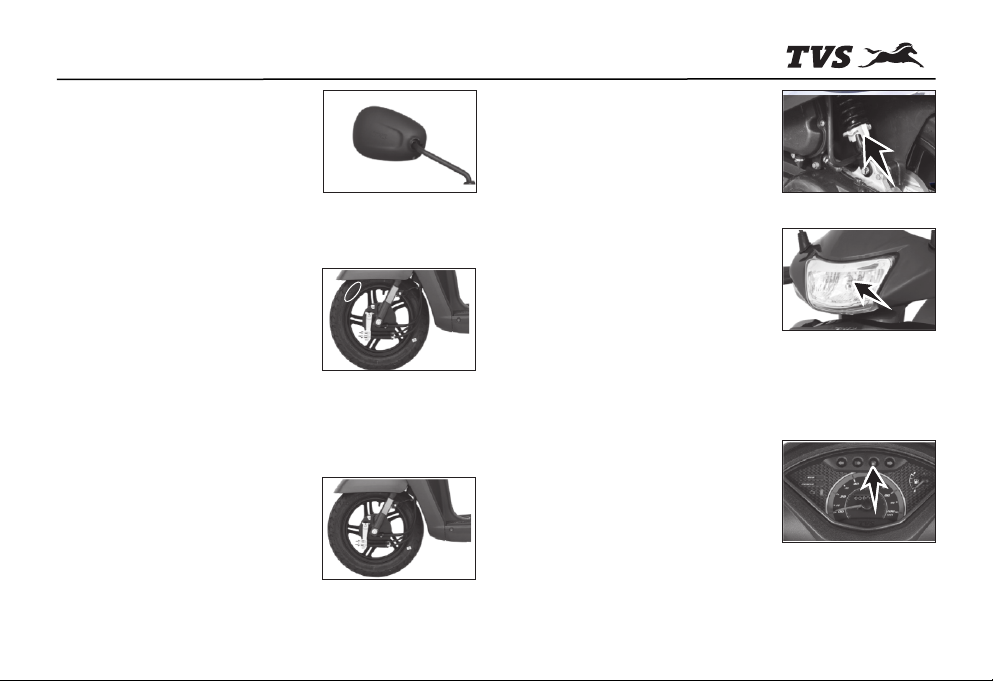

ADJUSTABLE MIRRORS (ONLY
HOUSING):-
Your scooter is provided with unique
adjustable mirrors which can be
rotated inwards when you drive
through narrow street lanes or when
you park the scooter in narrow
parking areas.
TUBELESS TYRES
Another important unique feature in
your scooter is "Tubeless Tyres".
Tubeless tyres reduce the chances
of getting punctured. Even if there is
a puncture, sudden leakage of air is
avoided, thereby provide better
safety and convenience. It is also
very easy to repair the punctured
tyres.
TELESCOPIC FRONT FORK
Your Scooter has Motorcycle-like
'Telescopic Front Suspension' for
extreme comfort for excellent riding
comfort even on bad roads.
T
U
B
E
L
E
S
S
AD JUSTAB L E R E AR SH O C K
ABSORBER
Your Scooter comes with Adjustable
Shock Absorber, a first-in-the-
industry feature. This allows you to
adjust the required level of hardness
/ s o f t n e ss a s pe r th e us a ge
requirement at just the push of a
lever.
LED HEAD LAMP
Your Scooter comes in with a
premium LED head lamp. Efficient
and bright, this gives TVS Jupiter a
totally upgraded Look and Style with
better visibility for night rides.
LOW FUEL INDICATOR
'Low Fuel Indicator' is yet another
unique feature of your scooter which
indicates you to refill the fuel, when
the fuel in the tank goes below
minimum safe level. Refer page No.
13 for details.
-II-

UNIQUE FEATURES OF TVS JUPITER
PATENTED E-Z CENTRE STAND
E-Z Centre Stand of your scooter
reduces the effort required to place
the scooter on stand. Refer page No.
18 for operating procedure.
AL L B L AC K LAR GE R AL L O Y
WHEELS
All 'Black Larger Alloy Wheels' with
high mechanical advantage gives
progressive braking of your scooter,
results in best-in-class 'shortest
distance' braking. It also provide
sup er ior comf ort in bad r oad
conditions.
PARKING BRAKE (REAR BRAKE
LOCK)
'Parking Brake' is another unique
safety feature which protects your
scooter from falling due to wheel
rotation when it is parked with the
side stand on a slope. Refer page No.
15 for details.
S Y N C H R O N I S E D B R A K E
TECHNOLOGY (SBT)
Synchronised Brake Technology
reduces the stopping distance, while
keeping the stability intact.
UNDER-SEAT STORAGE (UTILITY
BOX)
Your scooter has a 21 litre under-
seat storage space to carry your
luggage belongings, full face helmet
etc., refer page No. 19 for details.
DASHBOARD ASSEMBLY
Your scooter is provided with this
unique secondary storage, refer
page No. 20 for details.
HELMET HOOKS
Your scooter has two helmet hooks
under the seat assembly at the front
end of utility box to secure your
helmet. Refer page No. 21 for
details.
-III-

UNIQUE FEATURES OF TVS JUPITER
-IV-
SMART PHONE CHARGER*
Smart phone charger is supplied as
an optional accessory for your
scooter. Location for fixing the
socket is provided below the left
side of the handle bar.
C o n t a c t n e a r e s t T V S M o t o r
Company Authorised Distributor or
Dealer / Authorised Service Centers.
for fixing the socket. Refer page No.
22 for usage details.
FRONT GLOVE BOX*
TVS Jupiter is provided with glove
box front. Which has 1 litre storage
capacity and used to hold your
mobiles while charging or hold a
small bottle.
INDICATOR BEEPER*
Your scooter has an electronic
beeper which alerts you that the turn
signal indicators are 'ON'. This
beeper comes as a mandatory
accessory.
* Mandatory and optional accessory will be charged extra

Dear TVS Jupiter Owner,
Thank you for choosing TVS Jupiter , a stylish scooter with all new CVT-I Engine with Fuel Injection & many class-leading
features. As a proud owner of TVS Jupiter , you are now part of a family of millions of satisfied TVS customers.
TVS Jupiter comes equipped with ETFI (Eco Tuned Fuel Injection) BSVI technology, giving you a smoother and
enjoyable riding experience. With TVS Jupiter, riding comfort enters a new dimension. This innovative mobility
embodies a combination of class-leading features and style unprecedented in the two-wheeler segment. Its unique
vehicle design and superior ergonomics make it a scooter which gives you more in every aspect.
This manual explains the features and operations of your TVS Jupiter . Kindly read it carefully and follow the instructions
to enjoy years of safe riding. To ensure reliable performance, we urge you to get your TVS Jupiter serviced only at TVS
Motor Company Authorised at specified regular periodic intervals.Distributor or Dealer / Authorised Service Centers
We welcome you once more to a world of comfortable and easy riding!
TVS MOTOR COMPANY LIMITED
FOREWORD
-V-

NOTICE
Take time to familiarize yourself with your TVS Jupiter and its performance characteristics.
This Owner's Manual contains a host of useful information. Please take the time to read this manual before you ride your
new TVS Jupiter. Get familiarised with the operation of your scooter for maximum safety and pleasure. The better you
know your vehicle, the more pleasure you will experience riding your new vehicle. Ensure that anyone else riding your
TVS Jupiter does the same.
All information, illustrations, photographs and specifications contained in this owner's manual are based on the latest
product information available at the time of this publication. TVS Motor Company Limited may, however, incorporate
modifications or improvements on its vehicles at any time without notice, and therefore, in such events it is possible that
the relevant part of the owner's manual does not apply to your vehicle.
Prior permission of TVS Motor Company Limited is required for quoting, copying or reproducing any part of this owner's
manual.
Part Number :- K6210920 Revision 0, January 2023
-VI-
Note
Accessories shown in the picture may not be part of the standard equipment.
Pictures shown in this manual are of TVS Jupiter Classic drum brake model unless specified.
Your scooter is provided with always glowing head lamp (AHO). The head lamp glows automatically once the
engine is started.
Since your vehicle is fitted with side stand cut-off system ensure to retract the side stand before starting the
vehicle.

SAFETY INFORMATION
Operating this vehicle safely is an important responsibility of the rider. To help you make decisions about safety, we have
provided operating procedure and other information in this manual. This information alerts you on potential hazards that
could hurt you or others. Since it is not possible to warn you about all hazards associated with operating or maintaining
the vehicle, you must use your own judgement.
You will find important safety information in following form in this manual. These words carry the following
connotations:
Disregarding this message might result in injury to the rider.
This message indicates special procedures or precautions to be followed to avoid damage to the vehicle.
This message provides further clarification for clearer understanding of any particular information.
-VII-
Caution
Warning
Note

CONTENTS
-VIII-
Running-in information 01
Safe riding tips 02
Know your TVS Jupiter 06
Riding your TVS Jupiter 23
Maintenance 27
Service record sheet 44
Technical specifications 46

Replacing the engine and transmission oil during first service is most important for better life of engine. Always use TVS
TRU4 PREMIUM oil (SAE10W30 API-SL, JASO MA2) for better performance and life.
RUNNING-IN INFORMATION
The first 1000 km is a crucial part for the life of your scooter. Proper running-in operation during this period helps in
ensuring a maximum life and smooth performance of your scooter.
The reliability and performance of your scooter depends on the special care and restraint exercised during the running-in
period. It is especially important that you avoid operating the engine in high speed (RPM), which could expose the engine
parts to excessive stress. Maximum recommended speed during the running-in is:
Maximum 50 kmph speed upto 1000 km (vary the engine speed for better mating of parts).
The first service at 500 ~ 750 km is most important. During running-in period all the engine components and other
parts will have set in. All adjustments to be restored, all fasteners to be tightened. Engine and transmission oil to be
replaced. Timely performance of the first service will ensure optimum service life and performance from the engine.
-1-
Caution

SAFE RIDING RECOMMENDATIONS
Any two wheeler riding requires some precautions to be taken to ensure the safety of the rider, pillion and other road
users. These precautions are:
Familiarise yourself with new TVS Jupiter
Riding skill and your mechanical knowledge form the foundation of safe riding practices. We suggest you to practice
riding TVS Jupiter in a low-traffic condition until you are thoroughly familiar with your vehicle and its controls. Remember
practice makes you perfect.
Riding apparel
Loose, fancy clothing can be uncomfortable and unsafe when riding a two-wheeler. Choose good quality two wheeler
riding apparel.
Know your limits
Ride within the boundaries of your own skill at all times. Knowing these limits and staying within them will help you avoid
accidents.
SAFE RIDING TIPS
-2-
Two wheeler safety equipment starts with wearing a good quality helmet. One of the most serious injuries that can
happen is a head injury. Always wear an ISI approved helmet that should fit your head comfortably and securely. You
should also have good quality goggles to protect your eyes and help your vision.
To prevent or minimize accident, never consume alcohol or drugs before or during the operation of your vehicle. Even
minimal consumption of these will affect the rider’s ability to control the vehicle.
Warning

SAFE RIDING TIPS
-3-
Cornering
When cornering, centrifugal force works in a direction
perpendicular to the direction in which the vehicle is
moving. Centrifugal force increases in proportion with
speed and the radius of the corner.
During cornering, reduce speed so as to lessen the
effects of centrifugal force. By all means, avoid abrupt
application of brake or sudden steering.
Braking
For safe riding, it is very important to master the
braking techniques.
1. Close / release the throttle.
2. Hold the vehicle upright as you apply the brake.
3. Progressive application of brake is safer.
4. Apply both the brakes. 'SBT' provides additional
braking even when 'Only Rear brake' is applied,
But applying 'Both the brakes' helps you to use
the full potential of the brakes.
5. Riding down hills, while cornering and wet roads
close throttle and come to a slower speed to avoid
the loss of control over the vehicle due to
skidding.
Posture
Proper vehicle riding starts with proper posture.
1. Keep your elbows relaxed and flexible.
2. Sit and adjust yourself on seat so that arms and
shoulders are relaxed.
3. Look widely instead of gazing at one point.
One-hand riding is dangerous. Keep both hands
firmly on the handle bar and both feet securely on the
floor board. Under no circumstances should both the
hands be removed from the handle bar, as it is very
dangerous.
Avoid use of mobile phones while riding as it could
lead to fatal accident.
Slow down to a safe speed before negotiating a
corner. If this is the first time that you are riding a
vehicle of this type, we suggest that you practice on a
safe, open area to become thoroughly familiar with
the operation of the vehicle.
Warning

Causes for poor braking
1. If the brake shoes or drum are worn out or if there
is water or oil on them, sufficient friction does not
develop and brakes do not work well.
2. Even when the brake works normally, if the road
surface is wet or the tyre surface is worn-out,
tyres do not take a firm hold on the surface,
increasing the stopping distance.
3. Approximately 60% braking effect is from front
brake. Non-usage of front brake causes poor
braking.
ACCESSORY INSTALLATION AND SAFETY TIPS
Use extreme caution while selecting and installing the
accessories for your scooter.
The addition of unsuitable accessories can lead to
unsafe operating conditions. Your friendly Dealer will
assist you in selecting quality accessories and
installing them correctly.
While selecting the accessories, make sure that the
accessories should not obstruct lighting, steering,
suspension level and ground clearance.
Additional electrical equipments is not acceptable
as it will void warranty terms of the vehicle.
EMISSION CONTROL
All the TVS vehicles are tested in the factory for
optimum fuel efficiency and CO levels.
If the vehicle needs any adjustments, please consult
nearest TVS Motor Company Authorised Distributor
or Dealer / Authorised Service Centers.
While adequate care is exercised at the factory to
ensure that the emissions are within the limits, it is
essential for the owner to always maintain the scooter
in good condition by getting it periodically checked
and serviced by TVS Motor Company Authorised
SAFE RIDING TIPS
As the vehicle speed increases, the stopping distance
also increases progressively. Be sure that, you have
sufficient distance between you and the vehicle or
obstruction ahead of you.
Using only the front or rear brake is dangerous and can
cause skidding and loss of control. Apply both the
brakes together and with great care on a wet road or
other slippery surfaces. Any abrupt braking on
slippery or irregular roads can cause loss of rider
control.
-4-
Warning

Distributor or Dealer / Authorised Service Centers so
that the emission and fuel consumption levels are
maintained as per norms.
Crankcase emission control system
The engine of new TVS Jupiter is equipped with a
closed crankcase system to prevent discharging
crankcase emissions into the atmosphere. Blow-by
gas is returned to the combustion chamber through
the air cleaner and the fuel system.
Evaporative Emission Control System
TVS Jupiter is equipped with an evaporative emission
control system which consists of a canister and
associated piping. This system prevents the escape of
fuel vapors from the fuel tank.
If there is any abnormal jerk, startability issue are felt
in the vehicle or noise due to sudden escape of gas
during opening of fuel tank cap, immediately report to
the TVS Motor Company Authorised Distributor or
Dealer / Authorised Service Centers.
Your vehicle is tested and certified for emission
which meets EURO V emission norms and is valid
for initial 12 months from the date of purchase. Get
your vehicle certified by the Government authorised
emission testing station after initial 12 months of
usage. And ensure to get the vehicle certified on
expiry of the certificate obtained.
SAFE RIDING TIPS
-5-
Warning
Note

VEHICLE IDENTIFICATION NUMBER
Serial numbers of both frame and engine are required for vehicle identification. They are also required to assist your
Dealer for ordering parts or referring to special information.
Frame number
Engine number
Control key number
Please fill the above boxes now for future reference
KNOW YOUR TVS JUPITER
The frame serial number is stamped on the frame, at
the rear end below the seat assembly. Open the seat
assembly to read the frame number.
The engine serial number is stamped on the left side
of the engine, at the bottom, near center stand
mounting. See bottom to read serial number.
-6-
*MD626CG52N1N03748*
DG5NN1609854

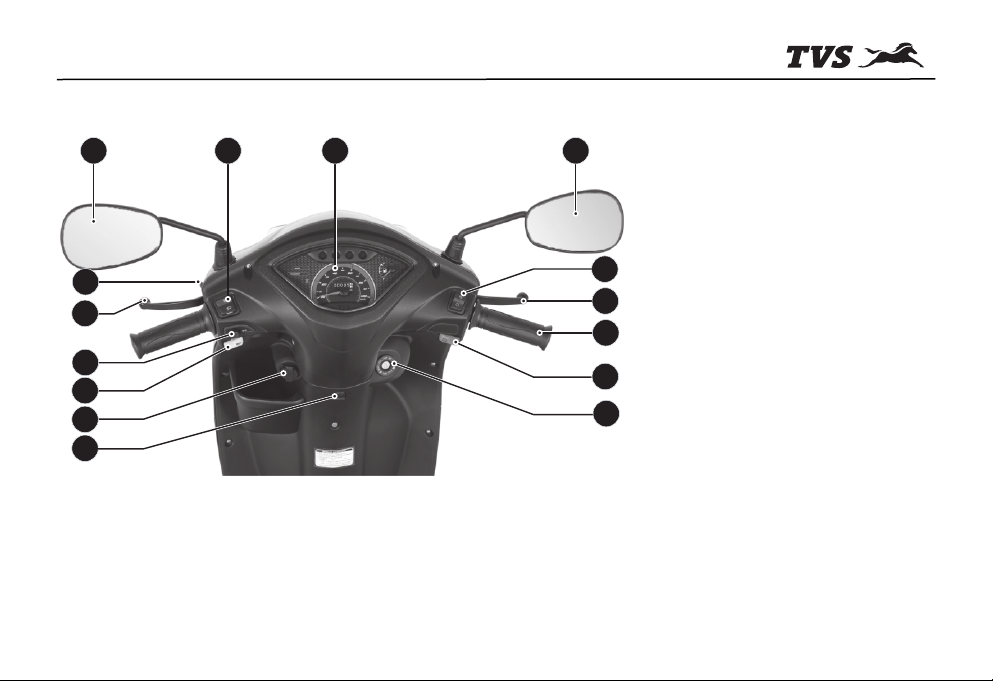

LOCATION OF PARTS - HANDLE BAR
1. Speedometer assembly
2. Rear view mirror L
3. Engine kill switch
4. Right hand brake lever
5. Throttle grip
6. Electric starter switch
7. Ignition cum steering lock
8. Bag hook (front)
9. Smart phone charger*
10. Horn switch
11. Turn signal lamp switch
12. Left hand brake lever
13. Parking brake (rear brake lock)
14. Rear view mirror R
15. High / low beam cum pass-by
switch
12
4
5
6
7
8
10
11
14 15
3
13
12
9
KNOW YOUR TVS JUPITER
-7-
* Mandatory and optional accessory will be charged extra

LOCATION OF PARTS - VEHICLE LEFT SIDE
1. Rear brake adjusting nut
2. Kickstarter lever
3. Effortless easy center stand
4. Pillion foot rest L
5. Reflex reflector
6. Speedometer cable
7. Front brake adjusting nuts
8. Seat cum fuel tank cap lock
KNOW YOUR TVS JUPITER
1
3
6
7
8
2
54
-8-

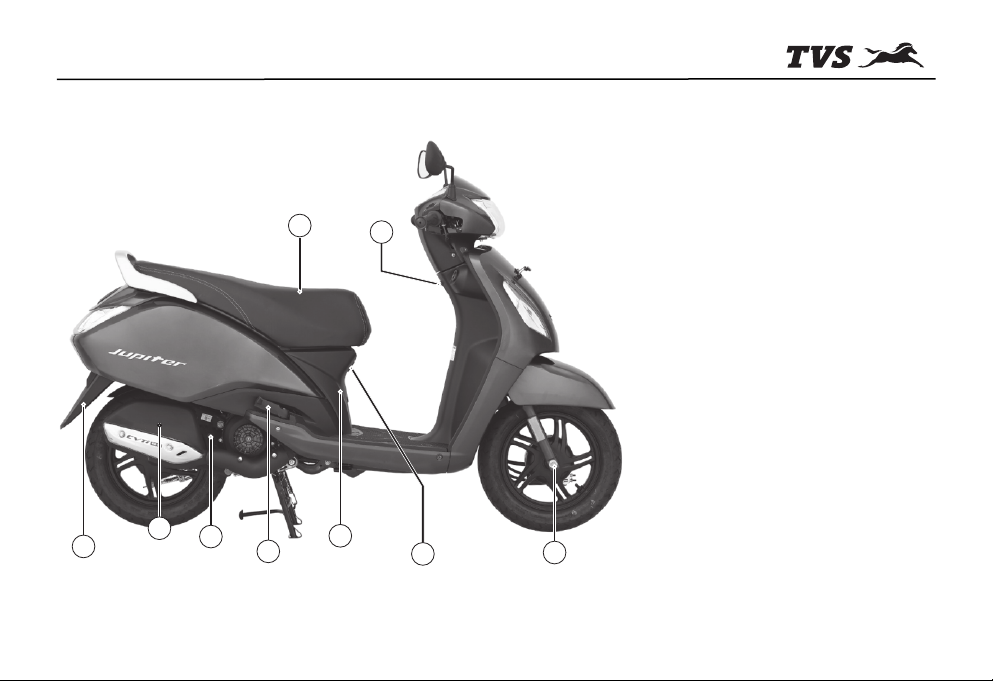

LOCATION OF PARTS - VEHICLE RIGHT SIDE
1. Front wheel axle nut
2. Bag hook (rear)
3. Cover front
4. Pillion foot rest R
5. Gauge oil level
6. Muffler assembly
7. Rear fender
8. Seat assembly
9. Bag hook (front)
KNOW YOUR TVS JUPITER
-9-
1
4
53
6
7
89
2

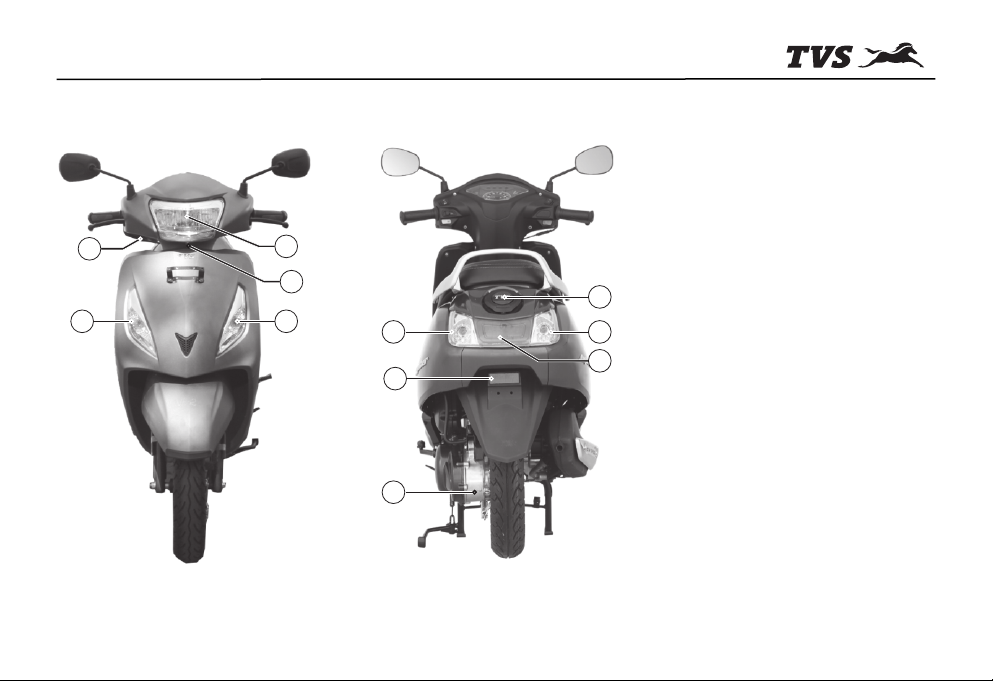

LOCATION OF PARTS - VEHICLE FRONT & REAR
FRONT
1. LED Head lamp
2. Head lamp focus adjuster
3. Turn signal lamp front LH
4. Turn signal lamp front RH
5. Throttle cable adjuster
REAR
1. Fuel tank cap
2. Turn signal lamp rear RH
3. Tail / brake lamp
4. Transmission oil level screw
5. Reflex reflector
6. Turn signal lamp rear LH
KNOW YOUR TVS JUPITER
-10-
1
3
2
4
5
1
2
3
4
5
6
