Brähler Systems DIGIMIC SChair133D Hybrid User manual

Quick Guide
DIGIMIC SChair133D Hybrid
Chairman multimedia unit with Windows operating system
Article no : 05 1926 CH

DIGIMIC SChair133D Hybrid
Quick Guide
2
BRÄHLER Systems GmbH
Auf der Alten Burg 6
53639 Königswinter
Germany
✆
+49
2244
8414 4
sales@braehler-systems com
www braehler-systems com
05 1926 CH 230202 V1 0 BRÄHLER Systems is constantly improving its products and therefore reserves the right to make technical changes without notice
Introduction and connections
With the SMic series of the DIGMIC family, you have your conference subjects optimally supplied with
multimedia All SMic units feature microphone, headphone jack, speaker, language selector, tuning function
and identification In addition, the SChair133D Hybrid is the first multimedia unit to be equipped with a
Windows operating system For example, conference participants who are not present in person can be
connected online via web conferencing Of course, all other Windows functions are also available: you can, for
example, create documents, presentations, calculations, etc or go online via the web browser Numerous
Brähler Systems software solutions can be installed (depending on the license)
The SChair133D Hybrid is operated via a touchscreen display In addition, the SChair133D Hybrid has a crystal
clear OLED display that shows information about the currently selected interpreter channel and the headphone
volume During tuning procedures, it also displays the available tuning options, the current selection and the
results after tuning Thanks to this separate screen with its five control buttons, the large screen can be used in
combination with Brähler Systems software solutions such as brählerOS or MicControl2 to operate a
conference from the chairperson's seat
The language channels can be fed externally via DANTE
®
via DCen central unit or internally via the DDol
interpreter console The units are connected via RJ45 connector
Connect the SChair133D Hybrid to a power supply and connect it to your central processing unit and, if
applicable, other SMic units - the system is then directly ready for use
USB port
OLED display with 5
control buttons
RFID card reader
Loudspeaker
Headphone jack Microphone
connector
Microphone
button
Override button for chairman
Toggle switch between
DC and PoE power supply
Connection from the
previous console or the
control panel
(RJ45 connector)
Connection to the next
console
(RJ45 connector)
2 network ports
2 USB ports
HDMI connection Power connection (DC)

DIGIMIC SChair133D Hybrid
Quick Guide
3
BRÄHLER Systems GmbH
Auf der Alten Burg 6
53639 Königswinter
Germany
✆
+49
2244
8414 4
sales@braehler-systems com
www braehler-systems com
05 1926 CH 230202 V1 0 BRÄHLER Systems is constantly improving its products and therefore reserves the right to make technical changes without notice
Only devices of the DIGIMIC family may be connected via the "Next" and "Prev" connections
(highlighted in red)! Connecting devices from other manufacturers can cause considerable damage
Headphones
You can listen to the audio signal in two ways - via the integrated speaker or via headphones Connect the
headphones and adjust the volume
Press the VOL +/- function keys on the control buttons of the OLED display to adjust the volume of the
headphones The selected volume is shown on the display The volume of the speaker is controlled centrally
Interpretation channels can only be received via headphones If no headphones are connected, you will
hear the original channel (floor) via loudspeakers
Microphone
Plug in the microphone Note the notch on the microphone plug and the Minicon jack Screw the microphone
tight to lock it in place
Example system image
Volume display
Volume control

DIGIMIC SChair133D Hybrid
Quick Guide
4
BRÄHLER Systems GmbH
Auf der Alten Burg 6
53639 Königswinter
Germany
✆
+49
2244
8414 4
sales@braehler-systems com
www braehler-systems com
05 1926 CH 230202 V1 0 BRÄHLER Systems is constantly improving its products and therefore reserves the right to make technical changes without notice
Press the microphone key to switch the microphone on Press the microphone key again to switch the
microphone off
The SMic units operate in different mode settings These are determined by the operator of the conference
After pressing the microphone button, you have the following options
Key and ring light up red: The microphone is open You can speak to the remaining participants
In addition, if the chairman's priorities are switched off, the button and ring have this meaning:
Button and ring remain off: The maximum number of speakers has been reached - you must try to turn on
your microphone again at a later time
Key flashes red: The maximum number of speakers has been reached You must wait (request to speak) Your
microphone will be automatically activated as soon as it is your turn to speak
Language selector
DIGIMIC SMic133 receives up to 32 channels - original channel and 31 interpretation channels Channel and
language assignments are made at the DCen central control unit in real time
Set the language selector via the OLED display Press the CH +/- function key to set the desired language The
SChair133D Hybrid automatically detects which channels are occupied Unoccupied channels are skipped
during the dialing process
Example: Channels 5 and 10 are occupied in addition to the original channel When selecting the language via
the function key (+), the DIGIMIC SMic automatically jumps from channel FL (Floor) to 5 and on to channel 10
Next, you return to channel FL
The display shows you the selected channel either in native representation or in English By pressing the Mode
button, you can switch between the two variants
Microphone
Minicon socket
Language channel
downwards
upwards
Volume setting
increase
reduce
Light sensor
Mode

DIGIMIC SChair133D Hybrid
Quick Guide
5
BRÄHLER Systems GmbH
Auf der Alten Burg 6
53639 Königswinter
Germany
✆
+49
2244
8414 4
sales@braehler-systems com
www braehler-systems com
05 1926 CH 230202 V1 0 BRÄHLER Systems is constantly improving its products and therefore reserves the right to make technical changes without notice
Example: A channel that displays the Chinese language in the country-specific mode:
Press the Mode button to switch the display to English:
The channel selector display is only shown if the desired channels are defined in the DCen control
panel Otherwise, the boot-up logo remains on the display
Voting mode
Voting procedures are possible with the SChair133D Hybrid As soon as a voting starts, the voting options are
shown on your OLED display Depending on the setting, the display changes - for example, letters (A-E),
numbers (1-5) or "yes/no/abstain" can be selected Press the operating keys to perform the settings Depending
on the setting, the representation on the display changes Some examples are given below:
Display of all 5 keys and thus voting on five points (questions):
Representation with digits selected :
The participant has selected key A (question A):
Depending on the setting, the answers can be corrected several times,
or multiple answers may be allowed:

DIGIMIC SChair133D Hybrid
Quick Guide
6
BRÄHLER Systems GmbH
Auf der Alten Burg 6
53639 Königswinter
Germany
✆
+49
2244
8414 4
sales@braehler-systems com
www braehler-systems com
05 1926 CH 230202 V1 0 BRÄHLER Systems is constantly improving its products and therefore reserves the right to make technical changes without notice
In the following example, a parliamentary vote is provided Here, only three options YES, NO, ABSTAIN are
given:
A different arrangement of the tuning keys is specified here:
The special feature of this tuning is the so-called secret mode: Here, it is not displayed which key was pressed
Only the fact that a key was pressed is signaled by making all keys recognizable
After voting, the result can be shown on the display - even during operation Several display formats are
possible:
Percentage
with one decimal place…
or absolute:
If you have started the Delegate APP on your SChair133D Hybrid, you can also participate in a vote via the
Delegate App In this case, the voting takes place via the touch display
Your vote is cast by tapping the desired field
An example with three choices

DIGIMIC SChair133D Hybrid
Quick Guide
7
BRÄHLER Systems GmbH
Auf der Alten Burg 6
53639 Königswinter
Germany
✆
+49
2244
8414 4
sales@braehler-systems com
www braehler-systems com
05 1926 CH 230202 V1 0 BRÄHLER Systems is constantly improving its products and therefore reserves the right to make technical changes without notice

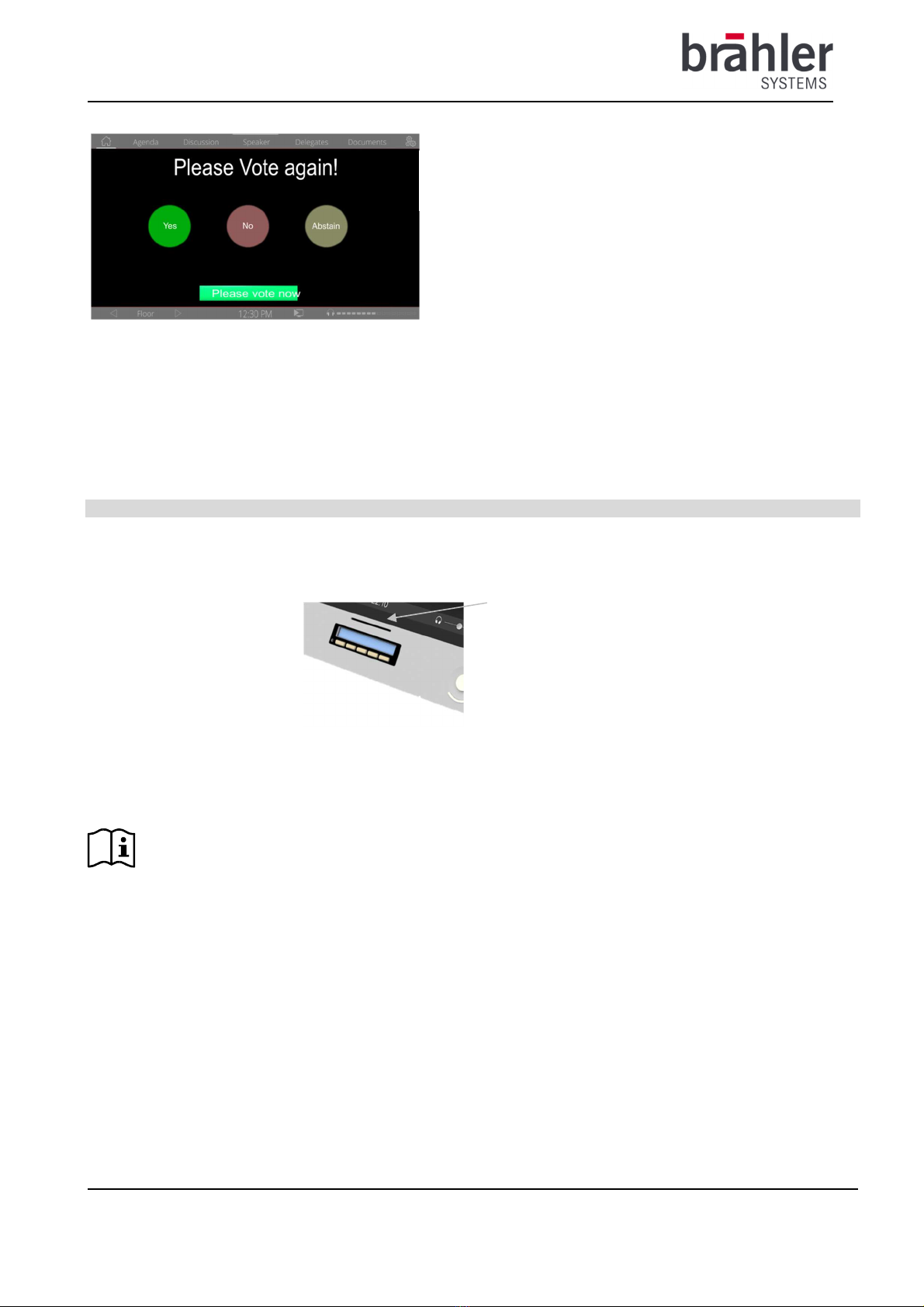

The voting procedure is determined in advance by the operator of the conference For example, multiple
nominations, changes or one-time selections are possible
After a vote, the result can be shown on the display The display format is determined by the operator of the
conference
RFID card reader
The SMic is equipped with an RFID card reader By means of RFID card all conference topics can be registered
and identified
Your data is stored on your personal card for a specific purpose Insert your RFID card into the RFID card
reader The SMic recognizes you automatically and assigns you rights accordingly, for example to participate in
voting
The RFID cards are not automatically personalized The cards must be programmed by the conference
operator before they are issued
RFID card reader
In this example, the participant has
selected "Yes

DIGIMIC SChair133D Hybrid
Quick Guide
8
BRÄHLER Systems GmbH
Auf der Alten Burg 6
53639 Königswinter
Germany
✆
+49
2244
8414 4
sales@braehler-systems com
www braehler-systems com
05 1926 CH 230202 V1 0 BRÄHLER Systems is constantly improving its products and therefore reserves the right to make technical changes without notice
More connections
The SChair133D Hybrid has 2 network ports This allows you to connect the SChair133D Hybrid to
up to two networks, for example your local home network and an Internet connection in parallel If
the SChair133D Hybrid is supplied with power via PoE, the switch (DC/PoE) must be set to PoE
accordingly
An additional screen can be connected to the SChair133D Hybrid via the HDMI port This is useful, for
example, when controlling a conference from the chairperson's seat
The SChair133D Hybrid has a total of 3 USB ports, which can be used to connect a mouse and
keyboard and/or storage media, for example
Warnings
Set the SChair133D Hybrid to an appropriate volume Do not listen too loudly through the
headphones
The "Next" and "Prev" connections of the SChair133D Hybrid are only suitable for additional SMic
units or DExt Do not connect any other devices!
In case of malfunction, contact a technician, do not attempt to repair, unscrew or similar the
SChair133D Hybrid by yourself

DIGIMIC SChair133D Hybrid
Quick Guide
9
BRÄHLER Systems GmbH
Auf der Alten Burg 6
53639 Königswinter
Germany
✆
+49
2244
8414 4
sales@braehler-systems com
www braehler-systems com
05 1926 CH 230202 V1 0 BRÄHLER Systems is constantly improving its products and therefore reserves the right to make technical changes without notice
Appendix
You can find more information about our products on the Internet at:
www braehler-systems com
© 2022, Copyright by BRÄHLER Systems GmbH, Königswinter
All rights reserved, in particular (also in extracts) those of translation, reprinting, reproduction by copying or
similar processes
BRÄHLER Systems reserves the right for technical changes without notice
