INSTRUCTION MANUAL
.6-5*FUNCTION"-8 IRON

MULTI-FUNCTIONAL 2000W IRON
INSTRUCTION MANUAL
MODEL NO.: BBEL1001

2
IMPORTANT SAFEGUARDS
1. Please read through the following safety precautions carefully before switching on the Iron.
2. Keep this instruction manual in a safe place for future reference. Also keep the sales receipt
and, if possible, the gift box with the inner packaging.
3. Failure to follow all the instructions listed may result in electric shock, fire or serious personal
injury.
4. Before plugging the Steam Iron into the mains electrical supply, check that the voltage and
power supply comply with the specifications indicated on the rating plate of the appliance.
5. The Steam Iron is not intended for use for by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
6. Always place the Steam Iron on a stable, flat, heat-resistant surface. Also ensure that the
surface can take the weight of the unit during use and also when the Steam Iron is resting on its
stand.
7. The Steam Iron is intended for DOMESTIC USE ONLY and should not be used for commercial
purposes. The Steam Iron should only be used for its intended purpose.
8. Always keep the Steam Iron out of reach of children. Close adult supervision is necessary when
Steam Iron is used by or near children. Burns can occur from touching hot metal parts, hot water
or steam.
9. Do not leave the Steam Iron unattended when in use or when connected to the mains electrical
supply.
10. Unplug the Steam Iron from the mains electrical supply before:
%Cleaning
%Filling with water or emptying the water tank
%Immediately after use
%While it is being repaired
11. Do not operate the Steam Iron if the plug or power cord have been damaged, or if it is not
working properly.
12. The Steam Iron is not to be used if it has been dropped, if there are visible signs of damage or if
it is leaking.
13. Check the Steam Iron power cord regularly for damage. If the power cord is damaged in any
way, it must be replaced by the manufacturer or its service agent or a similarly qualified person
in order to avoid an electrical hazard.
14. Do not allow the power cord to hang over sharp table edges or come into contact with hot
surfaces.
15. To prevent the risk of electrical shock, do not immerse the power cord, plug, or any non-
removable parts of this Iron in water or any other liquid.
16. The Steam Iron base must not be submerged in water, as any contact with the electrical parts
would create the risk of malfunction and electric shock. Do not use the appliance with wet
hands.

17. Do not use the Steam Iron outdoors.
18. Always switch the power OFF before removing the plug from the mains electrical supply.
19. To unplug the Steam Iron, grasp the plug firmly and remove it from the mains electrical supply.
DO NOT PU LL ON T HE COR D.
20. Never use the Steam Iron if it is damaged in any way.
21. All repairs should be done by a qualified electrician. Improper repairs may place the user at risk.
22. When handing this product over to a third party, ensure that this instruction manual is supplied
with the appliance.
TE
3 YEAR GUARANTEE
CHNICAL DATA
Power: 240V ~50Hz
Power: 2000W

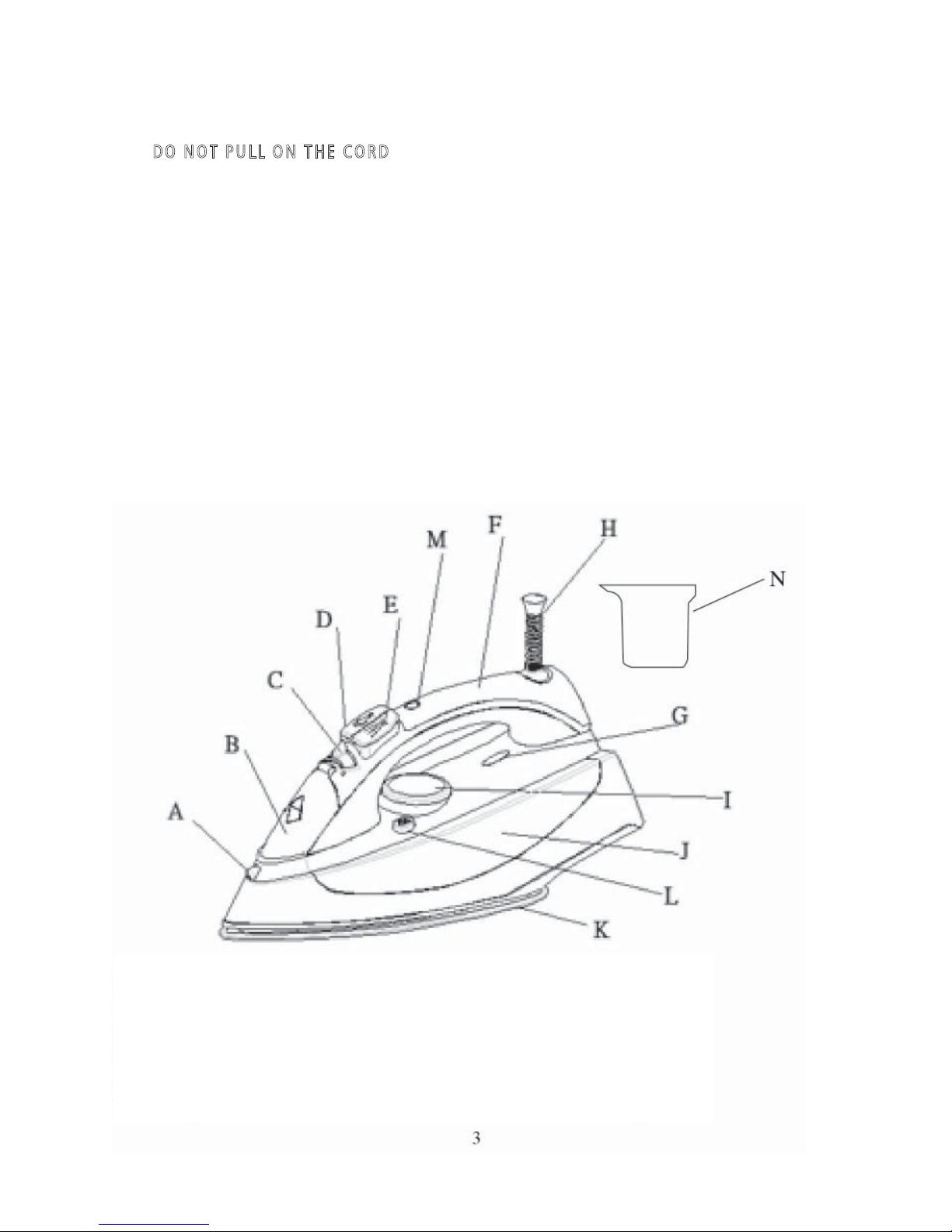

KNOW YOUR MULTI-FUNCTIONAL 2000W IRON
rotcetorpdrocrewoP.HelzzoNyarpS.A
laidlortnocerutarepmeT.ItelnignillifretaW.B
C. Steam control switch J. Water tank
D. Burst of steam button K. Nano ceramic soleplate
fl
eS.LnottuByarpS.E cleaning button
tuhsotuA.MpirghcuottfoS.F off light
pucgnirusaemcitsalP.NthgiltoliP.G
Power Cord Protector.HelzzoNyarpS.A
Temperature Control Dial.ItelnIgnilliFretaW.B
C. Steam Control Switch J. Water Tank
D. Burst of Steam Button K. Nano Ceramic Soleplate
Self-Cleaning Button.LnottuByarpS.E
Auto Shut-Off Light.MSoft Touch Grip.F
G. Pilot Light N. Plastic Measuring Cup

4
HOW TO USE YOUR MULTI-FUNCTIONAL 2000W IRON
BEFORE FIRST USE
1. ItisnormalforasmallamountofsmoketobeproducedthefirsttimetheSteamIronisused.
Thiswilldisappearquickly.
2. WhenusingtheSteamfunctionforthefirsttime,donotdirectthesteamtowardsthelaundry,
astherecouldbedebrisfromthesteamvents.

FILLING WITH WATER
1. MakesurethatboththeSteamControlSwitchandTemperatureControlDialareinthe“OFF”
position.
2. HoldtheSteamIronuprightsothatthewater-fillinginletisinahorizontalposition.
3. FillwithwaterthroughWaterFillingInletuntilthewaterreachesthe‘MAX’markindicatedon
thesideoftheSteamIronandneverfillabovethe‘MAX’mark.

SETTING THE TEMPERATURE
Followtheironinginstructionsonthegarmentlabel.Ifthereisnoinstructionbutyoudoknowthe
typeoffabric,pleaseconsultthefollowingtable.
Note:Ifthefabricconsistsofvariouskindsoffabrics,alwaysselectthetemperaturerequiredbythe
mostdelicatefabrics.

Fabric TemperaturecontrolTemperaturerequirement
SyntheticLowtemperature
Silk
Wool
Mediumtemperature
Cotton
Linen
MAXHightemperature


STEAM IRONING
1. PlacetheSteamIroninaverticalposition,inserttheplugintothemainselectricalsupplyand
settheTemperatureControlDialattheminimum/lowheatsetting.
2. ThenturntheTemperatureControlDialtothe‘MAX’position.ThePilotLightwillilluminate,
indicatingthattheSteamIronisheatingup.
3. WhenthePilotLightturnsoff,theSteamfunctionisreadytobeused.
4. Selectthetemperaturesettingdependingonthefabricthatistobesteamed.
5. TurntheSteamControlSwitchontotherequiredposition.
6. SteamisproducedassoonastheSteamIronisheldhorizontally.
7. Duringsteam-ironing,thePilotLightontheSteamIronautomaticallyswitchesonandoff,
indicatingthatthethermostatismaintainingthesettemperature(youmaycontinueironing
duringthisprocess).

5
SPRAYING
1. Press the Spray Button to spray water on clothes as often as required.
NOTE: When using the water spray function, ensure that there is enough water in the water tank.
You may have to pump the Spray Button several times at first time in order to start the spraying
function.
VERTICAL OR BURST OF STEAM IRON
1. Press the Burst of Steam Button to generate a powerful burst of steam that can penetrate the
fabric and smooth out the toughest of creases. Wait for a few seconds before pressing again.
2. By pressing the Burst of Steam Button at intervals you can also iron vertically (curtains; hung
garments, etc.)
3. Note: The Burst of Steam function can only be used at high temperature. Stop the emission
when the Pilot Light illuminates, then start ironing again only after the Pilot Light is switches off.
DRY IRONING
1. For ironing without steam, follow the instruction in section ‘steam ironing’, however, the Steam
Control Switch should remain in the ‘OFF’ position (no steam).
ANTI-CALC SYSTEM
1. Aspecialfilterinsidethewatertank softens the water and prevents scale build-up in the
soleplate. The filter is permanent and does not need replacing.
2. Note: Use tap water only. Distilled and demineralized water makes the anti-calc system
ineffective by altering its physio-chemical characteristics.
ANTI-DRIP SYSTEM
1. This Steam Iron is equipped with drip stop function: the Steam Iron automatically stops
steaming when the temperature is too low to prevent water from dripping out of the soleplate.
AUTO SHUT-OFF
1. An electronic safety device will automatically switch the heating element off if the Steam Iron
has not been moved for more than 30 seconds in a horizontal position. If in a vertical position,
this will happen after 8 minutes. To indicate that the heating element has been switched off, the
auto-off pilot light will start blinking.
2. When picking up the Steam Iron again, the Auto Shut-off Light will switch off. The Pilot Light
will illuminate. This indicates that the Steam Iron is heating up again.
3. Wait for the Pilot Light to turn off. The Steam Iron will be ready for use once again.
2. With the anti-drip system, even the most delicate of fabrics can be ironed.

6
SELF CLEANING SYSTEM
The Self Cleaning feature on the Steam Iron cleans the inside of the Nano Ceramic Soleplate,
removing impurities.
We recommend using it every 10-15 days.
1. Set the Steam Control Switch to the ‘OFF’ position (no steam)
2. Fill the water tank to the MAX level.
3. Set the Temperature Control Dial to MAX heat temperature
4. Plug the Steam Iron into the mains electrical supply.
5. Place the Steam Iron upright on a level, sturdy surface
6. Wait for the pilot light to turn off.
7. Unplug the Steam Iron from the mains electrical supply.
8. Hold the Steam Iron in a horizontal position over a sink.
9. Press the Self-Cleaning Button down until the boiling water, steam and impurities come out of
the holes in the soleplate.
10. When the Nano Ceramic Soleplate has cooled down, wipe it with a damp cloth.
CLEANING AND MAINTAINANCE
1. After using, lift the Steam Iron with the filling hole pointing downwards to empty the remaining
water from the water tank.
2. Insert the plug into the electrical socket, and set the Temperature Control to ‘MAX’ for 1-2
minutes to evaporate the remaining water. Thereafter unplug the Steam Iron from the mains
electrical supply and allow it to cool down completely before storing.
ENVIRONMENT FRIENDLY DISPOSAL
This marking indicates that this product should not be disposed of with other household
waste. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote the sustainable re-use of material
resources. To dispose of your appliance correctly, please contact or take it to yourlocal
refuse / recycling centre. Alternatively, contact your local council for information on your
local re-use centre. Please make this product environmentally safe for recycling.

MODEL NO : BBE-
.6-5*'6/$5*0/"-8*30/
BRABANTIA CU4TOMER CARE LINE FOR 6, ONLY
08
