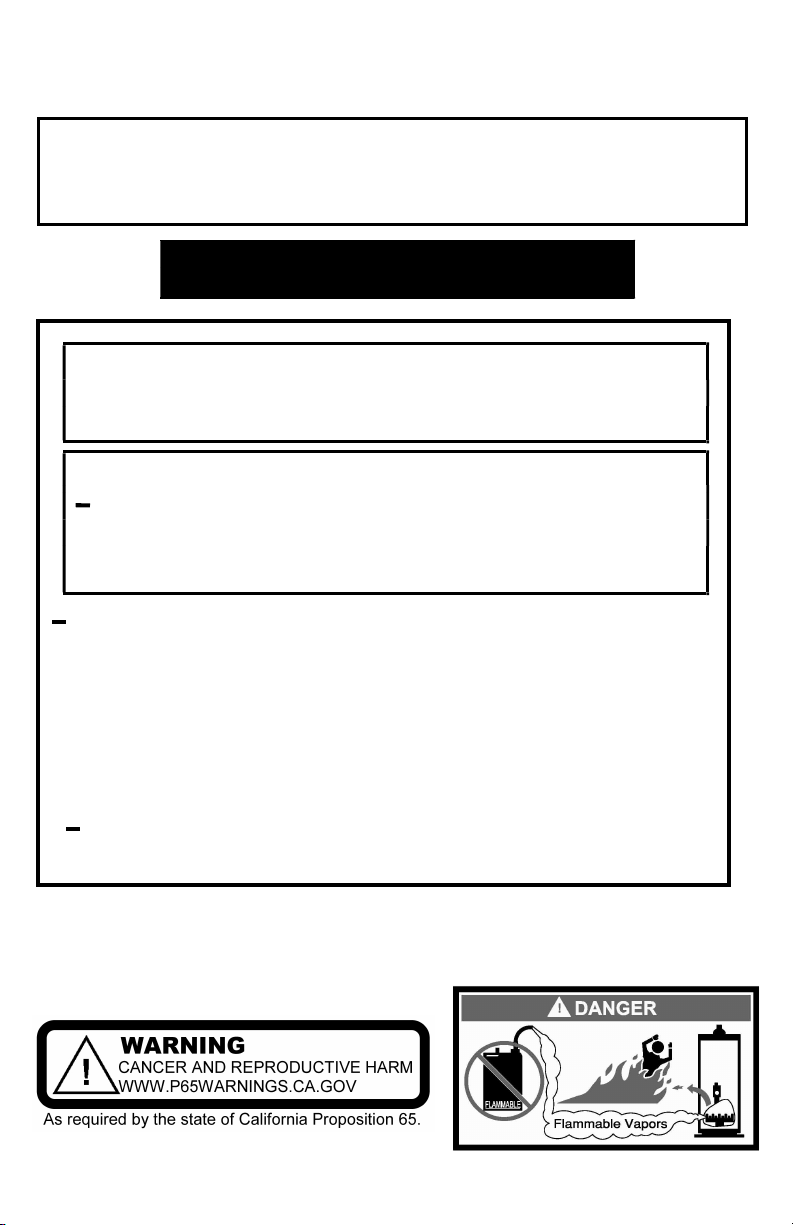

Bradford White URG2PV75H6N-475-264 User manual

238-51010-00E REV 5/18
POWER VENT GAS WATER HEATER
A Spanish language version of these instructions is available by contacting the
company listed on the rating plate.
La version espanola de estas instrucciones se puede obtener al escribirle a la
fabrica cuyo nombre aparece en la placa de especificaciones.
WHAT TO DO IF YOU SMELL GAS
 Do not try to light any appliance.
 Do not touch any electrical switch; do not use any
phone in your building.
 Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier's instructions.
 If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
For your family’s comfort, safety and convenience we
recommend this water heater be installed and serviced by a
plumbing professional.
INSTALLATION AND OPERATION
INSTRUCTION MANUAL
FOR YOUR SAFETY
Do not store or use gasoline or other flammable,
combustible, or corrosive vapors and liquids in the
vicinity of this or any other appliance.
WARNING: If the information in these instructions is not
followed exactly, a fire or explosion may result causing
property damage, personal injury, or death.

2
CONGRATULATIONS!
You have just purchased one of the finest water heaters on the
market today!
This installation, operation and instruction manual will explain in
detail the installation and maintenance of your new Power Vent
Gas Water Heater. We strongly recommend that you contact a
plumbing professional for the installation of this water heater.
We require that you carefully read this manual, as well as the
enclosed warranty, and refer to it when questions arise. If you
have any specific questions concerning your warranty, please
consult the plumbing professional from whom your water heater
was purchased. For your records we recommend that you write
the model, serial number and installation date of your water
heater in the maintenance section in the back of this manual.
This manual should be kept with the water heater.

3
TABLE OF CONTENTS
page
GENERAL INFORMATION ................................................................. 4
INSTALLATION. .................................................................................. 5
Locating the Water Heater .......................................................... 5
Minimum Clearances ................................................................... 8
Venting .......................................................................................... 8
Vent Pipe Preparation and Joining ............................................ 19
Combustion Air Supply ............................................................... 21
Water Connections ...................................................................... 23
Gas Connections .......................................................................... 26
Electrical Connections ................................................................ 27
Wiring Diagram ...................................................................... 28
GENERAL OPERATION ..................................................................... 29
Lighting and Shutdown Instructions ......................................... 30
Thermostat Adjustment ............................................................... 31
Burner Flame Check .................................................................... 32
MAINTENANCE ................................................................................... 33
TROUBLESHOOTING ......................................................................... 36
PARTS LIST AND DRAWING ............................................................. 38
INSTALLATION INSTRUCTIONS FOR POTABLE WATER AND
SPACE HEATING ................................................................................ 39
NOTES ................................................................................................. 40

4
GENERAL INFORMATION
This gas-fired water heater’s design is certified by CSA International under the
American National Standard Z21.10.1, CSA 4.1-M, Z21.10.3 and CSA 4.3 most
current editions at the time of manufacture. This is a category III water heater.
This water heater must be installed in accordance with local codes or, in the
absence of local codes, the National Fuel Gas Code, ANSI Z223.1-Latest
Edition) and/or in Canada CAN/CGA B149 Installation Codes (Latest Editions).
The warranty for this water heater is in effect only when the water heater is
installed, adjusted, and operated in accordance with these Installation and
Operating Instructions. The manufacturer will not be held liable for any damage
resulting from alteration and/or failure to comply with these instructions.
This water heater is not design certified for installation in a mobile home. Such
an installation may create a hazardous condition and will nullify the warranty.
Do not use this appliance if any external part to the tank has been submerged in
water. You should contact a qualified service technician to inspect the appliance
and to replace any part of the control system including the combination gas
control which has been submerged in water. See the Gas Connections section
of this manual before servicing or replacing a water heater that has had any
external part to the tank submerged in water.
CAUTION
Incorrect operation of this appliance may create a hazard to life
and property and will nullify the warranty.
WARNING
Prior to connecting the gas supply line to a gas fired water heater,
ensure that the gas supply line does not have moisture/water or
dirt/scale inside the gas line. Commonly this check is done at the
lowest point in the gas distribution system prior to gas burning
appliances.
DANGER
Do not store or use gasoline or other flammable, combustible, or
corrosive vapors and liquids in the vicinity of this or any other
appliance.

5
General Information continued-
Make sure that you check the rating plate and combination gas control on the
water heater to be certain that the type of gas being supplied corresponds with
the marking on the rating plate and combination gas control.
A sacrificial anode(s) is used to extend tank life. Removal of any anode, except
for inspection and/or replacement, will nullify the warranty. In areas where water
is unusually active, an odor may occur at the hot water faucet due to a reaction
between the sacrificial anode and impurities in the water. If this should happen,
an alternative anode(s) may be purchased from the supplier that installed this
water heater. This will minimize the odor while protecting the tank. Additionally,
the water heater should be flushed with appropriate dissolvers to eliminate any
bacteria.
INSTALLATION
Locating The Water Heater
DO NOT install the water heater in any location where gasoline or
flammable vapors are likely to be present.
Water Heaters in residential garages must be installed so that all burner(s)
and burner ignition device(s) are located not less than 18 inches (46 cm)
above the floor and must be located or protected to avoid physical
damage. For other installations refer to local codes. In the absence of
local codes, the water heater must be installed in compliance with the
National Fuel Gas Code, ANSI Z223.1 - (Latest Edition) and/or in Canada,
CAN/CGA B149 Installation Codes (Latest Editions).
Installation (Locating The Water Heater) continued-
IMPORTANT
Before proceeding, please inspect the water heater and its components for
possible damage. DO NOT install any water heater with damaged
components. If damage is evident then please contact the supplier where the
water heater was purchased or the manufacturer listed on the rating plate for
replacement parts.
WARNING
Water heaters are heat producing appliances. To avoid damage or
injury, do not store materials against the water heater or vent-air intake
system. Use proper care to avoid unnecessary contact (especially by
children) with the water heater and vent-air intake components. UNDER
NO CIRCUMSTANCES MUST FLAMMABLE MATERIALS, SUCH AS
GASOLINE OR PAINT THINNER BE USED OR STORED IN THE
VICINITY OF THIS WATER HEATER, VENT-AIR INTAKE SYSTEM
OR IN ANY LOCATION FROM WHICH FUMES COULD REACH THE
WATER HEATER OR VENT-AIR INTAKE SYSTEM.

6
The location of this water heater is of the utmost importance. Before installing
this water heater, read the installation section of these instructions. After
reading these installation and operating instructions, select a location for the
water heater where the floor is level and is easily accessible to gas and water
supply lines. DO NOT locate the water heater where water lines could be
subjected to freezing temperatures. Make sure the cold water pipes are
not located directly above the gas control so that condensate during
humid weather does not drip on the controls.
Water heater corrosion and component failure can be caused by the heating
and breakdown of airborne chemical vapors. Examples of some typical
compounds that are potentially corrosive are: spray can propellants, cleaning
solvents, refrigerator and air conditioning refrigerants, swimming pool
chemicals, calcium and sodium chloride, waxes and process chemicals. These
materials are corrosive at very low concentration levels with little or no odor to
reveal their presence. NOTE: DAMAGE TO THE WATER HEATER CAUSED
BY EXPOSURE TO CORROSIVE VAPORS IS NOT COVERED BY THE
WARRANTY. DO NOT OPERATE THE WATER HEATER IF EXPOSURE HAS
OR WILL OCCUR. DO NOT STORE ANY POTENTIALLY CORROSIVE
COMPOUNDS IN THE VICINITY OF THE WATER HEATER.
To comply with NSF requirements this water heater is to be:
a) Sealed to the floor with sealant, in a smooth and easily cleanable way,
or
b) Installed with an optional leg kit that includes legs and/or extensions
that provide a minimum clearance of 6” beneath the water heater.
WARNING
Liquefied petroleum gases/propane gas are heavier than air and will
remain at floor level if there is a leak. Basements, crawl spaces,
closets, and areas below ground level will serve as pockets for
accumulation of leaking gas. Before lighting, smell all around the
appliance area for gas. Be sure to smell next to the floor.
IF YOU SMELL GAS:
 Do not try to light any appliance.
 Do not touch any electric switch; do not use any telephone in
your building.
 Immediately call your gas supplier from a neighbor’s telephone.
Follow the gas supplier’s instructions.
 If you cannot reach your gas supplier, call the fire department.
DO NOT OPERATE APPLIANCE UNTIL THE LEAKAGE IS
CORRECTED!

7
Installation (Locating The Water Heater) continued-
The water heater must be located close enough to the outside wall to keep the
venting distance within the maximum distance described in the installation
instructions. Locate the water heater as close as possible to the vent opening.
Read the venting section in this installation instruction manual before locating
the water heater.
This water heater must be located in an area where leakage of the tank or water
line connections and the combination temperature and pressure relief valve will
not result in damage to the area adjacent to the water heater or to lower floors
of the structure. When such locations cannot be avoided, a suitable drain pan
adequately piped for proper drainage must be installed under the water heater.
The pan must not restrict combustion air flow. The drain pan must have a
minimum length and width of at least 4 in. (10.2 cm) greater than the diameter
of the water heater and must not restrict proper combustion air flow to the water
heater. The drain pan, as described above, can be purchased from your
plumbing professional. The drain pan must be piped to an adequate drain. The
piping must be at least 3/4 inch (1.9 cm) in diameter and pitched for proper
drainage.
It is recommended that a minimum clearance of 4 inches (10.2 cm) be provided
on the side of the water heater for servicing and maintenance of the
combination temperature and pressure relief valve.
This water heater MUST be installed indoors out of the wind and weather.
Note: For California installation this water heater must be braced,
anchored, or strapped to avoid falling or moving during an earthquake.
See instructions for correct installation procedures. Instructions may be
obtained from DSA Headquarters Office, 1102 Q Street, Sacramento, CA
95811.
WARNING
DO NOT ATTEMPT TO LIGHT ANY GAS APPLIANCE IF YOU ARE
NOT CERTAIN OF THE FOLLOWING:
 Liquefied petroleum gases/propane gas and natural gas have an
odorant added by the gas supplier that aids in the detection of the
gas.
 Most people recognize this odor as a “sulfur” or “rotten egg” smell.
 Other conditions, such as “odorant fade” can cause the odorant to
diminish in intensity, or “fade”, and not be as readily detectable.
 If you have a diminished sense of smell, or are in any way unsure of
the presence of gas, immediately contact your gas supplier from a
neighbor’s telephone.
 Gas detectors are available. Contact your gas supplier, or plumbing
professional, for more information.

8
Minimum Clearances
This installation must allow access to the front of the water heater and adequate
clearance must be provided for servicing and operating this water heater. The
water heater may be installed on either a combustible or non-combustible floor.
If the water heater is to be installed directly on carpeting, it must be installed on
top of a metal or wood panel extending beyond the full width and depth of the
appliance by at least 3 inches (7.6 cm) in any direction or, if the appliance is to
be installed in an alcove or closet, the entire floor must be covered by the panel.
The minimum clearances to combustibles for this water heater are: 0 inch from
the sides and rear, 5 inches (12.7 cm) from the front of the jacket, 0 inch from
the vent connector and 15 inches (38.1 cm) from the jacket top. Increase
distances to provide clearance for servicing.
Venting
Figure 1 - Vent Terminal Clearances
WARNING
Failure to adhere to these installation and operating
instructions may create a hazard to life and property and will
nullify the warranty.

9
Venting continued-
Canadian Installations
1
US Installations
2
A= Clearance above grade,
veranda, porch, deck or
balcony
12 inches
(30 cm)
12 inches
(30 cm)
B= Clearance to window or
door that may be
opened
6 in. (15 cm) for appliances
≤ 10,000 Btuh (3 kW), 12 in.
(30
cm) for appliances > 10,000
Btuh (3 kW) and
≤100,000 Btuh
(30 kW), 36 in. (91 cm) for
appliances >100,000 Btuh
(30 kW))
4 ft (1.2 m) below or to
side of opening; 1 ft (300
mm) above opening
C= Clearance to
permanently closed
window
*b *b
D= Vertical clearance to
ventilated soffit located
above the terminal
within a horizontal
distance of 2 feet (.6 m)
from the center line of
the terminal
*b *b
E= Clearance to
unventilated soffit
*b *b
F= Clearance to outside
corner
*b *b
G= Clearance to inside
corner
*b *b
H= Clearance to each side
of center line extended
above meter/regulator
assembly
3 feet (.9 m) within a height
15 feet (4.6 m) above the
meter/regulator assembly
*b
I= Clearance to service
regulator vent outlet or
oil tank vent
3 feet (.9 m) *b
J= Clearance to non-
mechanical air supply
inlet to building or the
combustion air inlet to
any other appliance
12 inches
(30 cm)
4 feet (1.2m) below or to
side of opening;
12 inches (30 cm) above
opening.
K= Clearance to a
mechanical air supply
inlet
6 feet
(1.83 m)
3 feet (91 cm) above if
within 10 feet horizontally
L= Clearance above paved
sidewalk or paved
driveway located on
public property
7 feet
(2.13 m)†
7 feet
(2.13 m)†
M= Clearance under a
veranda, porch, deck, or
balcony
12 inches
(30 cm) ‡
*b
1 In accordance with the current CAN/CGA-B149 Installation Codes.
2 In accordance with the current ANSI Z223.1-(Latest edition)/NFPA 54 National Fuel Gas Code.
† A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single-family
dwellings and serves both dwellings.
‡ Permitted only if a veranda, porch, deck or balcony is fully open on a minimum of two sides beneath the floor.
*a) A minimum clearance value determined by testing in accordance with section 5.21.1 of ANSI Z21.10.1 latest
edition.
*b) “Clearance in accordance with local installation codes and the requirements of the gas supplier”.
This water heater has a certified category III, per latest ANSI Z 21.10.3-
2015.CSA 4.3-2015 revision. Refer to the latest edition of the National Fuel
Gas Code (ANSI Z223.1-latest edition), or in Canada, the Natural Gas and
Propane installation Code (B149.1-00 latest edition).

10
Venting continued-
The vent system must terminate so that proper clearances are maintained as
cited in local codes or the latest edition of the National Fuel Gas Code, ANSI
Z223.1.73.4e and 7.8a, b as follows:
1. Do not terminate near soffit vents or crawl space or other area where
condensate or vapor could create a nuisance or hazard or cause property
damage.
2. Do not terminate the exhaust vent terminal where condensate or vapor
could cause damage or could be detrimental to the operation of regulators,
relief valves, or other equipment.
3. Do not terminate the exhaust vent terminal over public area or walkways
where condensate or vapor can cause nuisance or hazard.

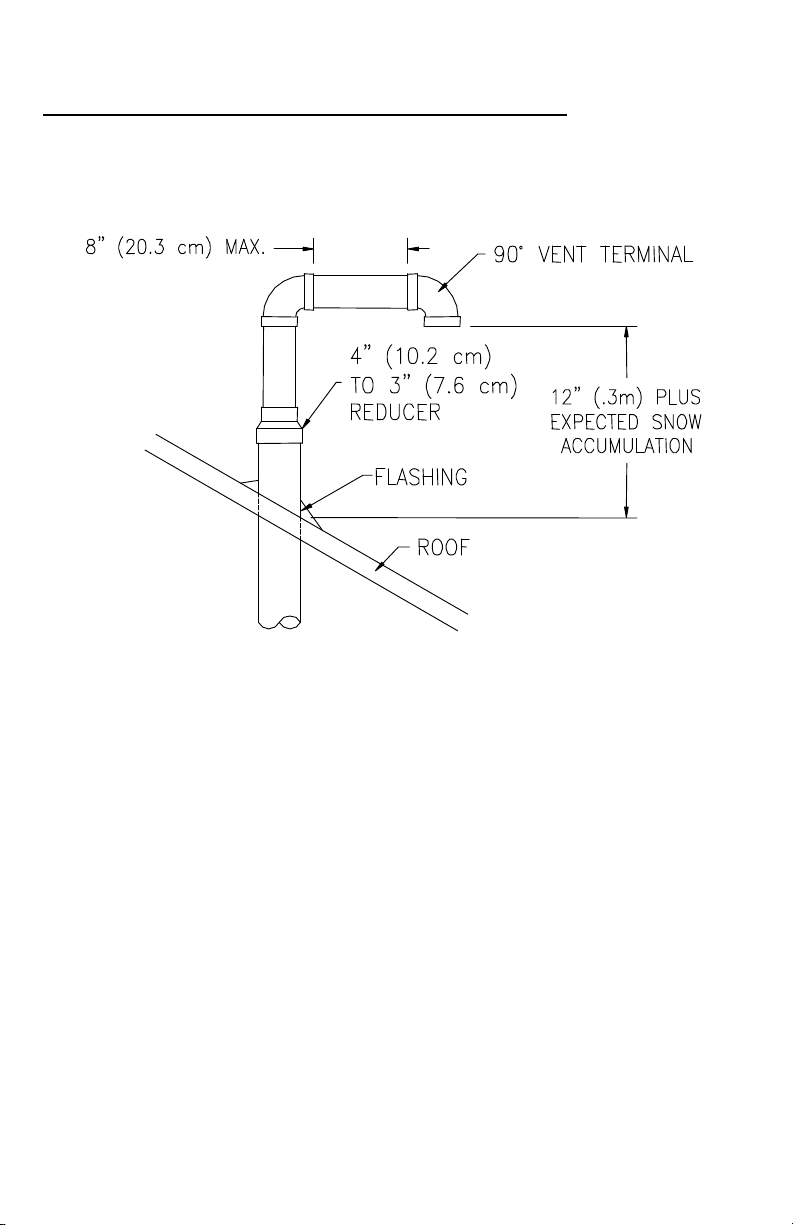

4. The vent shall terminate a minimum of 12 inches (25.4 cm) above expected
snowfall level to prevent blockage of vent termination.
Vent pipes serving power vented appliances are classified by building codes as
“vent connectors”. Required clearances from combustible materials must be
provided in accordance with information in this manual under LOCATION OF
WATER HEATER and CLEARANCES, and with National Fuel Gas Code and
local codes.
WARNING
Risk of carbon monoxide poisoning or fire due to joint separation or
pipe breakage.
This water heater must be properly vented and connected to an approved
vent system in good condition. DO NOT operate water heater with the
absence of an approved vent system. A clean and unobstructed vent system
is necessary to allow noxious fumes that could cause injury or loss of life to
vent safely and will contribute toward maintaining the water heater’s
efficiency. The acceptance of the venting system is dependent upon full
compliance with these installation instructions.
Venting system must not pass through rated fire separations.
The venting system must be free to expand and contract. This venting
system must be supported in accordance with these instructions.
Clearance to combustibles for all venting pipes and terminals
For installations in the US
0” minimum
For installations in Canada
Refer to vent pipe and terminal
manufacturer’s installation instructions
for clearances to combustibles
DO NOT place insulation or other materials in the required clearance spaces
between the venting to combustible material unless otherwise specified.

11
Venting continued-
NOTICE
For installations in Canada, field supplied vent piping must comply with
CAN/CGA B149.1 (latest edition) and be certified to the Standard For Type BH,
Class II, 65°C, Gas Venting Systems, ULC S636. Components of this listed
system shall not be interchanged with other vent systems or unlisted
pipe/fittings. All components and specified primers and cements of the certified
vent system must be from a single system manufacturer and not intermixed with
other system manufacturer’s vent system parts. The supplied vent connector
and vent termination are certified under ULC S636 and are also certified as part
of the water heater. Refer to the following tables for approved venting materials,
primers, and cements. All approved primers and cements are to be used within
their marked time limitations.
Approved Venting Materials
For installations in the US only
 PVC DWV (ASTM D-2665)
 PVC Sch. 40, 80, 120 (ASTM-
D1785)
 CPVC Sch. 40, 80 (ASTM-
F441)
 CPVC (ASTM D2846)
 ABS Sch. 40 DWV (ASTM
D2661)
For installations in CANADA
 ULC S636 approved PVC for
flue gas venting rated Class II,
65°C
 ULC S636 approved CPVC for
flue gas venting rated Class II,
65°C
Approved Primers and Cements
For installations in the US only
 PVC and CPVC Primer (ASTM-
F656)
 PVC Cement (ASTM D-2564)
 CPVC Cement (ASTM F493)
 ABS Primer and Cement
(ASTM D-2235)
For installations in CANADA
 ULC S636 approved Primer and
Cement for flue gas venting
rated Class II, 65°C
NOTICE
Use of cellular core PVC (ASTM F891), cellular core CPVC, or Radel®
(polyphenosulfone) in non-metallic venting systems is prohibited, and
covering non-metallic venting with thermal insulation is prohibited.

12
Venting continued-
Venting System Condensation
Condensate formation does not occur in all installations of power vented
water heaters, but should be protected against on installations where
condensation can form in the venting system.
Formation of condensation in the venting system of Power Vented water
heaters is dependent upon installation conditions including, but not
limited to:
ambient temperature and humidity of installation location;
ambient temperature and humidity of venting space;
vent distance and slope;
and product usage.
In order to effectively control condensate from adversely affecting the
mechanical components of the water heater several methods may be
employed:
1. For horizontal installations the vent pipe can be installed with a downward
slope (not less than 1/8 inches (3 cm)) and away from the blower.
2. In order to prevent condensate from draining back into the blower (vertical or
horizontal runs), an optional condensate kit is available as a service part
(Condensate kit, p/n 239-45875-00). A factory supplied exhaust adapter with
drain outlet mounts directly to the blower outlet and is secured with two hose
clamps, one to the blower and the other to the vent pipe. Tubing is provided to
drain any accumulated condensate away from the water heater and to a
suitable drain. The kit comes complete with instructions for proper installation.
This water heater is a power vented appliance and is designed to vent its
products of combustion through 3 inch (7.6 cm) or 4 inch (10.2 cm) diameter
vent pipe to the outdoors. This water heater may be either vented horizontally
through the wall or vertically through the roof. Use a 3 inch (7.6 cm) to 4 inch
(10.2 cm) reducer to connect to the vent outlet when using 4 inch (10.2 cm) vent
pipe. Apply the proper cement at the joint locations. Table 1 lists the maximum
vent lengths for this water heater using 3 inch (7.6 cm) vent pipe. If possible,
locate the water heater so that the venting length and number of elbows are
kept to the minimum distance necessary to reach the outside. If the installation
requires venting lengths that exceed the lengths listed for 3 inch (7.6 cm) vent
pipe in Table 1, then use 4 inch (10.2 cm) vent pipe for the vent connector.
Table 2 lists the venting distances allowed with 4 inch (10.2 cm) diameter vent

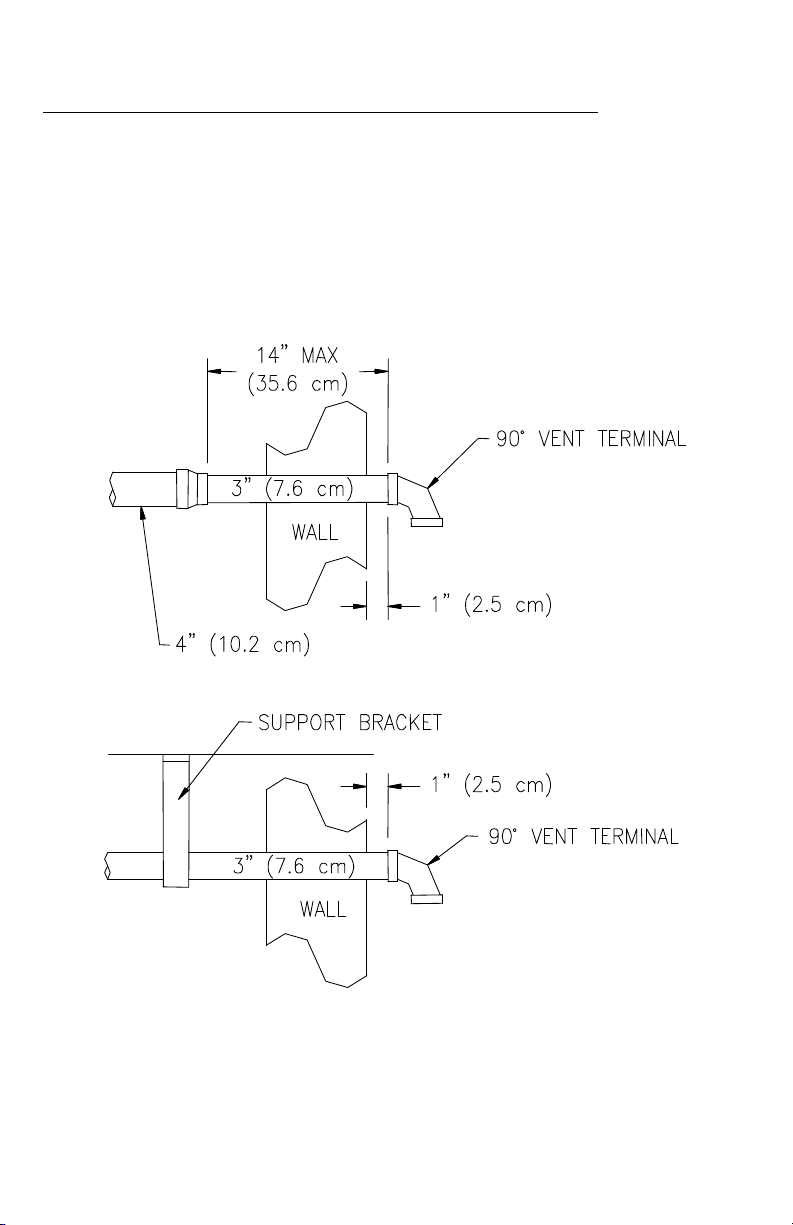

pipe. When venting with 4 inch (10.2 cm) vent pipe, use a 4 inch (10.2 cm) to 3
inch (7.6 cm) reducer to exit through the building wall with 3 inch (7.6 cm) vent
pipe. Use the 3 inch (7.6 cm) vent terminal supplied with the water heater to
terminate on the outside of the building. If the length of 3 inch (7.6 cm) vent pipe
needed to go through the wall is greater than 14 inches (35.5 cm), use 4 inch
(10.2 cm) to go through the wall and reduce to 3 inch (7.6 cm) vent pipe
immediately after exiting the outside wall. Refer to the venting illustrations on
the following pages. Make sure the vent pipe terminal elbow fitting is at least 1
inch (2.5 cm) away from the edge of the wall.

13
Venting continued-
TABLE 1 - VENT CONNECTOR LENGTHS
FOR 3 inch (7.6 cm) DIAMETER VENT PIPE
Terminating # of
Elbows
(excl.
vent
term)
Maximum straight
Length ft (m)
Minimum
straight
Length ft (m)
55 and 75 gal.
Through the Wall 1 45 (13.7) 2 (.6)
Through the Wall 2 40 (12.2) 2 (.6)
Through the Wall 3 35 (10.7) 2 (.6)
Through the Wall 4 30 (9.1) 2 (.6)
Through the Roof 0 50 (15.2) 7 (2.1)
Through the Roof 1 45 (13.7) 7 (2.1)
Through the Roof 2 40 (12.2) 7 (2.1)
Through the Roof 3 35 (10.7) 7 (2.1)
TABLE 2 -VENT CONNECTOR LENGTHS
FOR 4 inch (10.2 cm) DIAMETER VENT PIPE
Terminating # of 90
Elbows (excl.
vent term.)
Maximum straight
Length ft (m)
Min
straight
Length
ft (m)
55 and 75 gal.
Through the Wall 1 175 (53.3) 10
(3.1)
Through the Wall 2 170 (51.8) 10
(3.1)
Through the Wall 3 165 (50.3) 10
(3.1)
Through the Wall 4 160 (48.8) 10
(3.1)
Through the Wall 5 155 (47.2) 10
(3.1)
Through the Roof 0 180 (54.9) 15
(4.6)
Through the Roof 1 175 (53.3) 15
(4.6)
Through the Roof 2 170 (51.8) 15
(4.6)
Through the Roof 3 165 (50.3) 15
(4.6)
Through the Roof 4 160 (48.8) 15
(4.6)
NOTE: When using 4 inch (10.2 cm) vent pipe, use a 4 inch (10.1 cm) to 3
inch (7.6 cm) reducer and exit the building wall with 3 inch (7.6 cm) vent
pipe using the 3 inch (7.6 cm) 90 vent terminal supplied. Two 45 elbows
are equivalent to one 90 elbow.

14
Venting continued-
Figure 2
IMPORTANT
All of the Venting connections must be leak checked with a soap and
water solution upon initial start up of the water heater. Any leaks must
be repaired before continuing operation of the water heater.
CONNECTION TO A 3” (7.6 CM) TO
4” (10.2 CM) REDUCER
CONNECTION TO 3” (7.6 CM)
VENT PIPE

15
Venting continued-
THROUGH THE WALL VENTING: (HORIZONTAL VENTING)
Cut a 3 1/2 in. (8.9 cm) diameter hole in the wall at the point where the
vent connector is going to pass through the wall. Use the proper cement
to secure the 90° vent terminal provided with the water heater to the vent
connector. The distance between the edge of the 90° vent terminal and the
exterior wall (see Figure 3) must be 1 in. (2.5 cm) . Use the proper cement
and assembly procedures to secure the vent connector joints between the
terminal and the blower outlet. Provide support brackets for every 5 feet
(1.5 m) of horizontal vent.
Figure 3

16
Venting continued-
THROUGH THE ROOF VENTING: (VERTICAL VENTING)
Cut the necessary holes through the roof and ceiling and install the vent
connector as shown in Figure 4. Make sure that the installation meets the local
codes and/or The National Fuel Gas Code ANSI Z223.1 (Latest Edition) or
CGA/CAN B149 Installation Code (latest edition).
Figure 4
NOTE: For installations requiring both horizontal and vertical runs, the
following rule must be followed: Total length of straight pipe (both
horizontally and vertically) must not exceed the allowable length listed in
the “Through The Wall” section of the table for total number of elbows
used.

17
Venting continued-
THROUGH THE WALL VENTING WITH LOW GROUND CLEARANCE:
When venting cannot exit through the wall at a height greater than or equal to
12 inches (30.5 cm) above the ground, or anticipated snow level, the installation
must be modified as shown below (see Figure 5). Refer to Table 3 for maximum
venting lengths using 3 inch (7.6 cm) vent pipe or Table 4 for maximum lengths
using 4 inch (10.2 cm) vent pipe.
Figure 5

18
Venting continued-
TABLE 3
3 inch (7.6 cm) VENT CONNECTOR LENGTHS FROM INSIDE WALL FOR
LOW GROUND CLEARANCE INSTALLATIONS
Terminating # of
Elbows
(excl.
vent
term.)
Max Straight
Length ft (m)
Min
straight
Length
ft (m)
55 and 75 gal.
(2) 90 Elbows with (1) 90 Elbow 1 30 (9.1) 5 (1.5)
(2) 90 Elbows with (1) 90 Elbow 2 25 (7.6) 5 (1.5)
(2) 90 Elbows with (1) 90 Elbow 3 20 (6.1) 5 (1.5)
(2) 90 Elbows with (1) 90 Elbow 4 15 (4.6) 5 (1.5)
TABLE 4
4 inch (10.2 cm) VENT CONNECTOR LENGTHS FROM INSIDE WALL
FOR LOW GROUND CLEARANCE INSTALLATIONS
Terminating (Reduce 4 inch to
3 inch)
(Reduce 10.1 cm to 7.6 cm)
# of
Elbows
(excl.
vent
term.)
Max straight
Length ft (m)
Min
straight
Length
ft (m)
55 and 75 gal.
(2) 90 Elbows with (1) 90 Elbow 1 160 (48.8) 10 (3.1)
(2) 90 Elbows with (1) 90 Elbow 2 155 (47.2) 10 (3.1)
(2) 90 Elbows with (1) 90 Elbow 3 150 (45.7) 10 (3.1)
(2) 90 Elbows with (1) 90 Elbow 4 145 (44.2) 10 (3.1)
(2) 90 Elbows with (1) 90 Elbow 5 140 (42.7) 10 (3.1)
HIGH ALTITUDE INSTALLATIONS FOR ELEVATIONS OVER 2,500 FEET
(762 m) ABOVE SEA LEVEL
The capacity of the induced draft blower declines with increasing altitude due to
a reduction in the air density. In order to assure safe and reliable performance
of the water heater, contact the supplier for high altitude kit.

19
Vent Pipe Preparation and Joining
Most failures in vent systems result from improper preparation and joining of
pipe and fittings. The guidelines below must be followed when installing the
venting system. If you have any question about the application or installation of
the venting system, contact the vent pipe manufacturer, supplier, or your
plumbing professional.
1) Specific cleaners, solvents, primers and cements are available for PVC,
CPVC, and ABS pipe. Be sure these materials match the type of pipe to be
installed. The vent pipe manufacturers joining instructions must be followed
in all cases. Never use all-purpose cements, commercial glues and
adhesives or ABS cement to join PVC or CPVC pipe and fittings. Refer to
the table at the beginning of the “VENTING” section for approved primers
and cements.
a) CLEANERS, SOLVENTS, PRIMERS AND CEMENTS ARE
FLAMMABLE. Do not store or use these materials near heat or
open flame, or in the vicinity of other appliances.
2) Use proper cutting, deburring and applicator tools to ensure proper
preparation and joining of pipe and fittings.
a) Cutting Tools
i) A square cut must be achieved with a miter box saw or pipe cutter
to ensure a proper mating with the female. If a pipe cutter is used,
the burr created at the outer edge of the pipe must be removed.
b) Deburring Tools
i) A file, knife or plastic deburring tool can be used to remove burrs.
Burrs must be removed from the inside and outside edges of the
pipe to ensure a proper seal.
c) Applicator Tools
i) A natural bristle paintbrush or roller may be used to apply cement.
Prompt application of the cement is important due its fast drying
properties.
3) Inspection, Cleaning, Priming and Cementing
a) Inspect the pipe inside and out for dirt, dust, moisture or grease etc.
Check pipe and fittings for splits or cracks and replace if found.
b) Clean pipe and fittings are imperative for proper joining. Following
cutting and deburring, wipe away any foreign material with a clean dry
rag. If wiping fails to thoroughly clean surfaces, chemical cleaning is
necessary.
c) Primer must be applied to the pipe surface and fitting socket with a
natural bristle brush. This serves to soften and prepare the pipe for
cementing.

20
Vent Pipe Preparation and Joining continued-
d) Cementing must be done quickly to avoid over-drying before joining.
i) Apply one coat to the outside end of the pipe at a width slightly
greater than the depth of the socket.
ii) Apply a coat around the inside of the fitting socket.
iii) Apply a second coat around the end of the pipe.
4) Joining
a) Joints should be made immediately after cement is applied.
b) After fully inserting pipe into fitting socket, hold joint together for about
15 to 20 seconds.
c) Remove excess cement from around pipe and fitting with a clean rag.
d) Cement drying times may vary. Be sure to allow for the recommended
drying time before disturbing joints.
For more specific and detailed information about the above, contact the vent
pipe manufacturer, supplier, or competent professional.
