Bradley Smoker BS611EU User manual

User Manual of Product 1:
Original Bradley Smoker BS611 4-Rack Natural Draft Vertical
Electric Smoker

Bradley Technologies Canada Inc.
8380 River Road, Delta, BC, Canada V4G 1B5
USA 1-866-508-7514
[e-mail]
www.bradleysmoker.com
OWNERS MANUAL
for
BTDS76P
Bradley 4 Rack
Digital Smoker
120V
BTDS108P
Bradley 6 Rack
Digital Smoker
120V
BTDS76CE-EU
Bradley 4 Rack
Digital Smoker
240V
BTDS108CE-EU
Bradley 6 Rack
Digital Smoker
240V
Z1079
Printed in China
July 2012
BS611
e‘Original’
Bradley Smoker
120V
BS611EU
e‘Original’
Bradley Smoker
240V
BTIS1
e Black
Bradley Smoker
120V
BTISCE240EU
e Black
Bradley Smoker
240V

Dear Sir or Madam,
“Revolutionary Smoking Technology for Household Chefs”
Welcome to the wonderful experience of backyard smoking and slow
roast cooking. e Bradley Smoker is an insulated smoker oven designed
to automatically generate a continuous ow of clean smoke. It is an
outdoor electrical appliance that enables one to cook, roast, hot smoke,
as well as cold smoke food with consistently superior results using
minimal eort.
e Bradley Smoker is unique in that it produces smoke which
is four times cleaner than traditional burn-box chips*. Because it
automatically extinguishes the spent Bisquette, it prevents the formation
of high temperature gases and acids. In addition, the Bradley Smoker
meets both North American and European appliance standards.
ere are nine dierent woods of the Bradley Flavor Bisquettes that
are made especially for your smoker - Alder, Apple, Cherry, Hickory,
Maple, Mesquite, Oak, Pecan, Pacic Blend, Special Blend and Whisky
Oak. ere are a number of recipe cards that come packaged with the
Bradley Flavor Bisquettes which are also available in the Bradley Recipe
Collection, Volume One. Other items of interest are the Flavor Cures,
Bradley Jerky Racks, Bradley Original Racks, Sausage Hooks, Weather
Guard Covers, Bradley Cooking DVD, Caps, Aprons, and the Bradley
Digital ermometer with meat probe that takes all the guesswork out of
roasting and smoking meat.
I wish you great cooking and smoking for the years to come.
Sincerely,
Wade Bradley
*Based on studies and tests performed at e British Columbia Institute of Technology.
1

Basic Safety Precautions
•Read all instructions.
• Do not touch hot surfaces. Use
handles or knobs.
• To protect against electric shock,
do not immerse cord or plugs in
water or other liquids.
•Close supervision is necessary
when any appliance is used by or
near children.
• Unplug from outlet when not
in use and before cleaning. Allow
to cool before putting on or
taking o parts.
•Do not operate any appliance
with a damaged cord or plug or
after the appliance malfunctions or
has been damaged in any manner.
•e use of accessory
attachments is not recommended
by the appliance manufacturer.
May cause injuries.
•Do not modify your smoker
from its original state.
•Do not let cord hang over edge
of table or counter, or touch hot
surfaces.
•Do not place on or near a hot
gas or electric burner or in a
heated oven.
• Extreme caution must be used when
moving an appliance containing hot
oil or other hot liquids.
• Always attach plug to appliance
rst, then plug into the wall outlet. To
disconnect, turn all controls to “o”,
then remove plug from wall outlet.
•Do not use appliance for other
than intended use.
•For household and outdoor use
only. Do not expose to rain.
•Lift and move smoker with care
to prevent strains and back injuries.
• Use caution when reaching into or
around smoker.
•It is recommended that a re
extinguisher be placed near
the smoker. Refer to your local
authority to determine proper
size and type of re extinguisher.
• Longer detachable power
supply cords or extension cords
are available and may be used if
care is exercised in their use.
• If a longer detachable power
supply cord or extension cord is
used, the marked electrical rating
of the cord set or extension cord
should be at least as great as the
electrical rating of the appliance.
• e cord should be arranged
so that it will not drape over the
counter-top or tabletop where it
can be pulled on by children or
tripped over unintentionally.
•If an extension cord is required,
the cord must be an approved
3-prong (grounded) heavy duty
cord not over 6 feet long.
• Outdoor extension cords should be
used with outdoor use products and
are surface marked with the sux letter
“W” and with a tag stating “Suitable
for use with outdoor appliances”.
• CAUTION: Risk of Electric
Shock. Keep extension cord
connection dry and o the ground.
•Do not use any other type of
wood other than Bradley Flavor
Bisquettes®.
•Properly dispose of all
packaging.
•Use caution when assembling,
operating, handling or cleaning
your smoker as some edges on
the metal parts may be sharp.
Important Safety Warnings
“Carefully read through Assembly Instructions to prepare smoker for use”
2

• is appliance is not intended for
use by persons (including children)
with reduced physical, sensory
or mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use
of the appliance by a person
responsible for their safety.
• Children should be supervised
to ensure that they do not play
with the appliance.
• During use the appliance
becomes hot. Care should be
taken to avoid touching heating
elements inside the oven.
• WARNING - Accessible parts
may become hot during use.
To avoid burns young children
should be kept away.
• WARNING - e appliance
and its accessible parts become
hot during use.
• Care should be taken to avoid
touching heating elements.
• Children less than 8 years of
age shall be kept away unless
continuously supervised.
• is appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand
the hazards involved. Children
shall not play with the appliance.
Cleaning and user maintenance
shall not be made by children
without supervision.
• Surface of cooking racks can
get hot.
• Steam cleaner is not to be used.
3
When in Use
• For outdoor use only. Do not
operate in an enclosed area.
• Do not leave unattended.
• Do not plug in the smoker
until it is fully assembled.
• Do not cover or seal the racks
or drip tray with aluminum foil.
is can cause severe damage to
your smoker
• Do not move smoker.
• Do not exceed a temperature of
280°F.
• Always wear oven mitts or
gloves to protect hands from
burns.
• Do not wear loose clothing or
allow hair to hang freely.
• Do not use packaging box to
cover the smoker.
• Use only approved grounded
electrical outlet.
• Do not allow
rainwater
to come in
contact with
smoker at any
time. Place
unit under
center of 3 x 3
x 2.5m shelter.
• Do not use during an electrical
storm or in windy conditions.
• Do not use near gasoline or
other ammable liquids, gases,
or where ammable vapors may
be present.
• Place in an area where children
and pets cannot access.
• Do not immerse in water.
• Empty drip bowl every 2 to 3
hours of burnt wood bisquettes
and rell with fresh water.

4
After Each Use
• Unplug smoker when it is
not in use. See Maintenance
Procedures.
• Place extinguished Bradley
Flavor Bisquettes® at a safe
distance from all structures and
combustible materials.
• Store the smoker in a dry
covered place out of reach of
children.
• Clean out any grease. Grease
build up may cause re.
• Do not steam clean this
appliance.
Save these Instructions
General Maintenance

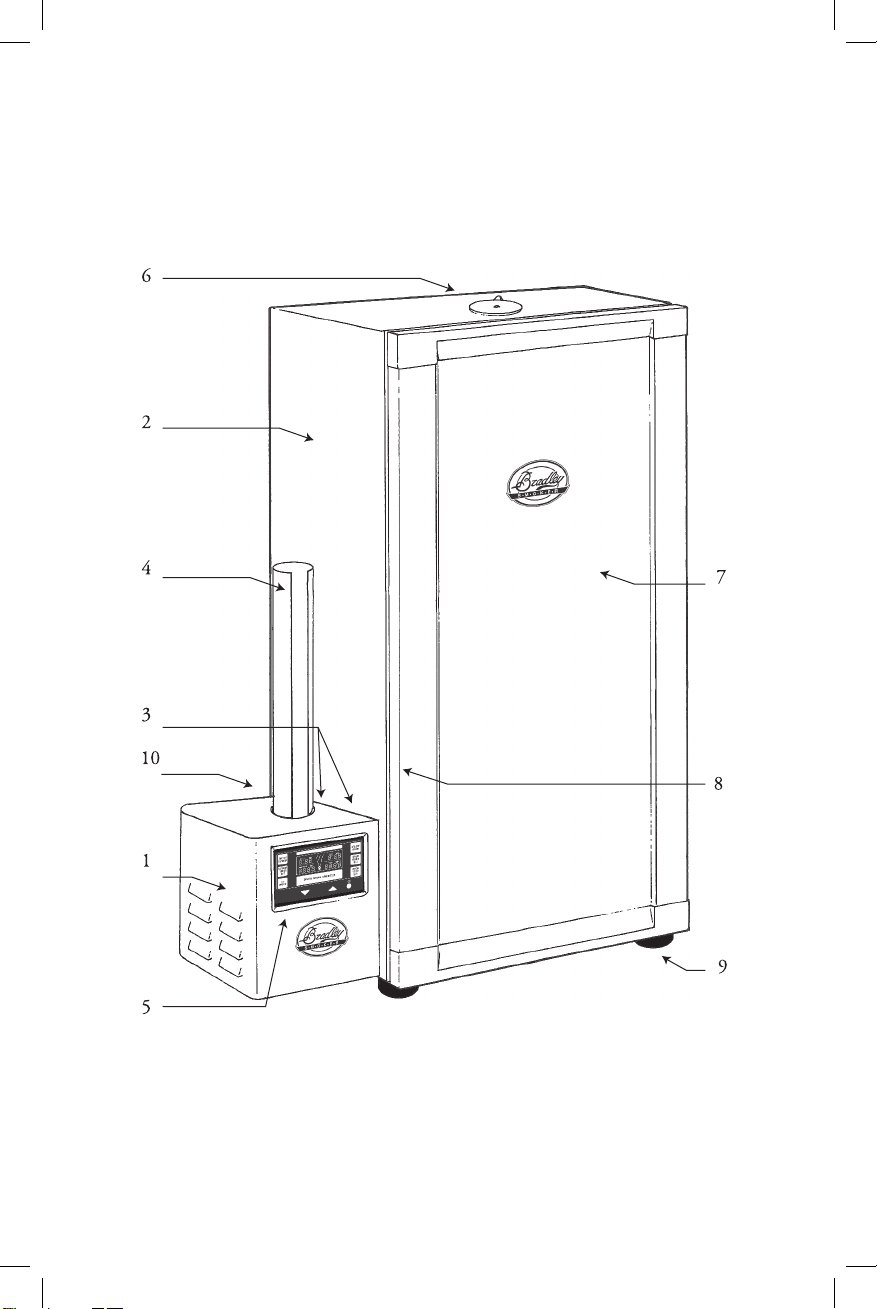

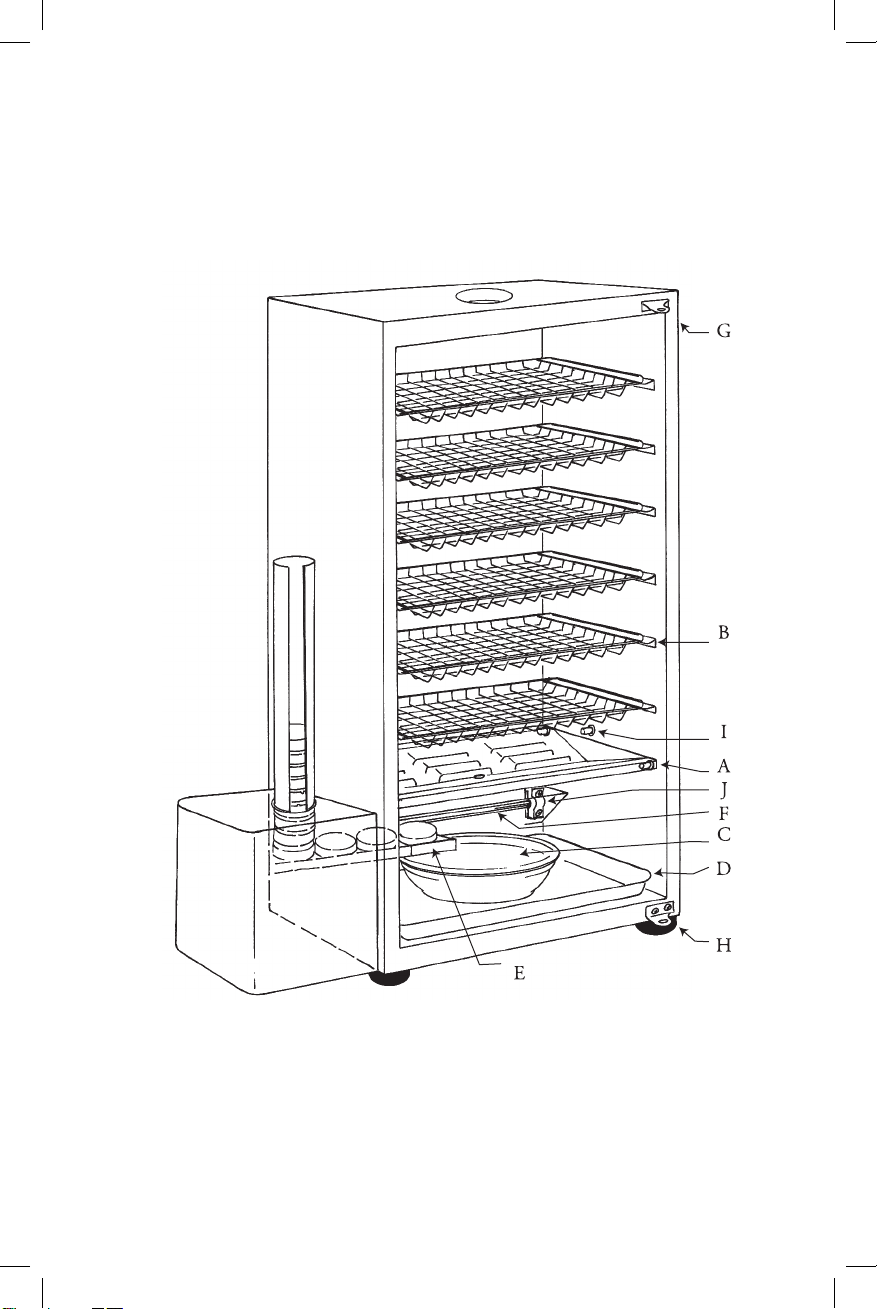

Refer to the External Components List & Internal Components List Diagrams
Important Safety
Precautions
• e Bradley Smoker must be
maintained and cleaned after
each use.
• Unplug the Long Power Cord
prior to commencement of any
maintenance or cleaning.
• Do not immerse smoker in
water.
• Do not spray inside of smoker
with any kind of appliance
cleaner.
• Do not cover or seal the racks
or drip tray with aluminum foil.
is can cause severe damage to
your smoker.
• Do not leave unattended when
in use.
• Do not spray or clean the
smoker with excessive amounts of
water. Instead use a damp cloth.
Maintenance Procedures
• Use caution when handling and
cleaning your smoker as some
metal edges may be sharp.
• Clean out the Drip Bowl.
Dispose of all burnt Bisquettes
carefully as they may still be hot.
• Wash the Drip Tray, Racks,
Bottom Rectangular Tray and
Drip Bowl with hot water and
dish detergent or put them in the
dishwasher.
• Remove food particles and
grease residue from the smoker. If
the inside needs cleaning, wipe it
with a damp cloth.
Note: e tower should have smoke
or black residue on the inside. e
more residue, the better the product
will taste.
• e Smoke Generator should
be kept clean and free of wood
chips and grease at all times. If
loose wood chips have collected
in the Smoke Generator, simply
blow or vacuum these particles
away. Unplug the Long Power
Cord before removing the
Smoke Generator from the
Smoke Tower. Refer to “Remove
Smoke Generator” in “Assembly
Instructions”.
• e Bisquette Burner should be
lightly scraped using a wire brush
or scraper to remove any residue
that has been left by the burning
process.

5
• Clean the Damper (at the top
of the Smoker) to ensure it is not
stuck.
• Wipe the Door Seal with warm
water and dish detergent to
remove any leftover residues and
food particles.
After Cleaning
• Replace Racks, Drip Tray,
Bottom Rectangular Tray and
Drip Bowl into the smoker,
making sure all parts are clean
and dry.
• Insert the Smoke Generator
back into the Smoke Tower.
• Make sure the Long Power
Cord is unplugged.
Trouble Shooting
No Power to Smoker:
Check that all plugs are correctly
and rmly inserted into sockets.
Check fuse (located on smoke
generator). Check to make sure
the outlet, Ground Fault Circuit
Interrupter (GFCI), has not
been tripped.
Bisquettes will not
Advance:
Check the drive guide and clear
all loose wood chips. By cleaning
the smoke generator, bisquette
jamming and undue wear and
tear can be avoided.
Completely:
Check to see if other electrical
equipment is plugged into the
circuit. e smoker should be
plugged into its own dedicated
wall circuit. Check to make sure
the bisquette burner is free of
residue build up.
Smoker Oven Not
Reaching Temperatures:
Allow smoker oven time to
preheat. Remember, once food is
put in the oven, the temperature
will drop, and slowly rise again.
Try closing the Damper slightly
and keeping the smoker out
of the wind. Next, try using a
separate thermometer inside
the smoker oven to ensure the
temperature is reading correctly.
Note: Normal cooking temperature
is between 200° F – 250° F. Keep
in mind that the Temperature
shown on the Display is for
reference only and is not intended
to give exact internal temperatures
of the food. e internal
temperature will be higher closer to
the Heat Element.
If these tips don’t work, please call our Customer Service at
USA 1-866-508-7514

Assembly Instructions
e Black Bradley Smoker
(Models: BTIS1; BTISCE240EU)
For e Original Bradley Smoker See Page 10

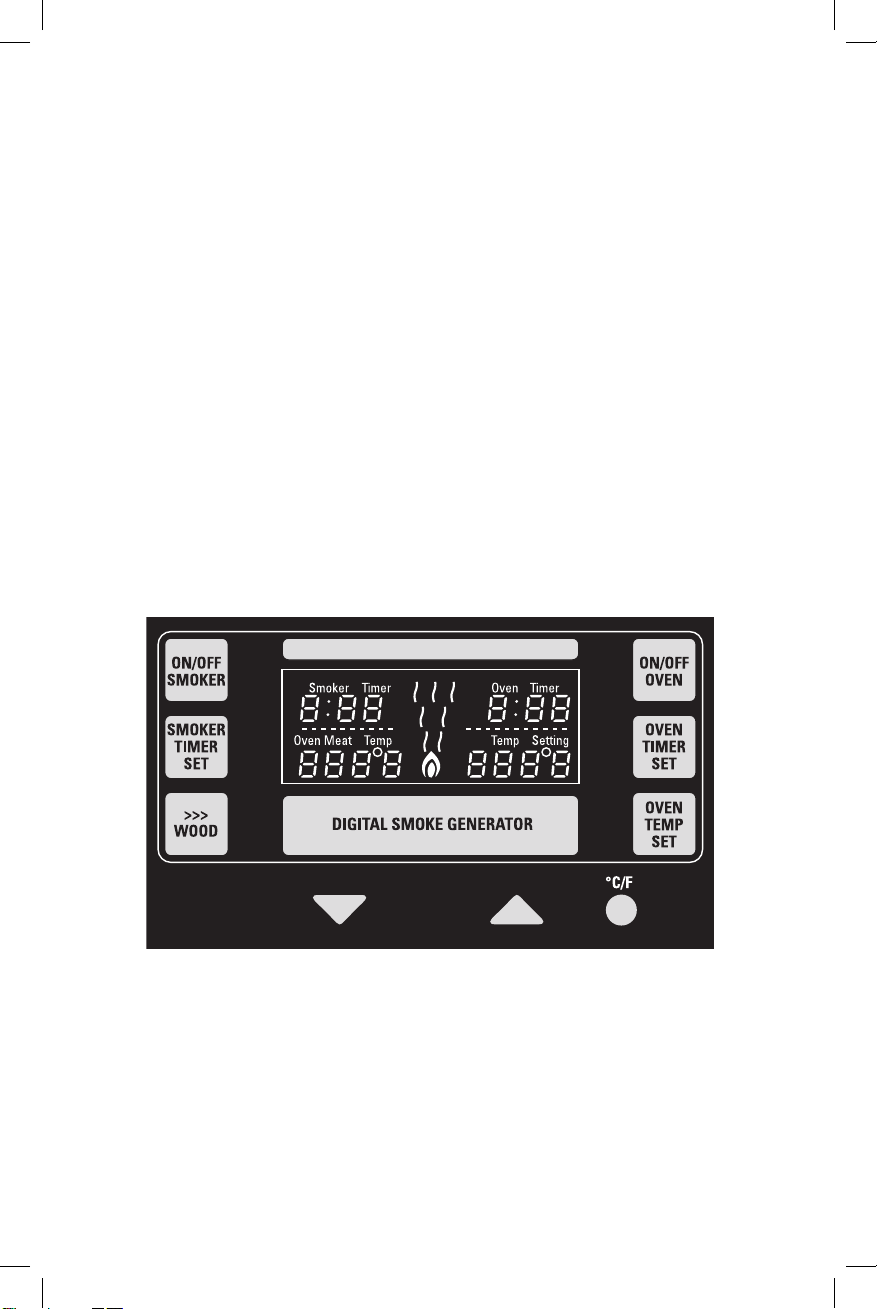

For 4 and 6 Rack Digital Smokers See Page 14
Refer to Part Numbers in the Bradley Smoker External Components
List and Internal Components List Diagrams
How to Assemble the
Bradley Smoker®
1.Remove smoker from box.
2.Take all packaged parts out of
smoker.
3.Remove all protective
packaging materials from parts.
Install Smoke Generator:
•Attach smoke generator (1) to
the smoker tower (2).
•Aim the bisquette burner (F)
toward the tower opening.
•Align smoke generator key
holes to smoker tower locating
supports (3).
•Secure the generator by pushing
down rmly.
•Insert the feeder tube (4) on top
of the smoke generator and push
down rmly then load it with the
desired number of Bradley Flavor
Bisquettes®.
•Plug the short power cord
(E-not shown) from the smoke
generator into the smoker tower.
Set Up Smoker Tower:
•Place Racks (C) onto side
supports.
•Place Drip Tray (B) “V” facing
down beneath the Racks on the
brass side pins.
•Place the Rectangular Tray (J)
on the bottom of the Smoker.
•Fill the Drip Bowl (D) half full
of water and place in the center
of the Rectangular Tray to catch
burnt Bisquettes. During a long
smoking period, the Drip Bowl
will require changing the water
every 2-3 hours. Plug the Long
Power Cord (A) for the smoke
generator into an approved
grounded electrical outlet.
To Remove Smoke
Generator:
• Unplug short jumper cord (E).
• Detach smoke generator from
the smoker tower by raising the
smoke generator gently upward
and pull it outward.
Handling of Packaging
All packaging should be discarded
as per the regulations in your area.
e box can be used only to store
smoker when not in use. e box
should not be used as a cover
when smoker is in use.
6

7
7
2
4
16
10
1
5
12
9
13
8
3
14
153 116
e Black Bradley Smoker®
BTIS1 and BTISCE240EU
External Components List
External Parts List
1. Smoke Generator
2. Smoker Tower
3. Generator Supports
4. Feeder Tube
5. Smoke Generator Indicator Light
6. Bisquette Advance Button
7. Damper with handle (not shown)
8. Door
9. ermometer
10. Temperature Heat Control Switch
11. Heat Indicator
12. Generator On/O Switch
13. Door Seal
14. Lower Face Plate
15. Rubber Feet
16 Bisquette (not included with smoker).

8
Internal Parts List
C
H
E
I
A
B
L
G
D
KJF
A) Long Power Cord
B) Drip Tray
C) Cooking Racks
D) V-shaped Drip Bowl
E) Short Jumper Cord (not shown)
Connects Generator
F) Bisquette Burner
G) 500 Watt Heating Element
H) Flavor Bisquettes® (not included)
I) Drive Guide
J) Bottom Rectangular Tray
K) Door Hinge
L) Porcelain Holder
e Black Bradley Smoker®
BTIS1 and BTISCE240EU
Internal Components List

9
Operating Guidelines
for the BTIS1 and BTISCE240EU - e Black Bradley Smoker
Refer to part numbers in the External Components List Diagram
Seasoning & Preparation
For Use
Seasoning the Bradley Smoker® is an
ongoing process, the more you use it,
the better tasting your foods will be.
Seasoning is mainly to remove the
impartial smells from your smoker.
e smell of your new Bradley
Smoker® is not necessarily how you
want your food to taste.
Seasoning Method
• Clean Racks, Drip Tray, Drip
Bowl and Rectangular Tray and
place in smoker.
• Fill the Drip Bowl half full of water.
• Load the Feeder Tube with 5
Bisquettes. (note: each Bisquette
burns for 20 minutes). e 2 extra
Bisquettes are meant to push the
nal Bisquette onto the Burner.
ese last 2 Bisquettes will not
advance onto the Burner.
• Open the damper slightly at the
top of the Smoker Tower.
• Plug smoker into its own
designated outlet.
• Turn on the smoke generator
by pressing the Generator On/O
Switch (12).
• Pre-heat Bisquette Burner for 20
minutes.
• Press Bisquette Advance Button
(6) until a bisquette is on the
Bisquette Burner (F).
• Turn on the smoker by moving
the temperature heat control switch
(10) to medium. Wait for 20 to
30 minutes. e thermometer (9)
should read 66°C (150°F). If it is
higher, bring down the temperature
by adjusting the temperature heat
control switch to the left to lower
and vice versa when the temperature
reads lower than 66°C (150°F).
• Smoke the tower continuously at
66°C (150°F) for 1 hour, or until
bisquettes are out.
• Your Smoker will be seasoned having
reached 150º F and smoked in for 1 hour.
Getting Started
• After seasoning the smoker, rell the
Drip Bowl half full of water.
• Turn on the Smoke Generator
by pressing the Generator On/
O switch (12) this pre-heats the
Bisquette burner.
• When the Smoker Generator
indicator light (5) is on, this means
the Generator has power.
• Press the bisquette advance
button (6) to push a Bisquette onto
the Bisquette burner (F). Note:
After the advance button has been
pressed, a new cycle will start, (or)
in approximately 20 minutes the
next bisquette will advance.
• Pre-heat oven to the desired
temperature you want to cook at.
• Place your food onto the cooking
racks and load them into the smoker.
• Set the damper opening. Do not
close the damper all the way when
the smoke is running.
•  You may need to adjust the Heat
Control Switch to reach the desired
temperature as per the door thermometer.
Cold Smoke - use the smoke generator
only. Unplug the Short Jumper Cord.
Hot Smoke - the smoke generator and
temperature heat control switch will
be on.
Note: e thermometer will only read
the air temperature inside the tower.
To get a more accurate temperature
of the food being smoked, use a meat
thermometer. Keep in mind that the
ambient temperature will aect the
cooking temperature of the smoker.
“ Remember to clean your smoker
after each use.”

10
Assembly Instructions
e Original Bradley Smoker (Model: BS611; BS611EU)
For e Black Black Smoker See Page 6, For 4 and 6 Rack Digital Smokers See Page 14
Refer to Part Numbers in External Components List, Internal Components List and Electrical

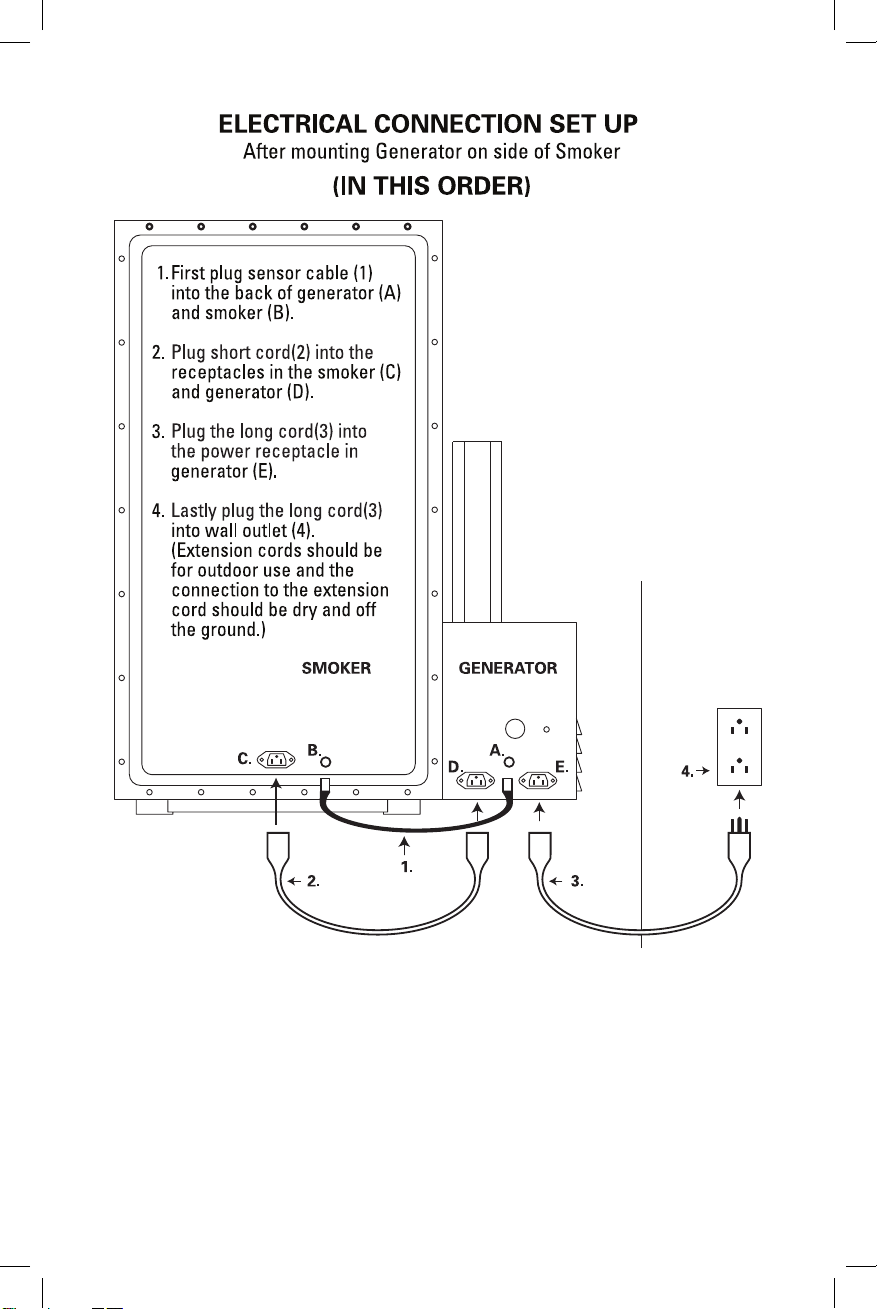

Connection Set Up
How to Assemble e
Original Bradley Smoker®
1.Remove smoker from box.
2.Take all packaged parts out of
smoker.
3.Remove all protective packaging
materials from parts.
Install Smoke Dial Generator:
•Attach smoke dial generator (1)
to the smoker tower (2).
•Aim the bisquette burner (F)
toward the tower opening.
•Align smoke dial generator key
holes to smoker tower locating
supports (3).
•Secure the smoke dial generator
by pushing down rmly.
•Insert the feeder tube (4) on top
of the smoke dial generator and
push down rmly then load it with
the desired number of Bradley
Flavor Bisquettes®.
•Plug the short power cord (E-not
shown) from the smoke dial
generator into the smoker tower.
Set Up Smoker Tower:
•Place Racks (C) onto side
supports.
•Place Drip Tray (B) “V” facing
down beneath the Racks on the
brass side pins.
•Place the Rectangular Tray (J) on
the bottom of the Smoker.
•Fill the Drip Bowl (D) half full
of water and place in the center
of the Rectangular Tray to catch
burnt Bisquettes. During a long
smoking period, the Drip Bowl
will require changing the water
every 2-3 hours.
•Plug the Long Power Cord (A)
for the smoke generator into an
approved grounded electrical
outlet.
To Remove Smoke Dial Generator:
•Unplug short jumper cord (E).
•Detach smoke dial generator
from the smoker tower by raising
the smoke dial generator gently
upward and pull it outward.
Handling of Packaging
All packaging should be discarded
as per the regulations in your area.
e box can be used only to store
smoker when not in use. e box
should not be used as a cover when
smoker is in use.

11
e Original Bradley Smoker®
BS611 and BS611EU
External Components List
External Parts List
1. Smoke Dial Generator
2. Smoker Tower
3. Generator Supports
4. Feeder Tube
5. Smoke Generator Indicator Light
6. Bisquette Advance Button
7. Damper with handle (not shown)
8. BS611 Door
9. ermometer
10. Temperature Heat On/o Control Dial
11. Generator On/O Switch
12. BS611 Door Seal
13. Rubber Feet
14. Bisquette (not included with smoker)
OFF
BISQUETTE
ADVANCE
MEDIUM
TEMPERATURE
OFF
HIGH
LOW
7
2
4
10
1
5
12
9
8
3
14
14
13311 6
80 100 120
140
160
180
200
40
60
0
20
200
250
300
350
400
0°F
°C
ON

12
C
H
E
I
A
B
L
G
D
KJF
OFF
BISQUETTE
ADVANCE
ON
e Original Bradley Smoker®
BS611 and BS611EU
Internal Components List
Internal Parts List
A) Long Power Cord
B) Drip Tray
C) Cooking Racks
D) Drip Bowl
E) Short Power Cord (not shown)
Connects Generator
F) Bisquette Burner
G) 500 Watt Heating Element
H) Flavor Bisquettes® (not included)
I) Drive Guide
J) Bottom Rectangular Tray
K) Door Hinge
L) Porcelain Holder

13
Operating Guidelines
for the BS611 and BS611EU - e Original Bradley Smoker
Refer to part numbers in the External Components List Diagram
Seasoning & Preparation
For Use
Seasoning the Bradley Smoker® is an ongoing
process, the more you use it, the better tasting
your foods will be.
Seasoning is mainly to remove the impartial
smells from your smoker. e smell of your
new Bradley Smoker® is not necessarily how
you want your food to taste.
Seasoning Method:
• Clean Racks, Drip Tray, Drip Bowl and
Rectangular Tray and place in smoker.
• Fill the Drip Bowl half full of water.
• Load the Feeder Tube with 5 Bisquettes.
(note: each Bisquette burns for 20 minutes).
e 2 extra Bisquettes are meant to push the
nal Bisquette onto the Burner. ese last 2
Bisquettes will not advance onto the Burner.
• Open the damper at the top of the
Smoker Tower.
• Plug smoker into its own designated
outlet.
• Turn on the smoke generator by pressing
the Generator On/O Switch (11).
• Pre-heat Bisquette Burner for 20 minutes.
• Press Bisquette Advance Button (6) until
a bisquette is on the Bisquette Burner (F).
• Turn on the smoker by rotating the
temperature heat on/o control dial (10) to
medium (about the 6 o’clock position). Wait
for 20 to 30 minutes. e thermometer (9)
should read 66°C (150°F). If it is higher,
bring down the temperature by rotating the
temperature heat on/o control dial to the
3 o’clock position and vice versa until the
temperature reads 66°C (150°F).
• Smoke the tower continuously at 66°C
(150°F) for 1 hour, or until bisquettes are
out.
• Your Smoker will be seasoned having
reached 150° F and smoked in for 1 hour.
Getting Started
• After seasoning the smoker, rell the Drip
Bowl half full of water.
• Turn on the Smoke Generator by pressing
the Generator On/O switch (11) this pre-
heats the Bisquette burner.
• When the Smoker Generator indicator
light (5) is on, this means the Generator has
power.
• Press the bisquette advance button (6) to
push a Bisquette onto the Bisquette burner
(F). Note: After the advance button has
been pressed, a new cycle will start, (or) in
approximately 20 minutes the next bisquette
will advance.
• Pre-heat oven to the desired temperature
you want to cook at.
• Place your food onto the cooking racks
and load them into the smoker.
• Set the damper at the desired opening.
Do not close the damper all the way when
the smoke is running.
• You may need to adjust the Heat On/
o Control Dial to reach the desired
temperature as per the door thermometer.
Cold Smoke - use the smoke generator only.
Unplug the Short Power Cord.
Hot Smoke - the smoke generator and
temperature heat on/o control dial will be
on.
Note: e thermometer will only read the
air temperature inside the tower. To get
a more accurate temperature of the food
being smoked, use a meat thermometer.
Keep in mind that the ambient temperature
will aect the cooking temperature of the
smoker.
“ Remember to clean your smoker after
each use.”

14
Assembly Instructions
4 Rack Digital Smoker (Model: BTDS76P; BTDS76CE-EU)
6 Rack Digital Smokers (Model: BTDS108P; BTDS108CE-EU)
For Original Bradley Smoker Assembly Instructions See Page 10
Refer to Part Numbers in External Components List, Internal Components List and Electrical
Connection Set Up
How to Assemble the
Bradley Digital Smoker®
1. Remove smoker from box.
2. Take all packaged parts out of
smoker.
3. Remove all protective packaging.
Install Digital Smoke Generator:
•Attach digital smoke generator (1)
to the smoker tower (2) by placing
the Bisquette Burner (E) through
the left side opening of the tower.
Align the generator keyholes to the
two supports (3) on the side and
push down to secure in position.
•Insert the feeder tube (4) into
the top of the smoke generator.
Push down rmly. Load with
desired number of Bradley Flavor
Bisquettes®.
Electrical Connection Set Up (see page 17)
•Plug the Sensor Cable (1) into
the back of the Smoke Generator
Sensor Receptacle (A) and Smoker
Tower Sensor Receptacle (B).
•Plug the Short Power Cord
(2) into the back of the Smoke
Generator Female Receptacle (D)
and then into the back of the
Smoker Tower Male Receptacle
(C) - push rmly.
•Plug the Long Power Cord (3)
into the power receptacle (E).
Set Up Smoker Tower:
•Place Racks, either four or six (B)
onto side supports.
•Place Drip Tray (A) “V” facing
down beneath the Racks on the
brass side pins and under pin (I).
• Place the Rectangular Tray (D)
on the bottom of the Smoker.
•Fill the Drip Bowl (C) half full
with water and place in the center
of Rectangular Tray (D) to catch
burnt Bisquettes. During a long
smoking period, the Drip Bowl
will require changing the water.
•Plug the Long Power Cord (3)
from the Smoke Generator into
an approved grounded electrical
outlet (4). (see page 16)
To Remove Smoke Generator (see page 17)
•Make sure the Smoke Generator
has had time to cool down.
Unplug Long Power Cord (3)
from the wall outlet (4) and from
the Smoke Generator (E). Detach
Sensor Cable (1) and Short Power
Cord (2) and then remove Smoke
Generator from the Smoker Tower
by raising it gently upward and
pulling it outward.

15
e Bradley Digital Smoker®
BTDS76P and BTDS76CE-EU
BTDS108P and BTDS108CE-EU
External Components List
Exterior Parts List
1. Digital Smoke Generator
2. Smoke Tower
3. Generator Supports (not shown)
4. Feeder Tube
5. Digital Display Panel (see page 18)
6. Damper
7. Door
8. Door Seal
9. Rubber Feet
10. Sensor Cable, Short Power Cord &
Long Power Cord (not shown, see page 17)

16
e Bradley Digital Smoker®
BTDS76P and BTDS76CE-EU
BTDS108P and BTDS108CE-EU
Internal Components List
Internal Parts List
A) Drip Tray
B) Cooking Racks (4 or 6)
C) Drip Bowl
D) Bottom Rectangular Tray
E) Bisquette Burner
(Bisquettes not included)
F) Heating Element
G) Top Door Hinge
H) Lower Door Hinge
I) Brass Pin
J) Porcelain Insulator

17
1. Sensor Cable A. Sensor Receptacle
2. Short Power Cord B. Sensor Receptacle
3. Long Power Cord C. Male Receptacle
4. Wall Outlet D. Female Receptacle
E. Male Receptacle

18
Display Function Guideline
Digital Smoke Generator
•Smoke Generator operated by left side control buttons.
•Press “On/O Smoker” to turn Smoke Generator on.
•Press “>>> Wood” to advance Bisquettes onto Burner. Each press advances
Bisquette one spot.
•Press “Smoker Timer Set” and then “v ^” to desired length of smoking time.
•Press “Smoker Timer Set” again to start 20 minute automatic advance.
•Press “On/O Smoker” to turn Smoke Generator o.
Smoker Oven
•Smoker Oven operated by right side control buttons.
•Press “On/O Oven” to turn Smoker Oven on.
•Press “Oven Temp Set” and then use “v ^” buttons to set desired temperature.
•Press “Oven Temp Set” again to set the temperature.
•Press “Oven Timer Set” and then use “v ^” to reach desired length of cooking
time.
•Press “Oven Timer Set” again to set cooking time.
•Press “On/O Oven” to turn Smoker Oven o.
Display Function
Once the “On/O Smoker” button has been pressed to turn the smoke generator
on, the “Smoker Timer” display will ash until the desired time has been set. e
“Oven Temp” will start to read the internal temperature right away. Once the “On/
O Oven” button has been pressed to turn the oven on, the “Oven Timer”display
will ash until the desired cooking time has been set. e “Temp Setting” will also
ash until the desired temperature has been set.
Press the C/F Button to change the setting from Celsius to Fahrenheit.
