Tudor Romeo Gas Cooktop
OWNER’S & INSTALLATION MANUAL

2
IMPORTANT SAFETY INFORMATION
IF YOUR COOKTOP STOPS WORKING
Warranty and service : 1300 650 276. For spare parts: 1300 367 437.
Before requesting a service call please run through the simple checks in the
"Troubleshooting" section of this manual.
THIS APPLIANCE MUST BE INSTALLED AND SERVICED BY AUTHORISED
PERSONNEL ONLY.
THIS APPLIANCE IS NOT SUITABLE FOR INSTALLATION IN MARINE CRAFT,
CARAVANS OR MOBILE HOMES.
DO NOT: Operate this appliance before reading these instructions.
DO NOT: Store flammable materials near this appliance.
DO NOT: Spray aerosols in the vicinity of this appliance while it is operating.
DO NOT: Operate this appliance with any parts removed.
DO NOT: Modify this appliance.
DO NOT: Install lids or covers over this appliance.
COOKTOP IDENTIFICATION
IMPORTANT MAINTENANCE (AND WARRANTY) INFORMATION
As with any product that has moving parts or is subject to wear and tear, it is VERY
IMPORTANT that you maintain your Tudor cooktop and have it regularly serviced.
It is a condition of warranty cover for your Tudor cooktop that you comply with all of
the maintenance and service requirements set out in the Owner’s manual.
Compliance with these requirements will prolong the life of your cooktop. Further, it
is also a condition of warranty cover that each item in the Maintenance Schedule
on the back page of this Owner’s Manual is performed with the frequency indicated,
by a qualified, licensed technician, and that the Maintenance Schedule is properly
filled out (ie names, signature, date, and action taken) when the item is completed.
ANY FAILURE TO CARRY OUT THE REQUIRED MAINTENANCE AND
SERVICING REQUIREMENTS, AND ANY FAILURE TO PROPERLY FILL OUT
THE MAINTENANCE SCHEDULE, WILL VOID YOUR WARRANTY.

Large Boiling
Burner
Super Simmer
Burner
Wok Burner
3SEELEY INTERNATIONAL – OWNER’S & INSTALLATION MANUAL
Different burner options are available
for Tudor Romeo gas cooktops.
Cooktops are fitted with different
combinations of the following burners
depending on your model selection:
• "SUPER SIMMER" dual-ring burners,
• "LARGE BOILING" single-ring
burners,
• "WOK" dual-ring burners.
Lighting & Adjusting the Burners
Electronic Ignition Models
Large Boiling Burner
1 Depress the knob for the required
burner to initiate the spark.
2 Turn the knob fully anti-clockwise to
“HI”.
3 Release the knob once the burner
lights.
4Turn the knob to adjust to the
required heat setting.
Dual Ring Burners - Inner Ring Only
1 Depress the knob for the required
burner to initiate the spark.
2 Turn the knob fully anti-clockwise to
“HI”.
3 Release the knob once the burner
lights.
4Turn the knob to adjust to the
required heat setting.
Dual Ring Burners - Inner AND Outer
Ring
1 Depress the knob for the required
burner to initiate the spark.
2 Turn the knob clockwise to “HI”.
3 Release the knob once both inner
and outer burners light.
4Turn the knob to adjust to the
required heat setting.
Lighting & Adjusting the Burners
Manual Ignition Models
1 Place a hand-held ignition device
alonside the burner to be ignited
(outer burner if lighting both rings of a
dual burner.
2 Depress knob corresponding to the
required burner and turn to the
marked “HI” position.
3 Release the knob once the burner
lights.
4Turn the knob to adjust to the
required heat setting.
Turning the Burners Off
1 Turn the knob corresponding to the
required burner to the marked “OFF”
position.
USER INSTRUCTIONS

4
USER INSTRUCTIONS cont.
Safe Operation
DO NOT place anything (eg, flame
tamer, simmer mat) between the pot
and the trivet as serious damage/glass
breakage may result.
DO NOT remove the trivet and enclose
any burner with a wok stand.
DO NOT use large pots or heavy
weights which could deform the
cooktop.
DO NOT allow the pot to protrude past
the edge of the cooktop. Ensure that the
pot is located centrally over the burner.
DO NOT place hot objects directly onto
the glass surface.

5 SEELEY INTERNATIONAL – OWNER’S & INSTALLATION MANUAL
Cleaning Your Cooktop
DO NOT use abrasive cleaners or steel
scourers on any parts of your cooktop
as these can cause damage to the
surfaces. This damage is not covered
by your warranty.
The trivets, burners and knobs can all
be removed for cleaning. We
recommend using warm soapy water
and that parts are dried after washing.
DO NOT remove any other parts.
Take care to replace any parts that have
been removed back in their original
positions.
Glass Hob
1 Use a non-abrasive cleaner or
specific glass cleaner.
2 If required a nylon scourer can be
used on stubborn stains.
Stainless Steel Hob
1 Use a non-abrasive cleaner in the
direction of the "grain".
2 We recommend a mixture of equal
parts of baby oil and mineral
turpentine.
3 Apply sparingly and buff off excess
with a clean soft cloth.
Black Burners
1 Use a clean soft cloth in warm soapy
water only.
Enamelled Spill Bowls
1 Use a non-abrasive cleaner and
warm soapy water.
Spark electrode tips
(Electronic ignition models)
1 These can be cleaned with a soft
brush such as a toothbrush.
Plastic knobs
1 Use a non-abrasive cleaner in warm
soapy water.
Keeping your cooktop clean will assist
with ignition and operation.
USER INSTRUCTIONS cont.

Troubleshooting Checks
If your cooktop is not operating
correctly, please run through the
following checks prior to requesting a
service call.
Many service calls are the result of
blockages caused by cleaning residues.
Please ensure that you check for this
prior to requesting a service call as this
is not covered by your warranty.
No ignition spark
1 Check appliance is plugged in and
power point is turned on (electronic
ignition models only).
Burners will not light
1 Check gas valve to cooktop is turned
on.
2 Check spark to all burners.
3 Check that burner ports are not
blocked, clear with a needle if
required, take care not to damage
ports, do not enlarge ports.
4 If using bottle gas, check that bottle is
not empty - have bottle replaced if
necessary.
Electronic ignition models
5 Try lighting one of the large boiling
burners with a match.
6 Check spark electrode position. Spin
electrode to reseat 3-4mm from edge
of inner burner if required.
Inner burner on super simmer burner
will not light
1 See "Burners will not light" checks.
2 Remove burner and check that
injector hole is not blocked - clear
with a fine needle if required.
Outer burner on dual-ring burners
will not light
1 See "Burners will not light" checks.
2 Check that outer burner lights using a
match.
3 Check that thin "cross-lighting" slot in
outer burner is not blocked - clear
with a fine blade or needle if required.
Uneven flame appearance
1 Check that the burner is correctly
located and seated in position.
If, after running through the above
checks, your cooktop is still not
operating correctly, please contact your
installer or call Service on 1300 650
276.
Servicing or replacement of parts within
the appliance must be carried out by
qualified personnel ONLY.
6
USER INSTRUCTIONS cont.

THIS APPLIANCE MUST BE
INSTALLED AND SERVICED
BY AUTHORISED
PERSONNEL ONLY.
Regulations
This Tudor Romeo gas cooktop must be
installed in accordance with these
instructions, local gasfitting regulations,
municipal building codes, electrical
wiring regulations, Australian Standard
AS/NZS 5601 and any other relevant
statutory requirements.
Installation
Pre-Installation Checks
1 Check that the appliance model and
gas type are as required.
2 Check that the appliance is not
damaged - report any transit damage
within 7 days.
3 Do not install if damaged.
Installation Location
1 Select a position away from doors,
draughts and curtains.
Clearance From Walls
1 Maintain a minimum clearance of
150mm from the perimeter of the
cooktop and any wall surface.
2 If any wall surface is closer than
150mm, it must be covered with a
suitable non-combustible material to
a height of 400mm above the
benchtop.
Clearance From Range Hoods and
Overhanging Cupboards
1 Maintain a minimum distance of
600mm from the top of the highest
trivet to the underside of a range
hood or overhanging cupboard.
7 SEELEY INTERNATIONAL – OWNER’S & INSTALLATION MANUAL
INSTALLATION INSTRUCTIONS

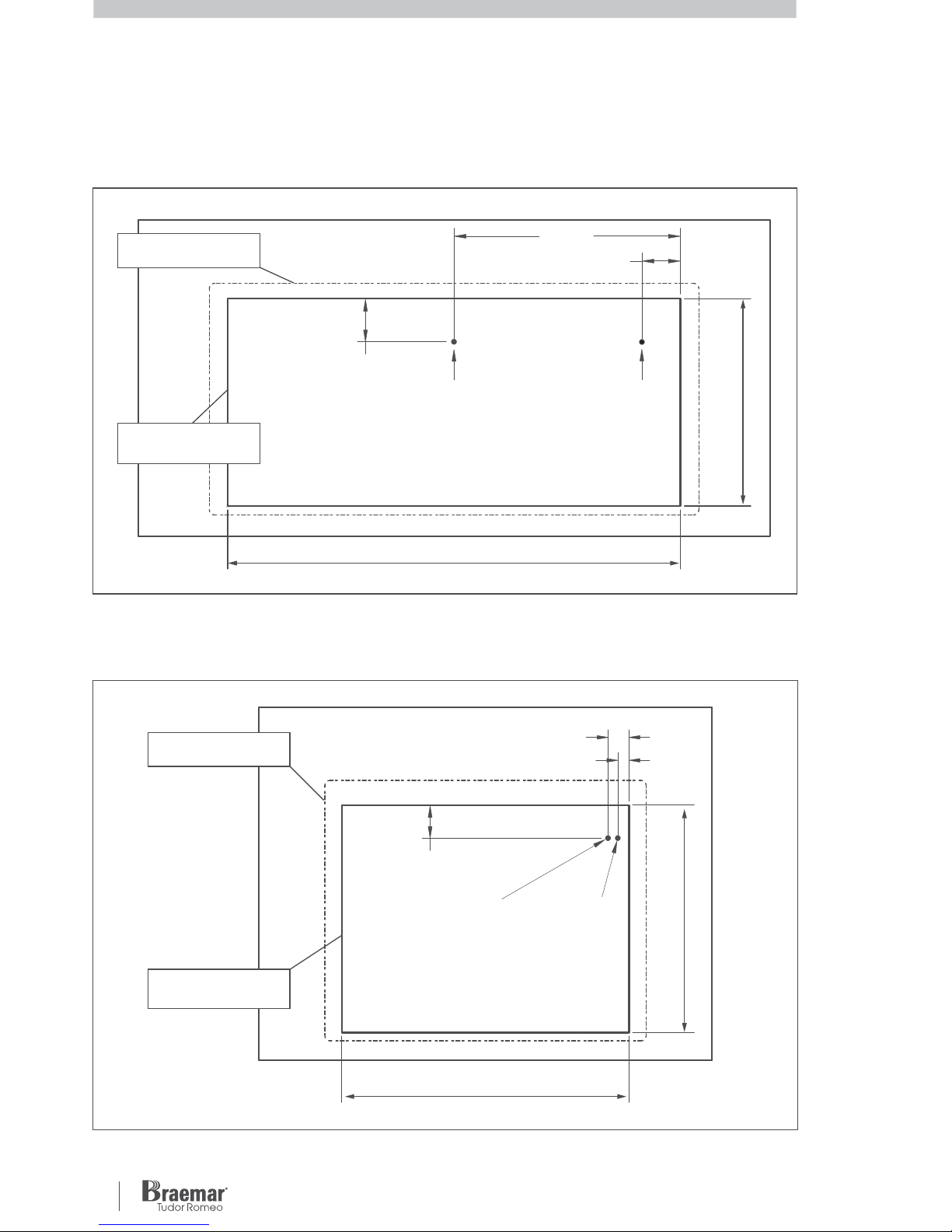

Bench cut-out dimensions: 900 series cooktops
70
427
Electrical
entry[1]
Gas
entry
Min depth 40mm
105
Hob 930 x 440
Bench cut-out
1. Electronic ignition models only
40
20
Gas
entry
Electrical
entry[1]
90
Min depth 40mm
Hob 660 x 535
Bench cut-out
1. Electronic ignition models only
Bench cut-out dimensions: 600 series cooktops
8
INSTALLATION INSTRUCTIONS cont.
390 - 395
860 - 865
470 - 475
590 - 595

Fitting the Cooktop
1 After the hole is cut in the bench, fit
the cooktop into the opening.
2 The cooktop does not require "fixing"
to the bench - it will stay in position
under its own weight.
3 Ensure that the flange of the
sheetmetal base of the cooktop rests
on top of the bench all the way
around.
4 DO NOT seal the cooktop into the
bench - the small opening around the
perimeter of the glass hob, and
across the rear of the stainless steel
hob, is required to allow combustion
air to enter the cooktop.
Gas Connection
Natural Gas Cooktops
1 The cooktop is supplied with a
regulator which must be fitted at the
inlet of the cooktop.
Propane Cooktops
1 The cooktop is supplied with a short
length of copper pipe which
incorporates a pressure test point.
This must be fitted at the inlet of the
cooktop.
This cooktop is NOT suitable for use
with a flexible gas connection.
Electrical connection
(electronic ignition models only)
1 Each cooktop is supplied fitted with a
standard 3-pin 240Vac plug and
1-1.2m of lead.
2 A conventional 240Vac 10A 3-pin
GPO must be fitted.
3 Ensure that the polarity of the power
supply is corrrect.
4 Electrical wiring and fittings must be
installed by a licensed electrician,
and in accordance with the relevant
electrical standards and regulations.
9 SEELEY INTERNATIONAL – OWNER’S & INSTALLATION MANUAL
INSTALLATION INSTRUCTIONS cont.

Testing and Commisioning
Check For Gas Leaks
1 Check the gas line for leaks - rectify
any leaks found.
Check Gas Test Point Pressure
Natural Gas models
1 The gas pressure test point is located
on the outlet side of the regulator.
2 Remove the test point screw and
connect a suitable manometer to the
pressure test point.
3 Light all burners.
4 Check that the pressure is 1.0 kPa -
adjust the regulator if required.
5 If you cannot achieve the specified
pressure, check the gas supply line.
The cooktop requires a minimum
supply pressure of 1.13 kPa at the
inlet of the regulator.
6 Once the pressure is set correctly,
lock the regulator adjusting screw,
remove the manometer and replace
the test point screw.
7 Re-light at least one burner and
re-check for leaks at the pressure
test point.
Check Gas Test Point Pressure
Propane models
1 The gas pressure test point is
located on the gas inlet pipe
supplied.
2 Remove the test point screw and
connect a suitable manometer to
the pressure test point.
3 Light all burners.
4 Check that the pressure is 2.75 kPa.
5 If you cannot achieve the specified
pressure, check the gas supply line.
6 Remove the manometer and replace
the test point screw.
7 Re-light at least one burner and
re-check for leaks at the pressure test
point.
Check operation and
instruct customer
1 Check that ignition to all burners
operates correctly.
2 Check that flames are even on all
burners.
3 Check that controls operate correctly
between marked "HI" and "LO"
positions.
4 Hand instruction manual to
customer/home owner and explain
operation.
10

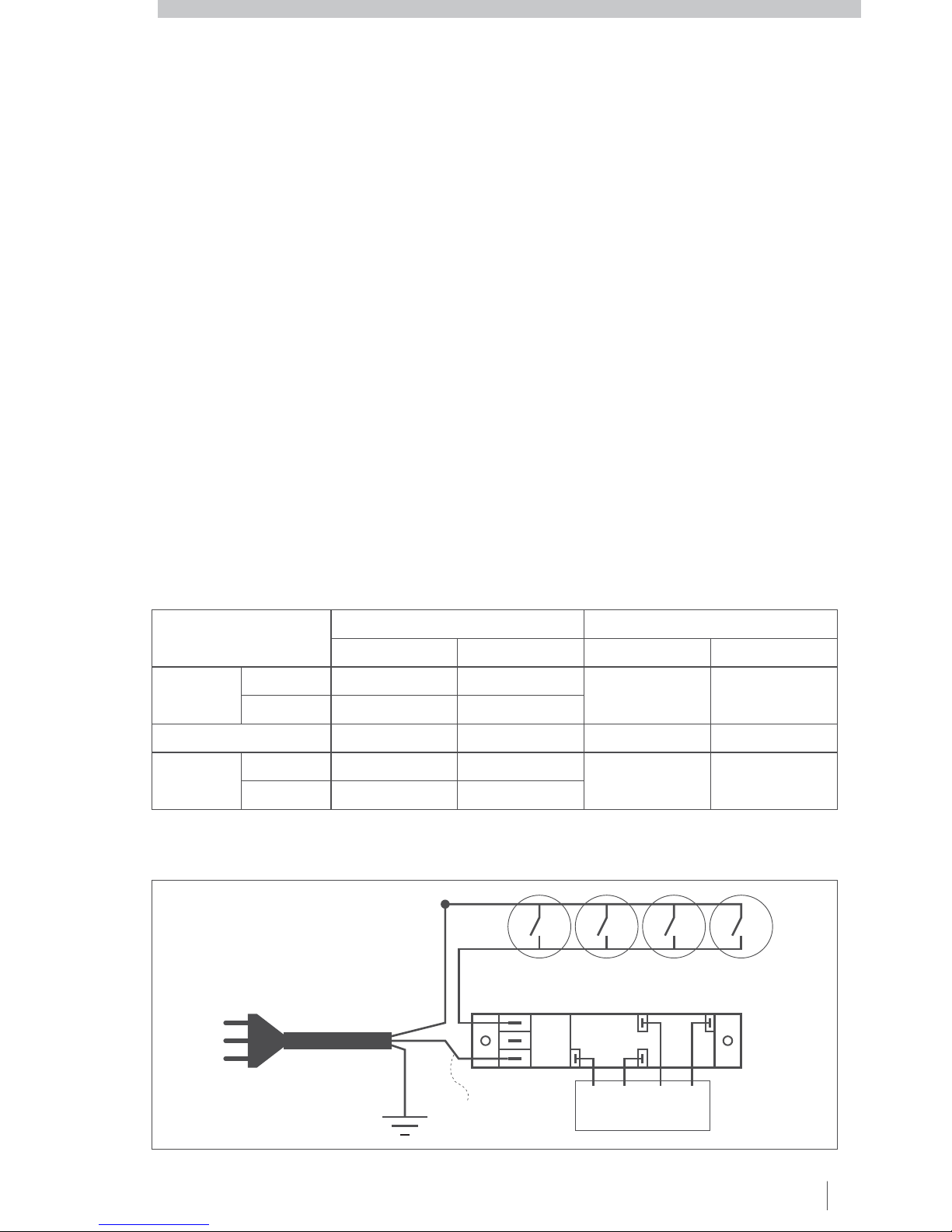

INSTALLATION INSTRUCTIONS cont.

Burner Injector size (mm)
Nat Gas Propane
Gas rate (MJ/h)
Nat Gas Propane
SUPER
SIMMER
Inner
Outer
WOK
Inner
Outer
LARGE BOILER
0.50 0.25 5.9 5.9
1.00 0.60
1.50 0.90 11.0 11.0
0.65 0.50 18.0 18.0
1.90 1.05
A
N
E
Brown
Blue
Blue
Green/yellow Spark electrodes
(1 to each burner)
Ignition switch under each control knob.
Depressing any knob initiates spark to ALL
burners simultaneously.
Blue
240Vac 50Hz
supply
Servicing must be carried out by qualified personnel only in
accordance with the maintenance schedule on the back page.
Do not modify this appliance.
Wiring Diagram - Electronic Ignition Models Only
Component access
1 Disconnect electricity supply.
2 Remove trivets, burners, spillbowls
and knobs.
3 Gently lift glass or stainless steel hob
upwards to gain access to all internal
components.
Servicing
1 Refer Troubleshooting section of this
manual.
2 If parts require cleaning, refer
Cleaning Instructions section of this
manual.
3 If parts require replacement, replace
with only genuine Tudor spare parts.
4 For spare parts call 1300 367 437.
11 SEELEY INTERNATIONAL – OWNER’S & INSTALLATION MANUAL
SERVICING INSTRUCTIONS AND
SPECIFICATIONS
Specifications

Warranty Service
Australia 1-300-650-276
seeleyinternational.com
810560K seeleyinternational.com
It is the policy of Seeley International to introduce continual product improvement. Accordingly, specifications are
subject to change without notice. Please consult with your dealer to confirm the specifications of the model selected.
Meridian Maestro ACN 008 141 277
AU 1203
Name of Technician and company
(Print)
Signature of Technician
Date of attendance
Year 2 4 86 10
Maintenance Schedule
Unit and components
Hob
Trivets
Ignitors
Knobs
General Installation
Burners
Electrical
Electrical wiring
Ignition switches and leads
Operation
Complete ignition
Gas test point pressure
Gas valve operation
Burner operation
Gas, burners & ignition
Burners
Injectors
kPa kPa kPa kPa kPa
Action taken key:
= Inspected and working correctly no action required
A = Adjustment of part
C = Cleaning of part
R = Replaced part
Venturis
To owner/user: please note that as explained in your Warranty Card, installation is not covered by the warranty
(for example, electrical and gas connections to the Tudor cooktop). However, we still require that you have these
things checked, because they can affect the performance (and/or safety) of the coocktop. This is why we have
included them in the Maintenance Schedule. Further, routine maintenance may be required more frequently in
non-domestic applications or when operating in adverse environmental situations. It is your obligation to ensure
that you comply with these requirements.
It is a condition of your warranty cover that the items in the Schedule below are checked (and action taken as
required) every two (2) years after the date of installation by a qualified, licenced technician, and that the
Schedule is properly filled out (ie names, signature, date, and action taken). Even after the warranty period
expires, please continue to have the product maintained every two years as per the items in the Schedule. This
will help to prolong the life of the product and keep it running efficiently.
