EN SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
We have designed this cooking hob for use by
private individuals in their homes.
These cooking hobs are intended exclusively
for cooking beverages and foodstuffs and do
not contain any asbestos-based materials.
This appliance is not intended to be used by
persons (including children) with reduced
physical, sensory or mental abilities, or per-
sons lacking experience or awareness, unless
using it with the help of a person reponsible
for their safety, or under supervision and with
prior instruction in its use. Children should be
supervised to ensure that they do not play
with the appliance.
••
Residual heat
While an operating cooking zone is very hot, a
lamp or “HH” (depending on the models) for
this zone, is lit in the indicator.
When a cooking zone is in a stop position and
its temperature is high this display remains lit.
Warning
Do not touch these zones, burn risk.
Do not look for a long time at the halogen
lamps in the cooking zones.
••
CARE OF THE ENVIRONMENT
••
— This appliance’s packing materials are recy-
clable. Recycle them and play a role in protec-
ting the environment by depositing them in
municipal containers provided for this pur-
pose.
— Your appliance also contains
many recyclable materials. It is the-
refore marked with this logo to indi-
cate that used appliances must not
be mixed with other waste.
Recycling of the appliances organi-
sed by your manufacturer will thus
be undertaken in optimum conditions, in
accordance with European directive
2002/96/CE relating to electrical and electro-
nic equipment waste. Consult your city hall or
your retailer to find the drop-off points for
used appliances that is nearest to your home.
— We thank you for your help in protecting the
environment.
Electrical danger
Ensure that the power cable of a
connected electrical appliance near the hob
is not in contact with the cooking zones.
If a crack appears in the surface of the
glass, disconnect your appliance immedia-
tely to prevent a risk of electric shock.
To do this, remove the fuses or use the cir-
cuit breaker.
Do not use your hob until you have replaced
the glass worktop
.

5

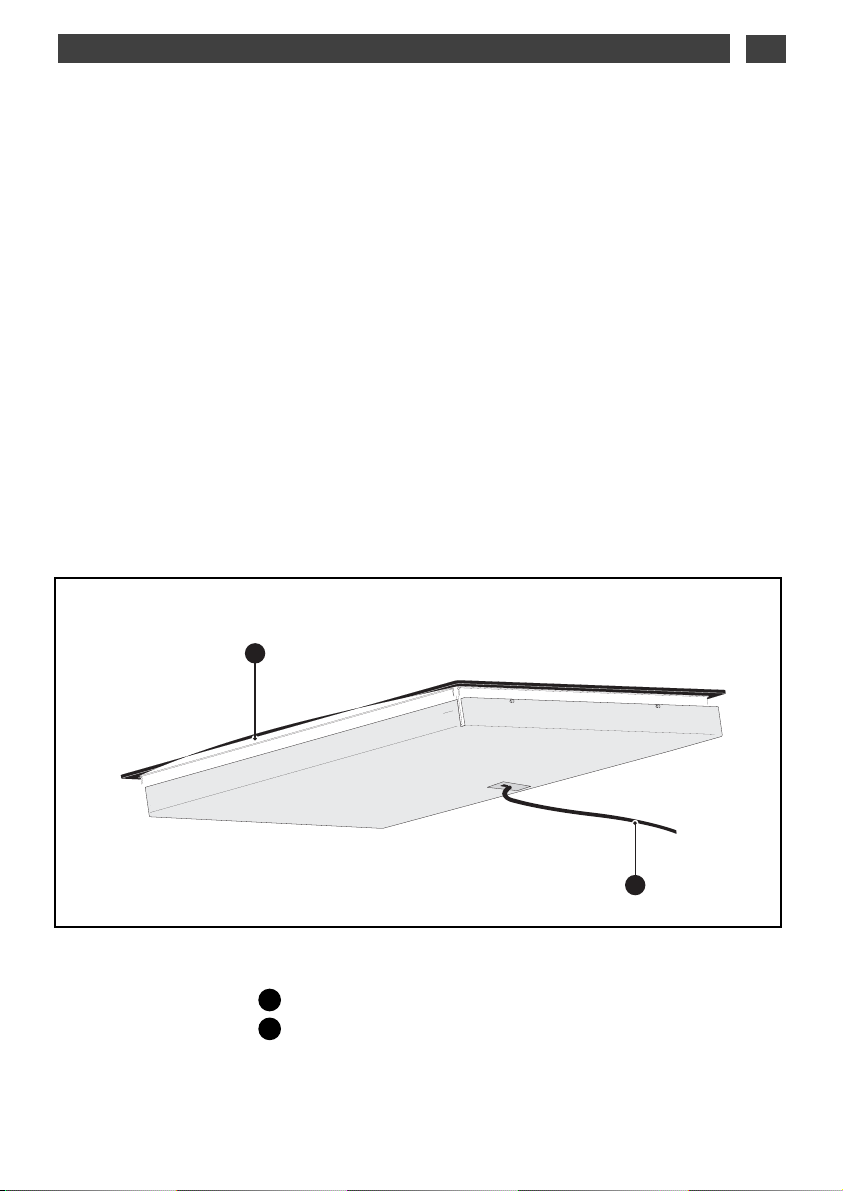

DESCRIPTION OF YOUR APPLIANCE
A
B
Vitroceramic glass
Power cord
A
B
••
Any maintenance on your equipment should be undertaken by:
- either your dealer,
- or another qualified mechanic who is an authorized agent for the brand appliances.
When making an appointment, state the full reference of your equipment (model, type and serial
number). This information appears on the manufacturer's nameplate attached to your equipment.
AFTER-SALES SERVICE EN

6
1 / INSTALLING YOUR APPLIANCEEN
••
CHOICE OF LOCATION
Your appliance should be positioned so that
the mains switch is accessible.
The distance between the edge of your
appliance and the side and rear walls (or par-
titions) must be at least four centimetres
(area A).
The table can be directly embedded into the
work surface :
- Above the oven in high position (min. dis-
tance 10mm)
- Above a drawer or a cupboard (fit a board
under the table).
4 cm
4 cm
4 cm
4 cm
A
ventilation
space
••
66..44
4499

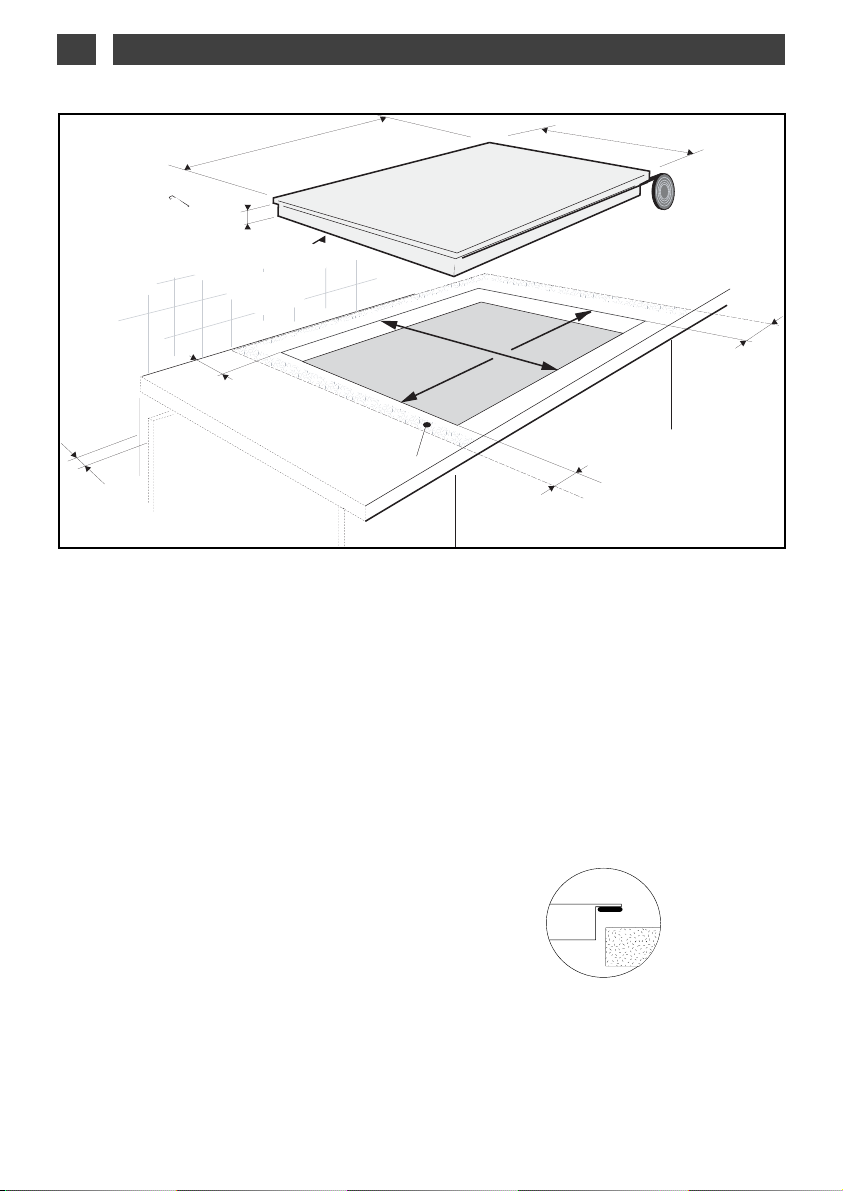

BUILD-IN
Follow the diagram above.
A joint provides the seal with the worktop.
- This joint is glued under your hob; insert the
hob directly in the cut-out.
- This joint is supplied in the envelope; glue it
under the hob.
5511
2288,,88--5588
2266,,55--5566

7
EN
11//INSTALLING YOUR APPLIANCE
Separate the 2 phase wires (L1 and L2) before
connection.
NNeeuuttrraall
EEaarrtthh
PPhhaassee
NNLL
Green/yellow
Blue
Black
Brown
NNeeuuttrraallEEaarrtthh
PPhhaassee
NNLL11LL22
Blue
Green/
yellow
Black
Brown
• Connection of 220-240V
~
Warning
If the cable is damaged it must be
replaced by the manufacturer, its after-
sales service or a person with a similar
qualification to prevent danger.
For a 400 V 2N triphase connection, if your
hob malfunctions, check that the neutral
conductor is properly connected.
These hobs must be connected to the mains
using a socket in compliance with publication
CEI 60083 or an all-pole circuit-breaker
device in compliance with the installation
rules in force.
When power is first supplied to your hob, or
after an extended power cut, an indicator
light will appear on the control panel. Wait for
approximately 30 seconds until this informa-
tion disappears before using your hob (This
display is normal and it is intended, if applica-
ble, for your after-sales service. In all cases,
the user of the hob should disregard it).
CONNECTION
••
NNeeuuttrraall
EEaarrtthh
PPhhaassee
NNLL
Green/yellow
Blue
Brown
• Connection of 400V 2N
~ -
16A
32A
16A
Separate the wires before connection.
NNeeuuttrraallEEaarrtthh
PPhhaassee
NN11LL11LL22
Blue
Green/
yellow
Black
Brown
• Connection of 2x230V 2L+2N
~ -
16A
NN22
• Connection of 400V 3
~ -
16A

8
EN 22//USING YOUR APPLIANCE
DESCRIPTION OF THE TOP
••
00082
TV1000 TV 1010
2200ccmm
1800 W
1166,,55ccmm
1200 W
2233ccmm
2300 W
1166,,55ccmm
1200 W
2200ccmm
1800 W
1166,,55ccmm
1200 W

9
EN2 / USING YOUR APPLIANCE
COOKWARE FOR
VITROCERAMICS
••
Cookware
It must be designed for electric cooking.
It must have flat bottoms.
Preferably use cookware made of:
- Stainless steel with a thick or “sandwich”
three-metal bottom.
- Aluminium with a thick smooth bottom.
- Enamelled steel
••
Use
A higher setting is required if:
- there are large quantities
- cooking with uncovered cookware
- a glass or ceramic pan is used.
A lower setting is required if:
- cooking food which has a tendency to burn
easily (start with a lower setting - the setting
can be increased if necessary).
- a spill occurs (remove the lid or remove the
pan, then reduce the setting).
••
Energy saving:
To finish the cooking, set at position 0, leaving
the cookware in position to use the accumu-
lated heat (this will save energy).
Use a lid as often as possible to reduce heat
loss by evaporation.
••
Automatic regulation of rings
The rings are regulated automatically; they
switch on and off to maintain the selected
power level. The temperature thus remains
uniform and appropriate for cooking your
food.
The regulation frequency varies according to
the selected power level.
Tip
Use cookware of an appropriate size.
The diameter of the bottom of the cook-
ware must be equal to or greater than the
printed zone.
Do not leave empty cookware on a cooking
zone.
Do not leave cookware containing hot oil or
fat unsupervised on a cooking zone.
••
••
SWITCHING ON
0
This unit is not intended to be operated
using an external timer or a separate remote
control system.

10
EN 33//MAINTAINING YOUR APPLIANCE
CARING FOR YOUR APPLIANCE
Avoid hard shocks from cookware:
The vitroceramic glass surface is highly resis-
tant, but not unbreakable.
Do not place any hot lids flat on your coo-
king hob. A “sucker” effect might damage
the vitroceramic top.
Avoid rubbing cookware: in the long term this
might cause damage to the decoration of the
vitroceramic top.
Do not place cookware on your frame or trim-
mings (depending on model).
Avoid using cookware with rough or bumpy
bottoms: they can capture and transfer parti-
cles that may produce stains or scratches on
your hob.
These faults, which do not prevent opera-
tion or unsuitability for use, are not covered
by the guarantee.
MAINTAINING YOUR APPLIANCE
Do not store cleaning products or flammable
products in the cabinet underneath your
cooking hob.
Do not reheat an unopened tin: it might
explode.
Of course, this precaution applies to all types
of cooking.
For cooking, never use aluminium foil. Never
place items wrapped in aluminium foil or
packaged in aluminium dishes on your coo-
king hob.
The aluminium will melt and permanently
damage your cooking appliance.
Objects not intended for cooking should
never be placed on the hob (risk of powering
on, scratches, etc.).
Steam cleaning should never be used. The
steam jet could damage your hob.

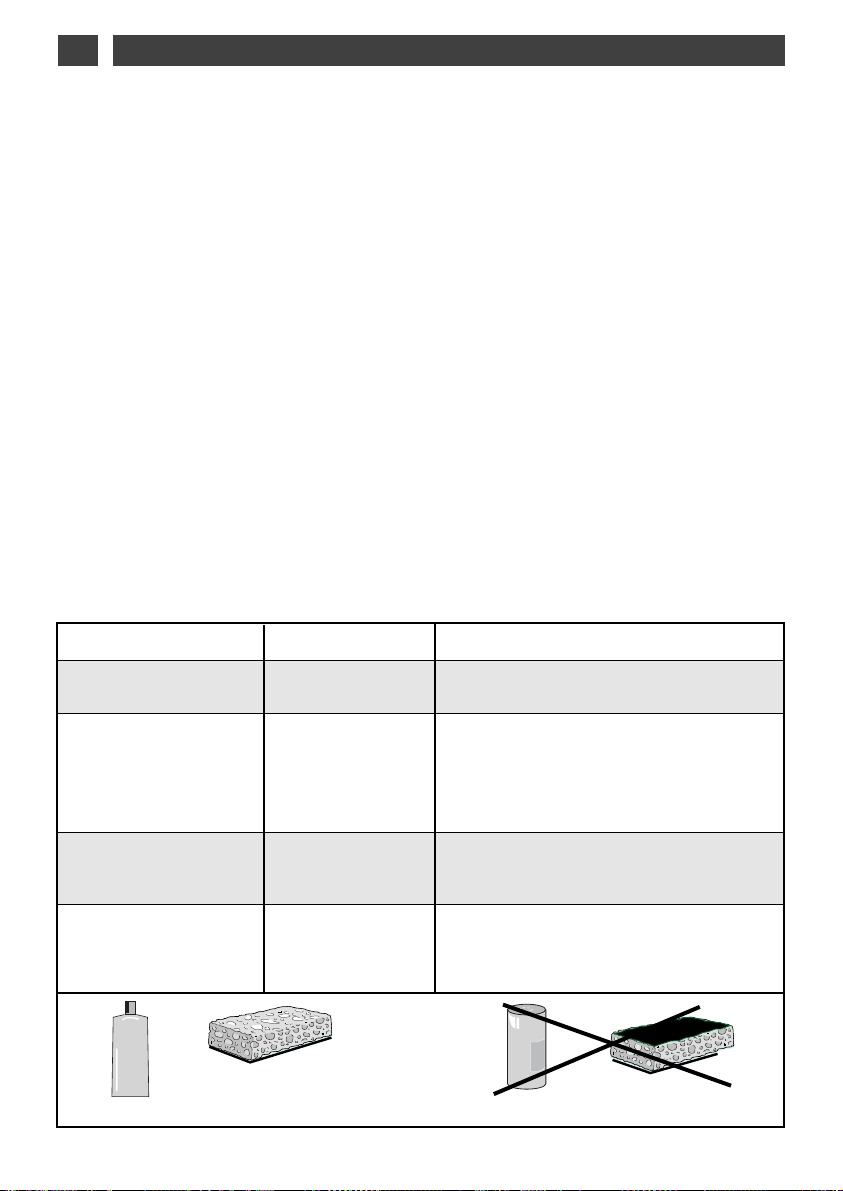

TTYYPPEEOOFFSSTTAAIINNSS//SSPPOOTTSS
Light.
Accumulation of baked-
on stains/dirt.
Sugar spills,
melted plastics.
Rings and hard water
residue.
Shiny metal colourings.
Weekly maintenance.
WWHHAATTTTOODDOO
Thoroughly moisten the zone to be clea-
ned with hot water, then wipe off.
Thoroughly moisten the zone to be clea-
ned with hot water. Use a scraper for
glass to remove the large bits, follow with
the rough side of a disinfectant sponge,
and then wipe off.
Apply warm white vinegar to the stain, let
stand, then wipe with a soft cloth.
Apply a cleaning agent for vitroceramic
glass (preferable one with silicone for its
protective properties) to the surface.
UUSSEE
Cleaning sponges
Cleaning sponges
Scraper for glass.
White vinegar.
Special vitroceramic
glass product.
cream
special cleaning sponge
for delicate crockery abrasive sponge
powder
••
••

11
EN
44//SPECIAL MESSAGES, INCIDENTS
Warning
In the event of breakage, crack or fissure, even minimal, of the vitroceramic glass,
immediately disconnect your appliance to prevent a risk of electric shock.
Contact the After-Sales Service Department.
YOU OBSERVE THAT: POSSIBLE CAUSES: WHAT YOU SHOULD DO:
Your installation blows a fuse.
Only one side works.
The electrical connection of
your hob is incorrect.
.
Check that it is compliant.
See section on electrical
connection.
•On first use

12
EN 5 / COOKING CHART
BROTHS
THICK SOUPS
COURT BOUILLON
FROZEN FOODS
THICK, FLOUR-BASED
BUTTER-BASED WITH EGGS
(BEARNAISE, HOLLANDAISE)
PREPARED SAUCES
ENDIVES, SPINACH
DRIED BEANS
BOILED POTATOES
GOLDEN BROWN POTATOES
SAUTEED POTATOES
DEFROSTING VEGETABLES
MEAT, NOT TOO THICK
STEAKS, IN SKILLET
GRILLED MEATS (CAST IRON GRILL)
FROZEN FRENCH FRIES
FRESH FRENCH FRIES
PRESSURE COOKER
(ONCE IT STARTS WHISTLING)
COMPOTES
CRÊPES
CRÈME ANGLAISE
MELTED CHOCOLATE
JAMS
MILK
EGGS, FRIED
PASTA
JARS OF BABY FOOD
(DOUBLE BOILER)
MEAT STEW
SPANISH RICE
RICE PUDDING
FFRRYYCCOOOOKK//BBRROOWWNNCCOOOOKK//SSIIMMMMEERRKKEEEEPP
BRING TO RETURN TO BOILING WWAARRMM
A BOIL BOILING LIGHT BROTHS
SOUPS
FISH
SAUCE
VEGETABLES
MEAT
FRYING
MISCELLA-
NEOUS
VITROCERAMIC
••
998877665544332211
998877665544332211
998877665544332211
FFaaggoorrBBrraannddttSSAASS,,MMaannaaggeemmeennttccoommppaannyy––SSAASS::ssoocciiaallccaappiittaallooff2200,,000000,,000000eeuurroossRRCCSSNNaanntteerrrree444400330033119966..

CZ5700539 /00 - 03/10
