Branick 7600 Use and care manual

Branick Industries, Inc. •4245 Main Avenue •Fargo, North Dakota 58103
REV042418 P/N: 81-0246B
Installation, Operation
& Repair Parts
Information
MODEL 7600
STRUT SPRING
COMPRESSOR

1
TABLE OF CONTENTS _______________________________________________________
SAFETY INSTRUCTIONS 1
DEFINITIONS 1
SPECIFICATIONS 2
INSTALLATION INSTRUCTIONS 2
OPERATING INSTRUCTIONS 3
Positioning the Strut Assembly 3
Disassembly 6
Reassembly 7
MAINTENANCE 8
REPAIR PARTS 9
WARRANTY 11
SAFETY INSTRUCTIONS _____________________________________________________
•NEVER allow unauthorized personnel to operate this product.
•NEVER use this product for anything other than its intended use.
•THOROUGHLY train new employees in the proper use and care of this product.
•PROHIBIT unauthorized personnel from being in shop area while this product is in use.
DEFINITIONS _______________________________________________________________
•CAUTION: Indicates a potentially hazardous situation, which if not avoided, may result in damage to
property or minor personal injury.
•HAZARD: A source of potential injury to a person.
•MAINTENANCE: Those actions that preserve the correct and proper conditions under which the machine
shall be used. This may include adjustment, replacement of wear items, lubrication and cleaning, but not
modifications or repair of damage.
•MAY: This word is understood to be permissive.
•MUST: This word is understood to be mandatory.
•OPERATION: The correct and proper use of the machine as described in this manual.
•SAFETY ALERT SYMBOL: A symbol that indicates a potential personal safety hazard. It is composed of
an equilateral triangle surrounding an exclamation point.
•SHALL: This word is understood to be mandatory.
•SHOULD: This word is understood to be advisory.
•WARNING: Indicates a potentially hazardous situation, which if not avoided, may result in death or
serious personal injury.

2
SPECIFICATIONS ___________________________________________________________
Max. Spring Compression Capacity ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3000 lbs (1361 kgs)
Min./Max. Spring Diameters ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3.5 / 11.5 in (9 / 29 cm)
Packaged Dimensional data ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 18.5 x 20 x 43.63 in (47 x 51 x 111 cm)
Shipping Weight ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 100 lbs (45 kgs)
INSTALLATION INSTRUCTIONS________________________________________________
1. Unpack and remove the unit from the shipping carton.
2. Inspect the unit for any visible damage.
3. Install on a solid vertical wall or post. (Can also be installed on an OPTIONAL benchmount or portable
cart)
4. Anchor the unit to the wall or post utilizing the two holes in the back plate. Make sure there is no
movement between the back plate and wall or post.
CAUTION
Before using this product, read and fully understand the operating
instructions and all decals on the product. This is necessary to
prevent injury to the operator and damage to the product.
Do not attempt to use this product for anything other than its
intended purpose.
Do not use this product if it is visibly worn, distorted or damaged.
Always check condition of rubber hook pads on all six hooks before
using this tool. Replace if damaged or missing.
Always wear appropriate eye protection.
Inspect the spring of the strut assembly for any damage or
corrosion. Spring breakage during compression could cause injury.
WARNING
Failure to properly position the strut assembly in tool could result in
serious injury from sudden release of the strut assembly parts.

3
OPERATING INSTRUCTIONS________________________________________________
Step 1. Positioning the Strut Assembly

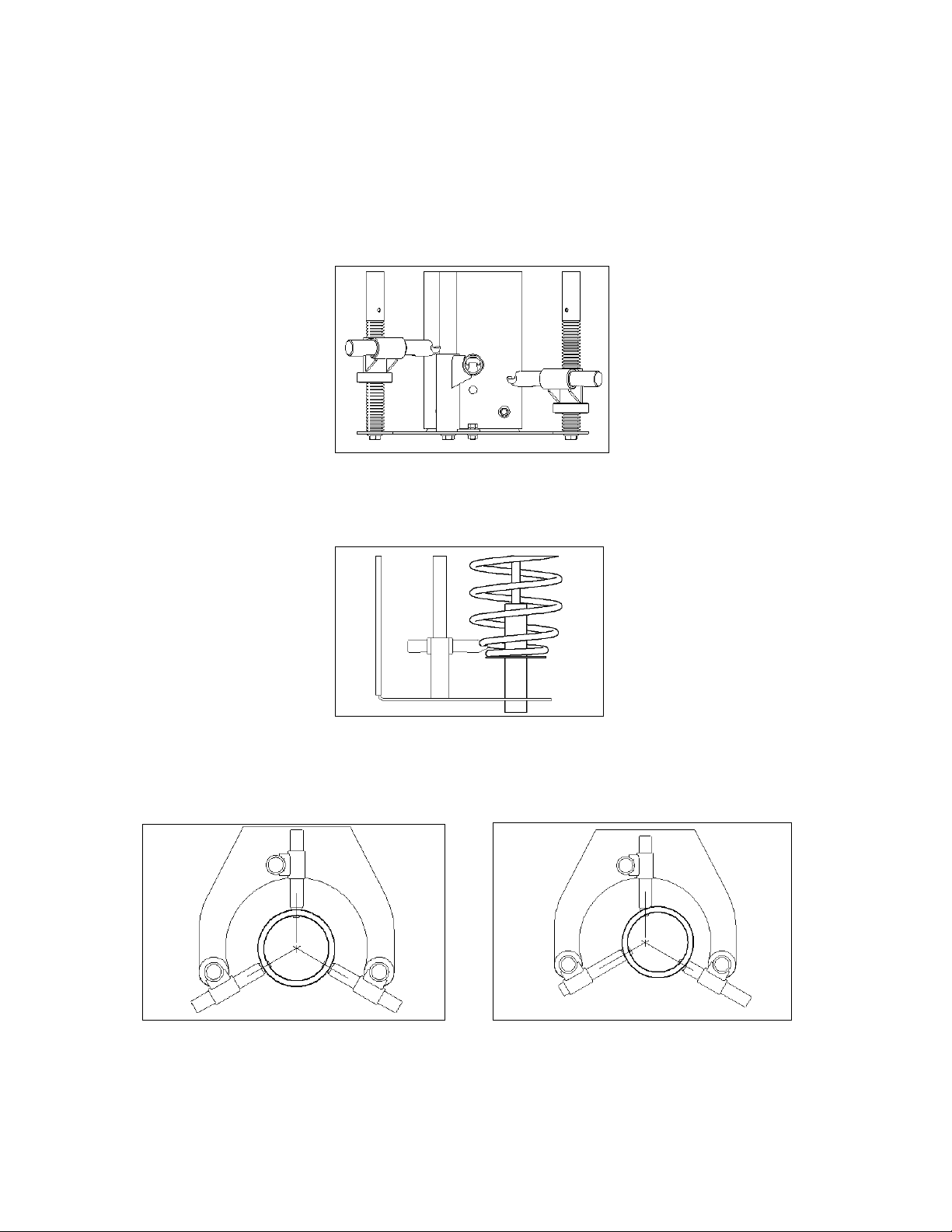

A) Adjust lower right hook to a position just below the lower center hook. Adjust lower left hook to a position
just above the lower center hook.
B) Place strut assembly on the lower center hook using the lowest possible coil of the spring.
C) Engage lower left and right hooks with spring. Center the spring within lower hooks. The three lower
hooks should be equally extended.
CORRECT INCORRECT

4
D) Align strut assembly by adjusting the lower left and right hooks. When properly aligned, the spring of the
strut assembly will be parallel to the posts of the tool when viewed from both the front and side.
Front Front
CORRECT INCORRECT
Side Side
CORRECT INCORRECT

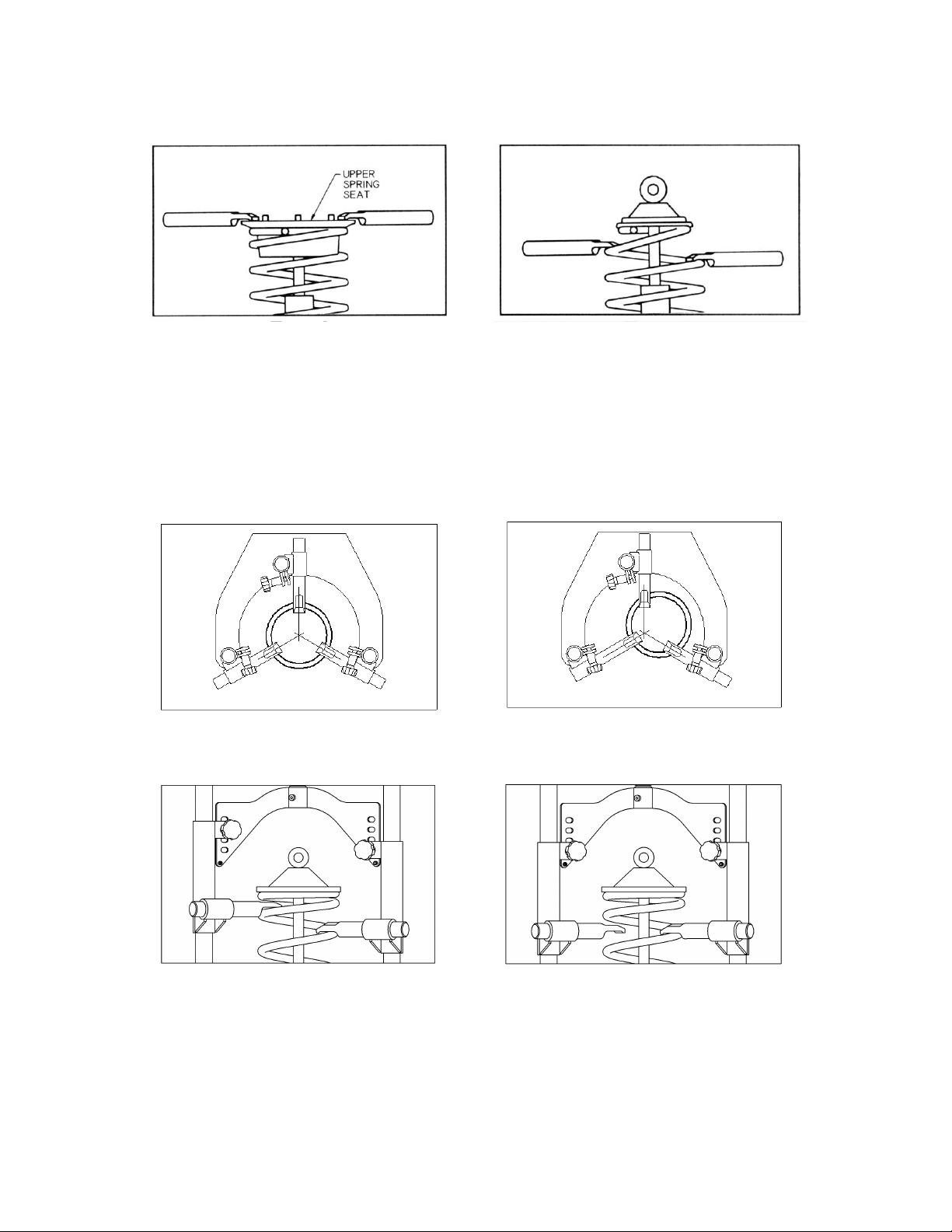

E) Identify the strut assembly type you are servicing.
Type 1 Type 2
This type of strut has a bearing plate (which This type of strut has a bearing plate (which
rotates) and upper spring seat. Place upper rotates) and upper spring seat without space
hooks on the upper spring seat. Do not between them. Place upper hooks on the
place hooks on bearing plate. highest coil of the spring. Do not place hooks
on bearing plate.

5
Type 3 Type 4
This type of strut has only an upper spring This is a coil over shock. Place upper hooks
seat. Place upper hooks on upper spring on the highest coil of the spring.
seat.
F) Engage all three upper hooks as shown above for the type of strut assembly you are servicing. The three
upper hooks should be equally extended and contacting the strut.
CORRECT INCORRECT
CORRECT INCORRECT

6
Step 2. Disassembly
A) With the strut assembly properly positioned, turn handles to compress spring until the bottom coil of spring
is just free of the lower spring seat. DO NOT OVER COMPRESS THE SPRING!
B) Secure strut to spring with the clamp to prevent strut from dropping out unexpectedly.
C) Mark upper strut parts to aid in reassembly.
D) Working from the right side when facing strut compressor, remove the piston rod nut.
E) Remove the clamp while holding strut. Carefully remove strut and related parts.
F) Service or replace strut as required. It is not necessary to release spring from tool when servicing strut
only.
NOTE: When replacing top spring seat or spring, make note of the position of the spring seat and spring before
releasing spring from tool. Replace new strut parts in tool in the same position as the old.
CAUTION
If the strut assembly is difficult to compress or the spring bows or
tilts, release tension and reposition the strut assembly.
Keep fingers and hands clear of the upper hook area at all times.
WARNING
Use extreme care when working with a compressed spring.
Never remove the piston rod nut when there is any spring pressure
on the lower spring seat.

7
Step 3. Reassembly
A) Position the new strut within spring. Secure strut to spring with the clamp.
B) Install piston rod nut. NUT MUST BE FULLY ENGAGED ON PISTON ROD THREADS!
C) Release pressure on spring. Remove the clamp. Remove strut assembly from tool.

8
MAINTENANCE_____________________________________________________________
NOTE: To avoid personal injury or damage to the Model 7600, permit only qualified personnel to perform
maintenance.
See repair parts breakdown for replacement parts.
ALWAYS: Keep hooks and pads free of oil and grease.
DAILY: Inspect thrust bearing, drive screw, hooks, posts, lock pins and slots for
wear.
MONTHLY: Wipe down and clean ACME drive screw.
PERIODICALLY: Inspect unit for loose or missing components.
YEARLY: Clean and lightly lubricate thrust bearing.
___________________________________________________________________________
OWNER’S RECORDS Date Installed: _______________________
Date Code _______________________ Located under bottom plate
___________________________________________________________________________

9
REPAIR PARTS_____________________________________________________________

10

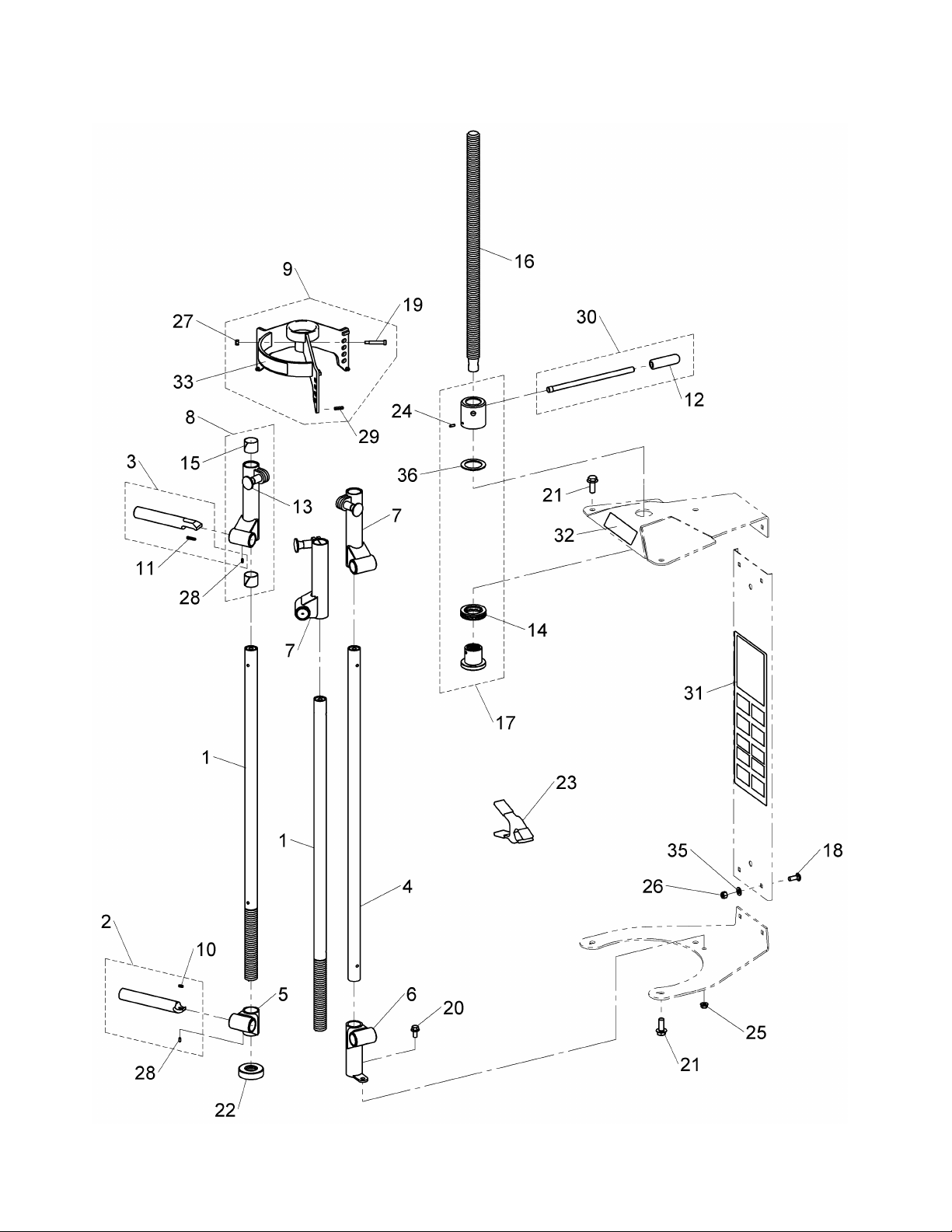

MODEL 7600
SERVICE PARTS
ITEM
PART NO.
QTY
DESCRIPTION
1
01-0085
2
POST
2
05-0130
3
LOWER HOOK KIT (Includes: Lower Hook, Hook Pad & Spring Pin)
3
05-0129
3
UPPER HOOK KIT (Includes: Upper Hook, Hook Pad & Spring Pin)
4
01-0263
1
BACK POST
5
03-0423
2
ADJUSTABLE HOOK HOUSING
6
03-0427
1
HOOK HOUSING
7
05-0131
2
UPPER RIGHT/REAR HOOK HOUSING KIT
(Includes: Hook Housing, (2) Nylon Bearings,
Knob, Spring, Lock Pin & Spring Pin)
8
05-0132
1
UPPER LEFT HOOK HOUSING KIT
(Includes: Hook Housing, (2) Nylon Bearings,
Knob, Spring, Lock Pin & Spring Pin)
9
05-0128
1
COMPRESSION HEAD KIT
(Includes: Compression Head, Shoulder Screw,
Nut & (3) Spring Pins)
10
10-0011
3
LOWER HOOK PAD
11
10-0012
3
UPPER HOOK PAD
12
10-0022
3
HANDLE GRIP
13
05-0136
3
LOCK PIN KIT (Includes: Knob, Spring & Lock Pin)
14
20-0043
1
THRUST BEARING
15
20-0044
6
NYLINER BEARING
16
21-0013
1
ACME DRIVE SCREW
17
05-0126
1
HUB & BEARING KIT
(Includes: Handle Hub, Threaded Hub, Thrust
Bearing, Thrust Washer & (3) Set Screws)
18
028-064
4
3/8-16 X 1 CARRIAGE BOLT
19
50-0025
1
5/16 X 1-1/2 SHOULDER SCREW
20
50-0065
1
3/8-16 X 3/4 HEX HEAD SERRATED FLANGE SCREW
21
50-0068
6
1/2-13 X 1-1/4 HEX HEAD SERRATED FLANGE SCREW
22
51-0015
2
ACME ADJUSTMENT NUT
23
53-0008
1
SPRING CLAMP
24
50-0189
3
1/4 –20 x 1/2 SET SCREW
25
055-103
1
3/8-16 SERRATED HEX FLANGE NUT
26
055-154
4
3/8-16 NYLON HEX LOCK NUT
27
055-160
1
1/4-20 NYLON HEX LOCK NUT
28
061-042
6
3/16 X 3/8 SPRING PIN
29
061-091
3
1/4 X 7/8 SPRING PIN
30
05-0127
3
HANDLE KIT (Includes: Threaded Handle & Grip)
31
80-0400
1
INSTRUCTION DECAL
32
80-0398
1
MODEL 7600 DECAL
33
80-0399
1
7600 WARNING DECAL
* 34
81-0246
1
MODEL 7600 OPERATING INSTRUCTIONS
35
108-015
4
3/8 SAE FLAT WASHER
36
108-137
1
THRUST WASHER
* Item not shown

11
COMMERCIAL WARRANTY
This product is warranted by BRANICK INDUSTRIES, INC. to the original user-owner against defective materials
or workmanship for a period of one year from the date of shipment. During the warranty period, at the discretion of
Branick management, if the product is found to be defective, it will be repaired or replaced without charge. For
service, contact Branick (800-437-4394) to obtain an RMA. Any product shipped to Branick must have an RMA
and proof of original shipment date. The repaired or replacement product will be returned with transportation
charges prepaid by Branick.
This warranty does not cover defects in the product caused by ordinary wear and tear, abuse, misuse,
overloading, accident (including shipping damage), improper maintenance, alteration, or any other cause not the
result of defective materials or workmanship.
REPAIR OR REPLACEMENT IS THE EXCLUSIVE REMEDY FOR DEFECTIVE PRODUCT UNDER THIS
WARRANTY. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANT ABILITY OR ANY IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE OF THIS PRODUCT. BRANICK INDUSTRIES, INC. SHALL NOT BE LIABLE FOR
ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES.
BRANICK INDUSTRIES, INC. reserves the right to make changes in the design or construction of our products
without obligation to incorporate such changes in products already sold and without notice.
Service parts and regular repair service are available from authorized distributors of Branick products, or from:
BRANICK INDUSTRIES, INC.
4245 Main Ave.
Fargo, North Dakota 58103
Toll Free: 800-437-4394
www.branick.com
© Copyright 2018 by Branick Industries, Inc. Printed in U.S.A.
