Braun 64757 Assembly instructions

!"#"$%&'(%)*+#"$*%,$-%.$$/-00)))1.,(+&(2(*"3.$14&5
%65,"7%&'(%$*4.8"4,7%#'//&($%,$-%/(&9'4$#'//&($:.,(+&(2(*"3.$14&5
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 19a
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2018 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
To ol s r eq ui r ed f o r as s em bl y a nd se rvice m ay not be in cluded.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 ;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1 Item 64757
EF;6GH IJ6KFGLIM NFLMG6MFMO6E6GPJ
G,+7*%&2%O&8$*8$#
Safety ......................................................... 2
Specifications ............................................. 4
Setup .......................................................... 4
Operation .................................................... 5
Maintenance ............................................... 6
Parts List and Diagram ............................... 7
Warranty ..................................................... 8
LNJIKGFMG%EF;6GH%LM;IKNFGLIM
Q6M6KFR%JIS6K%GIIR%EF;6GH%SFKMLMQE
K*,9%,77%#,2*$T%),(8"83#%,89%"8#$('4$"&8#1%%
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
E,U*%,77%),(8"83#%,89%"8#$('4$"&8#%2&(%2'$'(*%(*2*(*84*1
1. V&%8&$%'#*%$.*%/&)*(%$&&7%"2%$.*%
#)"$4.%9&*#%8&$%$'(8%"$%&8%,89%&221
Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
2. G'(8%I;;%$.*%E/&$7"3.$%,89%#*$%$.*%R&4W%
E)"$4.%&8%+*2&(*%5,W"83%,8T%,9X'#$5*8$#=%
4.,83"83%,44*##&("*#=%&(%#$&("83%/&)*(%$&&7#1
Such preventive safety measures reduce the
risk of starting the power tool accidentally.
3. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
Y,$$*(T%$&&7%'#*%,89%4,(*
1. K*4.,(3*%&87T%)"$.%$.*%,9,/$*(#%#/*4"2"*9%
+T%$.*%5,8'2,4$'(*(1 An adapter that is
suitable for one type of tool may create a
risk of fire when used with another tool.
2. P89*(%,+'#"U*%4&89"$"&8#=%7"<'"9%5,T%+*%
*X*4$*9%2(&5%$.*%+,$$*(TZ%,U&"9%4&8$,4$1%
L2%4&8$,4$%,44"9*8$,77T%&44'(#=%27'#.%)"$.%),$*(1%
L2%7"<'"9%4&8$,4$#%*T*#=%,99"$"&8,77T%#**W%
5*9"4,7%.*7/1%Liquid ejected from the
battery may cause irritation or burns.
E*(U"4*
[,U*%T&'(%$&&7%#*(U"4*9%+T%,%<',7"2"*9%(*/,"(%/*(#&8%'#"83%&87T%"9*8$"4,7%(*/7,4*5*8$%/,($#1%
This will ensure that the safety of the tool is maintained.
E/&$7"3.$%E,2*$T%S,(8"83#
1. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
2. This product is not a toy.
Keep it out of reach of children.
3. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.

Page 3;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1Item 64757
EF;6GHIJ6KFGLIMNFLMG6MFMO6 E6GPJ
R"$."'5%Y,$$*(T%E,2*$T%S,(8"83#
RLG[LPN%YFGG6KL6E%EGIK6%
F%RFKQ6%FNIPMG%I;%6M6KQH%FMV%%
SLRR%!6MG%;LK6%IK%6\JRIV6%L;%NLEGK6FG6V-
1. ]**/%Y,$$*(T%J,4W%9(T1
2. VI%MIG%VI%FMH%I;%G[6%;IRRISLMQ%
GI%G[6%YFGG6KH%JFO]-
a. I/*8=
b. V(&/=
c. E.&($?4"(4'"$=
d. J'84$'(*=
e. L84"8*(,$*=%&(
f. 6^/&#*%$&%$*5/*(,$'(*#%3(*,$*(%$.,8%>_`a;1
3. Charge Battery Pack only according
to its Charger’s instructions.
4. Inspect Battery Pack before every use;
do not use or charge if damaged.
5. Li-Ion BATTERY MUST BE RECYCLED
OR DISPOSED OF PROPERLY1
%EF!6%G[6E6%LMEGKPOGLIME1
ET5+&7&3T
Double Insulated
!FO Volts Alternating Current
!VO Volts Direct Current
FAmperes
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Read the manual before
set-up and/or use.
WARNING marking
concerning Risk of Fire.
Do not cover Charger
ventilation ducts.
Charge on fireproof surface only.
WARNING marking concerning
Risk of Electric Shock.
Properly connect Charger’s power
cord to appropriate outlet.
WARNING marking concerning
Risk of Explosion.
Do not puncture, short, or open
battery packs and do not charge
damaged battery packs.

Page 4 ;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1 Item 64757
EF;6GH IJ6KFGLIM NFLMG6MFMO6E6GPJ
E/*4"2"4,$"&8#
Battery Li-Ion, 3.7V, 2200 mAh
Bulb Type SMD LED
Charge Time 5 Hours
USB Input Rating 5VDC 500mA
E*$'/%?%Y*2&(*%P#*
;'84$"&8#
G("33*(
R&4W%E)"$4.
b#.&)8%"8%$.*%'87&4W*9%/&#"$"&8c
[,83*(
b,9X'#$,+7*c
PEY%L8/'$%
b"8#"9*%E/&$7"3.$=%
'89*(%+,4W%4&U*(c
S("#$%E$(,/
[,89%Q("/

Page 5;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1Item 64757
EF;6GHIJ6KFGLIMNFLMG6MFMO6 E6GPJ
%I/*(,$"83%L8#$('4$"&8#
% K*,9%$.*%6MGLK6 LNJIKGFMG%EF;6GH%LM;IKNFGLIM%#*4$"&8%,$%$.*%+*3"88"83%&2%$."#%
5,8',7%"847'9"83%,77%$*^$%'89*(%#'+.*,9"83#%$.*(*"8%+*2&(*%#*$%'/%&(%'#*%&2%$."#%/(&9'4$1
O.,(3"83%$.*%Y,$$*(T
M&$*- The Spotlight will NOT operate during charging.
1. Turn the Spotlight OFF.
2. Twist the back cover off the Spotlight
by turning it counter clockwise.
3. Under the back cover is a compartment that
holds the USB Cable, and is where the USB
Input and Battery charge light are located.
O.,(3*%
R"3.$
PEY%
L8/'$
Y,4W%
O&U*(
%PEY%
O,+7*
4. Attach one end of USB Cable into the
Spotlight’s USB Input and the other
end to a 5VDC 500mA source.
5. The Battery charge light will illuminate
red when it is charging.
6. When the charge light turns green, the Battery is
fully charged and the Spotlight is ready for use.
7. Disconnect the USB Cable and fold it
back into its storage compartment.
8. Reconnect the Spotlight’s back
cover and twist it on securely.
%Q*8*(,7%I/*(,$"83%L8#$('4$"&8#
1. Hold the Spotlight using the Hand Grip.
2. Set the Lock Switch UP to unlock it and then
turn ON the Spotlight by squeezing the Trigger.
3. Select the desired light output using the
Trigger: One press for high beam, two presses
for low beam, and three presses for flashing
beam. The fourth press turns the light OFF.
4. Use the Lock Switch to lock the light on or
off. When the Lock Switch is set DOWN,
the Trigger is locked in its last setting.
5. The Spotlight can sit on its flat back.
6. The Spotlight’s Hanger can be adjusted,
extended and positioned as desired or
hung on a hook (not included).
[,83*(%
*^$*89*9
7. When finished using the Spotlight, turn it OFF.
8. After use, wipe Spotlight with a clean soft cloth
and store indoors out of children’s reach.

Page 6 ;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1 Item 64757
EF;6GH IJ6KFGLIM NFLMG6MFMO6E6GPJ
%N,"8$*8,84*%,89%E*(U"4"83
% J(&4*9'(*#%8&$%#/*4"2"4,77T%*^/7,"8*9%"8%$."#%5,8',7%5'#$%
+*%/*(2&(5*9%&87T%+T%,%<',7"2"*9%$*4.8"4",81
GI%JK6!6MG%E6KLIPE%LMdPKH%;KIN%FOOLV6MGFR%IJ6KFGLIM-
G'(8%$.*%I80I22%E)"$4.%&2%$.*%$&&7%&22%+*2&(*%/*(2&(5"83%,8T%
"8#/*4$"&8=%5,"8$*8,84*=%&(%47*,8"83%/(&4*9'(*#1
O7*,8"83=%N,"8$*8,84*=%,89%R'+("4,$"&8
1. Y6;IK6%6FO[%PE6= inspect the general
condition of the tool. Check for:
• loose hardware,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
2. F;G6K%PE6= wipe external surfaces
of the Spotlight with clean cloth.
3. Store the Spotlight in a dry, indoor
area out of reach of children.
Y,$$*(T%V"#/&#,7

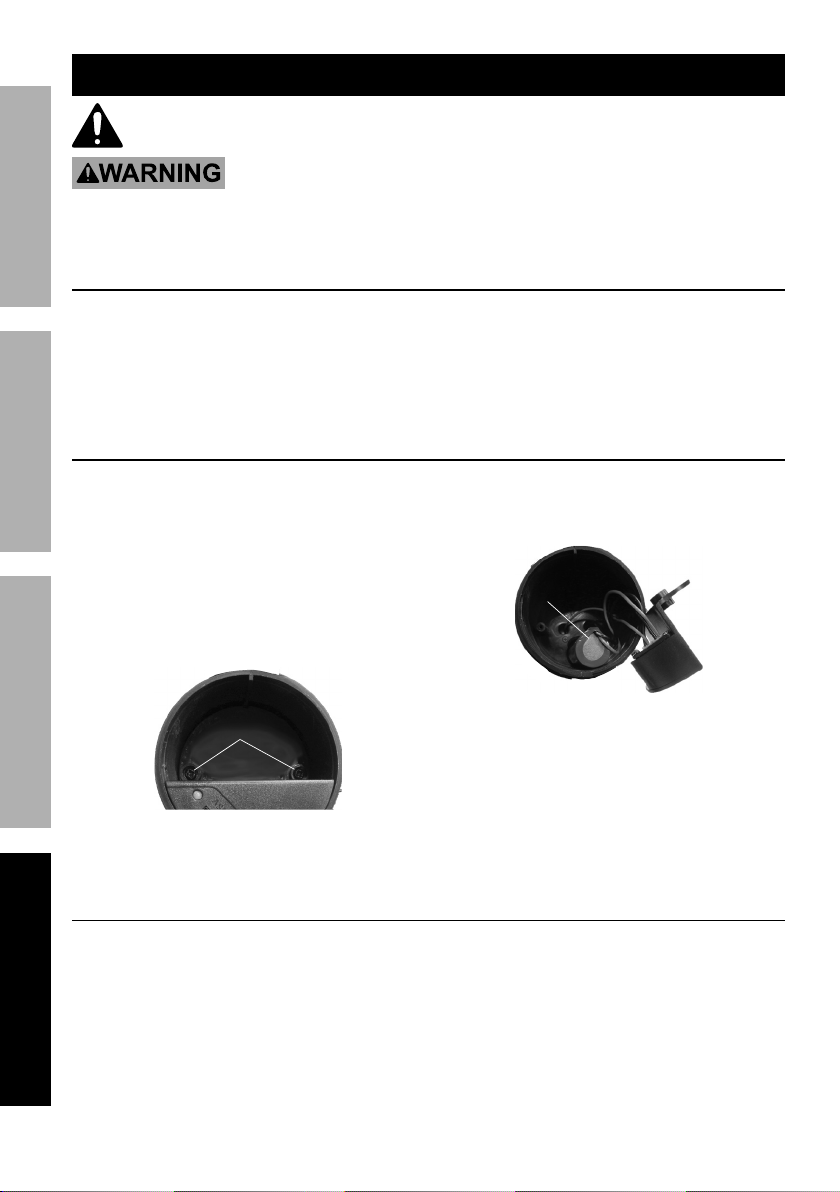

1. The Battery is located inside the
Spotlight, access from the back.
2. Twist the back cover off the Spotlight
by turning it counterclockwise.
3. Under the back cover is a compartment
that holds the USB Cable. The Battery is
underneath. Remove the cable to access the
two screws at the back of the compartment.
4. Remove the two screws.
E4(*)#
5. Remove the compartment.
6. Cut the wires from the Battery and
remove it from Spotlight.
Y,$$*(T
7. The Li-Ion BATTERY MUST BE RECYCLED
OR DISPOSED OF PROPERLY1
JR6FE6%K6FV%G[6%;IRRISLMQ%OFK6;PRRH
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY
CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK
AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT
PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Page 7;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1Item 64757
EF;6GHIJ6KFGLIMNFLMG6MFMO6 E6GPJ

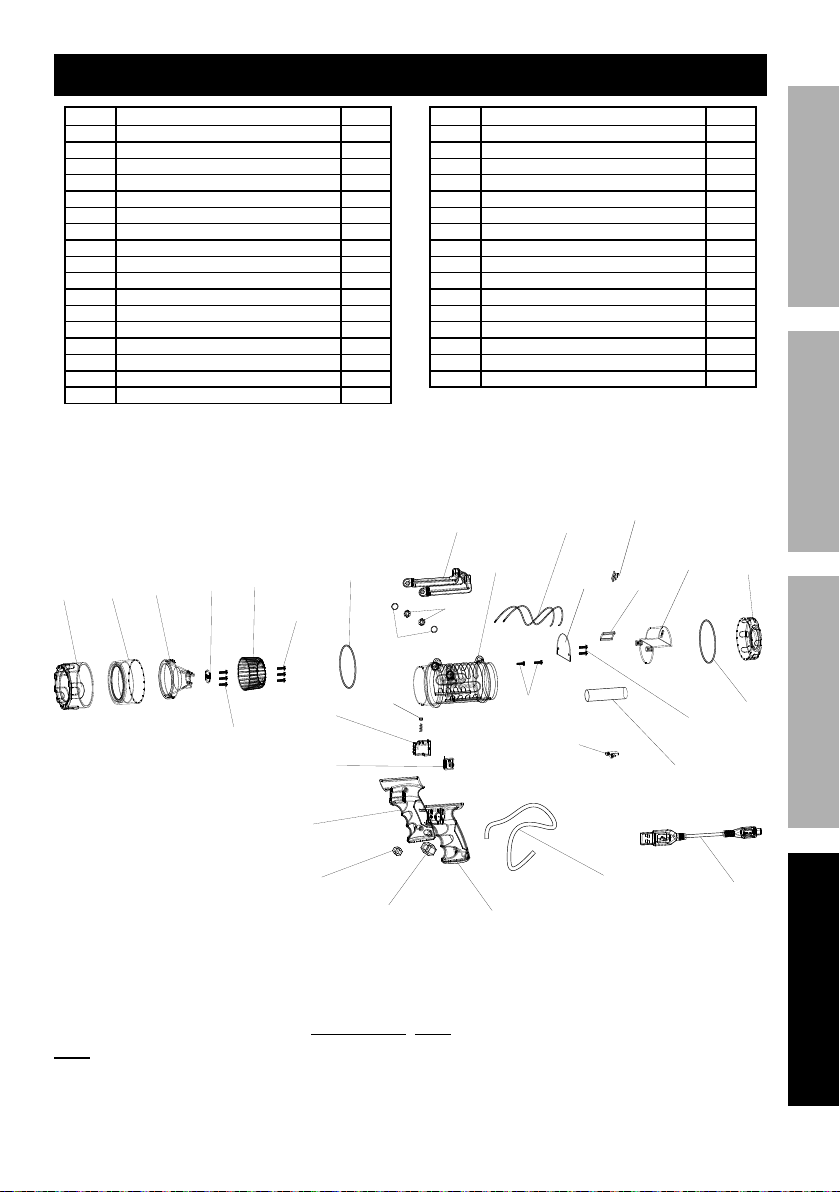

J,($#%R"#$%,89%V",3(,5
J,($ V*#4("/$"&8 e$T
1 Lens Cover 1
2 Lens 1
3 Light Bowl 1
4 SMD LED 1
5 Light Bowl Housing 1
6 Seal Ring, Ø 60 x 2.4 1
7 Gear 2
8 O-Ring 2
9 Hanger 1
10 Main Housing 1
11 Internal Wiring 1
12 USB Bracket 1
13 PCB 1
14 USB PCB 1
15 Rear Housing 1
16 Rear Cover 1
17 Screw, M3 x 8 2
J,($ V*#4("/$"&8 e$T
18 Trigger 1
19 Lock Switch 1
20 Hand Grip, Right 1
21 Insert, Small 1
22 Insert, Large 1
23 Hand Grip, Left 1
24 Wrist Strap 1
25 USB Cable 1
26 Housing 1
27 Battery, Li-Ion 3.7V, 2200 mAh 1
28 Spring, Ø 0.7 x 33 1
29 Seal Ring, Ø 46 x 2.4 1
30 Screw, M2.5 x 8 3
31 Screw, M1.8 x 6 2
32 Magnet 1
33 Screw, M2.3 x 8 3
123456
7
8
9
10
11
12
13
14
15 16
17
18
2322
21
20
19
24
25
26
27
28
29
30
31
32
33
K*4&(9%J(&9'4$f#%E*(",7%M'5+*(%[*(*-%
M&$*-%L2%/(&9'4$%.,#%8&%#*(",7%8'5+*(=%(*4&(9%
5&8$.%,89%T*,(%&2%/'(4.,#*%"8#$*,91
M&$*- Some parts are listed and shown for
illustration purposes only, and are not available
individually as replacement parts.
