Brawn BGM33 User manual

BG SERIES

OPERATION
AND
MAINTENANCE
MANUAL
SERIAL NUMBER
___________________
CUSTOMER:____________________________
SALES REP.:____________________________
BG SERIES

BGM-SERIES OPERATION & MAINTENANCE MANUAL
3389 ~ 128th Avenue Holland, MI 49424 Phone: [phone] Fax [phone]
Copyright 2015 BRAWN Mixer, Inc. www.BRAWNMIXER.com Page 1 of 9
8/6/2015
CONTENTS
Mixer Installation/Assembly/Dimension Drawings
Safety ............................................................................ 1
Customer Service Contact ............................................1
Initial Inspection............................................................. 2
Installation ............................................................... 2 – 3
Start-up.......................................................................... 3
Electric Motors......................................................... 4 – 6
Air Motors...................................................................... 6
Maintenance.................................................................. 7
Lubrication..................................................................... 8
Storage.......................................................................... 8
Warranty........................................................................ 9
Exploded View Drawings / Spare Parts Pricing
SAFETY
The precautions mentioned in this manual are not
intended to cover all hazards that may exist in a plant or
on this equipment. Using safety mechanisms requires
the constant attention of everyone in the vicinity of this
(or any) equipment.
A plant and the related equipment are only as safe as the
personnel are safety-minded. Proper equipment
maintenance and the use of personal safety devices will
contribute as much toward safety as will any number of
mechanical safety devices.
WARNING
To assure maximum safety, optimum performance,
and to gain knowledge of the product, it is essential
that you or any other operator of this equipment read
and understand the contents of this manual before
the mixer is operated.
Installation, operation and maintenance must be
performed only by qualified personnel.
Do not operate this equipment unless all safety
devices are installed and working properly. Check
all devices prior to starting the equipment.
Disconnect and lock out electrical power before
installing or servicing the mixer.
Do not touch rotating parts (keep all guards and
safety devices installed while operating).
Develop a safety checklist for this equipment and
perform regular maintenance to ensure continued
and proper operation. Develop a safety checklist for
this equipment and perform regular maintenance to
ensure continued and proper operation.
Do not make any field changes or modifications
without reviewing the change with your BRAWN
sales representative or the BRAWN Customer
Service Department.
CUSTOMER SERVICE
Mixer Model #............................................BGM-SERIES
Mixer Serial #_________________________________
Contact:
Customer Service............................... 616/399-5600
E-Mail [e-mail]
You have received a quality engineered and
manufactured BRAWN Mixer. We value your business,
and we will strive to provide you with the proper service
and equipment to meet your needs.
The information contained in this BRAWN Mixer
Operator's Manual is designed to assist you in putting
your BRAWN Mixer into operation without further delay.
Please read the entire manual before attempting to
start your mixer. If you have any further questions or if,
by some chance, there are some missing components,
contact your BRAWN Mixer Representative or the factory
immediately.
We welcome your comments and suggestions
concerning any BRAWN Mixer product. Please direct
these comments in writing to the National Sales Manager
at BRAWN Mixer, Inc., located in Holland, Michigan. To
expedite troubleshooting service, please make your initial
contact through your BRAWN Mixer Representative. If,
for whatever reason, your representative cannot be
reached and you have an emergency condition, please
call us directly at 616/399-5600 and ask for the
Customer Service Department.
Remember, you are backed by your BRAWN Mixer
Technical representative and the factory support team.
We are here to assist you; let us know how we can be of
help.
Please see the back cover of this manual for the location
and contact for your Brawn Mixer Representative.

BGM-SERIES OPERATION & MAINTENANCE MANUAL
3389 ~ 128th Avenue Holland, MI 49424 Phone: [phone] Fax [phone]
Copyright 2015 BRAWN Mixer, Inc. www.BRAWNMIXER.com Page 2 of 9
8/6/2015
INITIAL INSPECTION
1. Upon receipt of your Brawn Mixer, check for possible
shipping damage. Report any damage immediately
to the carrier and to Brawn Mixer, Inc.
2. All Brawn Mixers are shipped with the shaft and
impeller(s) disassembled from the drive assembly.
In addition, the clamp or cup mount and any
mounting hardware for portable mixers are shipped
loose.
3. Storage: Mixers should not be stored near vibrating
machinery to avoid damage to the bearings. Store
mixers as packaged by the factory. For longer
storage periods, consult factory. If electric motors
have been subjected to humid conditions, check the
insulation resistance between phase and mass and
between the different phases. The resistance should
not be less than 100 megohms. If the resistance is
less, please consult the factory. If mixer is stored for
more than a year, the condition of the gear lubricant
should be checked before the mixer is put in
operation (see lubrication instructions).
INSTALLATION

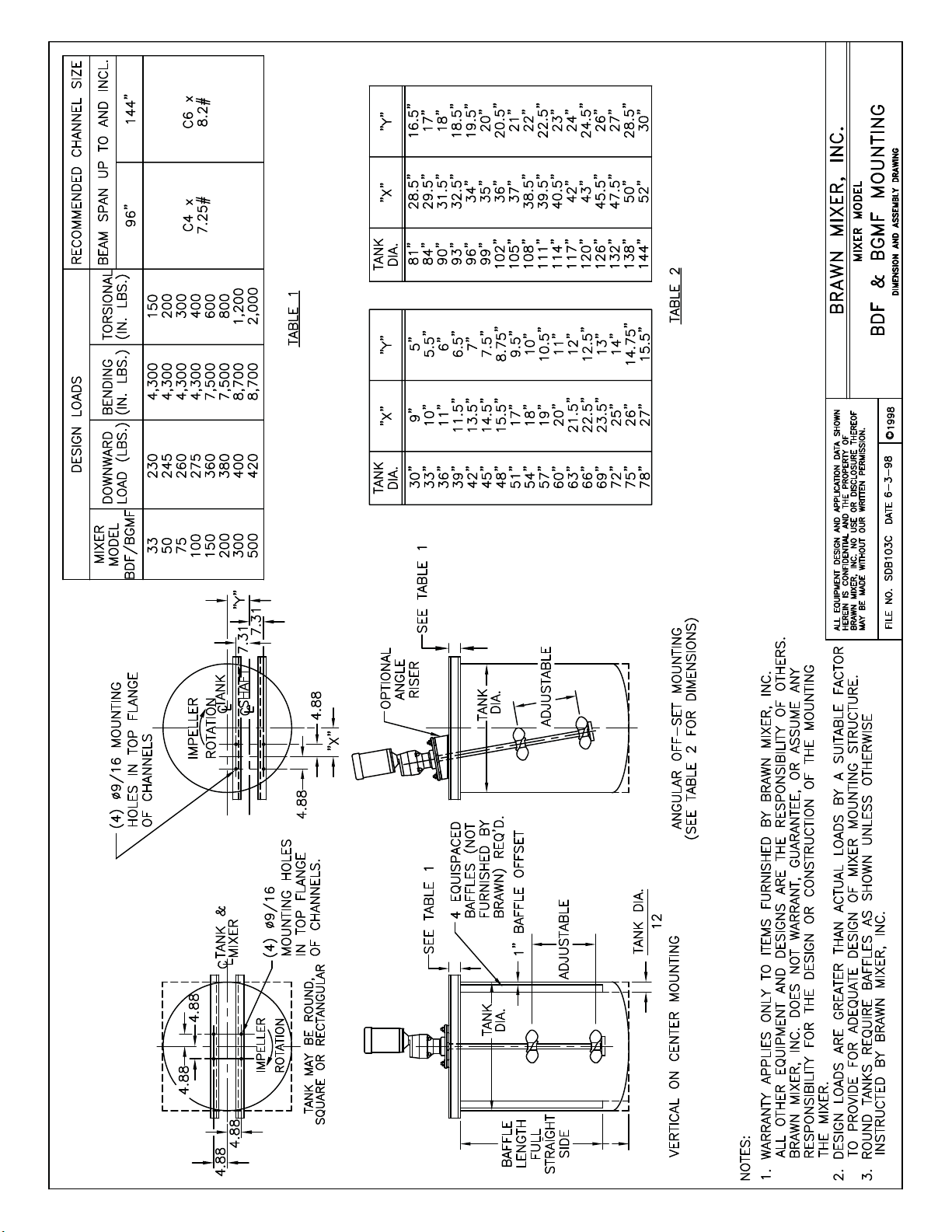

[REFER TO ASSEMBLY / DIMENSION DRAWING]
Refer to the mixer installation / assembly drawing for
important mounting structure design, assembly,
mounting and dimensional data.
1. Model BGM portable mixers are designed with
handles incorporated in the mounting base. These
are intended for lifting of the mixer assembly.
2. For clamp-mount units, install the mixer drive on the
mounting structure and secure by tightening the
clamp screw.
For fixed-mount and cup-plate mount mixers,
install the mixer drive on the mounting structure
and secure with properly-sized, Grade 5 or better
hardware. Torque the hardware as
recommended in TABLE 1.
3. Inspect the impeller bore and shaft surface for
evidence of damage and repair, if required, before
installing the impeller(s) on the shaft or the shaft into
the coupling. Install the impeller(s) on the mixer shaft
by carefully sliding the impeller hub over the shaft to
its proper location and tighten the set screws. It is
recommended that the shaft be spotted with a drill
point at the setscrew locations to prevent loosening
of the impeller(s).
4. Install mixer shaft [16] by inserting the end with
machined groove into the chuck driveshaft [14]. (It
is recommended that the mixer shaft portion
engaged in chuck driveshaft be coated with an anti-
seize compound.) Tighten setscrews [15] to secure
shaft.
If optional rigid shaft coupling [25] is furnished,
connect the mixer shaft [28] and rigid driveshaft
couplings by carefully engaging the shaft
rabbeted faces and installing the mounting
hardware [26 & 27]. Be careful not to damage
the coupling faces or rabbets, as this can cause
excessive shaft run-out that will affect the life of
the mixer.

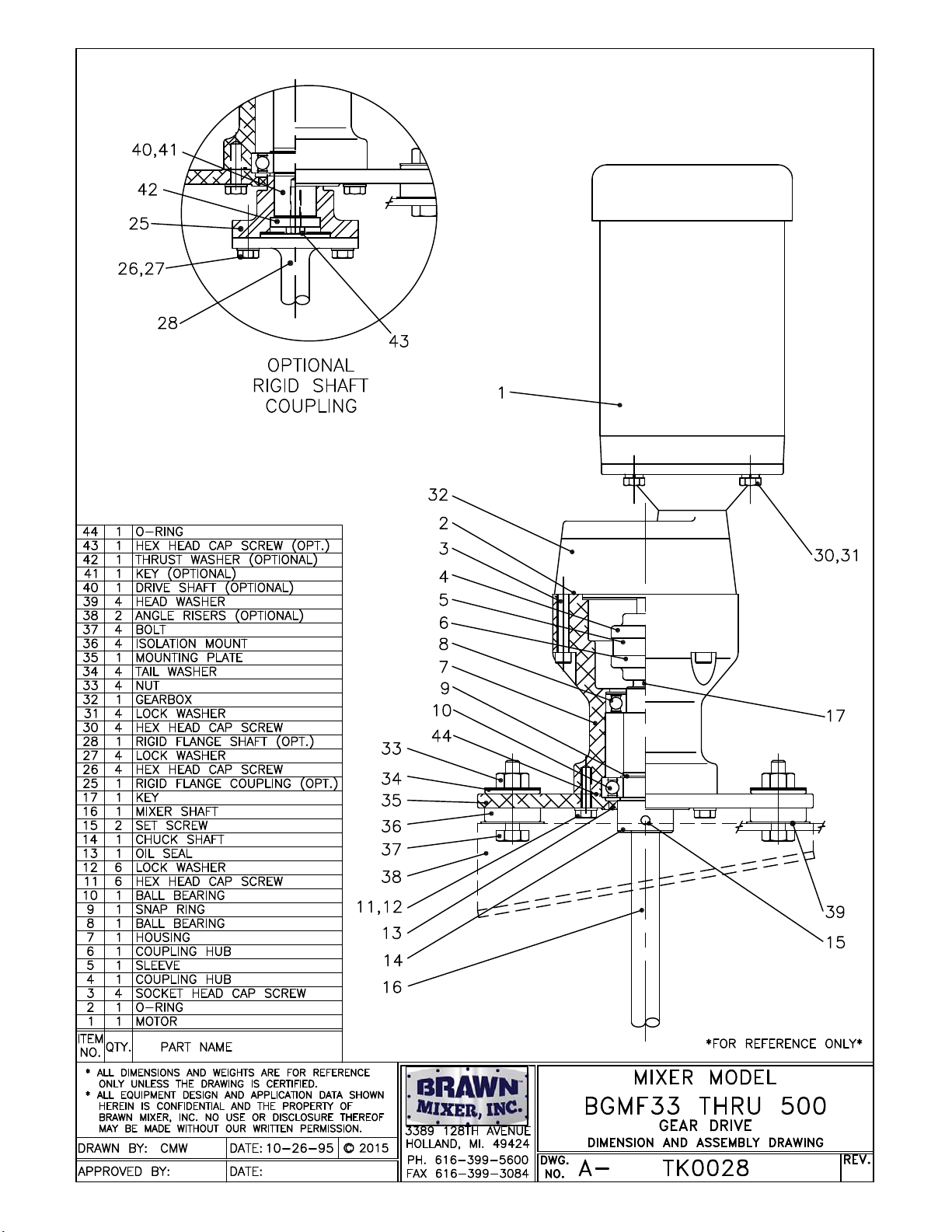

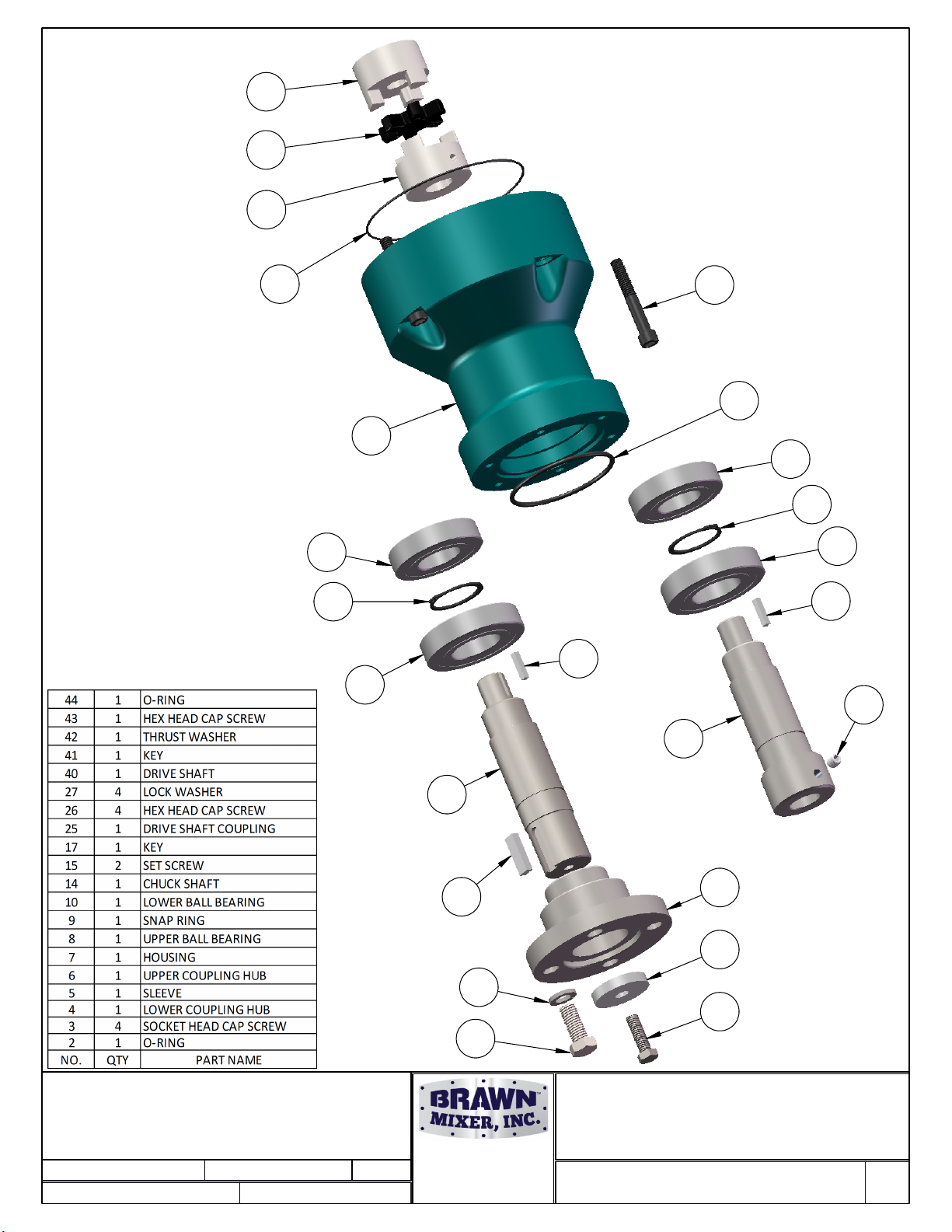

2-D and 3-D depictions of these items are shown
in the front and back of this manual.
TABLE 1: RECOMMEND TORQUE VALUES
HARDWARE
SIZE
TORQUE VALUES (FOOT POUNDS)
STANDARD GRADE 2
& 300 SERIES
STAINLESS
HIGH STRENGTH
GRADES 5 & 8
5/16
9
13
3/8-16
17
27
1/2-13
40
65
5/8-11
85
125
BOLT-TIGHTENING RECOMMENDATIONS:
Inadequately or improperly tightened hardware can
loosen, due to vibration during mixer operation. This can
result in reduced mixer life or damage to equipment.
Recommended torque values for tightening all in-tank
and mounting hardware are listed in TABLE 1. These
average torque values should be considered only as a
guide and not as absolute values.

BGM-SERIES OPERATION & MAINTENANCE MANUAL
3389 ~ 128th Avenue Holland, MI 49424 Phone: [phone] Fax [phone]
Copyright 2015 BRAWN Mixer, Inc. www.BRAWNMIXER.com Page 3 of 9
8/6/2015
INSTALLATION, CONT.
The following guidelines are based on mixing in vertical
cylindrical tanks with flat, dished, or shallow cone
bottoms. Mixer installations may vary with tank shape,
retention times, starting conditions and other
requirements.
1. For liquid levels 0.5 to 1.1 times the tank diameter, a
single impeller is suitable.
2. For liquid levels 1.1 to 1.6 times the tank diameter,
use dual impellers.
3. Impellers may be located from 0.5 to 2.0 impeller
diameters off the tank bottom, with one diameter off
bottom being optimum.
4. When dual impellers are necessary, spacing
between impellers should be approximately two
impeller diameters with gear drives, and four to five
impeller diameters with direct drive mixers.
5. Mixer position in tank should be as shown in
FIGURE A or B [below] for maximum turnover of
liquid.
FIGURE A
START UP
1. All units are lubricated before shipment. The
lubricant level should be checked with the unit
positioned vertically. Lubricant should only be
added if the level is below the top of the gear. Do
not fill beyond the top of the gear.
2. Connect the motor in accordance with the motor
nameplate. The motor starter should incorporate
overload protection. Before operating the mixer, jog
the motor and observe mixer shaft rotation. Proper
rotation is clockwise, as viewed from the top, unless
otherwise noted.
3. Check all bolts and fasteners for tightness. It is
good maintenance practice to recheck all bolts after
two weeks of operation and periodically thereafter.
Refer to TABLE 1 for recommended torque values.
4. Do not attempt to start mixer with impellers buried
in solids or solidified liquids
FIGURE B

BGM-SERIES OPERATION & MAINTENANCE MANUAL
3389 ~ 128th Avenue Holland, MI 49424 Phone: [phone] Fax [phone]
Copyright 2015 BRAWN Mixer, Inc. www.BRAWNMIXER.com Page 4 of 9
8/6/2015
ELECTRIC MOTORS
This equipment contains HAZARDOUS VOLTAGES,
ROTATING PARTS AND HOT SURFACES. SEVERE
PERSONAL INJURY OR PROPERTY DAMAGE CAN
RESULT IF SAFETY INSTRUCTIONS ARE NOT
FOLLOWED. Only qualified personnel should work on or
around this equipment after becoming thoroughly familiar
with all warnings, safety notices, and maintenance
procedures contained herein. The successful and safe
operation of this equipment is dependant upon proper
handling, installation, operation and maintenance.
WARNING
Explosion-proof motors-these motors are constructed to
comply with the U.L. Label Service Procedure Manual.
When repairing and reassembling a motor that has an
underwriter’s label, it is imperative that the unit be re-
inspected and:
1. All original fits and tolerance be maintained.
2. All plugs and hardware be securely fastened.
3. Any parts replacements, including hardware, be
accurate duplicates of the originals.
Repair work on explosion-proof motors can only be done
by the original manufacturing or U.L. certified shops.
Violations of any of the above items will invalidate the
significance of the U.L. Label.
STORAGE
Motors must be stored in a clean, dry, well ventilated
location free from vibration and rapid or wide
temperature variations. If the unit is to be stored longer
than three months, consult factory. Ball bearing motors
are shipped from the factory properly lubricated and
ready to operate. When in storage, the motor shaft must
be turned several rotations every month and bearings
relubricated every year. On non-explosion-proof TEFC
motors, a removable plug in the bottom of the frame or
housing permits removal of accumulated moisture. Drain
regularly if storage atmosphere results in formation of
condensation.
INSTALLATION
Installation must be handled by qualified service or
maintenance personal.
A wiring diagram is generally located on the conduit box
of the motor.
OPERATION
CAUTION
Repeated trial starts can overheat the motor and may
result in motor burnout. If repeated trial starts are made,
allow sufficient time between trials to permit heat to
dissipate from windings and rotor to prevent overheating.
Starting currents are several times running currents, and
heating varies as the square of the current.
After installation is completed, but before motor is put in
regular service, make an initial start as follows:
1. Check motor starting and control device
connections against wiring diagrams.
2. Check voltage, phase, and frequency of line circuit
(power supply) against motor nameplate.
3. If possible, remove external load (disconnect drive)
and turn shaft by hand to ensure free rotation. This
may have been done during installation procedure;
if so, and conditions have not changed since, this
check may not be necessary.
a. If drive is disconnected, run motor at no load
long enough to be certain that no unusual
conditions develop. Listen and feel for
excessive noise, vibration, clicking, or
pounding. If present, stop motor immediately.
Investigate the cause and correct before
putting motor in service.
b. If drive is not disconnected, interrupt the
starting cycle after motor has accelerated to
low speed. Carefully observe for unusual
conditions as motor coasts to a stop.
4. When checks are satisfactory, operate at minimum
load and look for unusual condition. Increase load
slowly to maximum. Check unit for satisfactory
operation.
CAUTION
Guard against overloading. Overloading causes
overheating and overheating means shortened insulation
life. A motor subjected to a 10°C temperature rise above
the maximum limit for the insulation may cause the
insulation life to be reduced by 50%. To avoid
overloading, be sure motor current does not exceed
nameplate current when nameplate voltage is applied.

BGM-SERIES OPERATION & MAINTENANCE MANUAL
3389 ~ 128th Avenue Holland, MI 49424 Phone: [phone] Fax [phone]
Copyright 2015 BRAWN Mixer, Inc. www.BRAWNMIXER.com Page 5 of 9
8/6/2015
ELECTRIC MOTORS, Cont.
Electric motors operating under normal conditions
become quite warm. Although some places may feel hot
to the touch, the unit may be operational within limits.
Use a thermocouple to measure winding temperature.
The total temperature, not the temperature rise, is the
measure of safe operation. Investigate the operating
conditions if the total temperature measured by a
thermocouple placed on the windings exceeds:
230°F (110°C) for class “B” insulation
275°F (135°C) for class “F” insulation
302°F (150°C) for class “H” insulation
VOLTAGE REGULATION
Motors will operate successfully under the following
conditions of voltage and frequency variation, but not
necessarily in accordance with the standard established
for operation under rated conditions:
1. When the variation in voltage does not exceed
10% above or below normal, with all phases
balanced.
2. When the variation in frequency does not exceed
5% above or below normal.
3. When the sum of the voltage and frequency of the
voltage does not exceed 10% above or below
normal (provided the frequency variation does not
exceed 5%).
MAINTENANCE
Failure to properly maintain the equipment can result in
severe personal injury and product failure. The
instructions contained herein should be carefully
reviewed, understood and followed. The following
maintenance procedures should be performed regularly:
1. Bearing lubrication (When regreaseable bearings
are supplied)
2. Insulation resistance check
3. Cleaning
This checklist does not represent an exhaustive survey
of maintenance steps necessary to ensure safe
operation of the equipment. Particular applications may
require further procedures
Dangerous voltages are present in the equipment which
can cause severe personal injury and product failure.
Always de-energize and ground the equipment before
maintenance. Maintenance should be performed only by
qualified personal.
The use of unauthorized parts in the repair of the
equipment, tampering by unqualified personal, or
removal or alteration of guards or conduit covers will
result in dangerous conditions which can cause severe
personal injury or equipment damage. Follow all safety
instructions contained herein.
BEARING LUBRICATION
(When re-greaseable bearings are supplied)
CAUTION
Do not lubricate motor while in operation, since excess
grease will be forced through the bearings and into the
motor before it will force its way out the drain plug.
Excess grease accumulation on windings reduces
insulation life.
Prior to shipment, motor bearings are lubricated with the
proper amount and grade to provide six months of
satisfactory service under normal operation and
conditions.
For best results, grease should be compounded from a
polyurea base and a good grade of petroleum oil. It
should be of No. 2 consistency and stabilized against
oxidation. Operating temperature ranges should be from
-15°F to +250°F for class B insulation, and to +300°F for
class F and H. Most leading oil companies have special
bearing greases that are satisfactory.
Re-lubricate bearings every six months (more often if
conditions require), as follows:
1. Stop the motor. Lock out the switch.
2. Thoroughly clean off pipe plugs and remove
from housings.
3. Remove hardened grease from drains with stiff
wire or rod.
4. Add grease to inlet with hand gun until small
amount of new grease is forced out drain.
5. Remove excess grease from ports, replace inlet
plugs, and run motor ½ hour before replacing
drain plug.
6. Put motor back in operation.

BGM-SERIES OPERATION & MAINTENANCE MANUAL
3389 ~ 128th Avenue Holland, MI 49424 Phone: [phone] Fax [phone]
Copyright 2015 BRAWN Mixer, Inc. www.BRAWNMIXER.com Page 6 of 9
8/6/2015
ELECTRIC MOTORS, Cont.
INSULATION RESISTANCE
Check insulation resistance periodically. Any approved
method of measuring insulation resistance may be used,
provided the voltage across the insulation is at a safe
value for the type and condition of the insulation. A hand
crank megger of not over 500 volts is the most
convenient and safest method. Standards of the Institute
of Electrical and Electronics Engineers, Inc., recommend
that the insulation resistance of the stator windings at 75°
C, measured at 500 volts dc, after one minute should not
be less than:
Rated Voltage of Machine + 1000
=
Insulation Resistance
1000
in Megohms
This formula is satisfactory for most checks. For more
information, see IEEE Standard No. 43 “Recommended
Practice for Insulation Resistance Testing of AC Rotating
Machinery.”
CLEANING
WARNING
Do not attempt to clean the motor while it is operating.
Contact with rotating parts can cause severe personal
injury or property damage. Stop the motor and lock out
switch before cleaning.
The motor exterior must be kept free of oil, dust, water,
and chemicals. For fan cooled motors, it is particularly
important to keep the air intake openings free of foreign
material. Do not block air outlet or inlet.
On non-explosion-proof TEFC motors, a removable plug
in the bottom center of the motor frame or housing
permits removal of accumulated moisture. Drain
regularly.
AIR MOTORS
If your mixer was supplied with an air motor, certain
precautions must be taken as follows:
1. The mixer was shipped with a needle valve installed
on the motor inlet port. A muffler is provided for
installation at the exhaust port. The function of the
needle valve is to control the motor speed.
2. The air supply must be adequately sized to provide
the proper pressure and volume of clean filtered, dry
air. A pressure regulator followed by an air line
lubricator is required prior to connection to the
needle valve. A combination filter/regulator/lubricator
is commonly used for this purpose. The air line filter
should be capable of 25 micron or better.
3. Blow out the air supply line before connecting to the
motor to remove any dirt or debris in the air line.
4. The exhaust port must not be obstructed such as to
cause a back pressure on the motor. An obstructed
exhaust has an adverse affect on the air motor. This
may also cause the motor shaft seal to fail thus
pressurizing the gearbox and/or mixer drive housing
and causing seal failure.
AIR MOTOR ROTATIONAL
DIRECTION DIAGRAM

BGM-SERIES OPERATION & MAINTENANCE MANUAL
3389 ~ 128th Avenue Holland, MI 49424 Phone: [phone] Fax [phone]
Copyright 2015 BRAWN Mixer, Inc. www.BRAWNMIXER.com Page 7 of 9
8/6/2015
MAINTENANCE
Mixers operating in wet environments or exposed to
washdown should be considered severe applications.
Under these conditions water, condensation and
cleaning chemicals may accumulate in the motor or,
from the other end, be blasted under high pressure past
the mixer driveshaft oil seal. Water in the motor may
eventually leak through the motor bearing and into the
gearbox thus contaminating and increasing the volume
of oil. This in turn can cause the gearbox output shaft
seal to fail and leak oil into the mixer housing. Oil in the
mixer housing will eventually find its way through the
bearings and the mixer driveshaft seal and ultimately into
the product being mixed.
To prolong the life of your mixer for these applications, a
preventive maintenance program should be established
and adhered to. The frequency of preventive
maintenance inspections are unique to every application
and must therefore be determined through experience.
Initially, one month intervals are suggested.
The following steps are recommended as part of a
preventive maintenance program:
1. Periodically remove the oil fill plug from the
gearbox (with motor shut off and locked out) and
check the oil level as described under the
heading of LUBRICATION. Also check for the
presence of water in the oil. If water is detected
or if the oil level appears low, proceed with the
following steps.
2. Remove a motor condensation drain plug from
the lowest elevation on the motor and the
conduit box cover to check for water. If present,
separate the motor from the gearbox and inspect
for evidence of water in the motor adapter. If
water exists, the motor should be disassembled
to inspect for water damage to the windings and
bearings.
3. Separate the gearbox from the mixer housing
and inspect the inside of the housing and around
the gearbox output shaft for evidence of leakage.
The inside of the mixer housing should appear
dry.
4. Separate the mixer housing from the mixer
mount and inspect for the presence of water or
oil.
If water has been detected in the motor, the bearings
and seals should be replaced after drying out the motor.
If water is detected in the gearbox motor adapter and the
oil level is not excessively low, drain the remaining oil
and flush with light oil or kerosene, install new oil seals
and refill with fresh oil.
If any oil has accumulated in the mixer housing, it is the
result of leakage past the gearbox output shaft seal and
will ultimately leak through the bearings. The source of
the problem must first be remedied and then the mixer
driveshaft bearings and oil seal should be replaced after
thoroughly cleaning the inside of the housing.
When reassembling the mixer, replace the o-ring seals in
the mixer housing and apply a sealant, such as silicone
or “Permatex”, around the face of the motor flange,
inside of the mounting bolt circle. Apply an anti-seize
compound on the motor shaft and reassemble the motor
to the gearbox. Check the motor to be sure all openings
are plugged and that the conduit box gaskets are in good
condition.

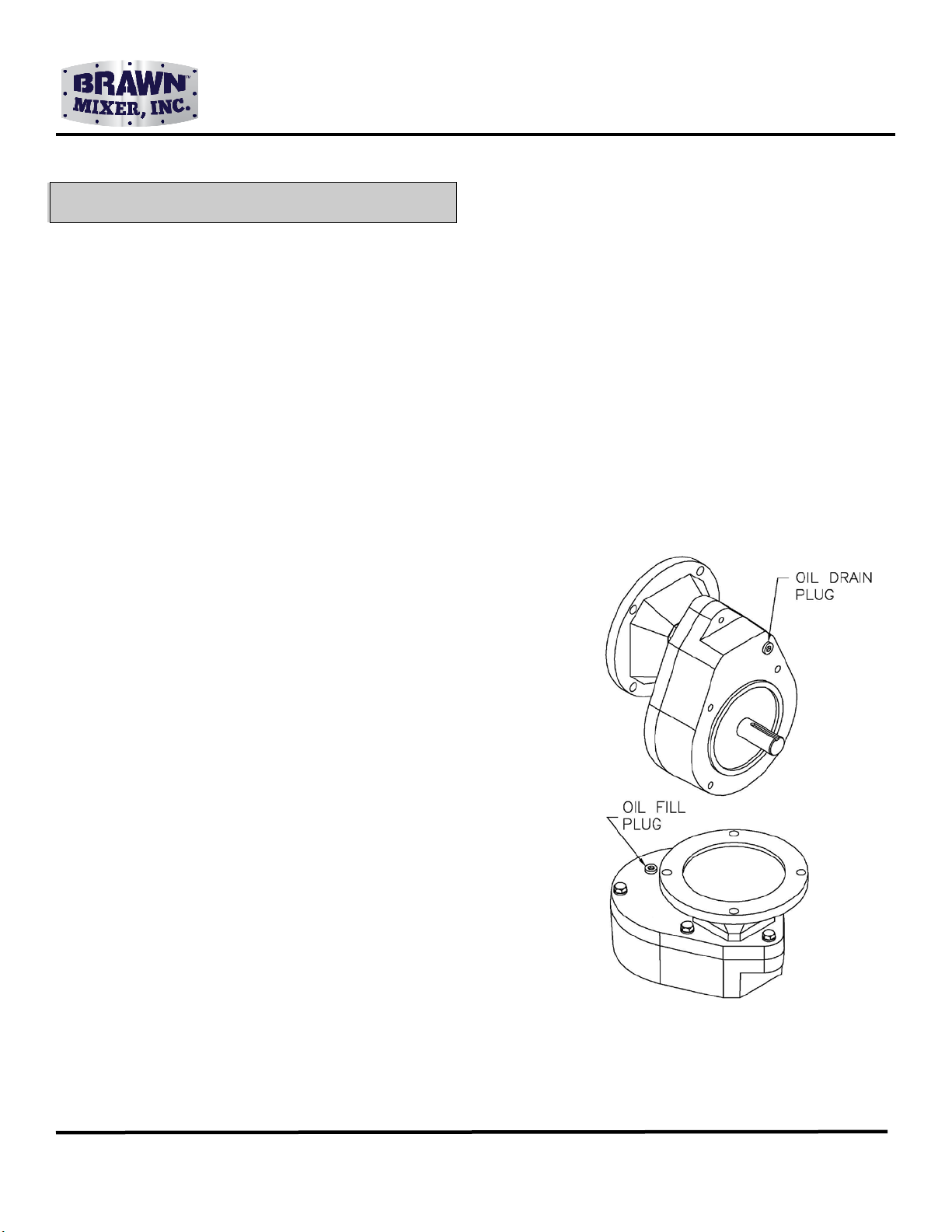

GEARBOX OIL PLUG LOCATIONS

BGM-SERIES OPERATION & MAINTENANCE MANUAL
3389 ~ 128th Avenue Holland, MI 49424 Phone: [phone] Fax [phone]
Copyright 2015 BRAWN Mixer, Inc. www.BRAWNMIXER.com Page 8 of 9
8/6/2015
LUBRICATION
Although the gear box is considered “lubricated for life”,
the oil level and condition should be checked periodically
for signs of degradation. It is factory filled with an AGMA
#7C gear lubricant, which is suitable for an ambient
temperature range from 30 to 100 degrees F. If the
application calls for outdoor installation in extremely cold
or extremely warm temperatures, or in corrosive
environments, consult the factory.
If it becomes necessary to change the gear lubricant, a
drain plug is conveniently provided on the bottom of the
gear housing under the motor pinion shaft. A fill plug is
located on the top of the housing, above the output gear.
Refill with 14 ounces of the recommended lubricant. With
the mixer positioned vertically, the fluid level should not
exceed the top of the gear. Over filling of the gear box
can cause premature seal failure due to thermal
expansion of the oil and overheating due to excessive
churning.
CAUTION
In the Food and Drug Industry (including animal food),
consult the lubrication supplier for recommendation of
lubricants which are acceptable to the Food and Drug
Administration and/or other authoritative bodies having
jurisdiction. Factory supplied oil is not suitable for these
applications or this industry.
MIXER NAMEPLATE
STORAGE
Units shipped from Brawn Mixer, Inc. are intended to be
used within 30 days after receipt and presumed to be
stored indoors in a heated building. Store mixers as
packaged by the factory. If you intend storing units under
adverse conditions or for a long period of time, special
storage precautions will be necessary.
1. Store in a sheltered area away from chemical vapors or
steam.
2. Cover.
3. Do not store in sunlight or near high heat.
4. Spray light oil on exposed shafts and seals. Remove
oil on start-up.
5. Rotate output shaft 360º every 3-4 weeks.
6. Mixers should not be stored near vibrating machinery
to avoid damage to the bearings.
7. If electric motors have been subjected to humid
conditions, check the insulation resistance between
phase and mass and between the different phases.
The resistance should not be less than 100
megohms. If the resistance is less, please consult
the factory.

BGM-SERIES OPERATION & MAINTENANCE MANUAL
3389 ~ 128th Avenue Holland, MI 49424 Phone: [phone] Fax [phone]
Copyright 2015 BRAWN Mixer, Inc. www.BRAWNMIXER.com Page 9 of 9
8/6/2015
WARRANTY
WARRANTY: All equipment or parts covered by this
manual are guaranteed free from defective material and
workmanship for a period of twelve (12) months from
date of shipment, under normal use and service. This
warranty does not cover failure of normal wear parts
unless the failure of such part has resulted from
defective material and workmanship. BRAWN Mixer, Inc.
will repair or replace, at its option, any equipment which
has been found to be defective and is within the warranty
period, provided that the equipment is shipped, with
previous factory authorization, freight prepaid, to
BRAWN's plant in Holland, Michigan, USA. All return
shipments are made FOB BRAWN's factory. BRAWN is
not responsible for removal, installation, or any other
incidental expenses incurred in shipping the equipment
to or from BRAWN. In the case of components
purchased by BRAWN Mixer, Inc. and incorporated in
the equipment, the component manufacturer's guarantee
shall apply. NOTE: Any modifications or corrective work
done to the equipment which were not specifically
authorized in writing by BRAWN Mixer, Inc. shall void
this limited warranty, and BRAWN Mixer, Inc. shall
accept no liability for any of the corrective work or
expenditures which were conducted without their prior,
written authorization. BRAWN Mixer, Inc. shall not be
held liable for any further cost, expense, or labor to
replace equipment or replaceable parts, or indirect or
consequential damages.
With the exceptions of the limited warranty set out
above, there are no other understandings, agreements,
representatives, or warranties implied (including any
regarding the merchant-ability or fitness for a particular
purpose), not specified herein, respecting this agreement
or equipment, hereunder. This contract states the entire
obligation of BRAWN Mixer, Inc. in connection with this
transaction.
SHOULD WE MAKE A MISTAKE...
BRAWN Mixer, Inc.'s
Direct Returns Policy
To ensure proper handling of your return, please take a
moment to read the following:
ALL returns require a RETURN GOODS
AUTHORIZATION (RGA) NUMBER. We are unable
to process your return or issue proper credit without
an approved RGA number.
ALL returns must be COMPLETE, including all
original warranties, manuals, documentation and
packaging.
ALL product must be received within 14 days of
issuing an RGA number.
How to Return Product
You must have a RETURN GOODS AUTHORIZATION
(RGA) number before you return any product to BRAWN
Mixer, Inc. To obtain this number, call 616/399-5600 and
ask for Customer Service. Be sure to have available the
following information:
your order number
the BRAWN product serial number
the part number and description of the product
the reason for the return
♦I M P O R T A N T ♦
The Return Goods Authorization number must be
written clearly on all boxes being returned. C.O.D.
shipments will not be accepted.
If the mixer has been in contact with the product,
please include MSDS sheets to cover and possible
contact. Also, fully clean all surfaces.

43
42
25
26
27
41
14
15
40
17
17
3
44
7
8
10
9
4
5
6
8
9
10
2
BSB
* ALL DIMENSIONS AND WEIGHTS ARE FOR REFERENCE ONLY
UNLESS THE DRAWING IS CERTIFIED.
* ALL EQUIPMENT DESIGN AND APPLICATION DATA SHOWN
HEREIN IS CONFIDENTIAL AND THE PROPERTIY OF BRAWN MIXER,
INC. NO USE OR DISCLOSURE THEREOF MAY BE MADE WITHOUT
OUR WRITTEN PERMISSION.
REV.
DWG.
NO.
A-
MIXER MODEL
DRAWN BY:
DATE:
3389 128TH AVENUE
HOLLAND, MI 49424
PH: 616-399-5600
FAX: [phone]
TK0162
BD/BGM HOUSING
3/13/2015
APPROVED BY:
DIMENSION AND ASSEMBLY DRAWING
©
DATE:
2014
EXPLODED VIEW

11
12
13
18
19
29
23
22
21
20
CLAMP MOUNT
CUP PLATE MOUNT
20
21
22
23
19
24
13
11
12
18
BSB
* ALL DIMENSIONS AND WEIGHTS ARE FOR REFERENCE ONLY
UNLESS THE DRAWING IS CERTIFIED.
* ALL EQUIPMENT DESIGN AND APPLICATION DATA SHOWN
HEREIN IS CONFIDENTIAL AND THE PROPERTIY OF BRAWN MIXER,
INC. NO USE OR DISCLOSURE THEREOF MAY BE MADE WITHOUT
OUR WRITTEN PERMISSION.
REV.
DWG.
NO.
A-
MIXER MODEL
DRAWN BY:
DATE:
3389 128TH AVENUE
HOLLAND, MI 49424
PH: 616-399-5600
FAX: [phone]
TK0163B
BD/BGM BALL MOUNT
ASSEMBLY
3/13/2015
APPROVED BY:
DIMENSION AND ASSEMBLY DRAWING
©
DATE:
2015
