CONGRATULATIONS
on the purchase of your new
Breville Duo-Temp™ espresso machine

3
CONTENTS
4 Breville recommends safety first
6 Know your Breville Duo-Temp™
espresso machine
11 Assembling your Breville
Duo-Temp™ espresso machine
14 Operating your Breville
Duo-Temp™ espresso machine
- How to froth milk for a
cappuccino or latté
- Using the hot water function
- Coffee making tips
24 Care & cleaning your Breville
Duo-Temp™ espresso machine
28 Trouble shooting guide
31 Coffee variations
34 Recipes
37 One Year Limited Warranty

4
BREVILLE RECOMMENDS SAFETY FIRST
READ ALL INSTRUCTIONS
• Carefully read all instructions before
operating and save for future reference.
• To protect against fire, electrical shock
and injury to persons do not immerse the
appliance, cord or plug in water or any
other liquid.
• This appliance is for household use only.
• Do not use this appliance for anything
other than its intended use.
• Young children should be supervised
to ensure that they do not play with the
appliance.
• Do not leave the appliance unattended
when in use.
• Do not touch hot surfaces. Use handles.
• Always use the appliance on a dry,
level surface.
• To disconnect, turn all controls to ‘OFF’,
then remove plug from power outlet.
• Do not place this appliance on or near
a hot gas or electric burner, or where it
could touch a heated oven.
• Do not let the cord hang over the edge of
a table or counter, touch hot surfaces or
become knotted.
• The use of accessory attachments not
recommended by Breville may cause a
risk of injury to persons, fire or electric
shock.
• Strictly follow cleaning and care
instructions.
• Do not use this appliance for anything
other than its intended use. Do not use
in moving vehicles or boats. Do not
use outdoors.
• Carefully read all instructions before
operating and save for future reference.
• Always switch the appliance to ‘OFF’, and
then remove plug from the power outlet
when the appliance is not being used and
before cleaning.
• An extension cord is not recommended,
however, if one is needed, the extension
cord should be a grounded type and its
electrical rating must be the same or
more wattage as the appliance. Regularly
inspect the supply cord, plug and actual
appliance for any damage. If found
damaged in any way, immediately cease
use of the appliance and call Breville
Customer Service at 1-866-BREVILLE.
• For any maintenance other than cleaning,
call Breville Customer Service at
1-866-BREVILLE.
• Refer servicing to qualified personnel.
• Do not operate any appliance with
a damaged cord or plug or after the
appliance malfunctions, or has been
damaged in any manner. Return
appliance to the nearest authorized
service facility for examination, repair
or adjustment.
We at Breville are very safety conscious. We design and manufacture consumer products with
the safety of you, our valued customer, foremost in mind. In addition, we ask that you exercise
a degree of care when using any electrical appliance and adhere to the following precautions:
IMPORTANT SAFEGUARDS

5
BREVILLE RECOMMENDS SAFETY FIRST
5
SPECIAL SAFETY
INSTRUCTIONS
• Only use cold water in the water tank.
Do not use any other liquid.
• Never use the machine without water
in it.
• Ensure the filter holder is firmly secured
when using the machine.
• Never remove the filter holder during
the brewing operation as the machine
is under pressure.
BREVILLE ASSIST™ PLUG
Your Breville appliance comes with a unique
Assist™ Plug, conveniently designed with
a finger hole in the power plug for easy
and safe removal from the wall outlet. For
safety reasons it is recommended you plug
your Breville appliance directly into its
own electrical outlet on a dedicated circuit
separate from other appliances. If the electric
circuit is overloaded with other appliances,
your appliance may not function properly.
Use in conjunction with a power strip or
extension cord is not recommended.
SHORT CORD INSTRUCTIONS
Your Breville appliance is fitted with a short
power supply cord as a safety precaution to
prevent personal injury or property damage
resulting from pulling, tripping or becoming
entangled with a longer cord. Do not allow
children to use or be near this appliance
without close adult supervision. Longer
detachable power supply cords or extension
cords are not recommended but may be
used if care is exercised. If an extension cord
is used, (1) the marked electrical rating of
the cord set or extension cord should be at
least as great as the electrical rating of the
appliance, (2) the cord should be arranged
so that it will not drape over the countertop
or tabletop where it can be pulled on by
children or tripped over unintentionally and
(3) the extension cord must include a 3-prong
grounding plug.
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS

6

7
KNOW
your Breville Duo-Temp™ espresso machine

KNOW YOUR BREVILLE DUO-TEMP™ ESPRESSO MACHINE
J
K
L
O
M
A
B
C
D
E
F
G
H
I
N

9
KNOW YOUR BREVILLE DUO-TEMP™ ESPRESSO MACHINE

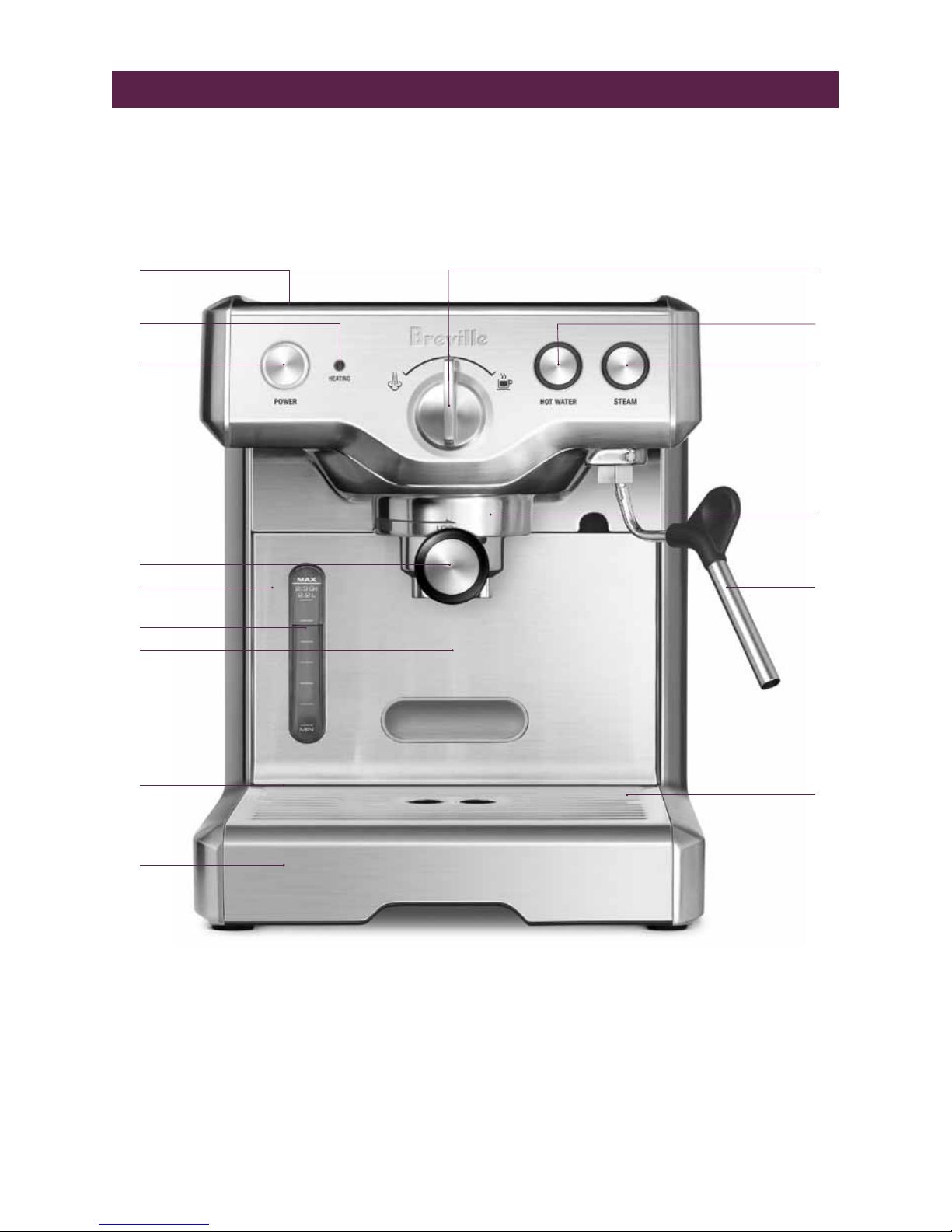

A. Cup warming tray
B. HEATING light
C. POWER button
D. Filter holder
E. Removable 75oz (2.2L) water tank
F. Water level indicator
G. 4” cup height clearance
H. ‘Empty Me’ drip tray indicator
I. Removable drip tray and grid
J. Selector control
K. HOT WATER button
L. STEAM button
M. Brew head
N. 360° swivel steam wand with
removable froth enhancer
O. Concealed storage drawer
NOT SHOWN
Italian Made 15 Bar Pump
1 Cup & 2 Cup ‘Dual Wall’ Filters
Milk frothing jug
Stainless steel cup & saucer set (2 each)
Measuring/tamping spoon
Cleaning Tool

ASSEMBLING
your Breville Duo-Temp™ espresso machine

11
ASSEMBLING YOUR BREVILLE DUO-TEMP™ ESPRESSO MACHINE
Your Duo-Temp™ Espresso machine will
have the Drip Tray and Water Tank in place
when you unpack it from the box.
The Storage Tray, 2 stainless steel Filters,
Cleaning Tool and Measuring/tamping
Spoon will be packed in a plastic sleeve.
The Filter Holder and Frothing Jug will be
packed inside the foam packaging. Ensure
you have located all parts and accessories
before throwing out the packaging.
WASHING ACCESSORIES
Remove the Drip Tray and Water Tank and
wash all parts and accessories in warm,
soapy water using a non-abrasive washing
liquid. Rinse and dry thoroughly.
NOTE
Do not clean any of the parts or
accessories in the dishwasher.
REASSEMBLY
Step 1
Insert the Storage Tray into the base of the
machine and slide in towards the back wall.
This is a convenient location to store the
Cleaning Tool, stainless steel Filters and
Measuring/tamping Spoon when not in use.
Step 2
Slide the Drip Tray, with the Drip Tray Full
Indicator and Grid in place, into the base of
the machine and in front of the Storage Tray.

12
ASSEMBLING YOUR BREVILLE DUO-TEMP™ ESPRESSO MACHINE
Step 3
Slide the Water Tank over the Drip Tray and
into the front opening of the machine and
into position above the Storage Tray. Ensure
the Water Tank aligns flush with the sides of
the machine.
Before first use: It is recommended to
complete a water brewing operation without
ground coffee before brewing your first
espresso coffee to ensure that all internal
piping has been preheated (follow Steps
1 and 4 in Operating your Breville Duo-
Temp™ expresso machine - page 15).

13

OPERATING
your Breville Duo-Temp™ espresso machine

15
OPERATING YOUR BREVILLE DUO-TEMP™ ESPRESSO MACHINE
STEP 1 - FILLING THE WATER TANK
• Ensure the Power On/Off button is ‘Off’
and the Selector Control is set to the ‘•’
Standby position.
• Remove the plug from the power outlet.
• Remove the Filter Holder if locked into
the Brew Head and move the Steam
Wand to the side of the machine.
• Remove the Water Tank by pulling with
the handle insert in the front of the
Espresso Machine.
• When the Water Tank is removed, a
black tube slides and extends out from
the Water Tank storage area. Do not
touch or try to remove this tube, it will
automatically slide back into position
when the Water Tank is reinserted.
• Fill the Water Tank with cold water to the
maximum mark on the Water Window
and slide the Water Tank carefully back
into position in the machine.
NOTE
Check the water level before use and
replace the water daily.
The water tank should be refilled with
fresh cold water before each use.
Do not fill with any other liquid.
STEP 2 - PREPARING THE COFFEE
• Place the 1 or 2 cup filter into the Filter
Holder (use the smaller filter for 1 cup
and the larger filter for 2 cups).
• Use 1 level measure of ground espresso
coffee for the 1 cup filter and 2 level
measures for the 2 cup filter. It is
important to use the correct amount
of coffee for each Filter as the filter
perforations have been constructed to
utilise the pressure in the machine to
extract optimal flavor with each brewing.
(Refer to The Grind on Page 22).

16
OPERATING YOUR BREVILLE DUO-TEMP™ ESPRESSO MACHINE
STEP 3 - TAMPING THE COFFEE

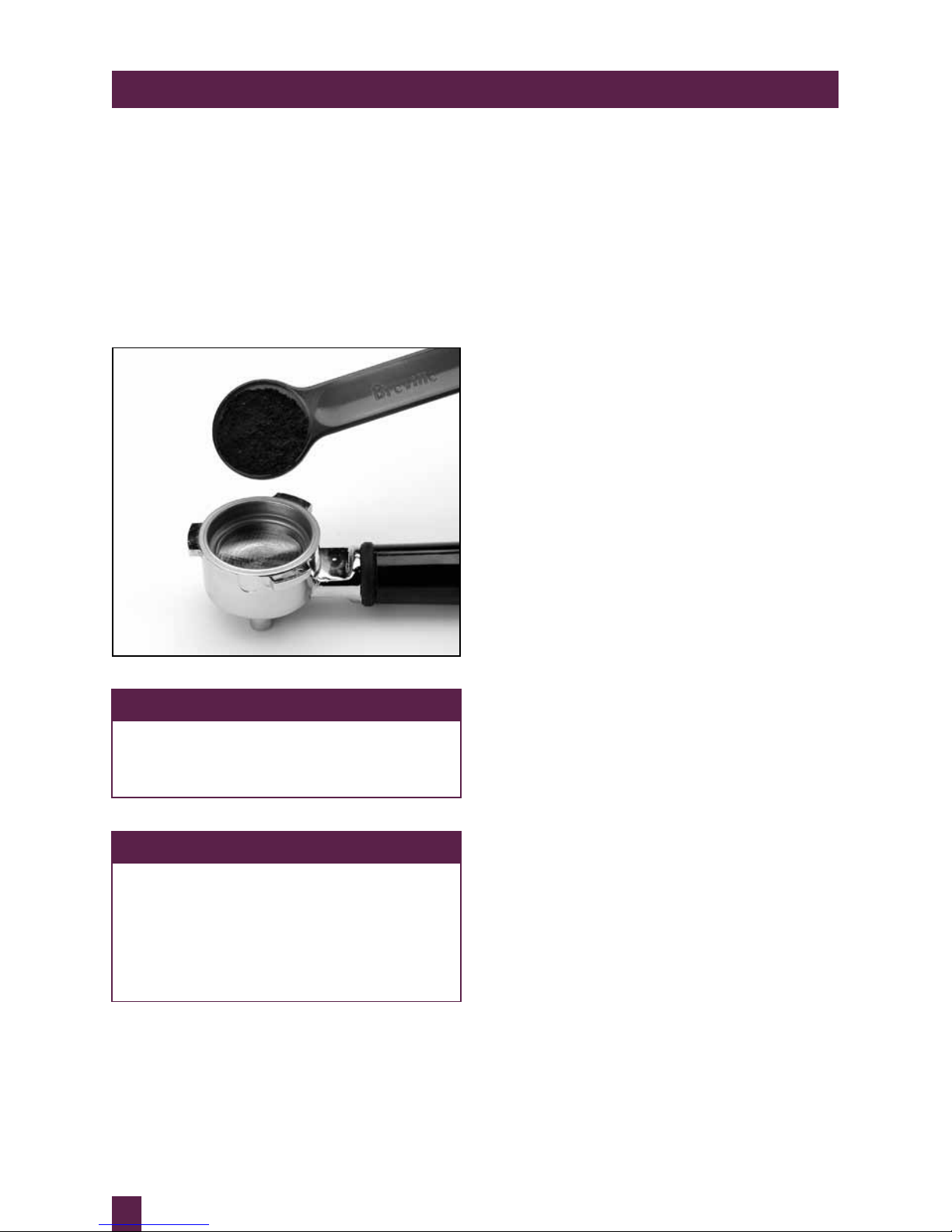

• Distribute the coffee evenly in the Filter
and press down lightly with the tamping
end of the measuring spoon (Refer to
Coffee Making Tips on Page 21).
• Clean any excess coffee from the rim of
the Filter holder to ensure a proper fit
into the Brew Head.
NOTE
The filters are held in place firmly to
ensure that they do not get emptied
into the trash along with coffee.
NOTE
Remove the filter using the indents
in the side of the filter holder, if this
proves difficult the BES800XL comes
with 2 filters. Use the edge of the free
filter as a leverage aid to removing the
filter that is fitted.
STEP 4 - PRIMING THE BREW HEAD
• Before placing the Filter Holder into
position, it is recommended to run a
short flow of water through the Brew
Head.
• Ensure the Selector Control is in the
‘Standby’ position and plug the power
cord into a 110/120V power outlet and
switch on. Press the Power On/Off
button to ‘On’ and the button surround
will illuminate. The Steam button
surround will also illuminate.
• The machine will make a pumping noise
then the Heating Light will illuminate
red. When the correct temperature has
been reached the light will cycle out.
• Place a container under the Brew Head.
• Prime the Brew Head by quickly turning
the Selector Control to the ‘Espresso’
position until water flows then turn back
to the ‘Standby’ position. A pumping
noise will be heard in this operation.
STEP 5 - PRE-WARMING THE CUPS
• The Cup Warming Plate will start to
warm as the machine heats.
• Pre-warm the espresso cups by placing
on the Cup Warming Plate. This will
help maintain the coffee’s optimal
temperature when brewed into the cups.

17
OPERATING YOUR BREVILLE DUO-TEMP™ ESPRESSO MACHINE
NOTE
The machine remains ready for
brewing and maintains a constant
heating temperature while the
Power On/off button is in the ‘On’
position. If the temperature lowers,
the heating light will illuminate and
the Thermoblock Heating System will
automatically reheat to the correct
brewing temperature.
STEP 6 - INSERTING THE
FILTER HOLDER
• Place the Filter Holder underneath the
Brew Head so that the handle is aligned
with the insert graphic. Insert the Filter
Holder up into the Brew Head and rotate
the handle to the right until resistance
is felt, this will be at an approximate 90°
angle to the machine.
STEP 7 - BREWING THE COFFEE
• The red ‘Heating’ light cycles off when
the machine has reached the correct
temperature for brewing.
• Ensure the Drip Tray and Grid are
in place.
• Place one or two pre-warmed cups
beneath the Filter Holder outlet.
• Set the Selector Control to the
‘Espresso’ position.
• After a few seconds, aromatic coffee will
begin to brew into the cups. A pumping
noise will be heard in this operation.
• When sufficient coffee has flowed into
the cups, set the Selector Control to the
‘Standby’ position. This will stop the
flow of coffee.
• If the steam function is not required,
leave the Selector Control to the
‘Standby’ position, unplug the power
cord and allow the machine to cool.
PRE-BREW FUNCTION
• When the Selector Control is set to the
‘Espresso’ position, the 15 bar pump
pumps water momentarily, followed by a
pause, then continues to pump the water
through to the ground coffee in the Filter
Holder. This prebrew function is an
advanced feature of the BES800XL.
• The ground coffee is moistened by
a small amount of water before full
extraction. The ground coffee expands
and when greater pressure is built up,
the brewed coffee is extracted with its
full flavor.

18
OPERATING YOUR BREVILLE DUO-TEMP™ ESPRESSO MACHINE
STEP 8 – EMPTYING THE
FILTER HOLDER
• Remove the Filter Holder from the Brew
Head by turning the Filter Holder to
the left until it releases. Turn the Filter
Holder upside down to empty the used
coffee (used coffee grounds should be
thrown away and not put down the sink
which may block drains).
• Remove the Filter by using the indents
on the side of the Filter Holder. Rinse
the Filter and Filter Holder with water
and allow to dry.

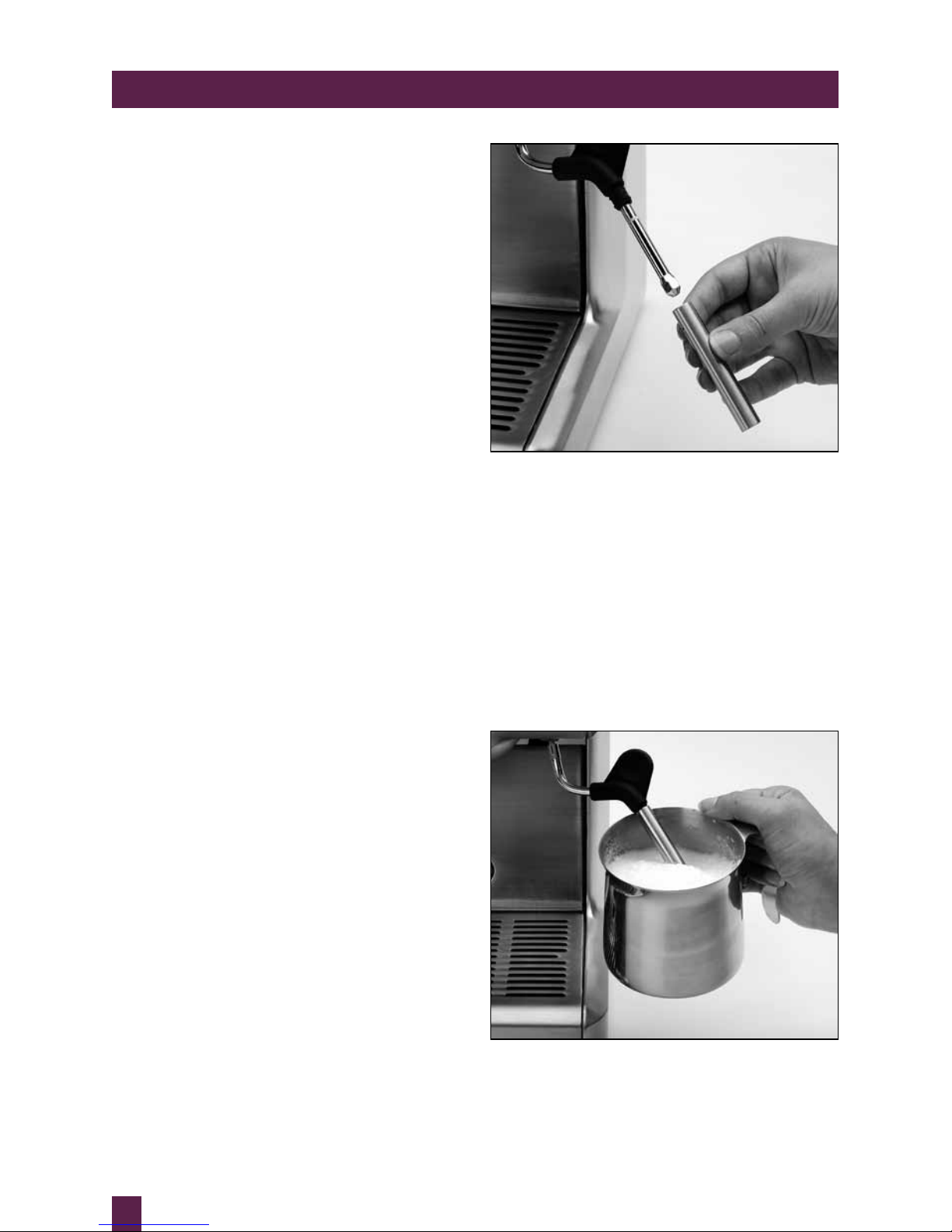

HOW TO FROTH MILK FOR A
CAPPUCCINO OR LATTÉ
The Die Cast Series Espresso Machine
comes complete with a Commercial Swivel
Steam Wand and Stainless Steel Frothing
Attachment. When using the Frothing
Attachment a large amount of froth is
easily created.
If less froth is required, remove the Frothing
Attachment and steam the milk using
the Steam Wand. To remove the Frothing
Attachment, ensure it is cool then simply pull
down and remove. The Frothing Attachment
can be stored in the Storage Tray inside the
machine if not used regularly.
To refit the Frothing Attachment ensure it
is securely attached to the Steam Wand by
inserting it, from either end opening, onto the
Wand and pushing firmly upwards onto the
rubber surround. Ensure the fine steam holes
on either end of the Frothing Attachment are
clean to achieve optimal frothing.
• The first step in making a cappuccino or
latté is to make a short espresso.
• Then fill the stainless steel frothing jug
L full with cold fresh milk.
• Turn the Selector Control to the ‘Steam’
position and press the ‘Steam’ button.
(Refer to information on Steam and Hot
Water buttons on Page 21.) The ‘Heating’
light will start to flash indicating that the
Thermoblock Heating System is heating
and preparing to create steam.

19
OPERATING YOUR BREVILLE DUO-TEMP™ ESPRESSO MACHINE
WARNING
The metal parts of the filter holder
might still be very hot. Cool these parts
in cold water.
NOTE
When the BES800XL is creating
steam a pulsing noise can be heard.
This is the normal operation of the 15
Bar pump.
• When the red ‘Heating’ light stops
flashing, quickly insert the Steam
Wand into the jug of milk so that the
Froth Attachment is just immersed
into the milk.
NOTE
If steam starts coming from the
Steam Wand before it is immersed in
the milk, pause the steam by turning
the Selector Control back to the
‘Standby’ position. This will avoid the
steam pressure blowing milk out of
the jug. A pumping noise will sound
for a short time.
• Hold the frothing jug at an angle so that
the Frothing Attachment sits just below
the surface of the heating milk and the
steam will move the milk around the
inside of the jug in a circular motion.
NOTE
The BES800XL features a Swivel
Steam Wand assembly so the position
of the Steam Wand can be changed to
a comfortable angle.
• When the milk starts to increase
in volume, immerse the Frothing
Attachment deeper into the jug to heat
the milk.
• Hold the jug at an angle with one hand
and place your other hand on the outer
base of the stainless frothing jug.
• When the base of the jug becomes too
hot to touch, set the Selector Control
to the ‘Standby’ position, stopping the
steaming function before removing the
jug. A pumping noise will sound for a
short time.
• Pour the steamed milk into each cup
of freshly brewed espresso coffee
and spoon in the frothed milk, in
the following ratios: Cappuccino - L
espresso, L steamed milk, L frothed
milk Latté - L espresso topped with
steamed milk and about ¼ inch (1cm)
of frothed milk (traditionally served in
a glass).
