CONTENTS

4
At Breville, we know that coffee lovers
will go to great lengths to refine the art of
making coffee. They will experiment with
flavors and adjust the tamp and grind
of the beans in search for the perfect
espresso. The Die Cast Programmable
Espresso Machine caters for all levels of
coffee making, from manual control to
programmable coffee and from the novice
through to the experienced barista.
After extensive research and rigorous
testing, this machine boasts key features
such as custom set programming, a
premium brew process and a quality
espresso pressure gauge. Energy saving
features, like the auto power down, help to
save on electricity consumption, and the
selection of premium materials make the
BES820XL the best of Breville.
Enjoy!

5
BREVILLE RECOMMENDS SAFETY FIRST
•Do not place this appliance on or near a hot
gas or electric burner, or where it could
touch a heated oven.
•Do not let the cord hang over the edge of a
table or counter, touch hot surfaces or
become knotted.
•The use of accessory attachments not
recommended by Breville may cause a risk
of injury to persons, fire or electric shock.
•Strictly follow cleaning and care instructions.
•Always switch the appliance to ‘OFF’, and
remove plug from the power outlet when
the appliance is not being used and before
cleaning. Allow to cool before putting on
or taking off parts, and before cleaning
the appliance.
•An extension cord is not recommended,
however, if one is needed, the extension
cord should be a grounded type and its
electrical rating must be the same or more
wattage as the appliance. Regularly inspect
the supply cord, plug and actual appliance
for any damage. If found damaged in any
way, immediately cease use of the
appliance and call Breville Customer
Service at 1-866-BREVILLE.
•For any maintenance other than cleaning,
call Breville Customer Service at
1-866-BREVILLE.
•Refer servicing to qualified personnel.
•Do not operate any appliance with a
damaged cord or plug or after the
appliance malfunctions, or has been
damaged in any manner. Return appliance
to the nearest authorized service facility for
examination, repair or adjustment.
•Carefully read all instructions before
operating and save for future reference.
•To protect against fire, electrical shock and
injury to persons do not immerse the
appliance, cord or plug in water or any
other liquid.
•This appliance is for household use only.
•Do not use this appliance for anything other
than its intended use. Do not use in moving
vehicles or boats. Do not use outdoors.
•Young children should be supervised to
ensure that they do not play with the
appliance.
•Do not leave the appliance unattended
when in use.
•Do not touch hot surfaces. Use handles.
•Always use the appliance on a dry, level
surface.
•To disconnect, turn all controls to ‘OFF’,
then remove plug from power outlet.
We at Breville are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer foremost in
mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions:
IMPORTANT SAFEGUARDS

6
SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY
BREVILLE RECOMMENDS SAFETY FIRST (continued)
Special Safety Instructions
•Only use cold water in the water tank.
Do not use any other liquid.
•Never use the machine without water
in it.
•Ensure the filter holder is firmly secured
when using the machine.
•Never remove the filter holder during the
brewing operation as the machine is
under pressure.
Electric Cord Statement
Your Die Cast Programmable Espresso
Machine has a short cord as a safety
precaution to prevent personal injury or
property damage resulting from pulling,
tripping or becoming entangled with
the cord.
Do not allow children to be near or
use this appliance without close adult
supervision. If you must use a longer
cord or an extension cord when using the
appliance, the cord must be arranged so
it will not drape or hang over the edge of a
countertop, tabletop or surface area where
it can be pulled on by young children or
tripped over.
NOTE: Your Breville appliance comes
with the unique Assist Plug™,
conveniently designed with a
finger hole in the power plug,for
easy and safe removal from
the outlet. For safety reasons
it is recommended you plug
your Breville appliance directly
into the power outlet. Use
in conjunction with a power
strip or extension cord is not
recommended.
To prevent electric shock, personal injury
or fire, the electrical rating of the extension
cord if you must use one must be the
same or more than the wattage of the
appliance (wattage is marked on the
underside of the appliance).
CALIFORNIA PROPOSITION 65:
This product contains chemicals known
to the State of California to cause
cancer and birth defects or other
reproductive harm.

7
Programmable Function
This espresso machine offers a convenient
choice between the Manual Operation or the
intelligent Programmable Function that can be
personalised with the user’s favorite espresso
setting.
Espresso Pressure Gauge
The espresso pressure gauge assists in
obtaining the most favorable extraction
pressure, guiding the user to create their ideal
espresso. This is achieved by measuring the
pressure at which the water is being forced
through the ground coffee in the filter holder.
Ideal Espresso - Optimum Zone
The gauge needle when positioned within the
recommended Optimum Zone during pouring
indicates the espresso will be produced at the
ideal pressure. The brewed espresso should
have a generous layer of fine textured and
evenly colored golden créma.
Under Extracted Espresso
The gauge needle when positioned below the
Optimum Zone during pouring indicates that
the espresso will be produced with insufficient
pressure resulting in an ‘under extracted’
espresso. This occurs when the water flow
through the ground coffee in the filter is too
fast. As a result the optimal flavor will not be
extracted and the coffee will be watery and lack
thick créma on the top.
Possible causes for under extraction are: coffee
grind is too coarse and/or insufficient coffee in
filter and/or under tamping.
Over Extracted Espresso
The gauge needle when positioned above the
OPTIMUM Zone during pouring will indicate
that the espresso will be produced with too
much pressure resulting in an ‘over extracted’
espresso. This occurs when the water flow
through the ground coffee in the filter is too
slow. As a result the coffee will be very dark and
bitter, with a mottled and uneven créma on top.
Possible causes for over extraction are: ground
coffee is too fine and/or too much ground coffee
in filter and/or over tamping.
Hot Water Wand
The dedicated hot water wand is ideal for
making your favourite hot drinks. For convenient
use the wand has a commercial style 360°
ball joint.
FEATURES OF YOUR BREVILLE DIE CAST PROGRAMMABLE ESPRESSO MACHINE

8
FEATURES OF YOUR BREVILLE DIE CAST PROGRAMMABLE ESPRESSO MACHINE (continued)
Commercial Style Steam Wand
The swivel-action steam wand, with
stainless steel frothing attachment, easily
adjusts to the perfect position for texturing
milk. The wand has a commercial style
360° ball joint.
Advanced Dual Wall Créma System
Filters
Advanced Dual Wall Créma System Filters
(one and two cup) are supplied with the
Breville Die Cast Programmable Espresso
Machine.
The Advanced Dual Wall Créma System
Filters are designed to intentionally
slow the water flow rate during brewing,
allowing you to easily pour your espresso
at the ideal pressure, for the perfect
créma.
The filters are suited to both pre-ground
vacuum packed coffee and freshly ground
coffee.
Electronic Temperature Control
The electronic temperature control system
accurately maintains the optimal brewing
temperature of the water. This helps
ensure the user gets the best possible
extraction each time an espresso is made.
Energy Saving Features
The Breville Die Cast Programmable
Espresso Machine will enter the ‘Power
Save Mode’ if not used for one hour, and
will automatically switch off if not used for
a further three hours.
The ‘Power Save Mode’ uses 45% less
power than when the machine is in
‘Stand by’ Mode.
During ‘Power Save Mode’ only the
POWER button surround will be
illuminated. All other button and light
surrounds will not be illuminated.
To re-activate the machine during ‘Power
Save Mode’, simply press the program or
one-cup or two-cup buttons. The POWER
button surround will then illuminate and
flash while the machine quickly reheats to
operational temperature. When the correct
temperature has been reached, all the
button surrounds on the control panel
will illuminate.
To switch off the espresso machine whilst
it is in ‘Power Save Mode’, simply press
the POWER button once.

9
KNOW YOUR BREVILLE DIE CAST PROGRAMMABLE ESPRESSO MACHINE
Extra-large cup warming plate
Power button
surround illuminates when the
button is pressed to ‘On’
Steam light
illuminates to indicate that the steam
function is selected
Extra-large cup height for coffee
mugs
Removable 34oz drip tray
and stainless steel grid
NOT SHOWN
Custom designed accessories:
Stainless steel frothing jug
Measuring/tamping spoon
Cleaning Tool
Quick Start Guide
1 & 2 cup dual wall stainless steel filters
Pod Filter
15 bar pump
Italian-designed and made
Hot water wand
provides instant hot water
‘Power Save Mode’
Hot water light
illuminates to indicate hot water function
is selected
Pre-brew function
for optimal coffee extraction pressure
Auto purge function
for optimal coffee extraction temperature
Electronic temperature control
Drip tray full indicator

10
KNOW YOUR BREVILLE DIE CAST PROGRAMMABLE ESPRESSO MACHINE (continued)
External viewing back-lit
water window Swivel steam wand and stainless
steel frothing attachment
easily adjusts to perfect positioning for
frothing milk
Espresso pressure gauge
assists in obtaining the most favorable
extraction pressure
Group head
for easy fitment of the filter holder
Advanced dual wall créma system
for the ideal créma
Programmable features:
1 cup button and 2 cup button
Solid chrome brass filter holder
Thermoblock heating system
ensures coffee is extracted at the
correct temperature
NOT SHOWN
Cord storage
Storage tray
located behind the drip tray for storage
of accessories
Selector control for steam or hot water
Removable 75oz water tank
filled from the front of the machine
Program button
Intelligent programmable function
that can be personalized with your
favorable espresso setting

11
BEFORE FIRST USE
Your Breville Die Cast Programmable
Espresso Machine will have the drip tray,
water tank and storage tray in place when
you unpack it from the box.
The drip tray is located in the base of the
machine towards the front of the machine.
The water tank is located in the center of
the machine towards the back wall.
The storage tray is located at the base
of the machine behind the drip tray and
under the water tank. The drip tray, water
tank and storage tray slide in and out for
easy access.
Ensure you have removed all parts
and accessories before discarding the
packaging.
Remove the drip tray, water tank and
storage tray. Disassemble the drip tray
by removing the stainless steel grid and
‘Empty Me!’ full indicator. Wash all parts
and accessories in warm, soapy water
using a non-abrasive washing liquid. Rinse
and dry thoroughly.
Wipe the outer housing with a soft damp
cloth and dry thoroughly. Do not immerse
the outer housing, power cord or plug in
water or any other liquid.
NOTE: Do not clean any of the parts or
accessories in the dishwasher.

12
New photo of machine showing
water tank being removed

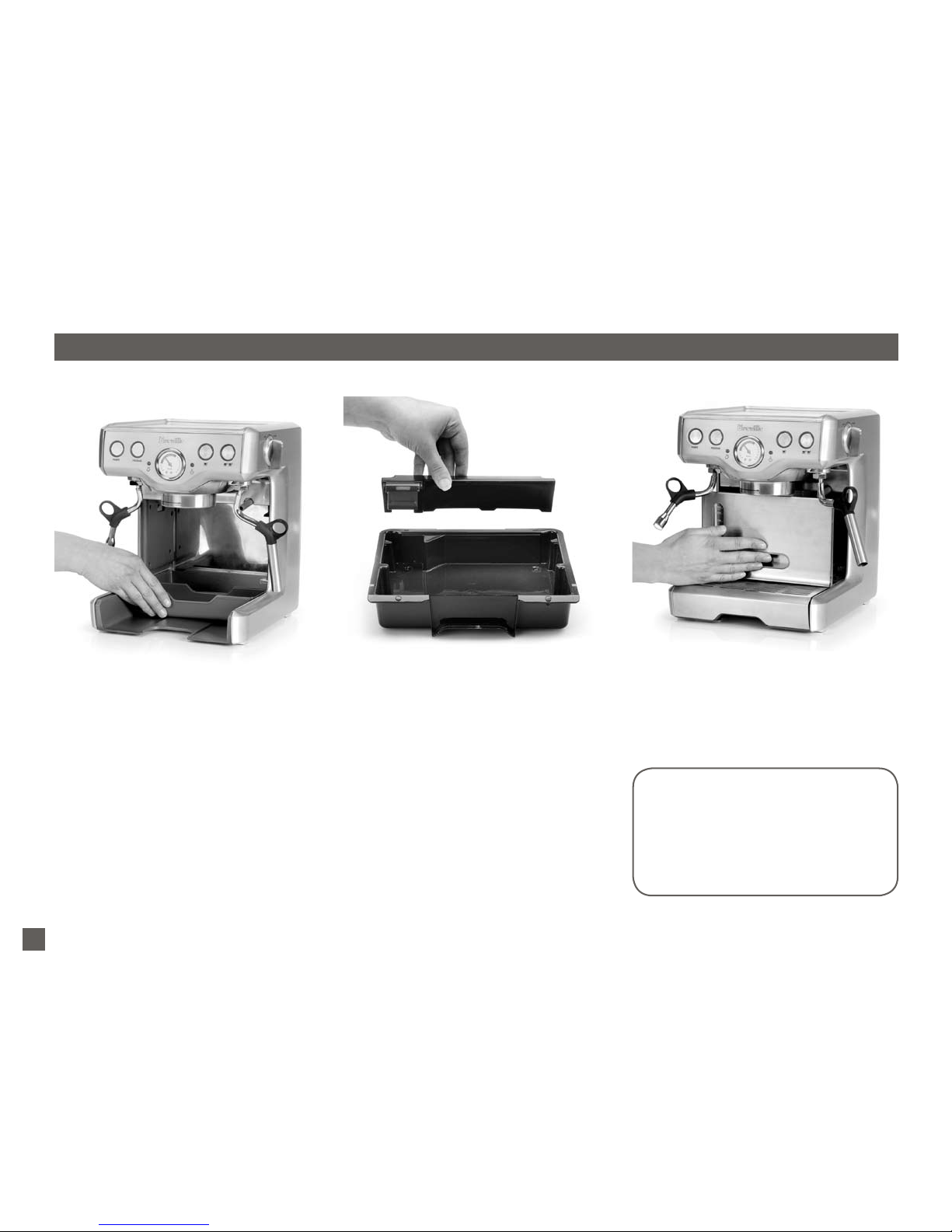

ASSEMBLING YOUR BREVILLE DIE CAST PROGRAMMABLE ESPRESSO MACHINE
STEP 1
Insert the storage tray into the base of
the machine and slide towards the back
wall. The storage tray conveniently stores
the cleaning tool, stainless steel filters,
measuring/tamping spoon and Quick
Start Guide when not in use, so they are
not misplaced.
STEP 2
Insert the ‘Empty Me!’ full indicator into
position in the drip tray and place the
stainless steel grid on top. Slide the
drip tray into position in the base of the
machine in front of the storage tray.
STEP 3
Slide the water tank over the drip tray
and into the front opening of the machine
and into position above the storage tray.
Ensure the water tank aligns flush with the
sides of the machine.
NOTE: Before each use it is
recommended to complete a water
flushing operation, without ground
coffee, to ensure that all internal
piping has been preheated. Refer
to Steps 1 and 4 in ‘Operating your
Espresso Machine’, page 14

13
Operating

14
water tank storage area. Do not touch or
try to remove this tube, it will
automatically slide back into position
when the water tank is re inserted.
•Fill the water tank with cold, tap water to
the maximum mark on the water window
and slide the water tank carefully back
into position in the machine.
•Ensure the Selector Control is in the
‘Standby’ position and plug the power
cord into a 110/120V power outlet and
switch on.
•Press the POWER button to ‘On’, the
POWER button surround will flash while
the machine is heating. When the
correct temperature has been reached,
all the button surrounds on the control
panel will illuminate.
New close up photo of 1 cup
button on control panel
STEP 1 - FILLING THE WATER TANK
•Ensure the Power is off and the Selector
Control, on the side of the machine, is
set to the Standby position.
•Switch the machine off at the power
outlet and unplug the power cord.
•Remove the filter holder if locked into the
brew head and move the steam wand to
the side of the machine.
•Remove the water tank by sliding out
using the handle insert in the front of the
water tank.
•As the water tank is removed, a black
tube slides and extends out from the
STEP 2 - PRE-WARMING THE CUPS
•The Cup Warming Plate will start to
warm as the machine heats.
•Pre-warm the espresso cups by placing
on the Cup Warming Plate. This will help
maintain the coffee’s optimal
temperature when brewed into the cups.
OPERATING YOUR BREVILLE DIE CAST PROGRAMMABLE ESPRESSO MACHINE
NOTE: Check the water level before use
and replace the water daily. The
water tank should be refilled
with fresh, cold tap water before
each use. Do not use mineral or
distilled water or any other liquid.

15
OPERATING YOUR BREVILLE DIE CAST PROGRAMMABLE ESPRESSO MACHINE (continued)
STEP 3 - PREPARING THE COFFEE
•Place the 1 or 2 cup filter into the filter
holder (use the smaller filter for 1 cup
and the larger filter for 2 cups). When
brewing for a mug of coffee always use
the 2 cup filter and only extract 2 oz.
If you require a larger coffee, add the hot
water first and then brew the coffee.
•Preheat the filter holder by placing
underneath the group head. Rinse with
hot water from the wand using the hot
water function or from the group
head and rinse with hot water using the
manual pour function. Dry the filter and
filter holder thoroughly before use.
•Use 1 level measure of ground espresso
coffee for the 1 cup filter and 2 level
measures for the 2 cup filter. It is
important to use the correct amount
of coffee for each filter as the filter
perforations have been constructed
to utilize the pressure in the machine to
extract optimal flavor with each
brewing. Refer to ‘The Coffee Making Tip’,
page 22.
NOTE: When using a 1 cup filter holder,
for optimal flavor, you should
only extract approximately 1 oz.
When using a 2 cup filter holder,
for optimal flavor, you should only
extract approximately 2 oz.
STEP 4 - TAMPING THE GROUND COFFEE
•Distribute the ground coffee evenly in
the filter and press down lightly with the
tamping end of the measuring spoon.
Refer to ‘Coffee Making Tips’, page 22
•Clean any excess ground coffee from
the rim of the filter holder to ensure a
proper fit into the group head.

16
STEP 5 - PRIMING THE GROUP HEAD
•Before placing the filter holder into
position, it is recommended to run a
short flow of water through the group
head.
•Place a container or empty cup under
the group head.
•With the filter holder removed, prime
the group head by pressing and holding
down the single or double cup button
for approximately 5 seconds. Refer to
‘Manual Espresso’, page 18.
A pumping noise will be heard during
this operation, and water will run through
the group head. STEP 6 - INSERTING THE FILTER HOLDER
Place the filter holder underneath the
group head so that the handle is aligned
with the insert graphic. Insert the filter
holder up into the group head and rotate
the handle to the right until resistance is
felt, this will be at an approximate 90°
angle to the machine.
STEP 7 – BREWING THE COFFEE
•Ensure all the button surrounds on the
control panel are illuminated, indicating
the machine has reached the correct
temperature for brewing, and is ready for
use.
•Ensure the drip tray and filter holder are
in place.
•Place one or two pre-warmed cups
beneath the filter holder outlet.
PROGRAMMED ESPRESSO – ONE CUP
Press the one cup button once. After a
few seconds, aromatic coffee will begin to
pour into the cup. A pumping noise will be
heard in this operation. The machine will
automatically stop once the preset pour
has been delivered.
OPERATING YOUR BREVILLE DIE CAST PROGRAMMABLE ESPRESSO MACHINE (continued)

17
PROGRAMMED ESPRESSO – DOUBLE CUP
Press the two cup button once.
After a few seconds, aromatic coffee will
begin to brew into the cup. A pumping
noise will be heard in this operation. The
machine will automatically stop once the
preset pour has been delivered.
NOTE: The minimum pour for
one cup and two cups
is set at ½ oz (15ml).
NOTE: Pressing the one cup or
two cup buttons during
a programmed espresso will
immediately stop the pour.
PROGRAMMING SINGLE ESPRESSO
1.Prepare to make a single cup of
espresso by following steps 2 to 6 in
‘Operating your Espresso Machine’,
pages 14-16.
2.Place your cup underneath the group
head.
3.To begin programming, press the
‘PROGRAM’ button once. The machine
will beep once and the program button
will begin to flash. This indicates the
machine is in programming mode.
4. Press the one cup button once.
The machine will commence normal
pour function, and the one cup button
surround will begin to flash.
5.When the desired amount of espresso
has poured into the cup, press the
one cup button to stop the pour.
The machine will beep twice,
indicating it has saved your measured
pour quantity and exited programming
mode.
PROGRAMMING DOUBLE ESPRESSO
1. Prepare to make a two cup of espresso
by following steps 2 to 6 in ‘Operating
your Espresso Machine’, pages 14-16.
2. Place your cup underneath the group
head.
3. To begin programming, press the
‘PROGRAM’ button once. The machine
will beep once and the program button
will begin to flash. This indicates the
machine is in programming mode.
4. Press the two cup button
once. The machine will commence
normal pour function, and the two cup
button surround will begin to flash.
5. When the desired amount of espresso
has poured into the cup, press the
two cup button to stop the pour.
The machine will beep twice, indicating it
has saved and exited programming
mode.
RESETTING DEFAULT VOLUMES
To reset the machine to the default one
and two cup pour quantities, press and
hold the program button, until the machine
beeps three times. Release button. This
indicates the machine has returned to its
original default settings.
NOTE: Default settings: one cup pour is
approximately 1 oz. Two cups
is approximately 2 oz.
OPERATING YOUR BREVILLE DIE CAST PROGRAMMABLE ESPRESSO MACHINE (continued)

18
PROGRAMMING YOUR BREVILLE DIE CAST PROGRAMMABLE ESPRESSO MACHINE
MANUAL ESPRESSO
Press and hold the single or two cup
button. Release the button once
sufficient coffee has flowed into the cup.
NOTE: PRE-BREW FUNCTION
When a single or double coffee is
selected, the machine will pump
water momentarily, followed by
a pause then continues to pump
the water through to the ground
coffee in the filter holder. The
ground coffee is moistened by
a small amount of water before
full extraction then expands
resulting in greater pressure
build-up to extract all the oils
and full flavor from the
ground coffee.
STEP 8 – EMPTYING THE FILTER HOLDER
Remove the filter holder from the group
head by rotating the filter holder to the
left until it releases. To empty the used
coffee grounds, turn the filter holder
upside down in a bin and gently tap out
the coffee (used coffee grounds should
be thrown away with domestic waste
and not down the sink which may block
drains). Remove the filter by using the
indents on the side of the filter holder.
Rinse the filter and filter holder with water
and allow to dry.
WARNING: THE METAL PARTS OF THE
FILTER HOLDER MAY STILL BE
VERY HOT. COOL THESE PARTS IN
COLD WATER.

19

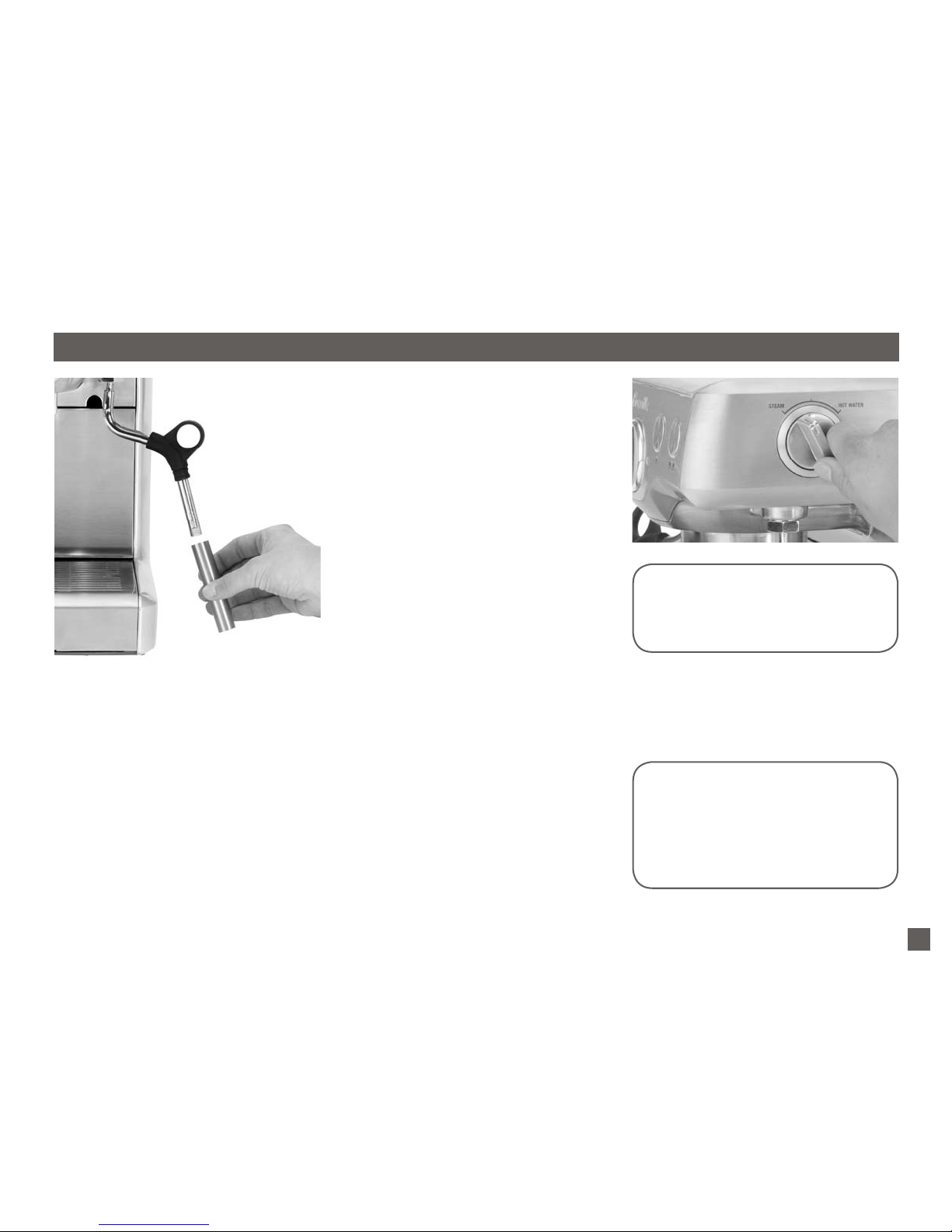

HOW TO TEXTURE MILK FOR A CAPPUCCINO OR LATTÉ (continued)
The Die Cast Programmable Espresso
Machine comes complete with a
Commercial Style Swivel Steam Wand
and Stainless Steel Frothing Attachment.
When using the frothing attachment on
the steam wand a large amount of froth is
easily created.
If less texture is required, remove the
frothing attachment from the steam wand
and steam the milk using the steam
wand. To remove the frothing attachment,
ensure it is cool then simply pull down
and remove. The frothing attachment can
be stored in the storage tray inside the
machine if not used regularly.
To refit the frothing attachment ensure it is
securely attached to the steam wand by
inserting it, from either opening, onto the
steam wand and pushing firmly upwards
onto the rubber surround. Ensure the fine
steam holes on either end of the frothing
attachment are clean to achieve optimal
texturing.
•Press the POWER button.
•The first step in making a cappuccino
or latté is to make a short espresso.
Refer to ‘Operating your Espresso
Machine’, pages 14-16.
•Then fill the stainless steel frothing jug
1⁄3full with cold, fresh milk.
•Turn the Selector Control to the ‘Steam’
position. The white steam light will start
to flash indicating that the Thermoblock
Heating System is heating and preparing
to create steam.
•For improved results, purge the steam
wand of water before placing into the
milk.
NOTE: When the espresso machine
creates steam, a pumping noise
can be heard. This is the normal
operation of the 15 Bar pump.
•When the steam light stops flashing,
quickly insert the steam wand into the
jug of milk so that the froth attachment is
just immersed into the milk.
NOTE: If steam starts coming from the
steam wand before it is immersed
in the milk, pause the steam by
turning the Selector Control back
to the ‘Standby’ position. This will
avoid the steam pressure blowing
milk out of the jug.

20
•Hold the frothing jug at an angle so
that steam wand and/or the frothing
attachment sits just below the surface of
the heating milk and the steam will move
the milk around the inside of the jug in a
circular motion.
NOTE: The espresso machine features
a swivel steam wand assembly so
the position of the steam wand can
be changed to a comfortable angle.
HOW TO TEXTURE MILK FOR A CAPPUCCINO OR LATTÉ
•When the milk starts to increase in
volume, immerse the steam wand and/
or frothing attachment deeper into the
jug to heat the milk.
•Hold the jug at an angle with one hand
and place your other hand on the outer
base of the stainless frothing jug.
•When the base of the jug becomes too
hot to touch, set the Selector Control
to the ‘Standby’ position, stopping
the steaming function before
removing the jug. A pumping noise will
sound for a short time, do not be
alarmed as there will be a five second
delay prior to the machine carrying out
the Auto-purge function.
•Pour the steamed milk into each cup of
freshly brewed espresso coffee and
spoon in the frothing milk, in the
following ratios:
Cappuccino - 1⁄3espresso, 1⁄3steamed milk,
1⁄3frothed milk
Latté - 1⁄3espresso topped with steamed milk
and approximately ½ inch frothed milk, traditionally
served in a glass.
NOTE: After 5 minutes of continuous
steaming, the machine will
automatically disable the steam
function. The steam and hot water
lights will flash. When this occurs
return the selector control to the
‘Standby’ position.
NOTE: Always ensure that the frothing
attachment has been firmly pushed
onto the steam wand and connects
with the rubber surround. For best
results use cold fresh milk (low
fat milk will froth easier). Always
clean the steam wand and frothing
attachment after every use. Refer
to ‘Care and Cleaning’, page 24.
NOTE: For brewing more coffee
immediately after using the steam
function, this machine features an
auto-purge function. This ensures
that ground coffee will not be burnt
by the initial water flow from the
thermoblock being too hot. Instead
this water is automatically released
internally into the drip tray ensuring
that the internal thermostat is at
optimal temperature for extracting
coffee. Your coffee will always
be extracted at this optimal
temperature ensuring only the best
flavored coffee is achieved.
WARNING: MILK SHOULD NOT BE ALLOWED TO RUN OVER THE TOP OF THE FROTHING
ATTACHMENT, OTHERWISE IT WILL NOT FUNCTION PROPERLY. TO AVOID
SPLATTERING OF HOT MILK, DO NOT LIFT THE END OF THE FROTHING ATTACHMENT
ABOVE THE SURFACE OF THE MILK WHILE FROTHING. ENSURE THE SELECTOR
CONTROL IS IN THE ‘STANDBY’ POSITION BEFORE REMOVING THE FROTHING JUG.
