Breville Lift & Look Pro User manual

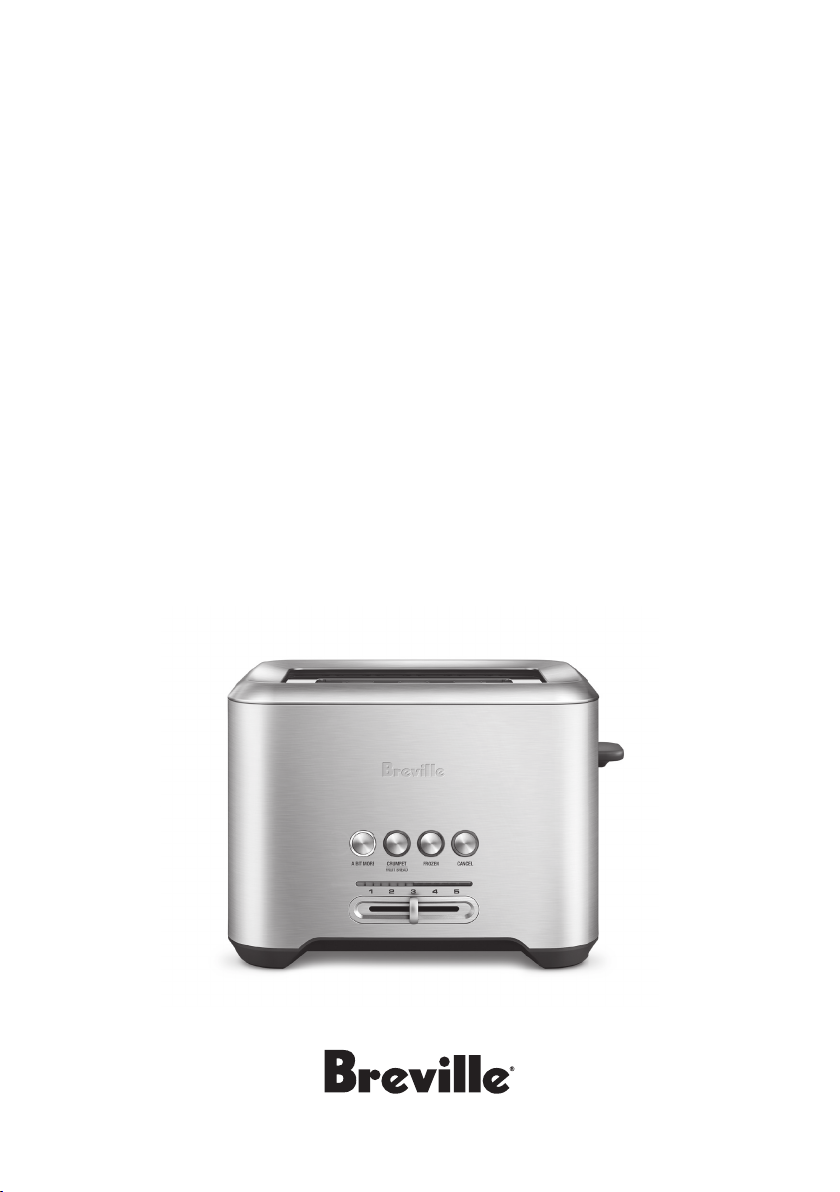

the ‘Lift & Look’™Pro
Instruction Book - Suits all BTA720 Models

1
IMPORTANT
SAFEGUARDS
At Breville we are very safety
conscious. We design and
manufacture consumer
products with the safety of you,
our valued customer, foremost
in mind. In addition we ask
that you exercise a degree of
care when using any electrical
appliance and adhere to the
following precautions.
BREVILLE
RECOMMENDS
SAFETY FIRST
READ ALL INSTRUCTIONS
BEFORE USE AND SAVE
FOR FUTURE REFERENCE
• Carefully read all instructions
before operating for the first
time and save for future
reference.
• Remove and safely discard any
packaging materials and
promotional labels before
using the toaster for the
first time.
• To eliminate a choking hazard
for young children, remove and
safely discard the protective
cover fitted to the power plug
of this appliance.
• Do not place the toaster near
the edge of a bench or table
during operation. Ensure the
surface is level, clean and free
of water.
• Always operate the toaster on
a stable, heat resistant surface.
Do not use on a cloth-covered
surface, near curtains or other
flammable materials.
• A fire may occur if the toaster is
covered or touching flammable
materials, including curtains,
draperies, walls and the like,
when in operation.
• Curtains and other flammable
items can catch fire if they are
near or above the toaster.
1 Breville Recommends Safety First
7 Components
8 Functions
11 Care & Cleaning / Storage
Contents

2
• While toasting, the bread
may burn. Therefore do not
use the toaster near or below
combustible material, such
as curtains.
• Do not allow hot surfaces of the
toaster to come in contact with
countertops or tables.
• Do not place the toaster on
or near a hot gas or electric
burner, or where it could touch
any other source of heat.
• This appliances is not intended
to be operated by means
of an external timer or separate
remote-control system.
• When operating the toaster,
keep a minimum distance
of 10cm of space from
the surrounding sides &
20cm above.
• Breville does not recommend
placing the toaster in enclosed
areas.
• Do not use the toaster on a sink
drain board.
• Do not move toaster while in
operation.
• Avoid contact with moving
parts.
• Ensure that bread to be toasted
is the correct size for the toaster
and does not protrude above
the toasting slots. Ensure the
bread is not too thick or long
that it will jam or wedge the
bread carriage.
• Do not place toast directly on
top of toasting slots to warm
toast as this may prevent
correct air circulation and
damage the appliance.
• Do not touch hot surfaces.
Toaster surfaces are hot during
and after operation. To prevent
burns or personal injury,
always use protective hot pads
or insulated oven mitts, or
use handles or knobs where
available.
• Metal utensils such as a knife,
should not be inserted into
the toaster to remove jammed
toast, bagels or any other items
from the toaster. This can
damage the heating elements
as well as lead to electrocution.
• Do not attempt to dislodge
food when the toaster is
plugged in.
• Oversized foods, metal foil
packages, or utensils must not
be inserted into the toaster as
they may cause a fire or risk of
electric shock.

3
• Do not use the toaster without
the slide out crumb tray in
place. Do not allow crumbs
to build up in the crumb tray.
Failure to clean the crumb tray
regularly may result in a fire
hazard. To turn the toaster off,
remove the power plug from
the power outlet.
• Always remove the power plug
from the power outlet if the
toaster is not in use, before
attempting to move, before
cleaning, and when storing.
Allow to cool before putting on
or taking off parts.
• Do not use harsh abrasive,
caustic cleaners or oven
cleaners when cleaning the
toaster.
• Do not clean with metal
scouring pads. Pieces can
break off and touch electrical
parts, creating a
shock hazard.
• Strictly follow the care and
cleaning instructions described
in this book.
• The use of attachments not
sold or recommended by
Breville may cause fire, electric
shock or injury.
IMPORTANT
SAFEGUARDS
FOR ALL
ELECTRICAL
APPLIANCES
• Fully unwind cord before use.
• To protect against electric
shock, do not immerse cord,
plug or appliance in water or
any other liquid.
• Do not let the cord hang over
the edge of a bench or table,
touch hot surfaces,
or become knotted.
• Do not leave the appliance
unattended when in use.
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the appliance
in a safe way and understand
the hazards involved.
• Children shall not play with
the appliance.
• Cleaning and user maintenance
shall not be carried out by
children unless they are older
than 8 and supervised.

4
• Keep the appliance and its cord
out of reach of children less
than 8 years.
• This appliance is not intended
for use by persons (including
children) with
reduced physical, sensory or
mental capabilities, or lack
of experience or knowledge,
unless they have been
given supervision
or instruction concerning use
of the appliance by a person
responsible for their safety.
• Children should be supervised
to ensure they do not play with
the appliance.
• This appliance is
recommended for household
use only. Do not use this
appliance for anything other
than its intended use.
Do not use in moving vehicles
or boats. Do not use outdoors.
• It is recommended to regularly
inspect the appliance. Do not
use the appliance if the power
cord, power plug, or appliance
becomes damaged in anyway.
Immediately cease use and
call Breville Consumer Service
for examination, repair or
adjustment.
• This appliance is equipped
with a power cord having
a grounding wire with a
grounding plug. The appliance
must be grounded using a
3-hole properly grounded
outlet. In the event of an
electrical short circuit,
grounding reduces the risk of
electrical shock.
• If the appliance is of the
grounded type,
the extension cord should be a
grounding 3-wire cord.
• If the power outlet is a standard
2-prong outlet, it is your
personal responsibility and
obligation to have it replaced
with a properly grounded
3-prong power outlet.
• Do not, under any
circumstances,
cut or remove the third
(ground) prong from the power
cord or use an adapter.
• Consult a qualified electrician if
the grounding instructions are
not completely understood, or
if doubt exists as to whether the
appliance is properly grounded.
NOTE
This toaster is electronically
controlled and will not operate
until the toaster is plugged into
a 220-240 volt power point and
switched on.

5
BREVILLE ASSIST™ PLUG
Your Breville appliance comes
with a unique Assist™ Plug,
conveniently designed with a
finger hole in the power plug for
easy and safe removal from the
wall outlet. For safety reasons it
is recommended you plug your
Breville appliance directly into
its own electrical outlet on a
dedicated circuit separate from
other appliances. If the electric
circuit is overloaded with other
appliances, your appliance may
not function properly. Use in
conjunction with a power strip
or extension cord is not
recommended.
SHORT CORD
INSTRUCTIONS
Your Breville appliance is fitted
with a short power supply cord
as a safety precaution to prevent
personal injury or property
damage resulting from pulling,
tripping or becoming entangled
with a longer cord. Do not allow
children to use or be near this
appliance without close adult
supervision. Longer detachable
power supply cords or extension
cords are not recommended but
may be used if care is exercised.
If an extension cord is used, (1)
the marked electrical rating of
the cord set or extension cord
should be at least as great as the
electrical rating of the appliance,
(2) the cord should be arranged
so that it will not drape over the
countertop or tabletop where it
can be pulled on by children
or tripped over unintentionally
and (3) the extension cord
must include a 3-prong
grounding plug.

6
WARNING
• Never operate the toaster on
its side.
• Never add any food substance
to the bread, bagel or any other
item prior to toasting (such
as butter, jelly or marmalade).
This may cause a fire as well as
lead to electrocution.
• This toaster is for toasting
bread, bagels, English muffins
and toaster pastries only.
Placing other food items in the
toaster can cause a fire as well
as lead to electrocution.
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS

7
A. A BIT MORE™ button
If your toast comes up too light, one press
adds a little extra toasting time.
B. Crumpet/Fruit Bread button
Press Crumpet/Fruit Bread button to toggle
between these two modes. Crumpet setting
activates additional heat to the middle
heating elements to toast the insides of your
crumpet without burning the outside.
C. FROZEN button
Activates additional toasting
time required to toast frozen bread.
D. CANCEL button
Cancels the toasting cycle. Also use
this button to adjust the volume of
the toast ready alert.
E. Toasting slots
F. LED toasting progress indicator
G. Variable browning control slide
H. Full stainless steel body
I. Slide out crumb tray
J. Concealed cord storage
K. LIFT & LOOK™ / high lift lever
Use the lever during the toasting cycle
to raise and lower the carriage so you
can check the toasting progress without
interrupting the toasting cycle. High lift
feature makes it easier to remove small
items such as English muffins.
NOT SHOWN
Breville Assist™ Plug
Components
A
I
E
F G
B
C
D

8
Functions
NOTE
This toaster is electronically controlled and will
not operate until the toaster is plugged into a
220-240 volt power outlet.
Before first use, remove any packaging material
or promotional labels attached to your toaster.
1. Insert the power plug into a 220-240V
power outlet. The LED toasting progress
indicator will illuminate from left to right,
then align to the selected browning setting
(indicated by the position of the browning
control slide). The toaster will revert to
stand-by mode after a few minutes if a
button is not pressed or the browning
control slide is not adjusted.
NOTE
When using the toaster for the first time, we
suggest toasting on the maximum setting
without bread.
The toaster may emit a thin smoke or distinct
odour on initial use. This is normal and not
detrimental to the performance of the toaster.
2. Place bread, bagels, English muffins etc into
each of the toasting slots. Ensure items for
toasting are not too large or too thick to fit
in the toasting slots.
3. There are 12 browning settings ranging
from ‘1’ (lightest) to ‘5’ (darkest). Select
the desired browning setting by adjusting
the browning control slide on the front
of the toaster. The LED toasting progress
indicator will illuminate and align to the
selected browning setting (as indicated by
the position of the browning control slide).
NOTE
When toasting bread for the first time, it is
suggested to toast on browning setting
'3' (7 LED's illuminated). Various types of
bread and personal preference may require a
different browning setting. For example, raisin
toast and white light-textured breads may
require a lighter setting, while heavier textured
rye breads may require a darker setting.
4. To start the toasting process, press down
the lever until it locks into place. The LED
toasting progress indicator (above the
selected browning setting) will flash and
start to gradually count down.
NOTE
Toasting can be stopped at any time by
pressing the CANCEL button. This will cancel
the operation and the carriage will move to the
raised position.
5. Once the toasting cycle is complete the
toast ready alert will sound
(refer to TOAST READY ALERT, page 10,
to adjust the volume). Remove the toast.
The LED toasting progress indicator will
re-illuminate to the previously selected
browning setting for a few minutes before
entering stand-by mode.
NOTE
To re-activate the toaster from
stand-by mode, press any button or move the
browning control slide.
The LED toasting progress indicator will
re-illuminate.

9
WARNING
Do not leave the toaster unattended when in
use as toast may jam.
In the unlikely event that bread, bagels,
English muffins or toaster pastries become
jammed in the toasting slots, all the buttons
and the LED toasting progress indicator
will flash and the elements will turn off.
Remove the power plug from the power outlet
and allow the toaster to cool completely
before carefully easing the bread out of the
slots. Take care not to damage the heating
elements. Do not use metal utensils.
A BIT MORE™ BUTTON
If your toast comes up too light, one press of
this button adds a little extra toasting time.
This feature can be selected before, during or
after the toasting cycle and can be used with
the CRUMPET/FRUIT BREAD and
FROZEN functions.
To use this feature during the
toasting cycle:
Press the A BIT MORE™ button. The button
surround will illuminate white when selected.
The toasting time will automatically increase
but will not illuminate more of the LED
toasting progress indicator. The A BIT MORE™
function can be cancelled by pressing the
A BIT MORE™ button again and the original
toasting cycle will continue.
To use this feature before or after the
toasting cycle:
Press the A BIT MORE™ button. The button
surround will illuminate white when selected.
Press down the lever until it
locks into place. The LED toasting progress
indicator will automatically align with
the lowest browning setting then flash
and count down for the additional
browning time.
CRUMPET/FRUIT BREAD BUTTON
The crumpet feature activates additional heat
to the middle heating elements to perfectly
toast the insides of your crumpet without
burning the outside.
To toast crumpets:
1. Place the crumpet into the toasting slots
with the inside of the crumpet facing
inwards as per the crumpet markings above
the middle heating elements of the toaster.
2. Select the desired browning setting by
adjusting the browning control slide
on the front of the toaster. There are
12 browning settings ranging from
'1' (lightest) to '5' (darkest).
3. To select the CRUMPET setting, press
the CRUMPET button and the button
surround will illuminate white. To start
the toasting process, press down the lever
until it locks into place.
NOTE
It is normal for the outside heating elements
to appear off or on a lower power during the
Crumpet setting. This ensures the inside
of your crumpet toasts without burning
the outside.
4. After the cycle has finished, press
the CRUMPET button to deselect
the setting if toasting other types
of bread.

10
FROZEN BUTTON
This feature activates additional toasting time
required to toast frozen bread.
To toast frozen bread:
1. Place the bread into the toasting slots.
2. Select the desired browning setting
by adjusting the browning control slide on
the front of the toaster. There are
12 browning settings ranging from
'1' (lightest) to '5' (darkest).
3. To select the FROZEN setting, press the
FROZEN button and the button surround
will illuminate white. To start the toasting
process, press down the lever until it
locks into place. The toasting time will
automatically increase.
4. After the cycle has finished, press
the FROZEN button to deselect
the setting.
LIFT & LOOK™ LEVER
This feature raises and lowers the carriage so
you can check the toasting progress without
interrupting and/or cancelling the toasting
cycle. During the toasting cycle, simply lift
the lever to view the toasting progress. Lower
the lever to continue the cycle or press the
CANCEL button to stop the cycle at any time.
HIGH LIFT LEVER
The lever can be lifted approximately
1cm above the starting position. This raises
the carriage making it easier to remove smaller
items such as English muffins.
TOAST READY ALERT
A toast ready alert will sound when the toasting
cycle has finished and the carriage has risen
and locked into the raised position. The default
volume setting for the toast ready alert is 'High'
but can be adjusted to 'Low' or 'Mute'.
Adjusting the volume of the Toast
Ready Alert
Press and hold down the CANCEL button for
2 seconds until the A BIT MORE™, CRUMPET
and FROZEN buttons illuminate. While these
buttons are illuminated, adjust the volume as
follows:
Mute:
Press the FROZEN button. The button
surround light will flash three times.
Low:
Press the CRUMPET button. The toaster
will beep three times with low volume.
High:
Press the A BIT MORE™ button. The toaster
will beep three times with high volume.

11
Care & Cleaning/
Storage
CARE AND CLEANING
1. Remove the power plug from the power
outlet and allow the toaster to cool
completely before cleaning.
2. To clean any crumbs from the toaster,
remove the crumb tray, located on the left
side of the toaster, opposite to the lever.
Empty and replace the crumb tray before
using the toaster again. Replace the crumb
tray by sliding it inwards until it locks into
position.
3. To remove any additional crumbs, turn the
toaster upside down over a trash bin and
shake crumbs free.
4. Wipe the outside of the toaster with a
slightly dampened soft cloth then polish
with a soft dry cloth to dry completely.
NOTE
Do not clean with metal scouring pads. Pieces
can break off the pad and touch electrical parts
creating an electric shock hazard.
STORAGE
Remove the power plug from the power outlet
and allow the toaster to cool completely before
storing. Follow the directions for cleaning and
store in an upright position on a flat surface on
a bench top or in an accessible cupboard.
Do not store anything on top of the toaster.
WARNING
Do not use the toaster without the crumb tray
in position. Do not allow crumbs to build up
in the crumb tray. Failure to clean the crumb
tray regularly may result in a fire hazard and
damage the toaster.

Web: www.breville.co.nzWeb: www.breville.com.au
Breville is a registered trademark of Breville Pty. Ltd. A.B.N. 98 000 092 928.
Copyright Breville Pty. Ltd. 2016.
Due to continued product improvement, the products illustrated/photographed
in this brochure may vary slightly from the actual product.
BTA720 – B16
Australian Customers
Mail: Locked Bag 2000
Botany NSW 1455
AUSTRALIA
Phone: [phone]
Fax: [phone]
Email: Customer Service:
[e-mail]
New Zealand Customers
Mail: Private Bag 94411
Manukau 2163
Auckland NEW ZEALAND
Phone: [phone]
Fax: [phone]
Email: Customer Service:
[e-mail]
Breville Customer Service Centre
