Bri_-s & StrattonPower ProductsHome Generator System
Owners Manual
Co_E byE_'s Co_L__mm_
TABLE OF CONTENTS
TABLE OF CONTENTS ......................... 2
SAFETY RULES .............................. 3-4
INTRODUCTION ............................. 5
Installation Assistance ........................ 5
For the Home or BusinessOwner: .......... S
,For the InstallingDealer/Contractor: ......... 5
OWNER ORIENTATION ........................ 5
FuelFactors ............................... 6
Power Decreaseat HighAltitude or High
Temperature .................... 6
Generator Location ......................... 6
Generator Clearances ....................... 6
EssentialCircuits ........................... 7
EssentialCircuit Selection ................. 8
UNPACKING ................................. 9
Delivery Inspection ......................... 9
Shipment Contents .......................... 9
KNOWYOUR BACKUP GENERATOR ............ 10
KNOWYOUR SYSTEMCONTROL PANEL......... I I
Access Doors ............................. 12
To remove an accessdoor: ............... 12
To installanaccessdoor: ................. 12
BEFORE INITIAL START-UP ..................... 13
EngineOil ................................ 13
Oil Considerations ..................... 13
Battery Connection ........................ 13
Gaseous FuelSystem ....................... 13
The AUTO/OFFIMANUAL Switch ............. 13
AUTOMATIC OPERATION ..................... 14
Checking Automatic Operation ............... 14
Stopping the System ........................ 14
Setting Exercise Timer .................... 14-15
SPECIFICATIONS ............................. 15
Generator ............................... 15
Transfer Switch ............................ 15
MAINTENANCE .............................. 16
Fault Detection System ..................... 16
Reset Fault Detection System ............. 16
No Blinks -'Dead' Unit .................. 16
Low Battery Voltage ..................... 16
Low Oil Pressure ....................... 16
Low Volcage ........................... 17
Engine Fail To Start ..................... 17
Low Frequency ........................ 17
Engine Overspeed ...................... 17
Oil Temperature High ................... 17
Power During Fault Condition ................ 17
GENERATOR MAINTENANCE .................. 18
To Clean the Generator ..................... 18
IfYou Call the Factory ...................... 18
STORAGE ................................... 18
TROUBLESHOOTING ......................... 19
NOTES ................................... 20-21
DIAGRAMS, EXPLODED VIEVVS, PARTS LISTS .... 22-35
ESPAI_IOL ................................. 36-53
FRANC._.AIS................................ 54-72
W2

Briggs &Stratton Power Products Home Generator System
Owners Manual
Conn_byE0_'sC_r H_*_
SAFETY RULES
The safety alert symbol (_,) is used with a signal word
(DANGER, CAUTION,WARNING), a pictorial and/or a
safety message to alert you to hazards. DANGER indicates
a hazard which, if not avoided, will result in death or serious
injury. WARNING indicates a hazard which, if not
avoided, could result in death or serious injury. CAUTION
indicates a hazard which, if not avoided, might result in
minor or moderate injury. CAUTION, when used
without the alert symbol, indicates a situation that could
result in equipment damage. Follow safety messages to
void or reduce the risk of injury or death.
WARNING
Only qualified electricians and gaseous fuel
technicians should attempt installation of this
system, which must strictly comply with applicable
codes, standards and regulations.
The manufacturer cannot possibly anticipate every possible
circumstance that might involve a hazard.The warnings in
this manual, and the tags and decals affixed to the unit are,
therefore, not all-inclusive. If you use a procedure, work
method or operating technique that the manufacturer does
not specifically recommend, you must satisfy yourself that it
issafe for you and others.You must also make sure that the
procedure, work method or operating technique that you
choose does not render the generator unsafe.
NOTE:Your generator is equipped with a spark arrester
muffler.The spark arrester must be maintained in effective
working order by the owner/operator. In the State of
California, aspark arrester is required by law (Section 4442
of the California Public Resources Code). Other states may
have similar laws. Federal laws apply on federal lands.
DANGER
Do not allow any open flame, spark, heat, or Ill cigarette
during and for several minutes after charging a battery.
Wear protective goggles,rubber apron, and rubber gloves.
IWARNING
NOT INTENDED FOR USEAS PRIMARY
POWER IN PLACE OF UTILITY OR IN
LIFE-SUPPORT APPLICATIONS
DANGER
Operate generatorONLY outdoors.
Keep at least2 feet of clearanceon all sides of generatorfor
adequateventilation.
WARNING
When usinggeneratorfor backuppower,notifyutilit7
company.
Do not touch bare wires or receptacles.
Do not usegeneratorwith electricalcordswhich areworn,
frayed, bare or otherwise damaged.
Do not handlegenerator or electrical cordswhile standingin
water,while barefoot, or while hands or feet are we_
If you must work around a unit while it is operating, stand on
an insulated dry surface to reduce shock hazard.
Do not allow unquatlfied persons or children to operate or
service generater.
In case of an accident caused by elecrJical shocl_ immediately
shut down the source of electrical power. If this is noc
possible, attempt to free the victim from the live conductor.
Avoid direct contact with the victim. Use a non-
conducting implement, such as a rope or board to free the
victim from the live conductor. If the victim is unconscious,
apply first aid and get immediate medic_I help.
Before performing any maintenance on the generator,
disconnect the battery cable indicated by a NEGATIVE,
NEG or (-) firacWhen finished, reconnect that €_ble last
After your Home Generator System isinstalled, the generator
may crank and start without warning any time there is a
power failure.To prevent possible injury, always set the
AUTO/OFF/MANUAL switch to OFF AND remove the
IS Amp fuse BEFORE working on the equipment
W3

Gx_okbyEm_'sC_L_Ho,_e_
Briggs & Stratton Power Products Home Generator System
Owners Manual
WARNING
WARNING
Do Not operate engine if smelloffuel ispresent or other
explosiveconditionsexisl_
Do Not smokearoundthe generator.Wipe up any oil spills
immediately.Ensurethat no combustiblematerialsare left in
the generatorcompar_nen_ Keepthe area near the generator
clean and fr_e ofdebris.
CAUTION
Do not tamper with governed speed. Generator supplies
correct rated frequency and voltage when running at governed
speed.
Do not modify generator in any way.
CAUTION
See "Essential Circuits" on page 7.
Start generator and let engine stabilize before connecting
electrical loads.
CAUTION
Use generator ontyfor intendeduses.
If you havequestionsabout intendeduse,askdealer or
contact Briggs and Straston.
Operate generator only on levelsurfaces.
Adequate, unobstructed flow of cooling andventilatingair is
critical to correct generator operation.
The Oil Service door and/or the Control Paneldoor must be
installed whenever the unit isrunning.
Do not expose generator to excessivemoisture, dust, dir_ or
corrosive vapors.
Despite the safe design of the Home Generator System,
operating this equipment imprudently,neglecting its
maintenance or being careless cancausepossible injuryor
death.
Remain alert at al{times whileworkingon this equipment
Never work on the equipment when you are physitaily or
mentally fatigued.
Do not start engine with air cleaner or air cleaner cover
removed.
Do not insert any objectsthrough coolingslots.
Do not use the generator or anyof its parts as a step.
Stepping on the unit can causestress and break parts.This
may result in dangerous operating conditions from leaking
exhaust gases,fuel leakage,oil leakage,eel
If connected devices overheat, turn them off anddisconnect
them from generator.
Shut off generator if:.
-electrical output is lost;
-equipment sparks,smokes,or emits flames;
-unit vibrates excessively.
4

Briggs &Stratton Power Products Home Generator System
Owners Manual
INTRODUCTION
Congratulations on your purchase of aBriggs & Stratton
Home Generator System (HGS).Your HGS was designed to
provide automatic auxiliary electrical power for the
duration of normal power interruption. It is not intended
for use as primary power in place of utility nor for use in
life-support applicatioes.The generator unit has been
engineered and tested to exacting standards of
performance and reliability and is equipped with a UL®
listed Automatic Power Transfer Switch.
BriggsandStrat_onhasmadeevery effort to providefor a
safe,streamlinedandcost-effective installation.Because
eachinstallation is unique,it is impossible to know of and
advisethe trade of all conceivableprocedures and methods
by which installationmight be achieved.Neither could we
know of possible hazardsand/or the results of each
method or procedure. Forthese reasons,
Only current qualified electrical and
plumbing contractors should attempt
HGS installations.
Installations must strictly comply with
all applicable codes, industry standards
and regulations.
Your Briggs&Stratton Home Generator System issupplied
with this "Owners Manual",a separate "Installation Manual"
(part number 190838)and aWarranty Sheet (part number
190881).Theseare important documentsand shouldbe
retained by the owner after the installation hasbeen
completed.
Installation Assistance
For the Home or Business Owner:
To helpyou make informedchoicesand communicate
effectivelywith your installationcontractor(s),
Read and understand the
Owner Orientation Section of this manual
BEFORE contracting or starting
your HGS installation.
To arrange for proper installation, contact the store at
which you purchased your Briggs &Stratton Home
Generator System, your dealer, or your utility power
provider.
The HGS Warranty is VOID unless the system
is installed by certified electrical and
plumbing professionals.
For the Installing Dealer/Contractor:
For most applications, the Installation manual contains all
the information required to properly install and start the
Home Generator System.This Owner's Manual describes
essential circuit selection, routine operation and owner
maintenance procedures.
If you need more information, call 1-800-743-4115,
between 8:00 AM and 5_0 PM CT
The Emission Control System for this generator is
warranted for standards set by the U.S. Environmental
Protection Agency and by the California Air Resources
Board (CARB).
OWNER ORIENTATION
This section provides Home Generator System owners
with the information necessary to achieve the most
satisfactory and cost effective installation possible.
The illustrations are for typical circumstances and are
meant to familiarize you with the installation options
available with your Home Generator System.A thorough
understanding of these options will provide fundamental
control over the cost of your installation, es well as ensure
your final satisfaction and security.
Local codes, appearance, noise levels,fuel types, and
distances are the factors that must be considered when
negotiating with an installation professiona!. Remember that
as the distance from the existing electrical service and
gaseous fuel supply increases,equal compensations in piping
and wiring materials must be allowed for.This is necessary
to comply with local codes and overcome electrical voltage
drops and gaseous fuel pressure drops.
The factors mentioned above will have a direct
affect on the overall price of your Home Generator
System installation.
W5

Briggs& Stratton Power Products Home Generator S)'stem
Owners Manual
NOTE: In some areas you may need to acquire electrical
permits for installing the Home Generator System, building
permits for installing gas lines, and permits for noise
allowances.Your installer should check your local codes
AND obtain the permits before installing the system.
Fuel Factors
An important consideration affecting the entire installation
is the type of fuel used by your Home Generator System.
The system was factory tested and adjusted using natural
gas as a fuel. Liquid propane (LP) may also be used as a fuel
(see the Installation Manual).
Although there are specific factors that are inherent to
each of these fuels, your location and the duration of
possible utility interruptions should guide your selection of
fuel type. For urban installations, Natural Gas (if available)
should be your fuel of choice. For remote installations, a
Liquefied Petroleum (LP) tank might better meet your
needs.
FOr proper engine function, the following fuel guidelines are
recommended:
• Use clean,dry fuel,free of moistureor anyparticulate
material. Using fuels outsidethe following recommended
values may causeperformance problems.
In engines set upto run on propane (LP)gas,
commercial grade HD5 propanewith a minimum fuel
energy of 2S00 BTUs/ftawith maximum propyiene
content of 5%and butaneand heaviergascontent of
2.5%and minimum propane content of90%.
J_,l_ I_ _:_ [e_'_!T_"_%:_l___ _;_ _!
_AUTION!This equipment is equipped with an
automatic safety gas"fuel shut-off" valve. Do Not
operate the equipment if the "fuel shut-off" valve is
missing or inoperative.
Power Decrease at High Altitude or High
Temperature
Air density is less at high altitudes, resu_ng in less available
engine power. Specifically, engine power will decrease 3.5%
for each 1,000 feet (300 meters) above sea level and 1%for
each 10° F (5.6°C) above 77°F (25°C). Make sure you and
your installer consider these factors when determining
total generator load.
Generator Location
The actual physical location of your backup generator has a
direct affect on:
I. The amount of plumbing required to fuel your
generator.
2. The amount of wiring required to control and connect
your generator.
NOTE: Specific location guidelines are discussed in the
Installation Manual.Acquaint yourself with that information
and confer with your installer. Be sure to ask how your site
might affect installation costs and compliance with local
codes and standards.
Generator Clearances
The generator enclosure must be a minimum of 3 ft.
(92 cm) from combustible material (NFPA 37). Leave at
least 3 fr_(92 cm) all around the enclosure for access to the
inside of the enclosure (NEC Art, I I 0-26a, Art. I I 0-26b).
The unit's exhaust port must be at least 5 ft. (I 52 cm) From
any building opening (window, door, vent etc.), and the
exhaust must not be able to accumulate in any occupied
area (Figure I).
Exhaust port must be
S ft (152em) minimum
distance from building
openings
w6

Bri_s &Stratton Power Products Home Generator System
Owners Manual
Figure 2 identifies system components and shows typical
installation details.Variations to this illustration are related
to code issues,piping distances and materials.
Essential Circuits
As a Home Generator System owner, it is important that
you clearly identify the circuits in your building that are
"essential" to you. Because the Home Generator System is
equipped with an A_omat_c Transfer Switch, your selection
of essential circuits will be transferred to the Home
Generator System within I5 seconds (+/- S seconds).
It is important that your installer understand whic__hcircuits
you want to include as "Essential Circuits". Depending on
the power consumed by these circuits, most or all of them
can be switched to the Home Generator System for the
duration of normal power interruption.
The wattage reference guide shown in Figure 3 will assist
you with your decision-making process.It provides the
wattage used by many ordinary household devices. Use it
asaguide when selecting your essential circuits.P,eview
this information with your installer and askabout any
technical considerations that might affect the cost of your
installation.
Home Generator
System Generator
Utility Power
Meter
Power Leads
Rear of
Contro(
Panel
NEUTPJkL to VVhite wire
GND to chassis
Power Lead
Connections
Control Signal
_g
Signal Leads
A_om_c
Power
Switch
Main
Distribution
Panel
7

byron's C_erHammer
Briggs & Stratton Power Products Home Generator S)_tem
Owners Manual
Device Running
Watts
r-i Air CondiUoner (12,000 Btu)* 1700
I-1 Air Conditioner (24,000 Btu)* 3800
[] Air Conditioner (40,000 Btu)* 6000
r-I Battery Charger (20 Amp) 500
[] Circular Saw (6-1/2") 800 to 1000
[] Clothes Dryer (Electric)* 5750
[] Clothes Dryer (Gas)* 700
[] Clothes Washer* I 150
n Coffee Maker 1750
O Compressor (I HP)* 2000
17 Compressor ( I/2 HP)* 1400
[] Compressor (3/4 HP)* 1800
[] Curling Iron 700
D Dehumidifier* 650
r7 Electric Blanket 400
[] Electric Range (per element) IS00
[] Electric Skillet 1250
[] Freezer* 700
[] Furnace Fan (3/5 HP)* 875
17 Garage Door Opener* S00 to 750
[] Hair Dryer 1200
[] Hand Drill 250 to I 100
[] Iron 1200
I- Jet Pump* 800
[] Light Bulb 100
I- Microwave Oven 700 to 1000
[] Milk Cooler* 1100
[] Oil Burner on Furnace 300
_- Oil Fired Space Heater (140,000 Btu) 400
Ol Oil Fired Space Heater (30,000 Btu) 150
[] Oil Fired Space Heater (85,000 Btu) 225
[] Radio 50 to 200
[] Refrigerator 700
[] Slow Cooker 200
[] Submersible Pump (I HP)* 2000
[] Submersible Pump (I/2 HP)* 1500
r-i Submersible Pump (I-I/2 HP)* 2800
[] Sump Pump* 800to 1050
[] Table Saw ( I 0")* 1750 to 200(
n Television 200 to 500
[]1 Toaster I 1000 to 165(
*Allow three (3) times listed watts for starung device
Essential Circuit Selection
When selecting the essential circuits that will be switched
to "Backup Power" it is important that the sum of the
combined circuit loads does not exceed the
wsttage/amperage capacity of the generator.To help you
with your selection of essential circuits, please consider the
following:
Add up the total wattage of all electrical devices to be
connected at one time.This total should NOT be
greater than the generator's wattage capacity.
The rated wattage of lights can be taken from light bulbs.
The rated wattage of tools, appliances and motors can
usuallybe found on a data plate or decal affixed to the
device.
If the appliance, tool or motor does not give wattage,
multiply 120Volts times the ampere rating to determine
watts (Volts x Amps :Watts).
Some electric motors (induction types) require about
three times more watts of power for starting than for
running.This surge lastsfor only a few seconds. Be sure
you allow for this highstarting wattage when selecting
electrical devices that will be energized by the Home
Generator System:
Figurethe watts required to start the largest motor.
Add that to the total running watts of all other
connected loads.
This BHggs & Stratton Home Generator System
complies with the following "stationary standby
power rating":
The standby power rating is applicable for supplying
emergency power for the duration of normal power
interruption. No sustained overload capability is available
for this raring.
This rating is applicable to installations served by a
reliable normal utility source.This raring is only applicable
to variable loads with an average load factor of 80% of
the standby rating for a maximum of 500 hours of
operation per year.The standby rating is only applicable
for emergency and standby power where the generator
set serves as the backup to the normal utility source.
Use the "Wattage Reference Guide" provided and mark
those circuits you consider "critical" or "essential". Make
sure you and your installer consider the system's altitude
above sea level and the ambient temperature range when
determining total generator load.
/8

Briggs & Stratton Power Products Home Generator STstem
Owners Manual
C_r,_ _ E_'s C_t_h_mr_r

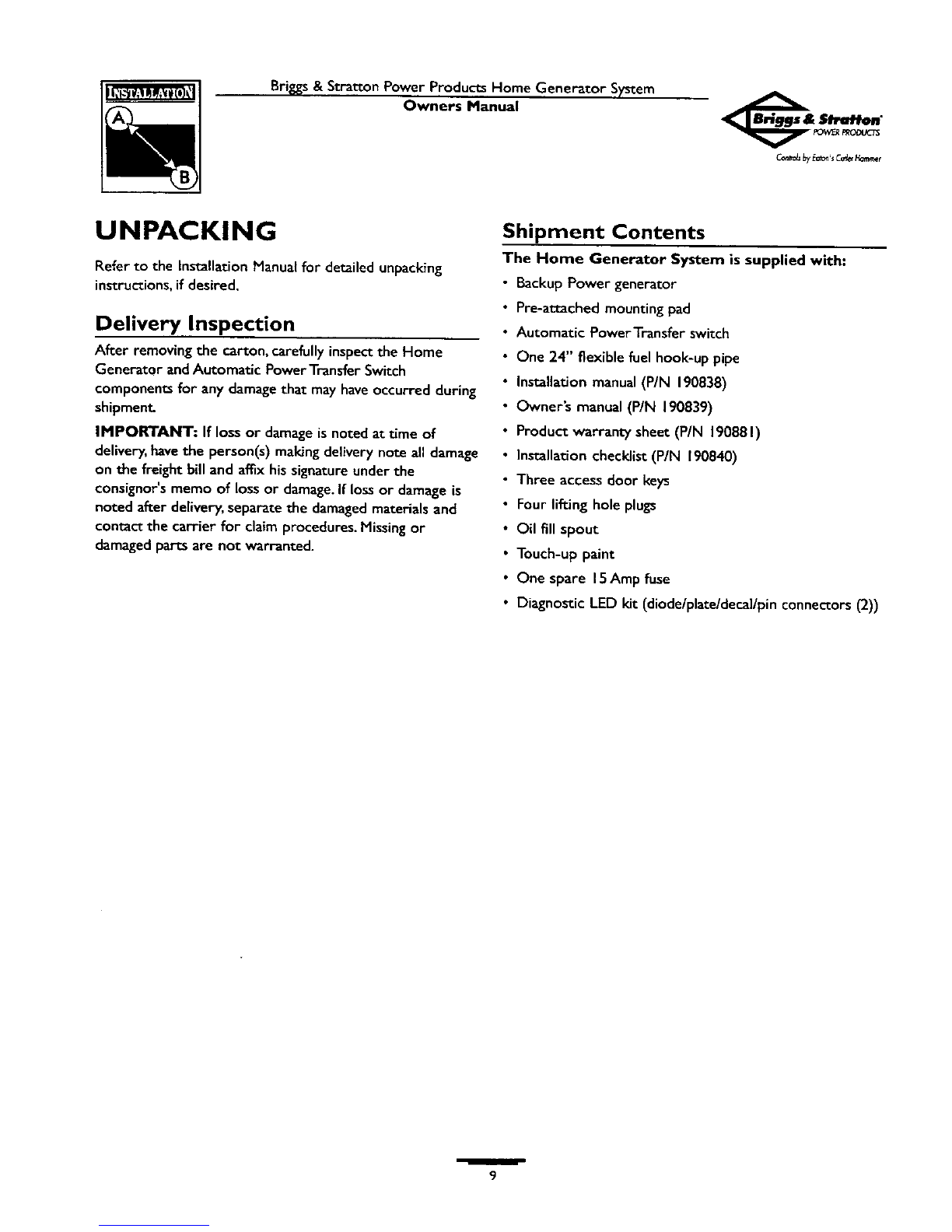

UNPACKING
Refer to the Installation Manual for detailed unpacking
instructions, if desired.
Delivery Inspection
After removing the carton, carefully inspect the Home
Generator and Automatic Power Transfer Switch
components for any damage that may have occurred during
shipment.
IMPORTANT: If loss or damage is noted at time of
delivery, have the person(s) making delivery note all damage
on the freight bill and affix his signature under the
consignor's memo of loss or damage. If loss or damage is
noted after delivery, separate the damaged materials and
contact the carrier for claim procedures. Missing or
damaged parrs are not warranted.
Shipment Contents
The Home Generator System is supplied with:
Backup Power generator
Pre-attached mounting pad
Automatic PowerTransfer switch
One 24" flexible fuel hook-up pipe
Installation manual (PIN 190838)
Owner's manual (PIN 190839)
Product warranty sheet (P/N 190881)
Installation checklist (P/N 190840)
Three access door keys
Four lifting hole plugs
Oil fill spout
Touch-up paint
One spare 15 Amp fuse
Diagnostic LED kit (diodelplate/decal/pin connectors (2))
9

Corc_sByE_o,_'_C_erHo=mer
Bri_s & Str_t_on Power Products Home Generator S)rstem
Owners Manual
KNOWYOUR BACKUP GENERATOR
Read this owner's manual and safety rules before operating your generator.
Compare the illustrations with your generator to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
Exhaust
Control Panel
I_)
15 Amp Fuse
Oil Drain Hose
Oil Fill Cap
Oil Dip Stick Fuel Inlet
Battery
Battery Door Opening
Oil
Filter
Unit
Data
Decal
EngineLabel -
Control Panel Door Opening
Oil Service Door Opening C) O
15 Amp Fuse -- Protects the DC control circuits.
Air Cleaner -- Uses a dry type filter element and foam
precleaner to limit the amount of dirt and dust drawn into
the engine.
Battery -- 12Volt DC, 18Amp-Hour sealed battery
provides power to start the engine.Battery receives trickle
charge whenever generator is not running.
Control Panel -- Used for various tesr_ operation and
maintenance functions. See "KNOW YOUR SYSTEM
CONTROL PANEL" on the next page.
Engine Label -- Identifies engine model and type.
Exhaust Port -- High-performance muffler lowers engine
noise to comply with most residential codes.
Oil Dip Stick -- Used to check the engine oil level
Oil Drain Hose -- Provided to facilitate oil changing.
Oil Fill Cap -- Remove to service the engine with
recommended oil.
Oil Filter -- Filters engine oil to prolong system life.
Unit Data Decal -- Identifies unit by serial number.
10

Bri_s & StrattonPower Products Home Generator System
Owners Manual
G0_0_byE_0n'sC_f _er

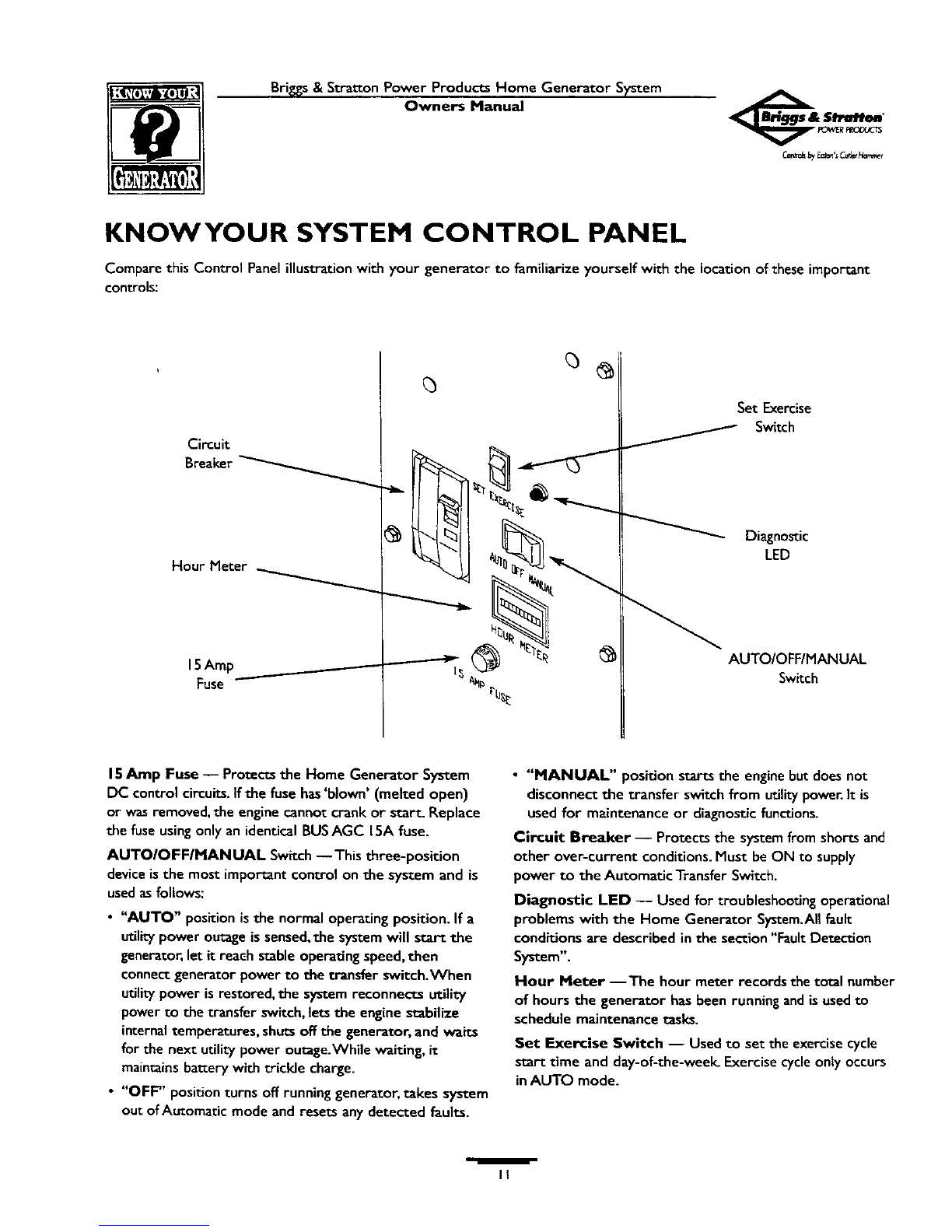

KNOWYOUR SYSTEM CONTROL PANEL
Compare this Control Panel illustration with your generator to familiarize yourself with the location of these important
controls:
Circuit
Breaker
Hour Meter
15Amp
Fuse ---'-"
Set Exercise
Switch
Diagnostic
LED
AUTO/OFF/MANUAL
Switch
I 5 Amp Fuse -- Protects the Home Generator System
DC control circuits.If the fuse has'blown' (melted open)
or was removed, the engine cannot crank or start- Replace
the fuse using only an identical BUS AGC 15A fuse.
AUTOIOFF/HANUAL Switch --This three-position
device isthe most important control on the system and is
usedas follows:
•"AUTO" position is the normal operating position. If a
utility power outage is sensed, the system will start the
generator, let it reach stable operating speed, then
connect generator power to the transfer switch.When
utility power is restored, the system reconnects utility
power to the transfer switch, lets the engine stabilize
internal temperatures, shuts off the generator, and waits
for the next utility power outage.While waiting, it
maintains battery with trickle charge.
•"OFF" position turns off running generator, takes system
out ofAutomatic mode and resets any detected faults.
•"MANUAL" position starts the engine but does not
disconnect the transfer switch from utility power. It is
used for maintenance or diagnostic functions.
Circuit Breaker -- Protects the system from shorts and
other over-current conditions. Must be ON to supply
power to the AutomaticTransfer Switch.
Diagnostic LED -- Used for troubleshooting operational
problems with the Home Generator System.All fault
conditions are described in the section "Fault Detection
System".
Hour Meter --The hour meter records the total number
of hours the generator has been running and is usedto
schedule maintenance tasks.
Set Exercise Switch -- Used to set the exercise cycle
start time and day-of-the-week. Exercise cycle only occurs
in AUTO mode.
/II

Briggs&Stratton Power Products Home Generator S)_-tem
Owners Manual
Co¢,tn_byE_ 'sCu_ _'_me_
Access Doors
The Home Generator System is equipped with an
enclosure that has four access doors (Figure 4).The doors
are named for a significant component located behind
them. Starting with the side that has the fuel connection
and proceeding clockwise, the doors are named:
•Oil Service door
• Air Intake door
•Control Panel door
• Battery door
Each Home Generator System is equipped with three
identical keys.These keys fit the locks that secure the oil
service and control panel doors.
CAUTION! Do Not operate the backup generator
unless the Oil Service and/or Control Panel doors are
installed. Failure to do so will cause overheating.
To Remove an Access Door:
I. Insert a key into the lock of the access door you wish
to remove and turn one quarter turn clockwise.
NOTE:The key is retained in the lock when the locks are
open.
2. Grasp the door's lift handle and pull the door upwards
until the security pins are free of the lower base.
3. With the security pins free, pu[I the lift handle outward
(away) from the unit while pulling the door down and
out of the upper door channeLThe door will come
free of the generator enclosure.
The battery door and the air intake door do not have
Iock_ or lift handles.They are opened by liEJngon the
louvers instead of a lift handle. However, you must remove
the door lock screw, found directly above the center of the
door. Replace the screw to secure the access door.
A_I CAUTION! Burn Hazard!The exhaust port
can reach a temperature of 600°F during use and
remains hot after shutdown. Carelessness could
cause severe burns.
To Install an Access Door:
I. Support the door by grasping the lift handle or louver.
Guide the top of the door into the generator
endosure.
2. Lift the door up into its upper channel until the
security pins clear the sill of the enclosure.
3. Push the lower half of the door into the door recess
until it is flush with the sides.
4.
S.
Seat the door by pushingit down until the rubber
coated security pins engage and the door rests on the
mounting sill.
If installinga Iockable door, turn the key one quarter
turn counterclockwise. Remove the key.
Door Lock
Screw Fuel
Inlet
Exhaust
Port
Door
Lock ,
Screw
/12

Briggs&StrattonPowerProductsHomeGenerator System
Owners Manual
BEFORE INITIAL START-UP
Engine Oil
This engine isshipped from the factory filled with the
recommended oil. Before starting the engine, check oil level
and ensure that engine isserviced as described in the
engine owner's manual.
_jk CAUTION! Any attempt to crank or start the
enginebefore it has been properly serviced with the
recommended oii will result in an engine failure that
is not covered under warranty.
Oil Considerations
Your Home Generator System is equipped with an engine
that has been pre-run at the factory and does not require
the traditional "breaJc-in" procedure.
in order to provide a greater "backup" caupabilitT,the
system isfilled with synthetic oil (API SJ/CF SW-30VV).This
allows for system operation in the widest range of
temperature and climate conditions.
NOTE:The use of synthetic oil DOES NOT alter the
required oil change intervals described in the engine
owner's manual.
Battery Connection
The Home Generator System issupplied with a 12Volt DC
18Amp-Hour sealed recharge.able battery. It is installed in
the unit and the bakery cables are connected at the
factory.The unit's 15Amp fuse has been removed for
shipping _this prevents the unit from starting).
_CAUTION! Do Not install the 15Amp fuse until
all plumbingand wiring hasbeen completed and
inspected.Failure to insts[Ithe fuse as described in
the Installation Manual could cause the engine to
star_
NOTE:With the battery installed, utility power supplied to
the Automatic Transfer Switch, and the unit in AUTO mode,
the battery receives a trickle charge while the engine is not
running.ThetHck3e charger cannot be used to recharge a
battery that is completely discharged.
Gaseous Fuel System
•Ensure that all fuel pipe connections are tight_ secure and
without leaks,
•Ensure that allshutoffvalvesare OPEN andthat
adequate pressure isavailable.
If you smell 'raw' gaseousfuel (natural or LP) near the unit,
immediately turn off the gas supply to the generator.
Contact your _gsutility or the system installer for
assistancein determining the source of the smell.
The AUTO/OFF/MANUAL Switch
This three-position device is referred to herein as
"AUTO/OFF/MANUAL". It is found on the control panel,as
shown earlier, and is used as follows:
•"AUTO" position is the normal operating position. If a
utility power outage is sensed, the system will start the
generator, let it reach stable operating speed, then
connect generator power to the transfer switch.
When utility power is restored, the system reconnects
utility power to the transfer switch, lets the engine 'cool
down', shuts off the generator, and waits for the next
utility power outage.
• "OFF" position turns off a running generator, takes the
system out of Automatic mode and resets fauJts.The unit
wile not exercise, but the 'Set Exercise' setting is not lost.
• "MANUAL" position starts the engine but does not
disconnect utility power from the transfer switch. It is
used for maintenance or diagnostic functions.
_AUTION! With the switch set to AUTO, the
engine may crank and start at any time without
warning. Such automatic starting normally occurs
when utility source voltage drops below a preset
level or during the normal exercise cycle.To prevent
possible injury that might be caused by such sudden
starts, always set the AUTO!OFF/MANUAL switch
to OFF and remove the 15Amp fuse before
working on or around the generator or transfer
switch.
The other controls and devices installed on the control
panel are described on page II,"KnowYour System
Control Panel".
13

Bripe_s& Stratton Power Products Home Generator System
Owners Manual

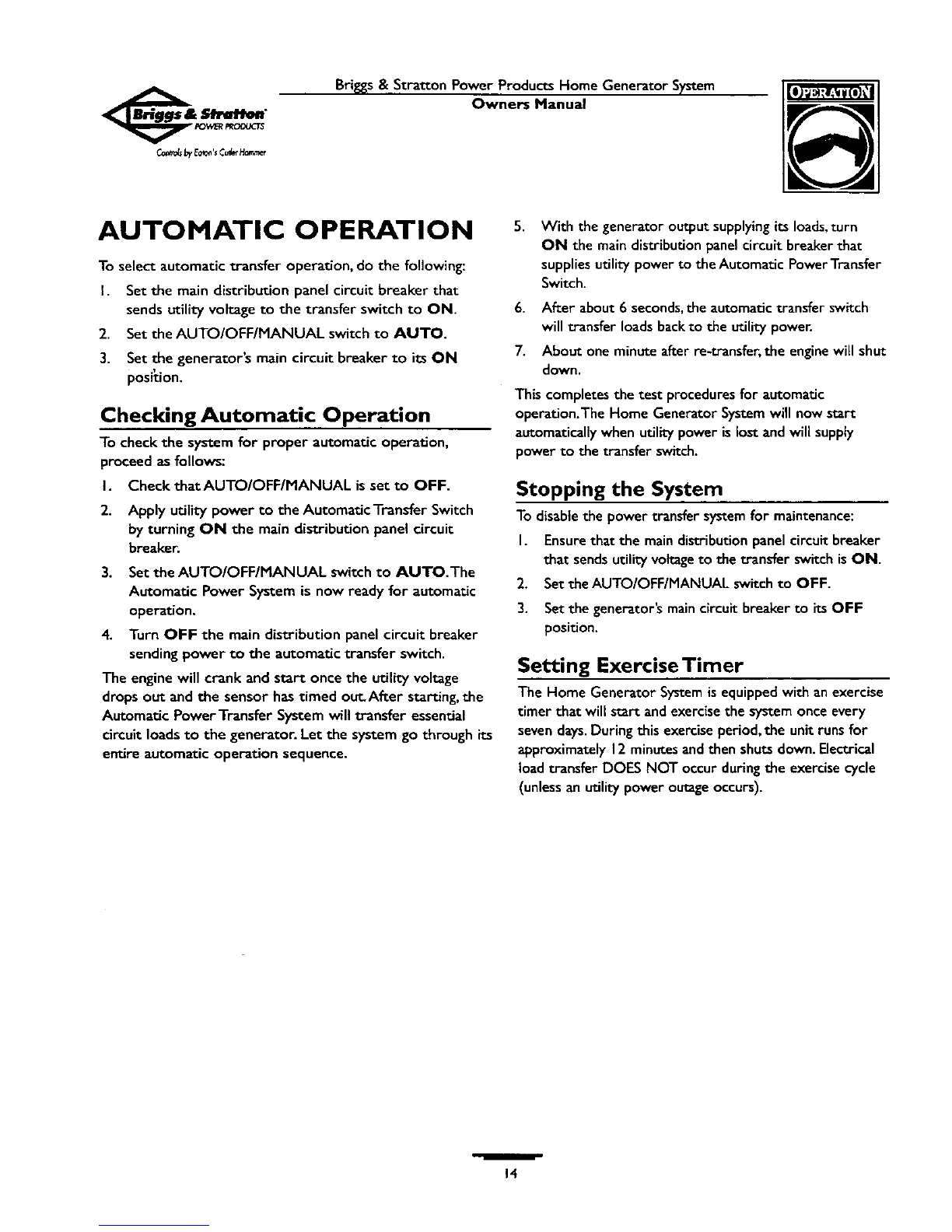

AUTOMATIC OPERATION
To select automatic transfer operation, do the following:
I. Set the main distribution panel circuit breaker that
sends utility voltage to the transfer switch to ON.
2. Set the AUTO/OFF/MANUAL switch to AUTO.
3. Set the generator's main circuit breaker to its ON
postt,on.
Checking Automatic Operation
To check the system for proper automatic operation,
proceed as follows:
I. Check that AUTO/OFF/MANUAL is set to OFF.
2. Apply utility power to the Automatic Transfer Switch
by turning ON the main distribution panel circuit
breaker.
3. Set the AUTO/OFF/MANUAL switch to AUTO.The
Automatic Power System is now ready for automatic
operation.
4. Turn OFF the main distribution panel circuit breaker
sending power to the automatic transfer switch.
The engine will crank and start once the utility voltage
drops out and the sensor has timed ou_After starrJng, the
Automatic Power Transfer System will transfer essential
circuit loads to the generator. Let the system go through its
entire automatic operation sequence.
5. With the generator output supplying its loads,turn
ON the main distribution panel circuit breaker that
supplies utility power to the Automatic Power Transfer
Switch.
6. After about 6 seconds,the automatic transfer switch
will transfer loads back to the utility power.
7. About one minute after re-transfer, the engine will shut
down,
This completes the test procedures for automatic
operation.The Home Generator System will now start
automatically when utility power is lost and will supply
power to the transfer switch.
Stopping the System
To disablethe power transfer system for maintenance:
I. Ensure that the main distribution panel circuit breaker
that sends utility voltage to the transfer switch isON.
2. Set the AUTO/OFF/MANUAL switch to OFF.
3. Set the generator's main circuit breaker to its OFF
position.
Setting Exercise Timer
The Home Generator Systemisequipped with an exercise
timer that will start and exercise the system once every
seven days. During this exercise period, the unit runs for
approximately 12 minutes and then shuts down. Electrical
load transfer DOES NOT occur during the exercise cycle
(unlessan utility power outage occurs).
/14

Briggs&Stratton Power Products Home Generator S)_tem
Owners Manual
¢_ea_b_E=_'sCv_ ho_r
Aswitch on the control panel is labeled "Set Exercise"
(depicted on page 10).The specific day and the specific time
of day this switch is pressed is programmed into the
control board memory.This date and time is then used to
automatically initiate the system exercise cycle.
To perform the Set Exercise procedure:
I. Choose the day and time you want your Home
Generator System to exercise.
2. On that day and time, set the AUTO/OFF/MANUAL
switch to OFF.
3. Press and hold down the "Set Exercise" swltch.The
Diagnostic LED blinks.
4. Hold the switch down until the Diagnostic LED stops
blinking. Release the Set Exercise switch.
5. Set the AUTO/OFF/MANUAL switch to AUTO.'%et
Exercise" is complete.
For example, if you press the "Set Exercise" switch on
Sunday morning at 10:00AM, the unit will run an exercise
cycle the following Sunday at 10:00AM.
NOTE: "Set Exercise" will only work if the unit is in the
Automatic mode and this exact procedure is followed.The
exerciser does not need to be re-set if the 15Amp fuse is
removed or changed.The exerciser will need to be re-set if
the 12Volt DC battery is disconnected.
If you want to change the day and time the unit exercises,
simply perform the "Set Exercise" procedure at the exact
weekday and time you want it to take place.
SPECIFICATIONS
Generator
Model .................... 01679-0
Rated Maximum Power (LP*)... 10.0 kW
Rated Maximum Load Current:
at 240Volts............... 41.7 Arnps
at 120Volts............... 83.3 Amps
RatedAC Voltage ............ 120/240 Volts
Rated Frequency ............ 60 Hz at 3600 rpm
Phase..................... Single Phase
Power Factor ............... 1.0
NG Fuel Supply Pressure ..... 5-14 inW.C. (127-356 ram)
LP Fuel Supply Pressure ...... I 1-14 in W.C. (279-
356 mm)
Normal Operating Range .... -20°F (-28.80C) to 104°F
(40°C)
Output Sound Level ........ 70 dB(A) at 23 if- (7 m) at
full load
Shipping Weight ............ 482 Ibs.
* Natural gas rating will depend on specific fuel but typical
derates are between I0to 20% off the LP gas rating.
Transfer Switch
Maximum Circuits ........... 10
Maximum Load/Circuit:
from Generator ........... 41.7 Amps
from Load Center .......... 50 Amps
Maximum Watts ............. I0,000
W15

C_rdsbyEa_'sC_ _er

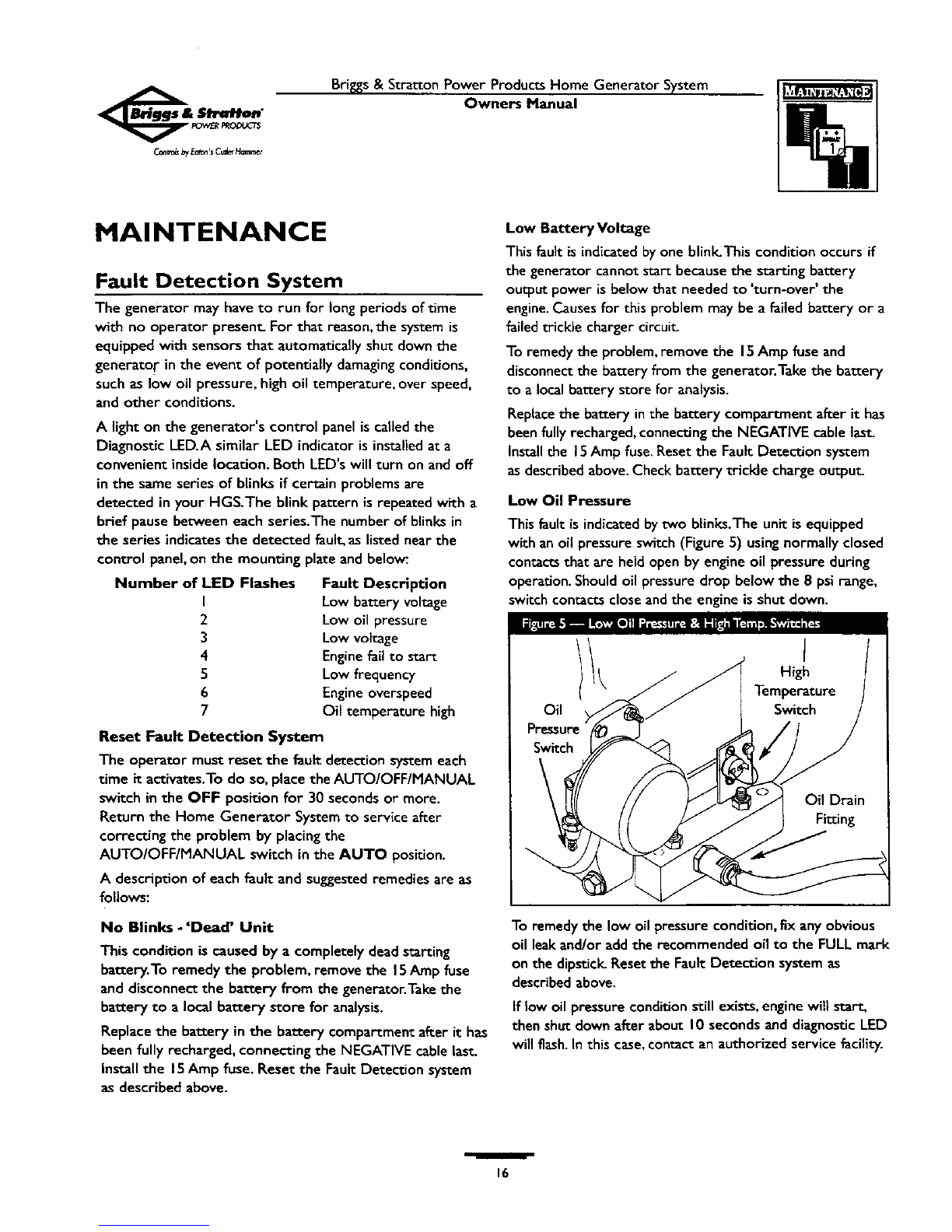

Bri_s & Stratton Power ProductsHome Generator System
Owners Manual
MAINTENANCE
Fault Detection System
The generator may have to run for long periods of time
with no operator present_ For that reason, the system is
equipped with sensors that automatically shut down the
generato r in the event of potentially damaging conditions,
such as low oil pressure, high oil temperature, over speed,
and other conditions.
Alight on the generator's control panel is called the
Diagnostic LED.A similar LED indicator is instaned at a
convenient inside location. Both LED's will turn on and off
in the same series of blinks if certain problems are
detected in your HGS.The blink pattern is repeated with a
brief pause between each series.The number of blinks in
the series indicates the detected fault, as listed near the
control panel, on the mounting plate and belov_.
Number of LED Flashes Fault Description
I Low battery voltage
2 Low oil pressure
3Low voltage
4Enginefail to start
5Low frequency
6 Engine overspeed
7 Oil temperature high
Reset Fault Detection System
The operator must reset the fault detection system each
time it acthrates.To do so, place the AUTO/OFF/MANUAL
switch in the OFF position for 30 seconds or more.
Return the Home Generator System to service after
correcting the problem by placing the
AUTO/OFF/MANUAL switch in the AUTO position.
A description of each fault and suggested remedies are as
follows:
No Blinks -'Dead' Unit
This condition is caused by a completely dead starting
battery.To remedy the problem, remove the I SAmp fuse
and disconnect the battery from the generator.Take the
battery to alocal battery store for analysis.
Replace the battery in the battery compartment after it has
been fully recharged, connecting the NEGATIVE cable last.
install the IS Amp fuse. Reset the Fault Detection system
as described above.
Low Battery Voltage
This fault is indicated by one blink.This condition occurs if
the generator cannot start because the starring battery
output power is below that needed to 'turn-over' the
engine, Causes for this problem may be a failed battery or a
failed trickle charger circui_
To remedy the problem, remove the I 5Amp fuse and
disconnect the battery from the generator.Take the battery
to a local battery store for analysis.
Replace the battery in the battery compartment after it has
been fully recharged, connecting the NEGATIVE cable la._
Install the ISAmp fuse, Reset the Fault Detection system
as described above. Check battery trickle charge output.
Low Oil Pressure
This fault is indicated by two blinks.The unit is equipped
with an oil pressure switch (Figure S) using normally closed
contacts that are held open by engine oil pressure during
operation. Should oil pressure drop below the 8 psi range,
switch contacts close and the engine is shut down.
To remedy the low oil pressure condition, fix any obvious
oil leak and/or add the recommended oil to the FULL mark
on the dipstick Reset the Fault Detection system as
described above.
If low oil pressure condition still exists, engine will start,
then shut clownaEer about 10 seconds and diagnostic LED
will flash.In this case, contact an authorized service facility.
16

Briggs& Stratton Power Products Home Generator S)_-tem
Owners Manual
Co_rc_by_'s Cv_L_Hc_._r
Low Voltage
This fault is indicated by three blinks.This condition is
caused by a restriction in the fuel fiow, a broken or
disconnected signal lead, a failed alternator winding, the
control panel circuit breaker is open, or overloaded circuits
in the transfer switch.
Remedy the problem (you may need to contact your
installer!or Bri_s and Stratton Technical Services for
assistance), then reset the Fault Detection system,as
described above.
Engine FailTo Start
This fault is indicated by four blinks.This feature prevents
the generator from damaging itself if it continually attempts
to start in spite of another problem, such as no fuel supply.
Each time the system is directed to start, the unit will
crank for I5seconds, pause for 15 seconds, crank for
15 seconds, pause for 15 seconds, and repea_ If the system
does not begin producing electricity after approximately
90 seconds, the unit will stop cranking and the LED will
blink.
The most likely cause of this problem is no fuel supply.
Check the inside and outside fuel shut off valves to ensure
they are fully open. Other causes could be failed spark
plug(s), failed engine ignition, or the engine air filter is
dogged.You may need to contact your installer for
assistance if you can't remedy these problems.When the
problem is corrected, reset the Fault Detection system as
described above.
Low Frequency
This fault is indicated by 5 blinks.This feature protects
devices connected to the transfer switch by shutting the
generator down if its engine runs slower than the preset
limi_
This condition is caused by a failed engine governor or by
excessive loads on the transfer switch.To remedy the
problem, you may need to contact your installer or Briggs
and Stratton Technical Services for assistance.When the
problem is corrected, reset the Fault Detection system as
described above.
Engine Overspeed
This fault is indicated by 6 blinks.This feature protects
devices connected to the transfer switch by shutting the
generator down if its engine happens to run faster than the
preset limitThe overspeed fault is detected as follows:
•If the generator output frequency runs at 72 Hz for five
seconds, the generator will shut down.
•If the generator output frequency reaches 75 Hz, the
generator will shut down instantly.
This condition is caused by a failed engine governor.To
remedy the problem, you should contact your installer or
Briggs and Stratton Technical Services for assistance.When
the problem is corrected, reset the Fault Detection system
as described above.
Oil Temperature High
This fault is indicated by seven blinks.The contacts of the
temperature switch (Figure 5) are normally open. if the
engine temperature exceeds approximately 140°C (284°I=),
the fault is detected and the engine shuts down.
Common causesfor this condition include running the unit
with all accessdoors removed, obstructed air inletor
exhaust por_ or debris in the engine cylinder coolingfins.
To resolve the problem, remove any accumulated debris
and obstructionsand let the engine cool down. Ensurethat
the Oil Service door and/or the Control Panel door is
installed whenever the unit is running.When the problemis
corrected, reset the Fault Detection system as described
above.
Power During Fault Condition
Whenever the Home Generator System is in an
uncorrected fault condition, the automatic transfer switch
is reset to UTILITY POWER.This means that when utility
power is restored, utility power will be applied to the
essential circuit loads.The generator is disconnected from
the automatic transfer switch for the duration of any
detected fault condition.
17

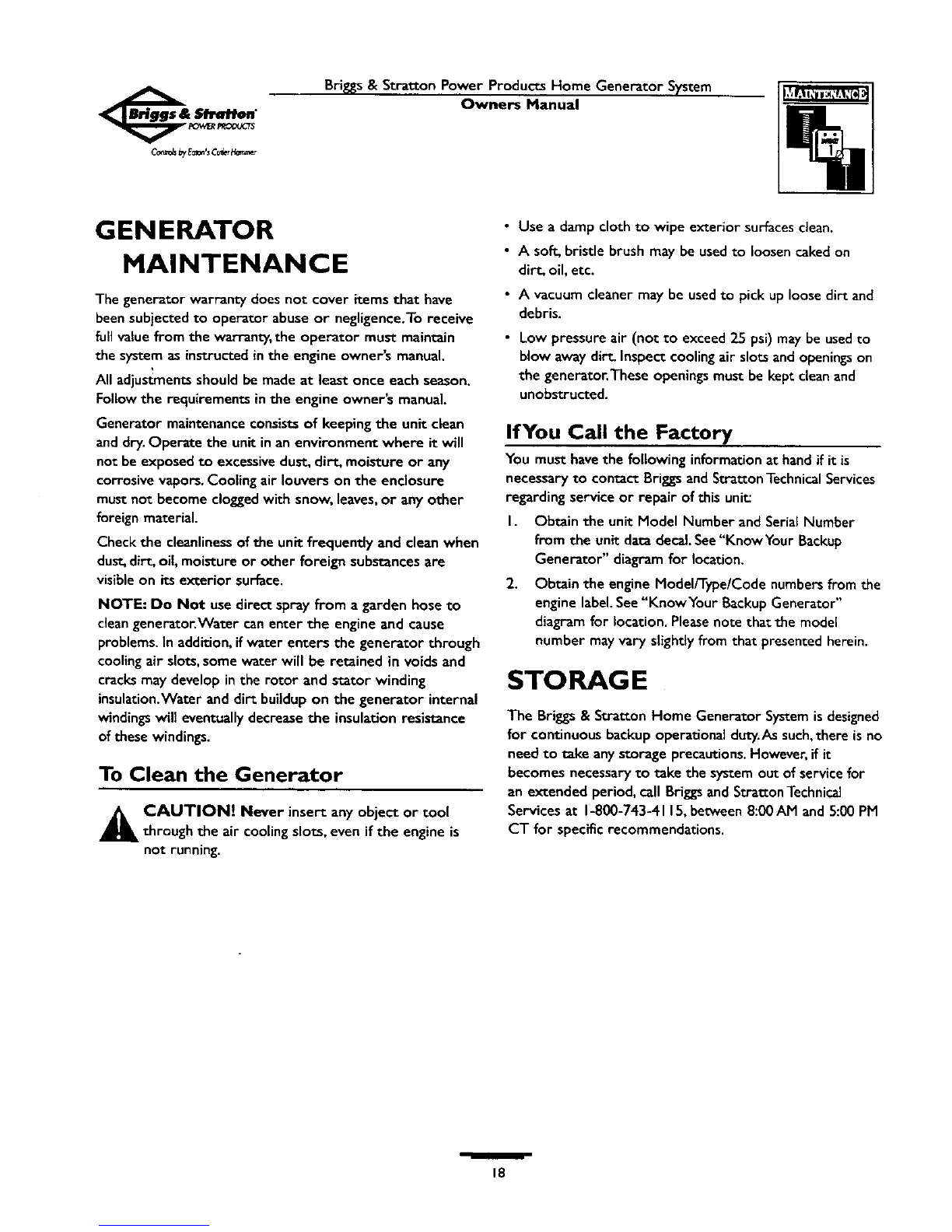

Briggs& Stra_on Power Products Home Generator System
Owners Manual
GENERATOR
MAINTENANCE
The generator warranty does not cover items that have
been subjected to operator abuse or negligence.To receive
full value from the warranty, the operator must maintain
the system as instructed in the engine owner's manual.
All adjustments should be made at least once each season.
Follow the requirements in the engine owner's manual.
Generator maintenance consists of keeping the unit clean
and dry. Operate the unit in an environment where it will
not be exposed to excessive dust, dirt, moisture or any
corrosive vapors. Cooling air louvers on the enclosure
must not become clogged with snow, leaves, or any other
foreign material.
Check the cleanliness of the unit frequently and clean when
du_ dirt, oil, moisture or other foreign substances are
visible on its exterior surface.
NOTE: Do Not use direct spray from agarden hose to
clean generator.Water can enter the engine and cause
problems. In addition, if water enters the generator through
cooling air slots, some water will be retained in voids and
cracks may develop in the rotor and stator winding
insulation.Water and dirt buildup on the generator internal
windingswill eventually decrease the insulation resistance
of these windings.
To Clean the Generator
_k AUTION! Never insert any object or tool
through the air cooling slots, even if the engine is
not running.
•Use a damp cloth to wipe exterior surfaces clean.
• A soft, bristle brush may be used to loosen caked on
dirt, oil, etc.
•A vacuum cleaner may be used to pick up loose dirt and
debris.
• Low pressure air (not to exceed 25 psi) may be usedto
blow away dirt, Inspect cooling air slots and openings on
the generator.These openings must be kept clean and
unobstructed.
If You Call the Factory
You must have the following information at hand if it is
necessary to contact Bri_s and Stratton Technical Services
regarding service or repair of this uni_
I. Obtain the unit Model Number and Serial Number
from the unit data decal See"KnowYour Backup
Generator" diagram for location.
2. Obtain the engine Model/Type/Code numbers from the
engine label. See "KnowYour Backup Generator"
diagram for location. Please note that the mode[
number may vary slightly from that presented herein.
STO RAG E
The Briggs&StrattonHome Generator Systemisdesigned
for continuousbackup operationalduty.As such,there is no
needto take anystorage precautions.However,if it
becomes necessaryto take the system out ofservicefor
an extended period, call Briggsand Stratton Technical
Servicesat 1-800-743-41I5, between 8:00AM and 5:00PM
CT for specific recommendations.
18

Briggs& Stratton Power Products Home Generator System
Owners Manual
_by_'=¢u_rHammer
TROUBLESHOOTING
Problem
Engine isrunning, but no
AC output isavailable.
Cause
I. Generator circuit breaker is open.
2. Fault in generator.
3. Poor wiring connections or defective
transfer switch.
4. Circuit breaker open or defective. 4.
Engine runs good at no- I. Short circuit in a connected load. I.
load but "bogs down" 2. Generator is overloaded. 2.
when loads are 3. Shorted generator circuit. 3.
connected.
I.
2.
3.
4.
Engine will not start; or 5.
starts and runs rough. 6.
7.
8.
I.
Engine shuts down during 2.
operation.
I.
Engine lacks power. 2.
I.
Loss of power on 2.
essential circuits. 3.
15 Amp fuse missing or blown.
Dirty air cleaner.
Out of fuel.
Spark plug wire not connected to
spark plug.
Bad spark plug.
Intake valve stuck open or closed.
Engine compression lost.
Failed battery.
Out of fuel.
Fault indicator blinking.
Dirty air filter.
Generator overloaded
Feeder circuit breaker at load center
open.
Generator circuit breaker is open.
Transfer switch stuck in "Open"
position.
Correction
I. Reset circuit breaker.
2. Contact Briggs& Stratton service
facility.
3. Check and repair.
I.
2.
3.
4.
Reset or replace circuit breaker.
Disconnect shorted electrical load.
See "Essential Circuits" on page 7.
Contact Briggs & Stratton service
facility.
Install (new) 15 Amp fuse.
Clean or replace air cleaner.
Open fuel valve(s); check propane tank.
Connect wire to spark plug.
5. Replace spark plug.
6. Contact Briggs& Stratton service
facility.
7. Contact Briggs & Stratton service
facility.
8. Replace battery.
I. Check fuel valves, fill propane tank.
2. Count blinks and refer to "Fault
Detection System" on page 16.
I. Replace air filter.
2. See "Essential Circuits" on pase 7.
I. Reset circuit breaker.
2.
3. Reset circuit breaker.
Remove 15A fuse from generator
control panel, wait 30 seconds and
replace fuse.
19

Bri_s & Stra_on Power Products Home Generator System
Owners Manual
NOTES
/2O
