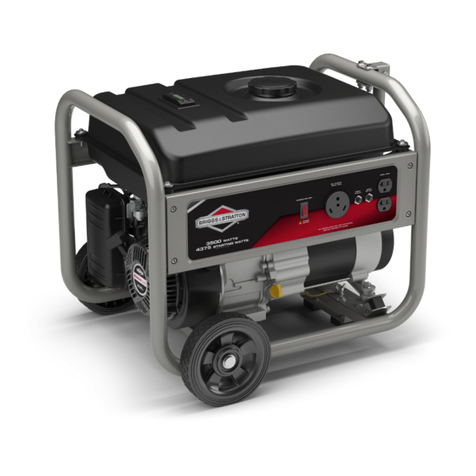

Briggs & Stratton 30324 Setup guide

Model / Modèle / Modelo
030324
Questions? Help is just a moment away!
Vous avez des questions? Vous n'avez pas besoin
d'aller loin pour trouver de l'aide!
Preguntas? La ayuda es justa un momento lejos!
Call: Generator Helpline
Appelez: Ligne d'assistance de Générateur
Llame: Línea Directa del Generador
1-800-743-4115 M-F 8-5 CT
BRIGGSandSTRATTON.COM
Illustrated Parts List
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WISCONSIN, U.S.A.
Manual No. 199718A Revision C (03/19/2007)

EXPLODED VIEWS AND PARTS LISTS
2
EXPLODED VIEW - MAIN UNIT
Copyright © 2007 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.

EXPLODED VIEWS AND PARTS LISTS
3
EXPLODED VIEW - PARTS LIST
Item Part # Description
1 J197129GS KIT, Frame
2 194150GS KIT, Vibration Mount 45°
3 * WASHER, M8 Lock
4 190220GS HOUSING, Engine Adapter
5 * NUT, Hex M8 - 1.25
6 NSP ASSY., Alternator (see page 5)
7 * TPHMS, M8 - 1.25 x 35
8 96796GS WASHER, M8 Flat
9 67989GS NUT, M8 Flange Serrated
10 190274BGS SBHCS, 3/8-16 x 1.0 Lg
11 47480GS HHCS, 5/16-24 x 7
12 * HHCS, M8 1.25 x 25
14 189009GS BRACKET, Muffler
15 695398 GASKET, Exhaust
16 * HCS, M6 1.0 x 12
17 189008GS MUFFLER
18 * SHCS, 5/16 - 18 x 7/8"
19 83083GS SCREEN, Spark Arrest
20 B4986GS DECAL, Ground, Green
21 194153GS KIT, Vibration Mount
22 86494GS SCREW, Wing, M6 1 x 16
23 195094GS SCREW, 10-16 x .68, Self Drill
24 192793GS SHIELD, Heat
25 191190GS CAP
26 74908GS SCREW, M5-0.8 x 10 Taptite
28 * WASHER, Flat 1/2
29 94929GS SCREW, Hex Wash HD
30 226846 BRACKET, Oil Fill Tube
31 196830GS DECAL, Hot Muffler
34 195422GS COVER, RBC, Plastic w/Cap
35 199838GS KIT, Fuel Hose w/clamps (cut to fit)
37 192376GS SCREW, 12 - 24 x 1/2 THD Forming
40 192310GS KIT, Vibe Mount
41 192980GS KIT, Valve Tank
Item Part # Description
44 196181GS ASSY., Tank, Fuel, 5 Gallon (includes
items 41, 50, 51 & 52)
45 189420GS CAP, Fuel Gauge
48 195373GS WIRE, Ground
49 203650GS KIT, Wheel
50 188333GS DECAL, Fuel Tank
51 194799GS DECAL, Danger
52 189235GS DECAL, Start Instructions
53 192050GS E-RING
55 197798GS DECAL, Shut-Off, Fuel
56 J194907GS HANDLE
57 189456GS KIT, Handle Fastening
58 197641GS ASSY, Control Panel
59 * NUT, Palnut 3/16"
60 189117GS QUICK CONNECT, Fuel, 1/4 Barb
61 192695GS QUICK CONNECT, Fuel, 1/4 Barb
62 201079GS DECAL, CO Warning
63 189114GS KNOB, Fuel Tank Hold Down
72 192480GS DECAL, Warning, Fuel Line
Disconnect
900 § ENGINE
Parts Not Illustrated
BB3061GS OIL BOTTLE
197474GS CORDSET, Storm
MS3430 MANUAL, Engine
199718GS MANUAL, Operator’s
202180GS DECAL, Family, CA EVP
186208GS STABILIZER, 1oz Tube
197581GS TRAY, Overflow, Fuel
198419GS KIT, Decals Srv
* - Items without part numbers are common fasteners and
are available at your local hardware store.
§ - Contact Engine Manufacturer

EXPLODED VIEWS AND PARTS LISTS
4
EXPLODED VIEW AND PARTS LIST - CONTROL PANEL
Item Part # Description
1 197471GS PANEL, Control
2 197472GS COVER, Outlet Flip
3 188890GS COVER, Back Panel
4 197731GS OUTLET, 120V, 15/20A Dplx
5 189165GS NUT, 5/32 Pal
6 197729GS MODULE, Led
7 197958GS SCREW, 3 x 6, Tapping
8 202030GS BREAKER, Circuit, 20A
191481GS BOOT, Breaker Circuit (not shown)
9 43437GS OUTLET, 120/240V, 30A
10 22694GS HOUSING, Rcptcl, 6 Pin
11 82308GS SCREW, 3 x 18, Tapping
12 192241GS SCREW, 3.5 x 14, Tapping

EXPLODED VIEWS AND PARTS LISTS
5
EXPLODED VIEW AND PARTS LIST - ALTERNATOR
Item Part # Description
1 186059GS ADAPTER, Mounting, Alternator
2 191043GS ASSY, Rotor (Includes Item 12)
3 191042AGS STATOR
4 186060GS RBC, with O-Ring (p/n 189197GS)
5 86308CGS HHCS, M6 - 1.0 x 130 SEMS
6 91825GS ASSY, Holder, Rectifier/Brush
7 66849GS TAPTITE, M5 - 0.8 x 16
8 22694GS RECEPTACLE, 6 pin
9 81917GS PIN, Roll, 4mm x 10
10 193428AGS ASSY, Wire, Ground
11 194274GS HARNESS, Wire, Power
12 65791GS BEARING
