42" Snow Blade
with Sub-Frame/Hitch
1696092-00
ATTACHMENT
OPERATOR’S
MANUAL

Not for
Reproduction
2

Not for
Reproduction
3
Table of Contents
Hardware Bag Contents................................................................... 4
Box Contents ................................................................................... 5
Operator Safety ............................................................................... 6
Assembly......................................................................................... 7
Operation......................................................................................... 13
Maintenance.................................................................................... 14
Warranty .......................................................................................... 15
Note: In these instructions, “front”, “back”, “left” and “right” are
referenced from the operator’s position.
Note: Capital letters refer to new hardware. Lower case letters refer
to existing parts and hardware.

Not for
Reproduction
4

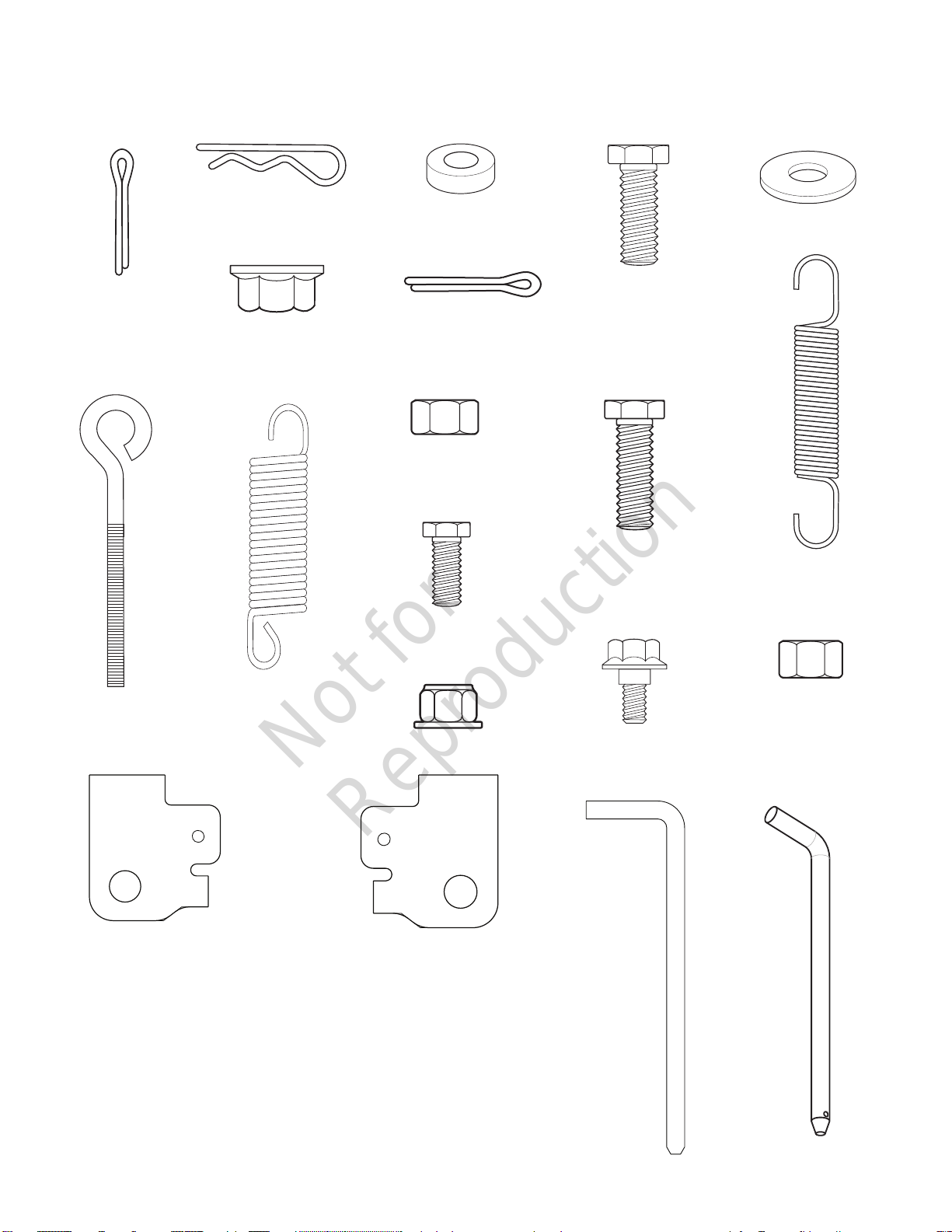

Hardware Bag Contents
Q- RIGHT HITCH SUPPORT S- LATCH ROD
(Qty. 2)
T- HITCH LATCH ROD
(Qty.1)
R- LEFT HITCH SUPPORT
A- COTTER PIN
.125” x 1.0”
(Qty. 2)
B- HAIR PIN
(Qty. 8)
D- CAPSCREW
1/2”-13 x 1.25”
(Qty. 1)
C- SPACER
.51” ID x 1.0” OD x .26” THK
(Qty. 1)
F- NUT, WHIZ LOCK
1/2”-13
(Qty. 1)
G- COTTER PIN
.094” x .75”
(Qty. 1)
E- WASHER
.56” ID x 1.37” OD x .11” THK
(Qty. 2)
O- Shoulder Bolt
3/8”-24 X .910”
(Qty. 1)
N- NUT, ESNA
5/16”-18
(Qty. 5)
H- SPRING EXTENTION
(Qty. 1)
I- EYE BOLT
(Qty. 1)
M- CAPSCREW
5/16”-18 X .75”
(Qty. 1)
L- CAPSCREW
5/16”-18 X 1.0”
(Qty. 7)
J-BLADE SPRING
(Qty. 1)
K- NUT, Hex
.31”-18
(Qty. 2)
P- NUT
3/8”-24
(Qty. 1)

Not for
Reproduction
5
Box Contents
AA - REAR SUPPORT ROD
BB - SUB-FRAME ASSEMBLY
CC - BLADE ASSEMBLY
DD - PIVOT ASSEMBLY
GG - LIFT SUPPORT
ASSEMBLY
EE - TOP ANGLE ROD
HH -SHORT LIFT BAR ASSEMBLY
JJ- HANDLE
FF - FRONT ANGLE ROD
II - GREASE
