BRIGHTLUX AL17-36FT-RGB-2 User manual

C16
C7
C3
SC
4H 8H

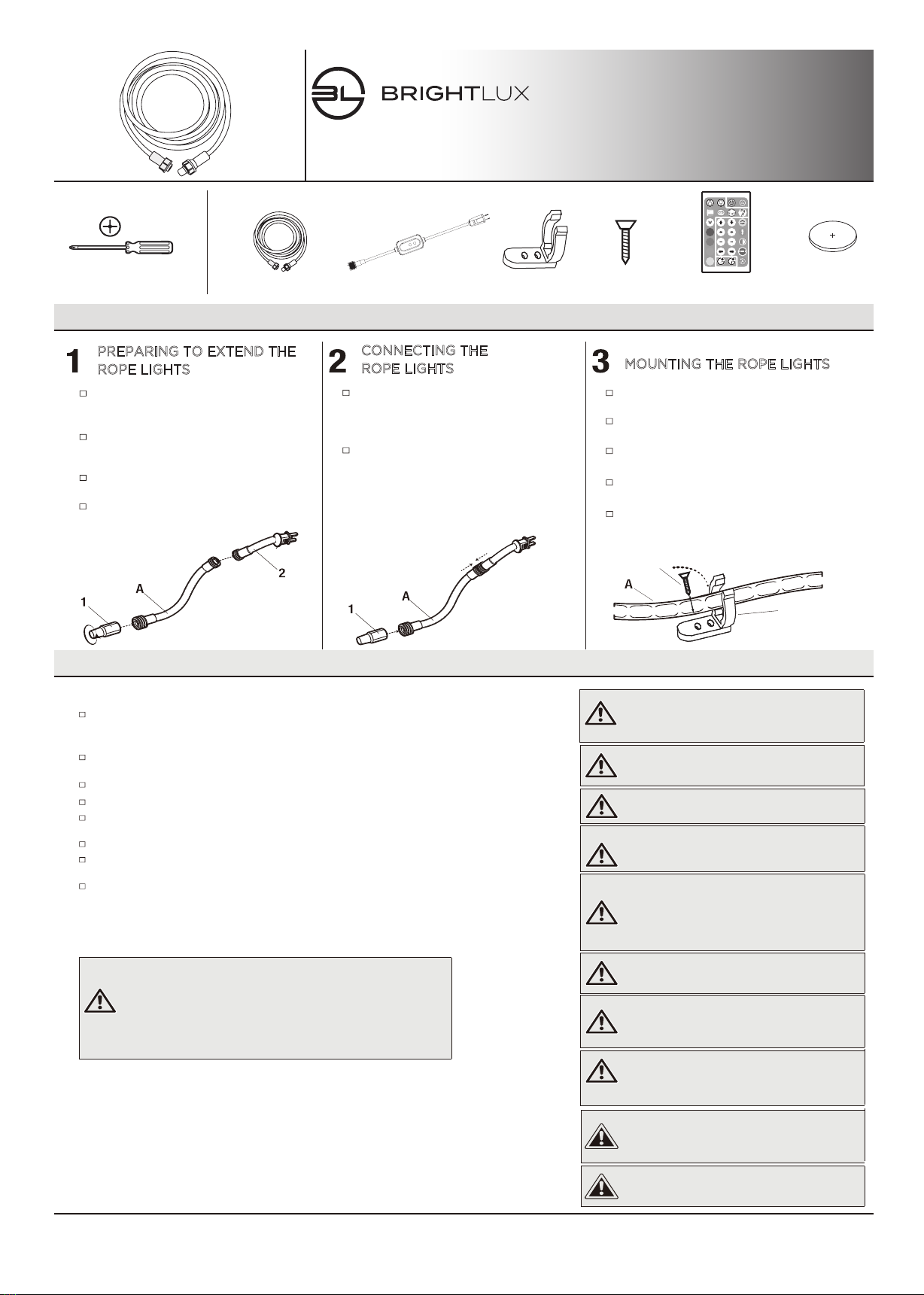

PREPARING TO EXTEND THE
ROPE LIGHTS
CONNECTING THE
ROPE LIGHTS MOUNTING THE ROPE LIGHTS
Ensure all rope lights are unplugged
before adding the additional rope
light (A) to the series.
Connect the last rope light in the
series and the extension rope.
light (A) together and ensure the
connectors are tightly secured.
Attach the end cap (1) to the last rope
light in the series and ensure the
connection is secure.
Remove the end cap (1) from the last
rope light in the series by turning
counterclockwise.
Remove the power cord (2) from
additional extension rope lights (A).
Extend up to 72ft. (21.9m) maximum.
Use only the following BrightLux rope
light extension segments:
9000-0002.
Make sure the distance between two
lines of rope light is at least 1/2in. (12 mm).
Mounting clips should be evenly spaced
and be a maximum of 3ft. (0.91 m) apart.
Insert the screw (D) through the
opening in the mounting clip (B).
Screw the mounting clip (C) into
position at the installation location.
Place the rope light (A) securely into
the mounting clip (C).
WARNING: Do not install the rope light
within 16 ft. (4.87 m) of pool or spa. Do not
install rope lighting in cabinets, tanks, or
enclosures of any kind.
WARNING: This product has a polarized plug (one blade is
wider than the other) as a feature to reduce the risk of electrick
shock. This plug will fit in a polarized outlet only one way. If the
plug does not fit fully in the outlet, reverse the plug. If it still
does not fit, contact a qualified electrician. Never use with an
extension cord unless the plug can be fully inserted.
Do not alter the plug.
WARNING: When using this product outdoors,
basic safety precautions should always be
followed to reduce the risk of fire, electric
shock, and personal injury.
WARNING: Do not cover this product as the
covering may cause the flexible light to
overheat and either melt or ignite.
WARNING: Do not puncture, cut, shorten, or
splice the flexible lighting.
WARNING: Do not use if there is any
damage to the light or cord insulation.
Inspect periodically.
CAUTION: All units must be unplugged before
you add additional segments. Only use
segments recommended by the manufacturer
of this lighting system.
CAUTION: Ensure all connections and the end
cap on the last segment are tightly secured to
prevent the entry of water.
WARNING: Secure the rope lights using only
the mounting clips provided. Do not secure
this product with staples, nails, or similar
objects that may damage the insulation.
WARNING: Do not submerge the flexible light
in liquids or use the product in the vicinity of
standing water or other liquids.
WARNING: Do not mount or secure the rope
light in a manner than can cut the outer jacket
or damage the cord insulation. Inspect the
rope light carefully before use and discard any
rope lights that have a broken outer jacket,
loose connections, or frayed wire insulation.
The RF remote controller included utilizes a 3V CR2025 battery; only replace with same
battery type. Please dispose of batteries properly. Batteries are not a toy! If swallowed,
contact local emergency services immediatley.
PAGE1
Please contact us at 1-844-255-9692 for further assistance.
Brightlux is a trademark of American Ligthing, Inc.
© 2021 All Rights Reserved.
36ft. LED Chasing Rope Light
Use and Care Guide
Item # 9000-0002
Model # AL17-36FT-RGB-2
C - Mounting
Clip x 18
A - 36ft. LED Chasing
Rope Light x 1
B - Inline Controller
w/120V Plug x 1
D - Screw x 36 F - 3V CR2025
Battery x 1
E - 28 Key IR
Remote x 1
IN S TAL L ATI O N
TOOLS REQUIRED HARDWARE INCLUDED
Phillips Screwdriver
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Ground Fault Circuit Interrupter (GFCI) protection should be provided in the circuits
or outlet to be used for outdoor use. Receptacles are available that have built-in GFCI
protection.
Only use outdoor extension cords such as type SW, SOW, STW, STOW, SJW, SJOW, SJTW,
or SJTOW. This designation is marked on the wire of the extension cord.
The rated voltage for this product is 120VAC, 60Hz, 72W, 0.6A.
Do not operate this product with the flexible light tightly coiled.
Do not route the cord or flexible light cable through walls, doors, windows, or any
similar part of a building structure.
Do not subject flexible lighting to continous flexing.
Do not exceed the maximum extension length in feet permitted by the marking. The
maximum extension length for this rope light is 72ft. (21.9m).
SAFETY INFORMATION
C
D

C16
C7
C3
SC
4H 8H
4H 8H
1
3
4
5 6
7
2
9
8

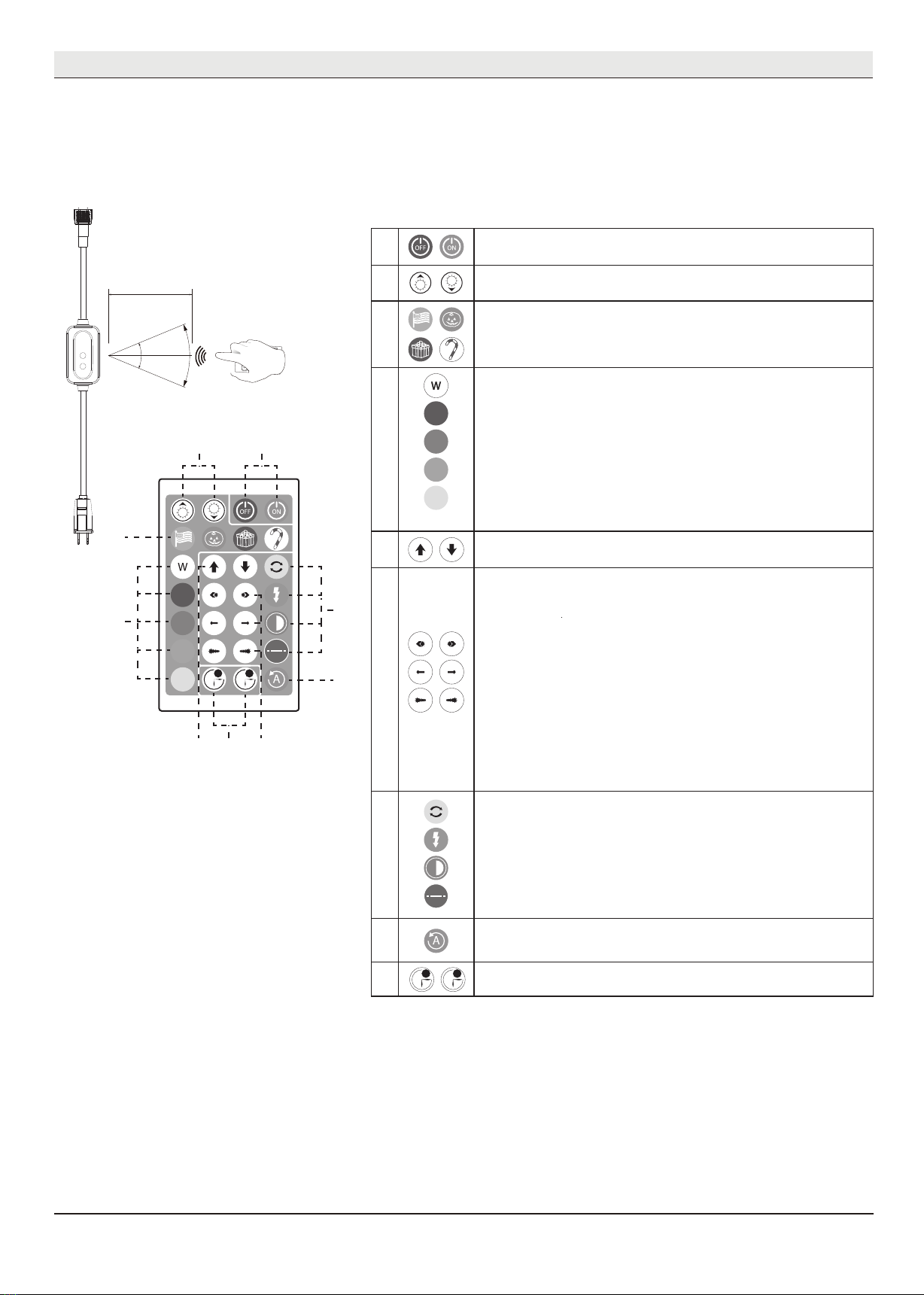

•Make sure all product connections are made prior to connecting power.
•Pull the plastic tab from the IR handheld remote control battery compartment prior to operation.
•Be sure to point the remote control in the direction of the front of the in-line controller (grey circle).
•For best results, select a color mix prior to selecting a chasing mode.
•Remote Control Signal Distance: Up to 6m / 20ft.
45°
< 6m / 20ft.
ON: Press Green to turn ON Chasing Rope Light
OFF: Press Red to turn OFF Chasing Rope Light
Brightness Increase
Brightness Decrease
Color Selection: Static (solid) White
Color Selection: Static (solid) Color Toggle: Red, Green, Blue, Orange,
Yellow, Light Blue, or Purple
Color Selection: 3-Color Mix: Red, Green, and Blue
Color Selection: 7-Color Mix: Red, Green, Blue, Orange, Yellow, Light
Blue, and Purple
Color Selection: 16-Color Mix: Red, Green, Blue, Dark Orange, Light
Orange, Dark Yellow, Light Yellow, Light Green, Light Blue, Medium Blue,
Dark Blue, Light Purple, Purple, Pink, Dark Pink, and White
Rainbow Mode: Automatically Chasing 256 color mix; Does not work
with Directional Chasing Effects.
Flash Mode: Automatically blinks through colors; Select preferred
color settings from keys 3 & 4..
Fade Mode: Automatically Fades selected color mix;Select preferred
color settings from keys 3 & 4.
Smooth Mode: Automatically overlay each color one by one
selected color;Select preferred color settings from keys 3 & 4.
Adjustable Speed: Increase or Decrease the speed of Flash and
Fade modes or Directional Chasing Effects from keys 6, 7, & 8.
Auto Mode: Automatically cycles through Rainbow, Flash, Fade and
Smooth modes, then Directional Chasing Effects using the active
Color Selection.
Timer Function: 4 hour or 8 hour9
8
7
6
5
4
3
2
1
Color Selection: Holiday Presets:
- U.S. Flag = Red, Blue, and White
- Pumpkin = Purple and Orange
- Gift Box = Red and Green
- Candy Cane = Red and White
Directional Chasing Effects
(< Power Side to End / End to Power Side >)
- Constant Chasing Function; < Power Side to End; Select preferred
color settings from keys 3 & 4 ; Includes White Light between color
intervals.
- Constant Chasing Function; End to Power Side >; Select preferred
color settings from keys 3, 4, or 8; Includes White Light between
color intervals.
- Stacking Spread to Fill Function; < Power Side to End; Select
preferred color settings from keys 3 & 4.
- Stacking Spread to Fill Function; End to Power Side >; Select
preferred color settings from keys 3 & 4.
- Staggered Chasing Function; < Power Side to End; Select
preferred color settings from keys 3, 4; No illumination between
color intervals.
- Staggered Chasing Function; End to Power Side >; Select
preferred color setings from keys 3 & 4;No illumination between
color intervals.
PAGE2
Please contact us at 1-844-255-9692 for further assistance.
Brightlux is a trademark of American Ligthing, Inc.
© 2021 All Rights Reserved.
CONTROLLING THE SERIES
CONTROLLING THE SERIES VIA HANDHELD REMOTE CONTROL
C16
C7
C3
SC

C16
C7
C3
SC
4H 8H
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
FCC WARNING
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
FCC COMPLIANCE STATEMENT
• Always purchase the correct size and grade of battery (CR2025) most suitable for the intended use.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the battery is installed correctly with regard to polarity (+and -).
• Remove batteries from remote control if it is not to be used for an extended period of time.
• Remove used batteries promptly.
1. The LED Chasing Rope Light can also be controlled using the in-line controller.
2. Press the grey circle button to toggle through all color options and functions listed above.
3. Press and hold the grey circle button to turn the LED Chasing Rope Light OFF.
4. Press and hold the grey circle button to turn the LED Chasing Rope Light ON.
REPLACING THE BATTERY (HANDHELD REMOTE CONTROL):
To replace the remote control’s battery, follow the directions on the back of the remote control to
slide the battery drawer out. Replace the battery (+ side up) and slide the battery drawer back into place.
PAGE3
Please contact us at 1-844-255-9692 for further assistance.
Brightlux is a trademark of American Ligthing, Inc.
© 2021 All Rights Reserved.
WARNING: Risk of fire. The plug on the main
rope light contains an electrical fuse as a safety
feature. Do not remove or replace this plug. Do not
use the light if the plug is damaged.
Disconnect the power before replacing the fuse.
Grasp the plug (1) on the primary rope light and remove from the receptable or other outlet device. Do not unplug by pulling on the cord.
Slide the fuse access cover (2) towards the prongs of the plug (3) to open.
Carefully remove the old fuse (4) and replace with a 5-Amp 125-Volt fuse.
Close the fuse access cover (2) by sliding to the original closed position.
MAINTENANCE
REPLACING THE FUSE
To replace the fuse:
CONTROLLING THE SERIES
CONTROLLING THE SERIES VIA IN-LINE CONTROLLER

PAGE4
Please contact us at 1-844-255-9692 for further assistance.
Brightlux is a trademark of American Ligthing, Inc.
© 2021 All Rights Reserved.
SAVE THESE INSTRUCTIONS FOR FUTURE USE
Questions, problems, missing parts? Before returning to the store,
call out Customer Service Team
8 a.m. - 5 p.m., MST, Monday - Friday
1-844-255-9692
WARRANTY
The manufacturer warrants this product to be free for two (2) years against any defects that are due to faulty materials or workmanship. This warranty applies only to the original
customer purchaser and only to products used in normal use and service. If this product is found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is
the repair or replacement of the product at the manufacturer’s discretion. provided that the product has not been damaged through misuse, abuse, accident, modifications,
alterations, neglect, or mishandling. This warranty shall not apply to any product that is found to have been improperly installed, set up, or used in any way not following the
instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of an accident, misuse, abuse, negligence, alteration, or faulty installation,
or any other failure not relating to faulty workmanship. This warranty shall not apply to finish on any portion of the product, such as surface and/or weathering, as this is considered
normal wear and tear. The manufacturer does not warrant and specifically disclaim any warranty, whether expressed or implied or fitness for a particular purpose, other than the
warranty contained herein. The manufacturer specifically disclaims any liability and shall not be liable for any consequential or incidental loss or damage, including any labor/expense
costs involved in the replacement or repair of said product.
Contact Customer Service Team at 1-844-255-9692
