Brillion SL8 Series User manual

1P342
1P342
BRILLION )$50(48,30(17
BRILLION, WISCONSIN 54110
The standard Turfmaker was designed for seeding grasses and lawn mixtures. It is ideal
for sod and turf producers, or anyone who wishes to seed large areas at precise rates.
Micro-meter adjustment permits precise metering with an infinite range of settings. All
pick-up models are designed for Cat. II hitch.
TURFMAKER SEEDER
SL8, 10, 12
* Cover illustration may show optional equipment not supplied with standard unit
OPERATOR’S MANUAL
Brillion
SLP10
SL10
Pull Type
3 Point Pick Up
1P342
8-20-07rev5-28-08
MODELS AVAILABLE
Pick-Up Pull Type
SLP8 8-ft. Pick-up Notched Wheels
SSLP8 8-ft. Pick-up Smooth Wheels
SLP10 10-ft. Pick-up Notched Wheels SL10 10-ft. Drawbar Notched Wheels
SSLP10 10-ft. Pick-up Smooth Wheels SSL10 10-ft. Drawbar Smooth Wheels
SLP12 12-ft. Pick-up Notched Wheels SL12 12-ft. Drawbar Notched Wheels
SSL12 12-ft. Drawbar Smooth Wheels
Warning: Standard Turfmaker Seeders have difficulty metering varieties of fine or hard fescues. For mixtures
with fine or hard fescues you must order the Turfmaker II High Capacity Seeders.
www.brillionfarmeq.com

1P342
1P342

1P342
1P342
Contents
Page 1
Introduction .................................................................................................................................... 3
Location Reference................................................................................................................... 3
Parts Ordering .......................................................................................................................... 3
Warranty Registration ............................................................................................................... 3
Safety Information ......................................................................................................................... 4-9
Safety Information..................................................................................................................... 4-7

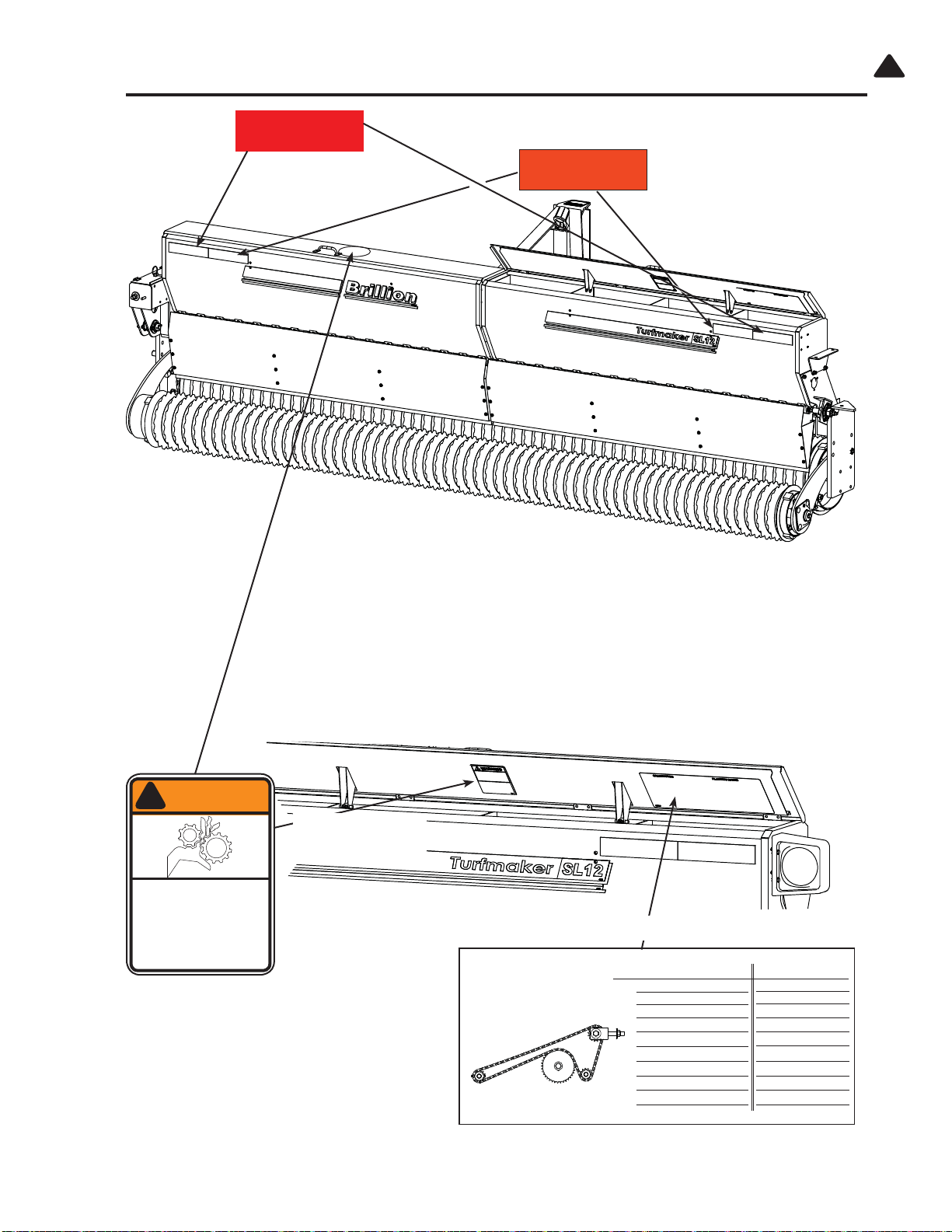

Safety Signs & Locations.......................................................................................................... 8, 9
Assembly Instructions..................................................................................................................10a-27
Special Section: If Seeder is Shipped With Unattached Roller Assemblies .....................10a-10h
Hydraulic Schematic...................................................................................................................... 12

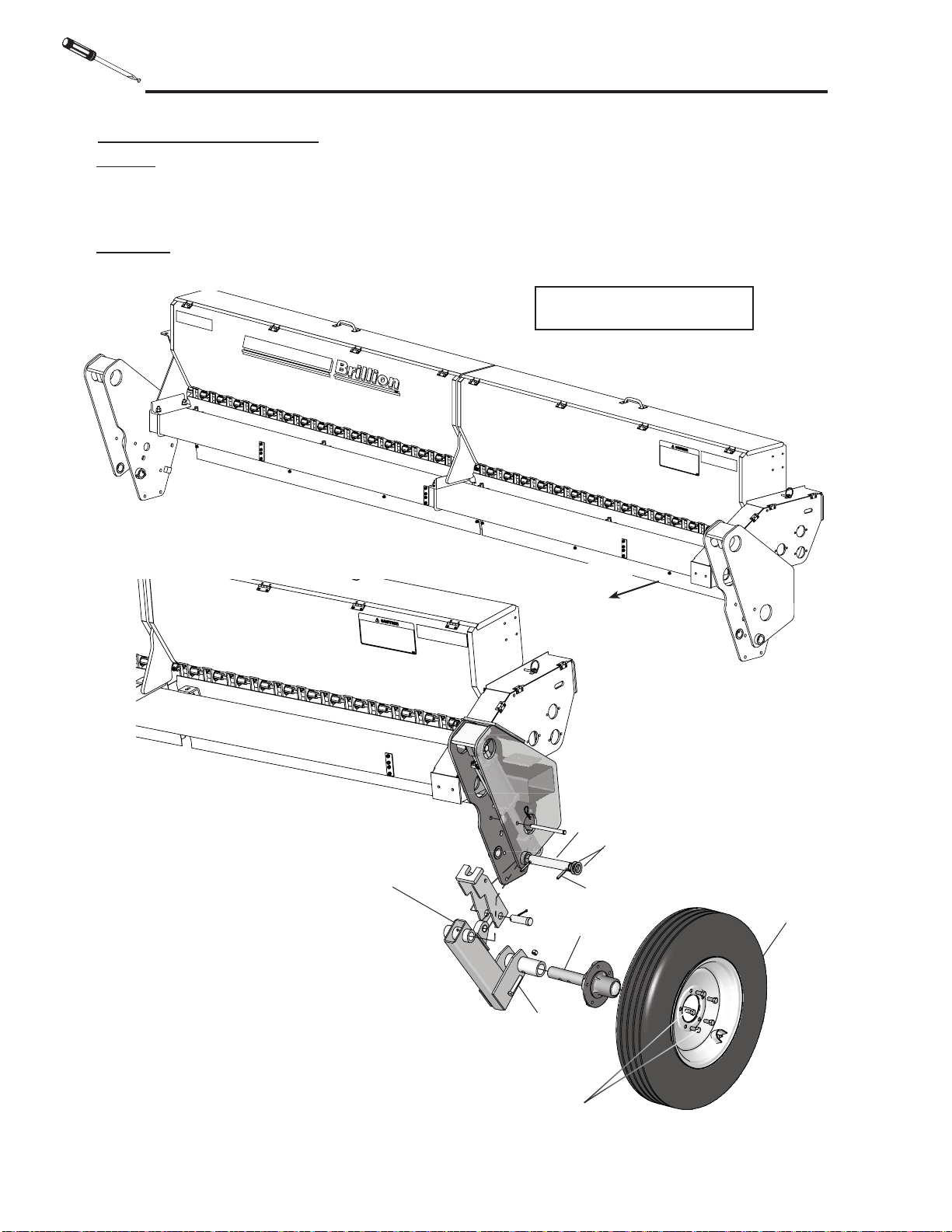

Hitch & Wheel Rims .............................................................................................................. 13
Pick Up Seeders...................................................................................................................... 14
Warning Lights.......................................................................................................................... 15-18
Assembly of Optional Equipment............................................................................................. 19-27
Agitator Kit................................................................................................................................ 20, 21
Acre Meter Installation..............................................................................................................22-23b
Scraper Kit................................................................................................................................ 24
S- Tine Tire Track Remover...................................................................................................... 25
Coil Tine Track Remover .......................................................................................................... 26
Speed Up Kit............................................................................................................................. 27
Electric Clutch Kit...................................................................................................................... 28-29
Additonal Dividers.....................................................................................................................29a-29b
Operation......................................................................................................................................... 30-34
Transport Lock.......................................................................................................................... 31
Parking Pin ............................................................................................................................... 31
Seed Rate Adjustment.............................................................................................................. 32
Transmission Drive Bolt............................................................................................................ 33
Seed Chart ............................................................................................................................... 34
Maintenance.................................................................................................................................... 35-40
Fasteners .......................................................................................................................................... 36
Tires.......................................................................................................................................... 37
Lubrication................................................................................................................................ 37
Chain Tension........................................................................................................................... 38
Feed Cup adjustment ............................................................................................................... 39
Roller Wheels ........................................................................................................................... 40
Specifications................................................................................................................................. 41-42
Machine.................................................................................................................................... 41
Options ..................................................................................................................................... 42
8-20-07rev3-28-08

1P342
1P342

1P342
1P342
Introduction
Front
Seeder Model _______________________________________
Serial Number _______________________________________
Date Purchased _______________________________________
Nameplate
Page 3
Warranty Registration:
Please be sure to read and fill out the warranty card which is shipped with the
machine. Return the proper portion of the card for recording at the factory.
Refer to the name plate on the right front corner of the seedbox as shown.
Record your implement model, serial numbers and date of purchase
here for quick reference.
Brillionwelcomes you to our family of equipment owners and users.
The implement described in this manual has been designed with care and built by skilled workers
using quality materials and processes. Proper assembly, maintenance and safe operation will allow
this machine to provide you with satisfactory use for seasons to come.
WARNING:
Read this entire manual before attempting to assemble, adjust or operate this machine.
Failure to comply with this warning can result in personal injury or death, damage
to the machine or its components and inferior operation.
Description of Unit:
The Brillion standard Landscape Seeder has been designed for seeding grasses and lawn mixtures.
It is ideal for sod and turf producers, or anyone who wishes to seed large areas at precise rates. Mi-
cro-meter adjustment permits precise metering with an infinite range of settings. All pick-up models
are designed for Cat. II hitch. Drawbar models include hydraulic transport with 15” x 5” rims, (2)
7.60 x 15” 6 ply tires, cylinders and hoses to the hitch point. All models include warning light kits.
When shipped on factory trucks, seeder comes assembled except for lights, rims, and drawbar or
3 pt. Hitch.
!
Warning: Standard Turfmaker Seeders have difficulty metering varieties of fine or hard fescues. For mixtures
with fine or hard fescues you must order the Turfmaker II High Capacity Seeders.
Using this Manual:
This manual will familiarize you with safety, assembly, operation, adjustment, and maintenance.
Read this manual and follow the recommendations to help ensure safe and efficient operation.
• The information in this manual is current at time of printing. Some parts may change to assure
top performance.
• Location reference: Right & left designations in this manual are determined by facing the direction
the machine will travel during field operation, unless otherwise stated.
Owner Assistance:
If customer service or repairs are needed, contact your Brillion dealer. They have trained personnel,
parts and service equipment specially designed for Brillion products. Your machine’s parts should
only be replaced with Brillion parts. Have the Serial Number and complete Model Number when
ordering parts from your Brillion dealer.
If items covered in this manual are not understood, contact your local Brillion Dealer
8-20-07rev3-28-08

1P342
1P342
Safety
!Important Safety Information
!
!
!
!
!
Federal law requires that you explain the safety and operating instructions furnished with this machine to all
employees before they are allowed to operate the machine. These must be repeated to the employees
at the beginning of each season. Be sure to observe and follow the instructions for the safety of anyone
operating or near the machine.
Be Familiar with Safety Decals
• Thoroughly read and understand ‘Safety Decals’ found in the Safety Section.
• Read all instructions noted on decals
Look for Safety Symbol
SAFETY ALERT SYMBOL, indicates there is a potential hazard to personal
safety involved and extra safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that follows it. In addition to the
design and configuration of equipment, hazard control and accident prevention
are dependent upon the awareness, concern, prudence and proper training of
personnel involved in the operation, transport, maintenance and storage of
equipment.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury. This signal word is limited to the most extreme situations,
typically for machine components that, for functional purposes, cannot be
guarded.
WARNING
Indicates an imminently potentially hazardous situation which, if not avoided,
could result in death or serious injury, and includes hazards that are exposed
when guards are removed. It may also be used to alert against unsafe practices.
CAUTION
Indicates an potentially hazardous situation which, if not avoided, may result in
minor or moderate injury. It may also be used to alert against unsafe practices.
• Examine safety decals and be sure you have the correct safety decals for the machine. See Safety Sign
and Locations in Safety Section for decal locations.
• Order replacement decals through your Brillion dealer.
• Keep these signs clean so they can be observed readily. It is important to keep these decals cleaned
more frequently than the machine. Wash with soap and water or a cleaning solution as required.
• Replace decals that become damaged or lost. Also, be sure that any new machine components installed
during repair include decals which are assigned to them by the manufacturer.
• When applying decals to the machine, be sure to clean the surface to remove any dirt or residue. Where
possible, sign placement should protect the sign from abrasion, damage, or obstruction from mud, dirt,
oil etc.
Page 4
NOTE: Investigation has shown that nearly 1/3 of all farm accidents are caused by careless use of
machinery. Insist that all people working with you or for you abide by the safety instructions.
8-20-07rev3-28-08

1P342
1P342
Safety !
Important Safety Information
Keep Riders Off Machinery
• Do not allow anyone to ride on tractor or machine. Riders could be struck by foreign objects
or thrown from the machine.
• Never allow children to operate equipment.
• Keep bystanders away from machine during operation.
Transporting Safety
• It is the responsiblity of the owner/operator to comply with all state and local laws.
• When transporting the machine on a road or highway, use adequate warning symbols,
reflectors, lights and slow moving vehicle sign (purchased separately) as required. Slow
moving tractors and towed implements can create a hazard when driven on public roads.
They are difficult to see, especially at night.
• Do not tow an implement that, when fully loaded, weighs more than 1.5 times the weight of
the towing vehicle.
• Carry reflectors or flags to mark tractor and implement in case of breakdown on the road.
• Do not transport at speeds over 20 MPH under good conditions. Never travel at a speed
which does not allow adequate control of steering and stopping. Reduce speed if towed load
is not equipped with brakes
• Avoid sudden stops or turns because the weight of the machine may cause the operator to
lose control of the tractor. Use a tractor heavier than the machine.
• Use caution when towing behind articulated steering tractors; fast or sharp turns may cause
the machine to shift sideways.
• Keep clear of overhead power lines and other obstructions when transporting. Know
transport height and width of your machine. Refer to transport dimensions under
‘Specifications’, page 39.

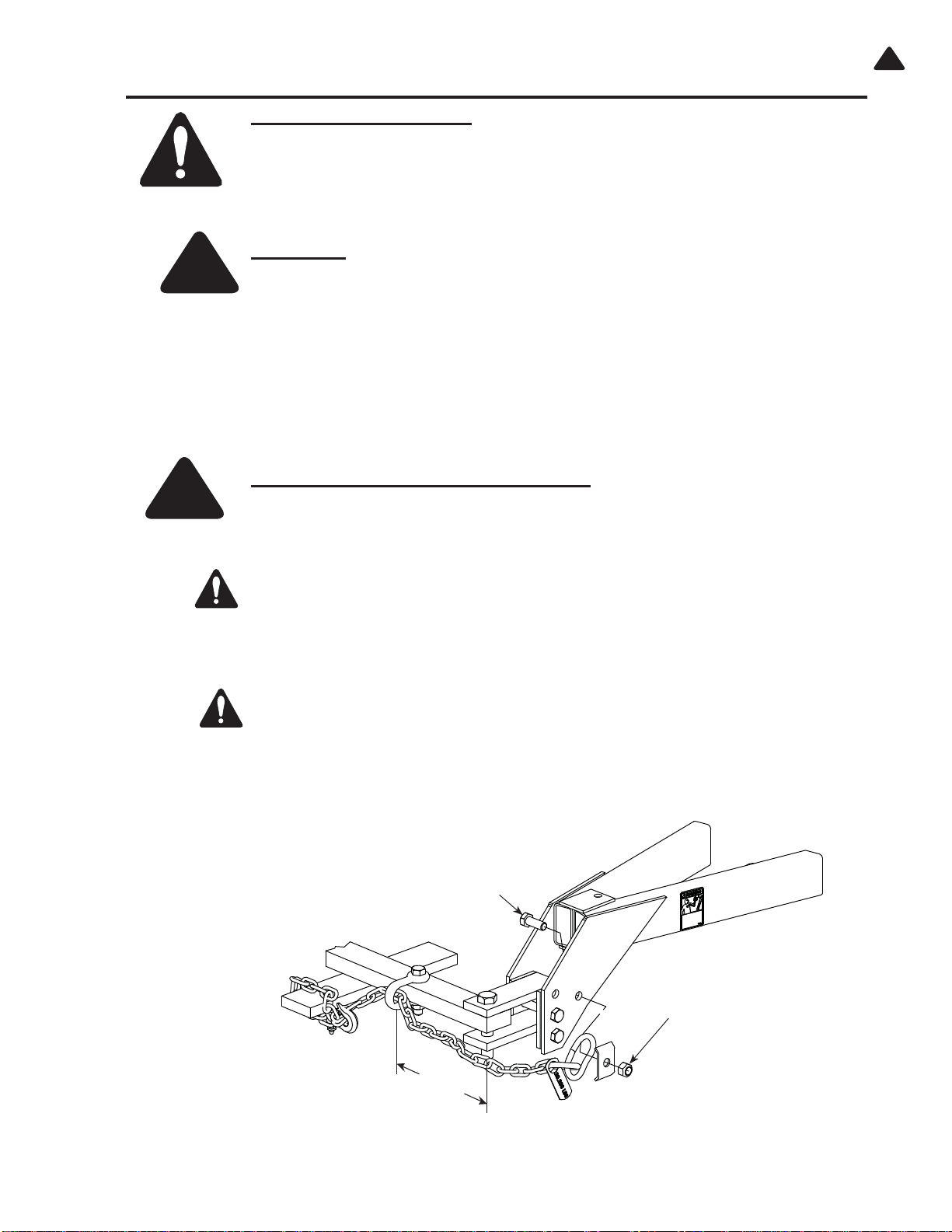

Attaching, Detaching and Storage
• Do not stand between the tractor and implement when attaching or detaching implement
unless both are not moving.
• Before applying pressure to the hydraulic system, be sure all connections are tight and that
hydraulic lines and hoses are not damaged.
• Lower machine to ground when not in use so that the shanks are taking the load.
• Block machine so it will not roll when unhitched from the tractor.
• Relieve pressure in hydraulic lines before uncoupling hydraulic hoses from tractor.
Note: On most tractors this can be done by putting the valves in the float position
before the engine is stopped.
!
!
!
Page 58-20-07rev3-28-08

1P342
1P342
Safety
!Important Safety Information
Maintenance Safety
* Block machine so it will not roll when working on or under it to prevent injury in case
of hydraulic failure or inadvertent lowering by another person.
* Do not make adjustments or lubricate machine while it is in motion.
* Make sure all moving parts have stopped and all system pressure is relieved.
* Understand procedure before doing the work. Use proper tools and equipment.
Refer to this manual for additional information.
High Pressure Fluid Safety
* Escaping fluid under pressure can be nearly invisible and have enough force to
penetrate the skin causing serious injury. Use a piece of cardboard, rather than
hands, to search for suspected leaks .
* Any fluid injected into the skin must be surgically removed within a few hours or
gangrene may result.
* Avoid the hazard by relieving pressure before disconnecting hydraulic lines.
Note: On most tractors this can be done by putting the valves in the float position
before the engine is stopped. Also, the machine should be lowered to ground.
* Wear protective gloves & safety glasses or goggles when working with hydraulic
systems.
Protective Equipment
* Wear protective clothing & equipment
* Wear clothing & equipment appropriate for the job. Avoid loose fitting clothing.
* Because prolonged exposure to loud noise can cause hearing impairment or
hearing loss, wear suitable hearing protection such as earmuffs or earplugs.
Chemical Safety
* Agricultural chemicals can be dangerous. Improper use can seriously injure
persons, animals, plants, soil & property.
* Read chemical manufacture’s instructions for use and storage or disposal.
* Handle chemicals with care & avoid inhaling smoke from any type of chemical fire.
* Store or dispose of unused chemicals as specified by the chemical manufacturer.
!
!
!
!
Page 68-20-07rev3-28-08

1P342
1P342
Safety !
Important Safety Information
Prepare for Emergencies
* Keep a First Aid Kit and Fire Extinguisher accessible.
* Keep emergency numbers for doctor, ambulance, hospital and fire department near
phone.
Tire Safety
* Tire changing can be dangerous and should be performed by trained personnel
using correct tools and equipment.
* When inflating tires, use a clip-on chuck and extension hose long enough to allow
you to stand to one side, not in front of or over the tire assembly. Use a safety cage if
available.
* When removing and installing wheels, use wheel-handling equipment adequate for
weight involved.
Use a Safety Chain (Brillion Kit 1K822)
* Use a safety chain to help control drawn machinery should it separate from tractor
drawbar.
* Use a chain with a strength rating equal to or greater than the gross weight of towed
machinery, which is 10,100 pounds minimum in accordance with ASAE S338.2
specifications. If two or more machines are pulled in tandem, a larger chain may be
required. Chain capacity must be greater that the TOTAL weight of towed implements.
A second chain should be used between each implement.
* Attach chain to tractor drawbar support or specified anchor location. Allow only
enough slack in chain to permit turning. Distance from hitch pin to attachment point or
intermediate support point should not exceed 9”. See below.
* Replace chain if any links or end fittings are broken, stretched or damaged.
* Do not use safety chain for towing.
STOVER NUT, 3/4”
HHCS, 3/4-10 x 2”
9” Max.
!
!
Page 78-20-07rev3-28-08

1P342
1P342
Safety
!
Safety Signs
MOVING MACHINES CAN CAUSE INJURY. KEEP AWAY!
1. KEEP AWAY FROM MOVING TRACTORS OR IMPLEMENTS.
KEEP OTHERS AWAY.
2. DO NOT RIDE OR ALLOW OTHERS TO RIDE ON TRACTOR
OR IMPLEMENT.
3. BLOCK IMPLEMENT TO PREVENT MOVEMENT WHEN
UNHITCHED FROM TRACTOR.
4. KEEP ALL GUARDSAND SHIELDS IN PLACE WHILE MACHINE
OR PARTS ARE IN MOTION. 8J309
!CAUTION
PARKING PIN
9J301
WARNING
!
DO NOT GO NEAR LEAKS
LOWER LOAD OR RELIEVE HYDRAULIC
PRESSURE BEFORE LOOSENING
FITTINGS.
HIGH PRESSURE OIL EASILY PUNCTURES SKIN
CAUSING SERIOUS INJURY, GANGRENE
OR DEATH.
IF INJURED, SEEK EMERGENCY MEDICAL HELP.
IMMEDIATE SURGERY IS REQUIRED TO
REMOVE OIL.
DO NOT USE FINGERS OR SKIN TO
CHECK FOR LEAKS.
10813A
BE SURE TO ENGAGE
PARKING PIN ON LEFT END OF
FRAME BEFORE UNHITCHING
TRACTOR. OTHERWISE
FRAME WILL TIP BACKWARDS
ABOUT FRONT AXLE. 9J302
CAUTION
!
Pick-up only
Pick-up
only
Pull Type only
P/N 3K706
Hydraulic Leak Hazard
P/N 2J431
Reflective Amber
P/N 9J302
Engage Parking Pin
P/N 9J309
List of
Cautions
Page 88-20-07rev3-28-08

1P342
1P342
Safety !
Safety Signs
Seed Box May Be Calibrated for Unlisted Seed as Follows:
1. Remove Drive Bolt from 6 Tooth 550 Driver Sprocket.
2. Raise machine & lock in transport position.
3. Place a tarp under machine to collect seed.
4. Turn 15/16 Hex on transmission clockwise as follows:
-136 revolutions - for 8’ Seeders
-109 revolutions - for 10’ Seeders
- 91 revolutions - for 12’ Seeders
5. Weigh seed and multiply by 10 (20 for 26-Tooth Driver)
for approximate planting rate in lbs/acre.
PLANTING RATES FOR SEED BOX
INDICATOR SETTING
POUNDS PER ACRE POUNDS PER 1000 SQ. FT.
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
9J881
Tightener
13 Tooth
Idler
37 Tooth
Driven
13 Tooth driver
(26 Tooth Optional)
15/16 Hex
* Will crack some seeds at theses settings.
Not recommended: Lentils, Sorgum, Sudan Grass
WARNING
!
MOVING PART HAZARD
TO PREVENT SERIOUS INJURY
FROM MOVING PARTS:
• KEEP COVERS CLOSED DURING
OPERATION.
• DO NOTALLOW ANYONE TO RIDE
OR CLIMB ON MACHINE DURING
OPERATION.
•KEEP OBSERVERS AWAY. 2K123
Same poisition
under Both Covers
Right Cover only
P/N 1K123
Moving Part Hazard
P/N 2J430
Reflective Red
P/N 8K597
Reflective Red-Orange
P/N 9J881
Seed Chart
Page 98-20-07rev3-28-08

1P342
1P342
If your seeder was shipped with unattached roller assemblies, follow the procedure on
pages 10a through 10h.
If your rollers were assembled at the factory, go to page 11.
SPECIALASSEMBLY
INSTRUCTIONS
Assembly
Page 10a807rev5-27-08
Page
Steps 1, 2_Attach 3-Point Hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10b
Step 2a_Wheels to Drawbar Seeders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10c
Step 2b, 2c, 2d_Attach Drawbar and Hydraulics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10d
Step 3, 4, 5_Stub Shafts, Drive Sprocket, Bearings to Front Roller Assemblies. . . . . . . . . . . . . . . . 10e
Step 6_Front Roller Assembles to Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10f
Step 7_Sutb Shafts and Rear Arms to Rear Roller Assembles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10g
Step 8_Rear Roller Assemblies with Attached Arms to Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10h

1P342
1P342
• SUPPORT FRAME AND SEEBOX ASSEMBLY
with a hoist or by similar means capable of supporting its weight without tipping.
FRONT
LEFT SIDE
RIGHT SIDE
STEP 1
STEP 2
Frame & Seedbox Assembly
Pick Up Model Seeder
• CENTER 3 POINT HITCH ASSEMBLY
on frame and fasten with 5/8” U-bolts,
lockwashers and nuts. Go to Step 3.
U-BOLT, 5/8-11 x 6-11/16 x 5-1/2”
LOCKWASHER, 5/8
NUT, 5/8
3 POINT HITCH
ASSEMBLY
!DO NOT WORK ON OR UNDER THIS MACHINE UNLESS SECURELY
BLOCKED AND SUPPORTED BY A HOIST OR TRACTOR OR BY OTHER
SUFFICIENT MEANS!
CAUTION!!
--FOR PICK UP SEEDERS
Assembly
Assembly
NOTE: In most of the following illustrations, the Pick Up model is shown. Pull Type seeders
are assembled in the same way unless otherwise noted.
Page 10b807rev5-27-08

1P342
1P342
FRONT
LEFT SIDE
RIGHT
SIDE
Frame & Seedbox Assembly
Pull Type Model Seeder
• SUPPORT FRAME AND SEEBOX ASSEMBLY with a hoist or by similar
means capable of supporting its weight without tipping.
STEP 1
LH WHEELARM
ASSEMBLY
--FOR PULL TYPE SEEDERS
STEP 2-a
• Attach WHEEL ASSEMBLIES to frame.
HUB & SPINDLE
ASSEMBLY
WHEEL
ASSEMBLY
WHEEL BOLTS
1/2-20 x 1”
HHCS, 1/2-13 x 3”
LOCK NUT, 1/2
WHEELARM PIN
MACHINERY BUSHING, 1-1/4”
ROLL PIN, 5/16 x 2”
Page 10c807rev5-27-08
Assembly
Assembly

1P342
1P342
STEP 2-b
STEP 2-c
• CENTER DRAWBAR on frame and fasten with 5/8”
U-bolts, lockwashers and nuts.
•Attach Jack, Hitch and Hose Support.
U-BOLT, 5/8-11 x 6-11/16 x 5-1/2”
LOCKWASHER, 5/8
NUT, 5/8
DRAWBAR
JACK
HOSE
SUPPORT
HHCS, 5/8-11 x 1-1/2”
LOCK WASHER, 5/8
NUT, 5/8-11
HITCH
HHCS, 3/4-10 x 6”
LOCK NUT, 3/4-10
Run HOSES along frame and down drawbar toward tractor. Refer to the schematic
diagram page. Use the hose clamps provided to anchor the hoses to the frame.
BASE END HOSE
ROD END HOSE
BASE END HOSE
ROD END HOSE HOSE CLAMP
STEP 2-d
•Charge HYDRAULIC SYSTEM.
Page 10d807rev5-27-08
Assembly
Assembly

1P342
1P342
FRONT ROLLER
ASSEMBLY
4-BOLT STUB SHAFT
19-TOOTH
AXLE SPROCKET
LOCKWASHER, 5/8
NUT, 5/8
• INSTALL FLANGE BEARINGS on stub shafts.
FLANGE BEARING
• INSTALL DRIVE SPOCKET onto
stub shaft on left side.
STEP 4
STEP 5
• INSTALL STUB SHAFTS, long shaft on left end,
short shaft on right end of front roller assembly.
STEP 3
ATTACH SEEDER TO TRACTOR. Seeder must be raised with 3 Point
Hitch or Hydraulic lift to install roller assemblies.
Page 10e807rev5-27-08
Assembly
Assembly

1P342
1P342
• POSITION ROLLER ASSEMBLY between frame members
and attach flange bearing to frame with grease zerks toward front.
FRONT
STEP 6
HHCS, 1/2 x 2” (PICK UP FRAMES)
HHCS, 1/2 x 1-3/4” (DRAWBAR FRAMES)
LOCKWASHER, 1/2
HEX NUT, 1/2
•TIGHTEN BEARING
COLLARS in the
direction of rotation.
Note: Deflectors and transport wheels are not
shown in steps 6, 7, and 8 for purposes of clarity.
Page 10f807rev5-27-08
Assembly
Assembly

1P342
1P342
• ATTACH STUB SHAFTS to rear roller assembly, and then add the REAR
ARM ASSEMBLIES .
Roll rear roller assembly with Rear Arms attached into position
behind front roller.
LOCKWASHER, 3/4
HEX NUT, 3/4-10
REAR ROLLER ASSEMBLY
REAR STUB SHAFT
(3-BOLT, 5/8”)
HHCS, 1/2-20 x 1-1/4”
LOCKWASHER, 1/2
WASHER,1/2” x 2-1/16 x 3/8
FRONT
Bearings on Rear Arm
Assemblies on outside.
STEP 7
HHCS, 3/4-10 x 3” (Pick Up Frames)
FLAT WASHER, 3/4
Page 10g807rev5-27-08
Assembly
Assembly

1P342
1P342
STEP 8
• ATTACH LEFT AND RIGHT REAR ARM
assemblies to frame. (Drawing shows left
side, right side is the same) Secure to stub
shafts with 3/4” capscrews, lockwashers
and nuts.
LOCKWASHER, 3/4
HEX NUT, 3/4-10
VIEW FROM REAR
(Drawbar Model)
LEFT REAR ARM
ASSEMBLY
HHCS, 3/4-10 x 3” (Pick Up Frames)
HHCS, 3/4-10 X 2” (Drawbar Frames)
FLAT WASHER, 3/4
Page 10h807rev5-27-08
Assembly
Assembly
•INSTALL PARKING PIN
and Klik Pin.
NUT, 3/4-10 HEX
LOCK WASHER 3/4
FLAT WASHER, 3/4
HHCS 3/4-10 x 3” (Pick-up)
HHCS 3/4-10 x 2” (Pull)
BUSHING
VIEW FROM FRONT
(Pick Up Model)
1K154 Deflector (used on
8-ft, 10-ft, & 12-ft Landscape Seeders)
HHCS 1/2-13 x 2-1/4” (Pick-up)
HHCS 1/2-13 x 1-3/4” (Pull)
HHCS 1/2-13 x 2-1/2” (Pick-up)
HHCS 1/2-13 x 2” (Pull)
(Lower 2, Machines with Deflector)

1P342
1P342
ASSEMBLY
of
MACHINE
Assembly
Assembly
Page 108-20-07rev3-28-08
