BRINKMANN PUMPS KC60 User manual

BE7100 Operating Instructions
(Translation of original)
©Brinkmann Pumpen Edition 12/2022 Page 1 of 11
BRINKMANN-Miniature Centrifugal Pumps Series
KC60
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2 D-58791 Werdohl
Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de
Fax.: +49-2392 / 5006-180 [e-mail]
Subject to change without prior notice. Order - No. : BE7100 ENGLISH

BE7100 Edition 12/2022 Page 2 of 11
Brinkmann-Miniature Centrifugal Pumps Series KC60
Contents
1Indication to the manual ....................................2
2Description of product ....................................2-3
3Safety instructions.............................................3
4Transport and storage.......................................4
5Installation and Connection............................4-5
6Start up / Shut down..........................................5
7Operation...........................................................5
8Servicing and Maintenance...............................5
9Trouble shooter’s guide..................................... 6
10 Spare part ......................................................... 7
11 Repair ............................................................8-9
12 Disposal ............................................................ 9
13 Declarations of conformity..........................10-11
1 Indication to the manual
This operating manual gives basic instructions
which are to be observed during installation, opera-
tion and maintenance of the pump. It is therefore
imperative that this manual be read by the respon-
sible personnel and operator prior to assembly and
commissioning. It is always to be kept available at
the installation site.
1.1 Identification of safety instructions in
the operating manual
Safety instructions given in this manual non-
compliance with which would affect safety are
identified by the following symbol
Safety sign according with
ISO 3864 –B.3.1
or where electrical safety is involved, with:
Safety sign according with
ISO 3864 –B.3.6
Where non-compliance with the safety instructions
may cause a risk to the machine and it’s function
the word
ATTENTION
is inserted.
2 Description of product
2.1 General description of the pump
The miniature centrifugal pump operate according
to the bypass duct principle, with self-priming
function following the initial priming.
Pump and motor form a complete unit. The impeller
is fixed on the driving shaft extension. The shaft
sealing is effected with a rotary shaft seal in stand-
ard versions and a rotary mechanical seal in special
versions -UO12. The sealing for the case is effect-
ed with a gasket and O-ring.
The pump is to be protected against coarse parti-
cles.
The KC pumps are mounted next to or on top of the
tank. The pumps are foot mounted and must be
screwed down in order to ensure a secure stance.
2.2 Intended use
The pumps KC are suitable for pumping thin-bodied
fluids within the limiting application in accordance
with table 1.
Limit of Application (Table 1)
ATTENTION
The pumps are to be operated within their design
limits. Applications outside of these limits are not
approved. The manufacturer is not responsible for
any damages resulting from use of the pumps in
such applications.
Type
KC60
Mediums
Industry water, coolants, fuel oil
Kinetic viscosi-
ty of the medi-
um
...12 mm2/s
Temperature of
medium
0 ... 80 °C
Suction height
2 m without check valve
6 m with check valve
Particle-size in
the medium
1 mm
min. delivery
volume
1% of Q max.
Dry running
The pumps are not suitable for dry
running.
Switching-on
frequency per
hour
Motors less 3 kW max. 200
Ambient tem-
perature
40 °C
Set-up altitude
1000 m

BE7100 Edition 12/2022 Page 3 of 11
2.3 Technical data
3 Safety instructions
When operating the pump, the safety instructions
contained in this manual, the relevant national
accident prevention regulations and any other
service and safety instructions issued by the plant
operator are to be observed.
3.1 Hazards in the event of non-compliance
with the safety instructions
Non-compliance with the safety instructions may
produce a risk to the personnel as well as to the
environment and the machine and results in a loss
of any right to claim damages.
For example, non-compliance may involve the
following hazards:
•Failure of important functions of the ma-
chines/plant
•Failure of specified procedures of maintenance
and repair
•Exposure of people to electrical, mechanical and
chemical hazards
•Endangering the environment due to hazardous
substances being released
3.2 Unauthorized modes of operation
•Pump may not be used in potentially explosive
environments!
•Pump and discharge piping are not designed to
hold any weight and may not be used as a step
ladder.
3.3 Remaining Risk
Risk of Injury!
Risk of squeezing or crushing body parts when
installing or removing the pump exists. Proper and
secured lifting tools must be used.
Risk of burns!
The pump must have cooled down sufficiently prior
to commencing any repair, maintenance or installa-
tion.
3.4 Qualification and training of operating
personnel
The personnel responsible for operation, mainte-
nance, inspection and assembly must be adequate-
ly qualified. Scope of responsibility and supervision
of the personnel must be exactly defined by the
plant operator. If the staff does not have the neces-
sary knowledge, they must be trained and instruct-
ed, which may be performed by the machine manu-
facturer or supplier on behalf of the plant operator.
Moreover, the plant operator is to make sure that
the contents of the operating manual are fully
understood by the personnel.
3.5 Safety instructions relevant for opera-
tion
•If hot or cold machine components involve
hazards, they must be guarded against acci-
dental contact.
•Guards for moving parts (e.g. coupling) must not
be removed from the machine while in opera-
tion.
•Any leakage of hazardous (e.g. explosive, toxic,
hot) fluids (e.g. from the shaft seal) must be
drained away so as to prevent any risk to per-
sons or the environment. Statutory regulations
are to be complied with.
•Hazards resulting from electricity are to be
prevented (see for example, the VDE Specifica-
tions and the bye-laws of the local power supply
utilities).
•The pumps are only secured safely if properly
attached to the floor or top of the tank.
3.6 Safety instructions relevant for mainte-
nance, inspection and assembly work
Any work on the machine shall only be performed
when it is at a standstill, it being imperative that the
procedure for shutting down the machine described
in this manual be followed.
Pumps and pump units which convey hazardous
media must be decontaminated.
On completion of work all safety and protective
facilities must be re-installed and made operative
again.
Prior to restarting the machine, the instructions
listed under “Start up” are to be observed.
Type
Max. del.
pressure
bar / spec.
weight 1
Max. del.
volume
l/min
Height1)
H mm
Pipe con-
nection1)
G
Weight
kg
Power
50 / 60 Hz
kW
Noise
level2)
dBA / 50 Hz
KC60
4.6
45
309
G ¾
11
0.92 / 1.06
65
1) Dimensions in accordance with page 4
2) Noise emissions measured in accordance with DIN 45635 at a distance of 1 m
The motor is surface-cooled and compliant with
DIN IEC 34 and EN 60034 (protection degree IP 55).

BE7100 Edition 12/2022 Page 4 of 11
3.7 Signs on the pump
It is imperative that signs affixed to the machine,
e.g.:
•arrow indicating the direction of rotation
•symbols indicating fluid connections
be observed and kept legible.
3.8 Unauthorized alterations and production
of spare parts
Any modification may be made to the machine only
after consultation with the manufacturer. Using
spare parts and accessories authorized by the
manufacturer is in the interest of safety. Use of
other parts may exempt the manufacturer from any
liability.
4 Transport and storage
Protect the pump against damage when transport-
ing. The pumps may only be transported in a hori-
zontal position.
Pumps must be drained prior to their storage.
Store pump in dry and protected areas and protect
it against penetration of foreign bodies.
Always store pump above the freezing point!
5 Installation and Connection
5.1 Mechanical installation
The pumps can be mounted horizontally or vertical-
ly. Be sure that the pipe connections are on the top
in the case of horizontal installation. For vertical
installation the pump unit must be lower than the
motor.
Pumps must be mounted securely. Piping, tank and
pumps must be mounted without any tension.
The suction and pressure connections are marked
with arrows of the pump body.
To obtain the full flow rate it is recommended to
choose for the pipework the nominal bore diameter
of the pumps cross section for connection. There-
fore pipe bends should be used, not pipe angles!
The pipework must be qualified for occurring hy-
draulic pressure.
ATTENTION
Pay attention of the max. tightening torque for
piping connection
Type
Pipe
connection
Brass
KC60
G ¾
40 Nm
When installed the space around the pump
must be large enough to provide sufficient
cooling of the motor.
Do not prop up the pressure line via the joining
socket.
Start up the pump only if it is connected to the
tank or to the piping!
KC60

BE7100 Edition 12/2022 Page 5 of 11
5.2 Electric wiring
All service work must be carried out by quali-
fied service personnel. Pump must be discon-
nected from the power source and all rotating
parts must stand still. Reassure that pump is
disconnected from power source and cannot be
switched on. Verify that there is no voltage at
the terminal board!
According to the European Standard EN809 a
motor overload must be installed and properly set
to the full load amps stated on the pump name
plate.
It is the responsibility of the machine operator to
decide whether or not an additional emergency
switch must be installed.
5.2.1 Circuit
Tension voltage and frequency must correspond
with the shown specification on the nameplate.
The pump must be wired so that a solid long term
electrical connection is ensured. Establish a solid
ground connection.
The electrical wiring must be performed accord-
ing to the wiring diagram shown inside the
terminal box cover. (Please see above sample
wiring diagrams)
Wiring diagram e.g.
There may be no foreign objects such as dirt,
particles or humidity inside the terminal board.
Mount terminal board cover to motor tight against
dust and humidity and close up all unused wiring
ports.
ATTENTION
When Variable Frequency Drives are used interfer-
ing signals might occur.
Non-sinus shaped supply voltage from a variable
frequency drive might result in elevated motor
temperatures.
6 Start up / Shut down
6.1 Start up
ATTENTION
Switch off at the mains.
After connection the electrical wires, close the
terminal box. Briefly start the motor (max. 30 sec.)
and check the rotation according to the arrow on
the top of the motor.
If the direction is incorrect change over two of the
power leads.
6.2 Shut down
All service work must be carried out by qualified
service personnel. Pump must be disconnected
from the power source and all rotating parts must
stand still. Reassure that pump is disconnected
from power source and cannot be switched on.
Verify that there is no voltage at the terminal board!
Open terminal box and disconnect the power leads.
Empty out the pump.
7 Operation
Liquid level
Filling of the pump: The pumps are self-priming
after initial filling.
Suction height is 2 m without check valve and 6 m
with check valve.
Pump must be protected from contamination.
If the pump should lock up and cease, shut
pump down (see 6.2) and disconnect from
power supply. Pump must be uninstalled and
removed from the system prior to its repair.
8 Servicing and Maintenance
ATTENTION
The surface of the motor must be kept free of dirt.
The motor shaft is spinning in permanently greased
ball bearings (with special grease and increased
bearing play) and does not require any special
maintenance.
Star connection
3 x 400 V, 50 Hz
resp. 380-415 V, 50 Hz
Delta connection
3 x 230 V, 50 Hz
resp. 220-240 V, 50 Hz

BE7100 Edition 12/2022 Page 6 of 11
9 Trouble shooter’s guide
Fault
Cause
Remedy
Motor does not start, no motor
noise
At least two of the power supply
leads have failed
Overload has tripped
Check fuses, terminals and supply
leads .
Inspect overload
Motor does not start, humming noise
One of the supply leads has failed
Impeller faulty
Motor bearing faulty
See above
Replace impeller
Replace bearing
Overload trips
Pump locked up mechanically
High on/of cycling frequency
Inspect pump hydraulics
Check application
Power consumption is too high
Wrong direction of rotation of
impeller
Lime or other deposits
mechanical friction
See above
Clean pump mechanism
repair pump
Motor overheats
High on/off cycling frequency
Wrong power supply (voltage or
cycles)
Insufficient cooling
See above
Power supply must correspond with
name plate rating
Check air flow at motor fan
Pump does not pump
liquid level too low
Pump mechanism faulty
Pipe blocked
Fill up liquid
replace pump mechanism
Clean pipe
The pump does not sucking
Suction pipe leaking
Suction height to high
Air cannot escape from the dis-
charge pipe
No fluid in pump
Seal suction pipe
Place pump at lower level or move
suction tank up
Inspect, check valve for leaks and
refill pump.
Refill pump
Insufficient flow and pressure
Wrong direction of rotation of
impeller
Pump mechanism silted up
Worn pump mechanism
Change over two power supply
leads
Clean pump mechanism
Replace pump mechanism
Incorrect flow or pressure
Wrong power supply (voltage or
cycles)
Power supply must correspond with
name plate rating
Running noise/Vibration
Foreign objects in pump end
Impeller damaged
Bearing/Bushing broken
Cavitation
Remove foreign objects
Replace impeller
Replace bearing/bushing
Reduction of pump on pressure
side

BE7100 Edition 12/2022 Page 7 of 11
10Spare part
10.1 Spare part list for the miniature
centrifugal pumps series KC60
10.2 Indications to the spare part order
Spare parts are available from the supplier.
Standard commercially available parts are to be
purchased in accordance with the model type.
The ordering of spare parts should contain the
following details:
1. Pumptype
e.g. KC60
2. Pump No.
e.g. 0120237100
The date of the construction year is a compo-
nent of the pumps type number.
3. Voltage, Frequency and Power
Take item 1, 2 and 3 from the nameplate
4. Spare part with item No.
e.g. Impeller item No. 6
Item Description
1 Stator with terminal board
2 End shield
3 Thing annexed
4 Canal cover
5 Intake cover
6 Impeller
7 End shield
8 Terminal box
9 Shaft with rotor
10 Fan
11 Fan cover
12 Stator base
13 Stud bolt with bond
14 Socket head cap screw DIN 84
15 Slotted cheese head screw DIN 912
Item Description
16 Hexagon head cap screw DIN 931
17 Spring washer DIN 127
18 Spring washer DIN 127
19 Woodruff key DIN 6888
20 Ball bearing DIN 625
21 Parallel pin DIN 7
22 Locking ring DIN 472
23 Rotary shaft seal
24 Supporting ring
25 Splash ring
26 Gasket
27 Gasket
28 O-ring
29 Retaining ring
30 Rotary shaft seal
In the special version –UO12, a rotary mechanical seal is used instead in positions 23 and 24.
Tightening torques for screwed connections
Thread - 
M4
M5
Strength
classes
4.8
4.8
A2-80
8.8
Tightening
torque (Nm)
1Nm
Item 14
2Nm
Item 13
3 Nm
Item 16
2 Nm
Item 15

BE7100 Edition 12/2022 Page 8 of 11
11Repair
Brinkmann miniature centrifugal pumps
series KC60

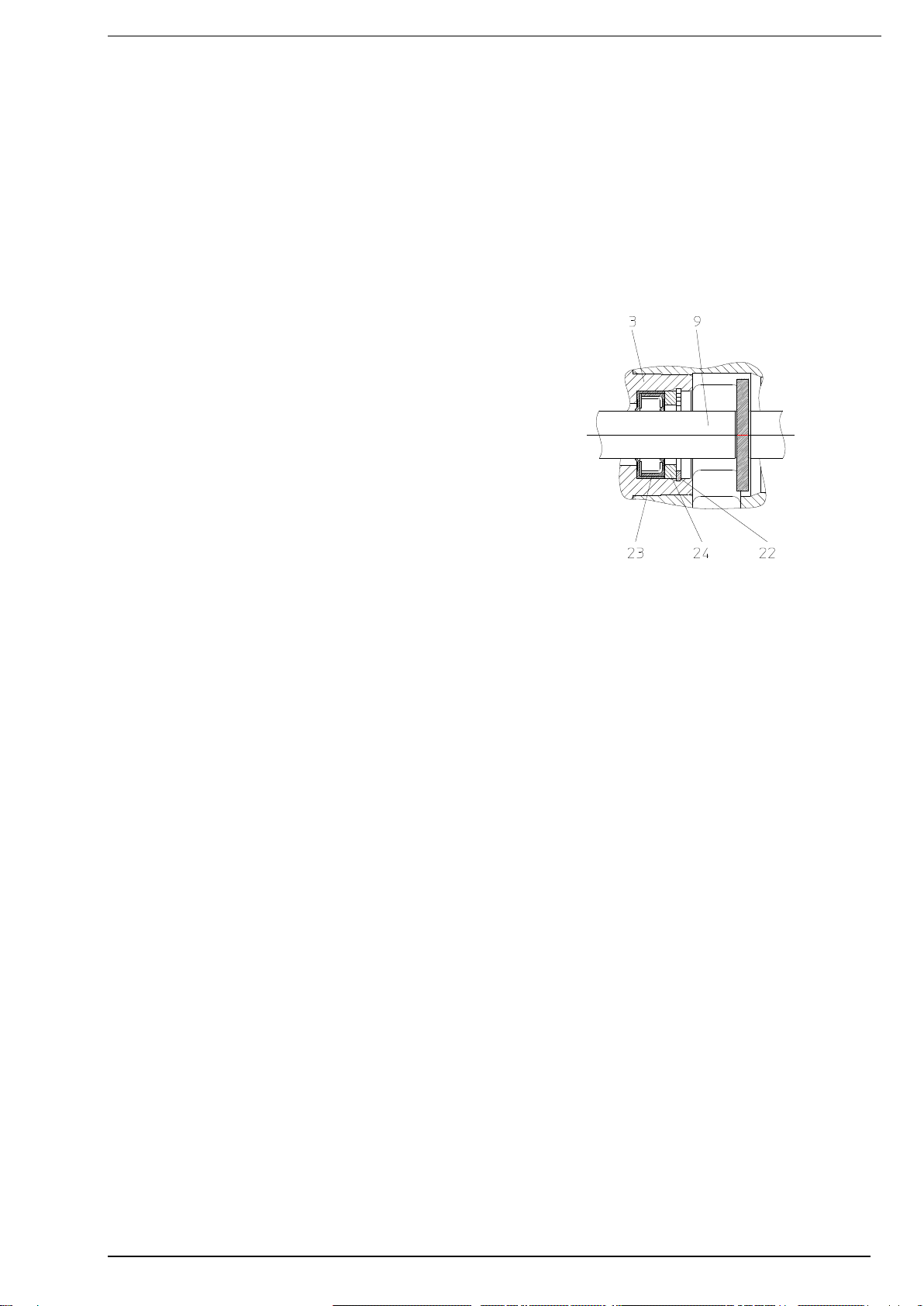

11.1 Exchange the rotary shaft seal:
1) Disconnect the pump from the power supply.
Check up the marks on the pump unit.
2) Loosen hexagon head cap screws (16).
3) Loosen and remove intake cover (5) from canal
cover (4). Remove the O-ring (28).
4) Push impeller (6) with help of two screwdrives
from the shaft (9). Set the screwdrivers between
the impeller (6) and the canal cover (4).
5) Remove woodruff key (19) from the shaft (9)
and remove the canal cover (4). Remove the
gasket (27).
6) Remove fan cover (11), retaining ring (29) and
fan (10) from shaft (9). Remove parallel pin (21).
7) Loosen stud bolts (13) and remove stator (1)
with end shield (7).
8) Push shaft (9) with ball bearing (20) out of end
shield (2).
9) Take locking ring (22) and the supporting ring
(24) out of thing annexed (3).
10)Remove rotary shaft seal (23).
Clean pump components before re-assembling.
Position of the rotary shaft seal (23) may be ex-
changed with the supporting ring (24), if neces-
sary, to ensure contact of the new sealing lip
with unused surface.
11)Fill the rotary shaft seal (23) with grease (1/3 of
the volume) and press it, with a drift, flat into the
thing annexed (3).
12)The remaining assembly occurs in reverse order
of item 3) to 9). If required, exchange the O-ring
(28), gaskets (27) and impeller (6).
13)Screw the hexagon head cap screws (16).
Check up the tightening torque!
14)After having completed the assembly, possible
distortions can be eliminated by light tap upon
intake cover (5) with a plastic hammer.
15)Reconnect pump to the electrical supply. Fill up
the pump!
Check direction of rotation!

BE7100 Edition 12/2022 Page 9 of 11
Brinkmann miniature centrifugal pumps
series KC60-UO12 (special make)

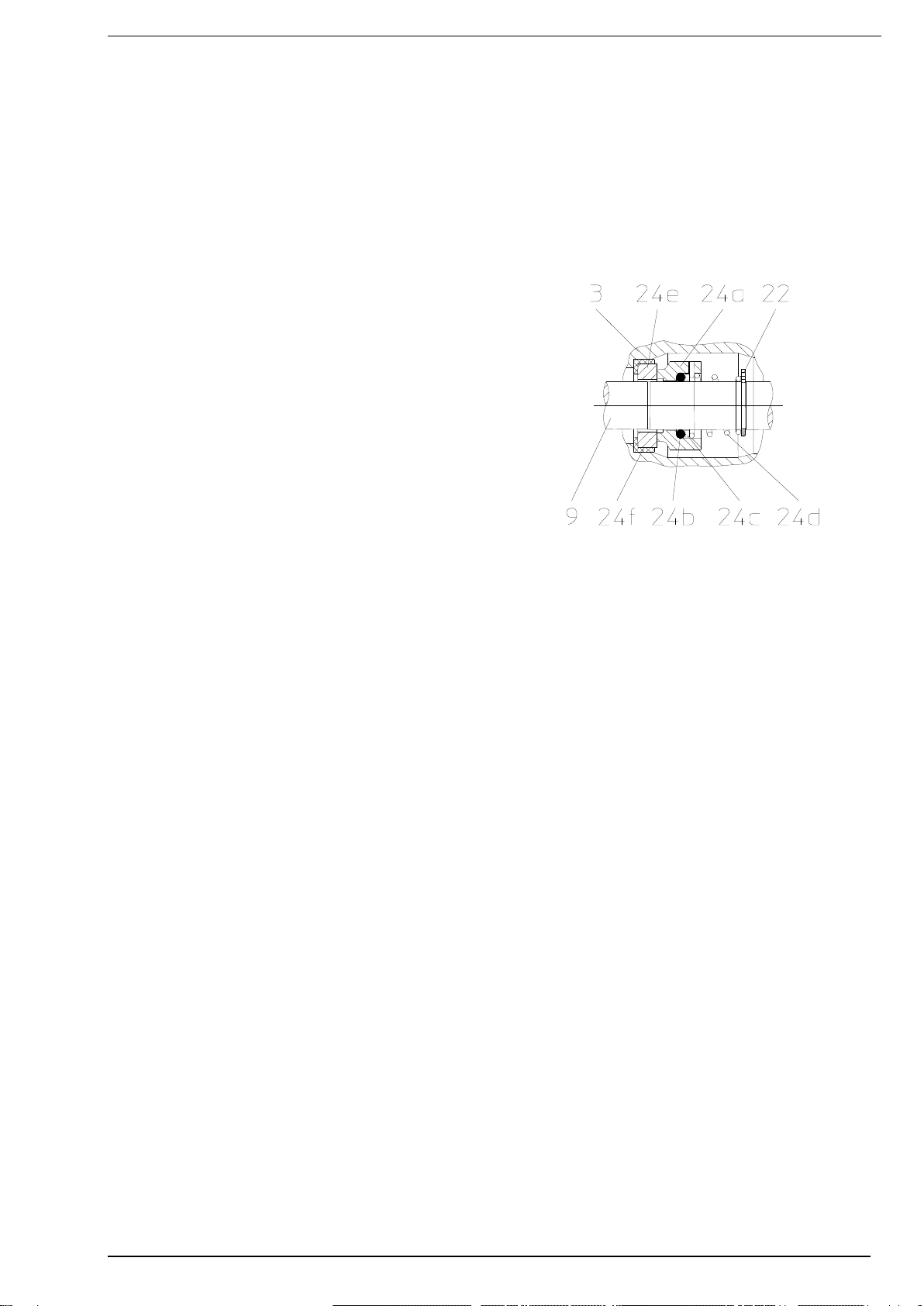

11.2 Exchange the rotary mechanical seal:
1) Disconnect the pump from the power supply.
Check up the marks on the pump unit.
2) Loosen hexagon head cap screws (16).
3) Loosen and remove intake cover (5) from canal
cover (4). Remove the O-ring (28).
4) Push impeller (6) with help of two screwdrives
from the shaft (9). Set the screwdrivers between
the impeller (6) and the canal cover (4).
5) Remove woodruff key (19) from the shaft (9)
and remove the canal cover (4). Remove the
gasket (27). Remove locking ring (22) and the
rotating mechanical seal assembly (24a-24d).
6) Remove the stationary mechanical seal part
(24e-24f) from the thing annexed (3).
Clean pump parts and seat surfaces of all seals!
The rotary mechanical seal (24) shoud be re-
placed completely. If required, renew gasket
(27), O-ring (28) and impeller (6).
7) Fit new rotary mechanical seal:
The running surfaces of the rotary mechanical
seal must be free from dirt and grease.
Wet the packing (24f) with water containing
washing-up liquid and press the stationary rotary
mechanical seal part (24e-24f) into the thing an-
nexed (3). Push the rotary mechanical seal part
(24a-24d) onto the pump shaft (9) and secure
with locking ring (22).
8) The remaining assembly occurs in reverse order
of item 3) to 5).
9) Screw the hexagon head cap screws (16).
Check up the tightening torque!
10) After having completed the assembly, possible
distortions can be eliminated by light tap upon
intake cover (5) with a plastic hammer.
11) Reconnect pump to the electrical supply. Fill
up the pump!
Check direction of rotation!
12Disposal
When disposing of the pump or the packaging
materials the local and national regulation for
proper disposal must be complied with.
Prior to its disposal, the pump must be completely
drained and decontaminated if necessary.

BE7100 Edition 12/2022 Page 10 of 11
13Declarations of conformity
13.1 UK declaration of conformity
UK declaration of conformity
Manufacturer
Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2
D-58791 Werdohl
Germany
This declaration of conformity is issued under the sole responsibility of Brinkmann Pumps and belongs to the
following product.
Product name
Miniature Centrifugal Pumps
Type KC60
The named product described above complies with the following statutory requirements of United Kingdom:
UK SI 2008 No. 1597 The Supply of Machinery (Safety) Regulations 2008
UK SI 2016 No. 1091 The Electromagnetic Compatibility Regulations 2016
UK SI 2012 No. 3032 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic
Equipment Regulations 2012
The following exceptions in accordance with table 1, “Table of exempted appli-
cations”are claimed: No.12 (6a), No.15 (6b), No.18 (6C)
The following designated standards and technical specification have been applied:
EN 809:1998+A1:2009+AC:2010 EN ISO 12100:2010 EN 60204-1:2018
EN 61000-3-2:2014 EN 61000-3-3:2013 EN 61000-6-2:2005/AC:2005
EN 61000-6-3:2007/A1:2011/AC:2012 EN IEC 63000:2018
Additionally the following standard has been applied:
EN 60034-1 :2010/AC :2010
The instructions contained in the operating manual for installation and start up the pump have to be followed.
Brinkmann Pumpen, K. H. Brinkmann GmbH & Co.
KG
Werdohl, 02.12.2022
...............................................................................................
Dr.-Ing. Dirk Wenderott
Chief Product Officer (CPO)
Head of Engineering
Dr. H. Abou Dayé
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2, D-58791 Werdohl
Representative of documentation

BE7100 Edition 12/2022 Page 11 of 11
13.2 EC declaration of conformity
DEUTSCH / ENGLISH /FRANÇAIS / ESPAÑOL
EG-Konformitätserklärung
EC declaration of conformity / Déclaration de conformité CE / Declaração de conformidade CE
Hersteller / Manufacturer / Constructeur / Fabricante
Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2, D-58791 Werdohl
Produktbezeichnung / Product name / Désignation du produit / Designação do produto
Kleinkreiselpumpen / Miniature Centrifugal Pumps / Petites pompes centrifuges / Bombas centrifugas
Typ / Type / Tipo KC60
Das bezeichnete Produkt stimmt mit den folgenden Richtlinien des Rates zur Angleichung der Rechtsvorschriften der
EG-Mitgliedsstaaten überein:
The named product conforms to the following Council Directives on approximation of laws of the EEC Member States:
Le produit sus-mentionné est conforme aux Directives du Conseil concernant le rapprochement des législations des
Etats membres CEE:
O produto designado cumpre as Diretivas do Conselho relativas à aproximação das legislações
dos Estados-Membros, nomeadamente:
2006/42/EG Richtlinie für Maschinen
2006/42/EC Council Directive for machinery
2006/42/CE Directive du Conseil pour les machines
2006/42/CE Diretiva respeitante às máquinas
2014/30/EU Richtlinie für elektromagnetische Verträglichkeit
2014/30/EU Council Directive for Electromagnetic compatibility
2014/30/UE Directive du Conseil pour Compatibilité électromagnétique
2014/30/UE Diretiva da Compatibilidade Eletromagnética
2011/65/EU und 2015/863/EU RoHS Richtlinien
2011/65/EU and 2015/863/EU RoHS Directives
2011/65/UE et 2015/863/UE Directives RoHS
2011/65/UE e 2015/863/UE Diretivas RoHS
Folgende Ausnahmen gem. Anhang III RoHS (2011/65/EU) werden in Anspruch genommen: 6a, 6b, 6c.
The following exceptions in accordance with appendix III RoHS (2011/65/ EU) are claimed: 6a, 6b, 6c.
Les exceptions suivantes selon l'annexe III RoHS (2011 / 65 / UE) sont revendiquées : 6a, 6b, 6c.
É feito uso das seguintes exceções de acordo com o Anexo III da Diretiva RoHS (2011/65/UE): 6a, 6b, 6c.
Hinsichtlich der elektrischen Gefahren wurden gemäß Anhang I Nr. 1.5.1 der Maschinenrichtlinie 2006/42/EG die Schutzziele der
Niederspannungsrichtlinie 2014/35/EU eingehalten.
With respect to potential electrical hazards as stated in appendix І No. 1.5.1 of the machine guide lines 2006/42/EC all safety
protection goals are met according to the low voltage guide lines 2014/35/EU.
Conformément à l'annexe I N° 1.5.1 de la Directive "Machines" (2006/42/CE) les objectifs de sécurité relatifs au
matériel électrique de la Directive "Basse Tension" 2014/35/UE ont été respectés.
No respeitante aos perigos elétricos, indicados no anexo I N.º 1.5.1 da diretiva respeitante às máquinas 2006/42/CE, foram
respeitadas as metas de proteção da diretiva de baixa tensão 2014/35/UE.
Die Übereinstimmung mit den Vorschriften dieser Richtlinien wird nachgewiesen durch die vollständige Einhaltung folgender
Normen:
Conformity with the requirements of this Directives is testified by complete adherence to the following standards:
La conformité aux prescriptions de ces Directives est démontrée par la conformité intégrale avec les normes suivantes:
A conformidade com os regulamentos constantes destas diretivas é comprovada pelo total cumprimento das seguintes normas:
HarmonisierteEurop.Normen /Harmonised Europ.Standards/ Normeseurop.harmonisées/ Normaseuropeias Harmonizadas
EN 809 :1998+A1 :2009+AC :2010 EN ISO 12100 :2010 EN 60204-1 :2018 EN 61000-3-2 :2014 EN 61000-3-3 :2013
EN 61000-6-2 :2005/AC :2005 EN 61000-6-3 :2007/A1 :2011/AC :2012 EN IEC 63000 :2018
Nationale Normen / National Standards / Normes nationales / Normas nacionais: EN 60034-1 :2010/AC :2010
Die Hinweise in der Betriebsanleitung für den Einbau und die Inbetriebnahme der Pumpe sind zu beachten.
The instructions contained in the operating manual for installation and start up the pump have to be followed.
Les indications d’installation / montage et de mise en service de la pompe prévues dans l’instruction d’emploi doivent
être suivies.
Observar as instruções do manual de operação para a montagem e colocação em funcionamento da bomba.
Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG
Werdohl, 02.12.2022
............................................................................
Dr.-Ing. Dirk Wenderott
Chief Product Officer (CPO)
Head of Engineering
Dr. H. Abou Dayé
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2, D-58791 Werdohl
Dokumentationsbevollmächtigter / Representative of
documentation/ Mandataire de documentation /
Responsável pela documentação
