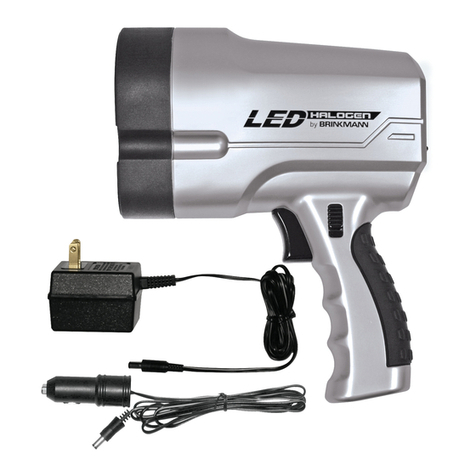

Brinkmann LED Halogen rechargeable System manual

Brinkmann

Brinkmann LED Halogen rechargeable System manual

Brinkmann Q Beam Max Million III System manual

Brinkmann

Brinkmann Q Beam Max Million III System manual

Brinkmann Q-Beam User manual

Brinkmann

Brinkmann Q-Beam User manual

Popular Flashlight manuals by other brands

LIVARNO LUX LAH 55 A2 operating instructions

LIVARNO

LIVARNO LUX LAH 55 A2 operating instructions

Gama Sonic 23i60065 instruction manual

Gama Sonic

Gama Sonic 23i60065 instruction manual

Avacom AVACOM Ain user manual

Avacom

Avacom AVACOM Ain user manual

Ryobi RFL180M Original instructions

Ryobi

Ryobi RFL180M Original instructions

RIB SPARK ACG7061 quick start guide

RIB

RIB SPARK ACG7061 quick start guide

Abicor Binzel MB EVO PRO Series operating instructions

Abicor Binzel

Abicor Binzel MB EVO PRO Series operating instructions

PELI 7610 instruction manual

PELI

PELI 7610 instruction manual

Black & Decker FSL18 manual

Black & Decker

Black & Decker FSL18 manual

Black & Decker 9506 instruction manual

Black & Decker

Black & Decker 9506 instruction manual

Berner 341709 instruction manual

Berner

Berner 341709 instruction manual

PELI 3415 Zone 0 operating instructions

PELI

PELI 3415 Zone 0 operating instructions

ADC Adlite Pro Use, Care and Maintenance

ADC

ADC Adlite Pro Use, Care and Maintenance

tiki Cabos Warnings and Instructions

tiki

tiki Cabos Warnings and Instructions

Fervi 0338 Operation and maintenance manual

Fervi

Fervi 0338 Operation and maintenance manual

Milwaukee M18 IL Original instructions

Milwaukee

Milwaukee M18 IL Original instructions

Spectronics Spectroline LeakTracker SPI-LT instruction manual

Spectronics

Spectronics Spectroline LeakTracker SPI-LT instruction manual

Larson Electronics SLEDB-110V-M instruction manual

Larson Electronics

Larson Electronics SLEDB-110V-M instruction manual

vulta hurricane 262 lumen fg-e15 user manual

vulta

vulta hurricane 262 lumen fg-e15 user manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

8
7
OWNER’S MANUAL &
OPERATING INSTRUCTIONS
WARNING
READ AND FOLLOW ALL WARNINGS
AND INSTRUCTIONS IN THIS
MANUAL TO AVOID PERSONAL
INJURY OR PROPERTY DAMAGE.
For one-year from date of purchase, The Brinkmann
Corporation warrants the Underwater Fishing Light
against defects due to workmanship or materials to the
original purchaser. The Brinkmann Corporation’s
obligations under this warranty are limited to the
following guidelines:
• This warranty does not extend to the bulb.
• This warranty does not cover lights that have been
altered or damaged due to: normal wear, abuse,
improper maintenance, improper use, disassembly
of parts and/or attempted repair by anyone other
than an authorized employee of The Brinkmann
Corporation.
• This warranty does not cover surface scratches or
weathering as this is considered normal wear.
• Warranty service is limited to repair or replacement
of lights which prove defective under normal use and
which upon examination shall indicate to
Brinkmann’s satisfaction, they are defective. If
Brinkmann confirms the defect and approves the
claim, Brinkmann will elect to repair or replace the
light as covered by the terms of this warranty.
• This warranty extends to the original purchaser only
and is not transferable or assignable to subsequent
purchasers.
The Brinkmann Corporation requires reasonable proof
of purchase. Therefore, we strongly recommend that
you retain your sales receipt or invoice. To obtain
repair or replacement of your Underwater Fishing Light
under the terms of this warranty, please call Customer
Service Department at 1-800-527-0717 for a Return
Authorization Number and further instructions. A
receipt will be required. A Return Authorization
Number must be clearly marked on the outside of the
box. Underwater Fishing Lights returned to Brinkmann
must include your name, address and telephone
number. Please make sure the light is properly packed,
postage prepaid, and insured. The Brinkmann
Corporation will not be responsible for any Underwater
Fishing Lights forwarded to us without a Return
Authorization Number.
EXCEPT AS ABOVE STATED, THE BRINKMANN
CORPORATION MAKES NO OTHER EXPRESS
WARRANTY.
THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE
LIMITED IN DURATION TO 1-YEAR FROM THE DATE
OF PURCHASE. SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU.
ANY LIABILITY FOR INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING FROM THE
FAILURE OF THE UNDERWATER FISHING LIGHT TO
COMPLY WITH THIS WARRANTY OR ANY IMPLIED
WARRANTY IS EXCLUDED. CUSTOMER
ACKNOWLEDGES THAT THE PURCHASE PRICE
CHARGED IS BASED UPON THE LIMITATIONS
CONTAINED IN THE WARRANTY SET OUT ABOVE.
SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,
AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH
VARY FROM STATE TO STATE.
ONE-YEAR LIMITED WARRANTY
Owner’s Manual for Models
800-1516-0
800-1518-0
140-1516-0
6/01
Underwater fishing light
Weight snap
Weight snap loop
Battery clips
1
1
2
4
2
3
4
5
Transformers
16’ Cord
22’ Security line
Plastic tie wraps
5
6
7
8
6
3
Q-Beam UW Fishing-small size 6/11/01 5:19 PM Page 1
OPERATING INSTRUCTIONS
READ AND FOLLOW ALL SAFETY WARNINGS AND
INSTRUCTIONS IN THIS OWNER’S MANUAL
BEFORE OPERATING UNDERWATER FISHING LIGHT.
Step 1: Attach a fishing weight to weight
snap on bottom of fishing light to submerge
in water. Using lighter weight will allow you to
adjust the depth of the fishing light.
NOTE: Weight required to fully submerge
fishing light in water:
Model 800-1516-0 - 4 oz.
Model 800-1518-0 - 8 oz.
Step 2: Tie the security line to weight snap
loop on bottom of fishing light. Run the
security line along the 16’ light cord
and secure in various places using
plastic tie wraps.
WARNING: Always use security line and
plastic tie wraps to secure fishing light to
boat or dock. Battery clips attached to battery
terminals will not secure fishing light.
Step 3: Turn engine off before placing light in
water. To activate, connect red clip to positive
(+) battery post, then connect the black clip
to negative (–) battery post, chassis or
engine block.
WARNING: If boat is an inboard, the blower
must be activated to remove combustible
fumes prior to connecting light.
WARNING: Keep battery clips dry and out of
water at all times.
Step 4: Lower fishing light into water to
desired depth, secure light to boat or dock
using the security line.
Step 5: To deactivate, remove black clip from
negative (–) battery post, chassis or engine
block, then remove the red clip from positive
(+) battery post.
WARNING: Do not attempt to make your
own repairs or adjustments.
Helpful Tips
• Cover the battery clips with a light coating
of marine grade grease to help protect
metal parts from corrosion.
• Hang your fishing light above picnic table,
campsite or work area for use as an area
light. Green light will not attract bugs.
• Keep battery clips dry and out of water
at all times.
• Do not operate fishing light if there is
water in the globe or if the light bubbles
when placed in water. Fog inside the
globe without the presence of water is
normal.
• Do not allow children to handle or
operate this fishing light.
• Do not operate in close proximity of
combustible or flammable materials.
• Do not attempt to operate fishing light if
cord, plug, bulb, lens or any part of the
light is damaged or corroded.
• Prior to connecting the fishing light to a
battery of an inboard boat, the blower
must be activated to remove
combustible fumes.
• Always use the security line and plastic
tie wraps to secure the fishing light to
boat or dock. Battery clips attached to
battery terminals will not secure the
fishing light.
• Do not attempt to make your own
repairs or adjustments.
• Do not use this product for other than
its intended use.
USE CAUTION AND COMMON
SENSE WHEN OPERATING
THIS UNDERWATER
FISHING LIGHT.
FAILURE TO ADHERE TO THE
SAFETY WARNINGS AND
GUIDELINES IN THIS MANUAL
COULD RESULT IN BODILY INJURY
OR PROPERTY DAMAGE.
SAVE THIS MANUAL
FOR FUTURE REFERENCE.
IMPORTANT SAFETY
WARNINGS
READ AND FOLLOW ALL SAFETY WARNINGS AND
INSTRUCTIONS IN THE OWNER’S MANUAL
BEFORE OPERATING THIS UNDERWATER FISHING LIGHT.
WARNING
Security Line
Q-Beam UW Fishing-small size 6/11/01 5:19 PM Page 2
