Brinly STS-42BHDK User manual
1018189 Rev. C
OWNER'S MANUAL
Important: This manual contains information for the safety of persons
and property. Read it carefully before assembly and operation
of the equipment!
Visit us on the web!
www.brinly.com
LAWN SWEEPER
MODEL:
STS-42BHDK
•Assembly
•Installation
•Operation
•RepairParts
For use with Riders and
Lawn/Garden Tractors
USPATENT6,640,532
1018189 Rev. C 2
CONGRATULATIONSonthepurchaseofyournewBrinly-HardySweeper!YourSweeperhasbeendesigned,engineeredand
manufactured to give you the best possible dependability and performance.
Shouldyouexperienceanyproblemyoucannoteasilyremedy,pleasedonothesitatetocontactourknowledgeablecustomer
servicedepartmenttoll-freeat1-877-728-8224.Wehavecompetent,welltrainedtechnicianstohelpyouwiththeassemblyand
use of your Sweeper.
SAFETY LABELS AND NOTATION
=================================================================
This symbol will help to point out important safety precautions
throughout this manual. It means: ATTENTION! BECOME ALERT!
Your safety is involved.
The safety labels shown in this section are placed in important areas on your
product to draw attention to potential safety hazards.
Onyourproductsafetylabels,thewordsDANGER,WARNINGandCAUTION
are used with the safety-alert symbol. DANGER identifies the most serious
hazards.
The operator’s manual also explains any potential safety hazards whenever
necessary in special safety messages that are identified with the word,
CAUTION,andthesafety-alertsymbol.
• DO NOTwrapthepullropearoundyourwrists,ngersorANYbodyparts.
• DO NOT use the pull rope while the towing vehicle is moving.
• Attachthepullropeasdirectedonpage14ofthismanual.
• Avoidoverllingthehamper.Heavyloadsaremoredifculttodump.
• Parktowingvehicleandsettheparkingbrakebeforedumpingmaterial.
• Usethehandlethathasbeenprovided.
• AFTER DUMPING THE HAMPER:
Alwaysmakesuretofullysecurethepull
handletothebackofthetowingvehicleusingtheHookandLooptape.
HAMPER PULL ROPE
While in use, the pull rope can be under
some strong tension. To prevent any potential
injuryordigitalamputation,pleasebeawareofthefollowing:
CUSTOMER RESPONSIBILITIES
-Pleaseread&retainthismanual.TheinstructionswillenabletoassembleandmaintainyourSweeperproperly.
-PleasecarefullyreadandobservetheSAFETYSECTION of this manual.
- Follow a regular schedule in maintaining and caring for your Brinly-Hardy Sweeper.
TABLE OF CONTENTS
================================
Safety ..................2-3
Component View and
Reference List ............4-5
Assembly ...............6-14
Operation ..............15-18
Service .................. 19
Limited Warranty ........... 20
SPECIFICATIONS
=====================================
Maximum Towing Speed ........5mph
Hamper Capacity .............20cu.ft.
Maximum
Hamper Weight ..............120lbs.
Empty Weight
withDethatcherAttachment .....102lbs.
Maximum
Towed Weight with
DethatcherAttachment .........222lbs.
REQUIRED TOOLS
FOR ASSEMBLY
=====================================
• 1/2”Wrench(2) •Pliers
• 9/16”Wrench(2) •Gloves
•SafetyGlasses
B-7063
(ToScale)
================================================================================================
INTRODUCTION AND SAFETY
1018189 Rev. C
3
================================================================================================
• Ensurethecombinedweightofthetowingvehicle(towvehicle
weight+operatorweight)isgreaterthanthemaximumtowed
weightofattachment(emptyattachmentweight+weightof
load).
• Donotexceedmaximumtowingcapacityoftowingvehicle.
• Donotexceedthemaximumdrawbarpullratingofthetowing
vehicle.Drawbarpullisthehorizontalforcerequiredtopull
theattachment(includingweightofload).
• Onlytowthisproductinthevehicle’stowmode/speedsetting
orlessthan5mph.Donotexceed5mph.
• Towing speed should always be slow enough to maintain
control. Travel slowly and use caution when traveling over
roughterrain.Avoidholes,rocksandroots.
• Slowdownbeforeyouturnanddonotturnsharply.
• Usewideturninganglestoensuretheattachmentfollowsthe
path of the towing vehicle.
• Do not use attachment on steep slopes. A heavy load
could cause loss of control or overturn attachment and
towing vehicle. Additional weights may need to be added
to your vehicle; check with towing vehicle manufacturer for
recommendations.
• Reducetowedweightwhenoperatingonslopes.
• Keepallmovementonslopesslowandgradual.Donotmake
suddenchangesinspeed,directions,orturning.
• Ifyoustartandstopsuddenlyonhills,youmaylosesteering
control or the towing vehicle may tip. Do not start or stop
suddenly when going uphill or downhill. Avoid uphill starts.
• Slowdownanduseextracareonhillsides.Turfconditionscan
affect vehicle stability. Use extreme caution while operating
near drop-offs.
• Donotdriveclosetocreeks,ditchesandpublichighways.
• Watchoutfortrafcwhencrossingnearroadways.
• Usecarewhenloadingorunloadingthevehicleintoatrailer
ortruck.
• Theattachmentcanobstructtheviewtotherear.Useextra
care when operating in reverse.
• When reversing, carefully back-up straight to avoid
jackkning. Do not allow towing vehicle wheels to contact
attachmentdrawbar.Damagecouldresult.
• Stoponlevelground,disengagedrives,settheparkingbrake,
and shut off engine before leaving the operator’s position for
any reason including emptying the attachment.
• Usethisattachmentforintendedpurposeonly.
• Thisattachmentisintendedforuseinlawncareandhome
applications.Donottowbehindavehicleoronahighwayor
inanyhighspeedapplications.Donottowatspeedshigher
than maximum recommended towing speed.
• Donottowthisproductbehindamotorvehiclesuchasacar
ortruck.
• Alwayswear substantial footwear.Donotwear loosetting
clothing that can get caught in moving parts.
• Keepyoureyesandmindonyourtowingvehicle,attachment
and area being covered. Do not let other interests distract
you.
• Stayalertforholesandotherhiddenhazardsintheterrain.
• Keep the towing vehicle and attachment in good operating
conditionandkeepsafetydevicesinplace.
• The towing vehicle and attachment should be stopped and
inspected for damage after striking a foreign object. Any
damage should be repaired before restarting and operating
the equipment.
• Keep all parts in good condition and properly installed. Fix
damagedparts immediately.Replace worn orbrokenparts.
Replace all worn or damaged safety and instruction decals.
Keepallnuts,boltsandscrewstight.
• Donotmodifytheattachmentorsafetydevices.Unauthorized
modicationstothetowingvehicleorattachmentmayimpair
itsfunction,safetyandvoidthewarranty.
TOWING VEHICLE AND TOWING SAFELY
• Know your towing vehicle controls and how to stop safely.
READYOURTOWINGVEHICLEOWNER’SMANUALbefore
operating.
• Check the towing vehicle brake action before you operate.
Adjustorservicebrakesasnecessary.
• Stoppingdistanceincreaseswithspeedandweightoftowed
load. Travel slowly and allow extra time and distance to stop.
• Useonlyapprovedhitches.Towthisattachmentonlywitha
towingvehicle thathasahitch designedfortowing. Donot
connect this attachment except at the approved hitch point.
• Follow the tow vehicle manufacture’s recommendations for
weight limits for towed equipment and towing on slopes. Use
counterweights or wheel weights as described in the towing
vehicle operator’s manual.
• Donotshifttoneutralandcoastdownhill.
• Donot allow childrentooperate thetowingvehicle. Donot
allow adults to operate the towing vehicle without proper
instruction or without having read the owner’s manual.
PROTECT THOSE AROUND YOU
• Beforeyouoperateanyfeatureofthisattachmentortowing
vehicle,observeyoursurroundingsandlookforbystanders.
• Keepchildren,bystandersandpetsatasafedistanceaway
while operating this or any attachment.
• Usecarewhenreversing.Beforeyoubackup,lookcarefully
behind for bystanders.
KEEP RIDERS OFF TOWED ATTACHMENT
AND TOWING VEHICLE
• Donotcarrypassengers.
• Do not let anyone, especially children, ride in/on this
attachment, the towing vehicle or hitch bracket. Riders are
subjecttoinjurysuchasbeingstruckbyforeignobjectand/or
beingthrownoffduringsuddenstarts,stopsandturns.
Riders may also obstruct the operator’s view resulting in this
attachment being operated in an unsafe manner.
GENERAL NOTES
(Operation)
CAUTION SHOULD BE TAKEN WHEN TOWINGAND/OR USING ANYATTACHMENT.
This attachment combined with the weight distribution, turning radius, and speed of
towing vehicle can result in severe injury or death to operator, damage to towing vehicle,
and/or attachment if not used properly. Follow all towing safety precautions noted in the
towing vehicle owner’s manual, including the following precautions:
1018189 Rev. C 4
R-2251-10
R-2254-10
R-2270-10
1018198
Hitch Clevis Assembly
Tow Tube
Lift Handle
Logo Decal
1
2
1
1
46
47
48
49
50
51
52
53
54
55
56
57
58
59
62
63
64
65
30M1200P
B-1675P
B-983
R-2303
R-2304
R-618
R-2443-10
R-2194-10
R-2195
R-2426
R-2300-10
R-2301-10
R-2307
R-2320
11M1024P
2M1036P
B-7063
L-1744
2
2
2
2
1
4
2
2
1
1
2
2
2
2
4
2
1
1
66 1008997 1
67 1009049
Hex Nut, 3/8"
Lock Nut, 3/8"
Hairpin Cotter, Small
Clevis Pin, 5/16" x 1-3/8"
Hamper Pull Rope
Special Washer, 5/16"
Lower Tube
Rear Tube
Hamper Stop Rod
Hamper/Wind Screen
Hamper Side Tube, Upper
Hamper Mount Tube
Hamper Spring Rod
External Retaining Ring, 5/8"
Carriage Bolt, 5/16"x 1-1/2"
Hex Bolt, 5/16" x 2-1/4"
Caution Label
Serial Number Label
Pull Handle
Hook Tape 1
1
2
3
4
11M0808P
2M1012P
B-1673P
B-4786
R-2415-10
R-2288
R-2289
R-2293-1
R-2416
R-2321
F-577
R-2205
50M0624P
R-2281
R-2259-01
R-2261
R-2262
R-2263
R-2485LH
R-2485RH
B-4768
R-2265-TT
R-2280
R-2293-2
R-2306-01
R-2413-10
45M1111P
B-4107
R-2296-10
R-2290-10
B-3805
2M1024P
2M1028P
30M1000P
40M1000P
B-3861
D-146P
R-1882
B-3307-S
2M1040P
Carriage Bolt, ¼" x ½"
Hex Bolt, 5/16" x ¾"
Hex Lock Nut, ¼"
Nylon Insert Lock Nut, 5/16"
Lower Pivot Assembly
Bearing Assembly
Bearing Retainer
Inner Dust Shield
Lift Link
Self-Taping Screw #12x3/8"
"E" Ring, 5/8"
Brush Section
Cotter Pin, 3/16" x 1-1/2"
Brush Holder
Brush Axle
Dowel Pin
Washer, 5/8" I.D. x 1-3/8
Washer, 5/8" I.D. x 7/8"
Drive Pinion, Left Hand
Drive Pinion, Right Hand
5/8" Machinery Bushing
Wheel Asm, Pneumatic
Drive Gear, 60 Tooth
Outer Gear Cover
Wheel Axle
Brush Housing Assembly
5/16" Flat Washer
Vinyl Cap, 1" dia.
Hamper Stop Assembly
Upper Frame Assembly
Spring
Hex Bolt, 5/16" x 1-1/2"
Hex Bolt, 5/16" x 1-3/4"
Hex Nut, 5/16"
Lock Washer, 5/16"
Hitch Pin, ½" dia.
Hairpin Cotter, Large
Flat Grip
Lock Pin
Hex Bolt, 5/16" x 2-1/2"
6
4
6
15
1
2
2
2
1
4
6
6
4
4
1
2
2
2
1
1
4
2
2
2
2
1
4
2
1
1
1
2
1
1
1
1
1
1
1
2
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
68 1017744 Loop Tape 1
PART NO. DESCRIPTION QTY.REF. PART NO. DESCRIPTION QTY.REF.
Tools Required for Assembly:
1/2” Wrench (2)
9/16” Wrench (2)
Pliers
Safety Glasses
Gloves
COMPONENT VIEW AND REFERENCE LIST
================================================================================================
================================================================================================
COMPONENT VIEW AND REFERENCE LIST
1018189 Rev. C
5
PARTS REFERENCE
31
44
48
49
14
16
16
16
22 26
62
62
32
30
17
10
19
11
18
63
40
39
43
35
37
41
42
9
9
3
9
2
7
9
4
8
1
34
12
6
2125
26
13
59
23
15
28
29
27
24
20
64
38
32
32
36
65
================================================================================================
COMPONENT VIEW AND REFERENCE LIST
1018189 Rev. C 6
================================================================================================
ASSEMBLY
53
53
56
56
52
52
9
51
57
33
45
58
58
47
46
54
55 50
66
67
68
53
53
56
56
52
52
9
51
57
33
45
58
58
47
46
54
55 50
66
67
68
1018189 Rev. C
7
================================================================================================
ASSEMBLY
STEP 1
---------------------------------------------------------------------------------
Step 1.
9
5/16" Nylon Lock Nut
Qty. 4
9
62
5/16" x 1-1/2", Carriage Bolt
Qty. 4
62
14
35
31
a) Attach Upper Frame Assembly (35) to
Brush Housing Assembly (31).
b) Assemble Lift Link (14) as shown.
Step 2.
44
39
40
3
a) Preassemble the Lock Pin (44)
to the Lift Handle (3).
39
5/16" Hex Nut
Qty. 1
44
Lock Pin
Qty. 1
40
5/16" Lock Washer
Qty. 1
a. Attachupperframeassembly(35)to
brushhousingassembly(31).
b. Assembleliftlink(14)asshown.
Step 1.
9
5/16" Nylon Lock Nut
Qty. 4
9
62
5/16" x 1-1/2", Carriage Bolt
Qty. 4
62
14
35
31
a) Attach Upper Frame Assembly (35) to
Brush Housing Assembly (31).
b) Assemble Lift Link (14) as shown.
Step 2.
44
39
40
3
a) Preassemble the Lock Pin (44)
to the Lift Handle (3).
39
5/16" Hex Nut
Qty. 1
44
Lock Pin
Qty. 1
40
5/16" Lock Washer
Qty. 1
STEP 2
---------------------------------------------------------------------------------
a. Preassemblethe
lockpin(44)tothe
lifthandle(3).
62
5/16”x1-1/2”
Carriage Bolt
Qty.4
9
5/16”NylonLockNut
Qty.4
39
5/16”HexNut
Qty. 1
44
LockPin
Qty. 1
40
5/16”LockWasher
Qty. 1
1018189 Rev. C 8
Step 2a.
9
5/16" Nylon Lock Nut
Qty. 1
32
5/16" Flat Washer
Qty. 2
36
Spring
Qty. 1
38
36
9
32
32
10
3
a) Assemble Lift Handle (3) to Lift Link (14).
Note orientation of Lift Handle (3) to
Lift Link (14) in picture below.
b) Install Hex Bolt (38) as shown. Add
Washer (32) and install handle in middle
hole. NOTE: It may be necessary to put
downward pressure on the Lower Pivot
Assembly (10) to line up the holes.
c) Complete the assembly by adding the
Spring (36), Washer (32), and
Locknut (9). Tighten lock nut, then back
off as necessary for proper operation.
14
38
5/16" x 1-3/4", Hex Bolt
Qty. 1
Step 3.
9
37
37
43
3
35
2
a) Install the Flat Grip (43) to the
Lift Handle (3).
b) Install the Tow Tubes (2) to the
Upper Frame Assembly (35).
9
5/16" Nylon Lock Nut
Qty. 2
37
5/16" x 1-1/2", Hex Bolt
Qty. 2
3
14
Step 2a.
9
5/16" Nylon Lock Nut
Qty. 1
32
5/16" Flat Washer
Qty. 2
36
Spring
Qty. 1
38
36
9
32
32
10
3
a) Assemble Lift Handle (3) to Lift Link (14).
Note orientation of Lift Handle (3) to
Lift Link (14) in picture below.
b) Install Hex Bolt (38) as shown. Add
Washer (32) and install handle in middle
hole. NOTE: It may be necessary to put
downward pressure on the Lower Pivot
Assembly (10) to line up the holes.
c) Complete the assembly by adding the
Spring (36), Washer (32), and
Locknut (9). Tighten lock nut, then back
off as necessary for proper operation.
14
38
5/16" x 1-3/4", Hex Bolt
Qty. 1
Step 3.
9
37
37
43
3
35
2
a) Install the Flat Grip (43) to the
Lift Handle (3).
b) Install the Tow Tubes (2) to the
Upper Frame Assembly (35).
9
5/16" Nylon Lock Nut
Qty. 2
37
5/16" x 1-1/2", Hex Bolt
Qty. 2
3
14
================================================================================================
ASSEMBLY
STEP 2-A
--------------------------------------
a)AssembleLiftHandle(3)toLiftLink(14).
Note orientation of Lift Handle (3) to Lift Link (14)
illustrated here.
b)InstallHexBolt(38)asshown.AddWasher(32)andinstall
handle in middle hole. NOTE: It may be necessary to put
downwardpressureontheLowerPivotAssembly(10)to
line up the holes.
c) CompletetheassemblybyaddingtheSpring(36),Washer
(32),andLocknut (9).Tighten lock nut, then back offas
necessary for proper operation.
STEP 3
---------------------------------------------------------------------------------
a. InstalltheFlatGrip(43)totheLiftHandle(3)
b. InstalltheTowTubes(2)totheUpperFrame
Assembly(35).
9
5/16”NylonLockNut
Qty.4
9
5/16”NylonLockNut
Qty.4
32
5/16”FlatWasher
Qty.2
36
Spring
Qty. 1
38
5/16”x1-3/4”,HexBolt
Qty. 1
37
5/16”x1-1/2”,HexBolt
Qty.2
Step 2a.
9
5/16" Nylon Lock Nut
Qty. 1
32
5/16" Flat Washer
Qty. 2
36
Spring
Qty. 1
38
36
9
32
32
10
3
a) Assemble Lift Handle (3) to Lift Link (14).
Note orientation of Lift Handle (3) to
Lift Link (14) in picture below.
b) Install Hex Bolt (38) as shown. Add
Washer (32) and install handle in middle
hole. NOTE: It may be necessary to put
downward pressure on the Lower Pivot
Assembly (10) to line up the holes.
c) Complete the assembly by adding the
Spring (36), Washer (32), and
Locknut (9). Tighten lock nut, then back
off as necessary for proper operation.
14
38
5/16" x 1-3/4", Hex Bolt
Qty. 1
Step 3.
9
37
37
43
3
35
2
a) Install the Flat Grip (43) to the
Lift Handle (3).
b) Install the Tow Tubes (2) to the
Upper Frame Assembly (35).
9
5/16" Nylon Lock Nut
Qty. 2
37
5/16" x 1-1/2", Hex Bolt
Qty. 2
3
14
1018189 Rev. C
9
================================================================================================
ASSEMBLY
STEP 4
---------------------------------------------------------------------------------
ATTACHING CLEVIS
AttachtheHitchClevisAssembly(1)tothe
TowTubes(2),asshown.
a) InstallHexBolts(63)throughTowTubes
(2)andHitchClevisAssembly(1),as
shown.
b) InstallLockNuts(9)toHexBolts.
ATTACHING CLEVIS
63 9
2
42
41
Attach the Hitch Clevis
Assembly (1) to the Tow Tubes
(2), as shown.
a) Install Hex Bolts (63)
through Tow Tubes (2) and
Hitch Clevis Assembly (1),
as shown.
b) Install Lock Nuts (9) to
Hex Bolts. Do not tighten
fasteners at this time.
1
63
5/16" x 2-1/4", Hex Bolt
Qty. 2
42
Hairpin Cotter, Large
Qty. 1
9
5/16" Nylon Lock Nut
Qty. 2
41
Hitch Pin, 1/2" x 2-1/2"
Qty. 1
Step 4.
!DO NOT TIGHTEN
FASTENERS AT THIS TIME.
9
5/16”NylonLockNut
Qty.4
42
HairpinCotter,Large
Qty. 1
41
HitchPin,1/2”x2-1/2”
Qty. 1
63
5/16”x2-1/4”,HexBolt
Qty.2
1018189 Rev. C 10
PLACE THIS EDGE ON GROUND.
ASSEMBLY
STEP 5
--------------------------------------------------------
NOTE:
Step 4 is for attaching the Hitch Clevis Assembly (1) to the
Tow Tubes (2). When complete, the Tow Tubes (2) will be
approximately level with the pavement:
a.Usingthispage,setthemanualonthefloorandmeasure
your hitch height as shown in illustration.
b.PositiontheHitchClevisAssembly(1)betweentheTowTubes(2)fortheproper
height.
c.AttachtheHitchClevisAssembly(1)totheTowTubes(2)
asshowninStep4.
d. Attach the sweeper to the tractor.
e. AdjusttheLiftHandle(3)topositionthesweeperbrushestosweepatthesame
height as the mower blades.
f. RechecktheTowTubes(2)forlevel.Thetubesshouldbelevelorslightlyhigherat
sweeper. Readjust clevis if necessary.
g.WhentheproperHitchClevis(1)levelisachieved,securelytightentheLockNuts
(9)installedinStep4.
10”
11”
9”
8”
7”
(top of page)
6”
5”
4”
3”
2”
1”
6”
7”
8”
9”
10”
11”
A
Hitch Plate Height
Measurement
10"
9”
8"
7"
6"
11"
T O P E DGE OF PAGE
BOTT O M E D G E T O GR O UND
Manual
Hitch Clevis Assembly
10"
9"
8"
7"
6"
11"
TOPEDGEOF PAGE
2
PATENT NO. US 6,640,532 B1
Step 5.
NOTE: Step 4 is for attaching the Hitch Clevis Assembly (1)
to the Tow Tubes (2), When complete, the Tow Tubes (2) will
be approximately level with the pavement:
a) Using this page, set the manual on the floor and
measure your hitch height as shown in illustration.
b) Position the Hitch Clevis Assembly (1) between
the Tow Tubes (2) for the proper height.
c) Attach the Hitch Clevis Assembly (1) to the Tow
Tubes (2) as shown in Step 4.
d) Attach the sweeper to the tractor.
e) Adjust the Lift Handle (3) to position the sweeper
brushes to sweep at the same height as the mower
blades.
f) Recheck the Tow Tubes (2) for level. The tubes should
be level or slightly higher at sweeper. Readjust clevis if
necessary.
g) When the proper Hitch Clevis (1) level is achieved,
securely tighten the Lock Nuts (9) installed in Step 4.
3
PATENT NO. US 6,640,532 B1
==================================================================
1018189 Rev. C
11
Step 6.
46
53
52
52
54
46
a) Lower the assembly in Step 6
into the bottom of hamper (55).
b) Assemble the Rear Tube (53)
with the holes down as shown.
Slide the Rear Tube (53)
through holes in hamper flaps.
c) Assemble the Upper Hamper
Side Tubes (56) through holes in
hamper flaps into the Rear Tube
(53) and onto the Hamper Stop
Rod (54).
53
56
55
56
54
a) Assemble Rear Tube (53) with
holes up to Lower Tube (52).
b) Using the hardware in Panel E,
assemble one 3/8” Hex Nut (46)
on each end of the Hamper Stop
Rod (54) until it is approximately
in the center of the threads.
Assemble each end of the
Hamper Stop Rod (54) through
the holes in the Lower Side
Tubes (52).
54 46

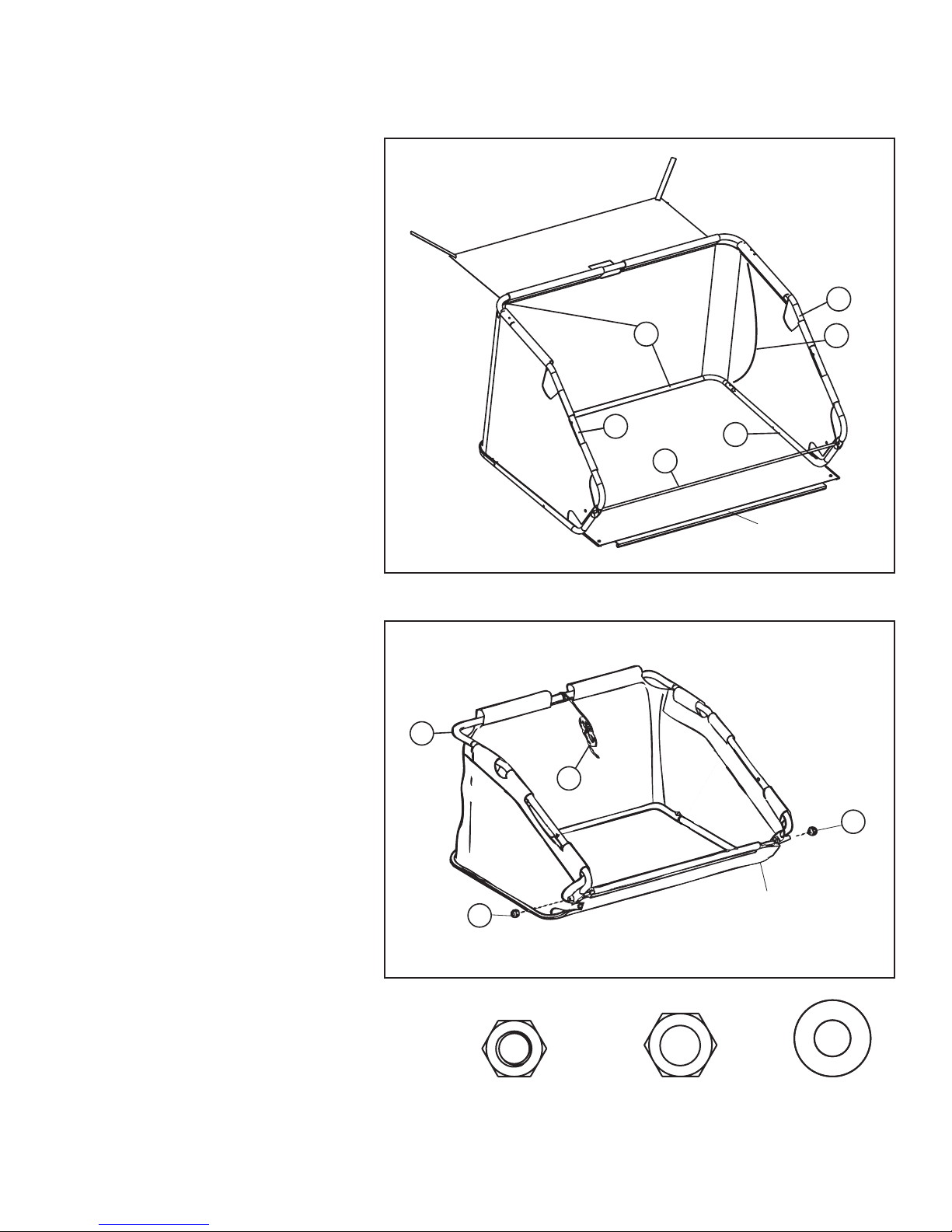

Step 7.
================================================================================================
ASSEMBLY
STEP 6
-------------------------
STEP 7
-------------------------
Step 6.
46
53
52
52
54
46
a) Lower the assembly in Step 6
into the bottom of hamper (55).
b) Assemble the Rear Tube (53)
with the holes down as shown.
Slide the Rear Tube (53)
through holes in hamper flaps.
c) Assemble the Upper Hamper
Side Tubes (56) through holes in
hamper flaps into the Rear Tube
(53) and onto the Hamper Stop
Rod (54).
53
56
55
56
54
a) Assemble Rear Tube (53) with
holes up to Lower Tube (52).
b) Using the hardware in Panel E,
assemble one 3/8” Hex Nut (46)
on each end of the Hamper Stop
Rod (54) until it is approximately
in the center of the threads.
Assemble each end of the
Hamper Stop Rod (54) through
the holes in the Lower Side
Tubes (52).
54 46
Step 7.
Step 6.
46
53
52
52
54
46
a) Lower the assembly in Step 6
into the bottom of hamper (55).
b) Assemble the Rear Tube (53)
with the holes down as shown.
Slide the Rear Tube (53)
through holes in hamper flaps.
c) Assemble the Upper Hamper
Side Tubes (56) through holes in
hamper flaps into the Rear Tube
(53) and onto the Hamper Stop
Rod (54).
53
56
55
56
54
a) Assemble Rear Tube (53) with
holes up to Lower Tube (52).
b) Using the hardware in Panel E,
assemble one 3/8” Hex Nut (46)
on each end of the Hamper Stop
Rod (54) until it is approximately
in the center of the threads.
Assemble each end of the
Hamper Stop Rod (54) through
the holes in the Lower Side
Tubes (52).
54 46
Step 7.
a.AssembleRearTube(53)withholes
uptoLowerTube(52).
b.UsingthehardwareinPanelE,
assembleone3/8”HexNut(46)on
eachendoftheHamperStopRod(54)
until it is approximately in the center of
the threads.
a.LowertheassemblyinStep6intothe
bottomofhamper(55).
b. AssembletheRearTube(53)with
the holes down as shown. Slide the
RearTube(53)throughholesin
hamperaps.
c. Assemble the Upper Hamper Side
Tubes(56)throughholesinhamper
apsintotheRearTube(53)andonto
theHamperStopRod(54).
Assemble each end of the Hamper Stop
Rod(54)throughtheholesintheLower
SideTubes(52).
1018189 Rev. C 12
================================================================================================
ASSEMBLY
STEP 8
----------------------------
STEP 9
----------------------------
a. Locate and align the holes in the upper
RearTube(53)withthesidetubes(56).
Locate and align the holes in the lower
RearTube(53)withtheLowerTube(52).
b. Stand in the bottom of the hopper.
InserttheendoftheSpringRod(58)into
thelowerholesalignedinstepa.Pullup
ontheupperRearTube(53)andinsert
theotherendoftheSpringRod(58)into
the upper holes.
Please note that this step must
be done with eye protection (safety
glasses) and gloves as the spring
rod requires some force to install.
After installation the spring rod will
be slightly bent.
a. AttachHamperPullRope(50)tothe
middleofRearTube(53).
b. UsingthehardwareinPanelF,
assembleone3/8”LockNut(47)on
each end of the Hamper Stop Rod
(54).TightentheLockNut(47)untilthe
HamperStopRod(54)isushwiththe
topoftheLockNut(47).
Note: Hold the Hamper Stop Rod
(54) with Pliers while tightening the
Lock Nuts (47). Upper and Lower
Side Tubes should be trapped
between the Hex Nut (46) and Lock
Nut (47) on the Hamper Stop Rod
(54) but still loose enough to pivot
freely. If the tubes do not pivot
freely, loosen the Hex Nut (46).
Step 8.
50
53
“J” Channel
a) Locate and align the holes in the upper Rear
Tube (53) with the side tubes (56). Locate
and align the holes in the lower Rear Tube
(53) with the Lower Tube (52).
b) Stand in the bottom of the hopper. Insert the
end of the Spring Rod (58) into the lower holes
aligned in step a. Pull up on the upper Rear
Tube (53) and insert the other end of the
Spring Rod (58) into the upper holes.
Please note that this step must be done with
eye protection (safety glasses) and gloves as
the spring rod requires some force to install.
After installation the spring rod will be slightly
bent.
a) Attach Hamper Pull Rope (50) to the middle of Rear Tube (53).
b) Using the hardware in Panel F, assemble one 3/8” Lock Nut (47) on each end of
the Hamper Stop Rod (54). Tighten the Lock Nut (47) until the Hamper Stop Rod (54)
is flush with the top of the Lock Nut (47).
Note: Hold the Hamper Stop Rod (54) with Pliers while tightening the Lock Nuts (47).
Upper and Lower Side Tubes should be trapped between the Hex Nut (46) and Lock
Nut (47) on the Hamper Stop Rod (54) but still loose enough to pivot freely. If the tubes
do not pivot freely, loosen the Hex Nut (46).
47
47
58
53
56 52
56
54
“J” Channel
50
9
5/16" Nylon Lock Nut
Qty. 2
51
5/16" Flat Washer
Qty. 4
47
3/8" Hex Lock Nut
Qty. 2
Step 9.
Step 8.
50
53
“J” Channel
a) Locate and align the holes in the upper Rear
Tube (53) with the side tubes (56). Locate
and align the holes in the lower Rear Tube
(53) with the Lower Tube (52).
b) Stand in the bottom of the hopper. Insert the
end of the Spring Rod (58) into the lower holes
aligned in step a. Pull up on the upper Rear
Tube (53) and insert the other end of the
Spring Rod (58) into the upper holes.
Please note that this step must be done with
eye protection (safety glasses) and gloves as
the spring rod requires some force to install.
After installation the spring rod will be slightly
bent.
a) Attach Hamper Pull Rope (50) to the middle of Rear Tube (53).
b) Using the hardware in Panel F, assemble one 3/8” Lock Nut (47) on each end of
the Hamper Stop Rod (54). Tighten the Lock Nut (47) until the Hamper Stop Rod (54)
is flush with the top of the Lock Nut (47).
Note: Hold the Hamper Stop Rod (54) with Pliers while tightening the Lock Nuts (47).
Upper and Lower Side Tubes should be trapped between the Hex Nut (46) and Lock
Nut (47) on the Hamper Stop Rod (54) but still loose enough to pivot freely. If the tubes
do not pivot freely, loosen the Hex Nut (46).
47
47
58
53
56 52
56
54
“J” Channel
50
9
5/16" Nylon Lock Nut
Qty. 2
51
5/16" Flat Washer
Qty. 4
47
3/8" Hex Lock Nut
Qty. 2
Step 9.
9
5/16”NylonLockNut
Qty.2
47
3/8”HexLockNut
Qty.2
51
5/16”FlatWasher
Qty.4
1018189 Rev. C
13
================================================================================================
ASSEMBLY
STEP 10
-------------------------------
STEP 11
-------------------------------
a.PulluponbottomofHamper(55)from
“J”Channelandhook”J”Channelonto
HamperStopRod(54).
b. SnapsideapstoHamper(55)bottom
as shown.
Note: Flap should be on the
outside of Lower Side Tubes (52)
after assembly.
a. AttachHamperMountTube(57)with
HexBolts(45),Washers(51),andLock
Nuts(9)asshown.Donotovertighten.
HamperMountTube(57)mustbefree
to pivot.
b, AttachVinylCap(33)toHamperMount
Tube(57)asshown.
a) Attach Hamper Mount Tube (57) with Hex Bolts (45),
Washers (51), and Lock Nuts (9) as shown. Do not
overtighten. Hamper Mount Tube (57) must be free
to pivot.
b) Attach Vinyl Cap (33) to Hamper Mount Tube
(57) as shown.
45
5/16" x 2-1/2", Hex Bolt
Qty. 2
Step 11.
33
57
51
45
9
a) Pull up on bottom of Hamper (55) from “J” Channel
and hook ”J” Channel onto Hamper Stop Rod (54).
b) Snap side flaps to Hamper (55) bottom as shown.
Note: Flap should be on the outside of Lower Side
Tubes (52) after assembly.
Hook
Snap
Snap
55
54
52
Step 10.
9
5/16" Nylon Lock Nut
Qty. 2
51
5/16" Flat Washer
Qty. 4
a) Attach Hamper Mount Tube (57) with Hex Bolts (45),
Washers (51), and Lock Nuts (9) as shown. Do not
overtighten. Hamper Mount Tube (57) must be free
to pivot.
b) Attach Vinyl Cap (33) to Hamper Mount Tube
(57) as shown.
45
5/16" x 2-1/2", Hex Bolt
Qty. 2
Step 11.
33
57
51
45
9
a) Pull up on bottom of Hamper (55) from “J” Channel
and hook ”J” Channel onto Hamper Stop Rod (54).
b) Snap side flaps to Hamper (55) bottom as shown.
Note: Flap should be on the outside of Lower Side
Tubes (52) after assembly.
Hook
Snap
Snap
55
54
52
Step 10.
9
5/16" Nylon Lock Nut
Qty. 2
51
5/16" Flat Washer
Qty. 4
9
5/16”NylonLockNut
Qty.2
51
5/16”FlatWasher
Qty.4
45
5/16”x2-1/2”HexBolt
Qty.2
1018189 Rev. C 14
STEP 12
-----------------------------------------------------
50
66
• DO NOTwrapthepullropearoundyourwrists,ngersorANYbodyparts.
• DO NOT use the pull rope while the towing vehicle is moving.
• Attachthepullropeasdirectedonpages14-15ofthismanual.
• Avoidoverllingthehamper.Heavyloadsaremoredifculttodump.
• Parktowingvehicleandsettheparkingbrakebeforedumpingmaterial.
• Usethehandlethathasbeenprovided.
•
After dumping the hamper:AlwaysmakesuretofullysecurethePullHandletothe
backofthetowingvehicleusingtheHookandLooptape.
TO PREVENT ANY POTENTIAL INJURY OR DIGITAL AMPUTATION, PLEASE BE AWARE OF THE FOLLOWING:
29 66
37
35
3
37
533
35
36
Slacken
50
29 66
37
35
3
37
5
33
35
36
To Towing
Vehicle
Two
Knots
66
67
50
50
To Sweeper
Cutanddiscardanyexcessropebelowthetwoknotsthathavebeentied.
CAUTION: The pull rope & handle can get tangled in the sweeper
brushes of the sweeper during operation. After dumping the hamper,
always make sure to fully secure the pull handle (66) to the back of
the towing vehicle using the loop tape.
A. With the sweeper attached to the towing vehicle, attach the hamper
assemblytobackofsweeperbyplacingClevisPins(49)throughholesin
HamperMountTubes(57)andupperframeassembly(35).
B. Hamper should not touch ground. For adjustment, see section “Leveling
Hamper”atendofthismanual.
ExtendPullRope(50)totheback of the towing vehicle to an area that will
be easily accessible from the towing vehicle seat. This is the area that the
PullHandle(66)willbeattached.AllowthePullRope(50)toslackenseveral
inches. Droop between the towing vehicle & tied point on the Hamper.
Tie2knotsinthisareaofthePullRopeanddragtheHandle(66)towardthe
knots.Pulltosecuretheirpositionontherope.
Clean the area of the towing vehicle that the pull handle (66) will attach to.
Afxtheadhesivehook&loop(67)tapetothebackofthetowingvehiclein
the cleaned area.
Step 12.
48
Hairpin Cotter, .08 x 1-3/16"
Qty. 2
49
Clevis Pin, 5/16" x 1-3/8"
Qty. 2
49
48
Important: Pull Rope and Handle can get tangled in the sweeper
brushes if they fall on the ground in front of the sweeper during
operation. After dumping the hamper, always make sure to fully
secure the Pull Handle to the back of the towing vehicle using
the Loop tape.
Step 12.1
66
67
50
To Sweeper To Towing Vehicle
Step 12.2
50
Step 12.3
OPERATION
REMOVING YOUR SWEEPER
CAUTION: Avoid injury! Before installing sweeper
make sure the hamper has been unloaded
1. Lock towing vehicle in park. (See Towing Vehicle Manual)
2. Align clevis with towing vehicle drawbar.
3. Install Hitch Pin (41) through clevis and vehicle drawbar and secure
the Locking Pin (42).
4. Attach hamper assembly to back of sweeper.
5. Hamper should not touch ground. For adjustment see section
“Leveling Hamper” at end of this manual.
CAUTION: Avoid injury! Before removing
sweeper make sure the hamper (55) has been
unloaded of all grass and leaves.
1. Unload Hamper.
2. Secure towing vehicle parking brake.
3. Remove Hairpin Cotter (42) and Hitch Pin (41).
4. Push away from towing vehicle.
5. Install Hitch Pin (41) through Hitch Clevis Assembly (1) and secure with
Hairpin Cotter (42) for storage.
INSTALLING YOUR SWEEPER
42
41
CAUTION: Avoid injury! Keep feet away from
under drawbar.
A) With the sweeper attached to the towing vehicle, attach the hamper
assembly to back of sweeper by placing Clevis Pins (49) through
holes in Hamper Mount Tubes (57) and upper frame assembly (35).
B) Hamper should not touch ground. For adjustment, see section
“Leveling Hamper” at end of this manual.
Pull Handle Attachment
A) With the sweeper attached to the towing vehicle, thread the Pull Rope
(50) through the Pull Handle (66) as shown (Step 12.2).
B) Extend the Pull Rope (50) to the back of the towing vehicle to an area
that will be easily accessible from the towing vehicle seat. Allow the
Pull Rope to slacken several inches (droop between the towing vehicle
and tied point on the hamper; Step 12.3). Tie 2 knots in this area and
pull the knots into the Pull Handle (Step 12.2). Cut excess rope if
needed.
C) Clean the area on the towing vehicle where the Pull Handle (66) will be
located and affix the Loop Tape (68) to the towing vehicle.
Step 12.
48
Hairpin Cotter, .08 x 1-3/16"
Qty. 2
49
Clevis Pin, 5/16" x 1-3/8"
Qty. 2
49
48
Important: Pull Rope and Handle can get tangled in the sweeper
brushes if they fall on the ground in front of the sweeper during
operation. After dumping the hamper, always make sure to fully
secure the Pull Handle to the back of the towing vehicle using
the Loop tape.
Step 12.1
66
67
50
To Sweeper To Towing Vehicle
Step 12.2
50
Step 12.3
OPERATION
REMOVING YOUR SWEEPER
CAUTION: Avoid injury! Before installing sweeper
make sure the hamper has been unloaded
1. Lock towing vehicle in park. (See Towing Vehicle Manual)
2. Align clevis with towing vehicle drawbar.
3. Install Hitch Pin (41) through clevis and vehicle drawbar and secure
the Locking Pin (42).
4. Attach hamper assembly to back of sweeper.
5. Hamper should not touch ground. For adjustment see section
“Leveling Hamper” at end of this manual.
CAUTION: Avoid injury! Before removing
sweeper make sure the hamper (55) has been
unloaded of all grass and leaves.
1. Unload Hamper.
2. Secure towing vehicle parking brake.
3. Remove Hairpin Cotter (42) and Hitch Pin (41).
4. Push away from towing vehicle.
5. Install Hitch Pin (41) through Hitch Clevis Assembly (1) and secure with
Hairpin Cotter (42) for storage.
INSTALLING YOUR SWEEPER
42
41
CAUTION: Avoid injury! Keep feet away from
under drawbar.
A) With the sweeper attached to the towing vehicle, attach the hamper
assembly to back of sweeper by placing Clevis Pins (49) through
holes in Hamper Mount Tubes (57) and upper frame assembly (35).
B) Hamper should not touch ground. For adjustment, see section
“Leveling Hamper” at end of this manual.
Pull Handle Attachment
A) With the sweeper attached to the towing vehicle, thread the Pull Rope
(50) through the Pull Handle (66) as shown (Step 12.2).
B) Extend the Pull Rope (50) to the back of the towing vehicle to an area
that will be easily accessible from the towing vehicle seat. Allow the
Pull Rope to slacken several inches (droop between the towing vehicle
and tied point on the hamper; Step 12.3). Tie 2 knots in this area and
pull the knots into the Pull Handle (Step 12.2). Cut excess rope if
needed.
C) Clean the area on the towing vehicle where the Pull Handle (66) will be
located and affix the Loop Tape (68) to the towing vehicle.
================================================================================================
ASSEMBLY
Step 12.
48
Hairpin Cotter, .08 x 1-3/16"
Qty. 2
49
Clevis Pin, 5/16" x 1-3/8"
Qty. 2
49
48
Important: Pull Rope and Handle can get tangled in the sweeper
brushes if they fall on the ground in front of the sweeper during
operation. After dumping the hamper, always make sure to fully
secure the Pull Handle to the back of the towing vehicle using
the Loop tape.
Step 12.1
66
67
50
To Sweeper To Towing Vehicle
Step 12.2
50
Step 12.3
OPERATION
REMOVING YOUR SWEEPER
CAUTION: Avoid injury! Before installing sweeper
make sure the hamper has been unloaded
1. Lock towing vehicle in park. (See Towing Vehicle Manual)
2. Align clevis with towing vehicle drawbar.
3. Install Hitch Pin (41) through clevis and vehicle drawbar and secure
the Locking Pin (42).
4. Attach hamper assembly to back of sweeper.
5. Hamper should not touch ground. For adjustment see section
“Leveling Hamper” at end of this manual.
CAUTION: Avoid injury! Before removing
sweeper make sure the hamper (55) has been
unloaded of all grass and leaves.
1. Unload Hamper.
2. Secure towing vehicle parking brake.
3. Remove Hairpin Cotter (42) and Hitch Pin (41).
4. Push away from towing vehicle.
5. Install Hitch Pin (41) through Hitch Clevis Assembly (1) and secure with
Hairpin Cotter (42) for storage.
INSTALLING YOUR SWEEPER
42
41
CAUTION: Avoid injury! Keep feet away from
under drawbar.
A) With the sweeper attached to the towing vehicle, attach the hamper
assembly to back of sweeper by placing Clevis Pins (49) through
holes in Hamper Mount Tubes (57) and upper frame assembly (35).
B) Hamper should not touch ground. For adjustment, see section
“Leveling Hamper” at end of this manual.
Pull Handle Attachment
A) With the sweeper attached to the towing vehicle, thread the Pull Rope
(50) through the Pull Handle (66) as shown (Step 12.2).
B) Extend the Pull Rope (50) to the back of the towing vehicle to an area
that will be easily accessible from the towing vehicle seat. Allow the
Pull Rope to slacken several inches (droop between the towing vehicle
and tied point on the hamper; Step 12.3). Tie 2 knots in this area and
pull the knots into the Pull Handle (Step 12.2). Cut excess rope if
needed.
C) Clean the area on the towing vehicle where the Pull Handle (66) will be
located and affix the Loop Tape (68) to the towing vehicle.
1018189 Rev. C
15
================================================================================================
OPERATION
INSTALLING YOUR SWEEPER
----------------------------------------
REMOVING YOUR SWEEPER
----------------------------------------
TRANSPORTING YOUR SWEEPER
----------------------------------------
1.Locktowingvehicleinpark.
(See Towing Vehicle Manual)
2.Aligncleviswithtowingvehicledrawbar.
3.InstallHitchPin(41)throughclevisandvehicledrawbarand
securetheLockingPin(42).
4. Attachhamperassemblytobackofsweeper.
5.Hampershouldnottouchground.Foradjustmentseesection
“LevelingHamper”atendofthismanual.
1. Unload Hamper.
2.Securetowingvehicleparkingbrake.
CAUTION: AVOID INJURY! Before installing
sweepermakesurethehamperhasbeenunloaded.
CAUTION: AVOID INJURY! Before removing
thesweepermakesurethehamper(55)hasbeen
unloaded of all grass and leaves.
CAUTION: AVOID INJURY!Keepfeetawayfromunderdrawbar.
3.RemoveHairpinCotter(42)andHitchPin(41).
4. Pushawayfromtowingvehicle.
5. InstallHitchPin(41)throughHitchClevisAssembly(1)andsecurewithHairpinCotter(42)forstorage.
1. Parkvehicleonahard,levelsurfaceandsetparkingbrake.
2. Pivotlift handle (A) away from lock plate (B) todisengage
lockpinhandlefromindexholeinlockplate.
3. Movelifthandleback(towardthehousing)toraisethebrush
height.
4.Alignthelockpinwiththefarthestindexholeinlockplate(B)
andreleaselifthandle(A)tosecureheightadjustment.
LEVELING HAMPER
After the brush height has been set, the tow tubes may require adjustment
Picture Note: Right front view shown.
to level the tow tubes to the ground. This can be accomplished by removing
the clevis and adjusting the clevis up or down (refer to step 5). After the tow
tubes are approximately level, the hamper stop assembly may have to be
adjusted so the hamper assembly clears the ground.
1. Loosen two nuts (9) slightly, securing each side of hamper stop
bracket (34) to brush housing. The rear bracket mounting holes in
the brush housing are slotted, allowing the bracket to be pivoted
up or down for adjustment.
2. Tap the hamper stop tube (34) up or down to adjust the resting
position of the hamper so that it is approximately level.
Tighten hardware.
TRANSPORTING YOUR SWEEPER
OPERATING YOUR SWEEPER
Determining Weight for Cart
The following maximum loaded weight capacity is the average
weight of the sweeper plus the weight loaded in the hamper and
dethatcher attachment.
CAUTION: Avoid injury! If additional weight is
required when towing, add weight at or forward
of the rear wheels. Adding weight behind the
rear wheels can affect vehicle steering.
Refer to your towing vehicle manual.
ADJUSTING BRUSH HEIGHT
NOTE: Setting brush height too low for sweeping conditions causes
excessive wheel slippage. For maximum performance, adjust brush
height as high as possible for the material and conditions.
1. Pivot lift handle (A) away from lock plate (B) to disengage lock pin in
handle from index hole in lock plate.
2. Move lift handle forward (towards the towing vehicle) to lower brush
height, or back (toward the housing) to raise the brush height. Align
lock pin with appropriate index hole in lock plate and release lift
handle to secure height adjustment.
Normal lawn sweeping is accomplished when the brushes sweep at the
same height as the mower cutting height.
Brush Height Sweeping Conditions
25mm (1 in.) to
50mm (2 in.)
Mowed lawns under normal conditions, or light
leaves.
50mm (2 in.) to
75mm (3 in.)
High grass, heavy leaves or heavy grass clippings.
To adjust the sweeper for transport:
1. Park vehicle on a hard, level surface and set parking brake.
2. Pivot lift handle (A) away from lock plate (B) to disengage
lock pin handle from index hole in lock plate.
3. Move lift handle back (toward the housing) to raise the brush
height.
4. Align the lock pin with the farthest index hole in lock plate (B)
and release lift handle (A) to secure height adjustment.
A
B
Farthest index hole
Towing capacity will vary with weight of towing vehicle and operator.
Add the weight of your machine to operator weight to find the maximum
capacity for towing.
Example:
If Towing vehicle weighs: 400 lbs.
Add your weight: 200 lbs.
Combined weight equals: 600 lbs.
To maintain stability in this example, you cannot safely tow more than
600 lbs. without first adding additional ballast to the towing vehicle.
A
B
CAUTION: Avoid injury! Excessive towed load
can cause loss of traction and loss of control on
slopes. Stopping distance increases with speed
and weight of towed load.
Total towed weight must not exceed combined
weight of towing vehicle, ballast and operator.
Pull to
disengage
A
BLowers brush height
Raises brush height
Model Weight Capacity with Dethatcher
STS-42BHDK 102 lbs. dry
222 lbs. with wet grass
9
34
Step 12.
48
Hairpin Cotter, .08 x 1-3/16"
Qty. 2
49
Clevis Pin, 5/16" x 1-3/8"
Qty. 2
49
48
Important: Pull Rope and Handle can get tangled in the sweeper
brushes if they fall on the ground in front of the sweeper during
operation. After dumping the hamper, always make sure to fully
secure the Pull Handle to the back of the towing vehicle using
the Loop tape.
Step 12.1
66
67
50
To Sweeper To Towing Vehicle
Step 12.2
50
Step 12.3
OPERATION
REMOVING YOUR SWEEPER
CAUTION: Avoid injury! Before installing sweeper
make sure the hamper has been unloaded
1. Lock towing vehicle in park. (See Towing Vehicle Manual)
2. Align clevis with towing vehicle drawbar.
3. Install Hitch Pin (41) through clevis and vehicle drawbar and secure
the Locking Pin (42).
4. Attach hamper assembly to back of sweeper.
5. Hamper should not touch ground. For adjustment see section
“Leveling Hamper” at end of this manual.
CAUTION: Avoid injury! Before removing
sweeper make sure the hamper (55) has been
unloaded of all grass and leaves.
1. Unload Hamper.
2. Secure towing vehicle parking brake.
3. Remove Hairpin Cotter (42) and Hitch Pin (41).
4. Push away from towing vehicle.
5. Install Hitch Pin (41) through Hitch Clevis Assembly (1) and secure with
Hairpin Cotter (42) for storage.
INSTALLING YOUR SWEEPER
42
41
CAUTION: Avoid injury! Keep feet away from
under drawbar.
A) With the sweeper attached to the towing vehicle, attach the hamper
assembly to back of sweeper by placing Clevis Pins (49) through
holes in Hamper Mount Tubes (57) and upper frame assembly (35).
B) Hamper should not touch ground. For adjustment, see section
“Leveling Hamper” at end of this manual.
Pull Handle Attachment
A) With the sweeper attached to the towing vehicle, thread the Pull Rope
(50) through the Pull Handle (66) as shown (Step 12.2).
B) Extend the Pull Rope (50) to the back of the towing vehicle to an area
that will be easily accessible from the towing vehicle seat. Allow the
Pull Rope to slacken several inches (droop between the towing vehicle
and tied point on the hamper; Step 12.3). Tie 2 knots in this area and
pull the knots into the Pull Handle (Step 12.2). Cut excess rope if
needed.
C) Clean the area on the towing vehicle where the Pull Handle (66) will be
located and affix the Loop Tape (68) to the towing vehicle.
1018189 Rev. C 16
LEVELING HAMPER
After the brush height has been set, the tow tubes may require adjustment
Picture Note: Right front view shown.
to level the tow tubes to the ground. This can be accomplished by removing
the clevis and adjusting the clevis up or down (refer to step 5). After the tow
tubes are approximately level, the hamper stop assembly may have to be
adjusted so the hamper assembly clears the ground.
1. Loosen two nuts (9) slightly, securing each side of hamper stop
bracket (34) to brush housing. The rear bracket mounting holes in
the brush housing are slotted, allowing the bracket to be pivoted
up or down for adjustment.
2. Tap the hamper stop tube (34) up or down to adjust the resting
position of the hamper so that it is approximately level.
Tighten hardware.
TRANSPORTING YOUR SWEEPER
OPERATING YOUR SWEEPER
Determining Weight for Cart
The following maximum loaded weight capacity is the average
weight of the sweeper plus the weight loaded in the hamper and
dethatcher attachment.
CAUTION: Avoid injury! If additional weight is
required when towing, add weight at or forward
of the rear wheels. Adding weight behind the
rear wheels can affect vehicle steering.
Refer to your towing vehicle manual.
ADJUSTING BRUSH HEIGHT
NOTE: Setting brush height too low for sweeping conditions causes
excessive wheel slippage. For maximum performance, adjust brush
height as high as possible for the material and conditions.
1. Pivot lift handle (A) away from lock plate (B) to disengage lock pin in
handle from index hole in lock plate.
2. Move lift handle forward (towards the towing vehicle) to lower brush
height, or back (toward the housing) to raise the brush height. Align
lock pin with appropriate index hole in lock plate and release lift
handle to secure height adjustment.
Normal lawn sweeping is accomplished when the brushes sweep at the
same height as the mower cutting height.
Brush Height Sweeping Conditions
25mm (1 in.) to
50mm (2 in.)
Mowed lawns under normal conditions, or light
leaves.
50mm (2 in.) to
75mm (3 in.)
High grass, heavy leaves or heavy grass clippings.
To adjust the sweeper for transport:
1. Park vehicle on a hard, level surface and set parking brake.
2. Pivot lift handle (A) away from lock plate (B) to disengage
lock pin handle from index hole in lock plate.
3. Move lift handle back (toward the housing) to raise the brush
height.
4. Align the lock pin with the farthest index hole in lock plate (B)
and release lift handle (A) to secure height adjustment.
A
B
Farthest index hole
Towing capacity will vary with weight of towing vehicle and operator.
Add the weight of your machine to operator weight to find the maximum
capacity for towing.
Example:
If Towing vehicle weighs: 400 lbs.
Add your weight: 200 lbs.
Combined weight equals: 600 lbs.
To maintain stability in this example, you cannot safely tow more than
600 lbs. without first adding additional ballast to the towing vehicle.
A
B
CAUTION: Avoid injury! Excessive towed load
can cause loss of traction and loss of control on
slopes. Stopping distance increases with speed
and weight of towed load.
Total towed weight must not exceed combined
weight of towing vehicle, ballast and operator.
Pull to
disengage
A
BLowers brush height
Raises brush height
Model Weight Capacity with Dethatcher
STS-42BHDK 102 lbs. dry
222 lbs. with wet grass
9
34
================================================================================================
OPERATION
DETERMINING WEIGHT FOR CART
----------------------------------------------
LEVELING HAMPER
----------------------------------------------
The following maximum loaded weight capacity is the average weight of the
sweeperplustheweightloadedinthehamper&dethatcherattachment.
ADJUSTING BRUSH HEIGHT
----------------------------------------------
Normal lawn sweeping is accomplished when the brushes sweep at the
same height as the mower cutting height.
NOTE: Setting brush height too low for sweeping conditions causes
excessive wheel slippage. For maximum performance, adjust
brushheight as high as possible for the material and conditions.
1.Pivotlifthandle(A)awayfromlockplate(B)todisengagelockpinin
handlefromindexholeinlockplate.
2.Movelifthandleforward(towardsthetowingvehicle)tolowerbrush
height,orback(towardthehousing)toraisethebrushheight.Align
lock pin with appropriate index hole in lock plate and release lift
handle to secure height adjustment.
After the brush height has been set, the tow tubes may require
adjustment to level the tow tubes to the ground. This can be
accomplished by removing the clevis and adjusting the clevis up or
down(refer tostep 5).Afterthe towtubesare approximatelylevel,
the hamper stop assembly may have to be adjusted so the hamper
assembly clears the ground.
1. Loosentwonuts(9)slightly,securingeachsideofhamperstop
bracket(34)tobrushhousing.Therearbracketmountingholesin
thebrushhousingareslotted,allowingthebrackettobepivotedup
or down for adjustment.
2. Tapthehamperstoptube(34)upordowntoadjusttherestingposition
of the hamper so that it is approximately level. Tighten hardware.
Towing capacity will vary with weight of towing vehicle and
operator.
Addtheweightofyourmachinetooperatorweighttondthemaximum
capacity for towing.
Example:
IfTowingvehicleweighs: 400lbs.
Addyourweight: 200lbs.
Combinedweightequals: 600lbs.
To maintain stability in this example, you cannot safely tow more than
600 lbs. without rst adding additional ballast to the towing vehicle.
Model
STS-42BHDK
Weight Capacity with Dethatcher
102lbs.dry
222lbs.withwetgrass
CAUTION: AVOID INJURY!
Excessive towed load can cause loss of
traction and loss of control on slopes.
Stopping distance increases with speed
and weight of towed load.
Total towed weight must not exceed
combinedweightoftowingvehicle,ballast
and operator.
CAUTION: AVOID INJURY! If additional
weightisrequiredwhentowing,add
weight at or forward of the rear wheels.
Adding weight behind the rear wheels
can affect vehicle steering. Refer to your
towing vehicle manual.
LEVELING HAMPER
After the brush height has been set, the tow tubes may require adjustment
Picture Note: Right front view shown.
to level the tow tubes to the ground. This can be accomplished by removing
the clevis and adjusting the clevis up or down (refer to step 5). After the tow
tubes are approximately level, the hamper stop assembly may have to be
adjusted so the hamper assembly clears the ground.
1. Loosen two nuts (9) slightly, securing each side of hamper stop
bracket (34) to brush housing. The rear bracket mounting holes in
the brush housing are slotted, allowing the bracket to be pivoted
up or down for adjustment.
2. Tap the hamper stop tube (34) up or down to adjust the resting
position of the hamper so that it is approximately level.
Tighten hardware.
TRANSPORTING YOUR SWEEPER
OPERATING YOUR SWEEPER
Determining Weight for Cart
The following maximum loaded weight capacity is the average
weight of the sweeper plus the weight loaded in the hamper and
dethatcher attachment.
CAUTION: Avoid injury! If additional weight is
required when towing, add weight at or forward
of the rear wheels. Adding weight behind the
rear wheels can affect vehicle steering.
Refer to your towing vehicle manual.
ADJUSTING BRUSH HEIGHT
NOTE: Setting brush height too low for sweeping conditions causes
excessive wheel slippage. For maximum performance, adjust brush
height as high as possible for the material and conditions.
1. Pivot lift handle (A) away from lock plate (B) to disengage lock pin in
handle from index hole in lock plate.
2. Move lift handle forward (towards the towing vehicle) to lower brush
height, or back (toward the housing) to raise the brush height. Align
lock pin with appropriate index hole in lock plate and release lift
handle to secure height adjustment.
Normal lawn sweeping is accomplished when the brushes sweep at the
same height as the mower cutting height.
Brush Height Sweeping Conditions
25mm (1 in.) to
50mm (2 in.)
Mowed lawns under normal conditions, or light
leaves.
50mm (2 in.) to
75mm (3 in.)
High grass, heavy leaves or heavy grass clippings.
To adjust the sweeper for transport:
1. Park vehicle on a hard, level surface and set parking brake.
2. Pivot lift handle (A) away from lock plate (B) to disengage
lock pin handle from index hole in lock plate.
3. Move lift handle back (toward the housing) to raise the brush
height.
4. Align the lock pin with the farthest index hole in lock plate (B)
and release lift handle (A) to secure height adjustment.
A
B
Farthest index hole
Towing capacity will vary with weight of towing vehicle and operator.
Add the weight of your machine to operator weight to find the maximum
capacity for towing.
Example:
If Towing vehicle weighs: 400 lbs.
Add your weight: 200 lbs.
Combined weight equals: 600 lbs.
To maintain stability in this example, you cannot safely tow more than
600 lbs. without first adding additional ballast to the towing vehicle.
A
B
CAUTION: Avoid injury! Excessive towed load
can cause loss of traction and loss of control on
slopes. Stopping distance increases with speed
and weight of towed load.
Total towed weight must not exceed combined
weight of towing vehicle, ballast and operator.
Pull to
disengage
A
BLowers brush height
Raises brush height
Model Weight Capacity with Dethatcher
STS-42BHDK 102 lbs. dry
222 lbs. with wet grass
9
34
Brush Height
25mm(1in.)to
50mm(2in.)
50mm(2in.)to
75mm(3in.)
Sweeping Conditions
Mowed lawns under normal
conditions,orlightleaves
Highgrass,heavyleavesor
heavy grass clippings.
Right front
view shown
1018189 Rev. C
17
CAUTION: AVOID INJURY! Makesureareaisclearof
bystanders,especiallychildren,beforebackingup.
BEFORE DUMPING MATERIAL FROM THE HAMPER: Parktowingvehicleandsetparkingbrake(seeownersmanual).
TO EMPTY HAMPER:
1. Tow the sweeper to a location the material
should be dumped.
2. Stoptowingvehicleandsetparkingbrake.
3. PullHandle(35)andRope(37)totilthamper
forward/upward,allowingmaterialtoexitthe
opening at the front of the Hamper.
4. ReplacePullHandle(35)toHookandLoop
(36)xedtothetowingvehicle.
IMPORTANT: AvoidoverllingtheHamper,especiallywhensweeping
freshly mowed grass or other moist material. Heavy loads will be more
difculttodump.
IMPORTANT: Afterdumpoperationiscomplete,conrmPullHandle
(35)isfullysecuredtothebackofthetowingvehicle.PullRopeand
Handle can get tangled in the sweeper brushes if they fall on the
ground in front of the sweeper during operation.
TO PREVENT ANY POTENTIAL INJURY OR DIGITAL AMPUTATION, PLEASE BE AWARE OF THE FOLLOWING:
• DO NOTwrapthepullropearoundyourwrists,ngersorANYbodyparts.
• DO NOT use the pull rope while the towing vehicle is moving.
• Attachthepullropeasdirectedonpages14ofthismanual.
• Avoidoverllingthehamper.Heavyloadsaremoredifculttodump.
• Parktowingvehicleandsettheparkingbrakebeforedumpingmaterial.
• Usethehandlethathasbeenprovided.
•
After dumping the hamper:AlwaysmakesuretofullysecurethePullHandleto
thebackofthetowingvehicleusingtheHookandLooptape.
EMPTYING HAMPER
--------------------------------
================================================================================================
OPERATION
OPERATING SPEED
-------------------------------------------
The operating ground speed of the sweeper has a direct effect on
howswept material is thrown into the hamper. Material will be thrown
farthertowardthebackofthehamperasgroundspeedincreases.
Operate the sweeper at a ground speed that will throw material to the
backofthehamper.Undernormalconditionsapproximatelythespeed
ofabriskwalkoraspeedof3mph(40feetin9seconds)worksbest.
USING THE WIND SCREEN
------------------------------------------------
The Hamper Wind Screen can be congured in two positions based on conditions
and preference.
POSITION 1: Wind Screen Fully Open
AllowtheWindScreentohangoffthebackoftheHamper.Thisconditioncan
be used when there is little to no wind; Operating speed should be slower to
ensure material is not thrown over the Hamper.
POSITION 2: Wind Screen Half Closed
Attach the Wind Screen to the Hamper Mount Tubes using the elastic straps
on the ends of the Wind Screen. Can be used in a medium wind to prevent
material from blowing out of Hamper; Operating speed should be slower to
ensure material is not thrown over the Hamper or Wind Screen.
POSITION 1
OPERATING SPEED
The operating ground speed of the sweeper has a direct effect on how
swept material is thrown into the hamper. Material will be thrown farther
toward the back of the hamper as ground speed increases.
Operate the sweeper at a ground speed that will throw material to the back
of the hamper. Under normal conditions approximately the speed of a brisk
walk oraspeed of 3 mph (40 feet in9seconds) works best.
EMPTYING HAMPER
NOTE: Avoid overfilling hamper, especially when sweeping freshly
mowed grass or other moist material. Extremely heavy loads will be
difficult to dump.
CAUTION: Avoid injury! Before dumping:
Park vehicle safely. (See towing vehicle manual).
Before backing up, make sure area is clear of
bystanders, especially children.
The hamper pull rope (50) can be routed to the tow vehicle operator’s area
and temporarily secured. The operator can then empty the hamper while
seated in the operating position.
To empty hamper:
1. Stop towing machine.
2. Engage park brake.
3. Pull on hamper pull rope (50) to tilt hamper forward/upward,
allowing material to exit the opening at the front of the bumper.
USING THE WIND SCREEN
The Hamper Wind Screen can be configured in two positions based on
conditions and preference.
Position 1 – Wind Screen Fully Open
Allow the Wind Screen to hang off the back of the Hamper. This condition
can be used when there is little to no wind; Operating speed should be
slower to ensure material is not thrown over the Hamper.
Position 2 – Wind Screen Half Closed
Attach the Wind Screen to the Hamper Mount Tubes using the elastic
straps on the ends of the Wind Screen.
Can be used in a medium wind to prevent material from blowing out of
Hamper; Operating speed should be slower to ensure material is not
thrown over the Hamper or Wind Screen.
50
Attach
Attach
OPERATING SPEED
The operating ground speed of the sweeper has a direct effect on how
swept material is thrown into the hamper. Material will be thrown farther
toward the back of the hamper as ground speed increases.
Operate the sweeper at a ground speed that will throw material to the back
of the hamper. Under normal conditions approximately the speed of a brisk
walk oraspeed of 3 mph (40 feet in9seconds) works best.
EMPTYING HAMPER
NOTE: Avoid overfilling hamper, especially when sweeping freshly
mowed grass or other moist material. Extremely heavy loads will be
difficult to dump.
CAUTION: Avoid injury! Before dumping:
Park vehicle safely. (See towing vehicle manual).
Before backing up, make sure area is clear of
bystanders, especially children.
The hamper pull rope (50) can be routed to the tow vehicle operator’s area
and temporarily secured. The operator can then empty the hamper while
seated in the operating position.
To empty hamper:
1. Stop towing machine.
2. Engage park brake.
3. Pull on hamper pull rope (50) to tilt hamper forward/upward,
allowing material to exit the opening at the front of the bumper.
USING THE WIND SCREEN
The Hamper Wind Screen can be configured in two positions based on
conditions and preference.
Position 1 – Wind Screen Fully Open
Allow the Wind Screen to hang off the back of the Hamper. This condition
can be used when there is little to no wind; Operating speed should be
slower to ensure material is not thrown over the Hamper.
Position 2 – Wind Screen Half Closed
Attach the Wind Screen to the Hamper Mount Tubes using the elastic
straps on the ends of the Wind Screen.
Can be used in a medium wind to prevent material from blowing out of
Hamper; Operating speed should be slower to ensure material is not
thrown over the Hamper or Wind Screen.
50
Attach
Attach
POSITION 2
1018189 Rev. C 18
A
B
B
C
D
STORING
The sweeper can be tipped upright and stored against a wall
using a minimum of space:
1. Remove any loose material from hamper and brush
housing / drive assembly. The sweeper should be clean
and dry before configuring for storage.
2. Remove small hairpin cotters and clevis pins securing
hamper assembly to brush housing and remove hamper
assembly.
3. Remove the hamper spring rods and collapse the hamper.
4. Remove large hairpin cotter and hitch pin from hitch clevis,
if stored there.
5. Move lift handle to the index hole farthest forward (toward
the tow tubes).
6. Roll sweeper to desired storage area, lift hitch clevis (A) to
pivot sweeper to vertical position and resting on the tubes (B)
at rear of sweeper (bottom of sweeper should face wall).
7. Lift the collapsed hamper assembly by the rear tubes,
positioning the middle of the upper rear tube (C) at the center
hamper cut-out over the opening in the hitch clevis (the inside
of the hamper faces the lift handle and tow tubes, and the
bottom (D) of the hamper facing outward). Lower the hamper
to rest in the hitch clevis.
8. Replace hitch pin and large hairpin cotter.
FREQUENTLY ASKED QUESTIONS
Sweeper does not pick up:
1. The adjustment lever is set too low. A sweeper is not a dethatcher and
cannot pull thatch, embedded needles or leaves from deep in the grass.
The adjustment height should be set to the height of the mower deck
blades.
2. The adjustment lever is set too high. Lower the adjustment lever.
3. There is a problem with the drive system. See the "Sweeper Wheels"
section.
Grass goes over the top of the Hamper:
1. Forward speed is too fast. Slow the towing vehicle down. Best speed
is 3 mph or less. (3 mph = 40 feet in 9 seconds).
2. Wind screen can be used to break wind coming over the top of the
hamper. Slower forward speeds must be used when using the wind
screen.
Sweeper Wheels....Not moving... Skip...Lock-up:
1. The brush is not turning or stops turning. The adjustment lever is set
too low. Measure the cut height of the mower. Set the brush height to
sweep the same as the cut height.
2. The drive dowel (21) located inside the small metal drive pinion (24
& 25) are sticking. Remove, clean, and lubricate the dowel with a light
oil (WD40, 3 in 1). Do not use motor oil or grease. This should be done
at least once per season. We recommend in the fall before storage as
a minimum.
3. The drive pinion is worn and because of the wear it locks up the drive
dowel. Replace the drive pinions. R-2485LH and R-2485RH.
4. The drive pinions when re-installed were installed backwards...ie. the
right side (as if you are sitting on the tractor seat looking forward) was
installed on the left. Remove the pinions. On the back side (opposite)
the gears, there is a stamp "R" and "L." Make sure the pinion with the
"R" is installed on the right side.
Hamper drags the ground:
1. The tow bars are not horizontal to the ground when attached to the
tractor. Remove the clevis and reinstall in a different set of holes. The
clevis can be turned over to get additional adjustment.
See Installation Step 5.
2. After adjustments in Step 1 are complete, adjustments to hamper stop
bracket can be made. See "Leveling Hamper" section.
================================================================================================
OPERATION
STORING
----------------------------------------------
The sweeper can be tipped upright and stored against a wallusing a
minimum of space:
1. Remove any loose material from hamper and brush housing / drive
assembly. The sweeper should be clean and dry before configuring
for storage.
2. Remove small hairpin cotters and clevis pins securing hamper
assembly to brush housing and remove hamper assembly.
3. Removethehamperspringrodsandcollapsethehamper.
4. Removelargehairpincotterandhitchpinfromhitchclevis,ifstored
there.
5. Movelifthandletotheindexholefarthestforward(towardthetow
tubes).
6. Roll sweeper to desired storage area, lift hitch clevis (A) topivot
sweepertoverticalpositionandrestingonthetubes(B)atrearof
sweeper(bottomofsweepershouldfacewall).
7. Liftthecollapsedhamperassemblybythereartubes,positioning
themiddleoftheupperreartube(C)atthecenterhampercut-out
overtheopeninginthehitchclevis(theinsideofthehamperfaces
thelifthandleandtowtubes,andthebottom(D)ofthehamperfacingoutward).Lowerthehampertorestinthehitchclevis.
8. Replace hitch pin and large hairpin cotter.
TROUBLESHOOTING
---------------------------------------------------------------------------------
1. The tow bars are not horizontal to the ground when attached to the tractor. Remove the clevis and reinstall in a
differentsetofholes.Thecleviscanbeturnedovertogetadditionaladjustment.SeeInstallationStep5.
2. AfteradjustmentsinStep1arecomplete,adjustmentstohamperstopbracketcanbemade.See“Leveling
Hamper”section.
Hamper drags
the ground:
1. Theadjustmentleverissettoolow.Asweeperisnotadethatcherandcannotpullthatch,embeddedneedles
orleavesfromdeepinthegrass.Theadjustmentheightshouldbesettotheheightofthemowerdeckblades.
2. The adjustment lever is set too high. Lower the adjustment lever.
3. Thereisaproblemwiththedrivesystem.Seethe“SweeperWheels”section.
Sweeper does
not pick up:
1. Forwardspeedistoofast.Slowthetowing vehicle down.Bestspeedis3mphorless.(3mph = 40feetin9
seconds).
2. Windscreencanbeusedtobreakwindcomingoverthetopofthehamper.Slowerforwardspeedsmustbeused
when using the wind screen.
1. The brush is not turning or stops turning. The adjustment lever is set too low. Measure the cut height of the mower.
Set the brush height to sweep the same as the cut height.
2. The drive dowel (21) located inside the small metal drive pinion (24 & 25) are sticking. Remove, clean, and
lubricatethedowelwithalightoil(WD40,3in1).Donotusemotoroilorgrease.Thisshouldbedoneatleast
once per season. We recommend in the fall before storage as a minimum.
3. Thedrivepinioniswornandbecauseofthewearitlocksupthedrivedowel.Replacethedrivepinions.R-2485LH
andR-2485RH.
4. Thedrivepinionswhenre-installedwereinstalledbackwards...ie:therightside(asifyouaresittingonthetractor
seatlookingforward)wasinstalledontheleft.Removethepinions.Onthebackside(opposite)thegears,there
isastamp“R”and“L.”Makesurethepinionwiththe“R”isinstalledontherightside.
Sweeper wheels
not moving,
skipping or are
locking up:
Grass goes over
the top of the
Hamper:
1018189 Rev. C
19
================================================================================================
SERVICE
GETTING QUALITY SERVICE
--------------------------------------
- Donotallowmaterialtoremaininthehamperforextended
periods of time. Clean the hamper using a water hose and
allow to dry prior to storage.
- Checkallmovingpartsforwearandfreedomofmovement.
- Routine lubrication of the pinion and dowel pin is required.
We recommend in the fall before storage as a minimum.
Remove, clean and lubricate the dowel pin (21) inside the
drivepinions(24&25)withalightoilsuchasWD40,3in1,
orsimilar.Donotusemotoroilorgrease.
- Checkthedrivepinionsforwear.Theseareconsiderednormal
wear parts. Contact our Customer Service Department to
purchasereplacementdrivepinions(PartNumbersR-2485-
RHandR-2485-LH).
- Lubricate the wheels annually with multipurpose grease.
- Checkallfastenersfortightness.
- Inspect for rust on painted surfaces. Sand lightly andtouch
up damaged areas with enamel paint.
SPECIFICATIONS
--------------------------------------
Maximum Towing Speed ................. 5mph
Hamper Capacity ..................... 20cu.ft.
Maximum Hamper Weight .............. 120lbs.
Empty Weight with
DethatcherAttachment ................. 102lbs.
Maximum Towed Weight with
DethatcherAttachment ................. 222lbs.
Quality Continues with Quality Service
We provide a process to handle your questions or problems.
Follow the steps below to get answers to any questions you
may have about yourproduct.
1. Refertoyourattachment&machineoperatormanuals.
2. InNorthAmericaorCanada,call1-877-728-8224and
provide product serial number and model number.
NOTE: Pinion (24 and 25) is marked “R” or “L”
on the back side. “R” indicates RH and must
be installed on the right hand side of the unit
shown below.
DRIVE PINION REFERENCE
---------------------------------------------------------------------------------
Drive Pinion Reference
16
59
23
24 25
22
21
Lightly oil, no grease
Wheel axle oil/grease annually
NOTE: Pinion (24 and 25) is marked
"R" or "L" on the back side. "R" indicates
RH and must be installed on the right
hand side of the unit shown below.
20
11
12
SERVICE
Do not allow material to remain in the hamper for extended
periods of time. Clean the hamper using a water hose and
allow to dry prior to storage.
Check all moving parts for wear and freedom of movement.
Routine lubrication of the pinion and dowel pin is required.
We recommend in the fall before storage as a minimum.
Remove, clean and lubricate the dowel pin (21) inside the
drive pinions (24 &25) with a light oil such as WD40, 3 in1,
or similar. Do not use motor oil or grease.
Check the drive pinions for wear. These are considered
normal wear parts. Contact our Customer Service
Department to purchase replacement drive pinions (Part
Numbers R-2485-RH and R-2485-LH).
Lubricate the wheels annually with multipurpose grease.
Check all fasteners for tightness.
Inspect for rust on painted surfaces. Sand lightly and
touch up damaged areas with enamel paint.
SPECIFICATIONS
Maximum Towing Speed................................................................5 mph
Hamper Capacity.........................................................................20 cu.ft.
Maximum Hamper Weight ..........................................................120 lbs.
Empty Weight with Dethatcher Attachment.................................102 lbs.
Maximum Towed Weight with Dethatcher Attachment................222 lbs.
GETTING QUALITY SERVICE
Quality Continues with Quality Service
We provide a process to handle your questions or problems. Follow the
steps below to get answers to any questions you may have about your
product.
1. Refer to your attachment and machine operator manuals.
2. In North America or Canada, call 1-877-728-8224 and provide product
serial number and model number.
Right Side
Left Side
Lightly oil,
no grease
Wheel axle oil / grease
annually
Drive Pinion Reference
16
59
23
24 25
22
21
Lightly oil, no grease
Wheel axle oil/grease annually
NOTE: Pinion (24 and 25) is marked
"R" or "L" on the back side. "R" indicates
RH and must be installed on the right
hand side of the unit shown below.
20
11
12
SERVICE
Do not allow material to remain in the hamper for extended
periods of time. Clean the hamper using a water hose and
allow to dry prior to storage.
Check all moving parts for wear and freedom of movement.
Routine lubrication of the pinion and dowel pin is required.
We recommend in the fall before storage as a minimum.
Remove, clean and lubricate the dowel pin (21) inside the
drive pinions (24 &25) with a light oil such as WD40, 3 in1,
or similar. Do not use motor oil or grease.
Check the drive pinions for wear. These are considered
normal wear parts. Contact our Customer Service
Department to purchase replacement drive pinions (Part
Numbers R-2485-RH and R-2485-LH).
Lubricate the wheels annually with multipurpose grease.
Check all fasteners for tightness.
Inspect for rust on painted surfaces. Sand lightly and
touch up damaged areas with enamel paint.
SPECIFICATIONS
Maximum Towing Speed................................................................5 mph
Hamper Capacity.........................................................................20 cu.ft.
Maximum Hamper Weight ..........................................................120 lbs.
Empty Weight with Dethatcher Attachment.................................102 lbs.
Maximum Towed Weight with Dethatcher Attachment................222 lbs.
GETTING QUALITY SERVICE
Quality Continues with Quality Service
We provide a process to handle your questions or problems. Follow the
steps below to get answers to any questions you may have about your
product.
1. Refer to your attachment and machine operator manuals.
2. In North America or Canada, call 1-877-728-8224 and provide product
serial number and model number.
Right Side
Left Side
Left
Side
Right
Side
1018189 Rev. C 20
The limited warranty set forth below is given by Brinly-Hardy
Company with respect to new merchandise purchased and
usedintheUnitedStates,itspossessionsandterritories.
Brinly-Hardy Company warrants the products listed below
against defects in material and workmanship, and will at its
option,repairorreplace,freeofcharge,anypart foundto be
defectiveinmaterialsorworkmanship.Thislimitedwarrantyshall
onlyapply ifthisproducthasbeen assembled,operated,and
maintained in accordance with the Operator’s manual furnished
withtheproduct,andhasnotbeensubjecttomisuse,abuse,
commercial use, neglect, accident, improper maintenance,
alteration,vandalism,theft,fire,water,ordamagebecauseof
other peril or natural disaster.
Normal Wear Parts or components thereof are subject to
separate terms as follows: All normal wear parts or component
failureswillbecoveredontheproductforaperiodof90days.
Parts found to be defective within the warranty period will be
replaced at our expense. Our obligation under this warranty is
expresslylimitedtothereplacementorrepair,atouroption,of
partsfoundtobedefectiveinmaterialandworkmanship.
HOW TO OBTAIN SERVICE: Warranty parts replacements
are available, ONLY WITH PROOF OF PURCHASE, through
ourCustomerServiceDepartment.Call877-728-8224.
This limited warranty does not provide coverage in the following
cases:
a)Routinemaintenanceitemssuchaslubricantsand
filters.
b)Normal deterioration of the exterior finish due to
use or exposure.
c)Transportationand/orlaborcharges.
d)Thewarrantydoesnotincludecommercialand/or
rental use.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose, applies
after the applicable period of express written warranty
above as to the part as identified below. No other express
warranty whether written or oral, except as mentioned
above, given by any person or entity, including a dealer
or retailer, with respect to any product, shall bind Brinly-
Hardy Co. During the period of the warranty, the exclusive
remedy is repair or replacement of the product as set forth
above.
The provisions as set forth in this warranty provide the sole
and exclusive remedy arising from the sale. Brinly-Hardy
Co. shall not be liable for incidental or consequential loss
or damage including, without limitation, expenses incurred
for substitute or replacement lawn care services or for
rental expenses to temporarily replace a warranted product.
Some states do not allow the exclusion or limitation of incidental
orconsequentialdamages,orlimitationsonhowlonganimplied
warrantylasts,sotheaboveexclusionsorlimitationsmaynot
apply to you.
Duringthewarrantyperiod,theexclusiveremedyisreplacement
ofthepart.Innoeventshallrecoveryofanykindbegreaterthat
the amount of the purchase price of the product sold. Alteration
of safety features of the product shall void this warranty. You
assumetheriskandliabilityforloss,damage,orinjurytoyou
and your property and/or to others and their property arising out
of the misuse or inability to use this product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased
as a gift.
HOW STATE LAW RELATES TO THIS WARRANTY:
This limited warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.
IMPORTANT: The Warranty period stated below begins with
the PROOF OF PURCHASE. Without the proof of purchase,
the Warranty period begins from the date of manufacture
determined by the serial number manufacturing date.
WARRANTY PERIOD:
The warranty period for the product shown in this manual is as
follows: Steel Frame Parts: 2 Years. Tires, Wheels and Drive
arenormalwearparts-90days.
MANUFACTURER’S LIMITED WARRANTY FOR
BRINLY PULL-BEHIND ACCESSORIES
Brinly-HardyCompany•3230IndustrialParkway•Jeffersonville,IN47130•(877)728-8224
Table of contents
Other Brinly Lawn Sweeper manuals
