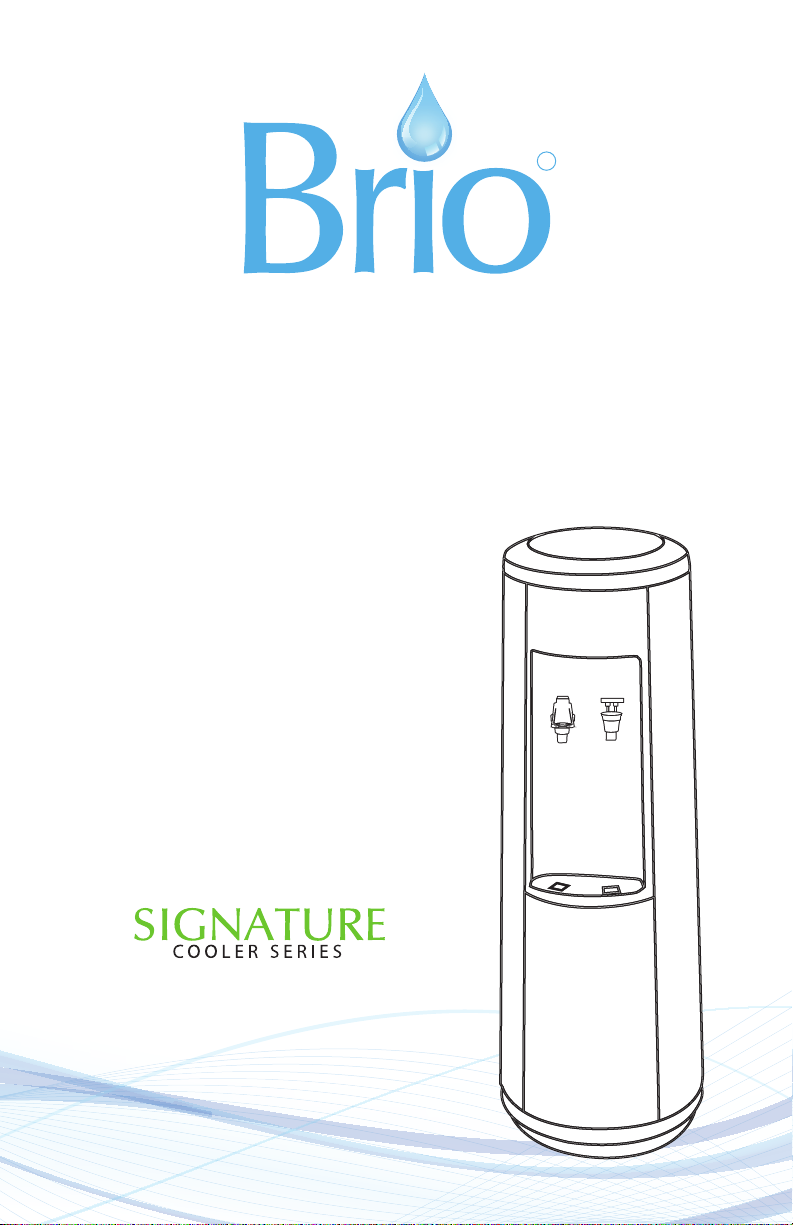

BRIO Signature Series User manual

WATER COOLER
USER’S MANUAL
Thank you for purchasing a Brio water cooler. Please read this user’s
manual thoroughly for using the water coolers safely and appropriately.
Hot & Cold, Stainless Steel
CL800U Signature Series
Point of Use Cooler
R

SAFETY PRECAUTIONS
• Plug in the dispenser in the way described in this manual.
• In accordance with these instructions, the dispenser must be properly located
and installed before use
• Use only water. Do not use coee, tea or other beverages.
• Dispenser must be unplugged before cleaning, sanitizing or repairing. Regular
cleaning is advised to ensure satisfactory water quality.
• Always unplug the dispenser power cord before servicing or lter replacement.
• Do not use with water that is microbiologically unsafe or of unknown quality.
• periodically remove dirt and lint from the condenser on the back of the cooler.
• Ensure the dispenser stands upright for 2 hours before loading water bottle, plugging
in or turning the unit on.
• Always lift dispenser by handle located on rear of unit. DO NOT Lift dispenser by the
faucets, this part of the cooler may break and cause leaks if pulled by force.
• Supervise children when using the dispenser; water from hot faucet will be extremely
hot and may scald.
•
•
•
•
•
•
•
The recommended placement of the water dispenser is indoors. Keep away from
direct sunlight and exessive moisture
WARNING: The hot water is heated to approximately 90°C (194°F). Temperatures
above 52°C (125°F) can cause severe burns from scalding. DO NOT ALLOW CHILDREN
TO USE THE HOT WATER DISPENSING BUTTON WITHOUT PROPER AND DIRECT
SUPERVISION.
IMPORTANT: To provide additional protection from the risk of shock, the dispenser
MUST be connected to a ground fault circuit interrupter (GFCI) outlet at all times. Use
of an extension cord will void any warranties. See warranty document for complete
terms and conditions.
WARNING: The dispenser must be grounded – if the appliance is improperly ground-
ed, it may result in an electric shock
Do not connect the dispenser to the power outlet yet. Install the dispenser on a at and secure
place approximately 4 inches (10cm) from the wall.
If you need to move the dispenser, wait approximately 1hour after turning o the power. Upon
moving, do not tilt the dispenser more than 45 degrees.
Make sure that the electric socket is correctly grounded to prevent electric shock.
Check If the Water Levers are rmly closed.
This dispenser is intended for indoor use only.
Do not expose to direct sunlight.
Cautions

After installing the lter, remove the air inside the Hot Water Tank by pressing and holding
the Hot Water Lever as shown in the following gure until water starts to come out of the
water outlet.
Place a cup under the hot dispenser faucet. Squeeze the
front and back of the left faucet handle together and push
down until water ows continuously. Depress the cold
water faucet to make sure there is a continuous ow of
water
Remove the Air inside the Hot Water Tank
Case / Drip Tray
Case: Clean the dispenser using a soft damp cloth. At
all times, do not use abrasive cleaning materials or
implements.
Once the soiled parts of the dispenser have been
cleansed, dry using a soft cloth.
Drip Tray: Clean the Drip Tray and then wipe o with a
neutral detergent and a soft cloth.
Leakage of Tank
If there are any leakages, drain the Cold Water through
Water outlet.
Drain the hot water by removing the cap of Hot Water
Drain Valve.
Check the Leakage
If the lter is not installed properly, or when the Drain
Cork is not closed completely, leakage may occur. Check
if there are any leakages on the back or bottom by
moving the dispenser.
Radiator Condenser
A radiator is mounted on the back of Dispenser. If it is too
close to a wall, or when the radiator gets covered in dust,
the cooling eciency will be impaired. Please clean the
dust o with a soft brush or vacuum cleaner. This should
be done regularly.
Check the Power Cord / Plug
Check to see that the power cord is not damaged or
overheating, and also that no heavy objects are placed
on it. Failure of the power cord could lead to re or shock
hazards. Please frequently check.
Cautions
Before draining hot water, wait one hour
after turning power o to allow water to
cool down. Otherwise, you may be burnt
by hot water.

RECEIVING
Inspect the dispenser box carefully for any evidence of shipping or handling damage
before signing to receive goods. In case of shipping damage, claims should be led
emmediately with the carrier
HOW TO INSTALL AND USE
1.
2. Ensure dispenserstands upright for aminimum of 2 hoursbefore loading water bottle.
Keep cooler unplugged until water ows all the way through faucets
3. Place dispenser a minimum of 4 inches away from the wall to ensure ventilation.
4.
5. Do not install dispenser where it will be subject to direct sunlight, heat or moisture.
6. Wipe down the water bottle cap and neck to ensure there is no debris.
Cold Water Faucet (Blue Lever) and Hot Water Faucet (Red Lever)
Press the Blue Lever for Cold Water and Red Lever for Hot Water, respectively.
Place a cup directly below a faucet and depress the correct lever ,but be
careful using the hot water.
How to use Child Lock Lever
When the hot water comes out, be careful not to burn yourself.
Do not allow the children to use the dispenser unsupervised.
Cautions
TYPE 1 TYPE 2
Hot water comes out if pressing the whole lever with
the lever pressed with the thumb and index finger.
Hot water comes out if pressing the whole lever with
the bottom of lever pressed with the index finger.

Filter Installation
It is highly recommended to have your water dispenser installed by a professional (licensed) plumber.
If you are installing the water dispenser yourself, the following information is imoportant.
Dual Float Valve (Water level adjustment device)
•
•
•
•
•
•
•
•
Make sure that valves of cold water piping are securely closed before installation.
Make sure that you are connecting them to cold water piping.
When you connect to hot water, you may damage the lter.
Avoid source water inow hoses that are too short or severely bent. If so, the lter
will not perform as normal.
If the source water pressure is over 100psi please install regulator before product
to reduce water pressure less than 100psi.
Filter Replacement
1. Unplug power cord.
2. Shut o the water ow by turning the lever on the straighty valve to close.
3. Depending on your choice of ltration device. Replace all the lters needed.
Place a towel under the lter to catch excess water that drips out from the lter
during changeover.
4. Once you have replaced all the lters needed, turn the lever on the straight valve
to open water ow.
Connect the source water hose from cold water
piping to the back of the cooler as shown in [gure 2]
If the hose is too long, the ow rate may be decreased.
A hose should be able to endure suciently high water pressure.
Open the source water (cold water) valve. Currently, pressure is being applied to
the piping
“A” is the “primary” otation device that manually
controls incoming water and related water levels
associated with normal operating conditions. The
design parameter of this device allows the oat to
move freely “up/down” according to related water
levels. As water levels rise, so does the oat causing the water inlet valve to close at
a pre-determined level. As water levels fall, so does the oat causing the water inlet
valve to open allowing replenishment of water.
“B” is the “secondary” otation device that engages “only” in the event of a
malfunction of otation device “A” to prevent possible overow conditions. The
design parameter of this device only allows the oat to move “upward” as water
levels rise, causing the water inlet valve to close permanently. When otation
device “B” engages, a manual “re-set” of the oatation device is required in order
to restore normal (incoming) water activity.
Cautions
When you use water with unsafe or
unknown quality, we recommend you to
use a lter because it can cause product
failures.
Filtration
Device
[Figure 2]
A
B

Cleaning the POU cooler
Cleaning the POU cooler reservoir
1. Disconnect power cord from outlet.
2. Remove top of cooler and inner oat assemby to expose the cold tank below.
3. Drain reservoir through the cold water (light blue) faucet and the hot water
(red if you have a hot and cold water cooler) faucet into a bucket and throw
that away. If there is ice in the reservoir, allow to melt and then drain. You can
add hot water to speed up the melting. If you have a hot & cold water cooler,
then drain the hot tank via the plug on back of water cooler.
4. Clean cooler exterior & faucets with hot water and mild soap. Dry with paper
towels.
5. Remove the water guard or spill-free top from your water cooler. Remove the
bae inside the reservoir as well. Both should just pull right out, depending
upon the model cooler you have. Also remove (by unscrewing) the spigots on
the front of the water cooler. If you have a removable reservoir water cooler
then you can also take that out at this time.
6. Wash these with mild dish soap and water. Rinse with clean water and set
aside. If you removed the reservoir then reinstall that rst. Screw the faucets
back on to the front of the water cooler.
1. For hot & cold water coolers you must plug the hot tank o. You can do this
with a small cork or plug. It must be tight and t right in the center hole in
the bottom of the water cooler's reservoir. This prevents the sanitizer from
getting into your hot tank -- if bleach gets into the hot tank, your hot water
will taste like chlorine for quite a while. The hot tank sanitizes itself since it's
very hot.
2. mix one gallon of clean water and one teaspoon of unscented bleach. Put on
your clean rubber gloves and dip a clean, lint-free towel into the solution and
wring out the excess liquid. Towel down clean all of interior surfaces of the
reservoir thoroughly. Let that chlorine solution stay in the cooler for about 5
minutes.
3. Sanitize spill-free top and bae by wiping them down with the towel lled
with the sanitizing solution. You don't need to soak them, just wipe them.
Allow to sit for at least 3 minutes and then rinse thoroughly with clean
bottled water, and set aside.
4. Fill reservoir full of fresh bottled water and completely drain that water
through the cold faucet. Repeat twice. That makes three (3) times total, and
uses about three (3) gallons of bottled water.
5. Put on a clean pair of rubber gloves and take out the hot tank cork (if you put
one in), replace the bae and spill-free top assembly by pressing them rmly
back into place. You shouldn't have any chlorine taste. If you do, keep
draining more water until the chlorine taste disappears.
6. Plug the cooler back in. It might take thirty minutes or so before the water is
hot and/or cold again.

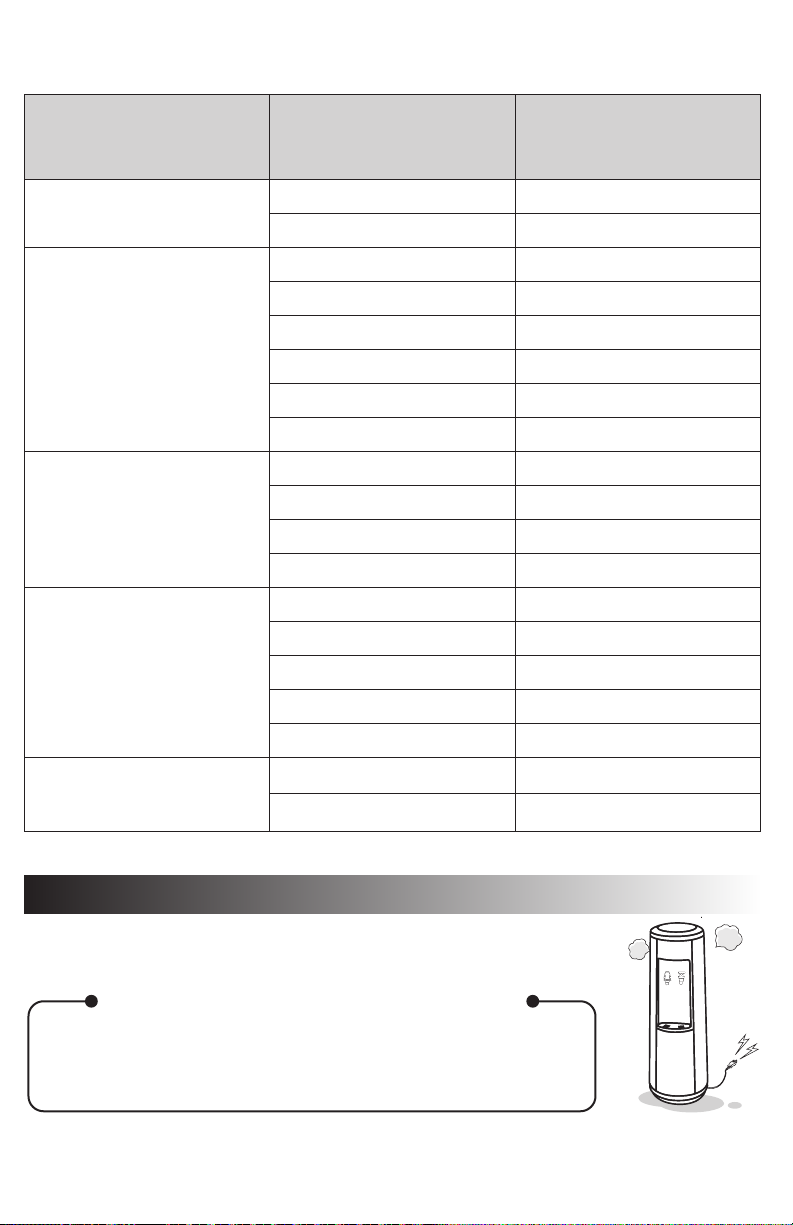

TROUBLESHOOTING
Please check the following items prior to asking for repair
Troubles Things to check Troubleshooting
Water does not come out
(Cold Water & Hot Water)
Cold water does not come out
Hot water does not come out
Noise
Water shut-off valves.
Is the air inside the Tank removed
completely?
Are there dust on the radiator
condenser?
Is the power appropriately supplied?
Has the circuit breaker tripped?
Is the capacity for producing hot water
exceeded by your demand?
Is hot water switch turned off?
Drain cap and plug are not secure.
Is the dispenser in contact with a wall or
other products?
All water line connections.
Dispenser is leaking
Is the power off?
Is Circuit Breaker closed?
Is the Hot Water Drain leaking?
Filter not properly secured and locked?
Is the dispenser making a vibrating noise?
Is the back of the dispenser too close to
a wall?
Is the capacity for producing cold water exceeded by
your demand? Is the remaining cooling time too short?
Is the power cord unplugged?
Is the power cord unplugged?
Is the temperature too high?
Open all water shut-off valves.
Press and hold the lever until the water
comes out through Hot Water Faucet.
Clean the radiator condenser mounted
on the back.
Check the Distribution board.
Reduce consumption to within capacity
specified for the dispenser.
Is either the Hot or Cold faucet leaking? If the faucets are loose, firmly fasten
them.
Secure filter and lock
Make sure that it is installed on a level
solid horizontal surface.
Keep the designated space away from a
wall or other products.
Frimly fasten the cap of Hot Water Drain.
Make sure blue locking “C” clips are
installed on water lines.
Ensure drain plug is secure and tighten
drain cap.
Reduce consumption to within capacity
specified for the dispenser.
Install in a place where the air is well circulated.
Do not expose to direct sun light.
Install with 15cm separated from a wall. Reinstall to
allow the radiator condenser to be cooled down.
Check the power cord.
Check the power cord.
Check the plug board.
Turn on Hot Water Switch mounted on the back.
Repair & After Sales Service
Unplug the power cord and then contact our representative
from whom you purchased the dispenser.
Please inform us of following information
(1) Name (Company Name) and Address
(2) How to contact the staff in charge of the dispenser
(3) Details of problems encounterd.

L H
* For the improvement of product Brio reserves the right to change specifications without notice.
*
You must confirm the correct voltage(V) and frequency(Hz) and then plug to the outlet. Check the proper voltage in the back of dispenser.
Manufactured by: DOWNTOWN WHOLESALERS
Names of Each Component
Name
Model Number
Size(mm)
Weight
Cool
Water
Continous
Discharging Capacity
Temperature
Tank Capacity
Continous
Discharging Capacity
Temperature
Tank Capacity
Hot
Water
Power
Consumption Power
Hot and Cold Water Dispenser
CL800
12.5”(W) x 13.5”(D) x 40.7”(H)
45 LBS
425W/Heating, 85W/cooling
5°C ~ 10°C
About 3ℓ(Stainless Steel Tank)
1.4ℓ
85°C ~ 95°C
About 1.52ℓ(Stainless Steel Tank)
1.4ℓ
Hot & Cold water
indicator
Cold Water Faucet
(Cold water comes out)
Hot Water Faucet
(Hot water comes out)
(Use to drain the air from
Hot Water Tank)
Drip Tray
Front Panel
Hot Water Switch
Cold Water Switch
Cold Water Thermostat
(Do not touch with a hand)
Hot Water Tank
Hot Water Drain
(Use to drain hot water)
Power cord
Filter Connect
Compressor
Earth
(Make sure that this
dispenser is properly earthed)
220-240V
50Hz
220V
60Hz
100V
50/60Hz
115V
60Hz
COOLER, PARTS AND ACCESSORIES
SPECIFICATIONS
