Brite View Air SyncHD BV-2322 User manual

0

1
Table of Contents
TABLE OF CONTENTS............................................................................................................1
1. IMPORTANT INFORMATION.............................................................................................2
S AFETY P RECAUTIONS ...........................................................................................................2
D ANGER : B E CAREFUL WITH ELECTRICITY .............................................................................2
2. INTRODUCTION................................................................................................................6
2.1 P ACKING C ONTENT .........................................................................................................6
2.2 O VERVIEW ....................................................................................................................7
3. INSTALLATION ................................................................................................................12
4. TROUBLESHOOTING.......................................................................................................23
5. SUPPORTED RESOLUTION..............................................................................................25
6. AUDIO BIT RATE SUPPORT .............................................................................................26
7. PRODUCT SPECIFICATION ..............................................................................................27

2
1. Important Information
Please take the time to read this user manual
before using the BV-2322T and BV-2322R.
It contains important information about
operating your ull HD video wireless kit.
This limited warranty applies when the product
is handled properly for intended use, in
accordance with its operating instruction.
However, the warranty may be void in the
following cases:
Repair, product modification or alteration
have been performed by unauthorized
service personnel
Damages caused by accidents, including
but not limited to, lightning, water, fire, or
moisture
Use of an AC adapter not compatible with
the product and its voltage rating
The model number on the product has
been altered, deleted, removed or made
illegible.
Safety Precautions
WARNING!
RISK O
ELECTRICAL
SHOCK
DO NOT OPEN
WARMING:
TO REDUCE THE RISK O ELECTRICAL SHOCK
DO NOT REMOVE THE COVER
NO USER-SERVICEABLE PARTS ARE INSIDE
RE ER SERVICING TO QUALI IED
PERSONNEL
Danger: Be careful with electricity.
Power to the units must be switched off
before any work is undertaken, such as
any AV device connection or TV
connection.
Power outlet: To prevent electric shock,
make sure to use the appropriate AC
adapters as power supply to the
transmitter and the receiver.
Power cord: Be sure the power cord is
routed so that it will not be stepped on or
pinched by heavy items.
Power overloading: Avoid overloading
electrical outlets or extension cords which
otherwise could result in electric shock or
fire.
Lightning: Disconnect the product from
the power source if it is left unattended
for a long period of time, and to protect
the product from lightning.
Always disconnect the power cord from
the power outlet when you are not using
your ull HD Video wireless kit. This
reduces the risk of electric shocks or fire.
Warning
This product should not be exposed to
dripping or splashing. No object filled
with liquids, such as vases, should be
placed on the product.
Object Entry: To avoid electric shock,
never stick anything in the slots on the
case or remove the cover.
Place receiver/transmitter on a flat, hard
and stable surface
Ventilation: Do not block the ventilation
slots on the receiver/transmitter or place
any heavy object on the top cover.
Blocking the air flow could damage the
receiver. Arrange components so that air
can flow freely around the receiver.
Ensure that there is adequate ventilation
if the receiver is placed in a stand.
Put the receiver/transmitter in a property
ventilated area, away from direct sunlight
or any source of heat.
Water Exposure: To reduce the risk of fire
or electric shock, do not expose the
receiver/transmitter to rain or moisture.

3
Special Notice
Never use this product nearby an aircraft
or medical facility. It can cause
interference or undesirable effect on the
operation result.
Use of this product in the following
locations may result in abnormal video
and audio output (noise, blocked image...
etc,).
Product installed in the walls made
of concrete.
Product situated near the
refrigerator or metal fitment.
A cluttered room where the
wireless signals may be blocked
This product has been tested and
manufactured to comply with each
country’s safety rules. However, there is
no guarantee that interference will not
occur in some installation scenario. If the
interference happens, increase the
distance between the transmitter and
receiver.
BV-2322 may interfere 5GHz wireless
devices, such as routers or other wireless
devices. Therefore, if you have an
802.11n router, configure it to the 2.4
GHz band rather than the 5GHz band.
Optimal range between BV-2322
transmitter and receiver is between 2 and
20 meters within line of sight.
EN 022 Information technology
equipment----
Radio disturbance characteristics--- Limits
and methods of measurement
EN 61000-3-2 Electromagnetic
compatibility (EMC)---
Part 3-2:Limits---Limits for harmonic current
emissions(equipment input current up to
and including 16 A per phase)
EN 61000-3-3 Electromagnetic
compatibility (EMC)---
Part 3:Limits---Section 3: Limitation of
voltage changes, voltage fluctuations and
flicker in public low-voltage supply systems,
for equipment with rated current ≦16 A per
phase and not subject to conditional
connection
EN 024 Information technology
equipment----
Equipment---Immunity
characteristics---Limits and methods of
measurement
EN 301 489-1
Electromagnetic compatibility and Radio
spectrum Matters (ERM); Electro Magnetic
Compatibility (EMC) standard for radio
equipment and services;
Part 1: Common technical requirements
DECLARATION OF CONFORMITY
This device complies with Part 15 of the CC
Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
EMI (Electro Magnetic Interference) tested.
TRADEMARK INFORMATION
HDMI, the HDMI Logo and
High-Definition Multimedia Interface
are trademarks of HDMI Licensing LLC.
EN 301 489
-
17
Electromagnetic compatibility and Radio
spectrum Matters (ERM); Electro magnetic
Compatibility(EMC) standard for radio
equipment;
Part 17: Specific conditions for 2,4 GHz
wideband transmission systems, 5GHz high
performance RLAN equipment and 5,8 GHz
Broadband Transmitting Systems
EN 6006 Audio，video and similar
electronic apparatus—Safety requirements

4
CAUTION: Using of RF Modules
in the U.S.
Any changes or modifications not
expressly approved by the grantee of this
device could void the user's authority to
operate the equipment.
This equipment must be installed and
operated in accordance with provided
instructions and the antenna(s) used for
this transmitter must be installed to
provide a separation distance of at least
20 cm from all persons and must not be
co-located or operating in conjunction
with any other antenna or transmitter.
End-users and installers must be provide
with antenna installation instructions and
transmitter operating conditions for
satisfying R exposure compliance.
Outdoor operations in the 5150 ~
5250MHz, 5600~5650MHz band are
prohibited.
This device has no Ad-hoc capability for
5250~5350MHz and 5470~5725MHz.
Outdoor operations in the
5470~5725MHz band are prohibited. This
device could not be used in the
5600~5650MHz.
The Device does not operate in
5600~5650MHz.
Industry Canada regulatory information
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including
interference that may cause undesired
operation of the device.
The user is cautioned that this device
should be used only as specified within
this manual to meet R exposure
requirements. Use of this device in a
manner inconsistent with this manual
could lead to excessive R exposure
conditions.
The following regulatory and Safety
notices must be published in
documentation supplied to the end user
of the product or system incorporating an
adapter in compliance with local
regulations, Host system must be labeled
with “Contains CC ID: XXX-XXXXX”, CC
ID displayed on label.

S stem Warning
EDERAL COMMUNICATIONS COMMISSION
INTER ERENCE STATEMENT
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the CC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving
antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.

5
CAUTION: Using This S stem in
the United States
Any changes or modifications not
expressly approved by the grantee of this
device could void the user's authority to
operate the equipment.
This equipment must be installed and
operated in accordance with provided
instructions and the antenna(s) used for
this transmitter must be installed to
provide a separation distance of at least
20 cm from all persons and must not be
co-located or operating in conjunction
with any other antenna or transmitter.
End-users and installers must be provide
with antenna installation instructions and
transmitter operating conditions for
satisfying R exposure compliance.
Outdoor operations in the
5150~5250MHz, 5600~5650MHz band
are prohibited.
This device has no Ad-hoc capability for
5250~5350MHz and 5470~5725MHz.
Outdoor operations in the
5470~5725MHz band are prohibited. This
device could not be used in the
5600~5650MHz.
The device does not operate in
5600~5650MHz.
CAUTION: Using This S stem
in Canada
Industry Canada regulatory information
Operation is subject to the following two
conditions:
1. This device may not cause
interference,
2. This device must accept any
interference, including interference
that may cause undesired
operation of the device.
The user is cautioned that this device
should be used only as specified within
this manual to meet R exposure
requirements. Use of this device in a
manner inconsistent with this manual
could lead to excessive R exposure
conditions.

6
2. Introduction
BV-2322T and BV-2322R wireless HD
audio/video transmission solution allows users
to place their HDTV set or projector where you
want, free of the constraint of cables. Just
connect your HDTV to the BV-2322R (receiver)
with an HDMI cable, and connect your AV
equipment (Blu-ray players, HD set-up boxes,
game consoles or HD media players and
streamers) to the BV-2322T (transmitter)
Besides HDTVs, any display with an HDMI input,
such as LCD and plasma monitors, are
compatible with the BV-2322R.
This setup unclutters your media and allows the
AV equipment to be hidden in the cabinet
behind your seating area. This solution
delivers uncompressed 1080p full HD video and
audio content to your existing HDTV set
wirelessly. It operates the transmission in 4.9
GHz~ 5.9 GHz frequencies and it can adjust its
communication frequency automatically in case
of interference from another R system. With
built-in Omni-directional antennas, it can
transmit uncompressed video content to 20
meters (66 feet) LOS ( Line of sight) with no
latency.
Both IR Sensor Extender Cable and IR Blaster
Extender Cable are included in the package so
users can point their remote control of the AV
source at the BV-2322R directly for device
operation.
2.1 Packing Content
Please check whether the following items are
present in the package. If any items missed or
damaged, please call your dealer.

7
2.2 Overview
A. BV-2322T: Full HD Transmitter
 ront Panel Buttons and LEDs
 Power Button with LED Indicator
Press to turn the transmitter on and off. The
indicator in the power button is lit solid blue
when the power is on, and turns red in standby
mode.
 Source Selection Button
Press this button to change the frequency of IR
blaster among 38 KHz, 47 KHz and 58KHz.
Default frequency is 47KHz. See the OSD
description on TV screen for operation after
connecting the BV-2322R to the TV via HDMI
out.
Note1:
The BV-2322T transmitter can be connected to
one audio/video device running on HDMI cable
and transmit the A/V signals to the 2
nd
HDTV,
plus looping through the signals to the 1
st
HDTV
set connected to the BV-2322T via the HDMI
OUT port at the same time.
 Main Unit Back Panel
 IR Blaster Extender Jack
Plug the IR Blaster Extender Cable into the IR
OUT jack at rear panel of the transmitter. Attach
the IR blaster to the device connected to the
BV-2322T. You can point your AV equipment’s
existing remote control at the BV-2322R receiver
(usually close to your TV) to control connected
device.
 HDMI OUT
To use the “loop-through” feature, you can place
your 1
st
HDTV set close to the AV equipment,
and connect the BV-2322T (transmitter) to that
HDTV set via HDMI out, and the AV equipment
via HDMI in. Then, you can enjoy the same
digital content on your 2
nd
HDTV set connected
to the BV-2322R (receiver), possibly in another
room.
 HDMI IN
Connect Transmitter to High-definition
audio/video devices that have an HDMI port
using a provided HDMI cable.
DC IN
or connecting the BV-2322T power adapter.
Note2:
With the loop-through connection, the same
video/TV show can be displayed on either the 1
st
HDTV also connected to the BV-2322T, or on a
2nd HDTV possibly in a different room, once the
transmitter is paired successfully with receiver
connected to the 2nd HDTV set.

8
B. BV-2322R: Full HD Receiver
 ront Panel Buttons and LEDs
 Power Button with LED indicator
Press to turn the receiver on and off. The
indicator in the power button lights up in blue
when the power is on, and turns red in
standby mode.
 Source Selection Button
Press this button to change the frequency of IR
blaster.
Note:
Make sure you have connected the BV-2322R
correctly to your HDTV set with an HDMI cable,
and have selected the correct HDMI input on
your TV.
If you have more than one pair of BV-2322,
each transmitter and receiver should be at
least 6.5 feet away from one another.
If both the transmitter and the receiver exist in
the same room, the suggested the minimum
distance between the two is 6.5 feet.
 Main Unit Back Panel
 IR Sensor Extender Jack
Plug the IR Sensor Extender cable into the IR IN
jack at the rear panel of the receiver. Generally,
sensors with cable are placed near your HDTV
set so that you can easily operate and control
your AV equipment connected to BV-2322T by
pointing the remote control to the TV instead
of the AV equipment.
 HDMI OUT
or connecting the HDTV set via an HDMI
cable.
 DC IN
or connecting the BV-2322R power adapter.

9
C. Remote Controller Unit (RCU) Instruction
Note :
1. Press Power key pointed at the transmitter when system on active mode, transmitter will
enter Listen mode (R disconnected) and Loop-through display keeps on.
2. Press Power key Point at the receiver when system on active mode, both transmitter and
receiver will enter Standby mode (R disconnected) and Loop-through display off.
3. The “Standby” mode uses consumes 90% less of the power. User has to press both power key
on transmitter and receiver to resume active mode.
Button unction Description Operation
POWER
Press to turn the
BV-2322
Transmitter/Receiver
on/off.
Press it when pointing at the
BV-2322R to enter the
"Standby
Mode" with the loop-through
connection is already on;
press
it when pointing at the
BV-2322T to enter the
"Standby Mode
" with the loop-through
connection is off.
IN O.
Press to display between
"Channel", "Source",
"Resolution", "WIDE
mode" and ' Signal
Quality'
Press once to display the
current status.
Press again to exit OSD.
SOURCE
Press this button to
change the frequency
of IR blaster among
38KHz, 47Kz and
58KHz. Default frequency
is 47KHz .
Press once to display the
current frequency of IR
blaster.
Press again to change to next
frequency, and the frequency
will be displayed on the OSD.
CHANN
EL
Press this button to
change between
wireless channels
manually if the user
experiences video noise.
Press once to display the
current "Channel" status.
Press again within 5 seconds
to switch to another channel,
and
the channel number will be
displayed on the OSD.
WIDE
Enable the “WIDE” mode
to boost transmission
distance; up to 100 feet
(1080i content only)
Press this button to en
able
and disable Wide mode.
Press again within 5 seconds
to enable WIDE mode, and
the status will be displayed
on
OSD.

10
D. On Screen Display (OSD) vs. RCU Instruction
 POWER Button
(1) Press the POWER button on the RCU pointed at the Transmitter or presses the POWER
button on top of the Transmitter to enter “Standby mode” from “Active mode”.
OSD Displayed:
▃▆█
▃▆█▃▆█
▃▆█ HDMI1 CH10 WIDE Off 1280x1024
Standby Mode, Loop-thru Off
(2) Press the POWER button on the RCU pointed at the Receiver or presses the POWER
button on top of the Receiver to enter “Standby mode” from “active mode”.
OSD Displayed:
▃▆█
▃▆█▃▆█
▃▆█ HDMI1 CH10 WIDE Off 1280x1024
Standby Mode, Loop-thru On
 Press the INFO button on the RCU, and Signal Quality, Source, Channel, WIDE mode status and
resolution will be displayed for user’s reference.
OSD Displayed :
▃▆█
▃▆█▃▆█
▃▆█ HDMI1 CH10 WIDE Off 1280x1024
Press again to exit the OSD
 Press the SOURCE button on the RCU or on the top of transmitter (or receiver) for IR blaster
frequency selection.
Press “SOURCE” button once for current IR blaster frequency displayed on the OSD:
▃▆█
▃▆█▃▆█
▃▆█ [HDMI1] CH10 WIDE Off 1280x1024
IR Blaster Frequency [47KHz]
Press “SOURCE” button again within 5seconds to change IR blaster frequency.
▃▆█
▃▆█▃▆█
▃▆█ [HDMI2] CH10 WIDE Off 1280x1024
IR Blaster Frequency [47KHz]

11
Press the CHANNEL button on the RCU to manually switch between wireless channels if the
user experiences video noise.
Press “CHANNEL” button once for current Channel status displayed on the OSD:
▃▆█
▃▆█▃▆█
▃▆█ HDMI1 [CH10] WIDE Off 1280x1024
Press again to change Channel
Press the “CHANNEL” button again within 5 seconds to change Channels manually.
▃▆█
▃▆█▃▆█
▃▆█ HDMI1 [CH 8] WIDE Off 1280x1024
Press again to change Channel
 Press the WIDE button of RCU for longer distance transmission of audio/video contents. (1080i
content only)
(1) Press once for current WIDE mode status displayed on the OSD (Default is disable) :
▃▆█
▃▆█▃▆█
▃▆█ HDMI1 CH10 [WIDE Off] 1280x1024
Press again to switch WIDE mode
(2) Press WIDE button again within 5seconds to switch to WIDE mode status, OSD displayed
as such :
▃▆█
▃▆█▃▆█
▃▆█ HDMI1 CH10 [WIDE On] 1280x1024
Press again to switch WIDE mode
NOTE : Only the status of the BV-2322R (receiver) connected to the HDTV can be displayed on the
OSD. The status of the BV-2322T (transmitter) HDMI out can not be displayed.

12
3. Installation
Step1: Set p the BV-2322T Transmitter with the A/V So rce and the 1
st
HDTV
Connect One High-Definition A dio/Video So rce and an HDTV to the BV-2322T:
(1) Connect the BV-2322T’s
(transmitter)“HDMI IN” to the
High-Definition AV sources’ “HDMI OUT”
with an HDMI cable (included). The
BV-2322T has a HDMI inputs for the latest
High-Definition device, like the PS3 and
Blu-ray player.
(2) Connect the BV-2322T’s (transmitter)
“HDMI OUT” to the HDTV set’s “HDMI IN”
port with an HDMI cable for the
loop-through connection.
(3) Connect the supplied power adapter to the
DC IN jack of the BV-2322T and a wall
socket. The LED indicator in the POWER
button lights up in solid purple when the
BV-2322T is connected to the power mains.

13
Step2: Set p the BV-2322R receiver with the 2
nd
HDTV
HDTV set Connection with BV-2322R:
(1) Connect the HDMI cable to the
HDMI OUT jack of the BV-2322R
and to your HDTV set (or an HD
projector).
Press the SOURCE / INPUT
button of your TV’s remote to
select the appropriate “HDMI”
video input.
(2) Connect the supplied power adapter to
the DC IN jack of the BV-2322R and a wall
socket. The LED indicator in the POWER
button lights up in solid blue when the
BV-2322R is connected to the power
mains.

14

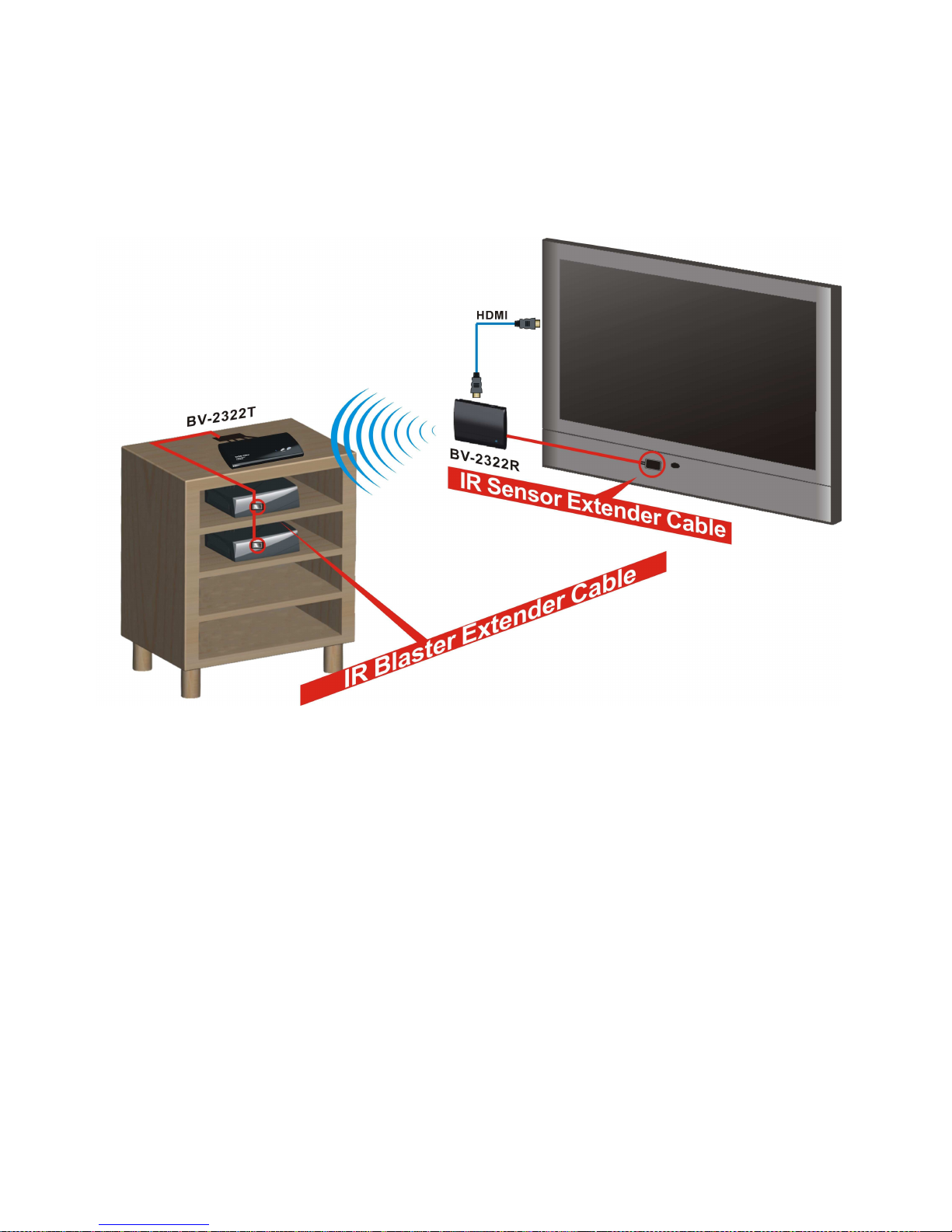

Step3: Set p the IR Blaster Extender Cable and IR Sensor Extender Cable
If necessary, connect the Infrared (IR) blaster (or sensor) Extender cable. Users can point
hand-held remote control of your high-definition V equipment at the BV-2322R or the
HDTV set to operate the source devices, not exceeding the distance of 66 feet at
Line-of-sight.
(1) Plug the IR blaster cable into the IR
OUT jack of the BV-2322T.
Place the IR blaster head near the IR
sensor of your high-definition
audio/video devices nearby.
The infrared (IR) sensor should be close
to the front panel of your
high-definition device, usually behind a
dark and sometimes reddish plastic
window.
When the IR blaster cable is connected,
it relays infrared command from your
remote control at the device. Users can
control their AV devices by pointing
their remote control at the TV instead
of at their AV equipment.
(2) If your connected device will be out of
the direct line of sight of your remote
controls, plug the IR Sensor Extender
cable into the IR IN jack at the rear
panel of the BV-2322R (receiver).
Note:
(1) The IR sensor supports 36 KHz ~ 56 KHz
(NEC, RC5, RC6) remote’s signal protocol.
Therefore, it is possible that some devices
may not be supported.
(2) The IR blaster supports 47KHz remote’
signal protocol.

15

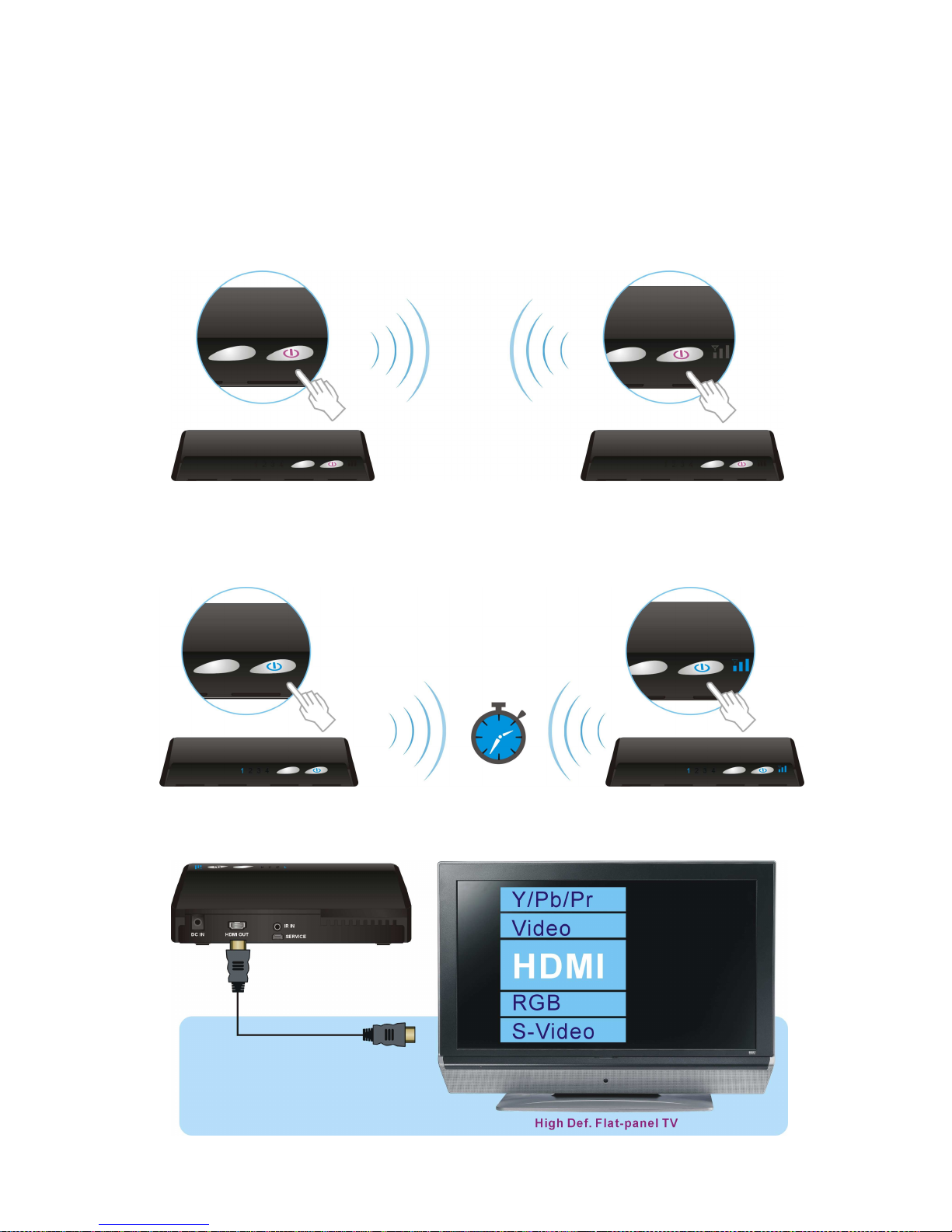

Step 4: Boot p the BV-2322T and BV-2322R
(1) Place the two AAA batteries into the remote control.
(2) After the power cord is plugged into the electrical outlet, the BV-2322 will be turned on
automatically.
(3) If it is on Standby mode and the loop-through connection is on, and the both displays are off
(Both POWER LED of transmitter and receiver are lit in red), press the POWER button on both
transmitter and receiver to turn on the BV-2322T and BV-2322R.

16
(4) If it is on Standby mode with the loop-through connection on, and the 1
nd
display attached to
the transmitter + A/V source is on (Transmitter POWER LED is lit in purple and Receiver POWER
LED is lit in red), press the POWER button of receiver to turn on the BV-2322T and BV-2322R.
Note : During this period, BV-2322T will enter Standby mode and turn off Loop-through output
when press the POWER button of transmitter or press the POWER key of RCU pointed at
transmitter.
(5) During the warm-up, the POWER LED will blink in blue until the signal link between the
BV-2322T and the BV-2322R is established.
Ensure your2
nd
TV set or projector is on “HDMI input” mode, and is already powered on.

17
(6) Press the SOURCE button, until you see the video being broadcasted from your A/V device.
(7) If you have electronic devices such as a cordless phone or wireless access point/ router sharing
the 5GHz channel frequency, you may experience disturbed picture or diminished sound
quality when the Air SyncHD is close to those devices. Press the CHANNEL button on the
remote control to change the BV-2322 to different channels.
Note:
A. Changing the BV-2322 to a different wireless channel:
1. Enter the wireless R
channel adjustment mode
2. Changes to the next
available R wireless channel
3. Exit the wireless
R channel
adjustment mode
Method
Press the CHANNEL button on
the Remote Control Unit (RCU)
for current channel status
display.
Press the CHANNEL button on
the RCU again within 5
seconds to switch channel
randomly.
No button is pressed
for 5 seconds.
OSD Display
Status
▃▆█
▃▆█▃▆█
▃▆█ HDMI1 [CH 8] WIDE Off 1280x1024
Press again to change Channel Exit.

18
B. Channel Number Indicating the Wireless requency:
WIDE mode Off
requency
[MHz]
US ( D S )
Europe ( D S )
Japan ( D S )
Support
Region
Channel Support
Region
Channel Support
Region
Channel
5190
V
1
V
1
V
1
5230
V
2
V
2
V
2
5270
V
3
V
3
V
3
5310
V
4
V
4
V
4
5510
V
V
V
5550
V
6
V
6
V
6
5590
X
X
X
X
X
X
5630
X
X
X
X
X
X
5670
V
7
V
7
V
7
5755
V
8
X
X
X
X
5795
V
9
X
X
X
X
5835
X
X
X
X
X
X
WIDE mode ON
requency
[MHz]
US (Non
-
D S)
Europe (Non
-
D S)
Japan (Non
-
D S)
Support
Re
gion
Channel Support
Region
Channel Support
Region
Channel
5160
X
X
X
X
X
X
5180
V*
1
V
1
V
1
5200
V*
2
V
2
V
2
5220
V*
3
V
3
V
3
5240
V*
4
V
4
V
4
5260~5700 X X X X X X
5745
V
X
X
X
X
5765
V
6
X
X
X
X
5785
V
7
X
X
X
X
5805
V
8
X
X
X
X
5825
V
9
X
X
X
X
Note :
A. Gray background are indicates the D S region.
B. * means “Limited to indoor use”.
C. NOT to use Weather Satellite Channels on D S :
i. WIDE mode O : Center requency 5590MHz, 5630MHz
ii. WIDE mode On : Center requency 5600MHz, 5620MHz, 5640MHz

19
(8) If all operation is normal, the POWER LED and SOURCE LED will glow in solid blue. Please refer
to the next form containing detailed LED description :
Note:
A. Make sure your high-definition audio/video devices connected to the BV-2322T has
already been powered on.
B. Warming-up or source switching time should take approximately 20~30 seconds if the
operation is in normal condition.
(9) TRANSMITTER/RECEIVER Status Indicator LED Light and OSD :
Status indicator LED light on the front display the following messages:
Power LED Source LED Mode Status Description OSD Display
Static Purple
on TX
Static Red on
RX
Static Blue
on TX
Off on RX
Listen
To lower power
consumption;
“Loop through” display
always on.
Please refer Section
2.2, paragraph C &
D for detailed
description.
Static Red Off Standby or the lowest power
saving used.
Please refer Section
2.2, paragraph C &
D for detailed
description.
Blinking Blue Blinking Initial
Boot up
System boot up and R
linking automatically.
Searching available
channels…
Blinking Blue Blinking Booting
and Linking R linking Searching available channels…
Static Blue
Blinking
3 times /sec.
(Quickly)
Linked
No input detected from
selected source. No Signal
Blinking
1 time / sec.
(Slowly)
Video
frame rate
or
resolution cannot be
recognized. (Not
supported or out of
range.)
No Supported
ormat.
Static Blue
Video frame rate or
resolution is recognized.
Transmission is available
with stable R signal.
