Briteq LD-POWER240 User manual

LD-POWER240
User Manual
Please read the instructions carefully before use
LD-POWER240
BRITEQ 1A
TABLE OF CONTENTS
1. Safety Instruction
2. Features
3. Technical Specification
4. Installing Instructions
5. Main Function
6. Overview
6.1 Front View
6.2 Rear View
7. DMX Controller
8. DMX512 Configuration
9. DMX512 Connection
9.1 XLR Connection
9.2 RJ45 Connection

LD-POWER240
BRITEQ 2A
1. Safety Introductions
Please read the User Manual carefully as it includes important information regarding
details of operation, maintenance and technical data. Keep this manual with unit for
future consultation.
WARNING！
● Avoiding any flammable liquids, water or metal objects enter into the unit.
● If any liquid spill on the unit, disconnect the power supply immediately.
● When serious operation problem happen, stop using the unit immediately and
contact your local dealer for service.
● Do not open the unit because there are no user serviceable parts inside.
● Never try to repair the unit yourself. Repairs by unqualified people may cause
damage or faulty operation. Please contact your nearest dealer for any service.
CAUTION！
● After removed the package, make sure the unit is not damaged in any way. Don’t
use it with doubt and contact an authorized dealer.
● Never use the unit under the excessive humidity and a temperature over 40℃.
● Do not try to dismantle or modify the unit.
2. Features
 7 Channel modes (Mode 1 & Mode 2 for RGBW; Mode 3 &Mode 4 for RGB;
Mode 5 &Mode 6 for CW and WW colors; Mode 7 for single color) enables V
Power to control passive lighting fixtures that fitted with different LED emitters.
 Comes with 3 chase groups, each group has 8 chases (3 editable chases); and
each chase can have up to 42 scenes. For editing the chases, Visio has
developed a software (option) that enables you to edit the chases easily.
LD-POWER240
BRITEQ 3A
 It comes with the built-in clock for editing your shows. You can edit max. 30
shows (choose from the chases) in one week, and different time period per day.
 User can run the chase manually step by step by pressing the manual button.
 Excellent fade effect, and auto running function.
 LCD display for easy navigation.
3. Technical Specifications
 DMX Input
Control: DMX 512
DMX connection: RJ45 or 3 pin XLR
 DMX Output
Max. Power Output: 240W
Output Voltage: DC 48V
Max. Output Current: 350mA per color
Max. Load per zone: RGB & RGBW mode-Each color 12 LEDs max.
White mode(warm white & cool white)-Each white 24 LEDs max.
Single mode - Total LED 48 max.
 Input Voltage: 100V-240V~50-60Hz
 Fuse: T 3.15A
 Dimension: 280×309×90 mm
 Weight: 4kgs

LD-POWER240
BRITEQ 4A

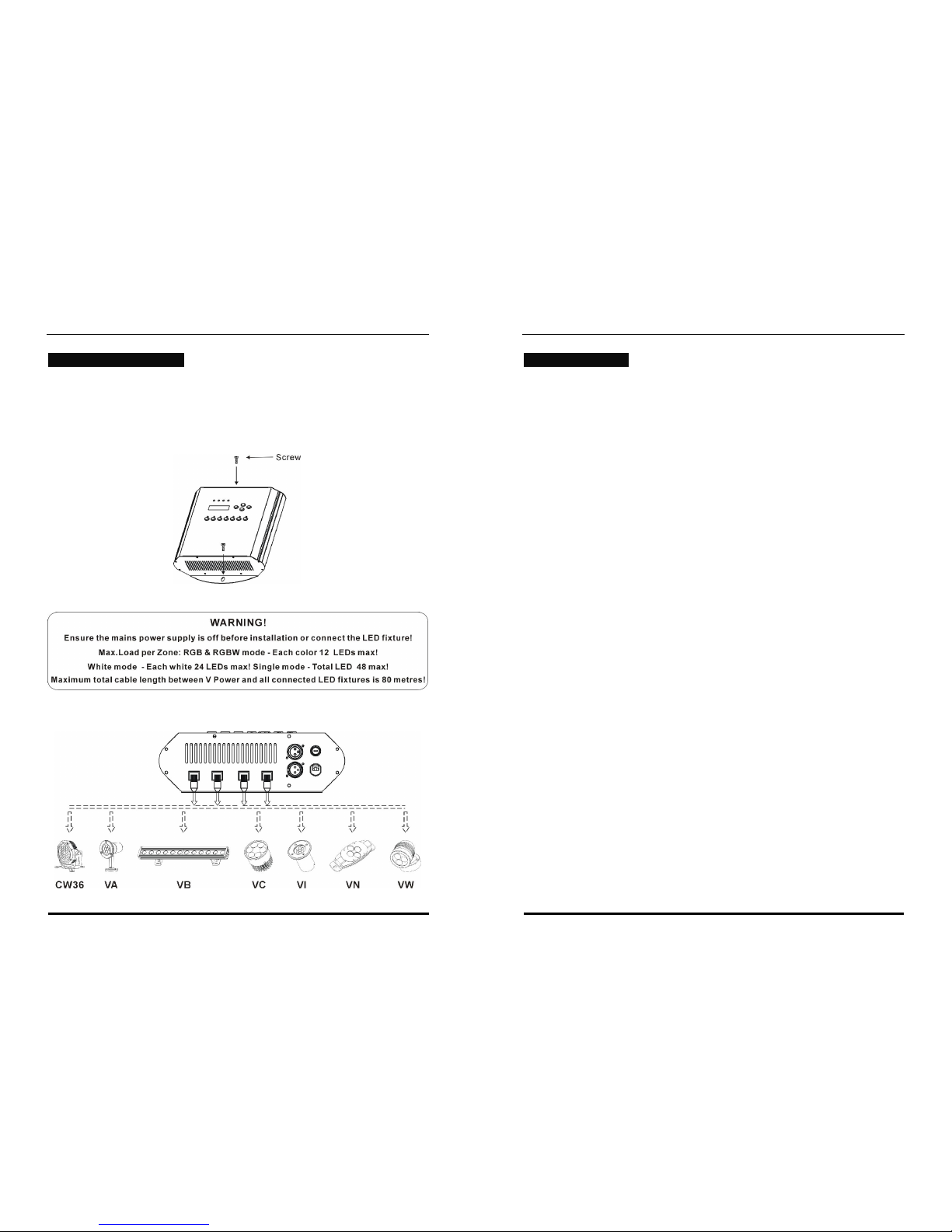

4. Installing instructions
The LD-POWER240 should be placed on a non-flammable flat surface in any
orientation and fixed by screws. There are mounting holes on the housing. Ensure
that installation place is enough ventilated.
The LD-POWER240 power output is 240 watt (4×60W ).
LD-POWER240
BRITEQ 5A
5. Main Function
To select any function, press MENU button until the required one is shown on
the display. Select the function by ENTER button and the display will blink. Use
DOWN and UP button to change the mode. Once the required mode has been
selected, press ENTER button to setup. Back to the functions without any change
press MENU button.
Press MENU button for 3 seconds to exit the functions, press “Chase Group 1”,
“Chase Group 2” or “Chase Group 3” button to run the built-in chase or you have
programmed. Enter chase group, the LED on, then press the chase group button
again to choose the chase. Once the chase has been selected, press “Manual”
button into manual mode, the LED on, you can choose the step one by one; press
“Fade” button into fade mode, the LED on, the unit will run all steps of the chase
automatically, at this time, you can press UP/DOWN button to adjust the fade time;
press the “Auto” button into auto mode, the LED on, the unit will also run all steps
automatically, and you can press UP/DOWN button to adjust the wait time; press the
“Blackout” button, the LED on and the unit into blackout mode.

LD-POWER240
BRITEQ 6A
The main functions are shown below:
LD-POWER240
BRITEQ 7A
Address
Press the MENU button up to when the Address is shown on the display. Pressing
ENTER button and 1 will blink. Use DOWN and UP button to change the DMX 512
address (1-512). Once the address has been selected, press ENTER button to setup
(or automatically return to the main functions without any change after idling one
minute). Back to the previous function without any change, press MENU button.
Channel Mode
Press the MENU button up to when the Channel Mode is shown on the display.
Pressing ENTER button and 19/43 Channel will blink. Use DOWN and UP button to
select 19/43 channel or 16/40 Channel …… or 4/10 Channel mode. Once the
mode has been selected, press ENTER button to setup. Back to the previous
function without any change, please press the MENU button.
Adjust Time
Press the MENU button up to when the Adjust Time is showing on the display.
Press ENTER button and Friday will blink. Use DOWN and UP button to select
Monday or Tues …… or Sunday. Press the ENTER button to setup hour and 14
will blink, use DOWN and UP button to select hour, press the ENTER button to setup
minute and 58 will blink, use DOWN and UP button to select minute, press MENU to
store and back to the main functions.
Edit Show
Press the MENU button up to when the Edit Show is showing on the display. Press
ENTER button and 01 will blink. Use UP/DOWN button to select show (1-30), press
ENTER button to setup and use UP/DOWN to edit Time (for example: set the unit on
F (from) Monday15:15 T (to) Monday 15:20) and Chase (choose Group 1-3, Num
1-8 and edit F-fade time and W-wait time), Press MENU button to store and back to
the main functions.

LD-POWER240
BRITEQ 8A
Edit Chase (only chase number 6~8 are editable)
Press the MENU button up to when the Edit Chase is showing on the display. Press
ENTER button and 1 will blink, use UP/DOWN button to choose group 1, 2 or 3,
press ENTER button to setup and use UP/DOWN to set Num-number (06-08),
Leng-length (01-42, the steps, you choose from the total amount of steps, you want
to run, for example, if the total amount of steps you set is 42, you can choose only
first 1-10 steps to run) and Value (to set step, P-A (output all) or 1-4/10, C-Color,
W-White, D-Dimmer), press ENTER button to setup. Back to the previous function
without any change please press the MENU button.
Manual Test
Press the MENU button up to when the Manual Test is showing on the display.
Press ENTER button and 1 will blink, use UP/DOWN button to choose P-A (output
all) or 1-4/10, press ENTER button to store, use UP/DOWN to set D-Dimmer,
S-Strobe, R-Red, G-Green, B-Blue, W-White, press ENTER button to setup. Back
to the previous function without any change please press the MENU button.
White Balance
Press the MENU button up to when the White Balance is showing on the display.
Press ENTER button and 1 will blink, use DOWN/UP button to choose P-output all
or 1-4/10, press ENTER button to store, use DOWN/UP to set R-Red, G-Green,
B-Blue, press ENTER button to setup. Back to the main functions without any
change please press the MENU button.
Remark: setting is limited to values between 125 and 255
Auto Test
Press the MENU button up to when the Auto Test is showing on the display. Press
ENTER button Testing will blink on the display and the unit will run self-test by built-in
program. To go back to the previous function please press the MENU button.
LD-POWER240
BRITEQ 9A
LCD Backlight
Press the MENU button up to when the LCD Backlight is showing on the display.
Press ENTER button to choose Always On or Auto Blackout. To go back to the
previous function please press the MENU button.
Fixture Use Time
Press the MENU button up to Fixture Use Time, it will show the number of working
hours of the unit. To go back to the previous function please press the MENU button.
Software Version
Press the MENU button up to Software Version, It will show the version of software
of the unit. To go back to the previous function please press the MENU button.
6. Overview

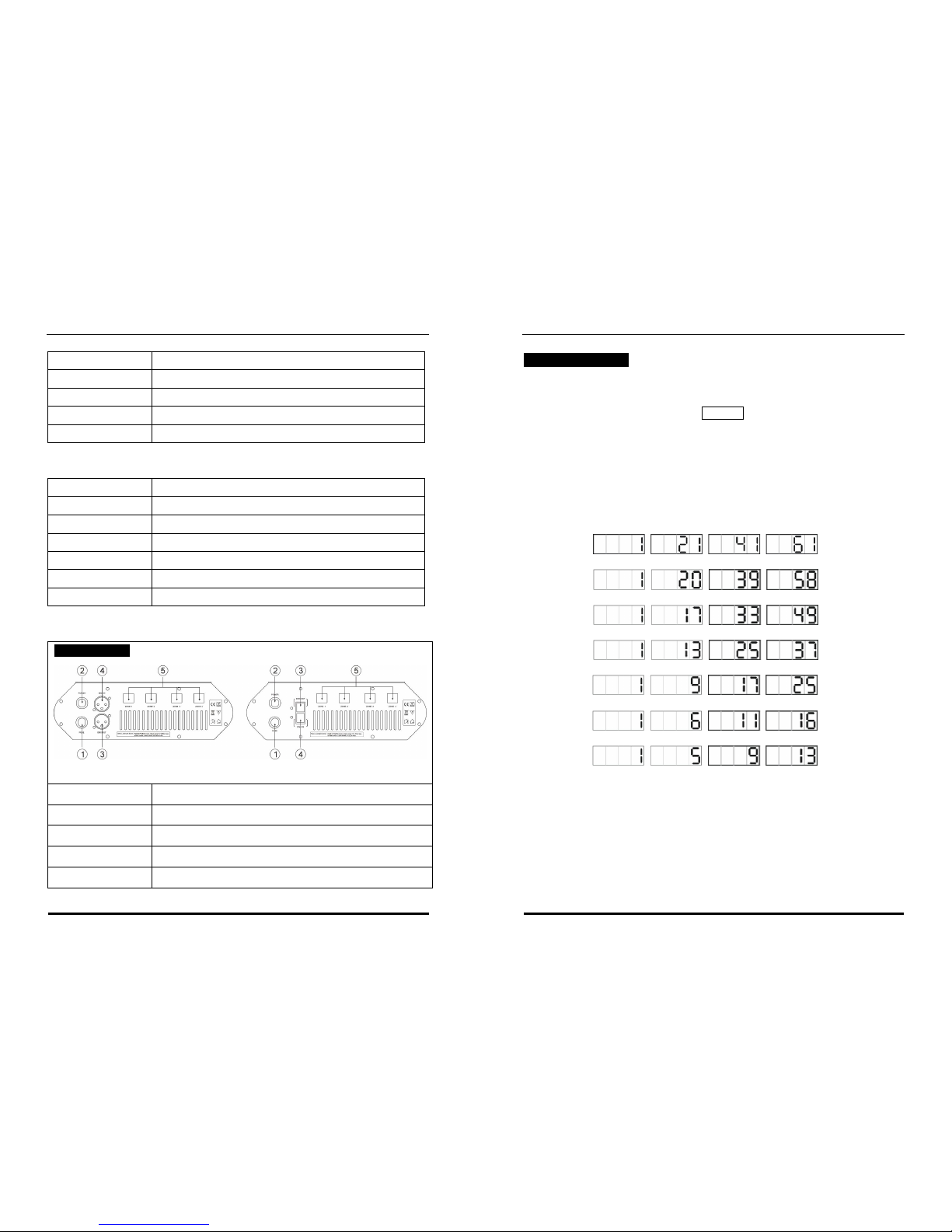

6.1 Front View
LED
1. DMX On DMX Input
2. MASTER On Master Mode
3. SLAVE On Slave Mode
4. POWER On Power on

LD-POWER240
BRITEQ 10A
5. Menu Press the button to select the programming functions.
6. Up Press the button to go forward for the desired functions.
7. Enter Press the button to confirm the selected functions.
8. Down Press the button to go backward for the desired functions.
9. Display To show the various menu and selected function
10.Chase Group 1 Press the button to run chase group 1, the LED will be on.
11.Chase Group 2 Press the button to run chase group 2, the LED will be on.
12.Chase Group 3 Press the button to run chase group 3, the LED will be on.
13.Manual Press the button into manual mode, the LED will be on.
14.Fade Press the button into fade mode, the LED will be on.
15.Auto Press the button into auto mode, the LED will be on.
16.Blackout Press the button to blackout the unit, the LED will be on.
6.2 Rear View
1. FUSE For protecting the unit when the transient current is too big.
2. POWER Power cable for AC input.
3. DMX OUT DMX Output 3 pin XLR socket
4. DMX IN DMX Input 3 pin XLR socket
5. LED DC power & signal output for linking LED fixtures.
LD-POWER240
BRITEQ 11A
7. DMX Controller
Using universal DMX controller to control the units, you have to set DMX address
from 1 to 512 channel so that the units can receive DMX signal.
Press the MENU button up to when the Address is showing on the display. Pressing
ENTER button and the display will blink. Use DOWN and UP button to change the
DMX512 address. Once the address has been selected, press ENTER button to
setup (or automatically return to the main functions without any change after idling
one minute). Back to the previous function without any change, press MENU button.
Please refer to the following diagram to address your DMX512 channel for the first 4
units.
20 Channels:
19 Channels:
16 Channels:
12 Channels:
8 Channels:
5 Channels:
4 Channels:

LD-POWER240
BRITEQ 12A

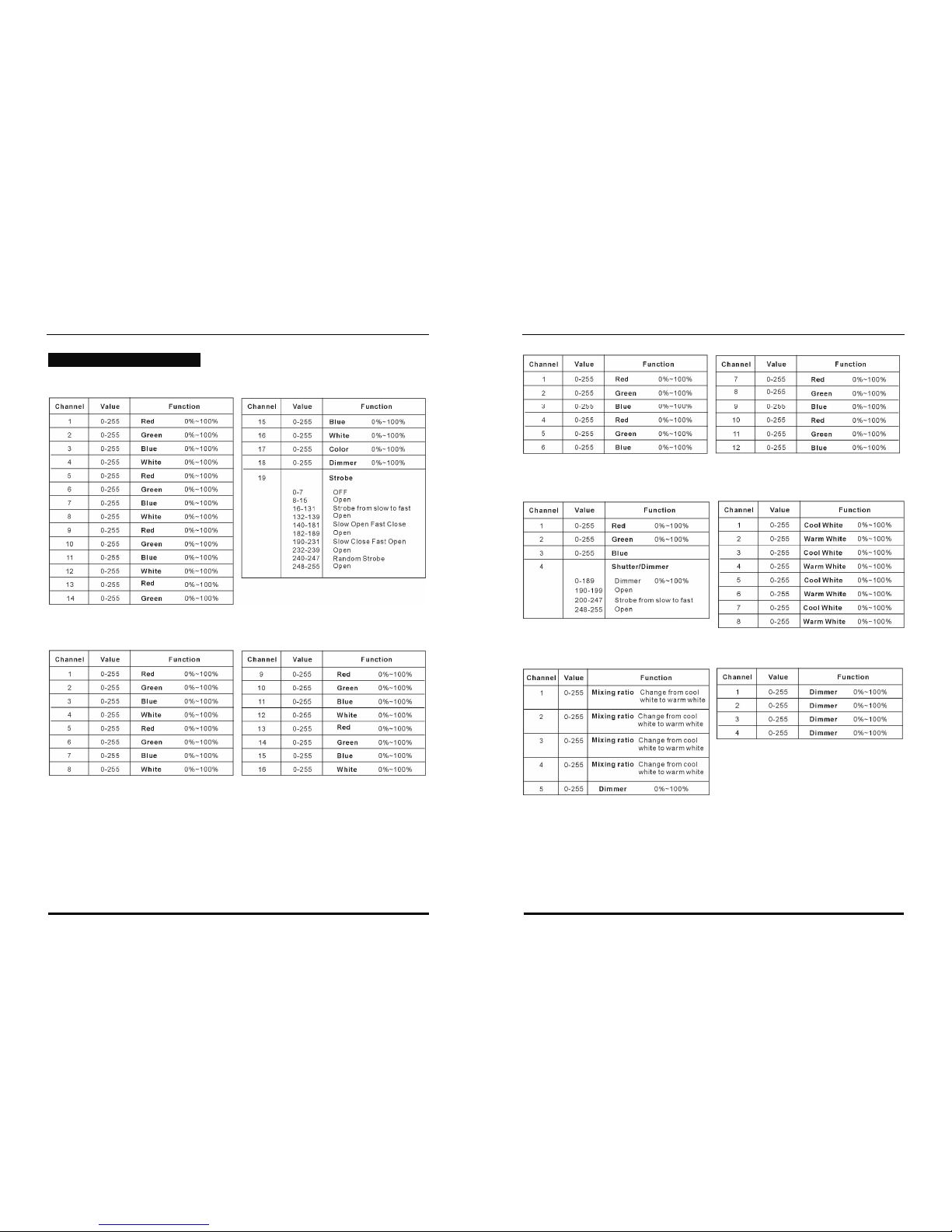

8. DMX512 Configuration
19 Channels:
16 Channels
12 Channels:
LD-POWER240
BRITEQ 13A
4 Channels: 8 Channels:
5 Channels: 4 Channels

LD-POWER240
BRITEQ 14A
9. DMX512 Connection
9.1 XLR Connection
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin
adapter-cable.
2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120
ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug
and plug it in the DMX-output of the last unit.
3. Connect the unit together in a `daisy chain` by XLR plug from the output of the
unit to the input of the next unit. The cable can not branched or split to a `Y`
cable. DMX 512 is a very high-speed signal. Inadequate or damaged cables,
soldered joints or corroded connectors can easily distort the signal and shut
down the system.
4. The DMX output and input connectors are pass-through to maintain the DMX
circuit, when one of the units’ power is disconnected.
5. Each unit needs to have an address set to receive the data sent by the controller.
The address number is between 0-511 (usually 0 & 1 are equal to 1).
6. The end of the DMX 512 system should be terminated to reduce signal errors.
LD-POWER240
BRITEQ 15A
7. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
Pin 4/Pin 5: not used.
9.2 RJ45 Connection
LED module Input
RJ45 Connector
Front view of the Connector
Pin 1: Red LED + Pin 5: Red LED -
Pin 2: Green LED +
Pin 6: Green LED -
Pin 3: Blue LED + Pin 7: Blue LED -
Pin 4: White LED + Pin 8: White LED -
