Briteq STAGE PAINTER 12 User manual

STAGE PAINTER 12
Preliminary User Guide
Official version will follow soon on:
WWW.BRITEQ-LIGHTING .COM

1-
TABLE OF CONTENTS
1. Safety Instruction
2. Technical Specification
3. How To Set The Unit
4. How To Control The Unit
5. Troubleshooting
6. Fixture Cleaning

2-
1. Safety Instruction
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces. Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there is no flammable materials close to the unit while operating as it is fire
hazard.
Use safety cable when fixes this unit.
Maximum ambient temperature is TA: 40℃. Don’t operate it where the temperature is
higher than this.
In the event of serious operating problem, stop using the unit immediately. Never try to
repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center. Always
use the same type spare parts.
Do not touch any wire during operation as high voltage might be causing electric shock.
Warning
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
Do not open the unit within five minutes after switching off.
The housing, the lenses must be replaced if they are visibly damaged.
Please read carefully the instruction, which includes important
information about the installation, usage and maintenance.
For power supply, do not connect in series much more than 10 units, use
another mains supply for next 10 units.

3-
Caution
There are no user serviceable parts inside the unit. Do not open the housing or attempt
any repairs yourself. In the unlikely event your unit may require service, please contact
your nearest dealer.
Installation
The unit should be mounted via its metal hole on the bracket. Always ensure that the unit
is firmly fixed to avoid vibration and slipping while operating. Always ensure that the
structure to which you are attaching the unit is secure and is able to support a 10 times
weight of the unit.
2. Technical Specification
3/6/9/12/15 channels switchable
Automatically switching between music trig and auto mode
Great built-in programs under Master/Slave mode trigged by music
Individual control of each LED cluster
Sound sensitivity adjustable via the menu
Auto-fading show with 3 different speeds
Specially designed stand for floor operation
LCD display for easy addressing and setting
Voltage：AC 100-240V~50/ 60Hz
Power consumption: 40W
LED: 12 x 3W Tri-Color
Beam Angle:D45
Fuse: T 6.3A
Dimension: 387 x 207 x 95 mm
Weight: 3.9 kgs

4-
3. How To Set The Unit
3.1 Control Panel
Display
To show the various menus and the selected functions
LED
DMX
On
DMX input present
MASTER
On
Master Mode
SLAVE
On
Slave Mode
SOUND
Flashing
Sound activation
Button
MENU
To select the programming functions
DOWN
To go backward in the selected functions
UP
To go forward in the selected functions
ENTER
To confirm the selected functions
Microphone
Receive the sound to control the unit
Only for remote control
By connect to the 1/4’’ microphone jack to control the unit for Stand by, Function and Mode
function.
Mains input
Connect to supply mains power.
Mains output
Connect to supply mains power for other units.
Fuse
For over current protection.
DMX input/output
For DMX512 link, use 3/5-pin XLR plug cable to link the unit together.
Safety Ring
Keep the installation safe.

5-
3.2 Main Function
To select any of the given functions, press the MENU button up to when the required one is
showing on the display. Select the function by ENTER button and the display will blink. Use
DOWN and UP button to change the mode. Once the required mode has been selected,
Press ENTER button to store. Back to the main functions without any change press the
MENU button or wait for 1 minute.
Hold MENU button to exit menu mode, the
unit will run the built-in program you
selected At this time you can press UP and
DOWN button to change show, the new
show will effect immediately. If you change
to show 1-8 or Auto Fade, you can press
ENTER button to choose speed. The unit
will run in the speed selected or it will run to
the music.

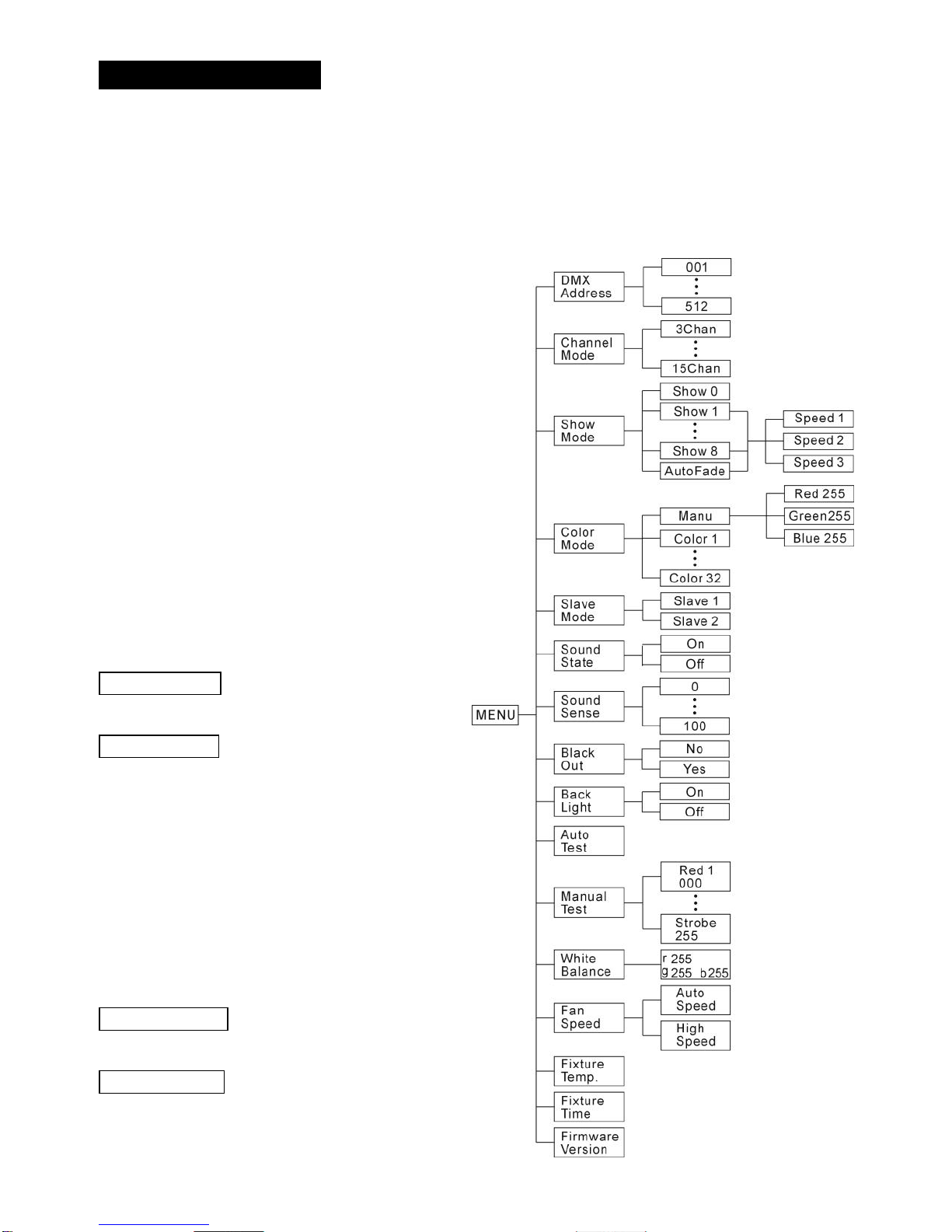

The main functions are shown on the
drawing:
DMX Address
Press the MENU button up to when the
DMX Address is showing on the display.
Press ENTER button and the display will
blink. Use DOWN and UP button to change
the DMX512 address. Once the address
has been selected, press the ENTER
button to store. Back to the main functions
without any change press the MENU
button (or wait for 1 minute to exit menu
mode).
Channel Mode
Press the MENU button up to when the
Channel Mode is showing on the display.
Press ENTER button and the display will
blink. Use DOWN and UP button to select

6-
the 3 channels mode or 6 channels mode or 9 channels mode or 12 channels mode 15
channels mode. Once selected, press the ENTER button to store. Back to the main
functions without any change press the MENU button (or wait for 1 minute to exit menu
mode).
Show Mode
Press the MENU button up to when the Show Mode is showing on the display. Press
ENTER button, the display will blink. Press DOWN and UP button to select Show 0 (Auto
show), Show 1 or … or Show 8 or Auto Fade, once selected, press MENU button to store
and back to the last menu, then the unit will run to music. If you choose Show 1-8 or Auto
Fade, press the ENTER button to confirm, then you can press DOWN and UP button to
select Speed 1 (slow speed) or Speed 2 (middle speed) or Speed 3 (fast speed), press
ENTER button to store, the unit will run in the speed that selected. Back to the main
functions without any change press the MENU button or wait for 8 seconds.
Color Mode
Press the MENU button up to when the Color Mode is showing on the display. Press
ENTER button, the display will blink. Press DOWN and UP button to select Manu (manual
setting), Color 1 or … or Color 32, once selected, press MENU button to store. If you
choose Maun, press the ENTER button to confirm, you can press DOWN and UP button to
select Red or Green or Blue, press ENTER button to confirm and press DOWN and UP
button to adjust the value, then press ENTER button to store. Back to the main functions
without any change press the MENU button or wait for 8 seconds.
Slave Mode
Press the MENU button up to when the Slave Mode is showing on the display. Press
ENTER button and the display will blink. Use DOWN and UP button to select the slave 1 or
slave 2 mode. Once selected, press the ENTER button to store. Back to the main functions
without any change press the MENU button (or wait for 1 minute to exit menu mode).
Sound State
Press the MENU button up to when the Sound State is showing on the display. Press
ENTER button and the display will blink. Use DOWN and UP button to select the on (sound
control on) or off (sound control off) mode. Once selected, press the ENTER button to store.
Back to the main functions without any change press the MENU button (or wait for 1 minute
to exit menu mode).
Sound Sense
Press the MENU button up to when the Sound Sense is showing on the display. Press
ENTER button and the display will blink. Use DOWN and UP button to adjust the sound

7-
sensitively (1-100) of the unit. Once the value has been selected, press the ENTER button
to store. Back to the main functions without any change press the MENU button (or wait for
1 minute to exit menu mode).
Black Out
Press the MENU button up to when the Black Out is showing on the display. Pressing
ENTER button and the display will blink. Use DOWN and UP button to select the yes (yes
blackout) or no (no blackout) mode. Once selected, press the ENTER button to store. Back
to the main functions without any change press the MENU button (or wait for 1 minute to exit
menu mode).
Back Light
Press the MENU button up to when the Back Light is showing on the display. Pressing
ENTER button and the display will blink. Use DOWN and UP button to select the on (back
light on) or off (back light off 1 minute after auto show) mode. Once selected, press the
ENTER button to store. Back to the main functions without any change press the MENU
button (or wait for 1 minute to exit menu mode).
Auto Test
Press the MENU button up to when the Auto Test is showing on the display. Pressing
ENTER button and the display will show Test… and the unit will run self-test by built-in
program. To go back to the functions press the MENU button.
Manual Test
Press the MENU button up to when the Manual Test is showing on the display. Press
ENTER button and Red 1 will blink, use UP and DOWN button to choose Green 1 or Blue 1
or Red2 or …or Blue 4 or Dimmer or Strobe, press ENTER button to enter, then press UP
and Down button to adjust the value and press ENTER button to choose next optional. Back
to the main functions without any change please press the MENU button.
White Balance
Press the MENU button up to when the White Balance is showing on the display. Press
ENTER button and the r 255 will blink, press UP and Down button to adjust the value, press
ENTER button to store and g 255 will blink on the display, press UP and Down button to
adjust the value, press ENTER button to store and b 255 will blink on the display, press UP
and Down button to adjust the value, and press ENTER button to store. Back to the main
functions without any change please press the MENU button.
Fan Speed
Press the MENU button up to when the Fan Speed is showing on the display. Pressing
ENTER button and the display will blink. Use DOWN and UP button to select Auto Speed

8-
(When the temperature of the unit under 40℃, FAN stops; between 45℃~55℃, FAN runs at
half speed; above 60℃, FAN runs at full speed. The LEDs will be off if the temperature
higher than 75℃) or High Speed, press ENTER button to store. To go back to the functions
press the MENU button.
Fixture Temp
Press the MENU button up to when the Fixture Temp is blinking on the display. Pressing
ENTER button and the display will show the temperature of the unit. To go back to the
functions press the MENU button.
Fixture Time
Press the MENU button up to when the Fixture Time is blinking on the display. Pressing
ENTER button and the display will show the number of working hours of the unit. To go back
to the functions press the MENU button.
Firmware Version
Press the MENU button up to when the Firmware Version is blinking on the display.
Pressing ENTER button and the display will show the version of software of the unit. To go
back to the functions press the MENU button.
4. How To Control The Unit
You can operate the unit in three ways:
1. By master/slave built-in preprogram function
2. By easy controller
3. By universal DMX controller
4.1 Master/Slave Built In Preprogrammed Function
By linking the units in master/slave connection, the first unit will control the other units to
give an automatic, sound activated, synchronized light show. This function is good when you
want an instant show.
2-light show
In slave mode, slave 1 means the unit run as the master unit and slave 2 means 2-light show.
In order to create a great light show, you can set slave 2 on the second unit to get contrast
movement to each other, even if you have two units only.

9-
4.2 Easy Controller
The easy remote control is used only in master/slave mode. By connecting to
the 1/4” microphone jack of the first unit, you will find that the remote controller
on the first unit will control all the other units for Stand by, Function and Mode
selection

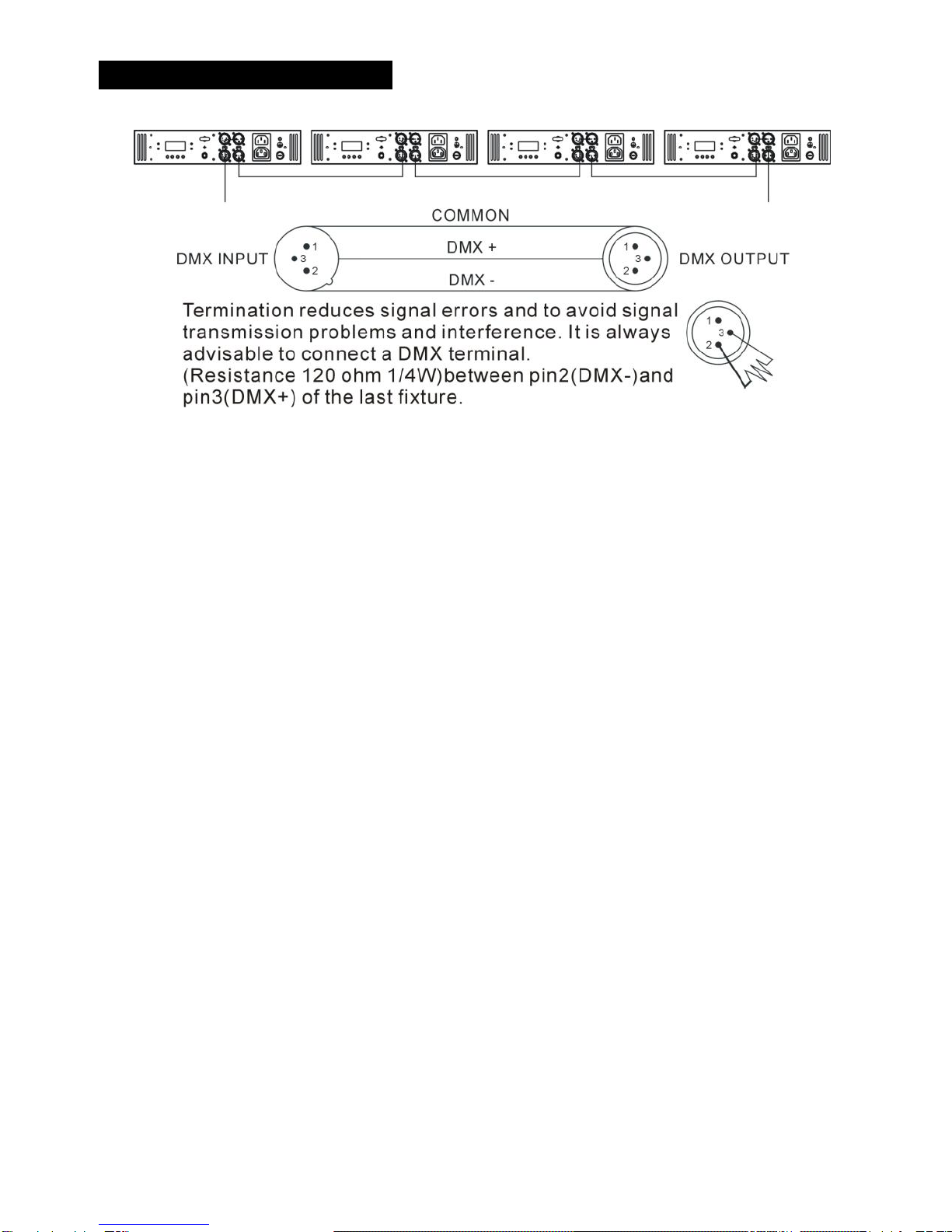

4.3 DMX Controller
Use universal DMX controller to control the units, you have to set DMX address from 1 to
512 channel so that the units can receive DMX signal.
Press the MENU button up to when the DMX Address is showing on the display. Press
ENTER button and the display will blink. Use DOWN and UP button to change the DMX512
address. Once the address has been selected, press and keep ENTER button to store. To
go back to the functions without any change press the MENU button or wait for 1 minute to
exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units:
Channel Mode
Unit 1
Unit 2
Unit 3
Unit 4
3 channels
1
4
7
10
6 channels
1
7
13
19
9 channels
1
10
19
28
12 channels
1
13
25
37
15 channels
1
16
31
46
Stand By
Blackout the unit
Function
1. Sync. Strobe
2. Async strobe
3. Sound Strobe
Select
Manua Color
or color 1-32
Select
show 1-8
or Auto fade
Select Speed
1. Slow
2. middle
3. Fast
Mode
Sound (LED OFF)
LED On
Slow blinking
Fast blinking

10-
4.4 DMX 512 Configuration
Front View:
DMX Configuration:

11-

12-

13-
4.5 DMX512 Connection
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin
adapter-cable.
2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120
ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin
XLR-plug and plug it in the DMX-output of the last unit.
3. Connect the unit together in a `daisy chain` by XLR plug from the output of the
unit to the input of the next unit. The cable can not branched or split to a `Y`
cable. DMX 512 is a very high-speed signal. Inadequate or damaged cables,
soldered joints or corroded connectors can easily distort the signal and shut
down the system.
4. The DMX output and input connectors are pass-through to maintain the DMX
circuit, when power is disconnected to the unit.
5. Each lighting unit needs to have an address set to receive the data sent by the
controller. The address number is between 0-511 (usually 0 & 1 are equal to 1).
6. The end of the DMX 512 system should be terminated to reduce signal errors.
7. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
Pin 4/5: Not used.

14-
5. Troubleshooting
Following are a few common problems that may occur during operation. Here are
some suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB
of the unit or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may
cause damage or interference to DMX interface circuit.
C. Some units don’t respond to the easy controller
1. You may have a break in the DMX cabling.
2. Check the LED for the response of the master/ slave mode signal.
D. No response to the sound
1. Make sure the unit does not receive DMX signal.
2. Check if the sound sensitively is too low.
E. One of the channels is not working well
1. The cable connected to the PCB may broken.

15-
6. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried
out periodically to optimize light output. Cleaning frequency depends on the
environment in which the fixture operates: damp, smoky or particularly dirty
surrounding can cause greater accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least
every 30/60 days.
EC Declaration of Conformity
We declare that our products (lighting equipments) comply with the following
specification and bears CE mark in accordance with the provision of the
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55103-1:199601-2; EN55103-2:1996;
EN61000-3-2:2000+A2:2005;
EN61000-3-3:1995+A1:2001+A2:2005.
&
Harmonized Standard
EN 60598-1: 2004
IEC 60598-1:2003+ corrigendum 2004
Part 1:General requirements and test
Following the provisions of the low voltage directive 73/23/EEC and 93/68/EEC
