Britpart DA7480 User manual

Defender Cruise
Control
Vr. 1.
Britpart, The Grove, Craven Arms, Shropshire, SY7 8DA United Kingdom www.britpart.com
Fitting & Operation Instructions Part Number - DA7480
Disclaimer
These fitting instructions are intended for general guidance only. No responsibility will be accepted for damage to persons, property, equipment or vehicles
caused during or arising from the fitment or using of this product. Fitting this item to your vehicle may constitute a vehicle modification and therefore we
strongly recommend that you check the product complies with local laws and legislation and always inform the vehicle's insurance company accordingly.
Before Installation
These installation instructions contain information on how
to install the E-Cruise, which is not a Do-It-Yourself job.
odern cars are equipped with electronics which can be
damaged by inappropriate treatment. Britpart cannot be
held responsible for any error caused by an incorrect
installation.
Check that all the parts are included in the kit.
1 x Unit
1 x 14-p connector
1 x 12-p connector
5 x Cable ties
1 x Installation & Operation guide
Recommendations
>Always disconnect the negative cable from the battery
before installing.
>Always use the enclosed installation instructions for
installing the E-Cruise.
>The rev. number on the unit label and the installation
guide must be the same.
>Be aware that, for example, the radio code might have
to be typed in.
>Find a location to install the unit and control switch.
>If any wire(s) are left, then cut them off and insulate.
>Only use a multimeter to measure.
>Flying lead(s) must be soldered.
>All wire connections are viewed from wire side.
Operating Instr ctions
E-Cruise will gently regulate the selected speed within the range of options offered by the vehicle.
Please read these instructions carefully.
On/Off Activate ON/OFF to turn E-Cruise on and off. E-Cruise automatically turns off when the engine is
switched off.
Set Drive at a constant speed and briefly activate SET/COAST. Remove your foot from the accelerator
pedal as E-Cruise take control of the accelerator function of the vehicle.
Turn Off To deactivate the E-Cruise, press the brake or clutch pedal. The E-Cruise will remember the last
selected speed.
Resume Active RES/ACC and the vehicle will return to the speed last selected unless the ignition has been
switch off or ON/OFF has been activated in the meantime.
Decelerate Activate and hold SET/COAST for more than one second and the E-Cruise will gradually decrease
speed until SET/COAST is released. The speed when SET/COAST is released will then be the new
speed selected. A quick tap on the SET/COAST will decrease speed by approximately 0.6mph
per touch.
Accelerate Activate and hold RES/ACC for more than one second and the E-Cruise will gradually increase speed
until RES/ACC is released. The speed when the RES/ACC is released will then be the new speed
selected. A quick tap on RES/ACC will increase speed by approximately 0.6mph per touch.
WARNING
It is not recommended to use E-Cruise at speeds below 30mph, in congested areas, at excessive speeds or in adverse
weather conditions.

Fitting & Operation Instructions - continued
Britpart, The Grove, Craven Arms, Shropshire, SY7 8DA United Kingdom www.britpart.com

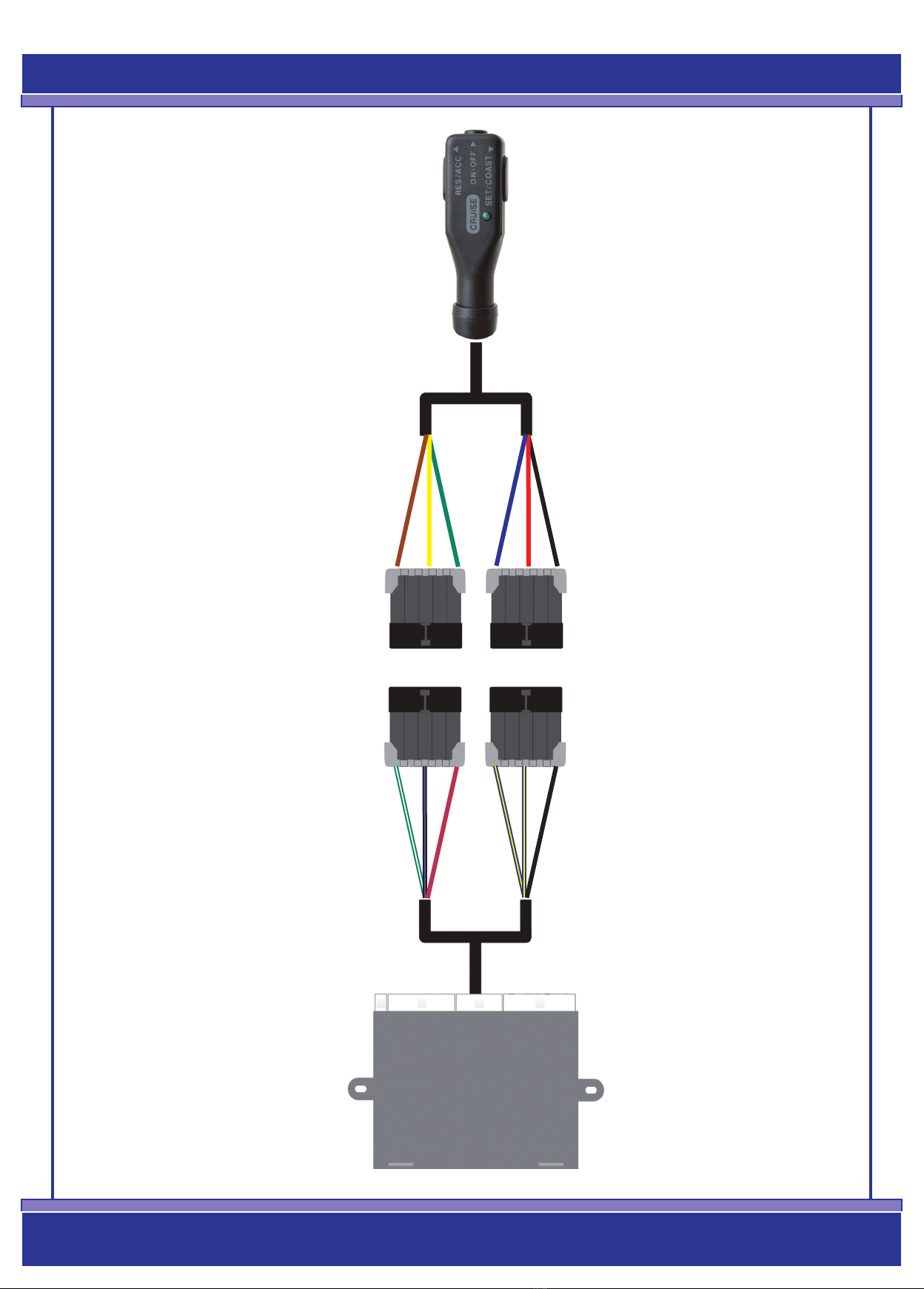

Black/Purple
Green/White
Red/Purple
Blue/Yellow*
Blue/Yellow*
Black
Brown
Green
Yellow
Blue*
Black*
Red*
*Placement is insignificant

Fitting & Operation Instructions - continued
Britpart, The Grove, Craven Arms, Shropshire, SY7 8DA United Kingdom www.britpart.com
Defender - 2.2

Fitting & Operation Instructions - continued
Britpart, The Grove, Craven Arms, Shropshire, SY7 8DA United Kingdom www.britpart.com
Defender - 2.4

Fitting & Operation Instructions - continued
Britpart, The Grove, Craven Arms, Shropshire, SY7 8DA United Kingdom www.britpart.com

Fitting & Operation Instructions - continued
Britpart, The Grove, Craven Arms, Shropshire, SY7 8DA United Kingdom www.britpart.com
Diagnostic Mode for E-Cr ise
The E-cruise module contains a diagnostic mode which
enables the dealer/installer to verify all connections and
signals.
The signals can be tested and viewed via a 3-colour test
LED located on the back of the E-Cruise unit beside a small
white connector.
To enter the Diagnostic ode, follow this procedure
carefully. Do not activate brake, clutch or accelerator pedal
while doing it.
You have approximately 2 seconds between activation of
the different functions, to enter Diagnostic ode.
Enable Diagnostic Mode
>Put ignition on the vehicle.
>Within 2 seconds, press and hold the ON function.
>Wait until test LED lights up in RED colour, and then
release ON function.
>Press and hold SET function. The test LED lights up in
YELLOW colour.
>Release SET function, and press ACC/RES function. The
test LED will flash in all 3 colours, provided that all
inputs are not activated. Otherwise the test LED will
light up RED.
>Diagnostic mode has now been entered.
Test Proced res
Enter Test 1 - Brake Function
1 Activate RES briefly. Test LED will flash yellow 1 time.
2 If brake is on CAN, test LED lights up red, and changes
to green when pedal is depressed.
3 If both brake wires are installed correctly, the test LED
will light up green.
4 Hot side of brake is defective = test LED lights up red.
5 Cold side of brake is defective = test LED lights up
yellow.
6 Both sides of brake defective = test LED flashes all 3
colours.
7 When brake pedal is depressed, the test LED lights up
yellow.
Enter Test 2 - Clutch Function
1 Activate RES briefly. Test LED will flash yellow 2 times.
2 If clutch is on CAN, test LED lights up Red, and changes
to green when pedal is depressed.
3 If clutch wires are installed correctly, the test LED lights
up green.
4 If clutch is defective, the test LED lights up red.
5 When clutch pedal is depressed, the test LED lights up
red.
Enter Test 3 - Accelerator Pedal Function
(the engine must not run)
1 Activate RES briefly. Test LED will flash yellow 3 times.
2 The test LED will slowly flash red/green.
3Depressing the accelerator pedal will increase the freq.
of the flashing.
Enter Test 4 - SS Function
(the engine must be running)
1 Activate RES briefly. Test LED will flash yellow 4 times.
2 If VSS is on CAN, the test LED will flash green if correct
ID is received.
3 If VSS is analog, the test LED will flash green when
vehicle is moved.
Enter Test 5 - TACHO Function
(the engine must be running).
1 Activate RES briefly. Test LED will flash yellow 5 times.
2 If TACHO is on CAN, the test LED will flash green if
correct ID is received.
3 If TACHO is analog, the test LED will flash green when
RP is raised.
Enter Test 6 - Setup to Automatic Gear
1 Activate RES briefly. Test LED will flash yellow 6 times.
(Skip test, if car is manual gear).
2 Activate and hold down the brake pedal.
3 Activate SET briefly = test LED lights up red.
4 Activate SET briefly again = test LED lights up yellow.
E-Cruise is set for automatic gear.
If this function is activated by mistake. The test procedure
must be entered from start.
1 Activate and hold down the brake pedal.
2 Activate SET briefly = test LED lights up green.
3 Activate SET briefly again = test LED lights up yellow.
E-Cruise is set for manual gear.
Enter Test 7 - Control Lever Functions
1 Activate RES briefly. Test LED will flash yellow 7 times.
2 Press ON function = test LED lights up green
(RF Switch and LP switch).
Press ON function = test LED lights up red
(OE switch and Rostra switch)
3 Press SET/- function = test LED lights up yellow.
4 Press RESU E/+ function = test LED lights up green.
5 Press CANCEL function = test LED lights up green.
(No function on LP & Rostra switch)
6 Press OFF function = test LED lights up red.
