Broadata LBC-H-R-SCL-ICP User manual

LBC-H-R-SCL-ICP
LINK BRIDGETM HDBASET HDMI RECEIVER
WITH INLINE CONTROL PROCESSOR
BCI reserves the right to make changes to the products described herein without prior
notice or consent. No liability is assumed as a result of their use or application. All
rightsreserved.
©2013 Broadata Communications, Inc.

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTHDMIReceiverwithInlineControlProcessor
Broadata Technical Support, [email protected] 3
SAFETY INSTRUCTIONSAND COMPLIANCE DECLARATIONS
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lightning strikes, etc. Use of
surgeprotection systemsis highlyrecommended inorder toprotect andextend
the life of your equipment.

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTReceiverwithInlineControlProcessor
Broadata Technical Support, [phone]
4
TABLE OF CONTENTS
1.0 PRODUCT DESCRIPTION ..............................................5
2.0 OPERATION CONTROL AND FUNCTIONS ...................7
2.1 SCALING RECEIVER FRONT PANEL ............................7
2.2 SCALING RECEIVER REAR PANEL ...............................8
2.3 ICP FRONT AND REAR PANEL .....................................9
3.0 CONNECTOR PINOUT ASSIGNMENT .........................10
3.1 SCALING RECEIVER.....................................................10
3.1.1 IR PINASSIGNMENT ...................................................10
3.1.2 RS-232 PINASSIGNMENT...........................................11
3.2 ICP .................................................................................12
4.0 ON SCREEN DISPLAY (OSD) MENU ............................14
4.1 MAIN MENU SELECTION .............................................14
4.2 DISPLAY ........................................................................14
4.3 COLOR ..........................................................................15
4.4 AUDIO ............................................................................16
4.5 SETUP...........................................................................17
4.6 INFORMATION...............................................................18
5.0 LB-ICP WEB SERVER DESCRIPTION ........................19
6.0 SPECIFICATIONS...........................................................43
7.0 SERVICE PROCEDURE ................................................46
7.1 REPLACEMENT POLICY ..............................................46
7.2 RETURN AND REPAIR SERVICE .................................46
8.0 LIMITED WARRANTY ....................................................47
9.0 APPENDIX .....................................................................48

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTHDMIReceiverwithInlineControlProcessor
Broadata Technical Support, [email protected] 5
1.0 PRODUCT DESCRIPTION
Overall
•An HDBaseT HDMI video scaling receiver with multiple control
I/O ports
•Not only scale HDMI video, but also provide in-line control I/O
paths,over HDBaseT link
Scaling Receiver
•Extend HDMI, LAN and RS-232/IR up to 100 meters over 1
CAT 5e/6 Cable
•Supports input/output video scaling up to 1080p 60Hz and
1920x1200@60Hz
•High performance video scaler with OSD Menu Control
•Supports HDMI w/embedded audio and optical audio
extraction
•Provides output picture adjustment on contrast, brightness,
hue, saturation, sharpness, RGB level, and scan size
•Auto-EDID support, automatically detect the factory setting of
theconnected display
•Bi-directionalPoC
Inline Control Processor (ICP)
•Control I/O ports contain:
- two (2) RS-232
- two (2) Relay
- two (2) Digital I/O
- one (1) IR
- one (1) Ethernet
•Control and monitorAV devices using a standard Ethernet
network (Smart phone or PC) or RS-232 (keypad)
•Front panel port status indicators
•Userfriendly customizable control configurations viabuilt-in
web server

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTReceiverwithInlineControlProcessor
Broadata Technical Support, [phone]
6
Figure 1-1 shows a typical application diagram.
Figure 1-1
ORDERING INFORMATION
LBC-H-R-SCL-ICP LinkBridge HDBaseT Scaling Receiverwith
Control I/O Ports
HDMI
RS-232/IR
LAN
HDBaseT
Link
1 CAT-5/6e
NET
Keypad
LB-KP8
LBC-HDBT-T LBC-HDMI-R-SCL-ICP HDMI
RS-232/IR
LAN
RS-232
GPIO
Relay
IR
For
Control
Ethernet
RS-232
For
Extender

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTHDMIReceiverwithInlineControlProcessor
Broadata Technical Support, [email protected] 7
2.0 OPERATION CONTROLS AND FUNCTIONS
2.1 Scaling Receiver Front Panel
1. SERVICE:
This port is reserved for firmware update only.
2.IR:
IR Receiver window (accepts the remote control signal of this
deviceonly).
3. OPTICALOUT:
Connect to an amplifier or active speaker with optical cable for
audiooutput.
4. HDMI OUT:
This slot is to connect with HDMI TV/Monitor.
5. MENU:
Press this button to enter into the OSD menu.
6. +/- :
Press these buttons to scroll up and down through the OSD
menu.
7. Enter:
Press this button to confirm the selection. Press this button
together with [–] key to switch output timing to 720p@60
instantly.Press this button together with [+] key to switch output
timing to XGA(1024x768) instantly.
1234567

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTReceiverwithInlineControlProcessor
Broadata Technical Support, [phone]
8
2.2 Scaling Receiver Rear Panel
1. Power LED:
ThisLEDwill illuminatewhenthedeviceis connectedtoapower
supply.
2. DC 24V:
Plug the 24 V DC power supply into the unit and connect the
adaptor to an AC outlet. Only one side of power is needed to
activate both Transmitter and Receiver when both obtain the
PoHfunction.
3. RS-232 OUT:
This slot is to connect with D-Sub 9-pin cable from device
equipment for receiving RS-232 commands. Commands are
listed inAppendix B.
4. LAN:
Connect to an active network for LAN sharing of a total
transmission rate up to 100Mbps. Or when a compatible LAN
equipped Transmitter is connected to an active network, this
allowsthenetworkaccess(includinginternet accessifavailable)
to be shared between the Transmitter and Receiver. Connect
anyEthernet equippeddevicee.g.aSmartTVorgamesconsole
to the LAN port for that device to share the network internet
access.Note: DO NOT connect LAN cable with any of the
CAT5e/6/7port.Doingsomay trigger power shut down
andruin the device
5. IR Blaster:
Connect to the supplied IR Blaster cable for IR signal
transmission. Place the IR Blaster in direct line-of-sight of the
equipment to be controlled.
6. IR Extender:
12
3456789

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTHDMIReceiverwithInlineControlProcessor
Broadata Technical Support, [email protected] 9
Connect to the supplied IR Receiver cables for IR signal
reception. Ensure that remote being used is within the direct
line-of-sight of the IR Extender.
7. MODE LED:
This LED will illuminated when the power is connected.
8. Link LED:
This LED will illuminate when the slot has been connected to
theTransmitterandtheTransmitterhasconnectedwithsources
that shows image on screen.
9. CAT5e/6 IN:
Connect to the Transmitter unit with a Single CAT5e/6/7 cable
for receiving all data signals.
2.3 ICP Front and Rear Panel
1. Digital I/O: Digital input/output ports.
2. RS-232: Serial port to control devices.
3. RELAY: Normally open and normally closed relay ports.
4. DC12V: DC power input connector.
5. IR Out: IR blaster port.
6. SW: The unit configuration dip switch
7. IR Learner: Built-in IR receiver for IR learning.
8. IR Learner LED: Lighted when the unit is IR learning mode.
9. CONFIG: Configuration/keypad port.
12
3
456
7
89
ICP/Front
ICP/Back
10 11

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTReceiverwithInlineControlProcessor
Broadata Technical Support, [phone]
10
10. LAN: Ethernetconnector.
11. RESET: Press the button to reset the device back to factory
default settings.
3.0 CONNECTOR PINOUT ASSIGNMENT
3.1 Scaling Receiver
3.1.1 IR PinAssignment
IR Blaster Power 5V
IR Blaster Signal
NC
IR Receiver
IR Signal
Power
Grounding

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTHDMIReceiverwithInlineControlProcessor
Broadata Technical Support, [email protected] 11
3.1.2 RS-232 PinAssignment
Baud Rate: 9600bps
Data Bit: 8 bits
Parity:None
Flow Control: None
Stop Bit: 1

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTReceiverwithInlineControlProcessor
Broadata Technical Support, [phone]
12
Front
Digital I/O CH-1 GND Digital I/O CH-2 GND GND
Relay 1 Normally Open Relay 1 Common Relay 1 Normally Closed Reserved/Do Not Connect Reserved/Do Not Connect
Digital I/O LEDs 1=I/O Ch-1 2=I/O Ch-2
Remote LED (On=Remote) IR TX LED
(On=IR TX Act.)
}
On=High Level
Reserved/Do Not Connect Reserved/Do Not Connect
Relay 2 Normally Closed
Relay 2 Common
Relay 2 Normally Open
RS-232 OUT CH-2 RS-232 OUT CH-1
GND
RS-232 IN CH-2 RS-232 IN CH-1
1=Relay 1 ON 2=Relay 2 ON
RS-232 LEDs
1=CH-1 Activity 2=CH-2 Activity
3.2 ICP

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTHDMIReceiverwithInlineControlProcessor
Broadata Technical Support, [email protected] 13

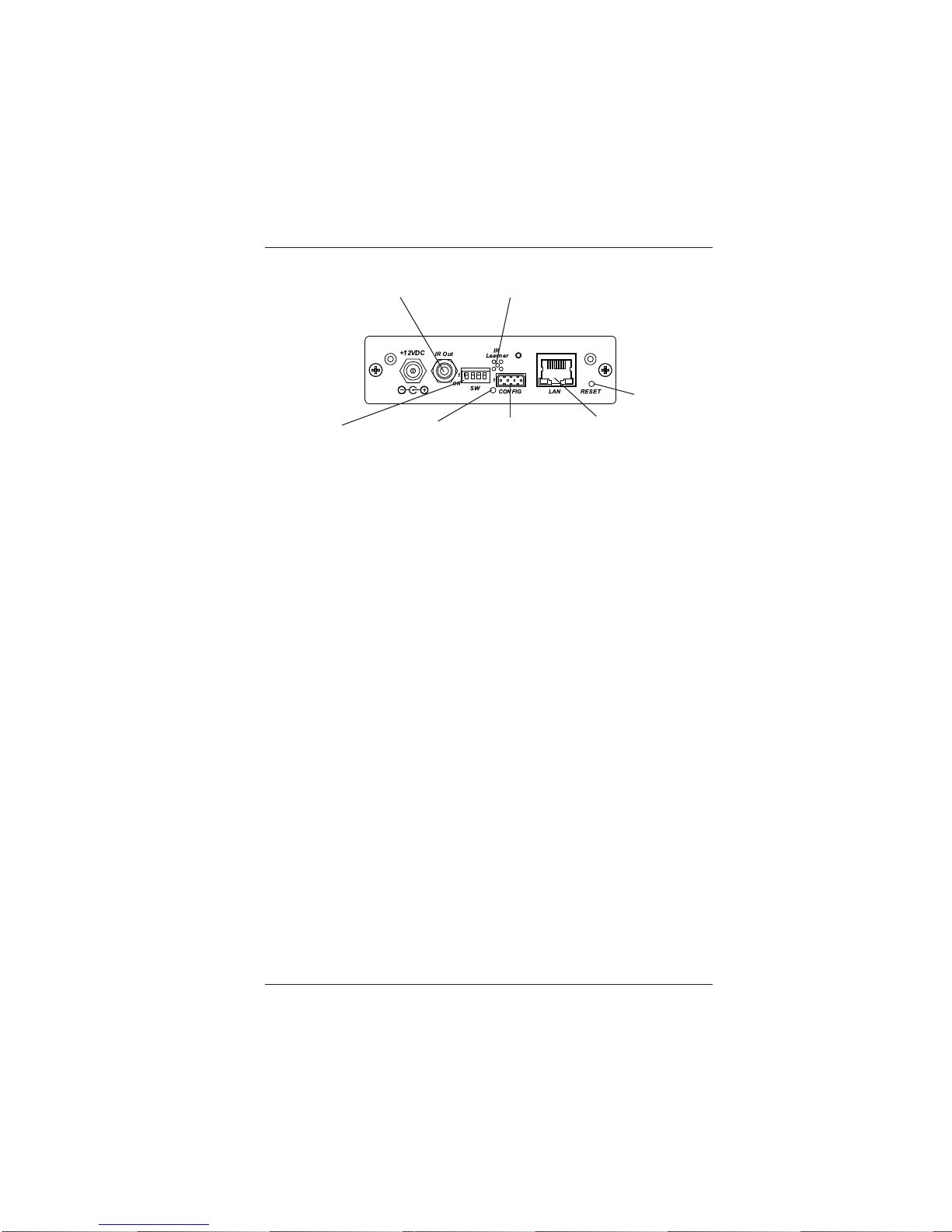

Rear
IR OUT for
external emitter IR detector
behind holes
Reset button:
push to reset to
default settings
RJ-45
1 - TX+
2 - TX-
3 - RX+
4 - N/C
5 - N/C
6 - RX-
7 - N/C
8 - N/C
CONFIG/Keypad
1. +12V keypad power
2. RS-232 IN
3. RS-232 OUT
4. GND
IR Learn LED
(ON in IR
Learn mode
DIP SW
Position 1: Local/Remote
(Local=OFF)
Position 2: Reserved
Position 3: Reserved
Position 4: Reserved

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTReceiverwithInlineControlProcessor
Broadata Technical Support, [phone]
14

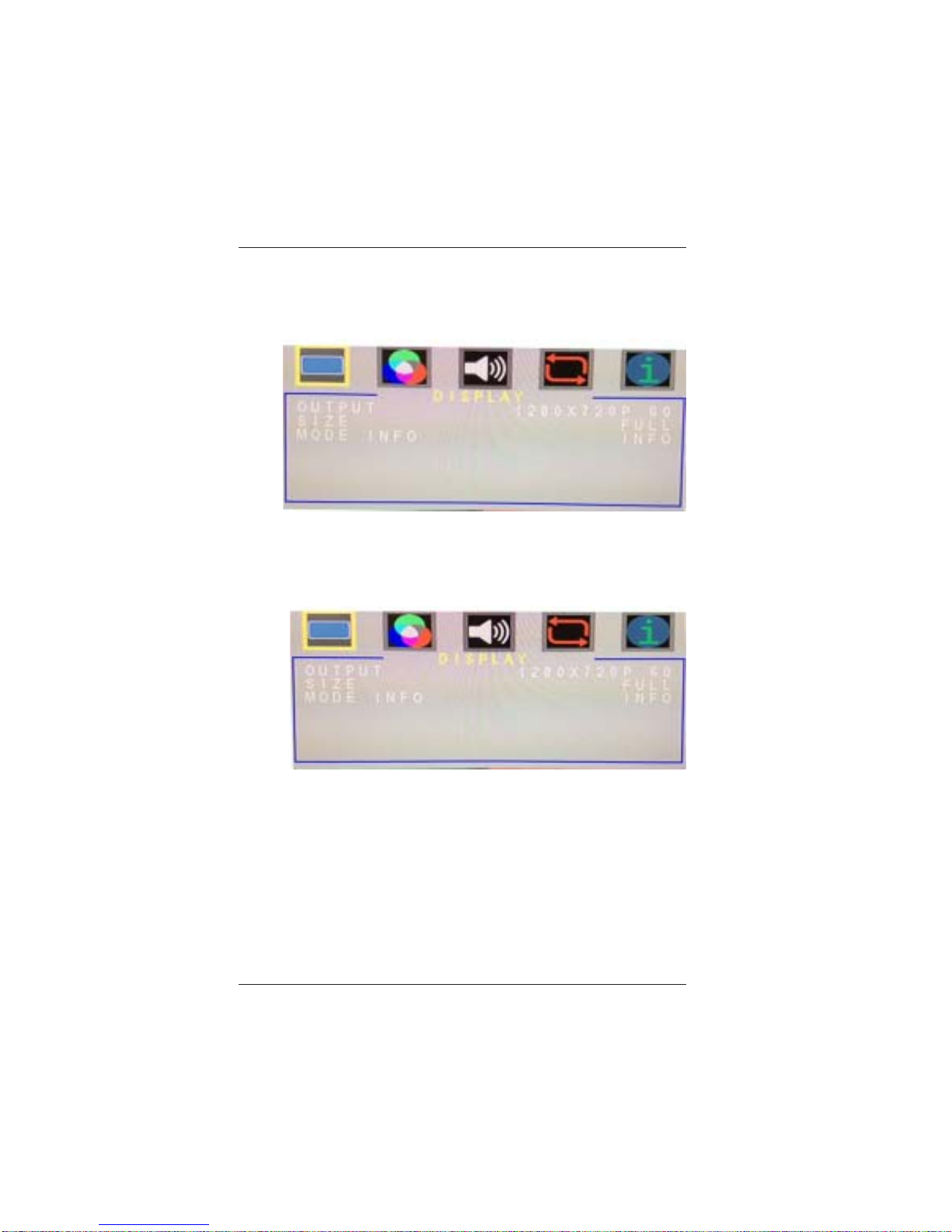

4.0 ON SCREEN DISPLAY (OSD) MENU
4.1 Main Menu Selection
Display, Color,Audio, Factory Reset, Informaiton
4.2 DISPLAY: Output, Size, Mode Info
OUTPUT: 640x480 60, 800x600 60, 1024x768 60, 1360x768 60,
1280x72060, 1280x80060, 1280x102460, 1440x900 60,1400x1050
60, 1680x1050 60, 1600x1200 60, 1920x1080 60, 1920x1200 60,
720x480P 60, 1280x720P 60 (Factory Default upon reset),
1920x1080I 60, 1920x1080P 60 (setting upon shipment), 720x576P
50, 1280x720P 50, 1920x1080I 50, 1920x1080P 50
SIZE: OVERSCAN, FULL (Factory Default upon reset),
UNDERSCAN, LETTERBOX, PANSCAN, ASPECT RATIO (setting
upon shipment), UNDER 2, UNDER 1
MODE INFO: INFO, ON, OFF

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTHDMIReceiverwithInlineControlProcessor
Broadata Technical Support, [email protected] 15
4.3 COLOR: Color, Contrast, Brightness, Hue,
Saturation, Sharpness, NR
COLOR
RED: 0 ~ 1023 of Red Color Level
GREEN: 0 ~ 1023 of Green Color Level
BLUE: 0 ~ 1023 of Blue Color Level
RED OFFSET: 0 ~ 1023 of Red Color Level
GREEN OFFSET: 0 ~ 1023 of Green Color Level
BLUE OFFSET: 0 ~ 1023 of Blue Color Level
CONTRAST: 0 ~ 60 of Contrast Level
BRIGHTNESS: 0 ~ 60 of Brightness Level
HUE: 0 ~ 60 of Hue Level
SATURATION: 0 ~ 60 of Saturation Level
SHARPNESS: 0 ~ 30 of Sharpness Level
NR: OFF (Factory Default upon reset), LOW,
MIDDLE,HIGH

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTReceiverwithInlineControlProcessor
Broadata Technical Support, [phone]
16
4.4 AUDIO
VOLUME: 0 ~ 100
DELAY: OFF, 40ms, 110ms, 150ms
SOUND: ON, MUTE

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTHDMIReceiverwithInlineControlProcessor
Broadata Technical Support, [email protected] 17
4.5 SETUP: Factory Reset, Keylock
FACTORY RESET: YES, NO
KEY LOCK: OFF, ON

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTReceiverwithInlineControlProcessor
Broadata Technical Support, [phone]
18
4.6 INFORMATION: Input, Output, Revision
INPUT: Input Resolution Displayed
OUTPUT: Output Resolution Displayed
REVISION: FirmwareRevision Displayed

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTHDMIReceiverwithInlineControlProcessor
Broadata Technical Support, [email protected] 19
5.0 LB-ICP WEB SERVER DESCRIPTION
Introduction
The ICP Web Server provides user friendly and intuitive web pages to
configurethe virtual keypadandautomationfunctions within the ICP. It
alsoprovideswebpagestomanagethe IR Learner and IR code import.
A standard web browser can be used to access the web pages.
Accessing Web Server
TheIPaddress of the ICP must beobtainedinorderto access the Web
Server. There are 2 ways to obtain the IP address of an ICP.
1) Use the IPCONFIG command in the Configuration Port
Command Line Interface to display the unit’s IP address.
2) Use the BCI PC Configuration Program
Type in the unit’s IP address in the web browser. The ICP Virtual
Keypad page will be displayed. All 8keysoftheVirtualKeypadare un-
programmed by default. The keys are configured in the Configure
KeyAction page.

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTReceiverwithInlineControlProcessor
Broadata Technical Support, [phone]
20
Beforeconfiguring the Virtual Keypad,the system firstneedstobeset
up using the Configure System page. On the top menu bar, click
Configure and then click System. Thisbrings up the ICPLogin page.
Inthe ICPLogintypeinadminfortheUserid andadminforthePassword
andthenclickSign in button. TheConfigure System page willappear.
See the following section for Configure System page details. Once
logged in, the user is free to open any of the Configure or Settings
pages. The default Password can be changed using the BCI Product
Configuration program.

LBC-H-R-SCL-ICPUserManual
LinkBridgeTM HBaseTHDMIReceiverwithInlineControlProcessor
Broadata Technical Support, [email protected] 21
Configure System
TheConfigure System page is used to configurethenetworkkeypad,
virtual keypad, RS-232 channels, Digital IO channels and remote unit
types.
On the top menu bar, click Configure and then click System. The
following page will be displayed.
