Broadata Link Bridge LBC-PSW52 User manual

LBC-PSW52
Link BridgeTM Presentation
ScalingSwitchwith
5 Inputs andTwo Mirrored Outputs
BCI reserves the right to make changes to the products described herein without prior
notice or consent. No liability is assumed as a result of their use or application. All
rightsreserved.
©2013 Broadata Communications, Inc.

LBC-PSW52UserManual
Link BridgeTM PresentationScalingSwitch
Broadata Technical Support, [e-mail] 3
SAFETY INSTRUCTIONS AND
COMPLIANCE DECLARATIONS
PLEASE OBSERVE THE FOLLOWING SAFETY
PRECAUTIONS
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life of your equipment.

LBC-PSW52UserManual
Link BridgeTM PresentationScalingSwitch
Broadata Technical Support, [phone]
4
TABLE OF CONTENTS
1.0 PRODUCT DESCRIPTION ..............................................5
2.0 OPERATION CONTROLS AND FUNCTIONS .................6
2.1 FRONT PANEL.................................................................6
2.2 REAR PANEL ...................................................................7
2.3 FUNCTIONAL CONFIGURATIONS..................................9
3.0 RS-232 COMMAND LIST................................................10
3.1 IR CABLE PINASSIGNMENT........................................10
3.2 D-SUB 9 PIN DEFINITIONS ...........................................10
4.0 DC POWER CONNECTION ...........................................11
5.0 MAINTENANCE AND TROUBLESHOOTING ...............12
5.1 MAINTENANCE ..............................................................12
5.2 TROUBLESHOOTING ...................................................12
6.0 SPECIFICATIONS...........................................................13
7.0 SERVICE PROCEDURE ................................................14
7.1 REPLACEMENT POLICY ..............................................14
7.2 RETURN AND REPAIR SERVICE .................................14
8.0 LIMITED WARRANTY ....................................................15
9.0 APPENDIX A: RS-232/TELNET COMMANDS...............16

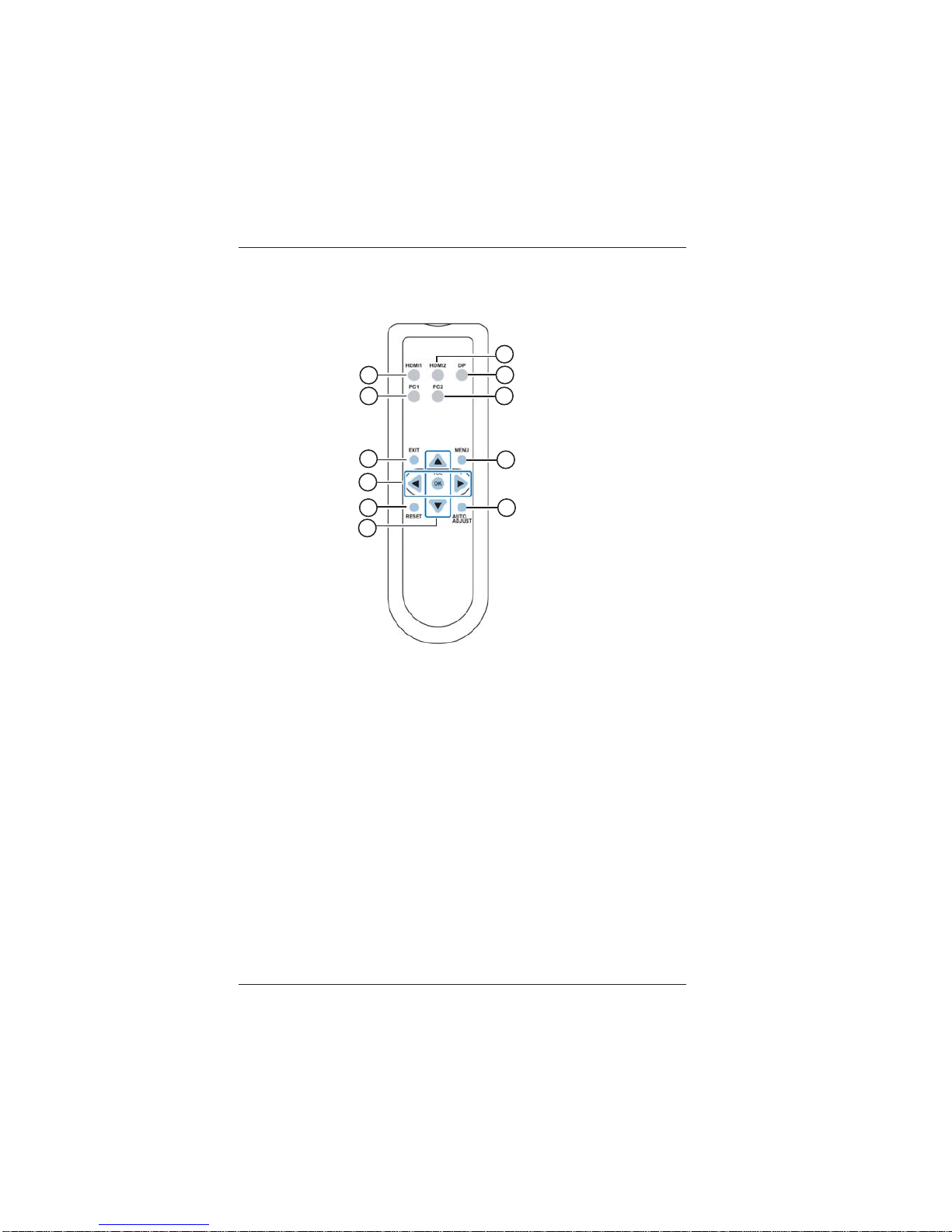

10.0 APPENDIX B: REMOTE CONTROL UNIT ...................18
11.0 APPENDIX C: WEBGUI.................................................19

LBC-PSW52UserManual
Link BridgeTM PresentationScaling Switch
Broadata Technical Support, [email protected] 5
1.0 PRODUCT DESCRIPTION
• LBC-PSW52 is a small-scale presentation scaling switch
•Features 5 video inputs, two HDMI inputs, one DisplayPort,
and two VGA input
•Two simultaneous video outputs of the selected source
through the one HDBaseT and one HDMI output
•HDBaseT outputs extend HDMI/VGA signals up to 70 meters
over CAT-5e/6
•Supports scaling of any input signal to a wide range of HDTV
and VGA output resolutions up to 1080p and WUXGA
•Supports control via RS-232, Telnet, WebGUI, front panel
control buttons, or contact closures
•HDBaseT output supports remote powering
•Supports one microphpne input (with phantom power), three
unbalancedaudio input and one stereo audio output
•Compatible with Link Bridge LBH & LBC Series transmitters
andreceivers

LBC-PSW52UserManual
Link BridgeTM PresentationScaling Switch
Broadata Technical Support, [phone]
6
2.0 OPERATION CONTROLS AND FUNCTIONS

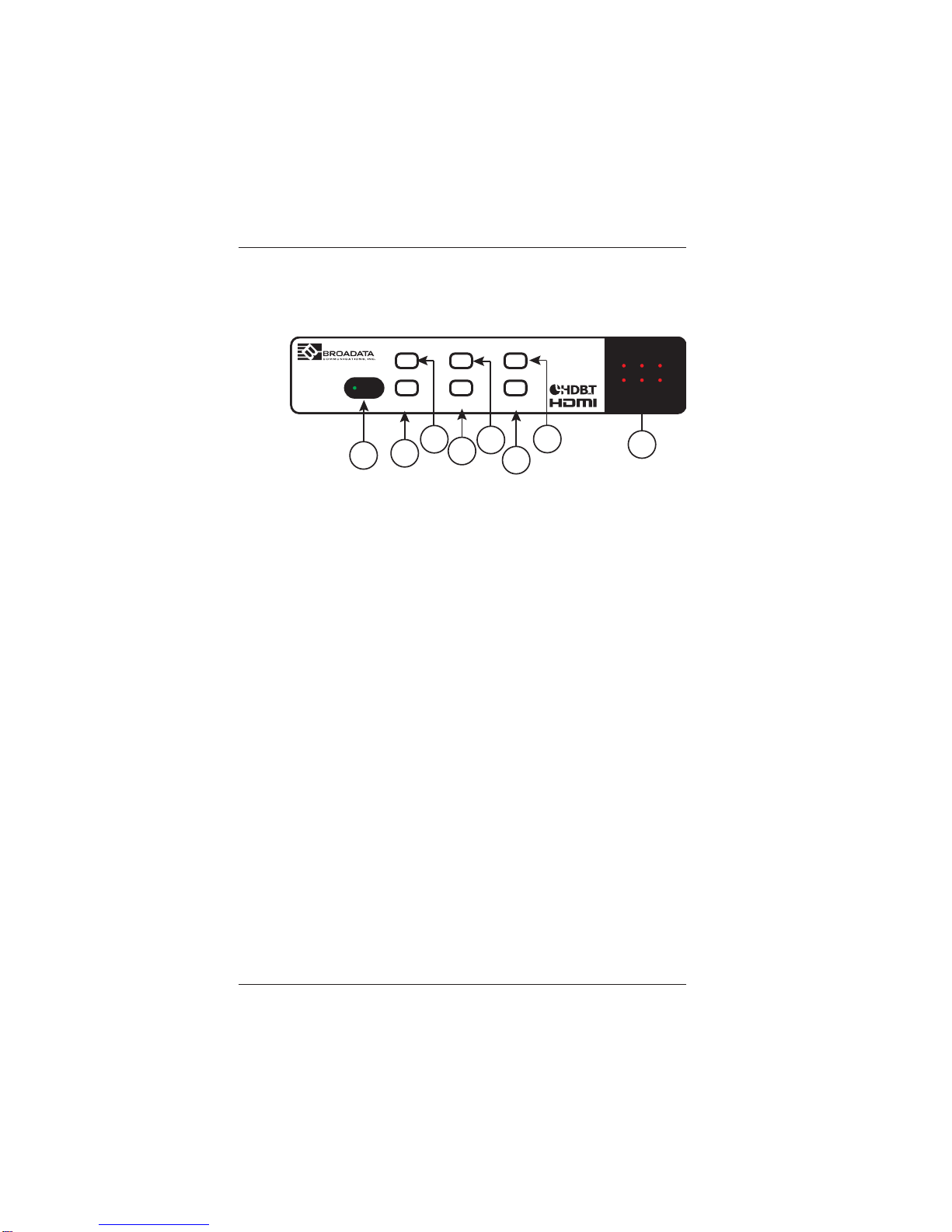

2.1 Front Panel
1. IR Window:Receiving IR signal fromremotecontrolunitwhich
comes with scaler box.
2. “Enter” button: Press this button to confirm the selection on
On Screen Display (OSD) menu.
3. “Menu” button:Pressthisbuttonto enter On Screen Display
(OSD)menu.
4. “-“ (Minus) button: Press button to navigate down on OSD
menu.
5. “+” (Plus) button: Press button to navigate up on OSD
menu.
6. “Select” button: Press this button for source selection. The
active source will be indicator on LEDs at front panel.
7. “Lock” button: Press this button to lock front panel.
8. LEDs: This LED for selected source indication. The LED for
theselected source will illuminate for indicatingactivesource.
LOCK
+
-
ENTER
MENU
SELECT
HDMI
1DPHDMI 2
1
PC 2 PC LOCK
12346
578

LBC-PSW52UserManual
Link BridgeTM PresentationScaling Switch
Broadata Technical Support, [email protected] 7

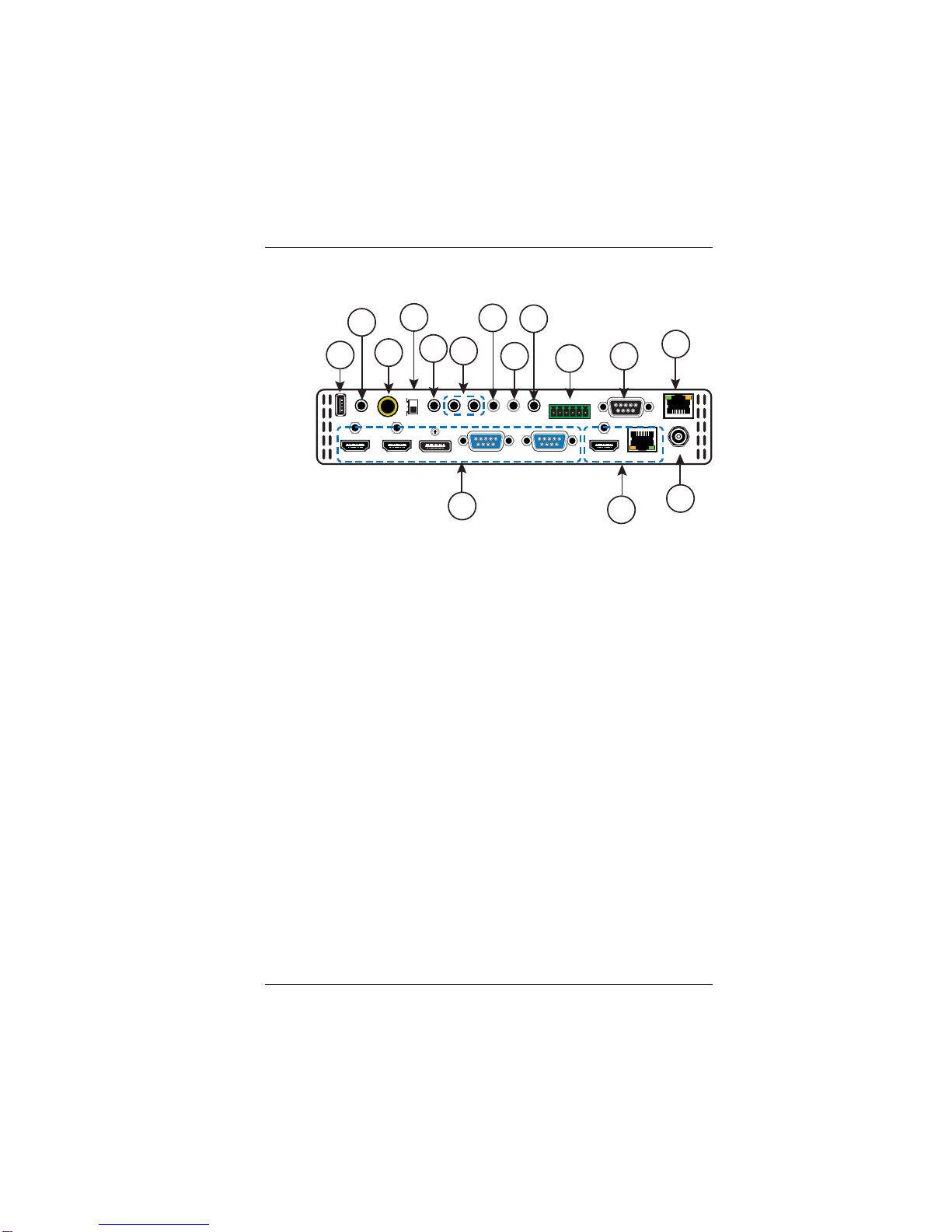

2.2 Rear Panel
1. Service: The service slot is for firmware update via USB.
2. Lineout:Connectswithamplifierfor audiosourcebroadcasting.
3. MIC IN: Plug microphone in for audio source output. The
phantom microphone is well supported.
4. Phantom on/off:Arrangetheslideswitchto“on”forcondenser
microphone (5V) or “phantom” for professional 48V phantom
microphone.When slideswitcharrange to“off”,the audiooutput
will be mute.
5. Line In: To output HDMI embedded audio of HDMI 1, 2 and
display port source to DVD players.
6. PC1 / PC2:To outputHDMI embedded audio of PC1 andPC2
source to DVD players.
7. IR Out: Connect with supplied IR blaster cable to sending IR
single which comes from remote control unit to compatible
Receivers.
8. IR IN: Connect with supplied IR extender cable to receive the
IRsignal from the includedIR remote. Ensure that the remote
is within the direct line-of-sight of the IR extender.
9. RS-232: For sending RS-232 command to compatible
Receivers.
PC 1LINE INMIC INSERVIC IE R OUT IR IN RS232 COM PORT
LINE OUT
CAT5e/6/7 OUTHDMI OUTHDMI 2HDMI D1 ISPLAY PORT
INPUT CONTROL
C12345
CONTROL
OFF
ON
PHANTOM
PC 2PC 1 DC 24V
PC 2
1
2
3
4
6
5
7
8
9
10 11 12
13 14 15

LBC-PSW52UserManual
Link BridgeTM PresentationScaling Switch
Broadata Technical Support, [phone]
8
10. Input Control: This input control reserving for direct source
inputselection. Connect ground pin (mark asC on panel) with
followingpin number for individual sourceselection.
11. Com Port: Connect with D-Sub 9 pin cable with PC or laptop
for this scaler box controlled by RS-232 commands.
12. Control: This port is thelinkfor WebGUI control; connect to an
activeEthernet link with anRJ45 terminated cable. Use BCI’s
IP Discovery program to obtain devices IP address to access
WebGUIControl.
13. Input Sources:
a. PC 1 & PC2: Connect to a PC/Laptop source for video
signal input with D-Sub 15pin cable.
b. Display port: Connect to a PC / Laptop source for video
signalinput.
c. HDMI 1 & HDMI2: Connect to HDMI sources such as
Blu-ray/DVD player for both video and audio signal.
14. Output:
a. CAT5e/6/7Out:Connectswith compatibleReceiverforvideo
and/or audio output.
b. HDMI Out: Connect to an HDMI display orAV Receiver for
video and/or audio output.
15. DC24V:Plugthe24VDC powersupplyintotheunitandconnect
the adaptor to an AC outlet.

LBC-PSW52UserManual
Link BridgeTM PresentationScaling Switch
Broadata Technical Support, [email protected] 9
2.3 Functional Configurations
LBC-PSW52 comes with RS-232/Telnet commands. Please
refer to Appendix A for details. LBC-PSW52 is also equiped
with OSD and WebGUI for various device configurations.
Appendix B provides description of remote control units.
Appendix C shows screen shot of the WebGUI.

LBC-PSW52UserManual
Link BridgeTM PresentationScaling Switch
Broadata Technical Support, [phone]
10
3.0 CONNECTOR PIN ASSIGNMENT
3.1 IR Cable Pin Assignment
3.2 D-Sub 9 Pin Definitions
Baud Rate: 19200bps
Data Bit: 8 bits
Parity:None
Flow Control: None
Stop Bit: 1
Pin
1
2
3
4
5
6
7
8
9
Define TX/RX
N/C
TxD
RxD
N/C
GND
N/C
N/C
N/C
N/C

LBC-PSW52UserManual
Link BridgeTM PresentationScaling Switch
Broadata Technical Support, [email protected] 11
4.0 DC POWER CONNECTION
Inorderto make surethatyouhavea proper installation,pleaseobserve
thefollowing:
1 Your AC jack has power.
2. The 24VDC power supply is working.
3. Your electrical system has proper grounding (this ensures
that your power supply does not suffer from voltage variations).
4. PowerSurgeProtection.Thisis optional,buthighlyrecommended.
A UPS system provides voltage regularity as well as prevents
spikes from occurring, thus protecting your LBC-PSW52 from
sensitivevoltageconditions.
TheLBC-PSW52derivespowerfromanexternal 24VDC power supply.
ThispowersupplyisawallmountedAC/DC adapter,100-240 VAC, 50-
60 Hz, at 1A. This power supply comes standard for the LBC-PSW52
unlessotherwisespecified.To provide powertotheLBC-PSW84, simply
connectthe power cord, already provided withthe units, and connect it
tothe wall jack. (You willfind one power cord perunit). Once the power
cord has been connected to the wall jack, connect 24VDC to the unit
and the unit should power up immediately flipping the power toggle
swtich.Ifyouhaveany problems or concerns, regarding the installation,
make sure that you have taken the proper steps to ensure a proper
power connection. Otherwise, feel free to contact us for any questions
youmay have.
Note 1: During installation, the installer may need to connect
the power supply output to an appropriate Listed NEC type
cablebeforeitisroutedbehindawall. Simply routing the power
supply output cable behind a wall will most likely not comply
with applicable installation requirements. Unit should only be
powered by a power source that is Listed (NEC) Class 2 or a
ListedITEPower Supplymarked/ratedas LPSorLimitedPower
Source.

LBC-PSW52UserManual
Link BridgeTM PresentationScaling Switch
Broadata Technical Support, [phone]
12
Note2:Theinstallationshallbeinaccordancewith theapplicable
provisionsofthe NationalElectricalCodeANSI/NFPA70,Article
725 and the Canadian Electrical Code, Part 1, Section 16.
Note3: The power supply shall not be permanentlyfixedto the
building structure or similar structures.
Note 4: The power supply shall not be located within
environmental air handling spaces or within the wall cavity.
Note 5: The power supply is to be located within the same
vicinityastheA/Vprocessingequipmentin an ordinarylocation,
Pollution Degree 2, secured to the equipment rack within the
dedicated closet, podium or desk
5.0 MAINTENANCE AND TROUBLESHOOTING
5.1 Maintenance
Thereisnooperator maintenance other then keeping the units
clean. However, observe thefollowinglight indicators to make
sure that the unit is working properly:
5.2 Troubleshooting
Ifthe LBC-PSW52unitsdonotoperate properlyafterinstallation,
check for possible cable breaks, loose connections, and
incorrect cable connections. If problems persist that may be
fiber related, contact BCI at 1-800-214-0222 for further
assistance.

LBC-PSW52UserManual
Link BridgeTM PresentationScaling Switch
Broadata Technical Support, [email protected] 13
6.0 SPECIFICATIONS
VIDEOSPECIFICATIONS
Resolution Up to 1080p or 1920x1200@60Hz
Input Connectors 2x HDMI Female Plug, 2x HD-15
VGA Female*, 1x DisplayPort
Output Connectors 1x HDMI Female Plug, 1x HDBaseT
RJ45
Protocol DDC/EDID/HDCPCapable
*VGA input does not support YPbPr
video format
AUDIO
Input Channel Capacity 1x microphone, 3x L/R analog
Input Connectors 3mm jack
OutputChannelCapacity 1 L/RAnalog
OutputConnectors 3mm jack
CONTROLDATA
LAN/Telnet 1, RJ-45
RS-232 1, DB9
IR 2, 3mm jack
Others Input control, terminal block
PHYSICAL
Dimensions 8.62”(W) x 6.14”(D) x 1.7”(H)
PowerConsumption +24VDC @ 1 Amps (Max.)
OperatingTemperature 0 to +40oC
Humidity 20 to 90% RH, Non-Condensing

LBC-PSW52UserManual
Link BridgeTM PresentationScaling Switch
Broadata Technical Support, [phone]
14
7.0 SERVICE PROCEDURE
7.1 Replacement Policy
Standard products found defective on arrival (DOA) will be
replaced,basedonavailability, within 24 to 48 hours anywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.
7.2 Return/Repair Service
The LBC-PSW52 System contains no user serviceable
components.If youhaveaproblemwithyourunit,pleasecontact
the Customer Service Department. To facilitate our return/
repair processing please contact Broadata Communications,
Inc. to obtain a Return MaterialAuthorization (RMA). Please
includethefollowing information:
• Productmodel number
• SerialNumber
• Complete description of problem
• Hardwareinstallation description
BroadataCommunications, Inc.
2545 West 237th Street, Suite K
Torrance, CA 90505
1-800-214-0222
[phone]
[phone] (Facsimile)
e-mail:[email protected]
Website: www.broadatacom.com

LBC-PSW52UserManual
Link BridgeTM PresentationScaling Switch
Broadata Technical Support, [email protected] 15
8.0 LIMITED WARRANTY
Broadata Communications, Inc. (BCI) warrants, for a period of one
yearfromdateofshipment,each product sold shall be free fromdefects
in material and workmanship. BCI will correct, either by repair, or at
BCI’s election, by replacement, any said products that in our sole
discretion prove to be defective and are returned to the manufacturing
location within 30 days after such defect is ascertained. All warranties
are limited to defects arising under normal use and do not include
malfunctionsorfailure resultingfrommisuse,abuse, neglect,alterations,
electrical power problems, usage not in accordance with product
instructions, improper installation, or damage determined by BCI to
havebeencausedbytheBuyer or repairmadebyathirdparty. Limited
warrantiesgrantedonproductsareto the initial customer end-user and
arenot transferable. OURLIABILITYUNDERTHISWARRANTYSHALL
IN ANY CASE BE LIMITED TO THE INVOICE VALUE OF THE
PRODUCTSOLDANDBCISHALLNOTBELIABLETOANYONE FOR
CONSEQUENTIALORINCIDENTALDAMAGESARISINGFROMTHE
USE OF ITS PRODUCTS OR THE SALE THEREOF. We make NO
WARRANTYAS TO THE MERCHANTABILITY OF ANY GOODS, OR
THAT THEY ARE FIT FOR ANY PARTICULAR PURPOSE OR END
APPLICATION NOR DO WE MAKE ANY WARRANTY, EXPRESSED
OR IMPLIED OTHER THAN AS STATEDABOVE.

LBC-PSW52UserManual
Link BridgeTM PresentationScaling Switch
Broadata Technical Support, [phone]
16
9.0 APPENDIX A: RS-232/TELNET COMMANDS

LBC-PSW52UserManual
Link BridgeTM PresentationScaling Switch
Broadata Technical Support, [email protected] 17

LBC-PSW52UserManual
Link BridgeTM PresentationScaling Switch
Broadata Technical Support, [phone]
18
10.0 APPENDIX B: REMOTE CONTROL UNIT
1. HDMI1 : HDMI 1 source input
2. HDMI2 : HDMI 2 source input
3. DP: Display Port source input
4. PC1: PC1 source input
5. PC2: PC2 source input
6. MENU:Access to On Screen Display (OSD)
7. EXIT: Exit from On Screen Display (OSD)
8. RESET:Returntofactory defaultsetting(Ethernet settingremain
the same)
9. AUTOADJUST:Auto adjust PC picture in central
10.

/

: Navigate down/up of On Screen Display selection
items
11. 

(-) / 

(+): Adjust selection items parameter (+) or (-) of On
ScreenDisplay or output volume adjustment
12
3
4 5
67
89
10
11

LBC-PSW52UserManual
Link BridgeTM PresentationScaling Switch
Broadata Technical Support, [email protected] 19
11.0 APPENDIX C: WEBGUI

LBC-PSW52UserManual
Link BridgeTM PresentationScaling Switch
Broadata Technical Support, [phone]
20

BroadataCommunications, Inc.
2545 West 237th Street, Suite K
Torrance, CA 90505
1-800-214-0222
[phone]
[phone] (Facsimile)
e-mail:[email protected]
Website: www.broadatacom.com
60000-LBC-PSW52
