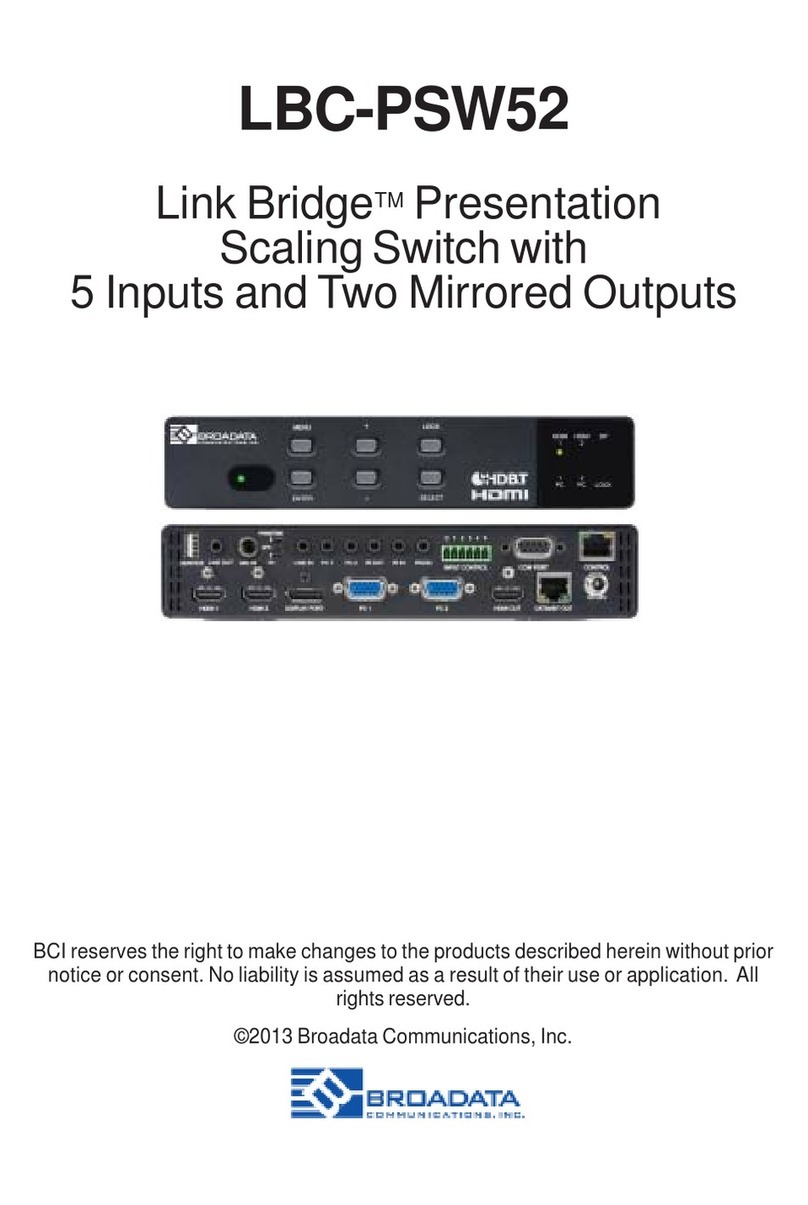

Broadata LINKBRIDGE LBC-PSW52 User manual

LINKBRIDGE™ PRESENTATION SCALING SWITCH
with 5 Inputs and Two Mirrored Outputs
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or application.
All rights reserved.
©2019 Broadata Communications, Inc.
LBC-PSW52
USER MANUAL

HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATION
PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be damaged by
electrical spikes,surges,electric shock,lightning strikes, etc. Use of surge proctection
system is highly recommended in order to protect and extend the life of your
equipment.

DC POWER CONNECTION
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
3
Do not use this device near water/liquids. This device should not be exposed to dripping and
splashing or liquids.
Clean only with dry cloth.
Do not use solvents such as paint thinners and acetone to clean external casing. Such
agents will remove any labels on the device.
Do not block any ventilation openings.
Do not install near any sources of intense heat such as radiation, boilers, or other equipment
that produce heat
Not intended for use/storage in close proximity of critical medical supplies such as those that
might come into direct contact with patients or medical sta.
Protect the power cord from being pinched or damaged at receptacles and the point of exit
from the device.
Only use attachment /accessories specified by manufacturer. If you have any questions
about the compatibility of an accessory, contact your dealer.
In case liquid spillage on device, unplug mains power cord and contact your dealer. Continu-
ous use in this case may result in fire or electric shock.
To reduce the risk of electric shock, do not touch connectors with wet hand.
Only power with the marked voltage on the device. Any other voltage can cause fire or elec-
tric shock.
Do not use the device if an abnormality occurs. If any smoke or odor becomes apparent, un-
plug the power cord and contact your dealer. Do not try to repair the device yourself.
Avoid using physically damaged devices. If your device metal housing is seriously physically
damaged, the internal components may function abnormally. Contact your dealer.
Do not install the device in an area heavy with dust or constant high humidity. Operating the
device in this case may result in fire or electric shock.
Only use supplied power supply. For a list of other compatible power supplies, contact your
dealer.
Install this device in a secure location where it cannot be easily pushed or knocked over.

TABLE OF CONTENTS
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
PRODUCT DESCRIPTION
OPERATION CONTROL AND FUNCTIONS
FRONT/REAR PANEL
CONNECTOR PIN OUT ASSIGNMENT
WEB GUI CONFIGURATION
API COMMANDS RS232 & TELNET
OSD MENU
SPECIFICATIONS
MAINTENANCE AND TROUBLESHOOTING
SERVICE PROCEDURE
REPLACEMENT POLICY
RETURN AND REPAIR SERVICE
LIMITED WARRANTY
5
7
7
11
12
19
26
35
38
39
39
39
40
1.0
2.0
2.1
3.0
4.0
5.0
5.1
6.0
7.0
8.0
9.0
10.0

5
PRODUCT DESCRIPTION
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
The LinkBridge™ HDBaseT Presentation Scaling Switch is a compact and robust switch that
oers compact video and audio extension with the ability to scale 5 video inputs to 2 mirrored
outputs. The Scaling Switch is capable of extending audio/video signals up to 70 meters over
HDBaseT CAT 5e/6 cabling. An easily accessible source selection buttons allows you to select
5 Video Input signals and simultaneously send 2 audio/video output signals for a wide variety
of applications. All while transmitting fully uncompressed Ultra HD and HDTV video resolutions
up to 1080p @ 60Hz.
FEATURES:
• Compact presentation scaling switch oers 5-Video Inputs (2-HDMI, 1-Display Port
and 2-VGA Inputs) to support a wide range of applications
• Source selection oers the simultaneous output of 2-video signals through HDBaseT
and HDMI
• Extends HDMI/DisplayPort/VGA up to 70 meters over CAT 5e/6
• Scaling of any analog/digital video signal, up to 1080p & WUXGA to HDMI and
HDBaseT protocol output
• Supports control via RS-232, Telnet, WebGUI, front panel control buttons or contact
closures
• HDBaseT output supports remote powering
• Supports one microphone input (with phantom power), three unbalanced audio input
and one stereo audio output
• Works with all LinkBridge LBH & LBC Series transmitters and receivers
IDEAL FOR:
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control

6PRODUCT DESCRIPTION
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
PACKAGE CONTENTS
• 1- HDBaseT LinkBridge™ HDBaseT Presentation Scaling Switch1
• 1- 24V/1A DC Power Adapter
• 1- Power Cord
• 1- Remote Control
• 1- Operation Manual
SYSTEM REQUIREMENTS
• Source equipment such as media players, video game consoles, PCs, or set-top
boxes.
• A compatible HDBaseT receiver
• The use of Premium High Speed HDMI cables, and industry standard CAT5,
CAT6a or CAT7 is highly recommended.

7
OPERATION CONTROL AND FUNCTIONS
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
FRONT PANEL
LBCPSW52
1
“Menu” Button: Press this button to enter On Screen Display (OSD)
menu.
“-“ (Minus) Button: Press button to navigate down on OSD menu.
“+” (Plus) Button: Press button to navigate up on OSD menu.
“Lock” Button: Press this button to lock front panel.
LEDs: This LED for selected source indication. The LED
for the selected source will illuminate for indicating
active source.
IR Window: Receiving IR signal from remote control unit which
comes with scaler box.
“Enter” Button: Press this button to confirm the selection on On Screen
Display (OSD) menu.
“Select” Button: Press this button for source selection. The active source
will be indicator on LEDs at front panel.
1
2
3
4
3
5
24
LOCK
+
-
ENTER
MENU
SELECT
HDMI
1
DPHDMI
2
1
PC
2
PC LOCK
6
7
56 7

8OPERATION CONTROL AND FUNCTIONS
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
REAR PANEL
LBCPSW52
13
2456 7 8 9
PC 1LINE INMIC INSERVIC IE R OUT IR IN RS232 COM PORT
LINE OUT
CAT5e/6/7 OUTHDMI OUTHDMI 2HDMI D1 ISPLAY PORT
INPUT CONTROL
C12345
CONTROL
OFF
ON
PHANTOM
PC 2PC 1
DC 24V
PC 2
Service: The service slot is for firmware update via USB.
Line Out: Connects with amplifier for audio source broadcasting.
MIC IN: Plug microphone in for audio source output. The phantom
micro phone is well supported.
Phantom On/O: Arrange the slide switch to “on” for condenser micro
phone (5V) or “phantom” for professional 48V phantom
microphone. When slide switch arrange to “o”, the
audio output will be mute.
Line In: To output HDMI embedded audio of HDMI 1, 2 and display port
source to DVD players.
PC1 / PC2: To output HDMI embedded audio of PC1 and PC2 source to
DVD players.
IR Out: Connect with supplied IR blaster cable to sending IR single
which comes from remote control unit to compatible Receivers.
IR In: Connect with supplied IR extender cable to receive the IR
signal from the included IR remote. Ensure that the remote is
within the direct line-of-sight of the IR extender.
RS-232: For sending RS-232 command to compatible Receivers.
1
2
3
4
5
6
7
8
9

9
OPERATION CONTROL AND FUNCTIONS
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
REAR PANEL
LBCPSW52 CON’T
11
312 456 7 8 9
PC 1LINE INMIC INSERVIC IE R OUT IR IN RS232 COM PORT
LINE OUT
CAT5e/6/7 OUTHDMI OUTHDMI 2HDMI D1 ISPLAY PORT
INPUT CONTROL
C12345
CONTROL
OFF
ON
PHANTOM
PC 2PC 1
DC 24V
PC 2
Com Port: Connect with D-Sub 9 pin cable with PC or laptop for this scaler
box controlled by RS-232 commands.
Control: This port is the link for WebGUI control; connect to an active
Ethernet link with an RJ45 terminated cable. Use BCI’s IP
Discovery program to obtain devices IP address to access
WebGUI Control.
Input Sources:
a. HDMI 1 & HDMI2: Connect to HDMI sources such as Blu-ray/
DVD player for both video and audio signal.
b.DisplayPort: Connect to a PC / Laptop source for video signal input.
c.PC 1 & PC2: Connect to a PC/Laptop source for video signal input with
D-Sub 15pin cable.
Output:
a. CAT5e/6/7 Out: Connects with compatible Receiver for video and/or
audio output.
b. HDMI Out: Connect to an HDMI display or AV Receiver for video
and/or audio output.
DC 24V: Plug the 24V DC power supply into the unit and connect the adap
tor to an AC outlet.
10
11
12
13
14
Pin Number Source
Pin 1 HDMI 1
Pin 2 HDMI 2
Pin 3 DisplayPort
Pin 4 PC1
Pin 5 PC2
15
Input Control: This input control reserving for
direct source input selection.
Connect ground pin (mark as C
on panel) with following pin
number for individual source
selection.
13a
10
13b13c 14a 14b 15

10 OPERATION CONTROL AND FUNCTIONS
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
PIN DEFINE Tx/Rx
1 N/C
2 TxD
3 RxD
4 N/C
5 GND
6 N/C
7 N/C
8 N/C
9 N/C
HDMI1 : HDMI 1 source input
HDMI2 : HDMI 2 source input
DP: Display Port source input
PC1: PC1 source input
PC2: PC2 source input
EXIT: Exit from On Screen Display (OSD)
MENU: Access to On Screen Display (OSD)
RESET: Return to factory default setting (Ethernet setting remain the same)
AUTO ADJUST: Auto adjust PC picture in central
/ : Navigate down/up of On Screen Display selection items
(-) /(+): Adjust selection items parameter (+) or (-) of On Screen Display or output
volume adjustment
123
45
1
2
3
4
5
11
10 98
7
6
7
8
9
10
11
6

11
CONNECTOR PINOUT ASSIGNMENT
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
1
2
3
Power
IR Signal
Not Used
1
2
3
IR Signal
Power
Ground
RS-232 Pin Out
PIN DEFINE Tx/Rx
1 N/C
2 TxD
3 RxD
4 N/C
5 GND
6 N/C
7 N/C
8 N/C
9 N/C
IR Cable Pin Outs
IR Blaster Pin Out IR Extender
BAUD RATE 19200
DATA BITS 8
PARITY BITS NONE
HDMI1 : HDMI 1 source input
HDMI2 : HDMI 2 source input
DP: Display Port source input
PC1: PC1 source input
PC2: PC2 source input
EXIT: Exit from On Screen Display (OSD)
MENU: Access to On Screen Display (OSD)
RESET: Return to factory default setting (Ethernet setting remain the same)
AUTO ADJUST: Auto adjust PC picture in central
/ : Navigate down/up of On Screen Display selection items
(-) /(+): Adjust selection items parameter (+) or (-) of On Screen Display or output
volume adjustment

DC POWER CONNECTION
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
12
In order to make sure that you have a proper installation, please observe the following:
1 Your AC jack has power.
2. The 24VDC power supply is working.
3. Your electrical system has proper grounding (this ensures that your power supply
does not suer from voltage variations).
4. Power Surge Protection. This is optional, but highly recommended. A UPS system
provides voltage regularity as well as prevents spikes from occurring, thus protecting your
LBC-PSW52 from sensitive voltage conditions.
The LBC-PSW52 derives power from an external 24VDC power supply. This power supply
is a wall mounted AC/DC adapter, 100-240 VAC, 50- 60 Hz, at 1A. This power supply comes
standard for the LBC-PSW52 unless otherwise specified. To provide power to the LBC-
PSW84, simply connect the power cord, already provided with the units, and connect it
to the wall jack. (You will find one power cord per unit). Once the power cord has been
connected to the wall jack, connect 24VDC to the unit and the unit should power up
immediately flipping the power toggle swtichswitch. If you have any problems or concerns,
regarding the installation, make sure that you have taken the proper steps to ensure a
proper power connection. Otherwise, feel free to contact us for any questions you may
have.
Note 1: During installation, the installer may need to connect the power supply output to
an appropriate Listed NEC type cable before it is routed behind a wall. Simply routing
the power supply output cable behind a wall will most likely not comply with applicable
installation requirements. Unit should only be powered by a power source that is Listed
(NEC) Class 2 or a Listed ITE Power Supply marked/rated as LPS or Limited Power Source.
Note 2: The installation shall be in accordance with the applicable provisions of the
National Electrical Code ANSI/NFPA 70, Article 725 and the Canadian Electrical Code, Part
1, Section 16.
Note 3: The power supply shall not be permanently fixed to the building structure or similar
structures.
Note 4: The power supply shall not be located within environmental air handling spaces or
within the wall cavity.
Note 5: The power supply is to be located within the same vicinity as the A/V processing
equipment in an ordinary location, Pollution Degree 2, secured to the equipment rack
within the dedicated closet, podium or desk

13
WEB GUI CONFIGURATION
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
The WebGUI is divided up into multiple sections (Input, Lock, Information, Display, Picture,
Audio, Miscellany, and Factory) allowing for all functions of the unit to be viewed and
controlled directly. If desired, the numerical value for many of the items can be entered directly
by typing it in the box above the slider bar. Press “Enter” to accept the newly entered value.
WEB USER SETTINGS
This section provides a way to change the password for the Administrator account. Click
on “Save” to confirm and activate any changes made to these settings. Click on “Logout” to
leave the Web GUI page.
Note: The default user name is “admin”. The default password is “password”.

14 WEB GUI CONFIGURATION
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
INPUT
This section allows for control of input selection with a choice between HDMI1, HDMI2, DP,
PC1, and PC2. Once a selection is made, the switch will occur immediately.
LOCK
This section provides a way to turn the front panel lock on and o.
INFORMATION
This section provides details about the current input and output signals, as well as the
firmware version of the unit.

15
WEB GUI CONFIGURATION
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
DISPLAY
This section allows for control of the output resolution, size (aspect ratio), and HDCP
behavior for all 3 digital inputs on the unit. There are also controls for the signal type
expected by each PC input. Enabling "Comp In" for a PC input allows YUV (component
video) signals to be used.

16 WEB GUI CONFIGURATION
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
This section provides detailed controls for the output's RGB levels, contrast, and brightness
for all input types. Additional controls for hue, saturation, sharpness and noise reduction
are provided for digital input signals while H/V position, Phase, Clock and WXGA support is
provided for the PC inputs.

17
WEB GUI CONFIGURATION
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
AUDIO
This section provides controls for the Mic audio mixer as well as embedded audio. The
microphone input volume, audio delay and output volume can be directly controlled. The
preferred embedded audio source for each digital input may also be selected, and the input
volume for each audio source can be set independently.

18 WEB GUI CONFIGURATION
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
MISCELLANY
This section provides controls for auto input, auto sync o, OSD settings as well as EDID
management. The EDID from one of the 2 outputs can be copied and used with any of the
unit's digital inputs.

19
WEB GUI CONFIGURATION
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
NETWORK
This section provides controls for the IP configuration. The IP Address, Netmask and
Gateway can be set manually, or DHCP can be enabled for automatic IP configuration if
the local network supports it. Click on “Display Current Setting” to display the current IP
configuration. Click on “Apply” to confirm and activate any changes made to these settings.
Note: The default IP address is 192.168.1.254. If the IP address is changed then the IP
address required for WebGUI and Telnet access will also change accordingly.
FACTORY
This section provides a way to perform a factory reset on the unit.
FIRMWARE UPGRADE
To update the unit's firmware, click the “Choose File” button to open the file selection
window and then select the firmware update file (*.bin format) located on your local PC.
After selecting the file, click the “Upgrade” button to begin the firmware update process.
Once the process completes the unit will automatically reboot.

20 API COMMANDS (RS232 & TELNET)
HDBaseT 18G/4K Multi-Format Presentation Switch w/ 5 Inputs and 2 Mirrored Outputs User Manual (LBC-PSW52)
RS232 AND TELNET COMMANDS
# Command Description
1 ? List all commands.
2 R VERSION Get firmware version.
3 S FACTORY-RESET Return to factory default settings.
4 S SOURCE x Set input source.
x =0~4
0=HDMI 1
1=HDMI 2
2=DP
3=PC 1
4=PC 2
5 R SOURCE Read current input source.
6 S LOCK x Set lock button status.
x =0, 1
0=Unlock
1=Lock
7R LOCK Read lock button status.
8 S OUTPUT x Set output resolution.
x =0~23
0=640×480
1=800×600
2=1024×768
3=1280×768
4=1360×768
5=1280×720
6=1280×800
7=1280×1024
8=1440×900
9=1400×1050
10=1680×1050
11=1600×1200
12=1920×1080
13=1920×1200
14=720×480P
15=1280×720P60
16=1920×1080I60
17=1920×1080P60
18=720×576P
19=1280×720P50
20=1920×1080I50
21=1920×1080P50
22=NATIVE OUT1
23=NATIVE OUT2
