INTRODUCTION
INTRODUCTION
Thank you for your purchase of a Broadcast Tools® GPI-16 + G2, sixteen input gen-
eral purpose interface (referred to as the GPI-16 + G2 throughout this manual).
We’re confident that this product will give you many years of dependable service.
This manual is intended to give you all the information needed to install and operate
the Broadcast Tools® GPI-16 + G2.
SAFETY INFORMATION
Only qualified personnel should install Broadcast Tools® products. Incorrect or
inappropriate use and/or installation could result in a hazardous condition.
WHO TO CONTACT FOR HELP
If you have any questions regarding your product or you need assistance, please con-
tact your distributor from whom you purchased this equipment. If you would like
more information about BROADCAST TOOLS® products, you may reach us at:
Broadcast Tools, Inc.
131 State Street
Sedro-Woolley, WA 98284-1503 USA
Voice: 360.854.9559
Fax: [phone]
Internet Home Page: www.broadcasttools.com
E-mail:[email protected]
THANK YOU FOR CHOOSING
BROADCAST TOOLS® BRAND PRODUCTS!
CAUTION!
Broadcast Tools®
Products, as with any
electronic device, can
fail without warning.
Do not use this product
in applications where a
life threatening condition
could result due to failure.
NOTE:
This manual should be
read thoroughly before
installation and operation.
WEBSITE:
Visit our web site for
product updates and
additional information.
Broadcast Tools is a Veteran Owned Business
Designed, Assembled and Supported in WA State, USA

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
GPI 16 + G2 Installation and Operation Manual
OVERVIEW
Product Overview
The GPI-16 + G2 interfaces 16 general purpose logic inputs to users PC COM or
USB port. The user may select from two pre-programmed serial formats; the “PIP”
GPI trigger format which is used on most Broadcast Tools audio switchers, or the
legacy AT-1616 format. Additional features include; Plug-in euroblock screw termi-
nals; 17 LED indicators for power and each input status.
Features/Benefits
• Four user selectable unit ID's: 0 (default), 1,2, and 3.
• Four user selectable baud rates: 9600 (default), 4800, 19200, and 38400.
• PIP or AT1616 data format.
• USB and RS-232 interface for connection to PC.
• LED indicators for all 16 inputs, power.
• GPI connections are on removable euro-block screw terminal connector to simplify
wiring and service, mating plugs are supplied.
• Fully RFI proofed.
• Surge protected internal power supply, 9 VDC universal desktop power adapter
with IEC inlet included.
• Up to three units may be mounted on the optional RA-1 rack shelf, using four
supplied Velcro feet. Desktop and wall mounting are also possible.
Inspection
Please examine your GPI-16 + G2 carefully for any damage that may have been
sustained during shipping. If any is noted, please notify the shipper immediately
and retain the packaging for inspection by the shipper. The package contains the
GPI-16 + G2, a USB type A/B cable, a reverse modular cable with 9-pin “S9”
female D-sub adapter and a 9.0 VDC universal desktop power supply with IEC AC
inlet. Manuals may be downloaded from our web site.
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
GPI 16 + G2 Installation and Operation Manual
INSTALLATION
Installation
Power
Connect the 2.1mm barrel type center positive power connector into the unit and the
9 VDC power supply with IEC inlet into a 120 Vac 50-60 Hz power source.
NOTE: Never use any type of power supply other than the specified/supplied power
supply. Check the power jack on the back of the unit to determine which power sup-
ply is required.
UPS Standby Power System
We recommend that you connect your GPI-16 + G2 to a UPS standby power system.
A UPS, like the BE600M1 from APC helps to minimize the risk to the GPI-16 + G2
and provides power during a power outage.
Input connections
The sixteen general purpose inputs may be activated by either pulling the input to
ground or releasing the input to a high state. A valid input must be 15ms in duration
or greater. External sources can be contact closures, open collectors or 5-to-24-volt
logic level sources. The impedance of each input is 22K ohms.
Input connections are via a single 18-position plug-in euroblock screw terminal that
is labeled “Inputs” 1 thru 16 with ground connections on terminals 17 and 18. To
install, remove the plug from the header, strip 1/8” of insulation from the wire.
Insert the wire into the desired terminal and tighten the set screw. When finished,
reinsert the plug into the header.
USB Port
This type B USB port is used to connect the GPI-16 + G2 to a computer’s USB port
using the included USB A/B cable. When you first plug the GPI-16 + G2 into your
PC, it should automatically install the correct FTDI USB Serial “Virtual COM port”
driver which will allow you to access the GPI-16 + G2 on a COM port. If the GPI
is being used for RS-232 serial operation this should remain disconnected, and the
drivers are not necessary.
NOTE: If the GPI-16 + G2’s FTDI USB Serial “Virtual COM port” drivers do not
automatically install they may be downloaded by clicking on the “setup executable”
link found here: http://www.ftdichip.com/Drivers/VCP.htm
CAUTION!
Broadcast Tools RFI
and surge suppression
suggestions:
Installation of the GPI-
16 + G2 in high RF
environments should be
performed with care. It
is recommended that all
cables connected to the
GPI-16 + G2 be looped
through ferrite cores to
suppress RF. Surge
protection with RF fil-
tering is also suggested
for the power supply.
For lightning protec-
tion devices, check out
www.polyphaser.com
and www.itwlinx.com.
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
GPI 16 + G2 Installation and Operation Manual
INSTALLATION
RS-232 Serial Connector:
This RJ-11 port is used to connect the GPI-16 + G2 to a computer’s COM port for
RS-232 serial operation using the included reverse modular cable with 9-pin “S9”
female D-sub adapter. If the GPI is being used for USB operation this will remain
disconnected.
WEBSITE:
Visit our web site for
product updates and
additional information.
RJ-11
Adapter
Pin
DB-9 D-SUB
Pin #
4 3 RS-232 Receive
3 2 RS-232 Transmit
2 5 Ground
Product’s point of
view Function Name.
Modular connector’s
point of view.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
GPI 16 + G2 Installation and Operation Manual
CONFIGURATION
Configuration
The GPI-16 + G2 can be connected to your computer by one of two interfaces; USB, or
RS-232 serial. Below are connection and configuration instructions for each interface.
NOTE: Step by step “COM” port HyperTerminal setup instructions are avail-
able on-line at www.broadcasttools.com under “Downloads”.
Configuration via the USB Port.
1. Connect the supplied USB A/B cable from the “USB” jack on the GPI-16 + G2
to an available USB port on your PC. When you first plug the GPI-16 + G2 into
your PC, it should automatically install the correct FTDI USB Serial “Virtual
COM port” driver which will allow you to access the GPI-16 + G2 on a COM
port. Once you've installed the driver, the GPI-16 + G2 will be listed as “USB
Serial Port” in device manager.
NOTE: If the GPI-16 + G2’s FTDI USB Serial “Virtual COM port” drivers do
not automatically install they may be downloaded by clicking on the “setup exe-
cutable” link found here: http://www.ftdichip.com/Drivers/VCP.htm
2. Start a serial terminal application like Tera Term, PuTTY or HyperTerminal con-
figured for the USB COM port the GPI-16 + G2 is assigned to at 9600 baud,8,N,
1, flow control to NONE, Emulation set to ANSI, and local character echo
enabled.
3. Connect the supplied 9 VDC power supply connector in to the GPI-16 + G2’s
power jack labeled “9-12VDC”, then plug the power supply in to a power source.
Verify that the green “PWR/HB” led is blinking. The unit information should be
displayed on your monitor if things are setup and/or working properly.
Configuration via the RS-232 Serial Port.
1. Connect the supplied reverse modular cable with 9-pin “S9” female D-sub adapter
from the “RS-232” jack on the GPI to a RS-232 serial COM port on your PC.
2. Start a serial terminal application like Tera Term, PuTTY, or HyperTerminal con-
figured for the COM port the GPI-16 + G2 is connected to at 9600 baud,8,N,1
flow control to NONE, Emulation set to ANSI, and local character echo enabled.
3. Connect the supplied 9 VDC power supply connector in to the GPI-16 + G2’s
power jack labeled “9-12VDC”, then plug the power supply in to a power source.
Verify that the green “PWR/HB” led is blinking. The unit information should be
displayed on your monitor if things are setup and/or working properly.
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
GPI 16 + G2 Installation and Operation Manual
CONFIGURATION
Configuration Commands
If you plan on using the default settings disregard this page of the manual. If you
require changes to the default settings, follow the steps below to configure the GPI-
16 + G2 from your computer.
To modify the default configuration, execute the following command:
*uSUxyz where “u” is the current unit ID, “x” is configuration item 1, “y” is
configuration item 2, and “z” is configuration item 3. No carriage return or line feed
is required. NOT case sensitive.
Command example: *0SU030 would set the unit ID to zero, baud rate to 38400
and serial format to PIP.
To query the current configuration, execute the following command:
*ASU? No carriage return or line feed is required. NOT case sensitive.
Command example: *ASU?
Response example: *ASU? where the A would respond to the current configured
Unit ID, then the three current configuration characters xyz.
Configuration Item 1 (unit ID = x): Enter the desired unit ID number:
0 = (NON-Polling). (default)
1 = Polling
2 = Polling
3 = Polling
Configuration Item 2 (baud rate = y): Enter the desired baud rate number:
0 = 9600 (default)
1 = 19200
2 = 4800
3 = 38400
Configuration Item 3 (serial format mode = z): Enter the desired serial format number:
0 = PIP format (default)
1 = AT1616 format
NOTE: To reset the GPI-16 + G2 to factory defaults. Pull input 16 low TWO
to THREE times within 5 seconds during repowering the unit. The PWR/HB
will flash rapidly indicating the defaults have been loaded.
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
GPI 16 + G2 Installation and Operation Manual
OPERATION
Operation
Command Formats
The GPI-16 + G2 may be configured to use either the PIP or AT1616 (input only)
serial format. The PIP serial format (default) is listed below and requires the use of
the unit ID to request input status (polling) or with a unit ID of zero (non-polling)
the GPI-16 + G2 will send a serial status string each time an input changes state.
When the unit is restarted (power-up), unit information is issued in either mode.
PIP Information Retrieval Commands
PIP serial format: The (*) asterisk is the beginning of string, next is the unit ID (0-3),
then the command. No carriage return or line feed is required. Commands are NOT
case sensitive.
*uSPii - Request status for a single input 01 thru 16 where ii is the status input number.
Command Example: Request status of input 01: *0SP01
No carriage return or line feed required. Commands are NOT case sensitive.
Response Example: S0P,01,x <cr><lf> where x is 0 if the corresponding input is
high, 1 otherwise.
*uSPA - Request status for ALL inputs
Command Example: *0SPA
No carriage return or line feed required. Commands are NOT case sensitive.
Response Examples: S0P,A,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x<cr><lf>
S0P,A,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0<cr><lf> When input 01 is pulled low.
S0P,A,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0<cr><lf> When input 01 is released back high.
Input 01 is the first character, while input 16 is the last character. x is 0 if the
corresponding input is high, 1 otherwise.
*uU - Send Unit Information :<product_name>_ver_<n.nn><cr><lf>
Command example: *0U
No carriage return or line feed required. Commands are NOT case sensitive.
Response Example: GPI-16_Plus_ver_1.01<cr><lf>
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
GPI 16 + G2 Installation and Operation Manual
OPERATION
AT1616 Information Retrieval Commands
In AT1616 format mode the GPI-16 + G2 sends a response string in AT1616 format
each time an input changes state. In AT1616 format mode the unit ID is setting is
ignored and the baud rate is fixed at 9600.
Each string consists of a dash (-) followed by 8 bytes. The first 4 bytes are ASCII
hex representations of the 16 outputs which are not included in the GPI-16 + G2, but
are issued as all zeros.
The last four bytes represent the 16 inputs in ASCII hex format with four bytes:
16,15,14,13 12,11,10,9 8,7,6,5 4,3,2,1. If inputs 1,4,7,8,9,10,14,16 are all ON
(pulled to ground), then these four bytes would appear as: A3C9. In the above
example, the complete string would be -0000A3C9
Additional response examples:
Response string example for input 1 pulled low: -00000001
Response string example for input 1 returning high: -00000000
Response string example for input 2 pulled low: -00000002
Response string example for input 2 returning high: -00000000
Response string example for input 3 pulled low: -00000004
Response string example for input 3 returning high: -00000000
Response string example for input 4 pulled low: -00000008
Response string example for input 4 returning high: -00000000
Response string example for input 16 pulled low: -00008000
Response string example for input 16 returning high: -00000000
Response string example for inputs 1 thru 8 pulled low: -00000055
Response string example for input 1 thru 8 returning high: -00000000
Response string example for inputs 9 thru 16 pulled low: -00005500
Response string example for input 9 thru 16 returning high: -00000000
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
GPI 16 + G2 Installation and Operation Manual
SPECIFICATIONS
Specifications:
GPI Inputs The sixteen general purpose inputs activated either by
pulling the input to ground or releasing the input to a high
state. A valid input must be greater than 15ms in duration.
External sources can be contact closures, open collectors
or 5 to 24 volt logic level sources. Input impedance is 22K
ohms (contact current per input 0.250 ma at 5 volts DC).
GPI Indicators Sixteen LEDs indicating when an input is on or off. When
the LED is illuminated, the input is grounded/on.
Input Interfacing 18-position plug-in euroblock screw terminals. Plug supplied.
USB Port: USB type B connector. FTDI USB-to-serial chipset, 4800,
9600, 19200, 38400 baud, 8 data bits, no parity, 1 stop bit.
Handshaking disabled.
RS-232 Serial Port RJ11 connector. 4800, 9600, 19200, 38400 baud, 8 data
bits, no parity, 1 stop bit. Handshaking disabled. A reverse
modular cable with 9-pin “S9” female D-sub adapter is
included.
Logic Flash Microprocessor w/non-volatile memory
Power 9-12 VDC, greater than 500 mA. 2.1mm ID x 5.5mm OD
coaxial connector, center positive, surge protected.
Universal switching power supply with IEC AC inlet sup-
plied.
Power Indicator Green LED, indicator will blink indicating proper operation.
Dimensions 6 x 5.25 x 1.63 in (W x L x H)
Weight 2 pounds
Operating Environment: 32°F/0°C-122°F/50°C; 0%-95% non-condensing relative
humidity; 10,000ft/3048m.
Options RA-1 Rack Shelf. 1 RU. Accommodates up to 3 units, filler
panels supplied. Note: Velcro is provided to secure the
product to the RA-1 shelf.
DBM-1 DIN rail mounting bracket.
WEBSITE:
Visit our web site for
product updates and
additional information.

12
GPI 16 + G2 Installation and Operation Manual
LIMITED WARRANTY
LIMITED WARRANTY
The term “Buyer” as used in this document refers to and includes both (but only) (a) any person or entity who acquires such an item for
the purpose of resale to others (i.e., a dealer or distributor of an item), and (b) the first person or entity who acquires such an item for
such person’s or entity’s own use.
Broadcast Tools warrants to each Buyer of any item manufactured by Broadcast Tools that the item will be free from defects in materials
and workmanship at the time it is shipped by Broadcast Tools if the item is properly installed, used and maintained.
EXCLUSIVE REMEDIES
If Broadcast Tools is notified, in writing, of a failure of any item manufactured by Broadcast Tools to conform to the foregoing Limited
Warranty within one (1) year following the date of the Buyer’s acquisition of the item, and if the item is returned to Broadcast Tools in
accordance with Broadcast Tools’ instructions for confirmation by inspection of the defect (which at Broadcast Tools’ election may
include, without limitation, a requirement that the Buyer first obtain a Return Authorization number from Broadcast Tools, that the Buyer
furnish proof of purchase in the form of an invoice and/or receipt, and that the Buyer prepay all freight charges associated with any return
of the item to Broadcast Tools using such freight service as Broadcast Tools reasonably may specify), Broadcast Tools will repair or
replace the defective item, or will refund the purchase price paid by the Buyer for the item. Broadcast Tools shall have the exclusive
right to choose between these alternative remedies.
NO OTHER WARRANTIES OR REMEDIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, BROADCAST TOOLS AND ITS SUPPLIERS DISCLAIM ALL OTHER
WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABIL-
ITY OR FITNESS FOR A PARTICULAR PURPOSE; AND THE FOREGOING ALTERNATIVE REMEDIES SHALL BE EXCLUSIVE OF
ALL OTHER REMEDIES. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS,
WHICH VARY FROM STATE/JURISDICTION TO STATE/JURISDICTION.
NO LIABILITY FOR CONSEQUENTIAL DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, NEITHER BROADCAST TOOLS NOR ANY OF ITS SUPPLIERS
SHALL HAVE ANY LIABILITY FOR ANY SPECIAL, INCIDENTAL, INDIRECT, CONSEQUENTIAL OR PUNITIVE DAMAGES WHATSO-
EVER (INCLUDING, WITHOUT LIMITATION, ANY DAMAGES FOR LOST PROFITS, BUSINESS INTERRUPTION, LOSS OF DATA OR
INFORMATION, COST OF CAPITAL, CLAIMS OF CUSTOMERS, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE
OF OR THE INABILITY TO USE ANY ITEM SUPPLIED BY BROADCAST TOOLS, EVEN IF BROADCAST TOOLS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES HAVE ANY LIABILITY FOR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL,
EXEMPLARY OR PUNITIVE DAMAGES. THIS LIMITATION OF LIABILITY APPLIES WHETHER A CLAIM IS ONE ALLEGING
BREACH OF A CONTRACT OR WARRANTY, NEGLIGENCE OR OTHER TORT, FOR THE VIOLATION OF ANY STATUTORY DUTY,
THE FAILURE OF ANY LIMITED OR EXCLUSIVE REMEDY TO ACHIEVE ITS ESSENTIAL PURPOSE, OR ANY OTHER CLAIM OF
ANY NATURE. BECAUSE SOME STATES AND JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, THIS LIMITATION MAY NOT APPLY TO YOU.
Broadcast Tools, Inc.
131 State Street
Sedro-Woolley, WA 98284 • USA
360.854.9559 voice •866.783.1742 fax
[email protected] e-mail
www.broadcasttools.com website
e-mail: [email protected] voice: 360.854.9559 fax: [phone]

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
Product_Name Installation and Operation Manual

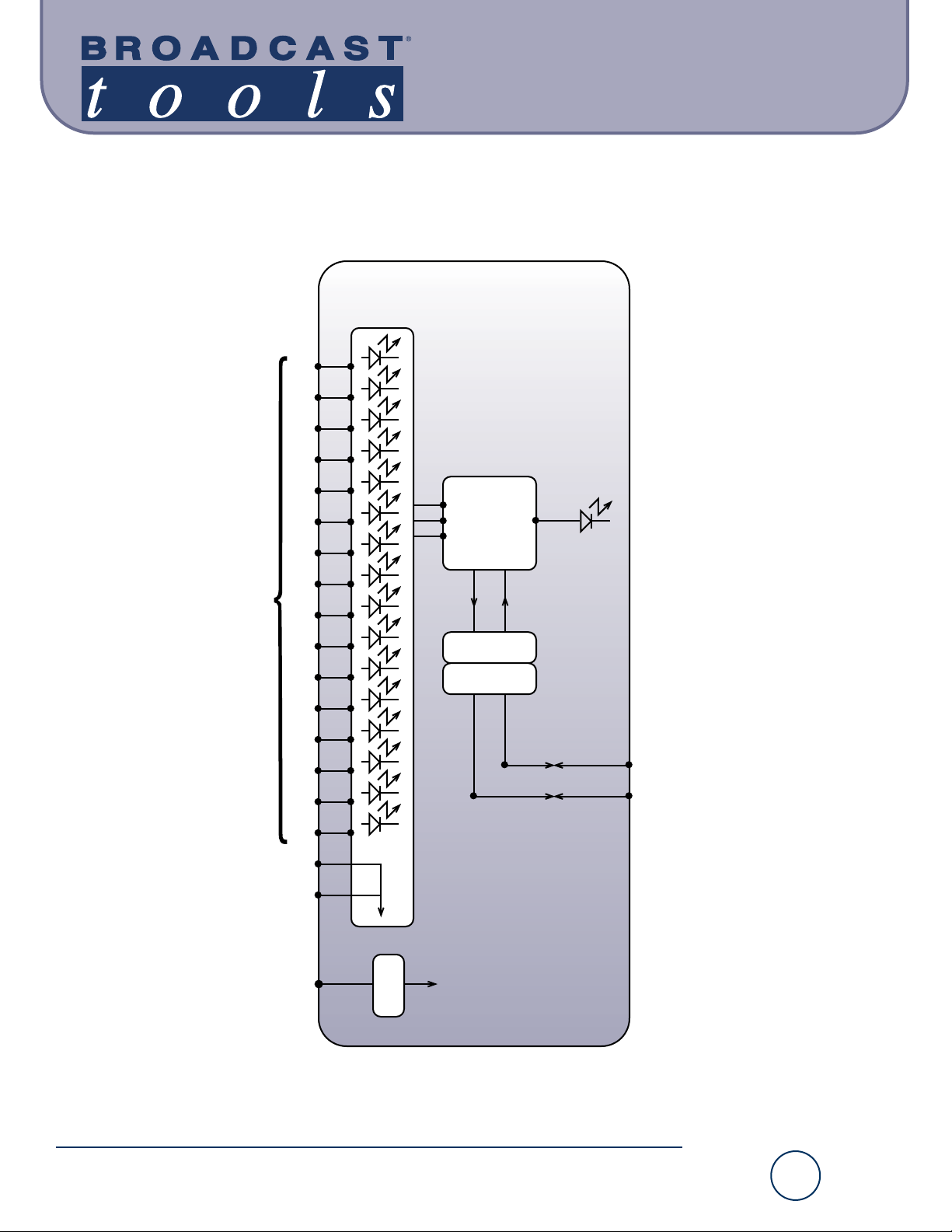

Functional Diagram
GPI-16 + G2
Sixteen-input status/logic input module
+5VDC
Input Latches,
LED Drivers,
RFI Filters & Pull-ups
PWR/HB
9–12 vdc Power Supply PS
1
Control
Processor
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Ground
USB Port
The 16 status / logic inputs may
be activated either by pulling the
input to ground or releasing the
input to a high state. External
sources can be contact closures,
open collectors or 5, 12, 15 and
24-volt logic-level sources. The
input impedance of each input is
22 K ohms. Supplied with
Plug-in euroblock connectors.
Bi-Directional
OR Gates
RS-232 Serial Port
13
APPENDIX

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
Product_Name Installation and Operation Manual
GPI-16
+
Component Lay
o
RS-232
Serial Port Input Select LEDs
13-16 9-12 5-8
Power/
Heartbeat
LED
+
G2
o
ut
1-4
Configuration
DIPSwitches
r
C
123456789 10111213141516
GND GND
The 16 status/logicinputs may be activated either by putting the input to ground or
releasing the input to ahigher state. External sources can be contact closures, open
connectors or 5, 12, 15 and 24-voltlogic-level sources. The input impedance of each
input is22 K ohms. Supplied with plug-inEuroblock connectors.
Powe
r
9-12VD
C
USB Type B
Port
Chassis
Ground
14
APPENDIX

Chs Gnd PWR 9-12VDCUSB123456789101112131415 16 GND GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Pwr
GPI 16 + G2
Options
INPUTS
RS-232
e-mail: [email protected] voice: 360.854.9559 fax: [phone]
GPI 16 + G2 Installation and Operation Manual
15
APPENDIX
