SPECIFICATION SHEET
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted By Date
70D 99042720C
BLOWER / ROUGH-IN KITS
& DUCTING ACCESSORIES
Best by Broan, P.O Box 140, Hartford, Wisconsin 53027
For use with
Best by Broan
K210A, PIK33, & PIK45
Series Range Hoods
Model P8 Blower Rough-in
Kit
•850 cfm, 120 VAC, 3.4
Amps
•Interior-mounted, single-
wheel design
•Attaches to rough-in plate
independent of hood
•Includes rough-in kit, with
flow-deviator and damper
adaptor
•Uses 3¼” x 14” rectangular
or 8” round duct
Model P5 Blower Rough-in
Kit
•500 cfm, 120 VAC, 1.8
Amps
•Interior-mounted, single-
wheel design
•Attaches to rough-in plate
independent of hood
•Includes rough-in kit, with
flow-deviator and damper
adaptor
•Uses 3¼” x 10” rectangular
or 8” round duct
Model 412
3¼” x 10” to 7” Round
Adjustable Elbow
Model 413
3¼” x 10” to 8” Round
Adjustable Elbow
Model 459
3¼” x 14” to 8” Round
Transition
Model 634 Roof Cap
•24 GA. CRCQ steel,
black electrically-
bonded epoxy finish
•Built-in backdraft
damper and bird
screen
•For 3¼” x 10” or up
to 8” round duct
Model 644 Roof Cap
•Same as Model 634
except .025 aluminum
•Natural finish
Model T460
3¼” x 14” to 7” Round
Transition
Model WC638
Wall Cap
•For 3¼” x 14” duct
•Spring-loaded
backdraft damper
and bird screen
•26 GA. CRCQ steel,
black finish

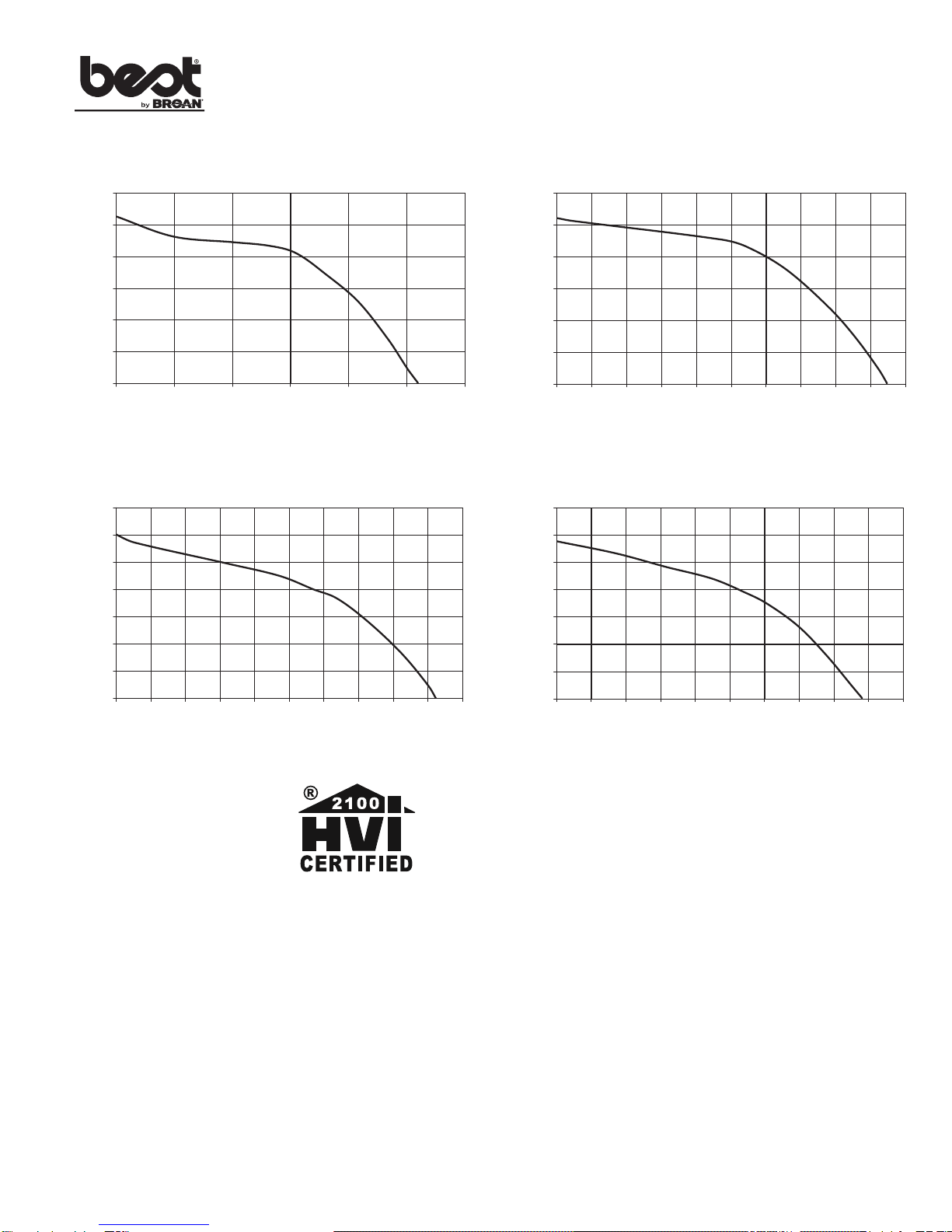

PERFORMANCE RATINGS
For use with Best by Broan K210A, PIK33, & PIK45 Series Range Hoods
P5 (Horizontal)
0.00
0.20
0.40
0.60
0.80
1.00
1.20
0 100 200 300 400 500 600
Air Flow Rate (cfm)
Static Pressure (in-wg)
P5 (Vertical)
0.00
0.20
0.40
0.60
0.80
1.00
1.20
0 50 100 150 200 250 300 350 400 450 500
Air Flow Rate (cfm)
Static Pressure (in-wg)
P8 (Horizontal)
0.00
0.20
0.40
0.60
0.80
1.00
1.20
1.40
0 100 200 300 400 500 600 700 800 900 1000
Air Flow Rate (cfm)
Static Pressure (in-wg)
P8 (Vertical)
0.00
0.20
0.40
0.60
0.80
1.00
1.20
1.40
0 100 200 300 400 500 600 700 800 900 1000
Air Flow Rate (cfm)
Static Pressure (in-wg)
HVI-2100 CERTIFIED RATINGS comply with new testing
technologies and procedures prescribed by the Home Ventilating
Institute, for off-the-shelf products, as they are available to
consumers. Product performance is rated at 0.1 in. static pressure,
based on tests conducted in AMCA’s state-of-the-art test
laboratory. Sones are a measure of humanly-perceived loudness,
based on laboratory measurements.
