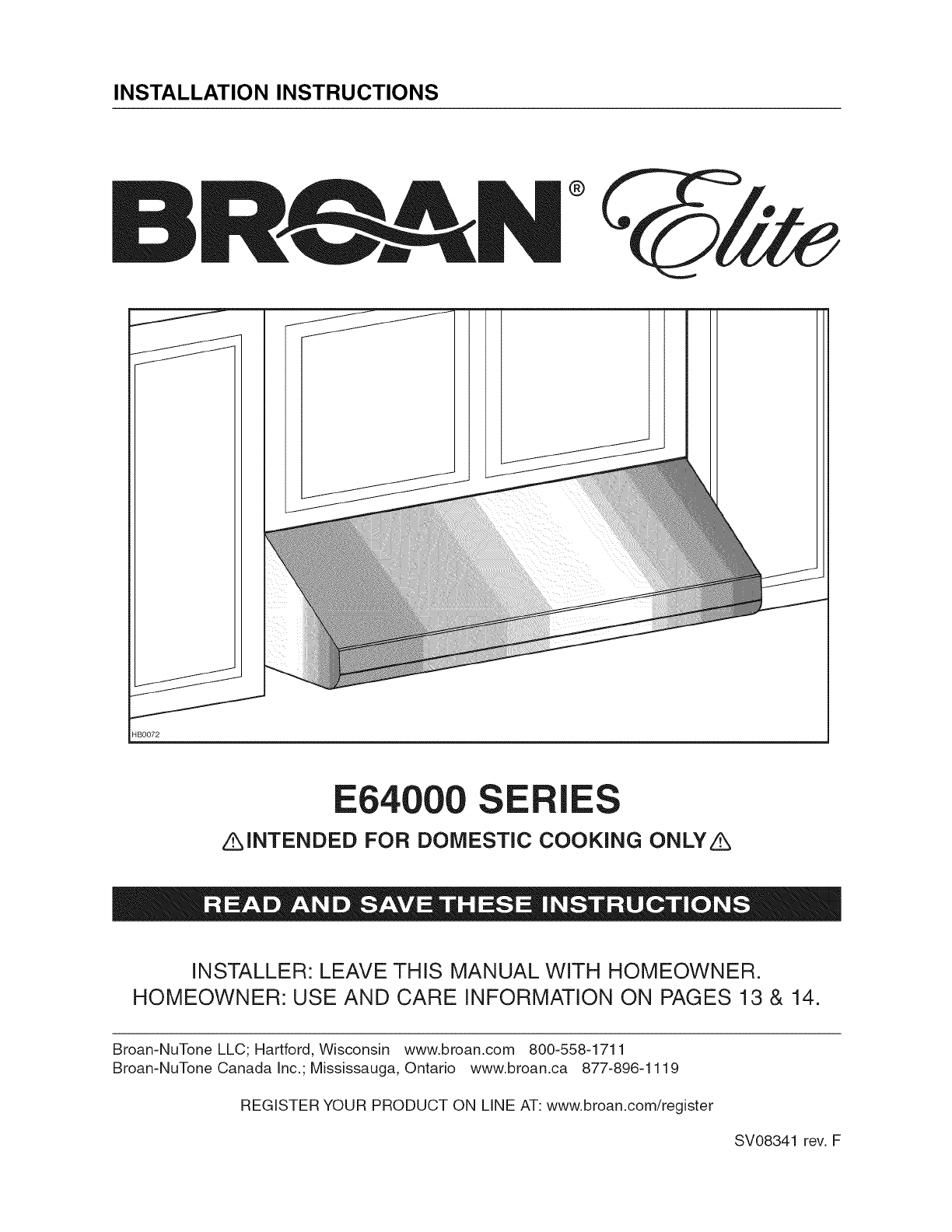

Broan Elite E64000 SERIES User manual

INSTALLATION INSTRUCTIONS
BRCAN
‘Clic
tL.
E64000 SERIES
Z\INTENDED FOR DOMESTIC COOKING ONLY A
READ AND SAVE THESE INSTRUCTIONS
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER: USE AND CARE INFORMATION ON PAGES 13 & 14.
—_
—
HB0072
Broan-NuTone LLC; Hartford, Wisconsin www.broan.com 800-558-1711
Broan-NuTone Canada Inc.; Mississauga, Ontario www.broan.ca 877-896-1119
REGISTER YOUR PRODUCT ON LINE AT: www.broan.com/register
SV08341 rev. F

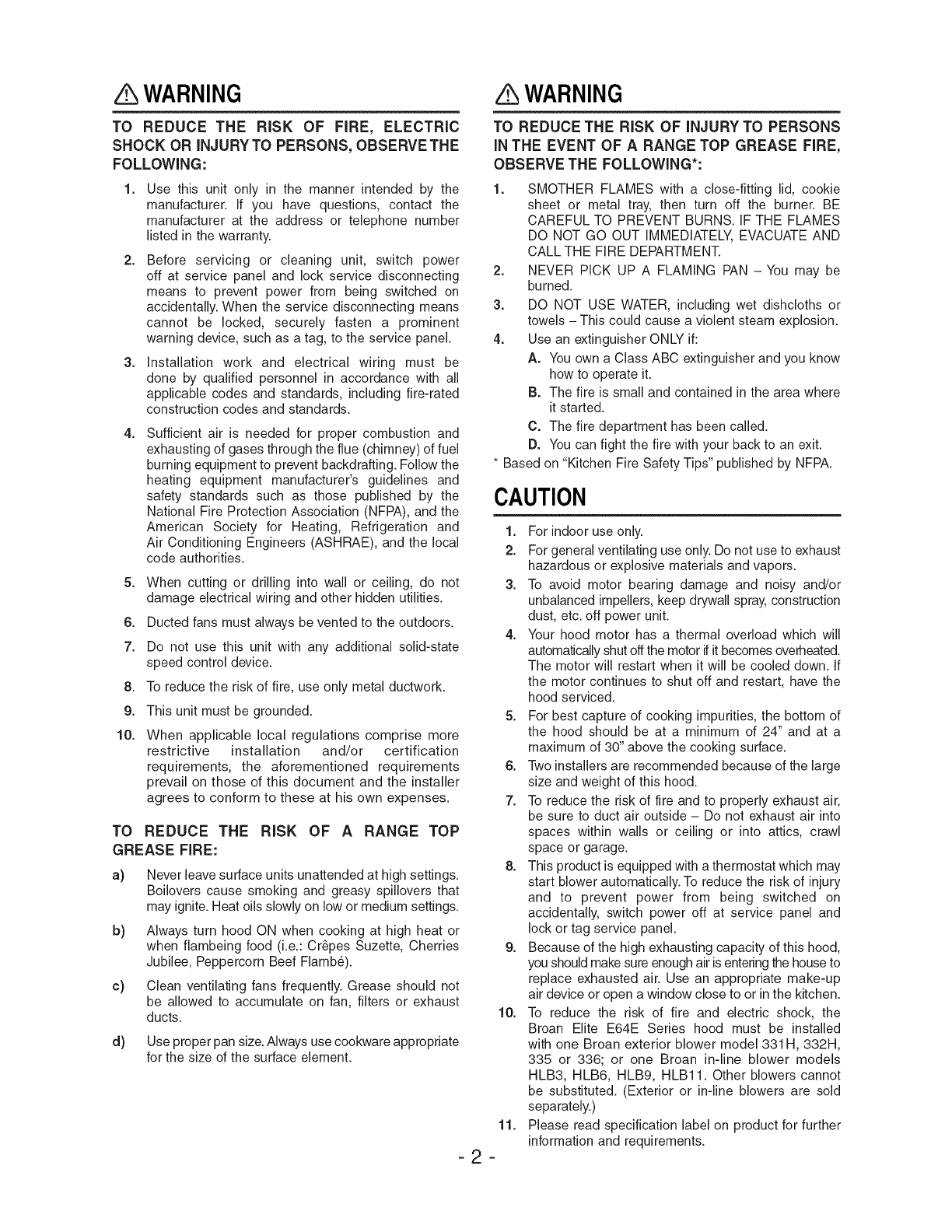

Z\ WARNING Z\ WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
1. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number
listed in the warranty.
Before servicing or cleaning unit, switch power
off at service panel and lock service disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
Installation work and electrical wiring must be
done by qualified personnel in accordance with all
applicable codes and standards, including fire-rated
construction codes and standards.
Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent backdrafting. Follow the
heating equipment manufacturers guidelines and
safety standards such as those published by the
National Fire Protection Association (NFPA), and the
American Society for Heating, Refrigeration and
Air Conditioning Engineers (ASHRAE), and the local
code authorities.
When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
Ducted fans must always be vented to the outdoors.
Do not use this unit with any additional solid-state
speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
TO
When applicable local regulations comprise more
restrictive installation and/or certification
requirements, the aforementioned requirements
prevail on those of this document and the installer
agrees to conform to these at his own expenses.
REDUCE THE RISK OF A RANGE TOP
GREASE FIRE:
a)
b)
c)
d)
Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that
may ignite. Heat oils slowly on low or medium settings.
Always turn hood ON when cooking at high heat or
when flambeing food (i.e.: Crépes Suzette, Cherries
Jubilee, Peppercorn Beef Flambé).
Clean ventilating fans frequently. Grease should not
be allowed to accumulate on fan, filters or exhaust
ducts.
Use proper pan size. Always use cookware appropriate
for the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS
INTHE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING’:
1. SMOTHER FLAMES with a close-fitting lid, cookie
sheet or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. IF THE FLAMES
DO NOT GO OUT IMMEDIATELY, EVACUATE AND
CALL THE FIRE DEPARTMENT.
NEVER PICK UP A FLAMING PAN - You may be
burned.
DO NOT USE WATER, including wet dishcloths or
towels — This could cause a violent steam explosion.
Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you know
how to operate it.
B. The fire is small and contained in the area where
it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
“ Based on “Kitchen Fire Safety Tips” published by NFPA.
CAUTION
1.
2.
3.
10.
11.
For indoor use only.
For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
To avoid motor bearing damage and noisy and/or
unbalanced impellers, keep drywall spray, construction
dust, etc. off power unit.
Your hood motor has a thermal overload which will
automatically shut off the motor if it becomes overheated.
The motor will restart when it will be cooled down. If
the motor continues to shut off and restart, have the
hood serviced.
For best capture of cooking impurities, the bottom of
the hood should be at a minimum of 24’ and at a
maximum of 30” above the cooking surface.
Two installers are recommended because of the large
size and weight of this hood.
To reduce the risk of fire and to properly exhaust air,
be sure to duct air outside — Do not exhaust air into
spaces within walls or ceiling or into attics, crawl
space or garage.
This product is equipped with a thermostat which may
start blower automatically. To reduce the risk of injury
and to prevent power from being switched on
accidentally, switch power off at service panel and
lock or tag service panel.
Because of the high exhausting capacity of this hood,
you should make sure enough air is entering the house to
replace exhausted air. Use an appropriate make-up
air device or open a window close to or in the kitchen.
To reduce the risk of fire and electric shock, the
Broan Elite E64E Series hood must be installed
with one Broan exterior blower model 331H, 332H,
335 or 336; or one Broan in-line blower models
HLB3, HLB6, HLB9, HLB11. Other blowers cannot
be substituted. (Exterior or in-line blowers are sold
separately.)
Please read specification label on product for further
information and requirements.

E64000 SERIES RANGE HOOD SYSTEM -
INTERNAL BLOWERS
MobeL 441
(10” Round i
nu CaP) UL MopeEL 647 | |
MopeEL 437 m - (7” Rounp
MopeL 634 7°
(HiGH Capacity Roor Cap) oe WALL Cap aa Teer? Mopet 643
s “ : ; OR 644 , (8” Rounp
MopeL 415 ; (RooF CaP) WALL Cap)
: (7” ROUND ‘ 8” ROUND
Mopet 418 ADJUSTABLE ELBow) : ADJUSTABLE ELBow
(10” Rounp ADJUSTABLE ELBow) : :
MopbeL 407 .
:
(7”
Rounb
-
:
8”
Round
Move
421
:
2 FT.
SECTIONS)
:
STANDARD
(10” RounbD VERTICAL : Monet 639 ! Duct
IN-LINE Damper) =) ' . > wt
F : Movet 412 (344" x 10":
jonmeneneesesees ‘ TRANSITION Wat Cap) : MobeL 413
: : TRANSITION
(3%4” x 10” To 7”)
(314” x 10” To 8”)
MobeL 410
(10”
Rounp
Duct—2
Ft.
Sections)
STANDARD
Duct
(om x 10”)
pum TI
ia TIM
MobEL 427 MopeL 423 MobeL 424 Monet 454 MobeL 453
(4%” x 18%” (4%” x 18%” (4%” x 181%” (4%” x 18%” (4%” x 18%”
To 10” Rounp, To 10” Round - To 10” Rounpb - Horiz. To 10” Rounp - To 10” Rounb -
6” HIGH - LATERAL) VERTICAL) FRONT/REAR) Honiz. /RIGHT) Horiz. /LEFT)
RECIRCULATION
KIT
:
ADAPTER /DAMPER
ANKE60
SERIES
:
314”
x
10”
(SUPPLIED WITH
SINGLE BLOWER HOOD)
ADAPTER 4%” x 1812"!
(SUPPLIED WITH
DOUBLE BLOWER HOOD)!
£64000 SERIES HOOD
DousLe BLower (1100 crm}
36” AND 42”
Douste Blower (1200 o™) SINGLE BLower (600 cro}
RMP SERIES BACKSPLASH
(STAINLESS STEEL WALL COVERING
WITH WARMING SHELVES.
OPTIONAL.)
HLOO97

- E64000 SERIES RANGE HOOD SYSTEM -
IN-LINE AND EXTERIOR BLOWERS
MobeL 437
(HiaH Capacity Roor Cap) Mopet HLB9 (800 crm}
or HLB11 (1100 crm)
IN-LINE BLOWER
(INCLUDES TWO 8” x 12” To
“s+. 10” ROUND TRANSITIONS)
MobeL 335 (1200 crm)
MobeL 331H (600 crm) on 336 (1500 crm)
oR 332H (900 cFM) EXTERIOR BLOWER
EXTERIOR BLOWER
(10” Rounp
Wat Cap)
MopeL 643
(8” RounD
WaLL Cap)
Mopet HLB6 (600 crm)
‘ IN-LINE BLOWER MobeL 421
: (INCLUDES Two 41” x 18%” To (10” Rounp. VERT.
10” ROUND TRANSITIONS) CED n-ne DAMPER)
___ RECOMMENDED FOR
er
Yee
USE
WITH
EXTERIOR
weet
MODEL
418
Pane
BLOWERS
. (10” Rounp “SUan ener
Moet HLB3 (280 crm) ADJUSTABLE ELBow)
IN-LINE BLOWER
(INCLUDES ONE 8” To 10”
ROUND
TRANSITION)
MobeEL
410
(10” Rounp Duct
~ 2 FT. SECTIONS)
£64000 SERIES HOOD
332KR IN-LINE AND
ExTeRIon BLoweR ROUGH-IN KIT
(SUPPLIED WITH HOOD)
RMP SERIES BACKSPLASH
(STAINLESS STEEL WALL COVERING
WITH WARMING SHELVES. OPTIONAL)
HLOO98

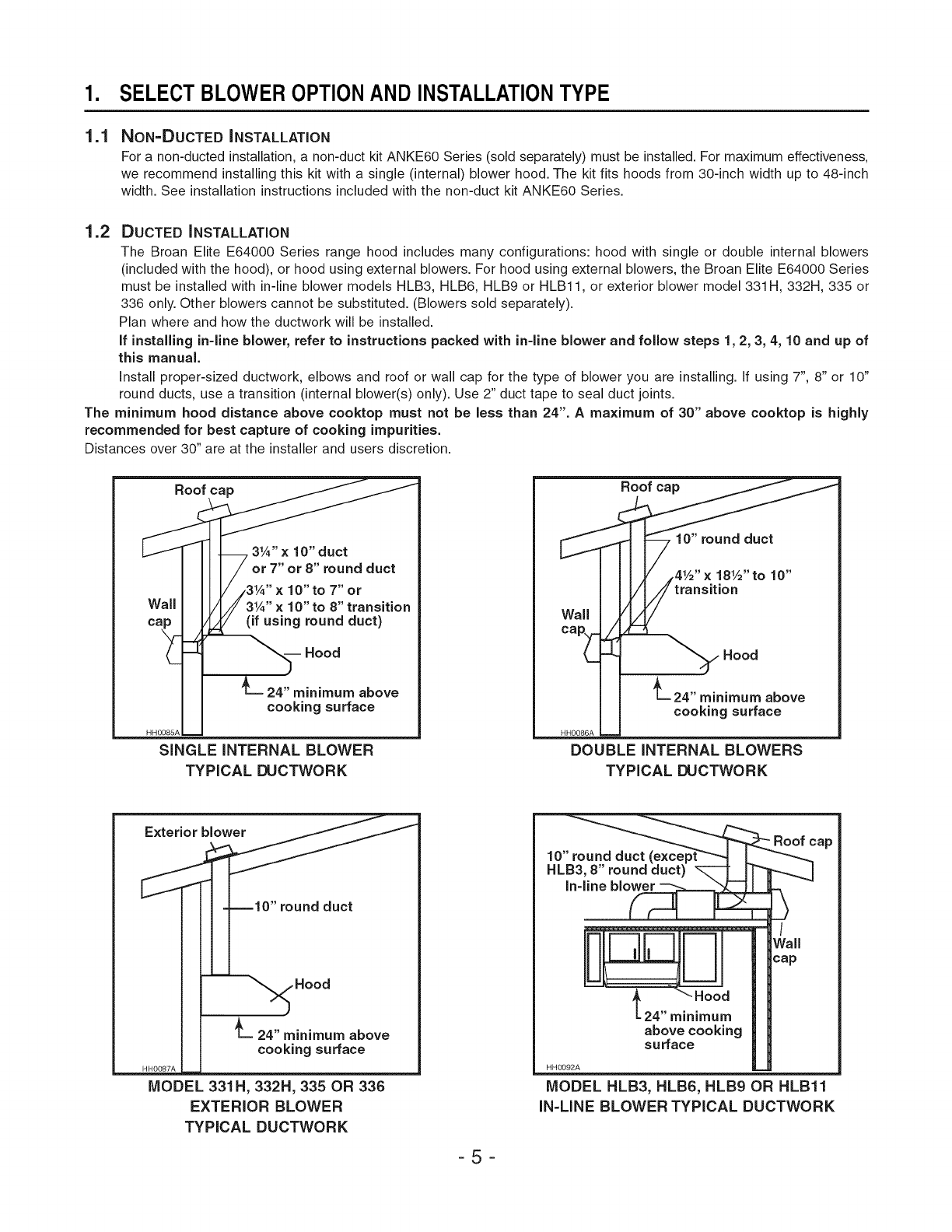

1. SELECT BLOWER OPTION AND INSTALLATION TYPE
1.1 Non-DucTED INSTALLATION
For a non-ducted installation, a non-duct kit ANKE60 Series (sold separately) must be installed. For maximum effectiveness,
we recommend installing this kit with a single (internal) blower hood. The kit fits hoods from 30-inch width up to 48-inch
width. See installation instructions included with the non-duct kit ANKE60 Series.
1.2 DucTED INSTALLATION
The Broan Elite E64000 Series range hood includes many configurations: hood with single or double internal blowers
(included with the hood), or hood using external blowers. For hood using external blowers, the Broan Elite E64000 Series
must be installed with in-line blower models HLB3, HLB6, HLB9 or HLB11, or exterior blower model 331H, 332H, 335 or
336 only. Other blowers cannot be substituted. (Blowers sold separately).
Plan where and how the ductwork will be installed.
If installing in-line blower, refer to instructions packed with in-line blower and follow steps 1, 2, 3, 4, 10 and up of
this manual.
Install proper-sized ductwork, elbows and roof or wall cap for the type of blower you are installing. If using 7”, 8” or 10”
round ducts, use a transition (internal blower(s) only). Use 2” duct tape to seal duct joints.
The minimum hood distance above cooktop must not be less than 24”. A maximum of 30” above cooktop is highly
recommended for best capture of cooking impurities.
Distances over 30” are at the installer and users discretion.
Roof cap Roof cap
ps
1 10” round duct
4 _ 3%” x 10” duct
or 7” or 8” round duct Ate” x 18%” to 10”
31%” x 10” to 7” or transition
Wall 3%” x 10” to 8” transition Wall
cap A (if using round duct) cap
/
cH
(ie
oo
24” minimum above bog minimum above
cooking surface cooking surface
HHOO85A LJ HHOOB6A
SINGLE INTERNAL BLOWER DOUBLE INTERNAL BLOWERS
TYPICAL DUCTWORK TYPICAL DUCTWORK
Roof cap
10” round duct (except
HLB3, 8” round duct)
In-line blower
— 10” round duct (te \
ooo Ce eee |
Wall
| | , | | | cap
Hood <a
t Hood
24” minimum
24”
minimum
above
above
cooking
cooking
surface
surface
HHOO87A HHOOS2A ws
MODEL 331H, 332H, 335 OR 336 MODEL HLB3, HLB6, HLB9 OR HLB11
EXTERIOR BLOWER IN-LINE BLOWER TYPICAL DUCTWORK
TYPICAL DUCTWORK

2. PREPARE THE INSTALLATION
INT Gc
When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and
gloves.
NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.
Make sure that the following items are included:
- Range hood
- Accessories:
* Baffle filters
« Baffle filters handles (located inside the hood)
* 314” x 10” adapter/damper (located inside internal single blower hood)
« 4%” x 18%” adapter (screwed inside internal double blower hood)
* In-line and exterior blower rough-in plate model 332KR (mounted inside all external blower hoods)
« Bag of parts including:
1 wire clamp, 9 no. 8 x 1/2”, 2 wire connectors, 8 no. 8-32 x 1/4” screws, 4 no. 8 x 3/8” screws
Parts sold separately:
- In-line blower assembly HLB3, HLB6, HLB9 or HLB11 (all include transition)
Exterior blower assembly 331H, 332H, 335 or 336
- Shielded halogen lights (120 V, 50 W, GU-10) (2 required for 30” and 36” hood widths, 3 required for 42” and 48” hood widths)
- RMP Series Backsplash (optional)
- ANKE60 Series Recirculation kit, mandatory for non-ducted installation (models with built-in blower(s) only)
- Transitions, duct, elbows, dampers, wall or roof cap
Refer to pages 3 and 4 for a complete list of venting options and model numbers.
NOTES: 1. For cabinets with recessed bottom, attach three wood filler strips cut to length (not included), on each side, as
shown below. See illustration and table below for wood filler strips location.
2. For hoods with external or in-line blowers, do not install the transverse wood filler strip.
Hoop CENTER OF WOOD
WIDTHS | STRIP LOCATION (A)
30” 13%”
36” 16%”
42” 19%”
49” 225%"
HDO0285A

2. PREPARE THE INSTALLATION (CONT’D)
DUCTED INSTALLATIONS ONLY
Cut-out the openings for duct (A) and power cable (B), in cabinet or wall, according to the direction of discharge chosen.
See figures below.
NOTE: For all internal blower hoods, the cut-out opening for house wiring can be made in cabinet bottom OR wall, no matter
the discharge chosen (vertical or horizontal).
VERTICAL DISCHARGE
Hoop
WipTHs DIMENSION C
30” 13”
36” 16”
42” 19”
48” 22”
HORIZONTAL DISCHARGE
INTERNAL SINGLE BLOWER HOOD
CABINET BOTTOM VIEW
{
334”
A
5Y% 5%
7/8”
INTERNAL SINGLE BLOWER HOOD
VERTICAL DISCHARGE ONLY
HDO258A
@
Hoop DIMENSION C ey
WIDTHS j
30” 13” ¢
36” 16” c
42” 19” "4 f |
48” 22” + B 2”
aS
48” INTERNAL DOUBLE BLOWER HOOD
CABINET BOTTOM VIEW
<2. G2.
A 22”
1 aN
" -B
5Y J |
{ op»
Tt 3 t
10 aed 7 jan
3/4” 2
48” INTERNAL DOUBLE BLOWER HOOD
[Cs
vy 20”
Ce [2°
10”
HOOD WITH IN-LINE OR EXTERIOR BLOWER
CABINET BOTTOM VIEW
Bl |
\
ie we
10%”
‘og 1012”
CABINET CENTER LINE—
O55"
3. INSTALL BACKSPLASH (OPTIONAL)
Backsplash must be installed before the hood shell because the hood shell covers the backsplash top mounting screws. In order
to be able to install the backsplash, make sure you have at least 18” clearance between bottom of hood and range control panel
or cooktop. (See instructions packed with backsplash.)

4. REMOVE FILTERS AND GREASE DRIP RAIL
A. Remove tape on filters.
Remove filters from hood and set
aside.
NOTE: It is recommended to start
with the center one(s).
B. Remove tape on grease drip rail (1).
Lift out grease drip rail and set
aside.
HbDO0240
5. REMOVE THE ADAPTER (INTERNAL BLOWER HOODS ONLY)
SINGLE BLOWER HOOD
Remove both screws retaining the adapter/damper (1) from inner top of
the hood.
DOUBLE BLOWER HOOD
First unplug both blower motors (1) before removing 3 screws retaining
the adapter (2) from inner top of the hood.
NOTE: The double blower hood adapter is sent unfold. See at right.
HD0339
Fold the adapter and insert the male part (grey section shown in inset)
into the female part (white section shown in the inset). Then, fold over
each male and female end to finalize assembling the adapter.
HD0284.

6. CHOOSE THE OPENING(S) (INTERNAL BLOWER HOODS ONLY)
Remove the knockout for the chosen opening(s) (horizontal at the back of the hood or vertical on top).
See illustrations below.
VERTICAL DISCHARGE
HORIZONTAL DISCHARGE
NOTE: For ducted installation
only.
HR0021
hood. Install the wire clamp (included in parts bag).
A 4 B
Punch out the appropriate electrical knockout hole on top (A) or back (B) of the re re |
NOTE: For a non-ducted installation, punch out the back electrical knock-out (B).
HROO24
7. HORIZONTAL DISCHARGE INSTALLATION (INTERNAL BLOWER(S) ONLY)
All internal blower hoods are factory shipped with the blowers mounted for a vertical discharge configuration. For a horizontal
discharge configuration, disassemble the blower(s) from the inner top of the hood and mount it (them) to the back panel of the
hood. The procedure below applies for one or two motors.
Unplug the blower.
HEOO85
Lert Sipe Mountine
_ Screw Locarion
Using a 5/16” socket, remove all
blower mounting screws from the
inner top of the hood. Keep the
screws for further use.
MountTine Screw
Location

7. HORIZONTAL DISCHARGE INSTALLATION (INTERNAL BLOWER(S) ONLY)
Slide the blower to disengage its flange from the retaining bracket.
Flip the blower and engage its
flange in the back wall retaining
bracket.
Using a 5/16” socket and the
screws previously removed, secure
the blower to the hood.
Plug the blower in.
NOTE FOR DUAL BLOWER HOOD ONLY: Cut off the plastic tie wrap on left motor cable. |
HEO08S
8. INSTALL THE ADAPTER AND THE TRANSITION (IF NEED BE)
(INTERNAL BLOWER HOOD ONLY)
Using standard 3/8” screws provided, ;
secure the adapter to the top (or :
back) of the hood (2 screws for a eS
3%” x 10” adapter/damper and
4 screws fora 4%” x 18%” adapter).
Seal the adapter to the hood using
duct tape. For round ducting, install
an appropriate sized transition and
seal the joints with duct tape.
HJ0013
9. INSTALL ANKE60 RECIRCULATION KIT (NON DUCTED INSTALLATION ONLY)
Refer to the installation sheet included with the recirculation kit for details.
-10-

10. INSTALL THE HOOD (ALL BLOWERS)
INTERNAL BLOWER: Run power cable to installation location. Place the hood in its location. Mark the position of the screws
(smaller part of the key holes [A]) with a pen. Remove the hood and install the (4) 1/2” double thread screws at marked positions,
leaving a 1/8” gap. Remove wiring cover. Insert the cable in the hood through the wire clamp and tighten the wire clamp to secure
the cable. Place the hood under the cabinet and slide it into position. Make sure the adapter (or the transition) enters the ducting.
Secure the hood by tightening the screws completely. Install the last 1/2” double thread screws in the remaining holes [B].
INTERNAL BLOWER HOOD EXTERIOR OR IN-LINE BLOWER HOOD
Avs
@ Q)e' e @
HD0265
EXTERIOR OR IN-LINE BLOWER: Run power cable to installation location. Place the hood in its location. Mark the position of
the screws (smaller part of the key holes [A]) with a pen. Remove the hood and install the (4) 1/2” double thread screws at
marked positions, leaving a 1/8” gap. Remove wiring cover on top of the hood, punch-out the electrical knock-out and install the
wire clamp. Insert the cable in the hood through the wire clamp and tighten the wire clamp to secure the cable. Connect wiring
(see instructions included with exterior or in-line blower). Place the hood under the cabinet and slide it in position. Secure the
hood by tightening the screws completely. Install the last 1/2” double thread screws in the remaining holes [BJ].
11. CONNECT WIRING (ALL BLOWERS)
Z\ WARNING
Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all
applicable codes and standards. Before connecting wires, switch power off at service panel and lock
service disconnecting means to prevent power to be switched on accidentally.
Remove wiring cover from rough-in plate or electrical compartment and set
aside.
INTERNAL BLOWERS: Connect cable into wiring box using wire connectors.
Connect BLACK to BLACK, WHITE to WHITE and
GREEN or bare wire under GREEN ground screw.
The ORANGE wire (A) is for make-up air device connection only.
If there is no make-up air device, never remove the cap on the
ORANGE wire end.
Reinstall wiring cover.
IN-LINE OR EXTERIOR BLOWERS: See instructions included with blower.
12. INSTALL THE BLOWER (EXTERIOR OR IN-LINE BLOWER HOOD)
Z\ WARNING
Do not plug the two cords together.
Plug the 3-prong plug cord from rough-in plate to the 3-prong male
connector inside the hood (A) and the 2-prong male connector cord from |
rough-in plate to the 2-prong plug inside the hood (B).
-1i-

13. INSTALL LIGHT BULBS
This hood must use 120 V, 50 W, MR16 with GU10 base or PAR16 with GU10 base, shielded halogen lamps (not included).
(2 required for 30” and 36” hood widths, 3 required for 42” and 48” hood widths).
Do not touch lamps during or soon after operation. Burns may occur. In order to prevent the risk of
personal injury, only install shielded halogen lamps. Also, never install a cool beam, a dichroic lamp, a
lamp not suitable for use in recessed luminaires or identified for use in enclosed fixtures.
1. Install lamps by placing the bulb leads into their grooves in the socket.
2. Gently push upwards and turn clockwise until secure.
To remove lamps, gently push upwards and turn counterclockwise to disengage
bulb leads from their grooves.
NOTE: If need be, use a rubber dishwashing glove to add grip when removing the
bulb.
14. REINSTALL GREASE DRIP RAIL AND FILTERS
HOO0080
Remove protective plastic film covering filters before installing them.
Reinstall grease drip rail. The illustration at right shows how to reinsert the
grease drip rail into the range hood.
NOTE: Assemble the metal handles to the filters, using no. 8-32 x 1/4” screws
provided, before reinstalling them in the hood.
It is recommended to install side filters first and finish with center one(s).
1. Insert one end of the filter into the upper channel of the hood.
2. Raise the other end toward the inside of hood and insert in the grease
drip rail of the hood.
-412-
HD0241
HD0242

15. USE AND CARE
Baffle Filters
The baffle filters should be cleaned frequently. Use a warm detergent solution. Wash more often if your cooking style generates greater
grease—like frying foods or wok cooking.
Remove baffle filters by pushing them towards the back of hood and rotating filters downward. Baffle filters are dishwasher safe.
Allow filters to dry completely before reinstalling them in the hood.
Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate
detergent or as a result of local water conditions—but this will not affect filter performance. This discoloration is not covered by
the warranty.
Grease Drip Rail
The grease drip rail should be cleaned frequently. Lift it out from the hood and use a warm detergent solution. As for the baffle
filters, wash more often if your cooking style generates greater grease—like frying foods or wok cooking. Allow grease drip rail
to dry completely before reinstalling it in the hood.
Blower(s) Cleaning (Internal)
Remove the filters in order to access the blower(s). Vacuum blower(s) to clean. Do not immerse in water.
Hood Cleaning
Stainless steel cleaning:
Do: Don’t:
« Regularly wash with clean cloth or rag soaked with warm | « Use any steel or stainless steel wool or any other scrapers
water and mild soap or liquid dish detergent. to remove stubborn dirt.
« Always clean in the direction of original polish lines. * Use any harsh or abrasive cleansers.
« Always rinse well with clear water (2 or 3 times) after | « Allow dirt to accumulate.
cleaning. Wipe dry completely. * Let plaster dust or any other construction residues reach
*« You may also use a specialized household stainless steel the hood. During construction/renovation, cover the hood to
cleaner. make sure no dust sticks to stainless steel surface.
Avoid when choosing a detergent:
« Any cleaners that contain bleach will attack stainless steel.
« Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
« Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should
never be used close to a range.
16. OPERATION
Always turn your hood on before you begin cooking to establish an air flow in the kitchen. Let the blower run for a few minutes
to clear the air after you turn off the range. This will help keep the whole kitchen cleaner and brighter.
HEAT SENTRY™
This hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a device that will turn on or speed up the blower
if it senses excessive heat above the cooking surface.
1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting — it turns the blower up to HIGH speed.
Z\ WARNING
The HEAT SENTRY can start the biower during a range top fire or other excessive heat situations even if the
hood is turned OFF. In this case, it is impossible to turn the blower OFF with blower switch. If you must
stop the blower, do it from the main electrical panel.
When the temperature level drops to normal, the blower will return to its original setting.
-13-

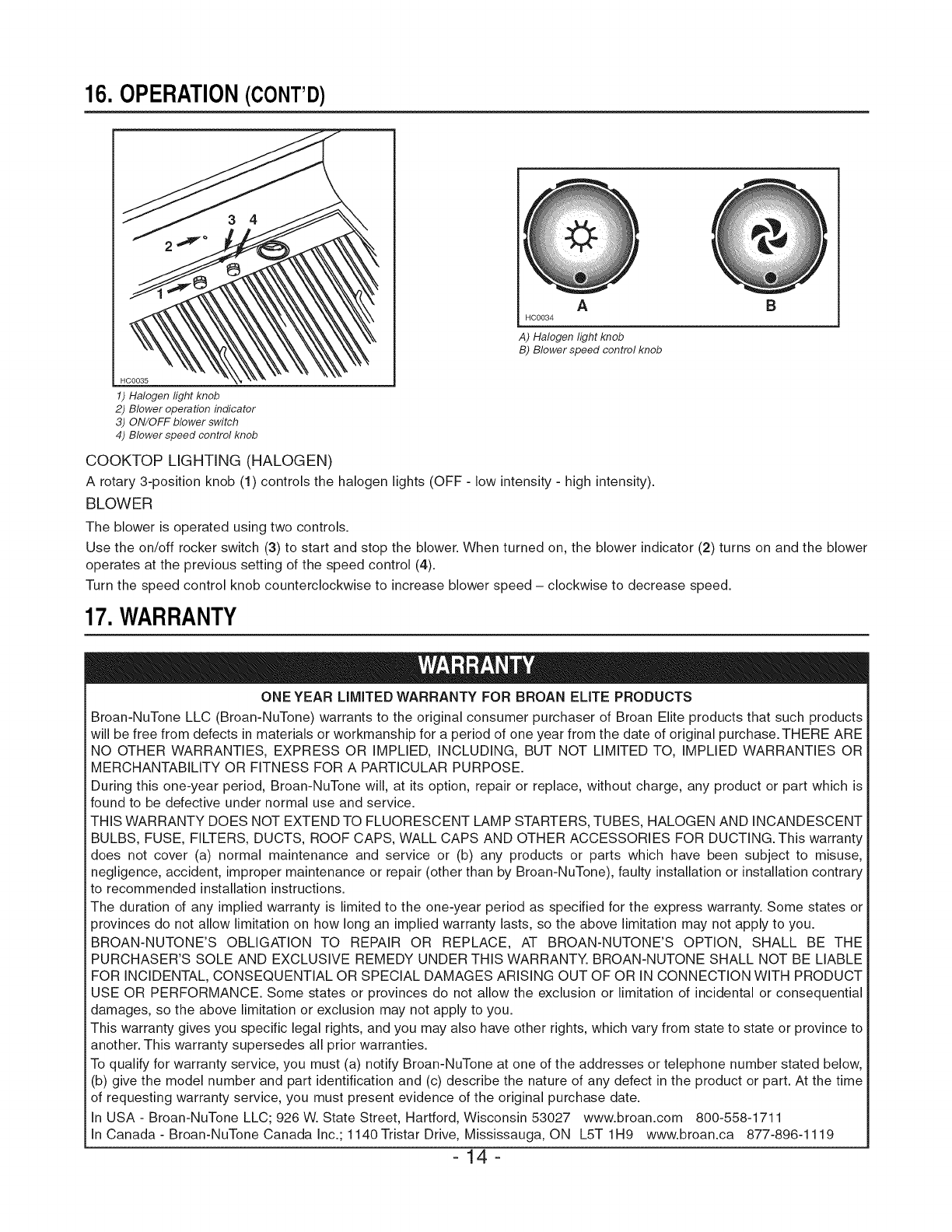

16. OPERATION (CONT'D)
HC0034
A) Halogen light knob
B) Blower speed contro! knob
HC0035
1) Halogen light knob
2) Blower operation indicator
3) ON/OFF blower switch
4) Blower speed control knob
COOKTOP LIGHTING (HALOGEN)
A rotary 3-position knob (1) controls the halogen lights (OFF - low intensity - high intensity).
BLOWER
The blower is operated using two controls.
Use the on/off rocker switch (3) to start and stop the blower. When turned on, the blower indicator (2) turns on and the blower
operates at the previous setting of the speed control (4).
Turn the speed control knob counterclockwise to increase blower speed — clockwise to decrease speed.
17. WARRANTY
ar
ONE YEAR LIMITED WARRANTY FOR BROAN ELITE PRODUCTS
Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Broan Elite products that such products
will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE
NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is
found to be defective uncer normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDESCENT
BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty
does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse,
negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary
to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states or
provinces do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE
PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE
FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT
USE OR PERFORMANCE. Some states or provinces do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state or province to
another. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at one of the addresses or telephone number stated below,
(b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time
of requesting warranty service, you must present evidence of the original purchase date.
In USA - Broan-NuTone LLC; 926 W. State Street, Hartford, Wisconsin 53027 www.broan.com 800-558-1711
In Canada - Broan-NuTone Canada Inc.; 1140 Tristar Drive, Mississauga, ON L5T 1H9 www.broan.ca 877-896-1119
-44-

18. WIRING DIAGRAMS
Broan Elite E64000 Series
Internal blower hoods
FAN
NEON
BLK
SPEED
CONTROL
SWITCH
USE ONLY WITH
On3
1
BLK —_f |
Off 2
APPROPRIATE
MAKE-UP AIR SYSTEM
A ORA:
Q
<=
a LINE —-o—BLK
o| NEUTRAL —o
= eT
BLK
LAMP
SWITCH
COLOR CODE
BLK BLACK
BLU BLUE
BRN BROWN
ORA ORANGE
RED RED
WHT WHITE
YEL YELLOW
HEOO90A
~ BRN- — 5
I jana ES
[BLU =~,
!
oe os M
|RED . 4 \~-*
L BLK = =
be in
\
ieee ,
.
| ' i
ak
Broan Elite E64000 Series
Exterior or In-Line blower hoods
COLOR CODE
BLK BLACK
BLU BLUE
GRN GREEN
ORA ORANGE
WHT WHITE
YEL YELLOW
USE ONLY WITH
APPROPRIATE
MAKE-UP AIR SYSTEM
”.
SWITCH
On3
!
BLK Of tf
sp.
ORA
THERMOSTAT
on
BLU
0
7
WHT:
BLK.
BLK
|
WHT
LAMP
SWITCH
oe WHT.
ROUND:
sa
4
[Pte
p-----
ROUGH-IN PLATE
HEO091A
REMOTE
WHT
BLOWER ASSEMBLY
WHT:
-15-

19. SERVICE PARTS
Broan Elite E64000 Series
Internal blower hoods 1
11 —
12-8
a
sors
a wh
Broan Elite E64000 Series
Exterior or In-Line blower hoods
OW
HLO104
9
Key, Part
DESCRIPTION
Qn. (Hoop wiptH)
NO. No.
30" 36" a3" a5”
ADAPTER/DAMPER 314” x 10”
(1-BLower Hoop)
ADAPTER 414” x 181” (2-BLOwER HOOD)
SV13296
SV17797
—_
1 1 1 1
SV06750 | BROAN ELITE Loco
SV16569 | Lawp SHELL, SocKET & TRIM Ass’Y
SV03435 | Heat SENTRY™ THERMOSTAT
SV08338 | LIGHT SwiTCH
SV03501 | SPEED CONTROL
SV08355 | BLOWER AND LIGHT KNoBs (2 KNOBS)
SV08343 | REPLACEMENT CHARCOAL FILTERS (PAIR)
CO} CO}
NE >} Ca
FS} GO} DO]
SV08344 | CHARCOAL FILTER SUPPORTS (PAIR) at
ma}
a} a} a} a}
Pop
as
mt} mt} ma}
a} a} ab
pop
a a
tf
ma}
a} a} a} a}
G2)
a a
wtf mt} ma}
a} a} ab
GO]
a a
INTERNAL Motor
(1 OR 2, DEPENDING ON HOOD MODEL)
— Q SV08097 —_
SV17640
SV17641
SV17642
SV17643
GREASE RAIL 30”
GREASE RAIL 36”
GREASE RAIL 42”
GREASE RAIL 48”
1
—_
12 | SV08337 | FILTER SPRING (SET OF 6)
SV17600
SV17603
BAFFLE FILTER 8.84” x 9.80”
18 BArrFLe Fitter 11.84” x 9.80”
14 | SV08339 | BLoweR Rocker SWITCH
SV08093 | PiLoT Lamp Ass'Y
19 | SV07680 | BAFFLE FILTER HANDLE WITH SCREWS
* | SV08341 | INSTALLATION GUIDE
mt}
C2}
maf
maf
ma
POP
maf
=)
cop—f—laa
1
fps
—ipialealpo
pofeapa
a:
ty
psf}
—)
pa
fap
a
Parts Baa: 2 WIRE CONNECTORS,
9 ScREws No. 8 x 1/2”,
1 WIRE CLAMP,
8 MECHANICAL SCREWS NO. 8-32 x 1/4”,
4 SCREWS NO. 8 x 3/8”
* |SV08353
Qry. (Hoop wiptH)
Part No. DESCRIPTION
RIM
HERMOSTAT
CH
OWER AND
SV17641
SV17642
$V17643
Grease Ral 36”
Grease Ral 42”
Grease Ral 48”
SET OF
BarFLe FILTER 8.84” x 9.80”
BarFLe FILTER 11.84” x 9.80”
OWER CH
OT
SV17600
SV17603
WITH
CONNECTORS,
9 ScREWS NO. 8x 1/2”,
1 WIRE CLAMP,
8 MECHANICAL SCREWS No. 8-32 x 1/4”,
4 Screws NO. 8 x 3/8”
+ |SV08353
*NoT SHOWN.
*NoT SHOWN.
REPLACEMENT Parts AND REPAIRS
In order to ensure your unit remains in good working condition, you must use
Broan-NuTone genuine replacement parts only. Broan-NuTone genuine
replacement parts are specially designed for each unit and are manufactured
to comply with all the applicable certification standards and maintain a high
standard of safety. Any third party replacement part used may cause serious
damage and drastically reduce the performance level of your unit, which will
result in premature failing. Broan-NuTone recommends to contact a certified
service depot for all replacement parts and repairs.
-16-

GUIDE D’INSTALLATION
BRCAN
‘Cie
tLe
SERIE E64000
Z\CONCUE UNIQUEMENT POUR LA CUISSON DOMESTIQUE A
LIRE ET CONSERVER CES DIRECTIVES
_ INSTALLATEUR : LAISSER CE MANUEL AU PROPRIETAIRE.
PROPRIETAIRE : DIRECTIVES D’UTILISATION ET D’ENTRETIEN
EN PAGES 29 et 30.
—_
—
HB0072
Broan-NuTone LLC; Hartford, Wisconsin www.broan.com 800 558-1711
Broan-NuTone Canada Inc.; Mississauga, Ontario www.broan.ca 877 896-1119
ENREGISTREZ VOTRE PRODUIT EN LIGNE A : www.broan.com/register
SV08341 rév. F

Z\ AVERTISSEMENT Z\ AVERTISSEMENT
AFIN DE REDUIRE LES RISQUES D’INCENDIE,
D’ELECTROCUTION OU DE BLESSURES CORPORELLES,
SUIVEZ LES DIRECTIVES SUIVANTES :
1. N’utilisez cet appareil que de la fagon prévue par
le manufacturier. Si vous avez des questions,
contactez le manufacturier 4 ladresse et au
numéro de téléphone indiqués dans la garantie.
Avant de réparer ou de nettoyer l'appareil, coupez
Palimentation électrique en verrouillant le panneau de
service afin d’éviter sa remise en marche accidentelle.
Si le panneau de service ne peut étre verrouillé, y
fixer un avertissement en évidence, telle qu’une
étiquette de couleur vive.
Les travaux diinstallation et de raccordement
électrique doivent étre effectués par du personnel
qualifié, conformément aux codes et aux standards
de construction, incluant ceux concernant la
protection contre les incendies.
Une quantité c’air adéquate est requise afin d’assurer
une bonne combustion et l’évacuation des gaz par
la cheminée dans le cas des équipements alimentés
au gaz afin de prévenir les retours de cheminée.
Conformez-vous aux instructions et aux standards
de sécurité des manufacturiers d’équipement de
chauffage, tels qu’ils sont publiés par la National
Fire Protection Association (NFPA) et l American
Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE) ainsi que les
responsables des codes locaux.
Lorsque vous coupez ou perforez un mur ou un
plafond, prenez garde de ne pas endommager
les fils électriques ou autre installation qui
pourraient y étre dissimulés.
Les ventilateurs avec conduits doivent toujours
évacuer lair a l’extérieur.
Ne pas utiliser cet appareil avec une commande
de vitesse a semiconducteur additionnelle.
Afin de réduire les risques d’incendie, n’utilisez
que des conduits en métal.
Cet appareil doit étre mis a la terre.
Lorsqu’une réglementation est en vigueur localement
et qu’elle comporte des exigences d’installation
et/ou de certification plus restrictives, lesdites exigences
prévalent sur celles de ce document et linstallateur
entend s’y conformer a ses frais.
AFIN DE _REDUIRE LES RISQUES DE FEU
DE CUISINIERE :
a)
b)
d)
Ne laissez jamais les appareils de cuisson sans
surveillance lorsqu’ils sont réglés a feu vif. Les
débordements engendrent de la fumée et des
déversements graisseux pouvant s’enflammer.
Chauffez l’huile lentement, a feu doux ou moyen.
Mettez toujours la hotte en marche lorsque vous
cuisinez a feu vif ou que vous cuisinez des
mets flambés (par ex.: crépes Suzette, cerises
jubilé, steaks au poivre flambés).
Nettoyez réguliérement la (les) roue(s) du ventilateur.
Ne laissez pas la graisse s’accumuler sur le
ventilateur, les filtres ou les conduits d’évacuation.
Utilisez le bon format de casserole. Servez-vous
toujours de casseroles et d’ustensiles appropriés a
la dimension de la surface chauffante.
AFIN D’EVITER TOUT RISQUE DE BLESSURES
DANS LE CAS D’UN FEU DE CUISINIERE, SUIVEZ
CES DIRECTIVES’ :
1. Etouffez les flammes avec un couvercle hermétique,
une t6le a biscuits ou un plateau métallique et
ensuite, éteindre le bréleur. PRENEZ SOIN
D’EVITER LES BRULURES. Si LES FLAMMES
NE S’ETEIGNENT PAS IMMEDIATEMENT,
EVACUEZ LES LIEUX ET APPELEZ LES POMPIERS.
NE PRENEZ JAMAIS UNE CASSEROLE EN
FLAMMES DANS VOS MAINS. Vous pourriez vous broiler.
N’UTILISEZ PAS D’EAU, incluant linge a vaisselle
ou serviette mouillés; ceci pourrait occasionner
une violente explosion de vapeur.
N’'utilisez un extincteur QUE DANS LE CAS OU:
A. Vous savez quill s’agit d’un extincteur de classe ABC
et que vous en connaissez le fonctionnement.
Lincendie est petit et limité a l'endroit ot il a débuté.
Les pompiers ont été avisés.
Vous pouvez combattre lincendie en ayant
acces a une sortie de secours.
90m
*Tirées du Kitchen Fire Safety Tips publié par la NFPA.
ATTENTION
1.
2.
10.
11.
-18-
Pour une utilisation a lintérieur seulement.
Pour usage domestique seulement. Ne lutilisez pas pour
évacuer des vapeurs ou des matiéres dangereuses
ou explosives.
Afin d’éviter tout dommage au moteur et de débalancer
ou de rendre bruyante la roue du moteur, gardez
votre appareil a l’'abri des poussiéres de gypse et de
construction/rénovation, etc.
Le moteur de votre hotte posséde une protection
thermique qui arrétera automatiquement le fonctionnement
du moteur s'il devient surchauffé. Le moteur redémarrera
automatiquement une fois refroidi. Si le moteur
continue a arréter et 4 redémarrer, faites-le vérifier.
Pour une meilleure 6vacuation des odeurs de cuisson,
le bas de votre hotte devrait étre situé a un minimum
de 24 po et a un maximum de 30 po au-dessus de
la table de cuisson.
Deux installateurs sont recommandés lors de [installation
vu la grande dimension et le poids de cette hotte.
Afin de réduire les risques d’incendie, assurez-vous
d’évacuer lair a lextérieur. Ne pas évacuer lair dans
des espaces restreints comme Iintérieur des murs ou
plafond ou dans le grenier, faux plafond ou garage.
Cet appareil est équipé d’un thermostat pouvant
faire démarrer le ventilateur automatiquement. Afin
de réduire les risques de blessures, couper le
courant a partir du panneau électrique et verrouiller ou
apposer un avertissement sur le panneau afin de prévenir
que la hotte soit mise en marche accidentellemment.
A cause de la grande capacité d’évacuation de cette
hotte, utiliser un dispositif apport d’air approprié ou
ouvrir une fenétre dans ou prés de la cuisine afin de
remplacer lair évacué.
Afin de réduire les risques c’incendie et d’électrocution, la
hotte Broan Elite de série E64E doit étre installée
uniquement avec un ventilateur extérieur Broan
suivant : 331H, 3382H, 335 ou 336 ou un ventilateur
en ligne Broan suivant : HLB3, HLB6, HLB9 ou
HLB11 (vendus séparément). Aucun autre ventilateur
ne doit étre utilisé.
Veuillez consulter l'autocollant apposé a lintérieur de
la hotte pour plus d'information ou autres exigences.

- SYSTEME DE HOTTE DE CUISINIERE SERIE E64000 -
VENTILATEURS INTERIEURS
MobELe 441
a
(CAPUCHON ~
DE MUR DE ;
Mopé ‘, 10 PO ROND) 7 MopeLe 647 y ee wes rae ODELE
437)
iw”
(CAPUCHON
DE
MUR
ae
:
MopéLe
634
“+...
MobELE
643
(CAPUCHON
DE
TOIT“
o
DE
7
PO
ROND)
ae
‘ou
644
v
(CAPUCHON
DE
MUR
A
HAUT
RENDEMENT)
”
; ;
(CAPUCHON
DE
8
PO
ROND)
MobeLe 415 ‘DE TolT)
; . (COUDE AJUSTABLE :
MOopeLe 418 DE 7 PO ROND) ‘ COUDE AJUSTABLE
(COUDE AJUSTABLE ‘ :
Sm : E ‘ DE 8 PO ROND
DE 10 PO ROND) . ; Movete 639 :
MobELe 407 i (CAPUCHON
; : (ConDUIT DE 7 PO ROND : DE MUR ConbuIT
MOoDELE
421
'
SECTIONS
DE
2
PI)
:3%4
PO
xX
10
Po)
STANDARD
DE
(VOLET
INTERIEUR
DE
‘
:
8
PO
ROND
10 PO ROND VERTICAL) : .
Tec oeeeeeceee : Mopbé_Le 412 MopéLe 413
‘ TRANSITION ODELE
: . TRANSITION
goin (3%4 FO x 10 POAT Po) 5 POX 10 POA 8 PO}
Tr
‘Mc
MobELE 410
(ConDUIT DE 10 PO ROND
SECTIONS DE 2 Pl)
MTT
mm
MOOT
MoDELE 427 MoDELE 423 MoDELE 424 MobELe 454
(4% Po x 18% Po (4% Pox 18% PO (4% POX 18%PO (4% PO x 18% PO (4% Po x 18% Po
A 10 PO ROND, A 10 PO ROND A 10 PO ROND - A 10 PO ROND - A 10 PO ROND -
6 PO HAUT - LATERALE ~ VERTICALE) HORIZ. AVANT/ARRIERE) HORIZ./DROITE) HORIZ./GAUCHE)
‘
; 1 4 4 +
i ‘
4
KIT DE RECIRCULATION
ADAPTATEUR/VOLET
OPTIONNEL
ADAPTATEUR
41%
PO
X
18%
PO!
A
VENTILATEUR
SIMPLE)
(INCLUS AVEC LA HOTTE !
A VENTILATEUR DOUBLE) !
C : 3% Po x 10 PO
: SERIE ANKEGO = (INCLUS AVEC LA HOTTE
HOTTE SERIE E64000
VENTILATEUR SIMPLE (600 PcM)}
VENTILATEUR DOUBLE (1100 Pcm)}
HOTTES DE 36 PO ET 42 PO
VENTILATEUR DOUBLE (1200 Pcm)}
HOTTE DE 48 PO SEULEMENT
DOSSERET
SERIE RMP
(RECOUVREMENT DE MUR
EN ACIER INOXYDABLE AVEC
SUPPORT ASSIETTES.
OPTIONNEL)
HLOOS7

- SYSTEME DE HOTTE DE CUISINIERE SERIE E64000 -
VENTILATEURS EN LIGNE ET EXTERIEURS
MoDELE 437
(CAPUCHON DE TOIT VENTILATEUR EN LIGNE
A HAUT RENDEMENT) MopéLe HLBS (800 pcm)
. ou HLB11 (1100 pcm) VENTILATEUR EXTERIEUR
“+. (INCLUANT DEUX TRANSITIONS RONDES . MobéLe 335 (1200 Pom)
ns, VENTILATEUR EXTERIEUR
A we DE 8 PO x 12 POA 10 Po) ou 336 (1500 pcm)
a“ *
MobELE
331H
(600
pcm)
ou
332H
(900
Pcm)
a ste
o teen
* “.
.
a“ © «| MopELe 4417s.
MobELe 643 “ % (CAPUCHON MURAL
(CAPUCHON “ * LDE 10 Po ROND)
MURAL DE ° ;
8 PO ROND)
Ly,
: WEE
l
Nt VENTILATEUR EN LIGNE Ce ee
“Sot MopéLe HLB6 (600 Poem) fee eee
*, E(INCLUANT DEUX TRANSITIONS RONDES Sey et erase
DE 4% Po x 18% PO A 10 PO}
e
MobDELE 421
(VOLET INTERIEUR DE 10 PO
ROND VERT.) RECOMMANDE
POUR UTILISATION AVEC
VENTILATEURS EXTERIEURS
ee” MODELE 418 tug eee
wert’ (COUDE AJUSTABLE 0 Beene
we DE 10 Po)
VENTILATEUR EN LIGNE
MopéLe HLB3 (280 pcm)
(INCLUANT UNE TRANSITION
RONDE DE 8 PO A 10 PO}
seonmomqed
MobpELeE 410
(ConbDuiT DE 10 PO ROND
SECTIONS DE 2 Pl)
‘ HOTTE SERIE E64000
oo
PLAQUE VENTILATEUR 332KR POUR
VENTILATEURS EXTERIEURS OU EN LIGNE
(INCLUSE AVEC LA HOTTE).
DOSSERET
SERIE RMP
(RECOUVREMENT DE MUR
EN ACIER INOXYDABLE AVEC
SUPPORT ASSIETTES.
OPTIONNEL)
HLOO98
