Brobo VS350D User manual

INSTRUCTION MANUAL
VS350D

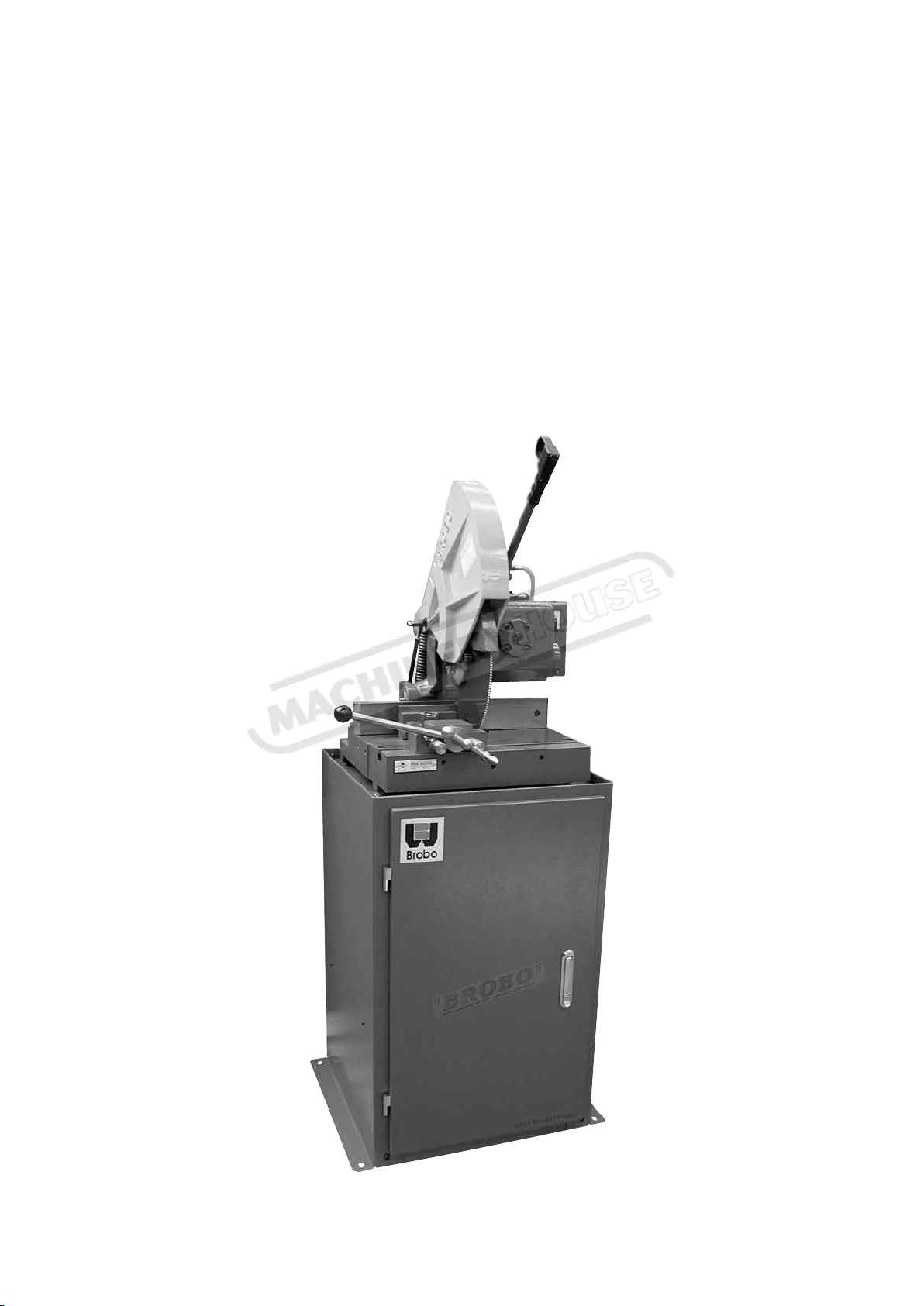

Brobo Cold Saw, Includes Stand
135 x 90mm Rectangle Capacity
Variable Blade Speed 20~100rpm
S042
Page 1
Instruction Manual for VS350D (S042)
04/04/2019


 Precision Drilling Machines  Tapping Machines  Multi Head Drills  Tool Grinders 
 Tool Post Grinders  Machine Vices  Special Production Equipment 
 Accessories  Riveting Machines  Pedestal Grinders  Metal Cutting Saws  Linishers 
PRODUCT AND MAINTENANCE MANUAL
OHS SERIES METAL SAWS
MODEL No. S315D, S350D, S400B / Serial No’s. C 29680~
BROBO GROUP (AUST) PTY. LTD.
A.C.N. 098 264 316
A.B.N. 42 098 264 316
8 Fowler Rd, Dandenong, 3175
PO BOX 4274 Dandenong Sth, 3164
Victoria, AUSTRALIA.
Tel: [phone] Email: [email protected]
Fax: [phone] Website: www.brobo.com.au
Quality
Endorsed
Company
ISO 9001 Lic. 10292
SAI GLOBAL
Quality System

YOUR BROBO DISTRIBUTOR IS:
Bench Mount Unit
Floor Mount Unit 
Page 2
Instruction Manual for VS350D (S042)
04/04/2019

OPERATING MANUAL FOR BROBO GROUP
MANUAL METAL CUTTING SAWS
TECHNICAL SPECIFICATION
CHAPTER 1: Installation of the Machine
1.1 Unpacking and Handling the Machine
1.2 Parts Checklist
1.3 Minimum Requirements
1.4 Anchoring the Saw
1.5 Connection to Power Source
CHAPTER 2: Safety and Accident Prevention
2.1 Operation of the Machine
2.1.1. Noise Level
2.1.2. Power Supply
2.2 General Requirements
2.3 Advice for the Operator
2.4 Machine Safety Devices
2.4.1. Reference Standards
CHAPTER 3: Main Functions and Operation of the Machine
3.1.1. Cutting Head
3.1.2. Saw Safety Guard
3.1.3. Saw Handle (with ‘Dead Man’ Trigger Switch)

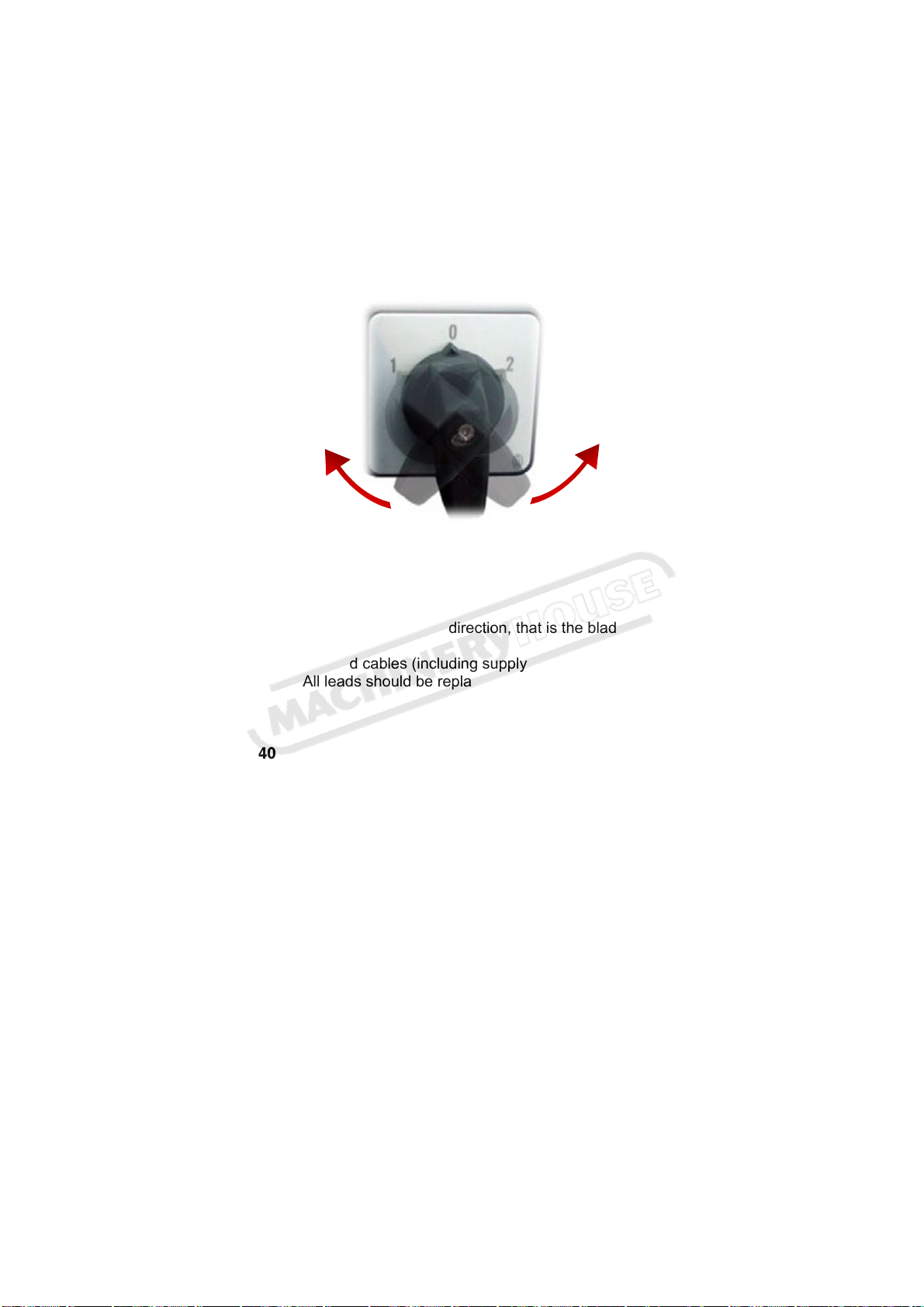

3.1.4. Main power standby & Speed selector switch
3.1.5. Manual Vice Clamp
3.2 Preparation for Operation
3.3 Operation Recommendations
CHAPTER 4: Drawings, Layouts, Assembly and Spare Parts
4.1.1 Assembly Drawing (1 of 3)
4.1.2 Assembly Drawing (2 of 3)
4.1.3 Assembly Drawing (3 of 3)
4.2.1 Electrical Circuit 1PH/ 3PH & 3PH Dual Speed Circuit Diagram
4.2.2 Electrical Circuit 3PH with Dead Man Trigger (DMT)
4.2.3 Diagram For Connection 1PH/3PH Circuit
4.2.4 Component Layout & Electrical Schematic Drawings (3PH)
4.3.1 Cold Saw Main Dimensions
4.3.2 Cold Saw Assembly
4.3.3 Standard Gearbox Assembly
4.3.4 Deadman Trigger Assembly
4.3.5 Standard Manual Vice Assembly
4.3.6 Dual Manual Vice Assembly
CHAPTER 5: Adjustments for the Saw Unit
5.1 Changing the Blade
5.2 Adjusting the Cutting Angle
5.3 Cutting and Feeding Speeds
5.4 Refilling the Lubricator
5.5 Adjusting the Brobolube Unit
5.5.1 Lubricating Oil Precautions – Health Hazard Information
CHAPTER 6: Maintenance and Selection of Consumables
6.1 Role of the Operator
6.2 Maintenance Requirements
6.3 General Maintenance of Functioning Components
CHAPTER 7: Troubleshoot
7.1 Troubleshooting For Blade and Cutting Problems
7.2 General Troubleshooting
APPENDIX
i. Hazard/Risk Assessment
ii. Workplace Health & Safety Policy
Page 3
Instruction Manual for VS350D (S042)
04/04/2019

Brobo Group
TECHNICAL SPECIFICATION
STANDARD BLADE SIZES
Outer Diameter ( mm) Thickness (mm) Bore Size (mm) Number of Teeth
315 2.5 40 160
350 () 2.5 40 180
400 3.0 40 220
TABLE 1. Standard Blade Sizes () Recommendation
BLADE SELECTION CHART
Material Outer
Diameter ( mm)
Wall Thickness
(mm)
Blade Diameter ( mm) and Number of Teeth
315 350 400
HOLLOW
CROSS-SECTION
20
1 320 350 400
2 240 280 340
3 180 220 240
40
1 320 250 400
2 220 260 280
3 160 180 200
4 140 160 180
50
1 320 350 400
2 220 280 300
3 180 200 220
4 160 180 200
5 140 160 180
80
1 300 320 360
2 200 220 240
3 200 200 220
4 160 180 180
5 140 160 180
100
1 300 300 340
2 220 200 220
3 200 180 180
4 160 140 160
5 140 120 140
120
1
300 340
2 200 220
3 180 180
4 160 160
5 120 140
SOLID SECTIONS
10
280 280 300
20 160 200 240
30 140 160 200
40 120 140 140
50 80 100 120
60 80 100
TABLE 2. Blade Selection Chart
NOTE - CHART GUIDE ONLY
This chart is issued as a guide only. Many other factors would attribute to the cutting performance of
both the saw blade and the cutting saw machine. BROBO GROUP Pty. Ltd. will not accept any
responsibility for the blade selection and/or machine breakages or unsatisfactory cutting performance
of both the blade and/or the machine as a direct result of the selection.
!
Page 4
Instruction Manual for VS350D (S042)
04/04/2019

Brobo Group
Blade Type: AISI M-Z High Speed Steel (62-64 HRC, Hollow Ground)
Blue-oxide coated for:
 Greater durability,
 Better coolant conveyance to the cutting edge,
 Reduces galling or "pick-up" on sides of the blade,
 Reduces brittleness of the steel.
Tooth Form: Bevelled on alternate sides - up to 180 teeth, or
High-rolling, low-finishing teeth, "triple-chip" - above 180 teeth
Drive Pin Holes (Qty.    PCD): S315 & S350 Series 2  8mm  55mm
S400 Series 2  10.5mm  64mm
Worm Gear Drive Ratio (S315/S350/S400): 1:33 Reduction
Sound Level (dBA): 85 - 90 dB(A) Maximum
MOTOR SPECIFICATIONS
Motor Type (Hz) Phase Voltage (V) RPM Kilowatt (kW)
50Hz Power Supply 1 240 1430 1.7
50Hz Power Supply 3 415 1420 / 2680 1.5 / 2.2
50Hz Power Supply 3 415 650 / 1350 1.1 / 1.5
60Hz Power Supply 1 230 1700 1.7
60Hz Power Supply 3 220 850 / 1700 1.1 / 1.5
60Hz Power Supply 3 440 850 / 1700 1.5 / 2.2
60Hz Power Supply 3 220 1700 / 3400 1.1 / 1.5
TABLE 3. Motor Specifications
BLADE SPINDLE RPM
Motor Type BLADE SPEEDS
S315 S350 S400
Frequency (Hz) Phase RPM RPM m/min RPM m/min RPM m/min
50
3 650 21 20 21 23 21 27
1 / 3 1350/1420 42 40 42 47 42 53
3 2680 85 80 85 93 85 106
RPM ft. /min RPM ft. /min RPM ft. /min
60 (USA)
3 850 26 84 26 93 26 106
1 / 3 1700 52 168 52 186 52 212
3 3400 103 334 103 370 103 424
TABLE 4. Blade Spindle RPM
VICE CLAMPS
Manual Vice
Clamping Range (mm) 0 - 135 (145mm w/o wear plates)
Air Requirements:
Air Consumption (L):
Clamp Working Pressure (kPa):
Maximum Pressure (kPa):
Pneumatic Stroke (mm):
Clamping Force (N):
TABLE 5. Vice Clamps
Page 5
Instruction Manual for VS350D (S042)
04/04/2019

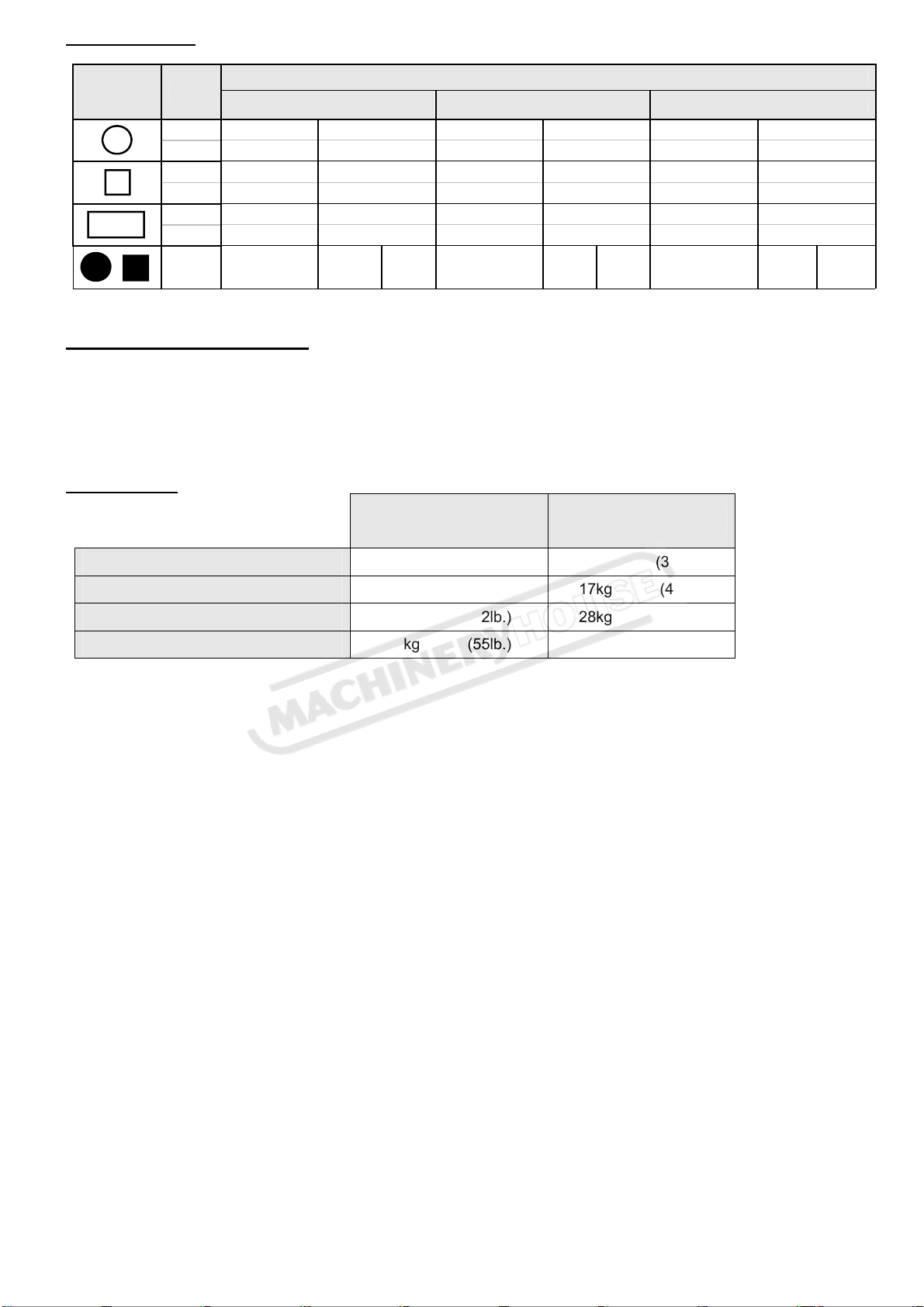

CUTTING RANGE
Cross
Sectional
Profile
Angle
Cutting Range (mm)
S315 S350 S400
90 95 3 6/8" 115 4 4/8” 130 5 1/8”
45 95 3 6/8" 110 4 3/8” 120 4 6/8”
90 85  85 3 3/8"  3 3/8" 100  100 3 7/8"  3 7/8" 110  110 4 3/8"  4 3/8"
45 80  80 3 1/8"  3 1/8" 85  85 3 3/8"  3 3/8" 95  95 3 6/8"  3 6/8"
90 80  100 3 1/8"  3 7/8" 85  135 3 3/8"  5 3/8" 100  135 3 7/8"  5 3/8"
45 80  80 3 1/8"  3 1/8" 85  95 3 3/8"  3 6/8" 100  95 3 7/8"  3 6/8"
90 50 STD
2”
AUTO
3” 60 STD 2 3/4”
AUTO
3 1/2” 60 STD 2 3/4”
AUTO
3 1/2”
Note: The above values are based on a full size blade. The capacities
will reduce accordingly when a worn blade is resharpened.
DIMENSIONAL SPECIFICATIONS
Base Dimensions (L  W): 550mm  660mm
Table Working Height: 968 mm
Saw Height: 1917 mm
SAW WEIGHT
Un-Packed Weight (kg) Packed Weight (kg)
S315/S350/S400 Saw Unit 136kg (300lb.) 150kg (330lb.)
Coolant Tank Complete 17kg (42lb.) 17kg (42lb.)
Sheet Metal Stand S315/S350/S400 28kg (62lb.) 28kg (62lb.)
Manual Vice Unit 25kg (55lb.) 25kg (55lb.)
TABLE 7. Saw Weight
TABLE 6. Cuttin
g
Ran
g
e
Page 6
Instruction Manual for VS350D (S042)
04/04/2019

Brobo Group
CHAPTER 1 - Installation of the Machine
1.1. Unpacking and Handling the Machine
Upon receiving the Brobo Group S315/S350/S400 Series Metal Cutting Saw, the machine should be standing
upright and positioned centrally on top of a wooden pallet. While the machine is situated on the pallet, position the
forklift arms under the pallet between the runners, keeping in mind that the machine is head heavy. Move the entire
unit to an accessible area as close as possible to the final location.
Carefully remove the wooden frame surrounding the saw unit (Figure 1). Once completed, proceed by elevating the
machine away from the pallet base using a sling harness wrapped around the cutting head of the saw. Ensure that
the floor is as level as possible before finally positioning the machine to the desired location.

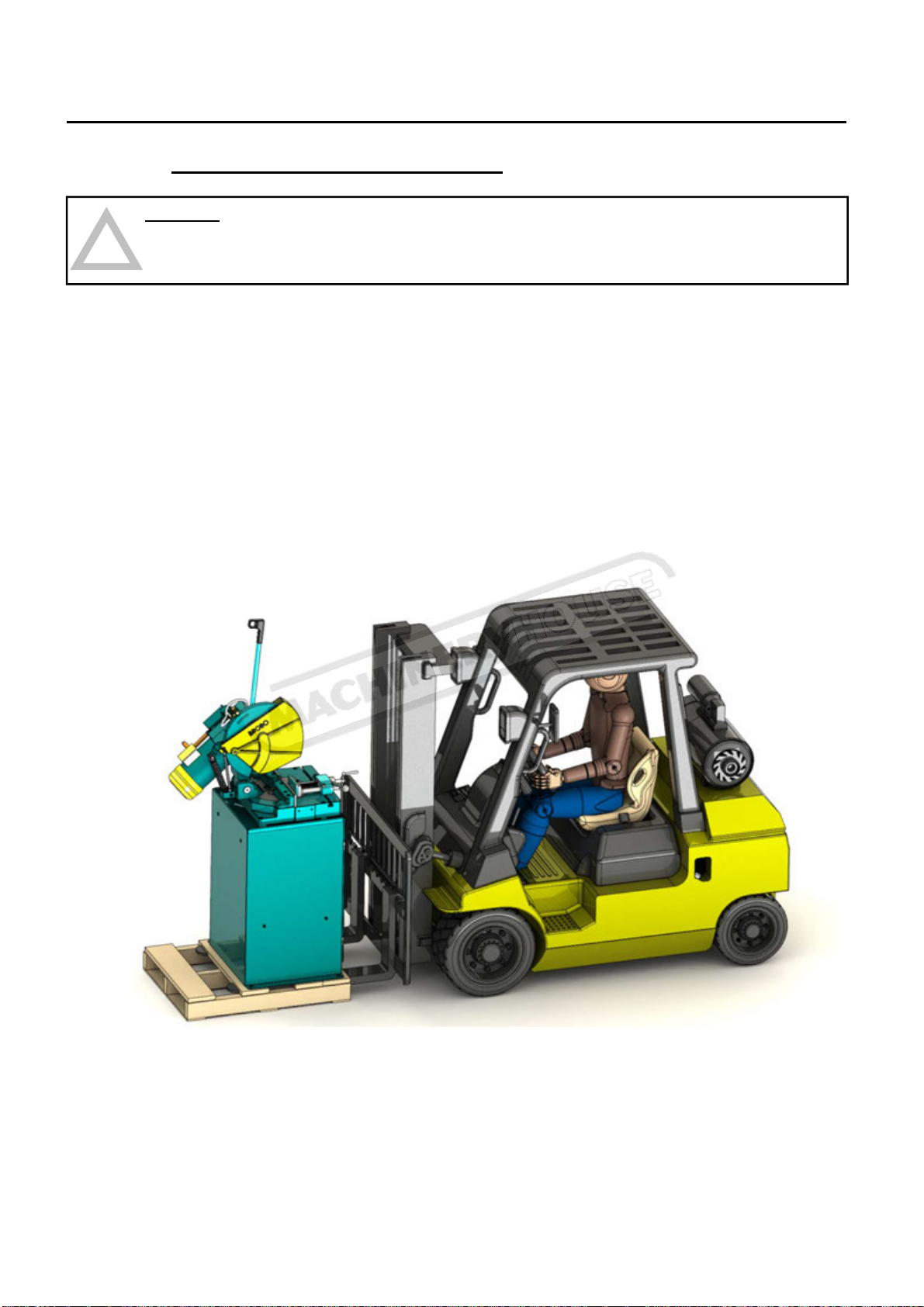

FIGURE 1. Handling of Metal Cutting Saw Unit
PLEASE OBSERVE AND FOLLOW THE INSTALLATION INSTRUCTIONS ON PAGE 7
WARNING – HEAD HEAVY MACHINES
The metal sawing machines are heaviest where the saw heads are fitted and as such, care must be
taken while relocating or moving the machines.
!
Page 7
Instruction Manual for VS350D (S042)
04/04/2019

Brobo Group
1.2. Parts Checklist
Along with the saw unit, check that the following accessories, packed "loose", are included as follows:
A. STANDARD ACCESSORIES
1) 1  Saw Blade
2) 1  Operating Handle
3) 1  Service Kit (Hexagon wrenches 5”, 10” & 14”)
4) 1  Operating Manual
B. OPTIONAL ACCESSORIES
Part Number Description
9311270 Standard Adjustable Length Stop (600mm)
9501450
9501470
‘Brobo-Rule’ Series Manual Micro-Adjustment Length Stop
 Available in 3.0m or 6.0m lengths
 Field Kit includes rail, tape, micro-stop and extension arm.
9501210
Roller Conveyor
 68 Kg Steel Rollers
 3000mm x 305mm
 150mm pitch
9311060
9301950
Manual Mechanical Vice Clamp
Manual Mechanical Dual Arm Vice Clamp
9501740 Fabricated Sheet Metal Stand
9301450 Floor Stand, Angle Iron
9301400 Trigger ‘Deadman” Switch
9501640 S350D & S400B Brobolube
- Additional Blade(s) - Custom to Client Requirements
1.3. Minimum Requirements
For the machine to function correctly, the room in which the saw unit is to be installed must be in the vicinity of, and
satisfy the following conditions:
 415/240V Power Supply
 Ambient Temperature - From -10
 C to +50  C.
 Relative Humidity: Not more than 90%.
 Lighting: More than 500 LUX.
WARNING – OPERATING VOLTAGE VARIATION
Each saw model has an inbuilt safety system to protect it against voltage variations. However, for the
machine to perform efficiently, ensure that the saw unit operates within
 10% limits of the
recommended voltage of the motor.
!
Page 8
Instruction Manual for VS350D (S042)
04/04/2019

Brobo Group
1.4. Anchoring the Saw
Prior to anchoring the saw unit, take into considerations the requirements mentioned in Section 1.3 and Section 2.2,
and other aspects regarding the usage of the machine such as accessibility to cut parts and safe access for the
operator.
The base of fabricated stand (if applicable), in which the saw head rests on, is anchored to the floor by 4  M12
bolts provided. For added stability, it is strongly recommended that the machine stand be fastened to the floor by
using loxins (not provided). When positioning and fastening the unit, please refer to the hole locations shown in
Figure 2.
Figure 2. Anchoring Hole Locations
FRONT OF MACHINE FRONT OF MACHINE
FRONT OF MACHINE FRONT OF MACHINE
BENCH MODELS (Fig. 2.1 & 2.2) FLOOR MODELS (Fig. 2.3 & 2.4)
Figure 2.1 Figure 2.3
Figure 2.2 Figure 2.4
Page 9
Instruction Manual for VS350D (S042)
04/04/2019

Brobo Group
1.5. Connection to Power Source
Before connecting the machine to the power supply, check that the socket is not connected in series with other
machines. This condition is critical for the ideal operation of the saw unit.
Single and Three Phase
a) Single phase machines are provided with three pins, 15 amps rated plugs and leads for connection to
240V, 50Hz power supply in Australia.
Figure 3.1 Connection 3 pins – 1 Phase
b) Three phase machines should be fitted with a suitable, approved four pin plugs
(i.e. three phase and earthing - not provided)
Figure 3.2 Connection for “4-CORE” Wire System with Neutral – 3 Phase
c) Check the power supplied and motor specifications before plugging in the machine. Check terminal
connection on dual voltage motor terminal box and connect it accordingly to the corresponding voltage
supply.
d) If dual motor is requested, the motor is always connected to the higher voltage, unless otherwise specified
prior to order being placed.
Active = Brown VOLTAGE MAIN VOLTAGE
Neutral = Light Blue 240V/1 PH 240V
Earth = Green/Yellow
Active = Brown, White. Dark Blue VOLTAGE MAIN VOLTAGE
Earth = Green/Yellow 415V/3PH 415V/3PH
Page 10
Instruction Manual for VS350D (S042)
04/04/2019
