Brother FAX-2840 Operating and maintenance manual

Basic User’s Guide
FAX-2840
MFC-7290
Version 0
TWN-ENG

If you need to call Customer Service
Please complete the following information for future
reference:
Model Number: FAX-2840, MFC-7290
(Circle your model number)
Serial Number: 1
Date of Purchase:
Place of Purchase:
1The serial number is on the back of the unit. Retain
this User’s Guide with your sales receipt as a
permanent record of your purchase, in the event of
theft, fire or warranty service.
Register your product on-line at
http://www.brother.com/registration/
© 2012 Brother Industries, Ltd. All rights reserved.

i
User’s Guides and where do I find them?
Download optional software from the Brother
Solutions Center (FAX-2840 users)
You can download a printer driver for free from the Brother Solutions Center, enabling you to use
your Brother Fax machine as a printer. Visit us at http://solutions.brother.com/.
Which Guide? What’s in it? Where is it?
Product Safety Guide Read this Guide first. Please read the
Safety Instructions before you set up your
machine. See this Guide for trademarks
and legal limitations.
For Chinese:
Printed / In the box
For Chinese English:
PDF file / CD-ROM / In the box
Quick Setup Guide Follow the instructions for setting up your
machine and installing the drivers and
software for the operating system (MFC-
7290 only) and connection type you are
using.
For Chinese:
Printed / In the box
For Chinese English:
PDF file / CD-ROM / In the box
Basic User’s Guide Learn the basic Fax, Copy and Scan
(MFC-7290 only) operations and how to
replace consumables. See troubleshooting
tips.
For Chinese:
Printed / In the box
For Chinese English:
PDF file / CD-ROM / In the box
Advanced User’s Guide Learn more advanced operations: Fax,
Copy, security features, printing reports
and performing routine maintenance.
PDF file / CD-ROM / In the box
Software User’s Guide
(MFC-7290 only)
Follow these instructions for Printing,
Scanning, Remote Setup, PC-Fax and
using the Brother ControlCenter utility.
PDF file / CD-ROM / In the Box

ii
Table of Contents
(Basic User’s Guide)
1 General information 1
Using the documentation.......................................................................................1
Symbols and conventions used in the documentation ....................................1

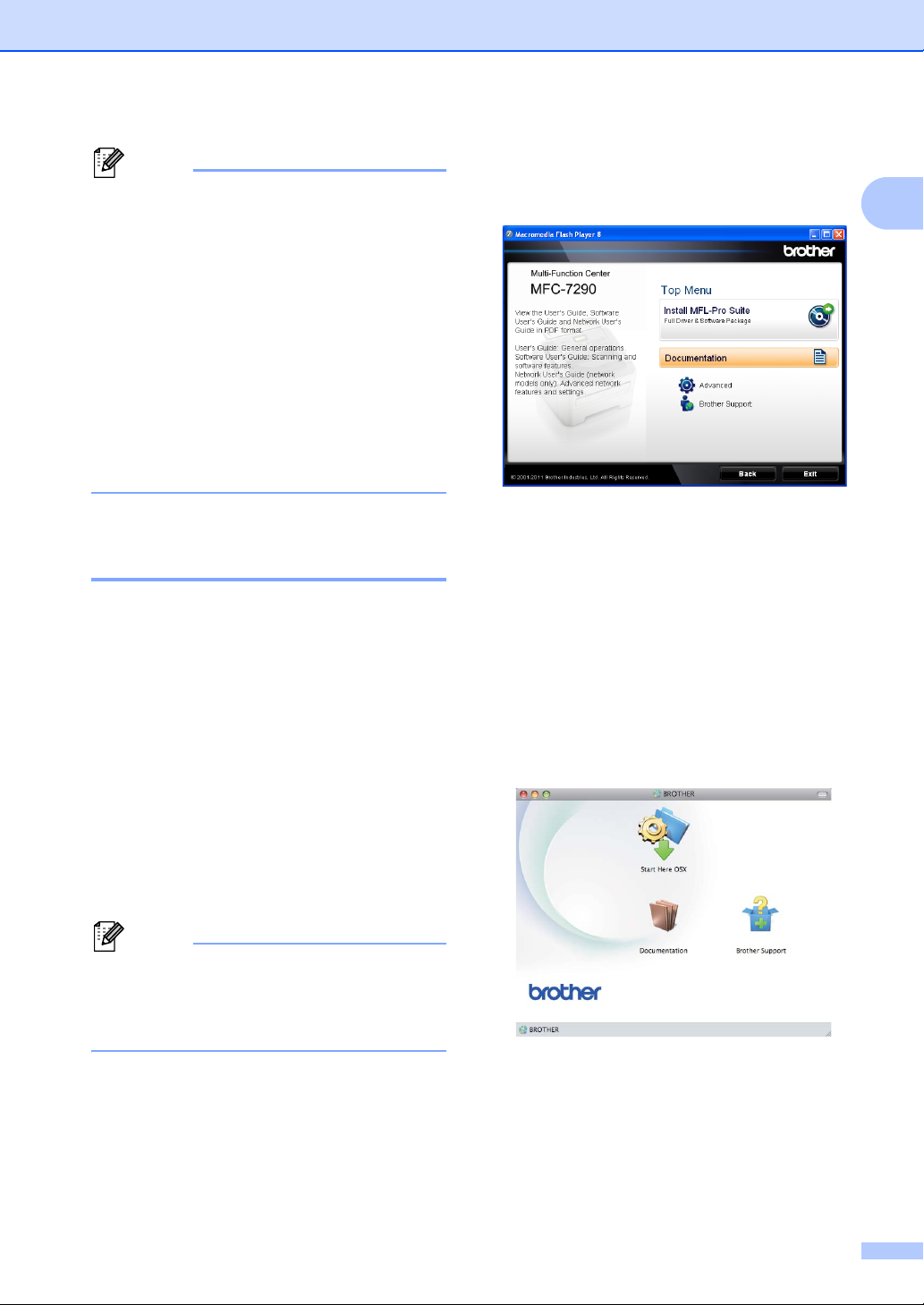

Accessing the Advanced User’s Guide and Software User’s Guide......................2
Viewing Documentation (For FAX-2840).........................................................2
Viewing Documentation (For MFC-7290) ........................................................3
Accessing Brother Support (Windows®) (MFC-7290 only)....................................4
Accessing Brother Support (Macintosh) (MFC-7290 only) ....................................5

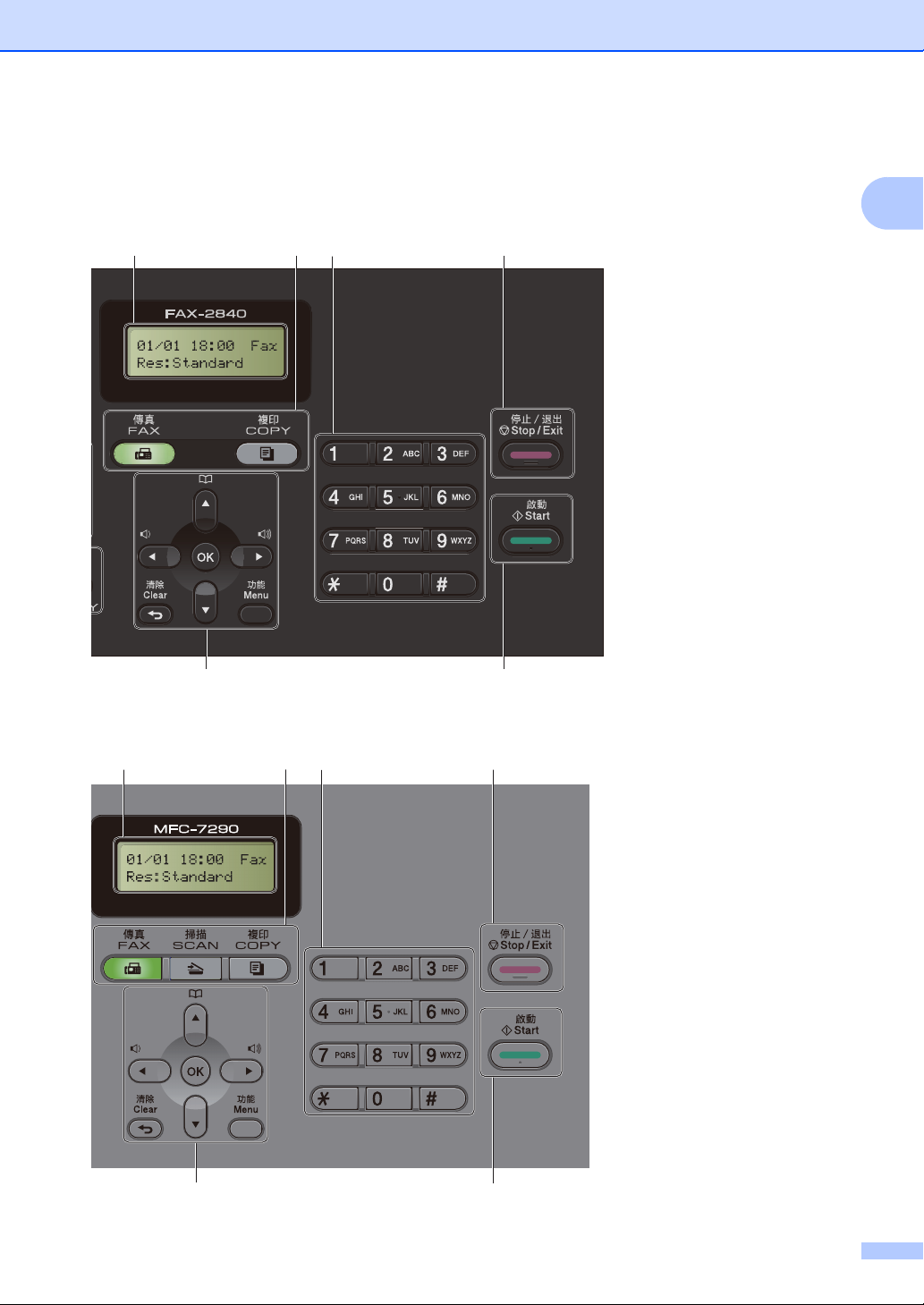

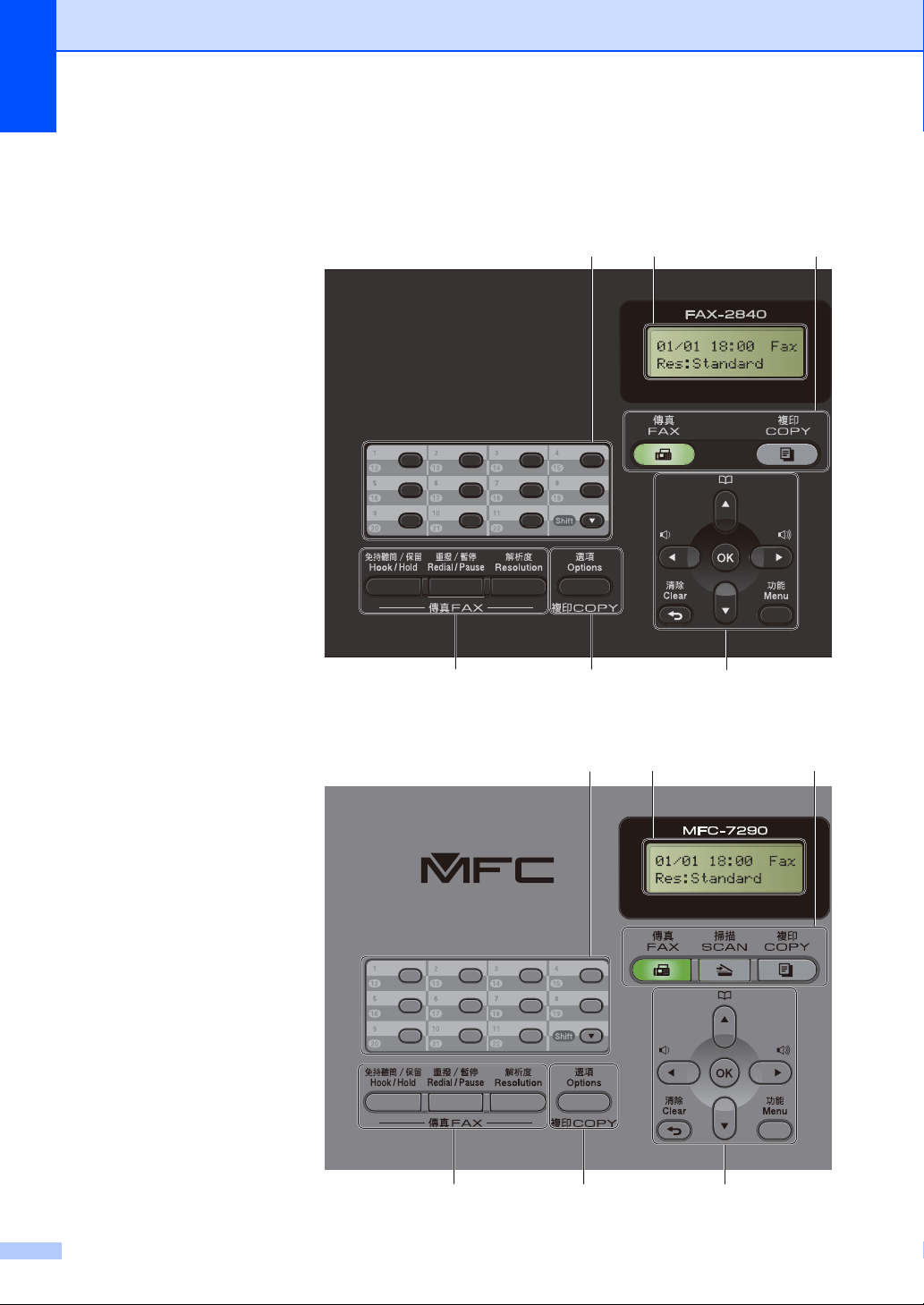

Control panel overview ..........................................................................................6
2 Loading paper 9
Loading paper and print media ..............................................................................9

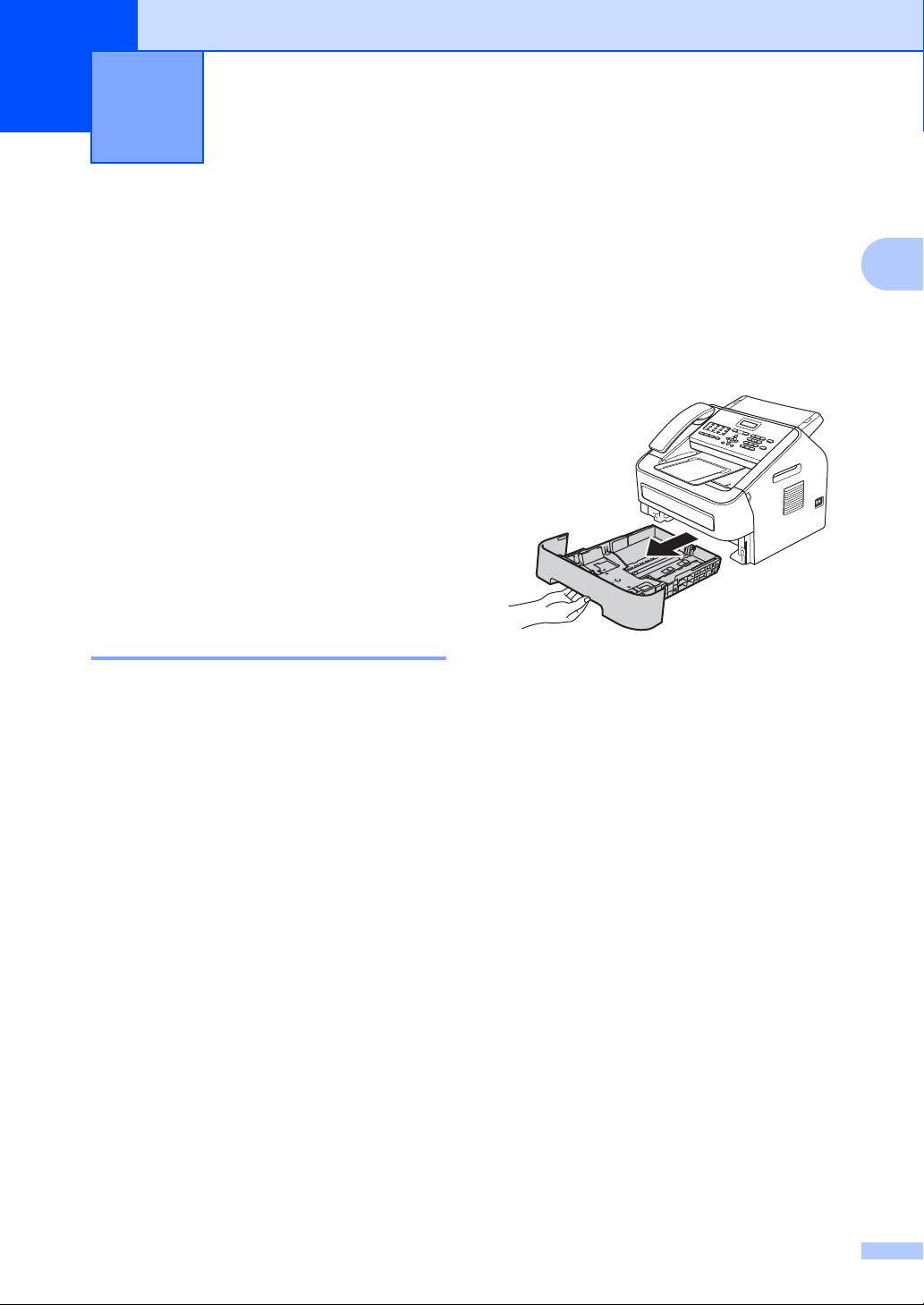

Loading paper in the standard paper tray........................................................9
Loading paper in the manual feed slot ..........................................................11
Unscannable and unprintable areas..............................................................15
Paper settings......................................................................................................16
Paper Type ....................................................................................................16
Paper Size .....................................................................................................16
Acceptable paper and other print media..............................................................16
Type and size of paper ..................................................................................17
Handling and using special paper .................................................................19
3 Loading documents 22
How to load documents .......................................................................................22
Using the automatic document feeder (ADF) ................................................22
4 Sending a fax 24
How to send a fax ................................................................................................24
Canceling a fax in progress ...........................................................................24
Transmission Verification Report...................................................................25
5 Receiving a fax 26
Receive Modes ....................................................................................................26
Choose the correct Receive Mode ................................................................26
Using Receive Modes..........................................................................................28
Fax Only ........................................................................................................28
Fax/Tel...........................................................................................................28
Manual...........................................................................................................28
External TAD .................................................................................................28
Receive Modes settings.......................................................................................29
Ring Delay .....................................................................................................29
F/T Ring Time (Fax/Tel mode only)...............................................................29
Easy Receive.................................................................................................30

iii
6 Using PC-FAX (For MFC-7290) 31
PC-Fax Receive (For Windows®only) ................................................................31
PC-Fax Send .......................................................................................................32
How to send a PC-FAX: ................................................................................32
7 Telephone services and external devices 33
Voice operations .................................................................................................33
Making a telephone call.................................................................................33
Hold ...............................................................................................................33
Telephone line services.......................................................................................33
Voice Mail......................................................................................................33
Distinctive Ring..............................................................................................34
Connecting an external TAD (telephone answering device)................................37
Connections...................................................................................................37
Recording an outgoing message (OGM).......................................................38
Multi-line connections (PBX) .........................................................................38
External and extension telephones......................................................................38
Connecting an external or extension telephone ............................................38
Using external and extension telephones .....................................................39
Using a non-Brother cordless external handset ............................................39
Using Remote Codes ....................................................................................39
8 Dialing and storing numbers 41
How to dial...........................................................................................................41
Manual dialing ...............................................................................................41
One Touch dialing .........................................................................................41
Speed Dialing ................................................................................................41
Search ...........................................................................................................42
Fax redial.......................................................................................................42
Storing numbers ..................................................................................................42
Storing a pause .............................................................................................42
Storing One Touch Dial numbers ..................................................................43
Storing Speed Dial numbers..........................................................................43
Changing One Touch and Speed Dial numbers............................................44
Deleting One Touch and Speed Dial numbers .............................................. 44
9 Making copies 45
How to copy.........................................................................................................45
Stop copying..................................................................................................45
Copy settings.................................................................................................45
10 How to print from your computer (For MFC-7290) 46
Printing a document.............................................................................................46

iv
11 How to scan to a computer (MFC-7290 only) 47
Before scanning...................................................................................................47
Scanning a document as a PDF file using ControlCenter4 (Windows®) .............47
How to change the SCAN key settings for PDF scanning ...................................51
How to scan a document as a PDF file using the SCAN key ..............................53
A Routine maintenance 54
Replacing the consumable items.........................................................................54
Replacing the toner cartridge ........................................................................55
Cleaning the corona wire...............................................................................60
Replacing the drum unit.................................................................................62
Cleaning the scanner glass ...........................................................................66
B Troubleshooting 67
Identifying your problem ......................................................................................67
Error and maintenance messages.......................................................................69
Transferring your faxes or
Fax Journal report .....................................................................................74
Document Jams...................................................................................................75
Document was not inserted or fed properly, or was too long ........................75
Paper Jams..........................................................................................................75
Paper is jammed in the standard paper tray..................................................75
Paper is jammed at the back of the machine ................................................76
Paper is jammed inside the machine.............................................................79
If you are having difficulty with your machine ......................................................84
Setting Dial Tone detection ...........................................................................91
Telephone line interference/
VoIP...........................................................................................................91
Improving the print quality....................................................................................92
Machine Information ..........................................................................................101
Checking the Serial Number........................................................................101
Reset functions ..................................................................................................101
How to reset the machine............................................................................102
C Menu and features 103
On-screen programming....................................................................................103
Menu table...................................................................................................103
How to access the menu mode ...................................................................103
Menu table .........................................................................................................104
Entering text.......................................................................................................113
D Specifications 114
General ..............................................................................................................114
Document Size ..................................................................................................115
Print media.........................................................................................................116
Fax.....................................................................................................................117
Copy ..................................................................................................................118

v
Scanner (For MFC-7290) ..................................................................................119
Printer (For MFC-7290) .....................................................................................120
Interface.............................................................................................................120
Computer requirements (For MFC-7290) .........................................................121
Consumable items.............................................................................................122
E Appendix 123
Brother numbers................................................................................................123
F Index 124

vi
Table of Contents
(Advanced User’s Guide)
The Advanced User’s Guide explains the following features and operations.
You can view the Advanced User’s Guide on the CD-ROM.
1 General Setup
IMPORTANT NOTE
Memory Storage
Volume settings
Automatic Daylight Saving Time
Ecology features
Toner Settings
LCD Contrast
Dial Prefix
Mode Timer
2 Security features
Security
3 Sending a fax
Additional sending options
Additional sending operations
Polling overview
4 Receiving a fax
Remote Fax Options
Additional receiving operations
Polling overview
5 Dialing and storing numbers
Telephone line services
Additional dialing operations
Additional ways to store numbers
6 Printing reports
Fax reports
Reports
7 Making copies
Copy settings
A Routine maintenance
Cleaning the machine
Checking the machine
Packing and shipping the machine
B Glossary
CIndex

1
1
1
Using the
documentation 1
Thank you for buying a Brother machine!
Reading the documentation will help you
make the most of your machine.
Symbols and conventions
used in the documentation 1
The following symbols and conventions are
used throughout the documentation.
Note
Most of the illustrations in this User’s
Guide show the FAX-2840.
General information 1
WARNING indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injuries.
Important indicates a potentially hazardous
situation which, if not avoided, may result in
damage to property or loss of product
functionality.
Prohibition icons indicate actions
that must not be performed.
Electrical Hazard icons alert you to a
possible electrical shock.
Fire Hazard icons alert you to the
possibility of fire.
Hot Surface icons warn you not to
touch machine parts that are hot.
Notes tell you how you should
respond to a situation that may arise
or give tips about how the current
operation works with other features.
WARNING
Important
Bold Bold style identifies keys on the
machine control panel or
computer screen.
Italics Italicized style emphasizes an
important point or refers you to
a related topic.
Courier
New
Courier New font identifies the
messages shown on the LCD
of the machine.

Chapter 1
2
Accessing the
Advanced User’s
Guide and Software
User’s Guide 1
1
This Basic User’s Guide does not contain all
the information about the machine such as
how to use the advanced features for Fax,
Copy, Printer 1, Scanner 1and PC-Fax 1.
When you are ready to learn detailed
information about these operations, read the
Advanced User’s Guide and Software
User’s Guide 1, that are on the
Documentation CD-ROM or the Installer CD-
ROM.
1For MFC-7290
Viewing Documentation
(For FAX-2840) 1
aTurn on your computer. Insert the
Documentation CD-ROM into your
CD-ROM drive. For Windows®users, go
to step c.
Note
(Windows®users) If the screen does not
appear automatically, go to My Computer
(Computer), double-click the CD-ROM
icon, and then double-click index.html.
b(Macintosh users) Double-click the
Documentation CD-ROM icon, and then
double-click index.html.
cClick your country.
dPoint to your language, point to View
Guide, and then click the guide you
want to read.

General information
3
1
Note
• (Windows®users only) Your Web browser
may display a yellow bar at the top of the
page that contains a security warning
about Active X controls. For the page to
display correctly you must click on the bar,
click Allow Blocked Content, then click
Yes in the Security Warning dialog box.
• (Windows®users only) 1For faster
access, you can copy all user
documentation in PDF format to a local
folder on your computer. Point to your
language, then click Copy to local disk.
1Microsoft®Internet Explorer®6.0 or greater.
Viewing Documentation
(For MFC-7290) 1
Viewing Documentation (Windows®)1
To view the documentation, from the Start
menu, select All Programs, Brother, MFC-
XXXX (where XXXX is your model name)
from the programs group, and then choose
User’s Guides.
If you have not installed the software, you can
find the documentation on the Installer
CD-ROM by following the instructions below:
aTurn on your computer. Insert the
Installer CD-ROM into your CD-ROM
drive.
Note
If the Brother screen does not appear
automatically, go to My Computer
(Computer), double-click the CD-ROM
icon, and then double-click start.exe.
bIf the model name screen appears, click
your model name.
cIf the language screen appears, click
your language. The CD-ROM Top Menu
will appear.
dClick Documentation.
eClick PDF documents. If the country
screen appears, choose your country.
After the list of User’s Guides appears,
choose the guide you want to read.
Viewing Documentation (Macintosh) 1
aTurn on your Macintosh. Insert the
installer CD-ROM into your CD-ROM
drive. The following window will appear.
bDouble-click the Documentation icon.
cIf the language screen appears, double-
click your language folder.
dDouble-click top.pdf. If the country
screen appears, choose your country.

Chapter 1
4
eAfter the list of User’s Guides appears,
choose the guide you want to read.
How to find Scanning instructions
(MFC-7290 only) 1
There are several ways you can scan
documents. You can find the instructions as
follows:
Software User’s Guide
Scanning
ControlCenter
Presto! PageManager User’s Guide
Note
Presto! PageManager is available as a
download from
http://nj.newsoft.com.tw/download/brother/
PM9SEInstaller_BR_multilang.dmg/
The complete Presto! PageManager
User’s Guide can be viewed from the Help
selection in the Presto! PageManager
application.
Accessing Brother
Support (Windows®)
(MFC-7290 only) 1
You can find all the contacts you will need,
such as Web support (Brother Solutions
Center) on the CD-ROM.
Click Brother Support on the main menu.
The following screen will appear:
To access our Web site
(http://www.brother.com/) click Brother
Home Page.
For the latest news and product support
information
(http://solutions.brother.com/), click
Brother Solutions Center.
To visit our Web site for genuine Brother
supplies
(http://www.brother.com/original/), click
Supplies Information.
To access the Brother CreativeCenter
(http://www.brother.com/creativecenter/)
for FREE photo projects and printable
downloads, click Brother
CreativeCenter.
To return to the main page, click Back.
Or, if you have finished, click Exit.

General information
5
1
Accessing Brother
Support (Macintosh)
(MFC-7290 only) 1
You can find all the contacts you will need,
such as Web support on the CD-ROM.
Double-click the Brother Support icon.
The following screen will appear:
To download and install Presto!
PageManager, click Presto!
PageManager.
For the latest news and product support
information
(http://solutions.brother.com/), click
Brother Solutions Center.
To visit our Web site for genuine Brother
Supplies
(http://www.brother.com/original/), click
Supplies Information.

Chapter 1
6
Control panel overview 1
FAX-2840
MFC-7290
123
7
8
9
123
7
8
9

General information
7
1
2345
6
7
2345
6
7

Chapter 1
8
1 One Touch keys
These 11 keys give you instant access to 22
previously stored numbers.
Shift
Lets you access One Touch numbers 12 to 22
when held down.
2 LCD (Liquid Crystal Display)
Displays messages to help you set up and use
your machine.
3 Mode keys:
FAX
Puts the machine in FAX mode.
(MFC-7290 only)
SCAN
Puts the machine in SCAN mode.
COPY
Puts the machine in COPY mode.
4Dialpad
Use these keys to dial telephone and fax
numbers and as a keyboard for entering
information into the machine.
5Stop/Exit
Stops an operation or exits from a menu.
6Start
Lets you start sending faxes or making copies.
7 Menu keys:
Clear
Deletes entered data or lets you cancel the
current setting.
Menu
Lets you access the Menu to program your
settings in this machine.
OK
Lets you store your settings in the machine.
Volume keys:
dor c
Press to scroll backwards or forwards through
menu selections. Press to change the volume
when in fax or standby mode.
aor b
Press to scroll through the menus and options.
Address Book
Let you access speed dial numbers directly.
8 COPY key:
Options
You can quickly and easily choose temporary
settings for copying.
9 FAX keys:
Hook/Hold
Press before dialing if you want to make sure a
fax machine will answer, and then press Start.
Lets you place telephone calls on hold.
Redial/Pause
Redials the last number called. It also inserts a
pause when programming quick dial numbers
or when dialing a number manually.
Resolution
Sets the resolution when sending a fax.

9
2
2
Loading paper and
print media 2
The machine can feed paper from the
standard paper tray or manual feed slot.
(For MFC-7290)
When you put paper into the paper tray, note
the following:
If your application software supports
paper size selection on the print menu,
you can select it through the software. If
your application software does not
support it, you can set the paper size in
the printer driver or by using the control
panel buttons.
Loading paper in the standard
paper tray 2
You can load up to 250 sheets. Paper can be
loaded up to the maximum paper mark (bbb)
on the right-hand side of the paper tray. (For
recommended paper to use, see Paper
capacity of the paper trays uu page 17.)
Printing on plain paper, thin paper or
recycled paper from the standard
paper tray 2
aPull the paper tray completely out of the
machine.
Loading paper 2

Chapter 2
10
bWhile pressing the green paper-guide
release lever, slide the paper guides to
fit the paper size you are loading in the
tray. Make sure that the guides are
firmly in the slots.
Note
For Legal or Folio size paper, press the
release button in the bottom of the paper
tray and then pull out the back of the paper
tray.
cFan the stack of paper well to avoid
paper jams and misfeeds.
dPut paper in the tray and make sure:
The paper is below the maximum
paper mark (bbb) (1).
Overfilling the paper tray will cause
paper jams.
The side to be printed on must be
face down.
The paper guides touch the sides of
the paper so it will feed properly.

Loading paper
11
2
ePut the paper tray firmly back in the
machine. Make sure that it is completely
inserted into the machine.
fRaise the ADF document output support
flap (1) and unfold the support flap (2) to
prevent paper from sliding off the face-
down output tray.
Loading paper in the manual
feed slot 2
You can load envelopes and special print
media one at a time into this slot. Use the
manual feed slot to print or copy on labels,
envelopes or thicker paper.
Note
The machine automatically turns on the
Manual Feed mode when you put paper in
the manual feed slot.
Printing on plain paper, thin paper or
recycled paper from the manual feed
slot 2
aRaise the ADF document output support
flap (1) and unfold the support flap (2) to
prevent paper from sliding off the face-
down output tray, or remove each page
as soon as it comes out of the machine.
1
2
1
2
1

Chapter 2
12
bOpen the manual feed slot cover.
cUsing both hands, slide the manual feed
slot paper guides to the width of the
paper that you are going to use.
dUsing both hands, put one sheet of
paper in the manual feed slot until the
front edge of the paper touches the
paper feed roller. When you feel the
machine pull in the paper, let go.
Printing on thick paper, bond paper,
labels and envelopes 2
When the back output tray is pulled down, the
machine has a straight paper path from the
manual feed slot through to the back of the
machine. Use this paper feed and output
method when you want to print on thick
paper, labels or envelopes.
Note
Remove each printed sheet or envelope
immediately to prevent a paper jam.
