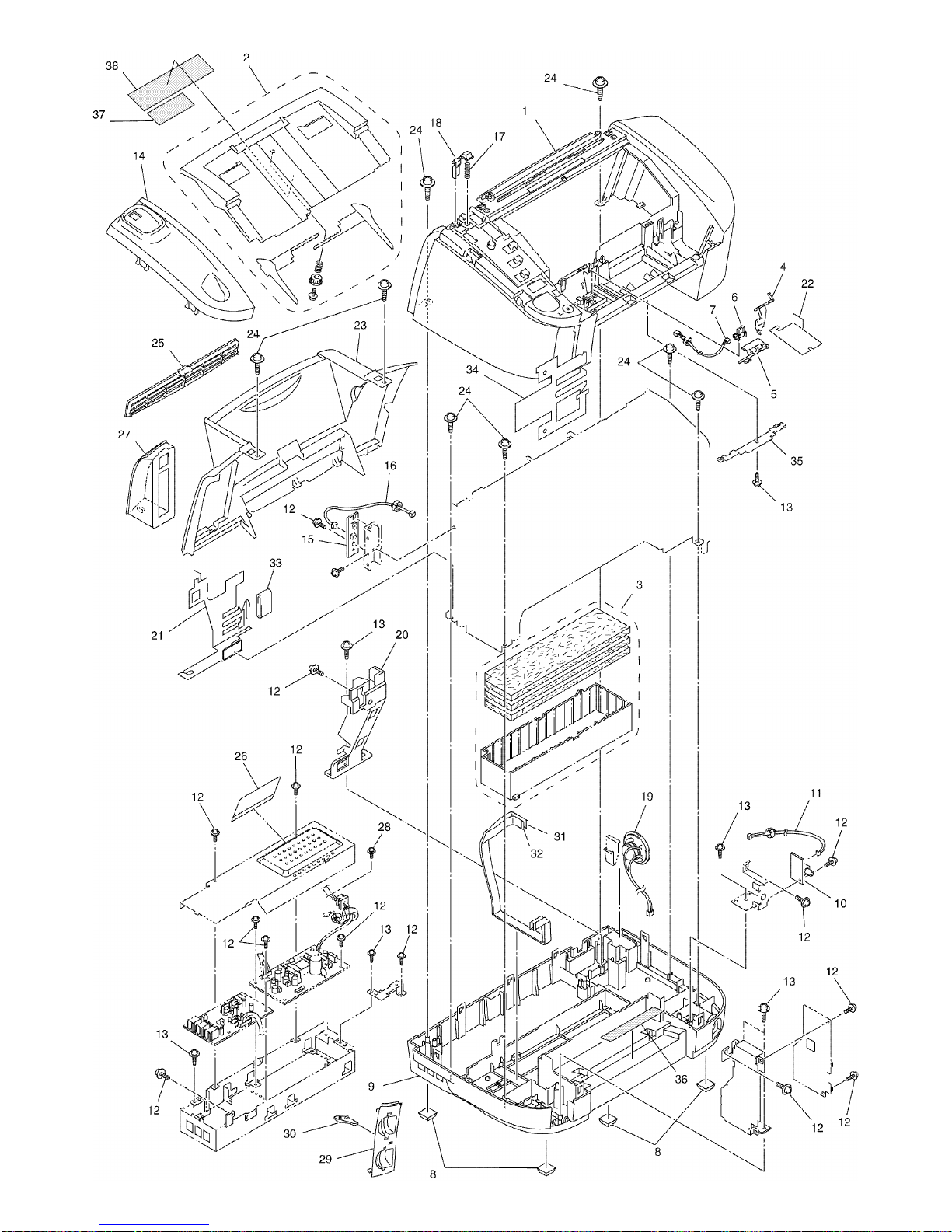

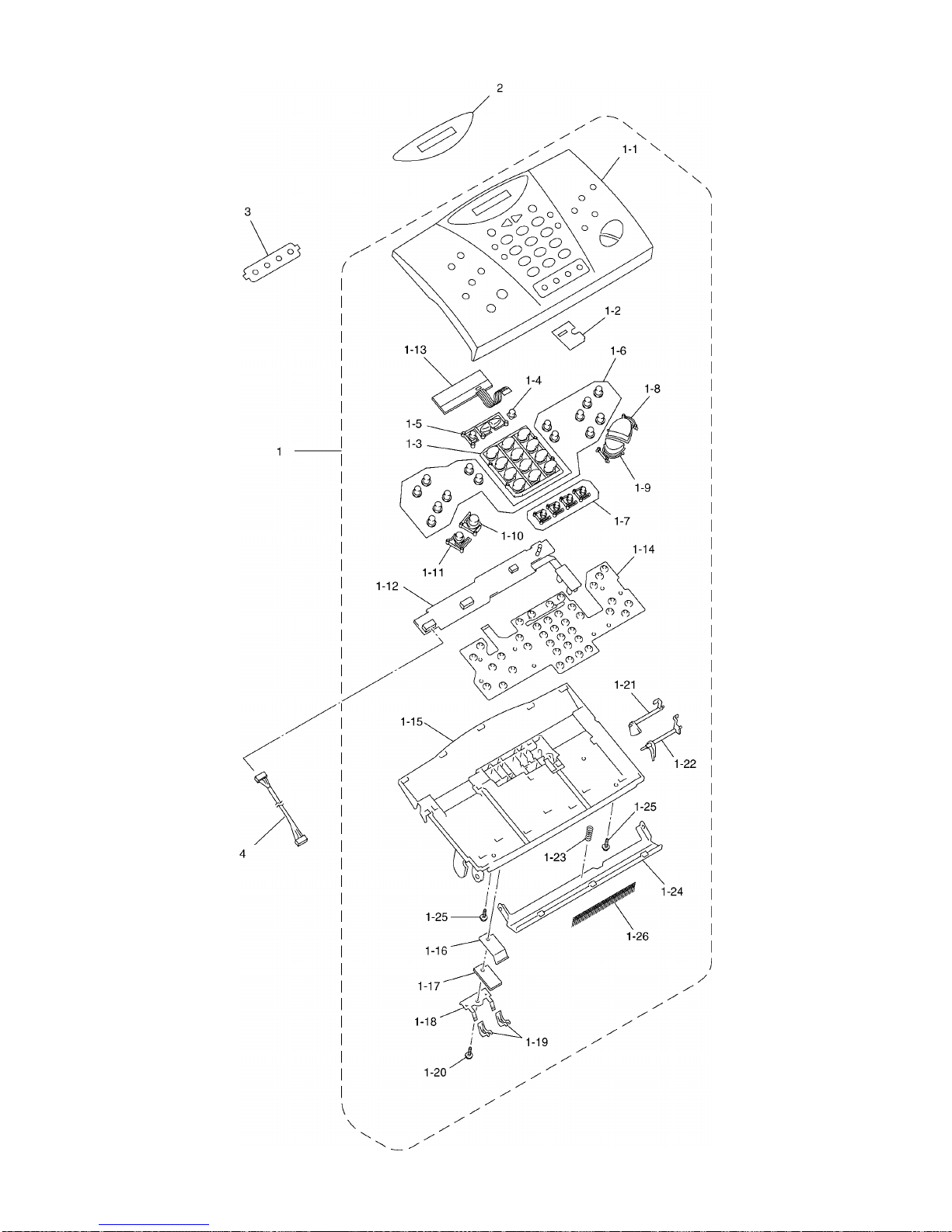

FACSIMILE EQUIPMENT
PARTS REFERENCE LIST
MODEL: MFC830 / MFC840
( For Germany / United Kingdom / France /
Norway / Belgium / Netherlands /
Switzerland / Ireland / Denmark/ Austria /
Spain / Italy / South Africa / Sweden )

© Copyright Brother 2000
All rights reserved
No part of this publication may be reproduced in any form
or by any means without permission in writing from the
publisher.
Specifications are subject to change without prior notice.

NOTES FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q' ty
(3) Description
Note: No orders without Parts Code or Tool No. can be accepted.
[Example] (1) (2) (3)
REF.NO. CODE Q' TY DESCRIPTION REMARKS
2. Parts change will be informed by the technical information.
COUNTRIES
GERMANY ----- GER
UNITED KINGDOM ----- UK
FRANCE ----- FRA
NORWAY ----- NOR
BELGIUM ----- BEL
NETHER LANDS ---- NLD
SWITZERLAND ---- CHE
IRELAND ---- IRE
DENMARK ---- DEN
AUSTRIA ---- AUT
SPAIN ---- SPA
ITALY ---- ITA
SOUTH AFRICA ---- ZAF
SWEDEN ---- SWE

List1(SCANNER FRAME)
REF. NO.
PART CODE
QTY.
DESCRIPTION
REMARKS
1
LE3112001
1
SCANNER FRAME
2
UF9009001
2
PRESSURE ROLLER
3
LE2472001
2
PRESSURE ROLLER SPRING
4
LE2471001
2
PRESSURE ROLLER SHAFT
5
UL6244002
2
PINCH ROLLER
6
UU7033001
1
PINCH ROLLER LEAF SPRING
7
087310816
3
TAPTITE, CUP B M3X8
8
LE3113001
1
SCANNER DRIVE ASSY
8-1
UU7030001
1
SEPARATION ROLLER GEAR
<Eliminated>
8-2
LE3116001
1
SCANNER MOTOR
8-3
0A4300605
1
SCREW, PAN (S/P WASHER) M3X6
9
UU7031001
1
SEPARATION ROLLER
10
LE3477001
1
DOCUMENT EJECTION ROLLER ASSY
11
LE3476001
1
DOCUMENT FEED ROLLER ASSY
12
UU7039001
2
GEAR27
13
UU7284001
2
BUSHING
14
UU2028001
2
CIS SPRING
15
LG2593001
1
CIS UNIT, COLOR 300DPI
16
LG2594001
1
CIS HARNESS
17
LG2592001
1
SCANNER MOTOR HARNESS
18
087311016
2
TAPTITE, CUP B M3X10
19
UU7030001
1
SEPARATION ROLLER GEAR
MFC830, MFC840

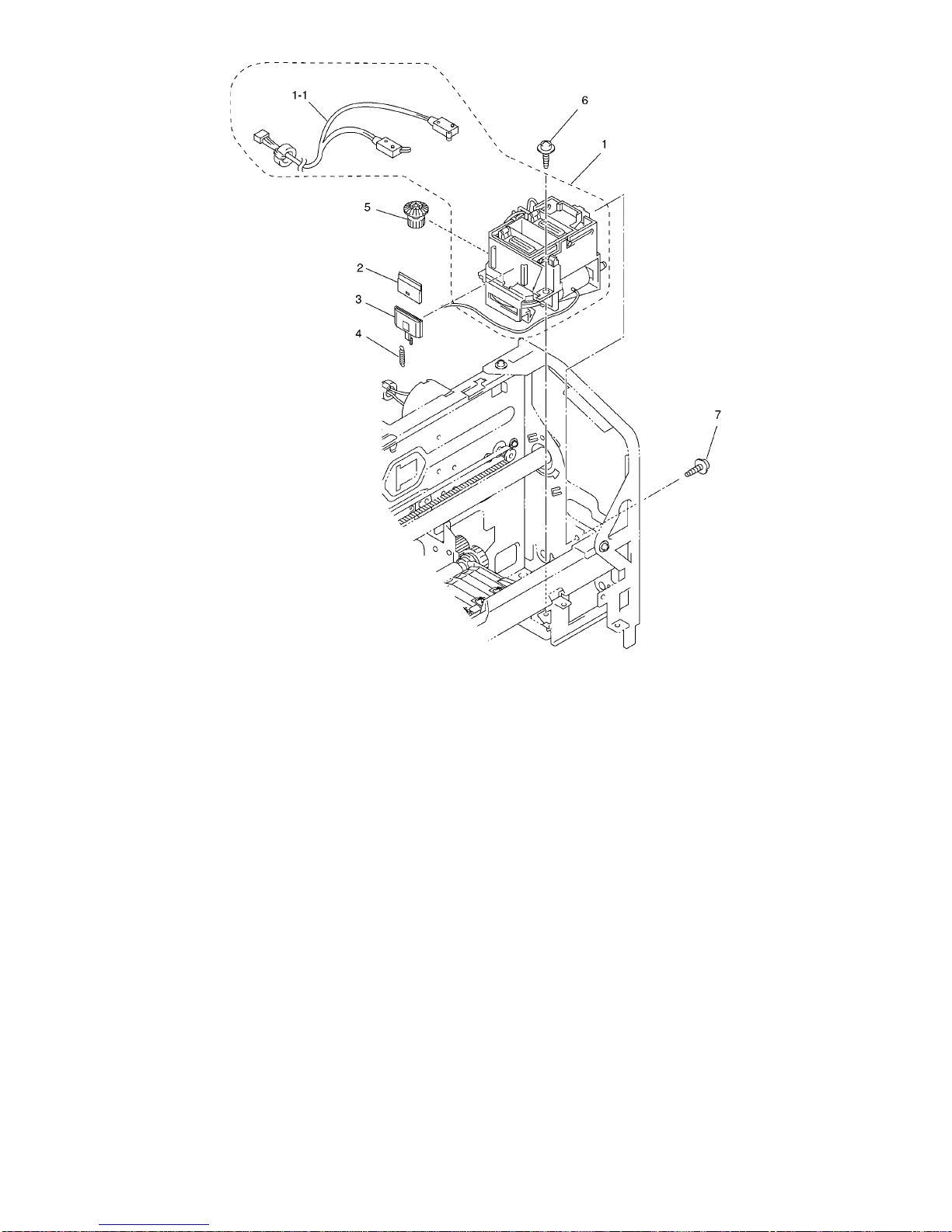

List2(MAIN CHASIS)
REF. NO.
PART CODE
QTY.
DESCRIPTION
REMARKS
1
LE3132001
1
PURGE GEAR 18
2
LE3133001
1
PURGE GEAR 19
3
LE3134001
1
PURGE BEVEL GEAR 18
4
LE3135001
1
GEAR STOPPER
5
LE3136001
1
PURGE GEAR SPRING
6
LE3939001
1
CARRIAGE MOTOR
7
LE3142001
1
CARRIAGE ASSY
7-1
UU1061001
1
CARRIAGE PRESSER
7-2
UU1062001
1
PRESSER SPRING
8
LE3166001
1
ECCENTRIC BUSHING L
9
LE3167001
1
ECCENTRIC BUSHING R
10
0A5300605
5
SCREW, PAN (S/P WASHER) M3X6
11
UU1080001
1
RAIL PRESSURE SPRING
12
UU1454001
1
CARRIAGE TIMING BELT
13
LE3169001
1
IDLE PULLEY HOLDER
14
LE3170001
1
IDLE PULLEY HOLDER
15
UD6025001
1
IDLE PULLEY SHAFT
16
LE3171001
1
TENSION SPRING
17
LE3172001
1
ENCODER STRIP
18
UD6012001
1
ENCODER STRIP SPRING
19
LG2606001
1
HEAD FLAT CABLE, 23P
20
LG2605001
1
HEAD FLAT CABLE, 22P
21
LE3175001
1
IDLE PULLEY STOPPER
22
LE3178001
1
PURGE LEVER
23
LE3179001
1
PURGE LEVER SPRING
24
LE3180001
1
PURGE SHAFT
25
UU1088001
1
FFC HOLDER 1
26
LE3176001
1
FFC HOLDER 2
27
LE3183001
1
PAPER FEED ROLLER ASSY
28
048080345
1
RETAINING RING, E8
29
LE3187001
1
PF ROLLER PULLEY L
30
LE3188001
1
PAPER EJECTION ROLLER
31
LE3190001
1
EJECTION ROLLER PULLEY
32
UF0026001
1
PAWLED BUSHING
33
UF8105001
1
CONDUCTIVE BUSHING
34
048050345
1
RETAINING RING, E5
35
LE3191001
1
PF TIMING BELT S
36
LE3195001
4
PAPER PRESSURE HOLDER
37
LE3198001
4
PRESSURE HOLDER SPRING
38
LE3201001
1
PAPER FEED MOTOR ASSY
39
0A4300605
2
SCREW, PAN (S/P WASHER) M3X6
40
LE3207001
1
PF TIMING BELT L
41
LE3208001
1
TENSION PLATE ASSY
42
LE3600001
1
TENSION SPRING
43
LG2597001
1
CARRIAGE PCB ASSY
44
UG5577000
1
FLAT CORE :33.5-20
45
UG5569000
1
FLAT CORE :33.5-12
46
LE3910001
1
PLATEN
47
US2967001
8
STAR WHEEL
48
LE3606001
8
STAR WHEEL SPRING
49
LE3881001
2
STAR WHEEL RETAINER
50
LE3194001
1
PAPER EJECTION SENSOR ACTUATOR
51
LG2239001
1
PAPER EJECTION SENSOR
52
LG2741001
1
PAPER EJECTION SENSOR HARNESS
53
LE3199001
1
RESISTRATION SENSOR ACTUATOR
54
LE3200001
1
TWIST SPRING
55
083321216
2
TAPTITE, PAN S M3X12
56
087320616
3
TAPTITE, CUP S M3X6, MFC830
56
087320616
4
TAPTITE, CUP S M3X6, MFC840
57
087320515
3
TAPTITE, CUP S M3X5
58
087210616
3
TAPTITE, CUP B M2X6
59
LK0220001
0.1
PRINT HEAD UNIT (INCLUDING 10 PAIRS OF UNITS)
59 LK0610001 1PRINT HEAD UNIT (INCLUDING 1 PAIR OF UNIT)
59-1
LK0198001
2
MANIFOLD CAP S
59-2
LK0199001
2
NOZZLE PROTECTOR
60
LE3182001
1
MANIFOLD CAP L
61
LE3155001
1
HEAD DRIVER CLAMP L
62
LE3158001
1
HEAD DRIVER CLAMP R
63
LE3162001
1
INK CARTRIDGE GUIDE
63
LE3162001
1
INK CARTRIDGE GUIDE
63
LE3162001
1
INK CARTRIDGE GUIDE
64 LE3847001 1PAPER GUIDE FILM L
65 LE3848001 1PAPER GUIDE FILM R
MFC830, MFC840

List3(ASF)
REF. NO. PART CODE QTY. DESCRIPTION REMARKS
1 LE3250001 1
A
SF
1-1 LE3252001 1 BASE PAD
1-2 LE3253001 2 PAPER SUPPORTER
1-3 LE3254001 1 SEPARATION PAD
1-4 LE3255001 1 SEPARATION PAD HOLDER
1-5 LE3434001 1 HOLDER CAP
1-6 LE3259001 1 PAPER FEED SHAFT ASSY
1-7 UF9722001 1 BUSHING R
1-8 UF0026001 1 BUSHING L
1-9 LE3432001 1
A
SF ROLLER
1-10 LE3268001 1 TORSION SPRING
1-11 LE3522001 2 PAPER STOPPER FILM
1-12 LE3235001 1 SEPARATION PAD HOLDER STOPPER
2 08732061
6
3 TAPTITE, CUP S M3X6
MFC830, MFC840
