Brother GTX Series User manual

> A reference guide for all GTX pro users
COOK
BOOK
Dealer v01

Mandatory Temperature & Humidity Requirements
ENVIRONMENTAL CONDITIONS
Required to keep your warranty! Temperature & Humidity are recorded in the Log file!
OKOK
MENUMENU
Go to the menu: Maintenance > Temperature/Humidity info >
> Don’t forget that you have to define a surface of 14 X 16 inches [35 X 40 cm] with your Pre-Treatment
machine to weight the amount of spray, with a scale, after applying the Pre-Treatment liquid on a T-shirt!
> For example, on a Schulze PTM, you should enter a lenght of 36 cm and the full width of 4 nozzles will be
40 cm! And then, calibrate the PT machine to spray 30 g on the garment!
2
!
> This mixing ratio might vary due to the type of garment which is used. Use your experience!
PRE-TREATMENT RATIO & QUANTITY
!
> If temperature is too cold, printer will switch automatically to Low-Temp Mode and reduce the SPEED!
> If humidity too low, please install a HUMIDIFIER!

HEAT PRESS SETTINGS FOR PRE-TREATMENT DRYING
HEAT PRESS & TUNNEL DRYER SETTINGS FOR INK CURING
VERY IMPORTANT RULE
The Brother GTX pro should A LWAY S be left with Power ON
NEVER shut OFF the printer except if requested by the display message only!
Power is requested to perform the needed recirculation of the inks every day.
POWER
NEVER POWER OFF THE PRINTER!
Use Silicon Sheet on the heat press to cover the Pre-treatment and clean the surface every 5 T-shirts min.!
Check the REAL Temperature with a Probe or with Strips to be sure that you are safe for the washability!
3

For 1 Minute
1’
15 cm
5 cm
SHAKING
5 cm
1 Minute
For 1 Minute
1’
15 cm
5 cm
SHAKING
5 cm
1 Minute
PRE-TREATMENT RATIO & QUANTITY
PRE-TREATMENT RATIO & QUANTITY
PRE-TREATMENT RATIO & QUANTITY
DAILY AGITATION OF WHITE INK
POUCH REPLACEMENT - VERY IMPORTANT PROCESS!
Open the cartridge's lid on a flat surface and remove the empty pouch.
Unpack carefully a new ink pouch from its shipping carton.
Push the green tip end of the ink pouch into the cartridge until it clicks into place.
Straighten the ink pouch to align it with the gutter of the lid of cartridge, and
mount in position inside the metal spring by pulling it with your hand.
If the edge of the ink pouch is bent or undulating significantly, make it straight and
flat with your hand to avoid wrinkles.
Place the pouch in a straight alignment with the cartridge. Align lines with each other!
Close the lid, verify if the spring is rolling to the front. Place the cartridge at around
45° and push on the 2 upper metallic latches to add a bit more tension on the ink
pouch. Double-check that you have not generated some wrinkles again !
Clean the outside of the green tip end that goes in contact with needle inside printer.
Attach a shelf life sticker included with ink pouch onto the front of the cartridge.
Perform the procedure shown below if the message "Remove the white ink
cartridge and shake it" is displayed before starting printing operation.
Take out the white ink cartridge from
the printer.
Shake the cartridge horizontaly 100
times side by side to stir the white ink.
At a ink level of approximately 15 cm,
shake the cartridge with cover open and
with the ink pouch slightly unwinded, to
make the ink easier to stir.
OKOK
MENUMENU
!
> Repeat the same process on the other white ink cartridge! On the operation panel, press and the White
Ink refilling will be performed automatically by the printer!
!
> If you are not trying to avoid wrinkles like explained above, you could get the errors 2084 & 2085
displaying: "Winding-up Failure"
4

!
!
BEST PRACTICE FOR PRINTING > A MUST!
ADJUSTING THE HEIGHT OF THE PLATEN
NEW "PLATEN TOO LOW" SENSORS
1
3
2
13
2
To adjust the platen height, loosen the Platen Fixing
Lever and move the Platen Height Adjustment Lever
. to a lower position.
Re-tighten the Platen Fixing Lever if you are happy with
new distance. Flaten down all the wrinkles of the fabric.
To check if new textile is not detected by the sensor,
push the button and repeat the process if needed!
If you need to go down further more, remove 1 or 2 col-
lars, loosen the knob and push down the platen bearing
by 1 or 2 steps.
Reattach everything and tighten again the Platen Fixing Lever
>ALWAYS KEEP THE CLOSEST DISTANCE BETWEEN THE PRINTHEADS AND THE SURFACE OF THE GARMENT!
IT IS VERY IMPORTANT FOR THE LONG LIFE OF YOUR PRINTER!
To provide an optimum printing image quality when a thicker textile is used, you
need to adjust the platen's height related to the thickness of the textile.
1
2
3
> Don't forget to bring back the platen to the Aposition after printing on thicker material!
> If you have to print above hem and seams, go for UNI-directional printing to keep quality!
> Always leave the knob tighten after changing position!
3
5

S/N: M9933069
Firm Ver 1.32.0002 Prints: 770
15/01/2021 10:39:15
S/N: M9933069
Firm Ver 1.32.0002 Prints: 771
15/01/2021 10:41:07
DAILY MAINTENANCE
OKOK
MENUMENU
Repeat the same procedure to perform a nozzle test of the White printhead
Menu > Test Print > Nozzle Check White > to check White on a black paper sheet or inkjet plastic sheet
> HOW TO DO A PRINTHEAD CLEANING?
6
> HOW TO DO A NOZZLE TEST ?
You have to print a nozzle test for White & CMYK every morning before using the
printer. It is the only way to know the status of the nozzles in the machine!
NOZZLE TEST
If only a few nozzles are missing, select Head Cleaning >Powerful Cleaning and select PH + OK
If more than 10 nozzles, select Head Cleaning >Super Cleaning and select PH + OK
> If not all nozzles are firing, start a Head Cleaning to open the closed nozzles!
OKOK
MENUMENU
Always place the Platen at level A
Menu > Test Print > Nozzle Check CMYK > to check colors on a white paper sheet
!
TO BE DONE EVERY WORKING DAY
!
> Perform a new Nozzle Test to check the result and redo if ALL nozzles are NOT firing!

days
7
WEEKLY MAINTENANCE
Suction Cap & Exhaust Cleaning
!
TO BE DONE EVERY WEEK
To achieve a good weekly maintenance you will have to do the following actions:
The black silicon lips of the two cappings should be cleaned with the NEW Cleaning
Stick Tdipped in Cleaning Solution.
It is necessary to remove the build-up of the remaining ink staying on the edges of
the cappings. It will prevent air leakage and keep the good suction of the pumps!
Be careful not to touch the foam! Keep it flat!
Exhaust Cleaning Direction to cleanSuction Cap Cleaning
+ Nozzle Guards Cleaning
+ Exhaust Cleaning
+ Wiper Cleaning
+ Suction Cap Cleaning
WEEKLY MAINTENANCE
The four extrusion lances [see in the blue circle] and the 2 holes
sitting on the side of the capping at the Exhaust position
need also to be cleaned and free of dried ink.
Always clean first the hole at the front and go backward
while cleaning the lances and finish carefully by the last hole!
OKOK
MENUMENU
> Always use this menu to perform cleanings or replace parts:
Menu > Maintenance > Maintenance Part Clean/Replace > and follow instructions on the display
15
Min
7

DO NOT
TOUCH
1 46 2
35
X0060
CLEAN
Wiper Cleaning
!
TO BE DONE EVERY WEEK
Nozzle Guards Cleaning
!
TO BE DONE EVERY WEEK
8
> Do not empty remaining Cleaning
Solution from the Cleaning Cup in the
Maintenance station but in the Waste
Tank below the printer!
Both white plastic wipers [White & CMYK] should be
cleaned on both sides and tops with the Cleaning Stick T
dipped in Cleaning Solution.
Use the tip of the Cleaning Stick T
to clean under the teeth of the wiper
holder and remove the dried ink.
Be sure to use the Cleaning Stick T
separately for white ink and color ink!
R
Clean Stick
Wipe clean the 2 nozzle guards & with the Clean Stick R dipped in Cleaning
Solution. Same way to clean the metallic parts & of the printhead.
A very important place to clean is area between nozzle guard and nozzle plate.
Be sure NOT to touch the nozzle surface at all!
12
3
45
6
> Manually move the carriage to such
a position that you can perform the
cleaning with ease.

12 3
MAINTENANCE PARTS EXCHANGE
MAINTENANCE PARTS CLEANING & REPLACING PROCEDURES
OUTSIDE
FAN
FINE
MESH
COARSE
WARNING
ERROR
WE
In case of Warning/Error messages please follow the below procedures
FLUSHING FOAM REPLACEMENT
FAN FILTER REPLACEMENT
WIPER CLEANER REPLACEMENT
Lift up the Flushing Receivers and
place them on cleaning paper to
avoid dripping ink.
Remove Flushing Foams and clean
the holes of the 2 grey receivers.
Install new Foams and put back the
receivers at their original location.
Clean also under the receivers place!
Extract the 2 filter holders from
the back of the machine.
Mount a new Fan Filter in each
black frames.
Coarse mesh surface in direction
of the inner side of the printer
and fine mesh surface in direction
of the outside of the printer.
Simply remove the old Wiper Cleaner by lifting it up. Replace with a new one.
OKOK
MENUMENU
Menu > Maintenance > Maintenance Part Clean/Replace > and follow instructions on the display
> Always use this menu to perform cleanings or to replace parts
15
Min
!
> After removing and replacing of the Flushing Foams, do NOT forget to clean the side holes of the receivers!
It is very critical to avoid clogging of the ink path to the waste tank!
9

CLEAN
GREASE
1
24
+
3
ADDITIONAL WEEKLY MAINTENANCE

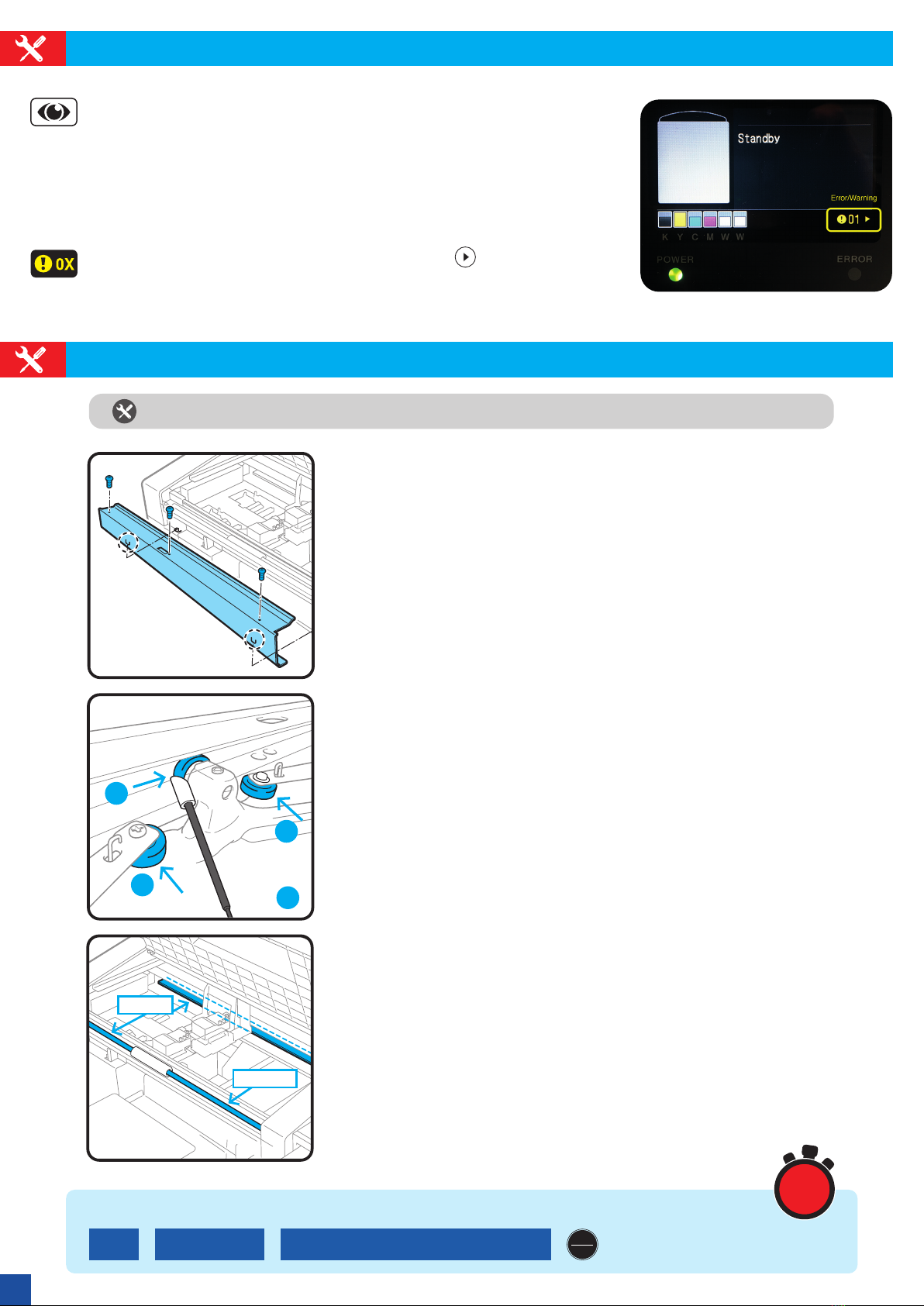

INTERNAL CLEANING OF PRINTER
OKOK
MENUMENU
Menu > Maintenance > Maintenance Part Clean/Replace > and follow instructions on the display
> Always use this menu to perform cleanings or replace parts:
15
Min
• Remove 3 Screws to remove the Encoder Cover.
• With the Clean Stick R dipped in Cleaning Solution,
wipe away the stains on the 4 Carriage Rollers
[There is 1 more Roller hidden just below the Roller 1 ]
• Move the carriage from side to side to wipe all around
the 4 rollers completely.
• Clean the Carriage Guide Shaft and the 3 sides
[upper, front, and lower] of Roller Guide with a non-fuzzy cloth
moisten with a small amount of Isopropyl Alcohol [95°]
• Do not use alcohol on other parts than the carriage
guide shaft and the roller guide!
• Apply a proper amount of Molykote 30 Grease onto
the Carriage Guide Shaft only [never on the Roller Guide!]
• Remove 3 screws to take out the encoder metal cover.
With your non-fuzzy cloth moisten with Alcohol, clean
carefully both side of the Encoder Strip
• Perform a CR Speed Adjustment.
Menu > Printer Setting > CR Speed Adjustment > OK
• Print out a Nozzle Check pattern and do a Nozzle
Cleaning if necessary.
If the inside of your printer is covered with INK MIST, perform a thorough CLEANING
Visual inspection is important to keep your printer up and
running. Verify all the moving parts of the machine and also
check for leakage of ink.
Please follow also all the instructions that could appear on
the display of the printer!
When you see a yellow number push the key to know
what you have to do to erase the Error/Warning message.
10

0
MIN
40
MAX
C
°
°
WHEN NOT USING PRINTER FOR A LONG PERIOD OF TIME
!
!
INK & SOLUTIONS STORAGE
HOW TO EXTRACT A LOG FILE FROM THE PRINTER?
OKOK
MENUMENU
Insert a USB stick in the front slot of the printer to be able to copy the log file
Go to the menu: Maintenance > Log copy to USB >
The printer can be used through normal procedure
after the storage period, by performing the following
maintenance tasks before:
• Please empty the Waste ink Tank.
• Check the amount of Cleaning Solution in the cleaning
liquid tank, and refill the tank if its amount is below the
proper level.
• Stir the white ink if a white ink cartridge stirring mes-
sage is displayed on the operation panel screen.
• Clean toroughly the Nozzle Guard, Wiper,Suction
Cap and Exhaust Cap.
• Print out a Nozzle Check pattern for White and CMYK.
• If a non-firing nozzle is found: Perform Head Cleanings,
run the Nozzle Check prints and verify the result again.
Continue same process until the blocked nozzles are ALL
OPEN again!
CMYK & White inks, Cleaning Solution, Maintenance Solution &
Pretreatment Solution should be stored at a temperature range
between minimum 0° and 40° maximum!
> When the printer will not be used for a prolonged period of time, take appropriate
procedures before storing the printer depending on storage period or conditions.
> DO NOT turn the printer OFF, otherwise, the printer may be DAMAGED !
!
> REPEAT THE SAME WHOLE PROCEDURE EVERY 2 WEEKS!
EVERY 2 WEEKS OF INACTIVITY
> Be carefull NOT to go below Zero degree!
> Please ROTATE the pouches boxes every week!
SHAKING
5cm
1 Minute
MNT
CLEANINGS
S/N: M9933069
Firm Ver 1.32.0002 Prints: 771
15/01/2021 10:41:07
S/N: M9933069
Firm Ver 1.32.0002 Prints: 770
15/01/2021 10:39:15
Nozzle Tests
EMPTY
FULL
LOW
LEVEL
11

INK POUCHESLIQUIDSOTHER PARTS
Product Description Product Code Prize/Unit
C
M
Y
K
Cyan Ink Pouch 350cc [GCX-4C35-1]
Magenta Ink Pouch 350cc [GCX-4M35-1]
Yellow Ink Pouch 350cc [GCX-4Y35-1]
Black Ink Pouch 350cc [GCX-4K35-1]
Cleaning Solution 1,9Kg [GCX-4E02]
Maintenance Solution Pouch 700cc [GCX-4S70]
PreTreatment Liquid 5Kg-4L [GCX-4P05]
Wiper Cleaner [2 pieces in the box]
Flushing Foam [2 pieces in the box]
Cleaning Sticks [50 pieces in the bag]
Fan Filter [2 pieces in the box]
BGCX40C03500112
BGCX40M03500112
BGCX40Y03500112
BGCX40K03500112
C
M
Y
K
Cyan Ink Pouch 700cc [GCX-4C70-1]
Magenta Ink Pouch 700cc [GCX-4M70-1]
Yellow Ink Pouch 700cc [GCX-4Y70-1]
Black Ink Pouch 700cc [GCX-4K70-1]
BGCX40C07000112
BGCX40M07000112
BGCX40Y07000112
BGCX40K07000112
WWhite Ink Pouch 2 x 700cc [GCX-4W70]BGCX40W07000022
SB6673001
SC0935001
SB7007001
SB7008001
Cleaning Sticks [100 pieces in the bag] N400001601
Cleaning Sticks SET [6x type + 6x type] SB5858201
BGCX40E002K0052
BGCX40S07000012
BGCX40P005K0042
CS
MS
PT
PreTreatment Liquid 20Kg-4L [GCX-4P20]BGCX40P020K0032
PT
Curious Skin black A4 paper [for Nozzle Tests]
N400001660
INKS & CONSUMABLES
> Order via email to: b.westerho@brother-ism.com
[e-mail]
R
T
R
T
RT
GTX SERIES MAINTENANCE TUTORIAL VIDEOS
DEALER CONTACT
INK & CONSUMABLES
€
Company Name: Email address:
Representative: Phone number:
All the maintenance procedures described in this Cookbook MUST be performed on a
daily, weekly, or prompted basis in order to keep your printer performing properly.
> Please read carefully the Instruction Manual for each specific maintenance procedure for step by step instructions!
Please also check very useful videos at:
https://www.youtube.com/user/BrotherGTSeries/videos
