Brother PocketJet 6 User manual

P-TOUCH®EDITOR SOFTWARE
USER’S GUIDE
PJ-623/PJ-663
Mobile Printer
Version A
US ENG

i
Introduction
The Brother mobile printers model PJ-623 and PJ-663 (with Bluetooth) are compatible with many Windows®
and Macintosh®software applications, printing a full letter or legal size document almost anywhere you need
to work. The printers are also compatible with many mobile devices, printing with text or from a custom
printing application. To make this development easier, the printers come with P-touch Editor, a full featured
document design and layout software application that helps you create a custom looking form or template
which can be downloaded and saved in the printer nonvolatile memory. Once saved, you simply send text
data strings to populate the data fields in the form or template and then print out the entire document.
This guide will show you how easy it is to use P-touch Editor and other Brother software applications to print
from using text data.
Important Notice
The contents of this document and the specifications of this product are subject to change without notice.
Brother reserves the right to make changes without notice in the specifications and materials contained
herein and shall not be responsible for any damages (including consequential) caused by reliance on the
materials presented, including but not limited to typographical and other errors relating to the publications.
Screen images in this document may differ depending on your computer's operating system and your
product model.
Before using the printer, be sure to read all documents included with the printer for information about safety
and proper operation.
Symbols used in this document
The following symbols are used throughout this document.
About this document
This document (PDF) is included on the CD-ROM.
Note
If using Adobe®Reader®to view this document on a computer, the cursor changes to when the cursor
is placed on a link. Click the link to open the corresponding page. For information about using
Adobe®Reader®, see the help file included with Adobe®Reader®.
This symbol indicates information or directions that should be followed. Ignoring them may result in
damage, or failed operations.
This symbol indicates notes that provide information or directions that can help you better understand
and use the product more efficiently.

ii
Table of Contents
1 How to install/uninstall P-touch®Editor Software 1
Installing P-touch Editor Software..............................................................................................................1
Uninstalling P-touch Editor Software .........................................................................................................2
2 How to use P-touch Editor 3
Using P-touch Editor..................................................................................................................................3
Starting P-touch Editor ........................................................................................................................3
Operation modes .................................................................................................................................5
Using P-touch Editor Help .........................................................................................................................8
Viewing the P-touch Editor help file.....................................................................................................8
Printing the P-touch Editor help file ...................................................................................................10
3 How to use P-touch Transfer Manager & P-touch Library 11
Using P-touch Transfer Manager.............................................................................................................11
Starting P-touch Transfer Manager ...................................................................................................11
Transferring templates or other data from the computer to the printer..............................................13
Backing up templates or other data saved in the printer ...................................................................17
Deleting all data saved in the printer .................................................................................................18
Using P-touch Library ..............................................................................................................................19
Starting P-touch Library.....................................................................................................................19
Opening and editing templates..........................................................................................................20
Printing templates..............................................................................................................................21
Searching for templates or other data ...............................................................................................21

1
1
1
P-touch Editor allows you to create templates with various kinds of designs.
Refer to the P-touch Editor help file for template design samples and details on creating, printing, and saving
your templates.
To download the latest driver and software, please visit the Brother Solutions Center website:
http://solutions.brother.com
Installing P-touch Editor Software 1

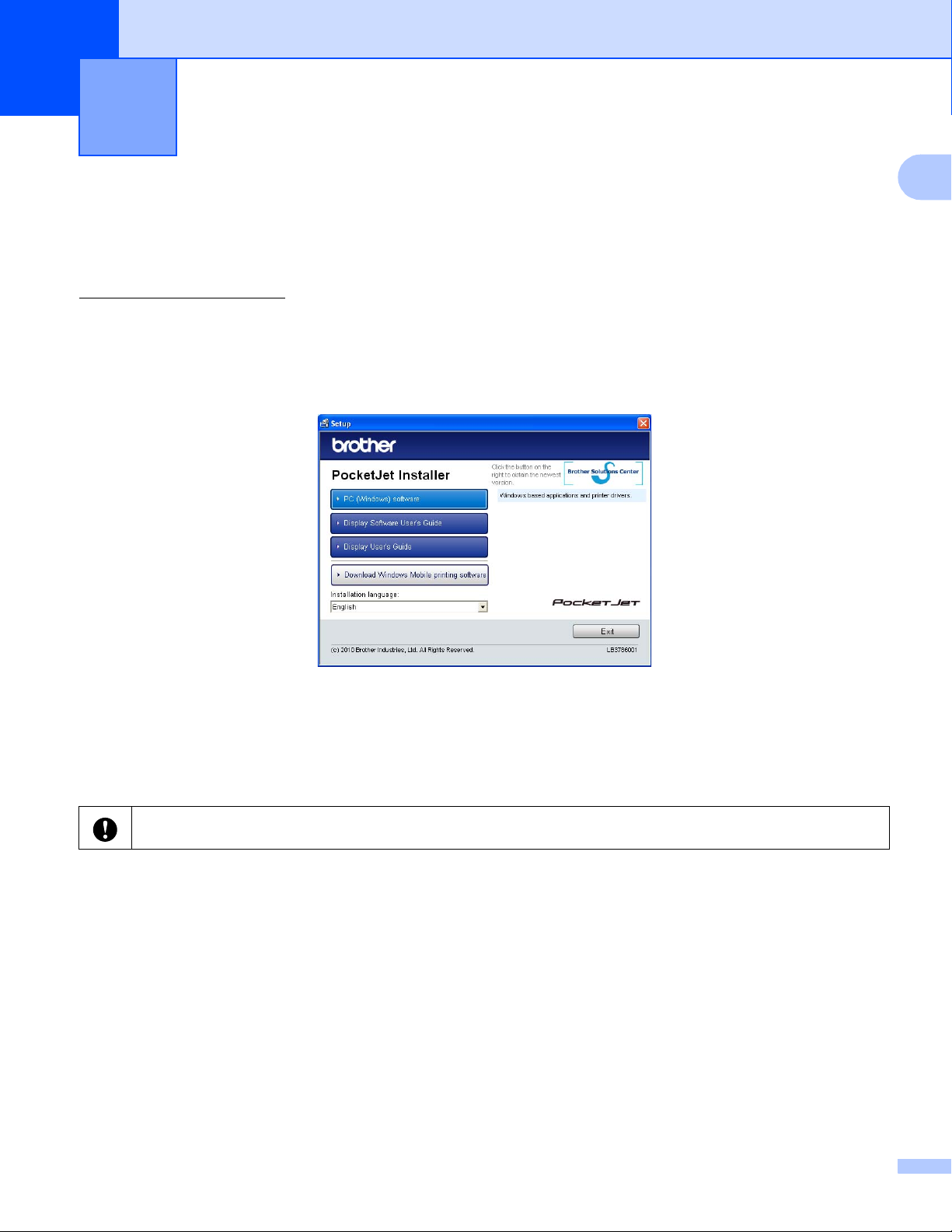

aInsert the CD-ROM into your computer’s CD-ROM drive.
bClick [PC (Windows) software], and then click [P-touch Editor 5.0].
cFollow the on-screen instructions to install the software.
dClick [Finish] to close the installation screen.
How to install/uninstall P-touch®Editor
Software 1
Certain functions cannot be used if the printer driver is not installed.
For details about installing the printer driver, refer to the Quick Setup Guide.

How to install/uninstall P-touch®Editor Software
2
1
Uninstalling P-touch Editor Software 1
aFor Windows®XP:
From [Control Panel], go to [Add or Remove Programs].
The [Add or Remove Programs] dialog box appears.
For Windows Vista®/ Windows®7:
From [Control Panel], go to [Programs] and open [Programs and Features].
The [Uninstall or change a program] dialog box appears.
bChoose [Brother P-touch Editor 5.0], and click [Remove] (XP) / [Uninstall]
(Windows Vista®/Windows
®7).
cClick [OK].
The uninstall operation starts. After the software is removed from your computer, the
[Maintenance Complete] dialog box appears.
dClose the [Add or Remove Programs] (XP) / [Programs and Features]
(Windows Vista®/Windows
®7) dialog box.
P-touch Editor / P-touch Update Software has been uninstalled.

3
2
2
The following explanations and procedures depict Windows Vista®, and may vary depending on your
computer’s operating system. In the screen shots, “XX-XXXX” is displayed to represent the printer model
number.
Using P-touch Editor 2
Starting P-touch Editor 2

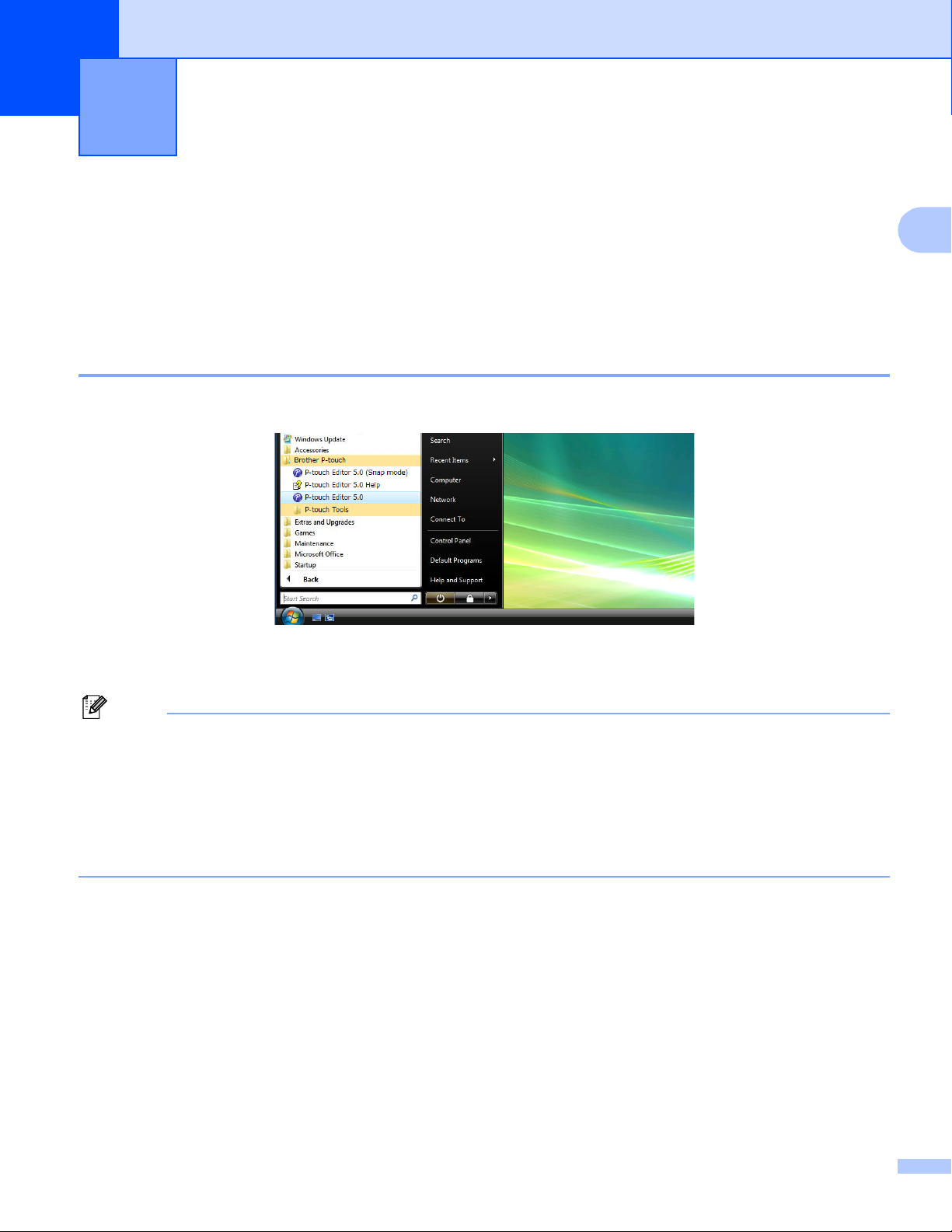

aClick the start menu -[All Programs]-[Brother P-touch]-[P-touch Editor 5.0].
When P-touch Editor starts, the [New/Open] dialog box is displayed. This dialog box allows you to select
whether you want to create a new template or open an existing template.
Note
• You can also start P-touch Editor using shortcuts, if you selected to create shortcuts during installation.
• Shortcut icon on the desktop: double-click to start P-touch Editor
• Shortcut icon in the Quick Launch bar: click to start P-touch Editor
• To change how P-touch Editor functions when it starts, click [Tools]-[Options] in the P-touch Editor menu
bar to display the [Options] dialog box. In the [General] tab, select the desired setting in the [Operations]
list box under the [Startup Settings]. Normally, select [Display New/Open Dialog Box].
How to use P-touch Editor 2

How to use P-touch Editor
4
2

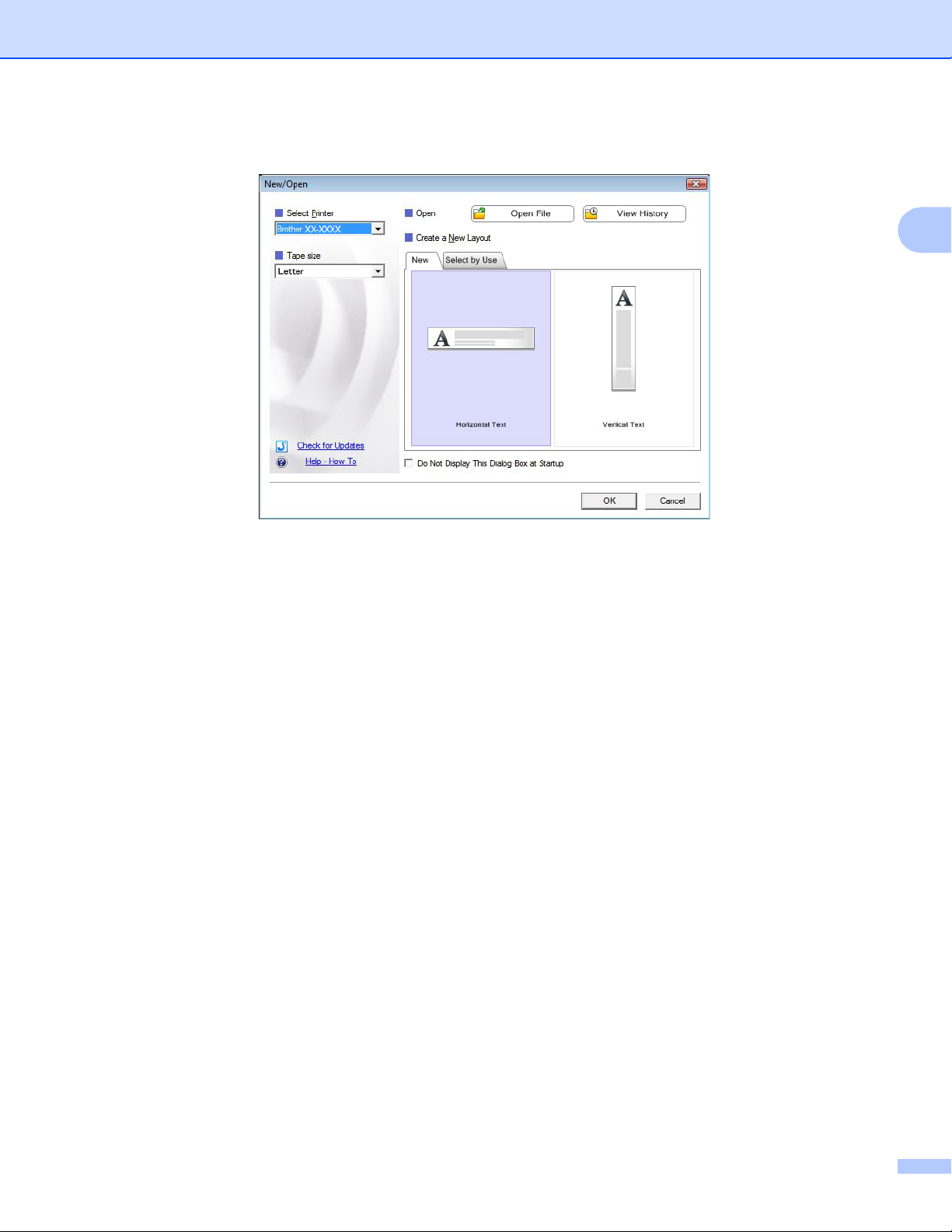

bSelect an option in the [New/Open] dialog box and click [OK].
The printer and media size can be selected in this dialog box.
Click [Open File] to open the [Open] dialog box, where you can select and open a previously saved
template.
Click [View History] to open the [History] dialog box, where you can select and open recently saved
templates.
Click [New] to select the desired orientation (vertical or horizontal) and create a new template.
Click [Help - How To] to view the P-touch Editor help file.
The help file shows you step-by-step how to create a template.
Click [Check for Updates] to look for a newer version of P-touch Editor online. If a newer version is
available, the computer’s web browser will open the Brother Solutions Center website, where you can
download the latest version.

How to use P-touch Editor
5
2
Operation modes 2
P-touch Editor has three different operation modes: [Express] mode, [Professional] mode, and [Snap]
mode. You can easily switch between modes by using mode selection buttons.
[Express] mode
This mode allows you to quickly and easily create templates that include text and images.
The [Express] mode screen is explained below.
1 Menu bar
Provides access to all available commands, which are grouped under each menu title ([File], [Edit],
[View], and [Insert], etc.) according to their functions.
2 Command bar
Provides access to frequently used commands, such as [New/Open], [Paper], [Text], [Frame],
[Image], etc.
3 Draw/Edit toolbar
Provides tools for selecting objects, entering text, drawing graphics, etc.
4 Property bar
Allows you to edit the properties of text, graphics, etc.
5 Template window
Provides the area where you create and edit your templates.
6 Database window
Displays the content of a database or label list that can be used to add content to your templates.
7 Mode selection buttons
Allows you to switch to another operation mode.
Note
• You can show and hide different toolbars and windows using the commands in the [View] menu.
• For details about using [Express] mode, refer to the P-touch Editor help file.
7
2
1
3
4
5
6

How to use P-touch Editor
6
2
[Professional] mode
This mode allows you to create templates using a wide-range of advanced tools and options.
The [Professional] mode screen is explained below.
1 Menu bar
Provides access to all available commands, which are grouped under each menu title ([File], [Edit],
[View], and [Insert], etc.) according to their functions.
2 Standard toolbar
Provides access to frequently used commands, such as New Layout, Open, Save, Print, etc.
3 Property palette
Provides access to the Print, Paper, Text, and Layout palettes. Click on the left side of each palette to
show/hide the available properties.
4 Draw/Edit toolbar
Provides tools for selecting objects, entering text, drawing graphics, etc.
5 Template window
Provides the area where you create and edit your templates.
6 Database window
Displays the content of a database or label list that can be used to add content to your templates.
7 Mode selection buttons
Allows you to switch to another operation mode.
8Sidebar
Provides access to different tabs that allow you to insert and format text, bar codes, tables, etc., change
the order of the objects to create a template, or set advanced settings.
Note
• You can show and hide different toolbars and windows using the commands in the [View] menu.
• For details about using [Professional] mode, refer to the P-touch Editor help file.
7
2
1
3
4
8
6
5

How to use P-touch Editor
7
2
[Snap] mode
This mode allows you to capture all or a portion of your computer screen content, print it as an image, and
save it for future use.
aClick the [Snap] mode selection button. The [Description of Snap mode] dialog box is displayed.
bClick [OK]. The [Snap] mode palette is displayed.
Note
• If you select the [Do Not Display This Dialog Again] check box in the [Description of Snap mode]
dialog box, you switch to [Snap] mode next time without displaying the dialog box.
• You can also start P-touch Editor in [Snap] mode by clicking the start menu -[All Programs]-
[Brother P-touch]-[P-touch Editor 5.0 (Snap mode)].
• For details about using [Snap] mode, refer to the P-touch Editor help file.

How to use P-touch Editor
8
2
Using P-touch Editor Help 2
Viewing the P-touch Editor help file 2
This section explains how to use the P-touch Editor help file.
Starting from the start menu 2

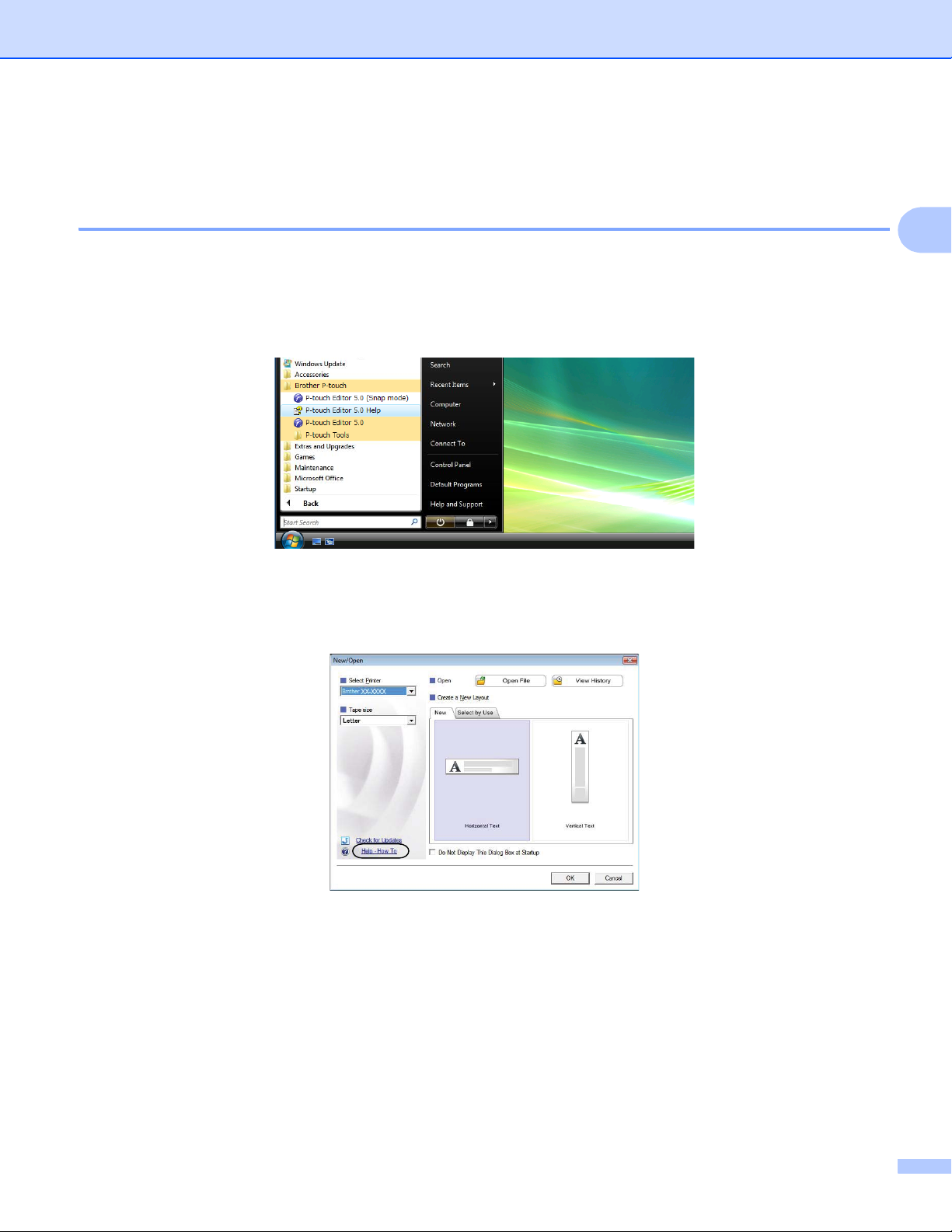

Click the start menu -[All Programs]-[Brother P-touch]-[P-touch Editor 5.0 Help].
Starting from the [New/Open] dialog box 2
When you start P-touch Editor and the [New/Open] dialog box is displayed, click [Help - How To].

How to use P-touch Editor
9
2
Starting from P-touch Editor 2
In [Express] mode or [Professional] mode:
Click the [Help] menu and select [P-touch Editor Help].
[Express] mode 2
[Professional] mode 2
In [Snap] mode:
Place the mouse pointer within the [Snap] mode palette so that the four-way arrow pointer (the “move”
pointer) is displayed, right click and then [P-touch Editor Help].
[Snap] mode 2
Note
You can also press the [F1] key to open the P-touch Editor help file.

How to use P-touch Editor
10
2
Printing the P-touch Editor help file 2
You can print P-touch Editor help file content for later reference.
aIn the [Contents] tab, select the content that you want to print.
bClick [Print] on the Toolbar.
cChoose the range of topics to be printed, and click [OK].
dSpecify the [Printer] and click [Print].

11
3
3
P-touch Transfer Manager 3
This program allows you to transfer templates and other data to the printer and save backups of your data on
the computer.
After P-touch Transfer Manager is used to transfer data to the printer, P-touch Template is used to send text
data to the printer that will be inserted into the template and printed. For details on P-touch Template,
download the P-touch Template manual (English only) from the Brother Solutions Center website:
http://solutions.brother.com
[Select your region/country]- Choose your product. -[Manuals]
P-touch Library 3
This program allows you to use your computer to manage P-touch templates and other data.
You can use P-touch Library to print templates.
Using P-touch Transfer Manager 3
Starting P-touch Transfer Manager 3

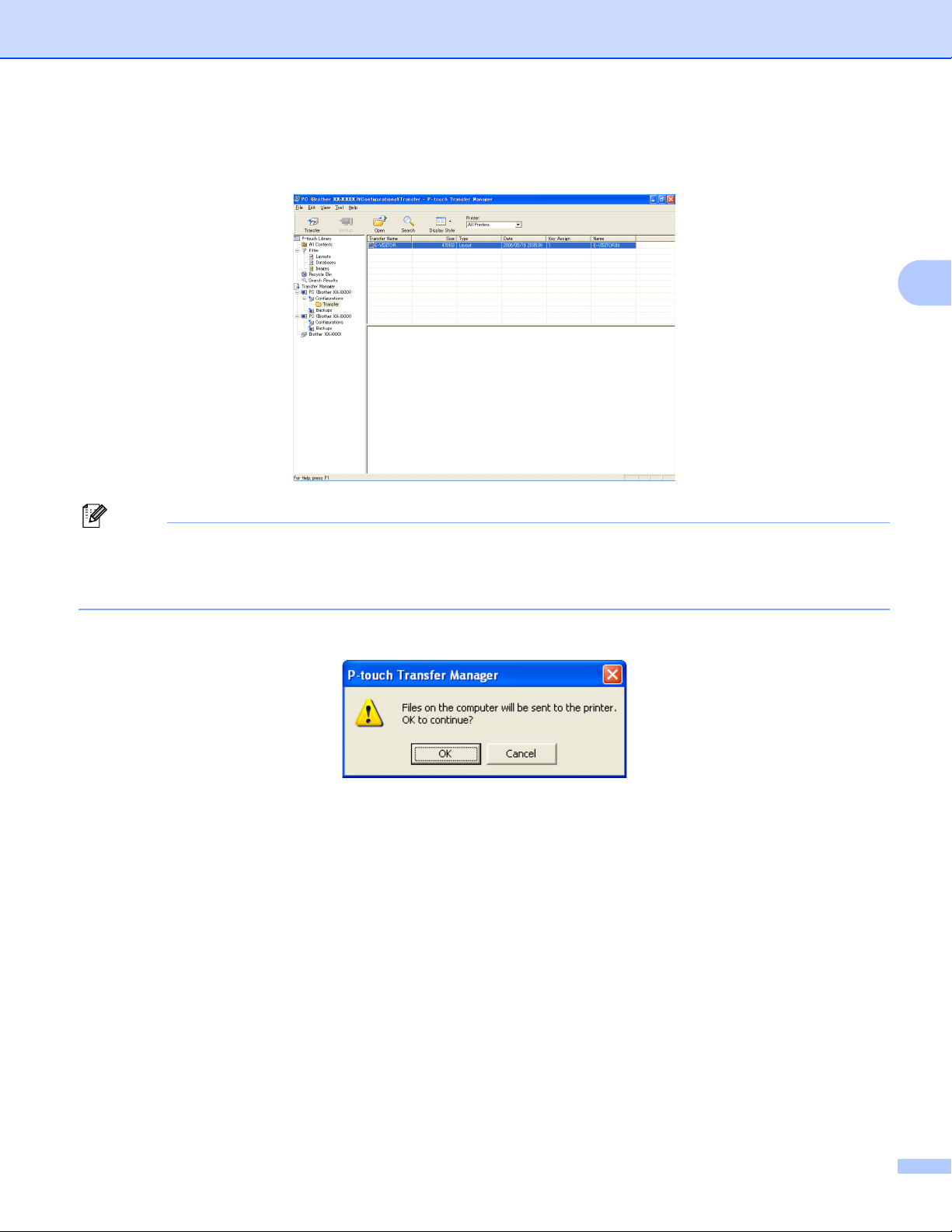

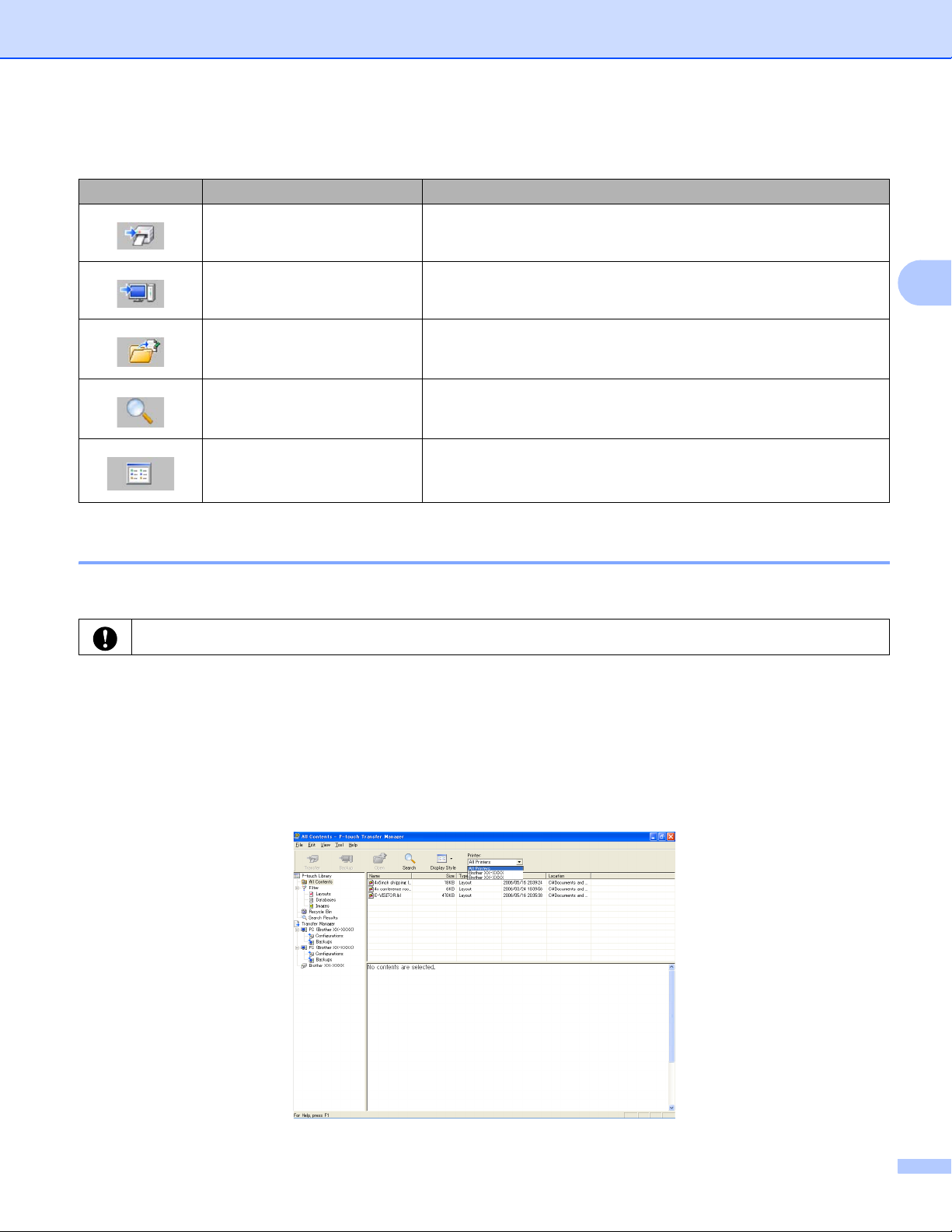

Click the start menu -[All Programs]-[Brother P-touch]-[P-touch Tools]-[P-touch Transfer Manager 2.1].
When P-touch Transfer Manager starts, the main window is displayed.
Note
You can also start P-touch Transfer Manager from P-touch Editor.
Click [File]-[Transfer Template].
How to use P-touch Transfer Manager &
P-touch Library 3

How to use P-touch Transfer Manager & P-touch Library
12
3
Main window 3
1 Menu bar
Provides access to various commands, which are grouped under each menu title ([File], [Edit], [View],
[Tool], and [Help]) according to their functions.
2 Toolbar
Provides access to frequently used commands.
3 Printer selector
Allows you to select which printer the data will be transferred to. When you select a printer, only the data
that can be sent to the selected printer are displayed in the data list.
4 Folder list
Displays a list of folders and printers. When you select a folder, the templates in the selected folder are
displayed in the template list.
If you select a printer, the current templates and other data stored in the printer are displayed.
5 Template list
Displays a list of templates in the selected folder.
6 Preview
Displays a preview of the templates in the templates list.
2
4
1
3
5
6

How to use P-touch Transfer Manager & P-touch Library
13
3
Transferring templates or other data from the computer to the printer 3
Use the following procedure to transfer templates from the computer to the printer.
aConnect the computer and the printer via USB and turn on the printer.
The printer model name is displayed in the folder view.
If you select a printer in the folder view, the current templates and other data stored in the printer are
displayed.
bSelect the printer that you want to transfer the template or other data to.
Explanations of the Toolbar Icons
Icon Button name Function
Transfer Transfers templates and other data from the computer to the printer
(available for USB connection only).
Backup Retrieves the templates and other data saved in the printer and
saves it on the computer (available for USB connection only).
Open Opens the selected template.
Search Allows you to search for templates or other data that are registered
to P-touch Library.
Display Style Changes the file display style.
This feature is only available when the computer and printer are connected via USB.

How to use P-touch Transfer Manager & P-touch Library
14
3
cRight-click the [Configurations] folder, select [New], and then create a new folder.
In the example above, the folder [Transfer] was created.
dDrag the template or other data that you want to transfer and place it in the new folder.
You can browse for templates or other data by selecting [All contents] or by selecting one of the
categories under [Filter], such as [Layouts].
When transferring multiple templates or other data, drag all the files that you want to transfer and place
them in the new folder.
Each file is assigned a key number (memory location in the printer) when it is placed in the new folder.

How to use P-touch Transfer Manager & P-touch Library
15
3

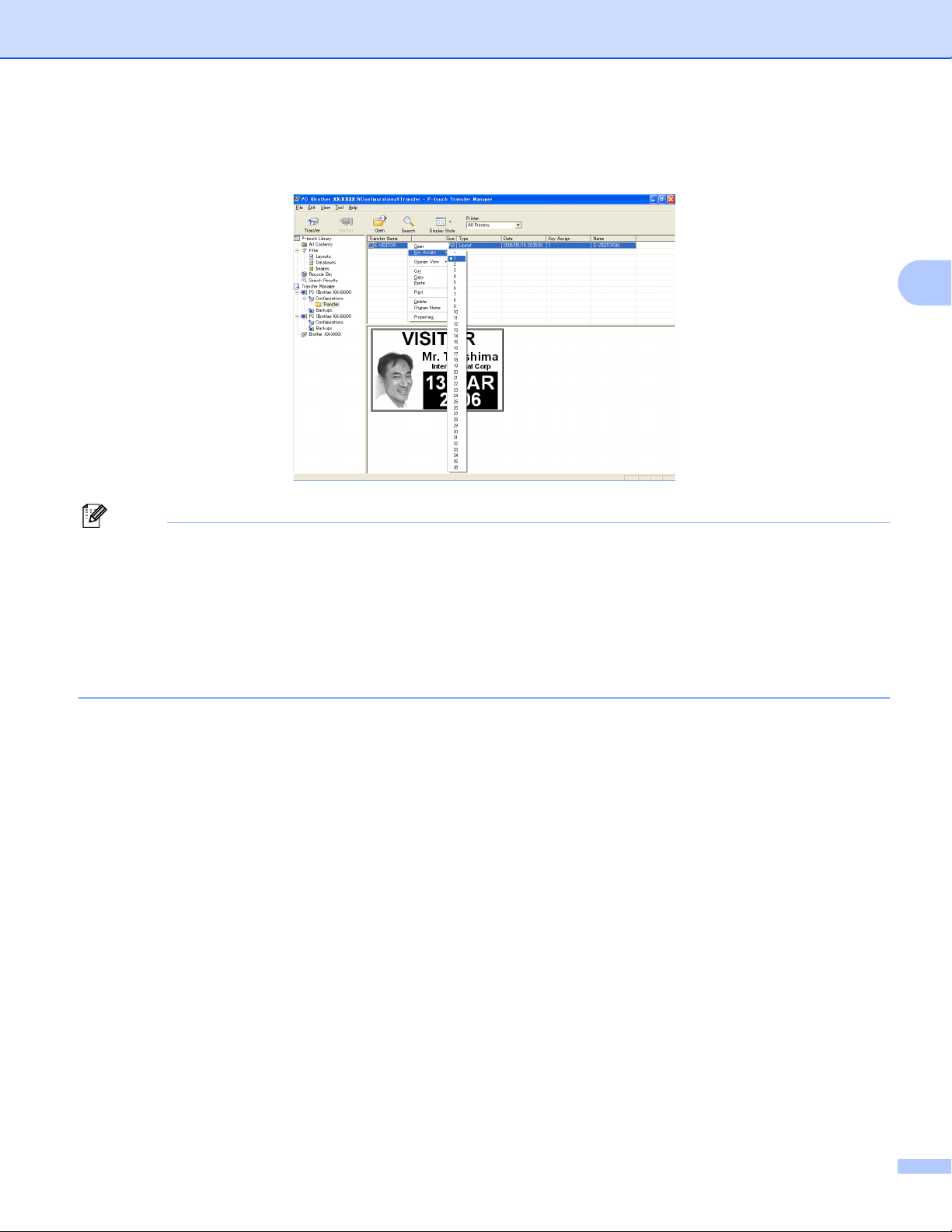

eTo change the key number assigned to an item, right-click the item, select [Key Assign], and then select
the desired key number.
Note
• All data transferred to the printer is assigned a key number.
• If the template or other data transferred to the printer has the same key number as another template
already saved in the printer, the new template will overwrite the old one. You can confirm the templates
key number assignments saved in the printer by backing up the templates or other data (see Backing up
templates or other data saved in the printer on page 17).
• If the printer memory is full, remove one or more templates from the printer nonvolatile memory. (see
Backing up templates or other data saved in the printer on page 17).
fTo change the names of templates or other data that will be transferred, click on the desired item and
enter the new name. The number of characters used for the template names may be limited depending
on the printer model.

How to use P-touch Transfer Manager & P-touch Library
16
3
gSelect the folder containing the templates or other data that you want to transfer, and then click
[Transfer]. A confirmation message will be display.
Note
• You can also transfer individual items to the printer without adding them to a folder. Select the template or
other data that you want to transfer, and then click [Transfer].
• Multiple items and folders can be selected and transferred in one operation.
hClick [OK].
The selected templates, folders or other data are transferred to the printer.

How to use P-touch Transfer Manager & P-touch Library
17
3
Backing up templates or other data saved in the printer 3
Use the following procedure to retrieve the templates or other data saved in the printer and save it on the
computer.
aConnect the computer and the printer via USB and turn on the printer.
The printer model name is displayed in the folder view.
If you select a printer in the folder view, the current templates and other data stored in the printer are
displayed.
bSelect the printer to back up from, and then click [Backup].
A confirmation message is displayed.
cClick [OK].
A new folder is created under the printer in the folder view. The folder name is based on the date and
time of the backup. All of the printer's templates and other data are transferred to the new folder and
saved on the computer.
This feature is only available when the computer and printer are connected via USB.
Backed up templates or other data cannot be edited on the computer.
Depending on the printer model, templates or other data backed up from one printer model may not be able
to be transferred to another printer model.
