BRP Evinrude E-TEC G2 150 HP Operating and safety instructions

Installation &
Predelivery Guide
Evinrude E-TEC G2
150, 175, 200 HP, 66° V6 (2.7 L)
200, 225, 250, 300 HP, 74°V6 (3.4 L)

Printed in the United States.
© 2016 BRP US Inc. All rights reserved.
TM, ® Trademarks and registered trademarks of Bombardier Recreational Products Inc. or its affiliates.
BRP US Inc.
Technical Publications
P.O. Box 597
Sturtevant, Wisconsin 53177 United States
www.evinrude.com
† AMP, Superseal 1.5, Super Seal, Power Timer, and Pro-Crimper II
are registered trademarks of Tyco International, Ltd.
† Amphenol is a registered trademark of The Amphenol Corporation.
† BEP is a registered trademark of Actuant Corporation.
† Champion is a registered trademark of Federal-Mogul Corporation.
† Deutsch is a registered trademark of The Deutsch Company.
† Dexron is a registered trade mark of The General Motors Corporation.
† Fluke is a registered trademark of The Fluke Corporation
† GE is a registered trademark of The General Electric Company.
† GM is a registered trademark of The General Motors Corporation.
† Locquic and Loctite are registered trademarks of The Henkel Group.
† Lubriplate is a registered trademark of Fiske Brothers Refining Company.
† NMEA is a registered trademark of the National Marine Electronics Association.
† Oetiker is a registered trademark of Hans Oetiker AG Maschinen.
† Packard is a registered trademark of Delphi Automotive Systems.
† Permatex is a registered trademark of Permatex.
† STP is a registered trademark of STP Products Company.
† Snap-on is a registered trademark of Snap-on Technologies, Inc.
The following trademarks are the property of BRP US Inc. or its affiliates:
Original Instructions
Evinrude ® 2+4 ® Fuel Conditioner
Evinrude ® E-TEC ® Triple-Guard ® Grease
Evinrude ® ICON™ HPF PRO™ Gearcase Lubricant
Evinrude ®ICON II ™ Power Trim/Tilt ™ and RAVE Fluid
Evinrude ®ICON-Touch ™ DPL™ Lubricant
Evinrude ®i-Dock ™ Gel-Seal II™
Evinrude ® XD50™ Outboard Oil Nut Lock™
Evinrude ® XD100™ Outboard Oil Screw Lock™
I-Command™ Ultra Lock™
S.A.F.E.™ Moly Lube™
SystemCheck™

2
Installation & Predelivery Guide
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1 Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2 Boat Rigging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3 Outboard Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
4 Outboard Rigging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
5 Fuel and Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
6 Predelivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
I Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
D Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Introduction
3
Introduction
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Abbreviations Used In This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Units of Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
List of Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
What’s New . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Steering System Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Multiple Outboard Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Emissions-Related Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Manufacturer’s Responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Dealer’s Responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Owner’s Responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
EPA Emission Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Model Designation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Engine Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Model and Serial Number Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Models Covered . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Outboard Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Compatibility for Certain Installation Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4
Introduction
Safety Information
Safety Information
This publication is written for qualified, factory-
trained technicians who are already familiar with
the use of Evinrude Special Tools. The included
information is not a substitute for work experience.
It is an organized guide for reference, repair, and/
or maintenance.
The following symbols and/or signal words
may be used in this document:
These safety alert signal words mean:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
IMPORTANT: Identifies information that controls
correct assembly and operation of the product.
DO NOT perform any work until you have read
and understood these instructions completely.
Torque wrench tightening specifications must
strictly be adhered to.
Should removal of any locking fastener (lock tabs,
locknuts, or patch screws) be required, always
replace with a new one.
When replacement parts are required, use Evin-
rude Genuine Parts or parts with equivalent char-
acteristics, including type, strength and material.
Use of substandard parts could result in injury or
product malfunction.
Always wear EYE PROTECTION AND APPRO-
PRIATE GLOVES when using power tools.
Unless otherwise specified, engine must be OFF
when performing this work.
Always be aware of parts that can move, such as
flywheels, propellers, etc.
Some components may be HOT. Always wait for
engine to cool down before performing work.
If you use procedures or service tools that are not
recommended in this manual, YOU ALONE must
decide if your actions might injure people or dam-
age the outboard.
This document may be translated into other lan-
guages. In the event of any discrepancy, the
English version shall prevail.
DANGER
Indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not
avoided, could result in death or serious
injury
CAUTION
Indicates a hazardous situation which, if not
avoided, could result in minor or moderate
personal injury.
NOTICE
Indicates an instruction which, if not fol-
lowed, could severely damage engine compo-
nents or other property.
ENVIRONMENTAL NOTE:
A note which provides tips and behaviors related
to protecting the environment.

5
Introduction
Safety Information
DANGER
Contact with a rotating propeller is likely to result in serious injury or death. Assure the engine
and prop area is clear of people and objects before starting engine or operating boat. Do not
allow anyone near a propeller, even when the engine is off. Blades can be sharp and the propel-
ler can continue to turn even after the engine is off. Remove propeller before servicing and
when running the outboard on a flushing device.
DO NOT run the engine indoors or without adequate ventilation or permit exhaust fumes to
accumulate in confined areas. Engine exhaust contains carbon monoxide which, if inhaled, can
cause serious brain damage or death.
WARNING
Wear safety glasses to avoid personal injury, and set compressed air to less than 25 psi (172
kPa).
The motor cover and flywheel cover are machinery guards. Use caution when conducting tests
on running outboards. DO NOT wear jewelry or loose clothing. Keep hair, hands, and clothing
away from rotating parts.
During service, the outboard may drop unexpectedly. Avoid personal injury; always support
the outboard’s weight with a suitable hoist or the tilt support bracket during service.
To prevent accidental starting while servicing, disconnect the battery cables at the battery.
Twist and remove all spark plug leads.
The electrical system presents a serious shock hazard. DO NOT handle primary or secondary
ignition components while outboard is running or flywheel is turning.
Gasoline is extremely flammable and highly explosive under certain conditions. Use caution
when working on any part of the fuel system.
Protect against hazardous fuel spray. Before starting any fuel system service, carefully relieve
fuel system pressure.
Do not smoke, or allow open flames or sparks, or use electrical devices such as cellular
phones in the vicinity of a fuel leak or while fueling.
Keep all electrical connections clean, tight, and insulated to prevent shorting or arcing and
causing an explosion.
Always work in a well ventilated area.
Replace any locking fastener (locknut or patch screw) if its locking feature becomes weak.
Definite resistance to tightening must be felt when reusing a locking fastener. If replacement is
indicated, use only authorized replacement or equivalent.

6
Introduction
Abbreviations Used In This Manual
Abbreviations Used In This Manual
Units of Measurement List of Abbreviations
A Amperes
amp-hr Ampere hour
fl. oz. fluid ounce
ft. lbs. foot pounds
HP horsepower
in. inch
in. Hg inches of mercury
in. lbs. inch pounds
kPa kilopascals
ml milliliter
mm millimeter
N·m Newton meter
P/N part number
psi pounds per square inch
RPM revolutions per minute
°C degrees Celsius
°F degrees Fahrenheit
ms milliseconds
µs microseconds
ΩOhms
VVolts
VAC Volts Alternating Current
VDC Volts Direct Current
ABYC American Boat & Yacht Council
ATDC after top dead center
AT air temperature sensor
BPS barometric pressure sensor
BTDC before top dead center
CCA cold cranking amps
CFR Code of Federal Regulations
CPS crankshaft position sensor
EMM Engine Management Module
EPA Environmental Protection Agency
ICOMIA International Council of Marine
Industry Associations
ID Inside dimension
MCA marine cranking amps
MWS modular wiring system
NMEA National Marine Electronics Assoc.
ROM read only memory
S.A.F.E. speed adjusting failsafe electronics
SAC start assist circuit
SAE Society of Automotive Engineers
SYNC synchronization
TDC top dead center
TPS throttle position sensor
USCG United States Coast Guard
WOT wide open throttle
WTS water temperature sensor

7
Introduction
What’s New
What’s New
General Information
Review this installation guide BEFORE beginning
the installation. Pay specific attention to the fol-
lowing sections, as they contain information that is
new, updated or unique to Evinrude E-TEC G2
products:
•UPDATED: Model Designation on p. 10
•UPDATED: Outboard Selection on p. 13
•Reserved Fluid Level Instancing on p. 18
•UPDATED: Steering Systems on p. 22
•Battery Cable Requirements on p. 31
•Accessory Remote Oil Tank on p. 38
•UPDATED: Multiple Outboard Centerlines on
p. 48
•Lifting The Outboard on p. 54
•Mounting Height on p. 55
•Multiple Outboard Transom Mounting Locations
on p. 56
•Multiple Outboard Mounting Height on p. 57
•UPDATED: Plug Installation on p. 58
•Rigging Hose Installation Options on p. 61
•NEW: 66° V6 Models Hose and Cable Lengths
(TRAC+ Midsection) on p. 63
•NEW: 66° V6 Models Hose and Cable Lengths
(Full Featured Midsection) on p. 64
•74° V6 Models Hose and Cable Lengths (Full Fea-
tured Midsection) on p. 65
•UPDATED: Cable & Hose Connections on p. 68
•Multiple Outboard Instancing on p. 72
•UPDATED: Water Pressure Connection on p. 74
•Filling and Bleeding the Hydraulic Steering Sys-
tem on p. 76
•NEW: Biobutanol Blended Fuel on p. 84
•Fuel System Priming on p. 85
•Oil Requirements on p. 85
•Oil Supply Priming on p. 86
•UPDATED: Steering Position Sensor Calibration
(DPS Models Only) on p. 90
•Propeller Hardware Installation on p. 93
Steering System Considerations
Counter rotation outboards WITH DPS are now
available. See Model Designation on p. 10.
Improvements have been made to the DPS sys-
tem. Be sure to review Dynamic Power Steering
System Improvements on p. 23.
IMPORTANT: Install one outboard with DPS for
every non-DPS outboard.
Multiple Outboard Applications
When installing multiple outboards:
•Each engine requires a separate fuel tank
pickup and fuel hose. See Fuel System
Requirements on p. 36.
•Each engine requires a separate battery cable.
See Battery Cable Requirements on p. 31.
When installing three or four outboards, the center
outboards should be mounted no more than one
mounting hole location lower or higher than the
outside engines. See Multiple Outboard Mount-
ing Height on p. 57.
IMPORTANT: Install one outboard with DPS for
every non-DPS outboard.
•When installing two outboards, one outboard
MUST have DPS.
•When installing three or four outboards, two
outboards MUST have DPS. See Multiple Out-
board Transom Mounting Locations on p. 56.
•See Outboard Selection on p. 13.
Also see Hydraulic Steering on p. 144.
WARNING
Outboards equipped with the DPS-2 system
REQUIRE calibration when multiple out-
boards are installed. Refer to Dynamic Power
Steering System Improvements on p. 23.
Failure to complete DPS system calibration
can cause damage to the tie bar(s) and/or the
transom of the boat due to overloading.

8
Introduction
Emissions-Related Installation Instructions
Emissions-Related Installation Instructions
Failing to follow these instructions when installing a certified engine in a vessel violates federal
law (40 CFR 1068.105 (b)), subject to fines or other penalties as described in the Clean Air Act.
A repair shop or person of the owner's choosing may maintain, replace, or repair emission control
devices and systems. These instructions do not require components or service by BRP or authorized
Evinrude dealers. Although an authorized Evinrude dealer has the in-depth technical knowledge and
tools to service Evinrude outboard engines, the emission-related warranty is not conditioned on the use
of an authorized Evinrude dealer or any other establishment with which BRP has a commercial relation-
ship.
For emission-related warranty claims, BRP is limiting the diagnosis and repair of emission-related parts
to authorized Evinrude dealers. For more information, please refer to the US EPA EMISSION-RELATED
WARRANTY contained herein. Proper maintenance is the owner's responsibility. A warranty claim may
be denied if, among other things, the owner or operator caused the problem through improper mainte-
nance or use.
You must follow the instructions for fuel requirements in the FUEL REQUIREMENTS section of this
manual. Even if gasoline containing greater than ten volume percent ethanol is readily available, the US
EPA has issued a prohibition against the use of gasoline containing greater than 10 vol% ethanol that
applies to this engine. The use of gasoline containing greater than 10 vol% ethanol with this engine may
harm the emission control system.
Manufacturer’s Responsibility
Beginning with 1999 model year outboards, manufacturers of marine outboards must determine the
exhaust emission levels for each outboard horsepower family and certify these outboards with the
United States of America Environmental Protection Agency (EPA). An emissions control information
label, showing emission levels and outboard specifications, must be placed on each outboard at the time
of manufacture.
Dealer’s Responsibility
When performing service on all 1999 and more recent Evinrude outboards that carry an emissions con-
trol information label, adjustments must be kept within published factory specifications.
Replacement or repair of any emission related component must be executed in a manner that maintains
emission levels within the prescribed certification standards.
Dealers are not to modify the outboard in any manner that would alter the horsepower or allow emission
levels to exceed their predetermined factory specifications.
Exceptions include manufacturer’s prescribed changes, such as altitude adjustments, for example.

Introduction
Emissions-Related Installation Instructions
9
Owner’s Responsibility
The owner/operator is required to have outboard maintenance performed to maintain emission levels
within prescribed certification standards.
The owner/operator is not to, and should not allow anyone to, modify the outboard in any manner that
would alter the horsepower or allow emissions levels to exceed their predetermined factory specifica-
tions.
Tampering with the fuel system to change horsepower or modify emission levels beyond factory settings
or specifications will void the product warranty.
EPA Emission Regulations
All new 1999 and more recent Evinrude outboards are certified to the EPA as conforming to the require-
ments of the regulations for the control of air pollution from new watercraft marine spark ignition out-
boards. This certification is contingent on certain adjustments being set to factory standards. For this
reason, the factory procedure for servicing the product must be strictly followed and, whenever practical,
returned to the original intent of the design. The responsibilities listed above are general and in no way a
complete listing of the rules and regulations pertaining to the EPA requirements on exhaust emissions
for marine products. For more detailed information on this subject, you may contact the following loca-
tions:
U.S. Environmental Protection Agency
Office of Transportation and Air Quality
Certification Division
Gasoline Engine Compliance Center
2000 Traverwood Drive
Ann Arbor, MI 48105
EPA Internet Web Site:
www.epa.gov/otaq

10
Introduction
Model Designation
Model Designation
Engine Identification
Model and Serial Number Location
Model and serial numbers are located on the swivel bracket and on the powerhead.
150 – 200 HP 66° V6 (2.7 L) Models 009146
1. Model and serial number
2. Serial number 010199
C 150 PLH AB A
HORSEPOWER
MODEL IDENTIFICATION
The first two characters identify
Model Version:
AA AFirst major variant
AB ASecond major variant
AF AThird major variant
•follow the model identification shown
above.
•subsequent versions continue through the
alphabet as AG, AH etc.
•will not use letters from the word
INTRODUCES to identify models.
DESIGN FEATURES:
CCounter Rotation
FDynamic Power Steering (DPS)
HHigh Output
OIntegrated Hydraulic Steering
(IHS)
PCable Steering
U300 HP with Water Valve
SHAFT LENGTH:
L20 in. (508 mm)
X25 in. (635 mm)
Z30 in. (762 mm)
ENGINE FAMILY
IDENTIFICATION:
AAlternate Feature*
C66° V6 G2 Models
E74° V6 G2 Models
The third character identifies
Model Revision:
AAAFirst revision
AABSecond revision
Subsequent revisions continue through the
alphabet in order (A through Z).
*Refer to Model Tables under Models Covered on p. 11.
2
1

Introduction
Model Designation
11
Models Covered
This guide covers installation information on the following Evinrude E-TEC G2 models:
150, 150 H.O., 175, 200 HP, 167 Cubic Inch (2.7 L), 66° V6, Models.
150 – 200 HP 66° V6 (2.7 L) Models
1. Model and serial number
2. Serial number
2
1
HP Style Gear Ratio
150 C150PLAA 20 SLX 12:26 (0.46) (2.16:1) TRAC+ 1Standard Digital EST 4
C150PLHAA 20 SLX 12:26 (0.46) (2.16:1) TRAC+ 1Custom H.O. Digital EST 4H.O.
C150PXAA 25 SLX 12:26 (0.46) (2.16:1) TRAC+ 1Standard Digital EST 4
C150PXHAA 25 SLX 12:26 (0.46) (2.16:1) TRAC+ 1Custom H.O. Digital EST 4H.O.
C150PXCAA 25 SLX 12:26 (0.46) (2.16:1) TRAC+ 1Standard Digital EST 4
C150FLHAA 20 SLX 12:26 (0.46) (2.16:1) DPS 2Custom H.O. Digital EST 4H.O.
C150FXHAA 25 SLX 12:26 (0.46) (2.16:1) DPS 2Custom H.O. Digital EST 4H.O.
C150XHCAA 25 SLX Counter
Rotation 12:26 (0.46) (2.16:1) IHS 3Custom H.O. Digital EST 4H.O.
175 175FLAA 20 SLX 12:26 (0.46) (2.16:1) DPS 2Standard Digital EST 4
175FXAA 25 SLX 12:26 (0.46) (2.16:1) DPS 2Standard Digital EST 4
175XCAA 25 SLX Counter
Rotation 12:26 (0.46) (2.16:1) IHS 3Standard Digital EST 4
200 C200FLAA 20 SLX 12:26 (0.46) (2.16:1) DPS 2Standard Digital EST 4
C200FXAA 25 SLX 12:26 (0.46) (2.16:1) DPS 2Standard Digital EST 4
C200XCAA 25 SLX Counter
Rotation 12:26 (0.46) (2.16:1) IHS 3Standard Digital EST 4
C200XOAA 25 SLX 12:26 (0.46) (2.16:1) IHS 3Standard Digital EST 4
Standard
Features Special Features
1. TRAC+ usewith cableor non-inte
g
rated h
y
draulic 2. Full Featured with D
y
namic Power Steerin
g
3. Full Featured with Inte
g
rated H
y
draulic Steerin
g
4. Di
g
ital Electronic Shift & Throttle
GearcaseModel
Number Shaft Length Midsection & Steering Graphics

12
Introduction
Model Designation
200 H.O., 225, 250, 250 H.O., 300 HP, 210 Cubic Inch (3.4 L), 74° V6, Models.
HP Style Gear Ratio
200 E200LHA_ _ 20 SLX 13:24/0.542/1.85:1 DPS 1Custom H.O. Digital EST 3H.O.
E200LHOA_ _ 20 SLX 13:24/0.542/1.85:1 IHS 2 Custom H.O. Digital EST 3H.O.
E200XHAB_ _ 25 SLX 13:24/0.542/1.85:1 DPS 1H.O.
Standard Digital EST 3H.O.
E200XHCAB_ _ 25 SLX Counter
Rotation 13:24/0.542/1.85:1 IHS 2 H.O.
Standard Digital EST 3H.O.
A200XHCA_ _ 25 SLX Counter
Rotation 13:24/0.542/1.85:1 DPS 1Custom H.O. Digital EST 3CR/DPS 4,
H.O.
225 E225X_ _ _ 25 SLX 13:24/0.542/1.85:1 DPS 1Standard Digital EST 3
E225XC_ _ _ 25 SLX Counter
Rotation 13:24/0.542/1.85:1 IHS 2 Standard Digital EST 3
225H E225LH_ _ _ 20 SLX 13:24/0.542/1.85:1 DPS 1Custom H.O. Digital EST 3H.O.
E225XH_ _ _ 25 SLX 13:24/0.542/1.85:1 DPS 1Custom H.O. Digital EST 3H.O.
E225XCH_ _ _ 25 SLX Counter
Rotation 13:24/0.542/1.85:1 DPS 1Custom H.O. Digital EST 3H.O.
E225LHO_ _ _ 20 SLX 13:24/0.542/1.85:1 IHS 2 Custom H.O. Digital EST 3H.O.
250 E250X_ _ _ 25 SLX 13:24/0.542/1.85:1 DPS 1Standard Digital EST 3
E250Z_ _ _ 30 SLX 13:24/0.542/1.85:1 DPS 1Standard Digital EST 3
E250XC_ _ _ 25 SLX Counter
Rotation 13:24/0.542/1.85:1 IHS 2 Standard Digital EST 3
A250XC_ _ _ 25 SLX Counter
Rotation 13:24/0.542/1.85:1 DPS 1Standard Digital EST 3CR/DPS 4,
H.O.
E250ZC_ _ _ 30 SLX Counter
Rotation 13:24/0.542/1.85:1 IHS 2 Standard Digital EST 3
A250ZC_ _ _ 30 SLX Counter
Rotation 13:24/0.542/1.85:1 DPS 1Standard Digital EST 3CR/DPS 4
250H E250LH_ _ _ 20 SLX 13:24/0.542/1.85:1 DPS 1Custom H.O. Digital EST 3H.O.
E250XH_ _ _ 25 SLX 13:24/0.542/1.85:1 DPS 1Custom H.O. Digital EST 3H.O.
E250XCH_ _ _ 25 SLX Counter
Rotation 13:24/0.542/1.85:1 DPS 1Custom H.O. Digital EST 3H.O.
E250LHO_ _ _ 20 SLX 13:24/0.542/1.85:1 IHS 2 Custom H.O. Digital EST 3H.O.
300 E300LU_ _ _ 20 SLX 13:24/0.542/1.85:1 DPS 1Standard Digital EST 3
E300XU_ _ _ 25 SLX 13:24/0.542/1.85:1 DPS 1Standard Digital EST 3
E300ZU_ _ _ 30 SLX 13:24/0.542/1.85:1 DPS 1Standard Digital EST 3
E300XCU_ _ _ 25 SLX Counter
Rotation 13:24/0.542/1.85:1 IHS 2 Standard Digital EST 3
A300XCU_ _ _ 30 SLX Counter
Rotation 13:24/0.542/1.85:1 DPS 1Standard Digital EST 3CR/DPS 4
E300ZCU_ _ _ 30 SLX Counter
Rotation 13:24/0.542/1.85:1 IHS 2 Standard Digital EST 3
A300ZCU_ _ _ 30 SLX Counter
Rotation 13:24/0.542/1.85:1 DPS 1Standard Digital EST 3CR/DPS 4
Special
Features
1.Full Featured with D
y
namic Power Steerin
g
2.Full Featured with Inte
g
rated H
y
draulic Steerin
g
3. Di
g
ital Electronic Shift & Throttle
4. Alternative Feature: Counter-Rotation model with DPS
Model
Number Shaft Length Gearcase Midsection & Steering Graphics Standard Features

Introduction
Outboard Selection
13
Outboard Selection
Compatibility for Certain Installation Options
Improvements have been made to the DPS system to support additional installation options. See
Dynamic Power Steering System Improvements on p. 23. When installing multiple outboards,
remember the 200 H.O. – 300 HP, 74° V6 ABA outboard models are NOT compatible with AFA and
newer outboard models. See Remote Control Firmware on p. 28. Review the following chart and notes
BEFORE installing any outboard(s) on the boat.
Models Options
Outboard Installation Options Compatibility Options
Multiple Outboard
Installations Single Outboard Installations
One Two Three Four i-Dock 6 Hydraulic
Tie Bar High
Speed
Boats
Pro-Series/
SVS-Series
Helms
66° V6 MODELS ONLY
All
Standard
Rotation
DPS Yes Yes 1Yes 1, 4, 7 Yes 1, 5, 7 No 6Yes 1, 2, 8 Yes Yes 1
IHS Yes 66 6 Yes 1, 6, 8 Yes 1
C150PL
C150PX TRAC+ Yes No No No No No Yes Yes
C_ _ _XC
C_ _ _XHC Counter-
Rotation
IHS NR *Yes 1Yes 1Yes 1Yes1, 6, 8 Yes 2No No
74° V6 MODELS (AB Models ONLY)
DPS Yes Yes 1No No No6Yes 2NR *No 3
E200LHO
E225LHO
E250LHO IHS Yes No No No No6No Yes Yes
E_ _ _CX
E_ _ _CZ IHS
Counter-
Rotation NR *Yes 1No No No6Yes 2No No
A_ _ _ XHC
A_ _ _ XC
A_ _ _ XZ
DPS
Counter-
Rotation NR *Yes 1No No No6Yes 2No No
74° V6 MODELS (AF & Newer Models)
All
Standard
Rotation
DPS Yes Yes 1Yes 1, 4, 7 Yes 1, 5, 7 No 6Yes 1, 2, 8 Yes Yes 1
IHS Yes 66 6 Yes 1, 6, 8 Yes 1
E200LHO
E225LHO
E250LHO IHS Yes No No No No No Yes Yes
E_ _ _CX
E_ _ _CZ IHS
Counter-
Rotation NR *Yes 1Yes 1Yes 1Yes 1, 6, 8 Yes 2No No
A_ _ _ XHC
A_ _ _ XC
A_ _ _ XZ
DPS
Counter-
Rotation NR *Yes 1No No No No 2No No
*NR: NOT Recommended
** NA: Not Applicable
See footnotes on next page.

14
Introduction
Outboard Selection
Notes:
1. Per helm the manufacturers recommendation, Uflex
SVS-Series and SeaStar Pro-Series helms are
NOT recommended for use in multiple outboard
installations. See Pro Series Helms on p. 23.
2. Hydraulic Tie Bar System REQUIRES one DPS and
one Non-DPS outboard. Also REQUIRES 3000 psi
hoses between the outboards, refer to the Installa-
tion Instructions provided with Hydraulic Tie Bar
Kit.
3. AB model outboards with DPS are NOT compatible
with SeaStar Pro-Series, or Uflex SVS-Series
Helms.
4. A three outboard installation (non- i-Dock)
REQUIRES 2 DPS models, but NOT three. See
Multiple Outboard Transom Mounting Locations
on p. 56.
5. A four outboard installation (non- i-Dock)
REQUIRES 2 DPS models. DPS outboards must
NOT be next to each other on the transom (unless
they are in positions 2 & 3). See Multiple Outboard
Transom Mounting Locations on p. 56.
6. The Evinrude i-Dock steering system REQUIRES
IHS outboard models. Refer to the model tables in
Models Covered on p. 11, for available IHS mod-
els.
7. For three and four outboard installations, the follow-
ing counter-rotation models are available with DPS
if needed: A200XHC, A250XC, A250ZC, A300XC,
or A300ZC.
8. Do NOT combine the Evinrude i-Dock Joy Stick
Steering System with the hydraulic tie bar kit.

Networks
Outboard Selection
15
1
Networks
Table of Contents
Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Remote Control Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Remote Control System Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Remote Control Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Information Display Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Remote Control Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
NMEA 2000 Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

16
Networks
Remote Control Networks
Remote Control Networks
Outboard remote control systems provide the
operator with tools for:
•Starting and stopping the engine
•Shifting into Forward, Neutral, or Reverse
•Changing engine speed
•Changing the tilt/trim angle of the outboard.
The remote control system must include the fol-
lowing features:
•Start-in-gear prevention
•Engine cut–off switch with tether cord —multi-
ple-outboard installations require separate start
switches and a single engine cut–off switch
•Connections for engine monitor warning system
Refer to Engine Monitor System on p. 17.
•If a mechanical remote control is selected:
–shift stroke must be 1.125 to 1.330 in. (28.6 to
33.8 mm) between NEUTRAL and FORWARD
–throttle stroke must PUSH for open
Several remote control options, including both
electronic and mechanical systems, are available
in the Evinrude Genuine Parts and Accesso-
ries catalog.
Remote Control System Selection
ICON II Electronic Shift and Throttle
Remote Control Systems
Electronic shift and throttle remote control sys-
tems manage all engine control functions through
a low-voltage, digital data network.
These systems can only be used with outboards
equipped for electronic control, including Evinrude
E-TEC G2 models.
Refer to the installation instructions provided with
the remote control for detailed instructions.
Refer to Diagrams at the back of this guide, for
sample installations.
WARNING
Remote controls must have start-in-gear pre-
vention. This feature can prevent injuries
resulting from unexpected boat movement
when the outboard starts.
Always install and recommend use of an
engine cut-off switch. Doing so will reduce
the risk of personal injury or death should the
operator fall away from the controls or out of
the boat.

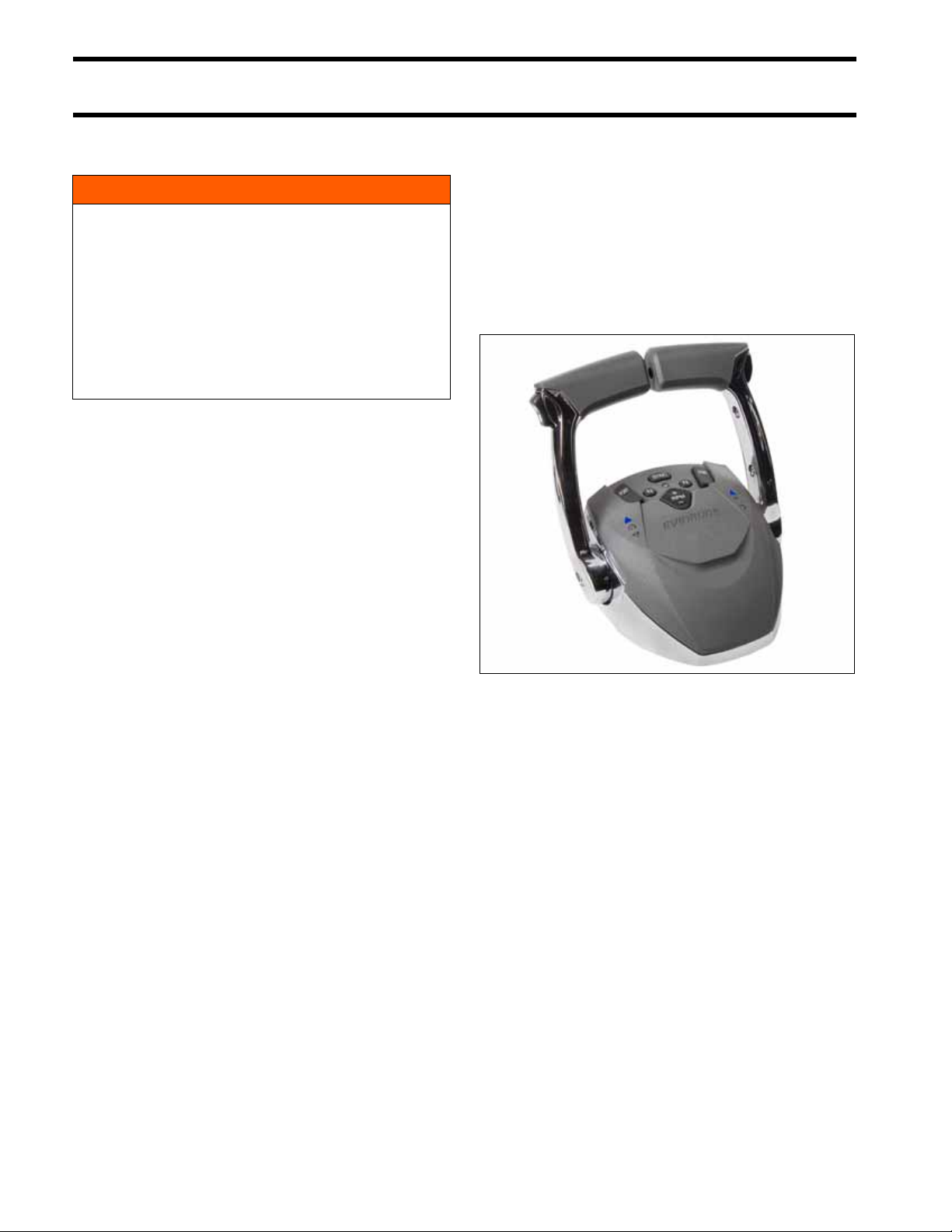

Evinrude ICON multi-engine control 007986

17
Networks
Remote Control Networks
1
Mechanical Remote Control Systems
Mechanical remote control systems typically use
push/pull cables to physically move the shift and
throttle components on the outboard.
A mechanical remote control may be used with
Evinrude E-TEC G2 model outboards, however
an accessory mechanical to digital converter is
required for correct operation of the outboard.
Mechanical to Digital Converter
The mechanical to digital converter converts the
mechanical shift and throttle inputs to digital con-
trol signals used by the engine management sys-
tems.
Refer to the installation instructions provided with
the mechanical to digital converter for detailed
instructions.
Refer to Mechanical Remote Controls on
p. 128.
Remote Control Installation
Refer to Remote Control Installation on p. 28,
and follow all instructions provided with the
remote control.
Use the accessory power connector provided in
the remote control harness to connect any boat
accessories. Accessories connected to the acces-
sory power connector should not exceed 5 amps.
Information Display Networks
Engine Monitor System
All remote controlled outboards must be equipped
with an engine monitor system. An engine monitor
system alerts the operator of conditions that could
damage the outboard.
The engine monitor system includes sensors on
the outboard and oil tank, a warning horn, a dash-
mounted display, and related wiring.
The outboard’s EMM sends information about
monitored functions to:
•Digital gauges and displays.
•a SystemCheck gauge (REQUIRES a digital to
analog converter).
IMPORTANT: Operating the outboard without
an engine monitor will void the warranty for failures
related to monitored functions.
Digital Gauges and Displays
Digital displays are designed specifically for
NMEA 2000 certified Evinrude E-TEC G2 out-
boards. These displays provide enhanced engine
and boat performance information. Multiple func-
tions are integrated into the easy-to-use displays.
Additional displays and accessories can be added
with the plug and play design.
NMEA 2000 digital networks receive monitored
information through a NMEA 2000 buss cable
connection provided in the outboard.
Digital displays may be used with electronic shift
and throttle or mechanical remote control sys-
tems.

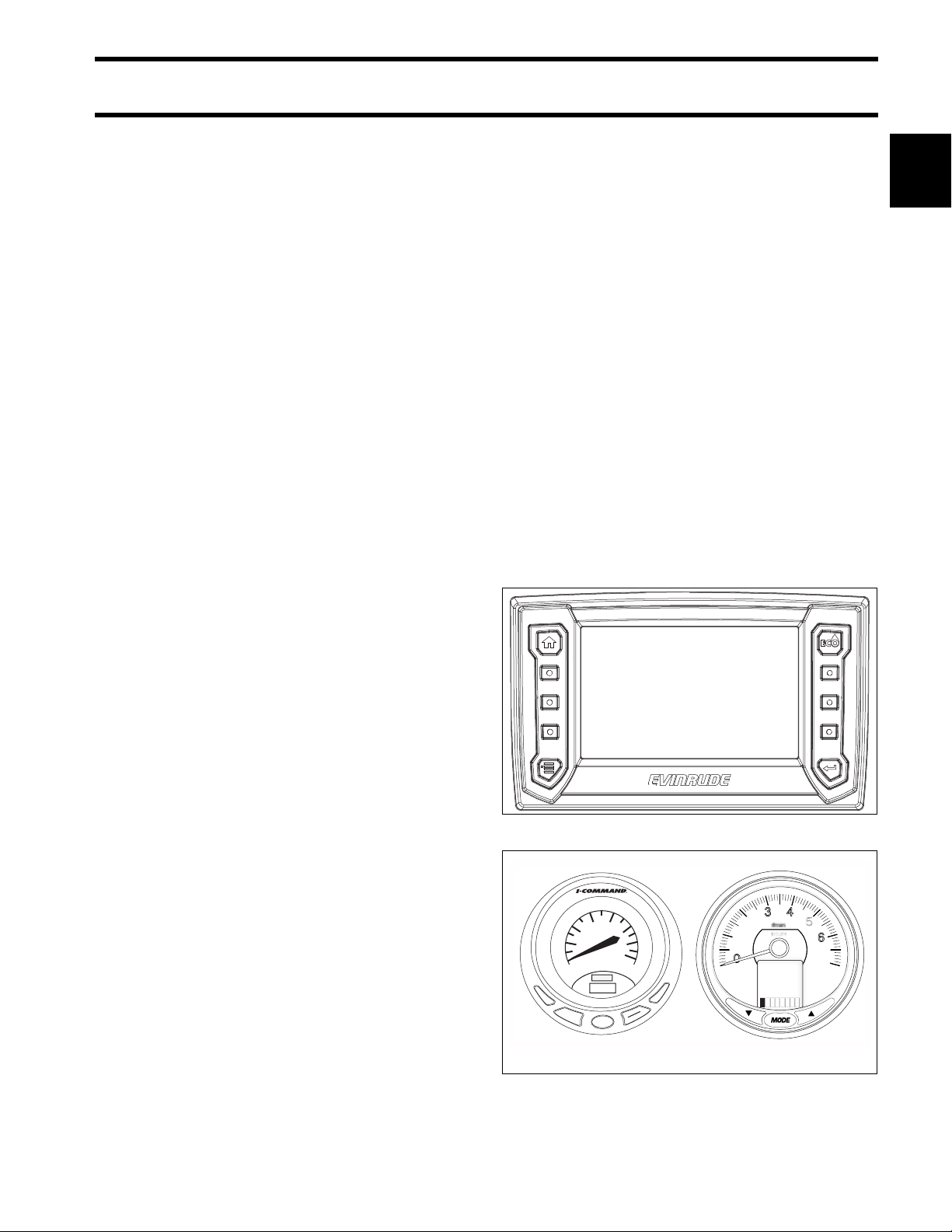

Digital Touch-Screen Display 009085
Typical Digital Gauges 009084
MENU
DOWN
UP
EXIT
PAGES
ENTER
0 70
10 60
20 50
30 40
x 100
RPM
- - - -
x
0
3 4
6
x
0
3
4
6
VOLT
13.6 V
TRIM
5
5
2
1
7

18
Networks
Remote Control Networks
When installing a NMEA 2000 digital network,
remember:
•A terminator must be installed at each end of
the network. A terminator kit provides the
required pieces.
•There should be no open or unused network
device connectors.
•The network should be grounded at a single
location only.
Refer to NMEA 2000 Network on p. 20.
Refer to Digital Displays on p. 132.
Reserved Fluid Level Instancing
When installing and setting up fluid level devices
on the NMEA 2000 network, the following
instance numbers are reserved and should not be
used for any other devices.
1. ICON II remote controls: Default settings shown. Can be
reconfigured to monitor fuel or oil levels.
2. ICON Touch digital displays: Default settings shown. Can
be reconfigured to monitor fresh water, gray water, or black
water levels.
SystemCheck and Analog Gauges
SystemCheck gauges may be used with elec-
tronic shift and throttle or mechanical remote con-
trol systems.
If an analog gauge display is used, the NMEA
2000 network transmits monitored information to
an accessory digital to analog converter, which in
turn supplies the information to SystemCheck and
other analog gauges.
A SystemCheck 2 inch gauge or tachometer is
REQUIRED.
Refer to Analog Displays on p. 140
Instance Oil Fuel Other Reserved For:
0X
On-Engine Oil Tank
(up to 4 Engines)
1X
2X
3X
41X
ICON II
Remote Controls 1
51X
6X
1
7X1
8X 2ICON Touch
Digital Displays 2
9X 2
10 X 2
11 - 15 Navico Devices
