Brush Bandit 1850 User manual

WHOLE TREE CHIPPER
MODEL 1850
OPERATING & PARTS MANUAL
MANUFACTURED BY
BANDIT INDUSTRIES, INC.
6750 Millbrook Road
REMUS, MICHIGAN, USA 49340
PHONE: [phone] IN USA
PHONE: [phone] OR 561-2272
FAX: [phone] ~ SALES DEPT.
FAX: [phone] ~ PARTS/SERVICE
E-MAIL: www.banditchippers.com
Model No: _________________
Serial No: _________________
DEALER:
Name: ____________________
Address: __________________
City/State: _________________
Phone No: _________________
Delivery Date: ______________
Engine Make: ______________
Serial No: _________________
Clutch Make: _______________
Model: _________ S/N _______
Copyright 9/07
1850
ATTENTION:
Depending on what replacement
parts you are ordering, we will
need the following information:
CHIPPER COMPONENTS
Serial Number
Model Number of Chipper
ENGINE COMPONENTS
Brand
Engine Serial Number
Engine Spec. Number
CLUTCH COMPONENTS
Brand
Serial Number
Assembly of Clutch
BUILT WITH QUALITY
AND DESIGN FIRST

WARNING
!
ADVERTENCIA
!
Breathing diesel engine
exhaust exposes you to
chemicals known to the
State of California to cause
cancer and birth defects or
other reproductive harm.
• Always start and
operate the engine in a
well-ventilated area.
• If in an enclosed area,
vent the exhaust to the
outside.
• Do not modify or tamper
with the exhaust system.
• Do not idle the engine
except as necessary.
For more information go to:
www.P65warnings.ca.gov/diesel
Respirar gases de escape de
motores diesel le expone a
quÍmicos conocidos por el estado
de California como causales de
cáncer y defectos congénitos u
otros daños reproductivos.
Para mayor informaciÓn visite:
www.P65warnings.ca.gov/diesel
• Siempre encienda y opere el
motor en áreas bien ventiladas.
• Si está en un área cerrada,
ventile escape hacia el exterior.
• No modifi que ni altere el
sistema de escape.
• No deje el motor en ralentÍa no
ser que sea necesario.
SPW-46 8/18
SPW-47 8/18
Cancer and
Reproductive
Harm
WARNING
!
ADVERTENCIA
!
Cáncer y daño
reproductivo
www.P65warnings.ca.gov
CALIFORNIA PROPOSITION 65

I have inspected this equipment and nd it in correct working condition. To the best of my knowledge, the customer and
his/her personnel are aware of, and agree to the above procedures.
Signed: ________________________________________________________________________ Date: ______________
(Dealer Representative)
The equipment has been thoroughly checked by the above named dealer representative, and I am satised with his/her
instructions. I have also read, understand, and agree to reverse side of page.
Signed: ________________________________________________________________________ Date: ______________
(Customer)
IT IS VERY IMPORTANT THAT THIS FORM IS FILLED OUT COMPLETELY & ACCURATELY. IF WE CANNOT READ THE
PURCHASER’S INFORMATION OR IT IS INCORRECT, OUR CUSTOMER LIST WILL NOT BE ACCURATE.
IMPORTANT - THIS FORM MUST BE RETURNED TO THE
CUSTOMER DATA DEPARTMENT WITHIN TEN (10)
DAYS IN ORDER TO VALIDATE WARRANTY
Customer Data Department
6750 Millbrook Road
Remus, MI, USA 49340
Phone: [phone] in USA
Phone: [phone]
Fax: [phone]
E-mail: www.banditchippers.com
Copyright 3-15 FORM #WV-117
WARRANTY VALIDATION FORM
(WHOLE TREE & LOADER FED CHIPPER)
1. _______ Customer has been instructed and understands operation and all safety aspects of operating the equipment.
2. _______ Customer has been instructed and understands that everyone within 100 feet (30 m) of machine must wear
personal safety equipment (i.e. hard hat, face shield, safety glasses, gloves, ear protection, etc.)
3. _______ Customer has been instructed and understands equipment maintenance schedules, procedures, and that it
is their responsibility to perform maintenance that includes periodic relief valve adjustments, retightening
 allfastenersasneeded,periodiccleaningofowdivider,clutchandbeltadjustments,etc.
4. _______ Customer has been advised and understands not to reach into the infeed hopper with hands or feet. The
machine operators must always be located within easy reach of all feed control and shut down devices.
5. _______ Customer understands that this machine is designed to be “loader” fed and is to follow all feeding instructions in the
manual. The customer understands that under no circumstances should the operator hand feed these machines or
use anything other than a mechanical device, knuckle boom loader, or the machines loader to feed these machines.
6. _______ Customer understands the purpose of and how to operate any safety devices or guards and to never attempt
to override any safety devices or guards.
7. _______ Customerhasbeeninstructedandunderstandstoalwaysremovetheignitionkeyandcompletelydisconnectbattery
from cables, wait for the chipper disc/drum to come to a complete stop, and to install the disc/drum lock before
performing any type of maintenance on the machine. Allow all the time necessary for the disc/drum to come
to a complete stop before opening the disc/drum housing or starting any maintenance or service procedures.
Customer has been shown and understands the purpose of the beltshield inspection hole and to not attempt any
 maintenanceuntilbeltsarevisuallyconrmedtohavecometoacompletestop.
8. _______ Customer has been instructed and understands: To Not operate this machine without the factory approved
hood pin assembly in place and padlocked. To Not operate this machine with any type of make shift hood
pin. To Not operate this machine under any circumstances with the chipper hood open or unsecured.
9. _______ Customer has reviewed and understands limited warranty, and all written and visual instructions.
10. _______ Customer has received,been advised, andunderstands the manuals,and the Safety/Servicevideo supplied
with the chipper. A video is supplied for equipment models as available.
11. _______ All Danger, Warning and Operational decals are properly displayed on equipment and fully understood by customer.
12. _______ Customerhasbeen instructed,understands,andagrees thatallpotential operatorsmust: Seethesupplied video,
be instructed on all the Danger, Warning and Operational decals, read the manual and follow the procedures.
White-Bandit Industries, Inc. copy / Yellow-Dealer copy / Pink-Customer copy
PURCHASER / OWNER INFORMATION:
Company Name __________________________________________________ Contact Name ______________________________
Mailing/StreetAddress _____________________________________________________ City _______________________________
State ____________________ Zip Code _________ Country ___________________ Telephone Number ( ___ ) _____________
E-mail _______________________________________ Machine Model No. _____________ Date Put Into Service _____________
Machine Serial No. __________________________________ Machine Work Order No. _____________ Machine Hours _________
Engine Make ______________________________ Engine Serial No. ___________________________ Machine Color _________
DEALER / SELLER INFORMATION:
Dealer/SellerName ________________________________________________ ContactName _______________________________
Mailing/StreetAddress _____________________________________________________ City _______________________________
State ____________________ Zip Code _________ Country ___________________ Telephone Number ( ___ ) _____________

Copyright 3-05 FORM #Q-111
DATE PURCHASED: _________________
MODEL: ___________________________
SERIAL NUMBER: ___________________
DEALER NAME: ____________________
___________________________________
TO BE RETURNED AFTER THIRTY (30) DAYS OF OPERATION
Please return to: Customer Data Department
6750 Millbrook Road
Remus, MI 49340
PH: [phone] in USA
PH: [phone]
FAX: [phone]
E-MAIL: www.banditchippers.com
EQUIPMENT QUALITY REPORT
All of the employees that build your equipment strive to manufacturer the very best quality product on the market.
We would appreciate your efforts in letting us know how we are doing.
We would like you to operate your machine for thirty (30) days and then ll out this questionnaire and mail it to us.
This will help us to keep producing a good product and improving our products through your recommendations.
1. Did your machine perform to your expectations? ____________________________________________
2. Was the machine delivered on schedule? __________________________________________________
3. Was the paint color and nish to your satisfaction? __________________________________________
4. Was machine equipment as ordered? _____________________________________________________
5. Did all welds appear to be of high quality? _________________________________________________
6. Was the overall machine to your liking? ___________________________________________________
7. What problems have you experienced? ___________________________________________________
8. Have any components regularly loosened that caused problems? _______________________________
9. Does the hydraulic system seem to have adequate power for feeding wood into the machine? ________
10. Is the machine manufactured to accommodate service in an adequate manner? If not, please explain:
___________________________________________________________________________________
11. General comments and/or suggestions: ___________________________________________________
___________________________________________________________________________________
___________________________________________________________________________________
12. Would you like to be contacted concerning more of our equipment? _____________________________
YOUR COMPANY:__________________________________
NAME: __________________________________________
ADDRESS: ______________________________________
CITY: ___________________________________________
STATE & ZIP: ____________________________________
PHONE: ( ______ ) ________________________________
E-MAIL: _________________________________________

Bandit
Copyright 9/07 PAGE 1
MODEL 1850 TABLE OF CONTENTS
TABLE OF CONTENTS
NOTE - ANY PART, PORTION, DESIGN, NUMBER, SPECIFICATION, AND/OR
DIMENSION IN THIS MANUAL IS SUBJECT TO CHANGE WITHOUT
NOTICE BY THE MANUFACTURER.
PAGES
INTRODUCTION & WARRANTY ...................................................... 2
SERIAL NUMBER LOCATION ......................................................... 6
SAFETY PROCEDURES .................................................................. 7
EQUIPMENT SPECIFICATIONS ...................................................... 13
DECALS ............................................................................................ 14
AUTOFEED OPTIONS ...................................................................... 21
CONTROLS....................................................................................... 25
TRANSPORTATION PROCEDURES ............................................... 34
MAINTENANCE ................................................................................ 37
HYDRAULIC SECTION ............................................................ 55
CHIPPER SECTION ................................................................. 72
LUBRICATION & COOLANT..................................................... 75
ELECTRICAL SECTION ........................................................... 76
REPLACEMENT PARTS SECTION ................................................. 83
INFEED HOPPER COMPONENTS .......................................... 84
CONVEYOR COMPONENTS ................................................... 88
CHIPPER COMPONENTS ........................................................ 90
CHIPPER KNIFE & HARDWARE ............................................. 94
ANVIL & HARDWARE .............................................................. 95
DISCHARGE COMPONENTS .................................................. 96
HYDRAULIC COMPONENTS .................................................. 98
FRAME & ACCESSORY COMPONENTS ................................ 122
FUEL & HYDRAULIC TANK COMPONENTS .......................... 126
LOADER COMPONENTS ........................................................ 128
REMOTE CONTROL COMPONENTS ...................................... 141
CAB COMPONENTS ................................................................ 142
OPTIONAL COMPONENTS ..................................................... 146
SERVICE RECORD .......................................................................... 150
NOTE - IF THE MACHINE HAS A LOADER OR TRACK UNDERCARRIAGE,
CONTACT DEALER OR MANUFACTURER FOR MORE INFORMATION.
NOTE - IF THE MACHINE HAS A LOADER OR TRACK UNDERCARRIAGE,
A SEPARATE (LOOSE) HYDRAULIC AND ELECTRIC SCHEMATIC IS
SUPPLIED WITH THE MACHINE.

Bandit
Copyright 9/07 PAGE 2
INTRODUCTION
The purpose of this manual is to provide the user with specications and procedures for the operation,
maintenance and repair of this BANDIT product. As with any piece of equipment, safety should always
be a constant thought while the machine is being operated, serviced or stored. In order to highlight
this consideration, the material which addresses safety is proceeded by the following signal words:
Signal Word Likelihood of Occurrence Degree of Potential
Injury or Damage
DANGER
WARNING
CAUTION
NOTICE
Will occur if warning is ignored
Can occur if warning is ignored
Will or can occur if warning is ignored
Important, but not hazard related
Severe
Severe
Minor
Theequipmentisdesignedandmanufacturedinaccordancewiththelatestproductindustrystandards.
This alone does not prevent injury. It is the operator’s responsibility to use good judgement and follow
the warnings and instructions as indicated in this manual, on the machine and follow all safety standards
per ANSI and OSHA instructions.
Improper use of the product can result in severe personal injury. Personnel using the equipment
must be qualied, trained and familiar with the operating procedures as dened in this manual, prior
to operating the product.
It is the responsibility of the owner or employer to insure that the operator is trained and practices
safe operation while using and servicing the machine. It is also the owner’s responsibility to provide
and follow a regularly scheduled preventative maintenance and repair program on the product,
using only factory approved replacement parts. Any unapproved repairs or modications may not
only damage the machine and its performance, but could result in severe personal injury. Unapproved
repairs or modications will void warranty and eliminate manufacturer of any liability claims. Consult
the equipment manufacturer!!!
Each machine is shipped with a manual, a customer’s check sheet on the product, and any
available parts & service manuals on component parts not produced by this manufacturer. Additional
copies of these manuals and check sheets can be purchased from the manufacturer, or through the
dealer. Engine parts, service and maintenance manuals MUST be purchased through the engine
manufacturer or their dealer.
NOTE - The producer of this Bandit product reserves the right to make any
modications or revisions to the design or specications of its machine without
advance notice. The producer also reserves the right to change machine and
part prices as needed without advance notice.
INTRODUCTION & WARRANTY
Minor to Severe
WARNING
WARNING

Bandit
Copyright 9/07 PAGE 6
MODEL 1850
TYPICAL CHIPPER SERIAL NUMBER AND/OR
WORK ORDER NUMBER LOCATIONS
1. Beltshield
2. Hinged chipper hood under handle
3. Top of throat
4. Tongue and a-frame side
5. Top of frame
6. W/O # on top of tongue
7. W/O # in hydraulic compartment (Track units)
NOTE: Theengine informationis locatedonthe
engine block. The clutch information is
located on the clutch plate.
SERIAL NUMBER LOCATIONS
12
4
3
14
5
6
7

Bandit
Copyright 9/07 PAGE 7
MODEL 1850
The words Danger, Warning, Caution, and
Notice are used on the safety decals and throughout
this manual, to make you aware of the safety
procedures. These procedures are very important,
read and obey them.
YOUR SAFETY IS VERY IMPORTANT TO US!
This machine is equipped with safety decals, guards
and designs for your protection.
Don’t ever take the machine for granted, always
be cautious and careful when operating your
equipment.
Read and follow all the instructions in your
manual thoroughly. Your safety is dependent on
your knowledge of how to operate and maintain this
machine. You may obtain additional copies of this
manual from your Bandit Dealer.
Before operating machine, you must have all potential
operators; read and understand manuals and decals,
watch the video and follow the recommendations.
Regardless of how hard a manufacturer tries to
produce a safe machine, accidents still happen.
Normally accidents are caused by people making
mistakes. They do not read the manual, they ignore
warning decals or do not use lockouts provided for
their safety. This normally happens after the person
has become accustomed to the machinery. In the
initial start up and operation of the machinery, they
are cautious, they are very careful because they do
not understand the machine.
This equipment is intended for use by personnel
who are experienced with similar equipment. Always
operate safely. It is also recommended that someone
else is present while operating or servicing in case an
accident should occur. Never operate any machine
while under the inuence of drugs or alcohol.
Keep children, bystanders and animals clear of
working area. Never operate equipment that is in
need of repair or adjustment.
Before starting the machine, take a minute to
check a few things. The machine should be in an
area restricted from people passing by. This area
around the machine must be free of all objects that
can obstruct your movement when working with the
machine. The machine should be checked for loose
tools or foreign objects, especially in the infeed hopper
area. All tools not in use should be secured in a tool
box.
Operators must at all times be located within easy
reachof allfeedcontrol andshut-offdeviceswhenthe
unit is running. They must be attentive and prepared
to activate the devices.
Torn or loose clothing is more likely to get caught
in moving machinery parts or tree branches. Keep
such items as long hair, shirt sleeves, and shirt tails
properly contained. Avoid wearing necklaces, rings,
watches, and especially neckties while operating this
machinery. Make sure the machine is in excellent
condition, and all the guards are in place, tight and
secure.
Wear all personal protection equipment and follow
all safety standards perANSI and OSHAinstructions.
Examples of equipment: hard hat, face shield,
safety glasses, gloves, ear protection, etc. Do not
wear gauntlet or secured t gloves. Always keep a
fully charged re extinguisher with the machine while
operating or servicing the machine.
Striped reective tape has been installed on the feed
control handle of the machine. This tape is reective,
self adhesive and has contrasting colors. The tape
helps make the feed control handle stand out more
and it makes the rear of the machine more visible
to a vehicle behind the machine while transporting.
StripedtapecanbeobtainedthroughyourlocalBandit
Dealer.
DANGER
WARNING
DANGER
NOTICE
SAFETY PROCEDURES
SAFETY PROCEDURES
DANGER

Bandit
Copyright 9/07 PAGE 8
MODEL 1850 SAFETY PROCEDURES
SAFETY PROCEDURES
Never reach into the infeed hopper area of
the machine, there is never any reason to. The
feedwheel(s) are designed to pull trees and brush of
any length into the machine. Pulling a hand, arm, foot
or entire body through the machine is much easier
than pulling a tree. Do not think you will be able to
pull yourself free of the feedwheel(s), they will not let
go. There is absolutely no reason to work inside of the
infeed hopper. If the feedwheel(s) become tangled or
clogged, stop the machine and wait several minutes
before cleaning them out. If there are short pieces, or
leaves and twigs, just leave them until feeding longer
pieces. While the long pieces are feeding, simply toss
the short pieces on top of them. The longer pieces
will take them on into the machine.
This machine is not designed to be hand fed. A
wooden push paddle has been provided to assist
in the removal of smaller material after the machine
has been shut down. It is the owner’s and operator’s
responsibility to use and keep a wooden push
paddle with the machine and to also secure it when
transportingthemachine. DONOTuseanybodyparts
or any steel devices inside the infeed hopper area.
If there is larger diameter wood, try to feed it with
smaller diameter wood. Start a small diameter limb
which will partially open the feedwheel(s). Once the
feedwheel(s) are partially open it is much easier to
insert the larger diameter wood.
When feeding larger diameter wood, listen for the
engine to possibly lug down. If it starts lugging down
stop the feedwheel(s) by pulling the hydraulic control
bar to off, and let the engine recover to full speed. If the
machineisequippedwithAutofeedanditisfunctioning
properly, the feed system will automatically stop to let
the engine recover. This will help stop the machine
from plugging the discharge chute.
Pay attention to the direction of the discharge chute
before chipping. Never stand in front of the chipper
discharge chute. Never direct the chute towards
anyone or anything that could cause an accident or
problems. Always stop chipping and warn anyone
thatcomes nearthe dischargearea. Failure todo this
could result in severe injury. Wood chips ying out of
the discharge chute can be very dangerous!
Always block the tires and the machine tongue
whenever the machine is unhooked for operation.
DO NOT rely on the tongue jack for operational
stabilization.
NEVER sit, stand, lay, climb or ride anywhere
on this machine while it is running, operating, or in
transit. You will be injured.
Do not attempt to start the engine or engage the
engine PTO (power-take-off) system on this machine
if the chipper disc/drum is jammed or frozen in place.
If you do, you will damage or ruin the drive belts and/or
thePTOwhichwillnot becoveredunderwarrantyand
will cost you down time and money.


Diesel engine exhaust and some of its
constituents are known to the State of
California to cause cancer, birth defects,
and other reproductive harm.
DANGER
DANGER
DANGER
DANGER
NOTICE
WARNING
It is very important after you have operated a new
machine for approximately an hour to shut down the
machine and recheck all nuts and bolts. It is normal
for nuts and bolts to loosen once on a new piece of
machinery. If you tighten them now, there is a good
possibility they won’t loosen again. Certain nuts and
bolts should be checked periodically such as anvil and
knife nuts and bolts, etc. for torque and t.
Most of the nuts used on the machine are self
locking. After a nut or bolt has been removed ve
times, it should be replaced to insure proper tightness.
This is especially critical on the chipper knife nuts and
bolts!
After the engine is started, let the chipper disc/drum
turn at the lowest RPM’s possible. Listen for any type
of noise that is foreign. Any steel on steel noise is
foreign. If you hear a noise, stop the engine, nd the
problem and x it.

Bandit
Copyright 9/07 PAGE 9
MODEL 1850 SAFETY PROCEDURES
SAFETY PROCEDURES
Before attempting any type of maintenance
disengage clutch, install clutch lock if equipped, turn
off engine, wait for the chipper disc/drum to come
to a complete stop, install the disc/drum lock pin,
disconnect battery, and make sure the ignition key is
in your possession.
ALWAYS install the disc/drum lock pin to prevent
inadvertent rotation. On disc chippers insert lock pin
through lock pin tube on the belly band under hood
rest. On drum chippers insert lock pin through lock
pin tube on side of drum housing.
Simply slide the lock pin into the disc/drum lock tube.
This is to insure that the chipper disc/drum cannot be
started while you are working inside the machine. If
for some reason the chipper disc/drum would start to
turn, it would simply hit the lock pin.
DO NOT remove the hood pin until the chipper
disc/drum has came to a complete stop. The chipper
disc/drum will coast for several minutes after the
engine is shut down. Always wait at least several
minutes.
DONOToperatethis machinewithoutthe HoodPin
in place. Do not operate the machine with any type
of makeshift hood pin or an improperly installed hood
pin! The Hood Pin MUST be padlocked.
DONOToperatethemachinewiththechipperhood
open under any circumstances.
DO NOT operate this machine indoors! Exhaust
fumes can be fatal. Never refuel while the machine is
running. Never refuel in the shop or building. Always
refuel in a well ventilated area, away from sparks
or open ames, DO NOT SMOKE. Extinguish all
smoking materials. Wipe up all spilled fuel before
restarting the engine. Do not ll above 1/2” (12.7 mm)
from top of tank.
To obtain the most from your machine, for the least
amount of cost, it is a good practice to set up and follow
ascheduledpreventativemaintenanceprogram. Itwill
eliminate many possible problems and down time.
Never use jumper cables during freezing
temperatures. Tow the machine inside and allow
the battery time to warm up. If the machine must
be started outside, inspect the battery acid for ice
formation. Explosion will occur with a frozen battery.
Never use jumper cables in a conned or unventilated
area. Battery acid fumes are explosive. Never expose
an open ame or spark near the battery.
Before using the top feedwheel jack if equipped,
remove the yoke springs. Install the disc/drum lock
pin in the mount tube before using hand jack to raise
top feedwheel. Hand jack is only provided as a
means of lifting the top feedwheel, not holding it up
for service.
Never feed any materials that might contain wires,
stones, nails, metal objects, or any foreign object
which may damage the knives and become dangerous
projectiles.
DANGER
DANGER DANGER
WARNING
DANGER
DANGER
DANGER
DO NOT attempt to hand feed this machine. DO
NOT operate the loader arm or chipper when anyone
is standing or working in front of the chipper infeed
opening. Failuretodothiscouldresultinseriousinjury
or death.

Bandit
Copyright 9/07 PAGE 10
MODEL 1850
Use Chain
Use
Wooden
Block
Use Yoke Lock Pin
SAFETY PROCEDURES
SAFETY PROCEDURES
The machine was built with a chipper hood engine
disable plug which disables the engine if it is not
installedproperlywiththehoodpinholdingthechipper
hood in the closed position. Correctly installed and
maintained, the engine will not start or it will shut off if
thechipperhoodenginedisableplug isdisconnected.
ThechipperhoodmustNEVER be opened, or pushed
closed if the chipper disc/drum is turning.
DONOTslamthechipperhoodtotheopenposition.
Thiswillcause damagetothehinge. Ifyourhingehas
become damaged by slamming the hood to the open
position, ReplaceTheHingeImmediately! Ifthehinge
hasbecomedamageditwillcausemisalignmentofthe
hood, the chipper disc/drum may then hit the hood and
cause a serious accident! Lubricate the hood hinge
daily.
Do not work on the machine if the engine is running
withtheclutchdisengaged. Aclutchcanselfengageif
either the pilot or throw-out bearing happens to seize
to the main output shaft.
There are various types of clutches (PTO’s)
available for this type of equipment. Make sure to
study the original clutch manufacturer’s manual that
isprovidedwiththemachineandfollowitsinstructions
for operation, service, and adjustments. Some styles
require clutch engagement to be maintained so that it
takes a lot of force, others will require very little force,
and some are push button, electric, manual lever, or
hydraulicactivation. Eachdifferentstyleclutch (PTO)
is a very expensive item that will fail if not correctly
maintained and adjusted. It will be quite costly if a
few minutes are not taken daily, weekly, and monthly
to keep the clutch serviced as required.
The operator must take care in the engagement
and disengagement of the clutch, engine RPM should
always be below 1000 RPM. When the engine has
sufficiently warmed up, bump the clutch handle
against engagement to start the chipper disc/drum
turning. This willhave tobe repeateduntil thechipper
disc/drum is turning at proper ratio with engine RPM.
Then push the handle all the way in gear until it locks
intoposition securely. Afterengagementraiseengine
RPM to full throttle. Engaging and disengaging the
clutch at high engine RPM will quickly and excessively
wear out clutch plates as well as bearings. Refer to
clutch manufacturer’s manual for proper service and
operation.
Do not work inside the mouth of the chipper or
around the feedwheel(s), until you have installed the
yoke lock pin completely and securely to help keep
the top feedwheel in the raised position. Remove top
wheel springs if equipped, block and chain top wheel
up before doing any work inside throat.
WARNING
DANGER
DANGER
DANGER

Bandit
Copyright 9/07 PAGE 11
MODEL 1850 SAFETY PROCEDURES
It is very important after you have operated a new
machine for approximately an hour to shut down the
machine and recheck all hydraulic ttings. Retighten
as needed.
DO NOT GO NEAR HYDRAULIC LEAKS! High
pressure oil easily punctures skin causing serious
injury, gangrene, or death. DO NOT use ngers
or skin to check for leaks. Lower load or relieve
hydraulic pressure before loosening ttings. Use a
piece of cardboard to nd leaks. Never use your bare
hands.
In cold weather situations let your hydraulic system
idle for approximately 15 minutes to allow the system
to warm up to operating temperature.
Never turn the chipper disc/drum by hand, always
carefully use a pry bar or wood bar. This will help
prevent the person turning the disc/drum from being
injured should the disc/drum break loose.
A sight hole in the chipper belt shield has been
provided. If chipper belts are moving do not open
chipper hood. Do not stick ngers in sight hole.
Before you begin to transport your trailerized machine
follow all of the transportation procedures on pages
34-36. Make sure that the tongue has been raised to
the proper height and attach the machine securely to
the towing vehicle. Once secured to vehicle, locate
tongue jack and secure it in the transport position.
Always hook safety chains to vehicle by crossing
them under the tongue allowing enough slack to
avoid binding when making turns. Check brakes and
highway lights make sure that they are all operating
properly. Check that the plug terminal functions match
the towing vehicle for proper operation. Make sure that
thedischargechuteisinthetransportpositionpointed
over the tongue of machine and the transport bolt is
securely in its place. Be sure to check tire pressure
before you begin to transport the machine. Close the
folding pan, if equipped for the infeed hopper and make
sure spring latches are locked into place. If machine
is equipped with a vise, make sure to secure in place
and clamp jaws closed. Close and secure any of the
following, if equipped: tool box, battery box, engine
cowl doors and side panels, radiator debris screens,
inspection doors, cabinet doors, housing covers, tank
caps and covers, etc.
SAFETY PROCEDURES
WARNING
WARNING
DANGER
Chipper knives are sharp and can be dangerous.
It is always necessary for your protection to be extra
careful and wear leather gloves when handling
knives.
DANGER
The knives must be securely fastened and torqued
in position. If one comes loose or breaks during
operation, someone or something may get injured.
DANGER
DO NOT operate this machine unless all hydraulic
control devises operate properly. They must function,
shiftandpositionsmoothlyand accuratelyat alltimes.
Faulty controls can cause personal injury!
WARNING
DANGER
DO NOT operate this chipper or loader arm when
anyone is performing any type of maintenance to the
machine. Before attemptingany type ofmaintenance
disengage clutch, install clutch lock, turn off engine,
wait for the disc/drum to come to a complete stop,
install the disc/drum lock pin, disconnect battery, make
sure the ignition key is in your possession, and the
loader arm, if equipped, is positioned on the ground.
Failure to do this could result in serious injury or
death.
DANGER
Before beginning to operate the loader make sure
the loader is unhooked from the transport chains.
Transport chains are stored in a safe place. Remove
loader swing lock pin. DO NOT operate this machine
or loader arm near power lines. Keep machine and
loader arm, when fully extended up and out, at least
10’ (3.0 m) away from all power lines. Failure to do
this could result in serious injury or death.

Bandit
Copyright 9/07 PAGE 12
MODEL 1850 SAFETY PROCEDURES
SAFETY PROCEDURES
Do not attempt to operate the track machine on an ascending or descending slope of more than 25° or 46%
or a side slope of more than 17° or 30%, it is Dangerous and could be Fatal. This is the maximum slope grade
the machine can be operated on if the hydraulics, tracks, and engine are running at maximum performance and
the tracks sustain good traction.
The track machine should never be parked on a slope at any time. The machine can coast or creep causing
equipment and/or personal injury.
DANGER
Make sure everyone is clear of machine before moving the track machine. Stay clear of tracks when the
machine is moving.
DANGER
DO NOT entangle feet or hands in undercarriage travel system.
DANGER
NEVER sit, stand, lay, climb or ride anywhere on this machine while it is running, operating, or in transit. You
will be injured.
DANGER
Use EXTREME CAUTION when traveling over non-level surface! This machine can tip over or tip backwards
on non-level surface. You will cause engine damage, machine damage and possible personal injury!
DANGER
WARNING
Any increase from the specied maximum operating angles may cause loss of lubrication function and damage
the engine.
WARNING
Maximum Slope Grade
Diagram shows percentage to degree of slope.
Percentage is in vertical feet for every 100 horizontal feet.
Ascending or Descending Slope Side Slope
IF MACHINE IS EQUIPPED WITH UNDERCARRIAGE TRACK
Machines equipped with undercarriage tracks are shipped with a manual from the track manufacturer. Refer
to it for service, operation, and safety information.

Bandit
Copyright 9/07 PAGE 13

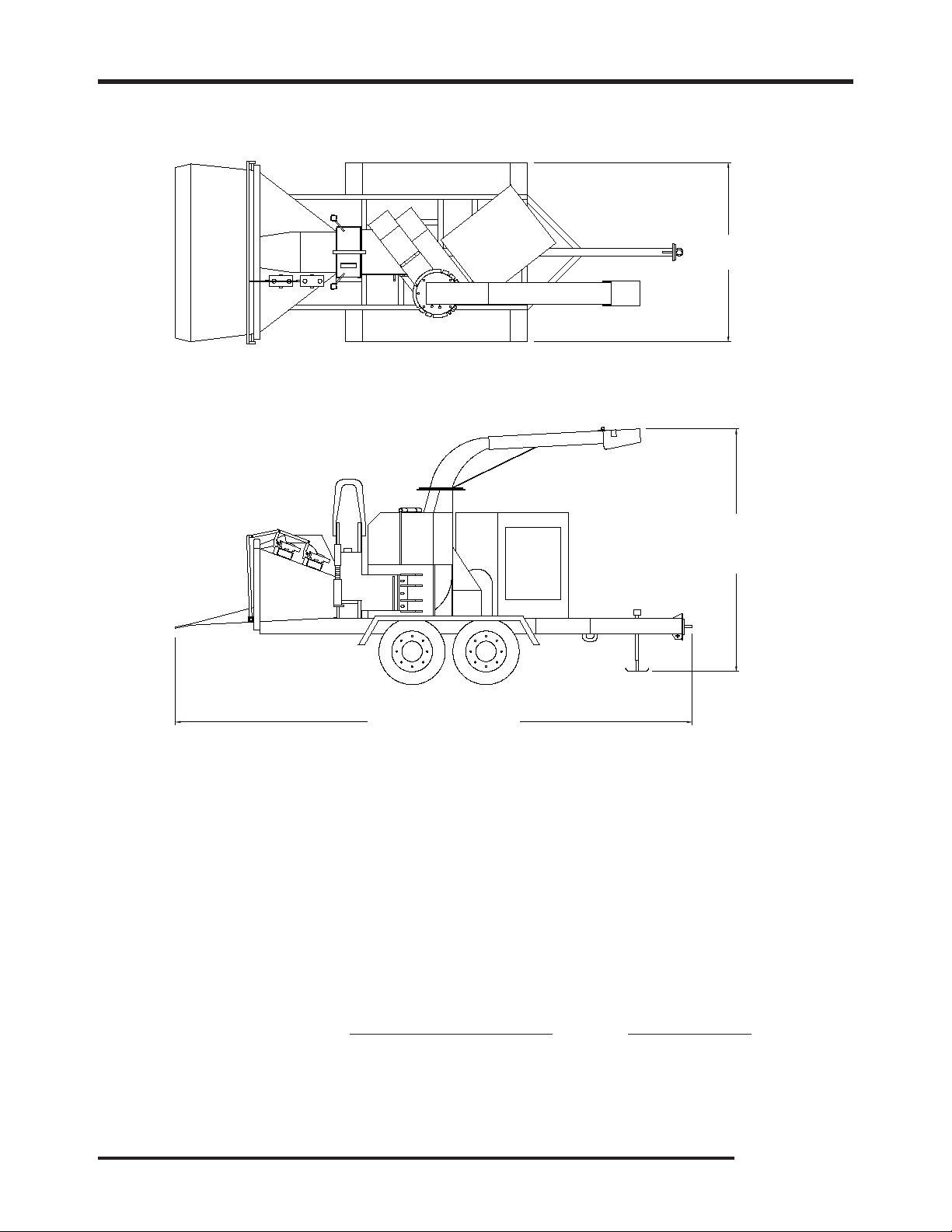

MODEL 1850 EQUIPMENT SPECIFICATIONS
EQUIPMENT SPECIFICATIONS
Approximate Dimensions & Weights
(Dimensions & weights will vary depending on optional equipment)
Approx. Model 1850: 13,500 lbs. (1624 kg)
Weight: Model 1850 w/ Loader: 18,750 lbs. (8505 kg) (Not Shown)
Model 1850 Track: 30,000 lbs. (13,608 kg) (Not Shown)
(Approximate weights depending on engine and equipment options.)
Overall Model 1850: Height: 9’ 4” (2.8 m), Length: 21’ 2” (6.5 m), Width: 7’ 5” (2.3 m)
Dimension: Model 1850 w/ Loader: Height: 9’ 4” (2.8 m), Length: 24’ (7.3 m), Width: 8’ 5” (2.6 m) (Not Shown)
Model 1850 Track: Height: 11’ 10” (3.6 m), Length: 21’ (6.4 m), Width: 8’ 8” (2.6 m) (Not Shown)
(NOTE: Measurements are to highest, longest, or widest points, not always as illustration is labeled.)
Model 1850 & 1850 w/Loader Model 1850 Track
Fuel Tank Capacity: 60 Gallons (227 L) 125 Gallons (473 L)
Hydraulic Tank Capacity: 30 Gallons (113 L) 70 Gallons (265 L)
(Approximate dimension depending on equipment options.)
WIDTH
LENGTH
HEIGHT

Bandit
Copyright 9/07 PAGE 14
MODEL 1850 DECALS
Decal locations may vary, these are general locations.
DECAL LOCATIONS - MODEL 1850
INSIDE CAB (If Equipped)
17,20,23,55,57,58
11,44 33,47
48 4,7,18,
34,51
1,15
25
2,46
6,22,31,32
9,13,14
1,22
21,27
22
5,28,41
11
36
35
49
3,10,50 22,24,26,29,30,
37,38,39,42
40,43
1,15
12,22
4,8
53,54,
56,59
16,17,19,20,
23,45,55
22

Bandit
Copyright 9/07 PAGE 15
MODEL 1850 DECALS
DECAL LOCATIONS - MODEL 1850
Modications and/or additions of decals to this list will happen.
Consult chipper dealer or manufacturer for most current decal package.
LOCATION NUMBER DESCRIPTION
1. SPD-02 Moving Parts...
2. SPD-03 Lockout All Energy Sources...
3. SPD-04 Flying Discharge Material...
4. SPD-16 Do Not Hand Feed...
5. SPD-18 Never Perform Maintenance...
6. SPD-28 Do Not Insert Fingers
7. SPD-30 Do Not Sit, Stand, Lay, Climb...
8. SPD-32 Do Not Operate This Machine...
9. SPD-33 Do Not Work Under...
10. SPD-34 Brush Chippers Are Very Dangerous...
11. ID-42 Bandit Industries Inc...USA
12. INST-01 Remove To Check Torque...
13. INST-02 Yoke Lock Hole
14. INST-03 Yoke Lock Bar
15. INST-04 Arrow
16. INST-05 Yoke Lift Up / Down
17. INST-07 Discharge Swivel Right / Left
18. INST-08 Winch Control Out / In
19. INST-09 Selector Winch / Feed
20. INST-10 Stabilizer Down / Up
21. INST-11 Motor Coupler Guard...
22. INST-12 Grease Daily (Arrow)
23. INST-15 Flipper Down / Up
24. INST-16 Grease Weekly Arrow
25. SPINST-25 Pull To Reverse
26. INST-39 Oil Daily Arrow
27. INST-40 Avoid Feed Coupler Problems...
28. INST-43 Clutch Lock
29. INST-44 California Proposition 65
30. INST-46 Autofeed Basic Info...
31. INST-48 Disc/Drum Lock Tube
32. INST-49 Disc/Drum Lock Pin
33. INST-53 Hydraulic Oil...Hydrex XV...
34. INST-76 Yoke Lift Down / Up
35. INST-90 Tongue Up / Tongue Down
36. INST-95 Electric Plug-In Schematic
37. INST-101 Canada Engine Decal
38. INST-136 Remote Starting Procedure
Note: Some decals are for optional equipment. Decal locations may vary, these are
general locations. If any decals become damaged, replace immediately.

Bandit
Copyright 9/07 PAGE 16
MODEL 1850 DECALS
Decal locations may vary, these are general locations.
DECAL LOCATIONS - MODEL 1850
INSIDE CAB (If Equipped)
17,20,23,55,57,58
11,44 33,47
48 4,7,18,
34,51
1,15
25
2,46
6,22,31,32
9,13,14
1,22
21,27
22
5,28,41
11
36
35
49
3,10,50 22,24,26,29,30,
37,38,39,42
40,43
1,15
12,22
4,8
53,54,
56,59
16,17,19,20,
23,45,55
22

Bandit
Copyright 9/07 PAGE 17
MODEL 1850 DECALS
DECAL LOCATIONS - MODEL 1850
Modications and/or additions of decals to this list will happen.
Consult chipper dealer or manufacturer for most current decal package.
LOCATION NUMBER DESCRIPTION
39. N-02 Maintain Lubrication...
40. N-03 Service Required Under Beltshield...
41. N-05 Frequently Adjust...PTO...
42. SPN-06 Decal Maintenance...
43. N-07 Clutch Operation...
44. N-08 Patents...
45. N-09 Adjustable Feed Speed...
46. SPN-11 Correct KnifeAnd Hardware...
47. SPW-01 Do Not Go Near Oil Leaks...
48. SPW-02 Diesel Fuel Only...
49. SPW-04 Frozen Battery Can Explode...
50. SPW-08 Wear Personal Protection...
51. SPW-10 Hydraulic Winch...
52. Bandit Model 1850 Vinyl Decals
Additional Decals for Machine Equipped With A Loader - Consult dealer or manufacturer for general locations.
53. SPD-15 Do Not Operate LoaderArm...
54. SPD-17 Do Not Run Or Operate...
55. INST-32 Joystick Controls
56. INST-110 Window Washing Instructions...
57. INST-125 Selector Winch / Feed
58. INST-126 Winch In / Out
59. N-10 Always Fold Loader...
AdditionalDecalsfor Machine Equipped WithATrack Undercarriage-Consultdealerormanufacturerforgenerallocations.
60. SPD-19 ...Minimum 10 Feet Away From Tracks...
61. SPD-38 Do Not Entangle Feet...
62. SPW-06 Do Not Attempt...Slope Of More Than...
63. SPW-07 Do Not Move Machine...Horn Is Blown...
64. SPW-11 Do Not Leave Unit Parked On A Slope...
65. Bandit Track Vinyl Decals
Additional Decals for Machine Equipped With A Conveyor - Consult dealer or manufacturer for general locations.
66. SPD-25 Stand Clear - Moving Conveyor
67. SPD-29 NO Do not Climb...
Note: Some decals are for optional equipment. Decal locations may vary, these are
general locations. If any decals become damaged, replace immediately.

Bandit
Copyright 9/07 PAGE 18
MODEL 1850 DECALS
DECALS
Decals located on your Bandit equipment contain useful information to assist you in operating your
equipment safely. Some of the decals on your machine and their location are shown in this section.
It is very important that all decals remain in place and in good condition on your machine. Please follow the
care and instructions given below:
1) You should use soap and water to keep your decals clean. Never use mineral spirits or any
other abrasive cleaners.
2) Replace immediately any missing or damaged decals. The location the decal is going to be
applied to must be clean and dry, and at least 40° F (5°C) before applying decal.
3) When the need arises to replace a machine component with a decal attached, be sure and
replace the decal.
4) Replacement decals are available, and can be purchased from the manufacturer or your
Bandit Dealer.
5) Combination English / Spanish decals are typically standard. Other foreign language decals are
available and may be purchased. Mail translated decals required to Bandit Industries, Inc.
THE CLUTCH HANDLE SHOULD NOT
BE ENGAGED OR DISENGAGED AT
SPEEDS ABOVE 1000 RPM’S.
DO NOT operate this Clutch/PTO unless proper adjustments and
lubrication are maintained per the Clutch/PTO Manufacturer’s Manual.
Different brands and models require different service and operation
procedures. New Clutch/PTO’s require more
frequent adjustment.
GOOD OPERATORS
DON’T WASTE MONEY!
Clutches will fail, glaze over, and burn up from
improper adjustment. This will cost the owner of this
machine thousands of dollars to repair. A well
maintained, correctly adjusted clutch should function
properly for years.

EXAMPLES:
