Brush Hound FHX Series User manual

FHX DEFENDER OWN ER’S MANUAL
PO Box 220 | 2507 Tully Road | Hughson, CA 95326 USA | 800 426-5615
www.Valleytoolmfg.com
FHX Series
by
Version 2.0
Release Date: Dec 2017
(From serial number BH17FHX66D-194 and aer)
Power unit must be equipped with 1/2” LEXAN® glass (or equal) and falling object protecon.


Introduction
Thank You ………………………………………………………………1
Warranty Registraon / Delivery Report ………………..2
Limited 12 Month Warranty ……………………………………4
Safety
Operaonal Safety ………………………………………………….5
Maintenance Safety ……………………………………………….6
Basic Operation
Transport ………………………………………………………………7
Storage …………………………………………………………………..7
Aaching to Power Unit ………………………………………...8
Removal ………………………………………………………………..8
Starng Procedure ………………………………………………...9
Shut Down Procedure …………………………………………….9
Running Your Aachment …………………………………….11
Adjustments & Maintenance

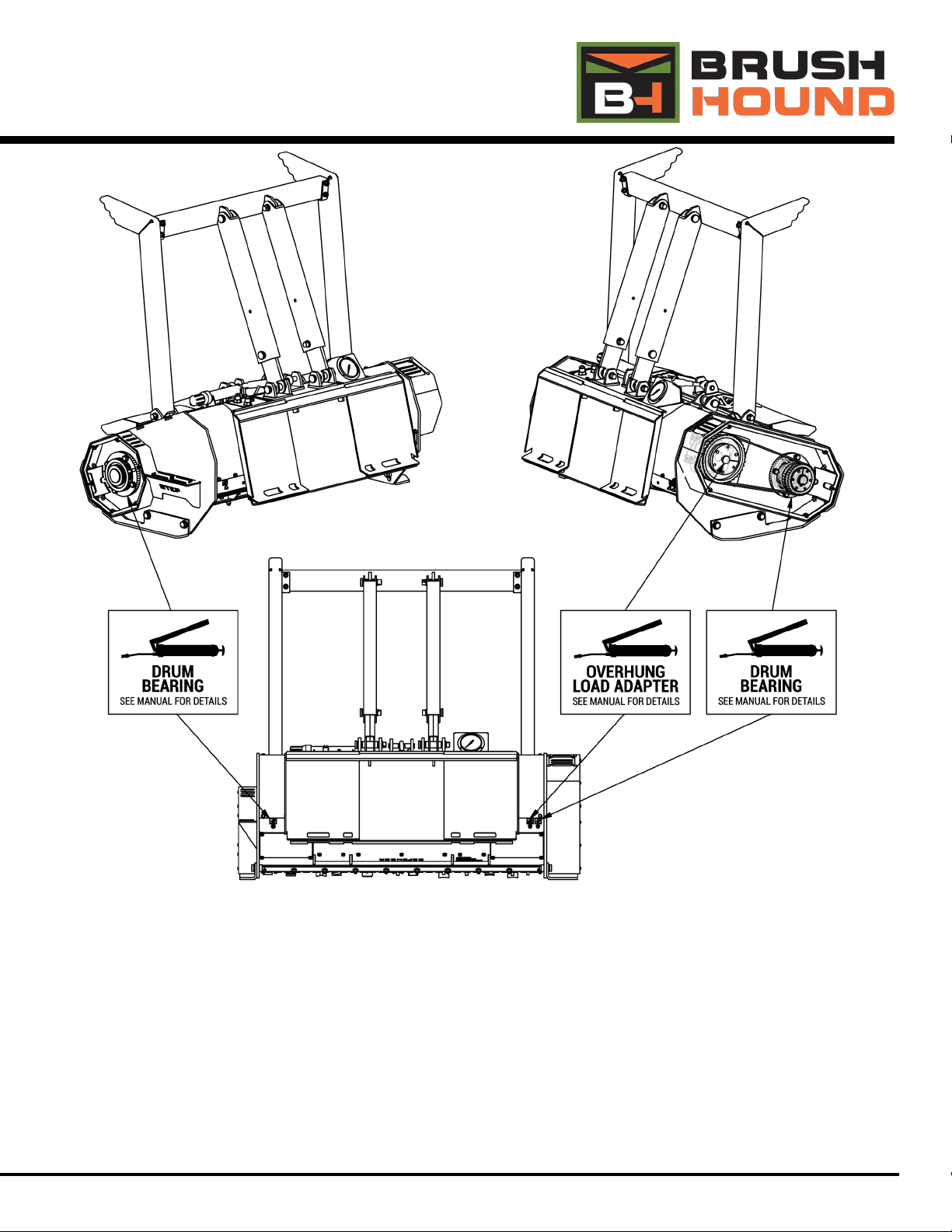

Lubricaon ……………………………………………………………13
Wearable Component Maintenance ……………….13-14
Knife Replacement ……………………………………………….15
Bumper Adjustment …………………………………………….16
Cleaning Your Aachment …………………………………...17
Hydraulic Maintenance ………………………………..………18
Parts Catalog
Bumper Assembly ………………………………………………..20
General Parts …………………………………………………..21-22
Cuer Drum Assembly ………………………………………….23
Additional
Torque Specicaons ………………………………..…………25
Frequently Asked Quesons ………………………………...26
Notes ………………………………………………………...…………27
Table of Contents
FHX Series
by

Thank You
Dear Customer,
Thank you for purchasing a BrushHound aachment. This manual has been prepared to acquaint you with the
operaon, adjustment and maintenance of your new brush shredder. It was carefully designed and manufactured
under the highest industrial standards to give you years of dependable service. Read this manual carefully and fully
understand the operaon of the machine before aempng to operate it. Each secon has been clearly idened so
you can nd the informaon you need. BrushHound Aachments reserves the right to make changes in design and
specicaons, and/or to make addions to or improvements in its product without imposing any obligaon upon
itself to install them on its products previously manufactured. If at any me you require addional informaon,
consult your authorized dealer or the customer service department.
ATTENTION
The safety of the operator was one of the primary concerns of BrushHound Aachments when designing this
shredder. Shielding, simple adjustments and other safety features were built into this mulcher whenever possible.
You can make your home, orchard or farm a safer place by observing the precauons noted in this manual. Be sure
you and the people working for you read and understand them. All machinery should be operated only by
responsible persons who have been trained to operate them in a safe manner and have read and understand the
operang precauons and instrucons fully.
BrushHound Aachments is solely owned by
Valley Tool and Manufacturing.
Have a farm or orchard? Own a tractor with
PTO capabilies? Visit our full line of
agricultural ail mowers at www.vrisimo.com.
Aachments
Introduction
PO Box 220 | 2507 Tully Road | Hughson, CA 95326 USA | 800 426-5615
www.Valleytoolmfg.com
1 www.brushhound.com

2
FHX Series
by
Prior to acceptance of the equipment, thoroughly check and mark off the items outlined in the delivery checklist below with your
sales representative. Make sure you fully understand the operation, adjustment and safety rules as outlined in the operator’s
manual. The sales representative is responsible for going over this form with the owner and operator of this attachment.
This form also serves as your warranty registration.
Fax completed form to 209-882-9001 or scan and email to sales@valleytoolmfg.com.
□Check to make sure user’s power unit is equipped with 1/2” LEXAN® glass (or equal) and falling object protecon.
□Check to make sure aachment is completely lubricated.
□ Buyer is shown all grease ngs and proper daily maintenance roune.
□ Buyer is shown correct operaon procedures including correct height of aachment.
□ All bolts checked for ghtness.
□ All knives and blade bolts are in place.
□ All shields in place.
□ Procedures for aaching shredder demonstrated to buyer.
□ Ensure pressure sengs on power unit are correctly set.
□ Starng procedures explained to buyer.
□ Operaon guidelines as outlined in owner’s manual explained to buyer.
□ Adjustment of cung height explained to buyer.
□ Replacement of knives explained to buyer.
□ Hydraulic breaker mode funcon and case drain applicaon explained THOROUGHLY.
□ All safety precauons thoroughly read and understood.
Customer Information
Last Name Street Address
City
Attachment Information
Dealer Information
State Zip
Model Serial Number
Company Name Sales Rep. Name
Company Street Address City State Zip
The signatures below indicate that both the sales representave and the end user have gone over the
above checklist and all topics have been covered thoroughly.
Buyer Signature Date
Dealer Signature Date
Warranty Registration / Delivery Report

3 www.brushhound.com
Introduction

FHX Series
by
Limited 12 Month Warranty
4
For a period of 12 months from date of delivery of product to
the original user/owner, Valley Tool & Mfg. warrants each
product to be free from manufacturing defects, subject to the
limitations contained in this policy.
This warranty does not apply to defect caused, in whole or in
part, by unreasonable use while in the possession of the user,
including, but not limited to: failure to properly set up product;
failure to provide reasonable and necessary maintenance;
normal wear; routine tune ups or adjustments; improper
handling or accidents; operation at speed or load conditions
contrary to published specification; improper or insufficient
lubrication; improper storage. This warranty is also not a
guarantee that the performance of each product will meet
the expectations of the purchaser.
Valley Tool & Mfg. shall not be liable for consequential
damages of any kind, including, but not limited to:
consequential labor costs or transportation charges in
connection with the replacement or repair of defective parts;
lost time or expense which may have accrued because of said
defects. In no event shall Valley Tool & Mfg. total liability
hereunder exceed the product purchase price.
Valley Tool & Mfg. makes no warranty with respect to trade
accessories or any components or accessory of the product
which was not manufactured by Valley Tool & Mfg., including
any purchased components of any kind. These are subject to
the warranties of their respective manufacturers. The
warranty will be considered void if the product or any part of
the product is modified or repaired in any way not expressly
authorized by Valley Tool & Mfg., or if closed components are
disassembled prior to return. Closed components include, but
are not limited to: gearboxes, hydraulic pumps, motors,
cylinders, and actuators.
Our obligation under the warranty is expressly limited, at our
option, to the replacement or repair at Valley Tool & Mfg., of
Hughson CA, or at a service facility designated by us, or such
part or parts as inspection shall disclose to have been
defective. We are not responsible for unauthorized repairs or
replacements. Warranty must be pre approved. Authorized
parts will be sent to dealer 2nd day UPS at no charge. Any
implied or statutory warranties, including any warranty
merchantability or fitness for a particular purpose, are
expressly limited to the duration of this written warranty. We
make no other express or implied warranty, nor is anyone
authorized to make any on our behalf. This warranty cannot
be extended, broadened, or changed except in writing by an
authorized officer of Valley Tool & Mfg. No warranty will be
processed without the timely registration of the signed
“Delivery Report”.
Travel time of mechanics and transportation of the product to
the authorized service dealer for warranty work are the
responsibility of the attachment owner.
Valley Tool & Mfg. offers the most reasonable and dealer -
friendly return policy in the market. Below we have included
the return policies for each of our brands. We will accept
returns within 30 days of original receipt. All returns must be
approved by Valley Tool & Mfg and a return authorization
number must be issued prior to return shipment. Returns
must be received in "like-new" condition and with all of the
original factory packaging including manuals. Additional
charges will apply if an item is received that is not in "like-new"
condition or that is not in original factory packaging. After a
return has been fully inspected by our staff, refunds will issued
less shipping charges and any other possible damage fees.
Please allow up to 30 business days for your account refund
credit to be processed.
Please direct all return-related questions to
sales@valleytoolmfg.com.

Failure to heed any of these warnings may result in
personal injury or death.
• Before operang this machinery read the owner’s
manual thoroughly.
• Do NOT operate this machine without proper
training. It is the Owner’s responsibility to ensure
all Operators are properly trained in the
appropriate language.
• Power unit must be equipped with 1/2” LEXAN®
glass (or equal) and falling object protecon.
• Use OSHA approved eye, ear and head protecon
to protect the Operator from ying debris and
noise.
• Avoid wearing loose clothing as it can inadvertently
be drawn into moving parts.
• Never use drugs or alcohol before or during
operaon of this machine.
• Only operate this machine when it is in good
working order on an appropriate power unit that is
in good working order, and with all guards and
safety devices in place and funconing.
• Be aware of the machine’s weight and its eect on
the stability of the power unit.
• Always inspect area to be worked to ensure that
the jobsite is free from obstacles and debris that
could injure the operator or damage the machine.
• Avoid running the machine along the ground in
rocky areas as this could create dangerous
discharge.
• Keep bystanders and children clear of the work
area during operaon as debris can be discharged
in a dangerous manner. The minimum safe
distance from discharge is 100 .
• Under no circumstances should the blades of this
machine come into contact with the ground or
should the machine be curled in such a way that
the blades become visible to the operator.
• Avoid operaon that would allow hydraulic lines to
be pinched or severed. In the event of a hydraulic
leak, hydraulic uid may have sucient force to
penetrate skin which requires immediate medical
aenon.
• Be aware of the risks of equipment and grass res.
To migate those risks:
- Do not smoke or have an open ame in the work
area.
- Do not operate in areas that have been freshly
burned or are sll burning.
- Do not allow clippings/debris to collect near
hydraulic components or bearings.
- Avoid areas with high re risk: dry grass, brush or
trees.
• Operaon of this machine should be stopped
immediately if the Operator’s vision becomes
obscured by the discharge of debris and dust. Also
avoid operang this machine in unusually foggy or
dusty condions or at night.
• Keep away from the machine unl all the energy
has dissipated. This includes the complete stopping
of the drum’s rotaon as well as the dissipaon of
pressure in the hydraulic lines.
• In the event that a failure does occur during
operaon or if the machine begins to produce
excessive noise or vibraon, shut the machine
down immediately and repair before any connued
use.
• Never leave the machine unaended unless it is in
the storage or transport posion.
• In addion to the design and conguraon of
equipment, hazard control and accident
prevenon are dependent upon the awareness,
concern and prudence and requires suitable
training of personnel involved in the operaon,
transport, maintenance and storage of equipment.
Safety
Operational Safety
5 www.brushhound.com

6
• Before performing maintenance on this
machine read the owner’s manual thoroughly.
• Maintenance should only be performed by
properly trained individuals . It is the Owner’s
responsibility to ensure all individuals involved
in maintaining the machine are properly trained
in the appropriate language.
• Be sure to inspect all safety devices before each
use. If safety devices are worn in such a way
that they can no longer properly perform their
guarding funcon contact your nearest
BrushHound dealer for replacements.
• Maintain all safety decals and make sure they
are visible to the operator. If decals are worn,
contact your nearest BrushHound dealer for
replacements.
• Replace cracked or broken blades with new
ones. Do not aempt to weld damaged blades.
This can cause damage that could result in the
blade being thrown from the shredder.
• Wear gloves and eye protecon and exercise
care when handling blades as they can be
extremely sharp. Also be alert to worn or
damaged surfaces that could have sharp edges.
• Disengage hydraulics, shut o engine and allow
all movement to stop before leaving the
operator’s posion to adjust, lubricate, clean or
unclog the machine. Do not try to uncouple the
hydraulic hoses unless the pressure has
adequately dissipated.
• Before working on or underneath the machine,
place blocks on both sides (front and back) of
the power unit’s res or treads and under each
end of the aachment to prevent accidental
lowering of the machine. Also, remove the
ignion key from the power unit and allow all
movement to stop before beginning work.
FHX Series
by
Maintenance Safety

Basic Operation
ATTENTION
Review all safety informaon outlined in
safety secon of manual before proceeding
with any operaon of aachment.
Transport
a) Transporng on Power Unit
If the aachment is being transported on the
Power Unit, disengage the auxiliary hydraulic
circuit and posion the aachment at a
reasonable driving height and posion to
maximize Power Unit’s balance. Wait for the
drum to stop rotang before transport.
b) Transporng Aachment and Power Unit
If the Power Unit is being transported with the
Aachment (e.g. transporng on a trailer
between jobsites), follow the Power Unit
manufacturer’s recommendaons for transport
and be sure to comply with all local regulaons.
Storage
a) Storage
When storing the aachment in between jobs:
1) Clean the aachment thoroughly (see “Cleaning
Your Aachment” secon for specic cleaning
instrucons).
2) Lubricate the aachment as recommended (see
“Lubricaon” secon for lubricaon details).
3) Check wearable parts and replace as necessary
so you will be ready to operate when
necessary.
4) Store in a clean, dry place.
b) Storage on Power Unit
When leaving the Aachment unaended while
sll aached to the Power Unit:
1) Find a suitable, at locaon to leave the Power
Unit and Aachment.
2) Disengage auxiliary hydraulic circuit and lower
the Aachment all the way to the ground. Both
the front and rear of the Aachment should be
resng on the ground and posioned in such a
way that the balance of the resng Power Unit is
considered
3) Turn o Power Unit and remove ignion key.
Wait for drum to completely stop its rotaon
before leaving unaended.
7 www.brushhound.com

8
FHX Series
by
Plates Flush
Pins Fully Extended
Hoses
Attaching to Power Unit
Note: When you ordered your BrushHound product,
details about your Power Unit were provided to
custom match your Aachment to your Power Unit.
While BrushHound products can be aached to a
variety of dierent skid steers and track loaders,
your Aachment is specically congured for your
Power Unit and can not necessarily be placed on
another Power Unit as is. Specically, the hydraulic
motor and pulleys were selected to opmize
performance based on your hydraulic system. Your
Aachment should only be connected to Power Units
that share the same specicaons as the
informaon on the Power Unit you provided. To
connect your Aachment to another Power Unit,
contact your nearest BrushHound Dealer.
The person that is aaching your BrushHound
product should be familiar with the aachment and
removal of regular buckets from a skid steer or track
loader and be able to do so safely. Aachment
should be performed on at ground away from
obstrucons. During aachment, keep hands out of
pinch points and away from the blades to avoid
injury and ensure hoses are clear of mounng plate:
1) Line the mount on the Power Unit up with the
Universal Skid Steer Mount on the Aachment.
2) Lower the mount on the Power Unit and lt
forward so it can scoop up under the top lip of
the Aachment’s mounng plate.
3) Slowly move Power Unit forward unl it taps
against the mounng plates, li up slightly to
lock into the lip.
4) Check boom poron of mount to ensure ush
mounng between Power Unit and Aachment.
Once ush, lower the locking mechanism on the
Power Unit making sure it has fully engaged.
5) Connect hydraulic hoses to Power Unit.
Removal
To remove the Aachment from the Power Unit:
1) Find a suitable, at locaon to leave the
Aachment where it will not fall over.
2) Make sure the auxiliary hydraulic circuit is o
and lower the Aachment all the way to the
ground. Both the front and rear of the
Aachment should be resng on the ground.
3) Wait for drum to stop rotang and hydraulic
system to depressurize before approaching
Aachment.
4) Unlock the locking devices on the Power Unit’s
mount.
5) Li arm to remove it from the Aachment.
FHX Mounng

Starting Procedure
The Operator should be properly trained on the use
of your BrushHound Aachment and wearing the
appropriate safety gear. Do not start the Power Unit
unl the Aachment has been checked for proper
assembly and installaon. This includes the
appropriate connecon of the mount and hydraulic
connecons as well as the proper funconing of all
safety devices on both the Power Unit and the
Aachment. Clear the work area of all bystanders
and children:
1) Check that the aachment is in the down
posion and that the blades are not in contact
with ground. Start engine and set throle to idle.
Never engage the auxiliary hydraulic ow with
the motor above idle speed.
2) With the motor at low RPM engage the auxiliary
hydraulic ow.
3) Slowly bring the throle up to maximum ow. If
the Aachment produces excessive noise or
vibraon, disengage the auxiliary hydraulics and
shut down the Power Unit immediately.
Determine the cause of the problem and correct
it before connuing with its operaon.
4) Aachment is ready for operaon.
Shut Down Procedure
1) When work is completed, disengage auxiliary
hydraulics and posion it for storage or transport
(See the “Storage and Transport” secon for
details on proper storage). Shut o Power Unit
and set parking brake. Wait for the Aachment
to stop rotang and allow hydraulic circuits to
bleed back to reservoir, as they can sll be
pressurized even when turned o, before
approaching or allowing others to approach the
Aachment.
2) Visually inspect hydraulic motor, motor
protecon valve and other areas for signs of
excessive heat, debris accumulaon or leaks. Do
not touch these areas with bare skin as they can
be very hot. Hydraulic leaks should never be
checked for with hands as the uid may have
adequate force to puncture the skin which would
require immediate medical aenon and can
lead to gangrene within hours. Instead, if you
believe there is a hydraulic leak, check with a
piece of cardboard or paper.
Basic Operation
9 www.brushhound.com

10
O Ground & Level
FHX Series
by
FHX Starng Posion

Basic Operation
Running Your Attachment
1) Level sides of the Aachment with the ground,
making sure skid shoes are just above ground
level. Skid shoes are designed to collide with
uneven surfaces, not run along the ground.
2) Ground speed should range anywhere from 0-5
miles per hour. However, the operator should
drive at a speed they are comfortable with given
terrain and brush density.
3) Small trees can be driven into and knocked over
with the push bar, allowing the Aachment to
connue running along the ground. For larger
trees, raise the Aachment into the air, making
sure it is oriented such that the blades are not
visible. Then clip o the upper part of the tree
and slowly lower the aachment, mulching the
remaining tree to the ground.
Note: Be reasonable in which trees you aempt to
mulch, excessively large and tall trees could fall on or
knock over your Power Unit.
Basic Guidelines
1) Your Aachment is most ecient when the
knives are sharp and turning at full RPM. Your
specic recommended sha speed is listed on
the unit’s Serial Number plate, but it should
range from 1700-2200 RPM.
2) Before beginning your job, walk the work area
and clear all the hidden hazards such as large
rocks, ulity lines, fencing and hidden debris like
broken glass, boles and miscellaneous
materials. Projected debris can cause injuries to
operators, pedestrians, livestock or damage
property.
3) While inspecng the work area, be on the
lookout for bees, re ants, poison ivy or poison
oak. Also be aware of improper working
condions such as overly saturated grounds
which can cause slippery condions. Taking note
of all potenal area hazards will increase your
producvity as well as your safety.
4) Never allow bystanders to be near mowing or
brush cung or to climb on the machine.
5) Loading or “lugging down” the cuer excessively
will signicantly reduce its cung capacity and
result in increased hydraulic oil temperature.
Stay aware of the cuer drum speed and li out
of the cut unl maximum speed is regained
before resuming.
6) Do not use this aachment as a bucket to dig up
roots and spread piles of dirt. This type of
damage will not be covered by your warranty
and repairs will be expensive. The weldment’s
design is strong enough to last for decades if
cared for properly.
7) Never start the aachment if the safety guards
are not securely fastened to the aachment.
8) Abuse can be indicated by drum damage or
premature knife failure. To prevent abuse,
always reduce cung load before signicant
cuer drum speed is lost.
11 www.brushhound.com

12

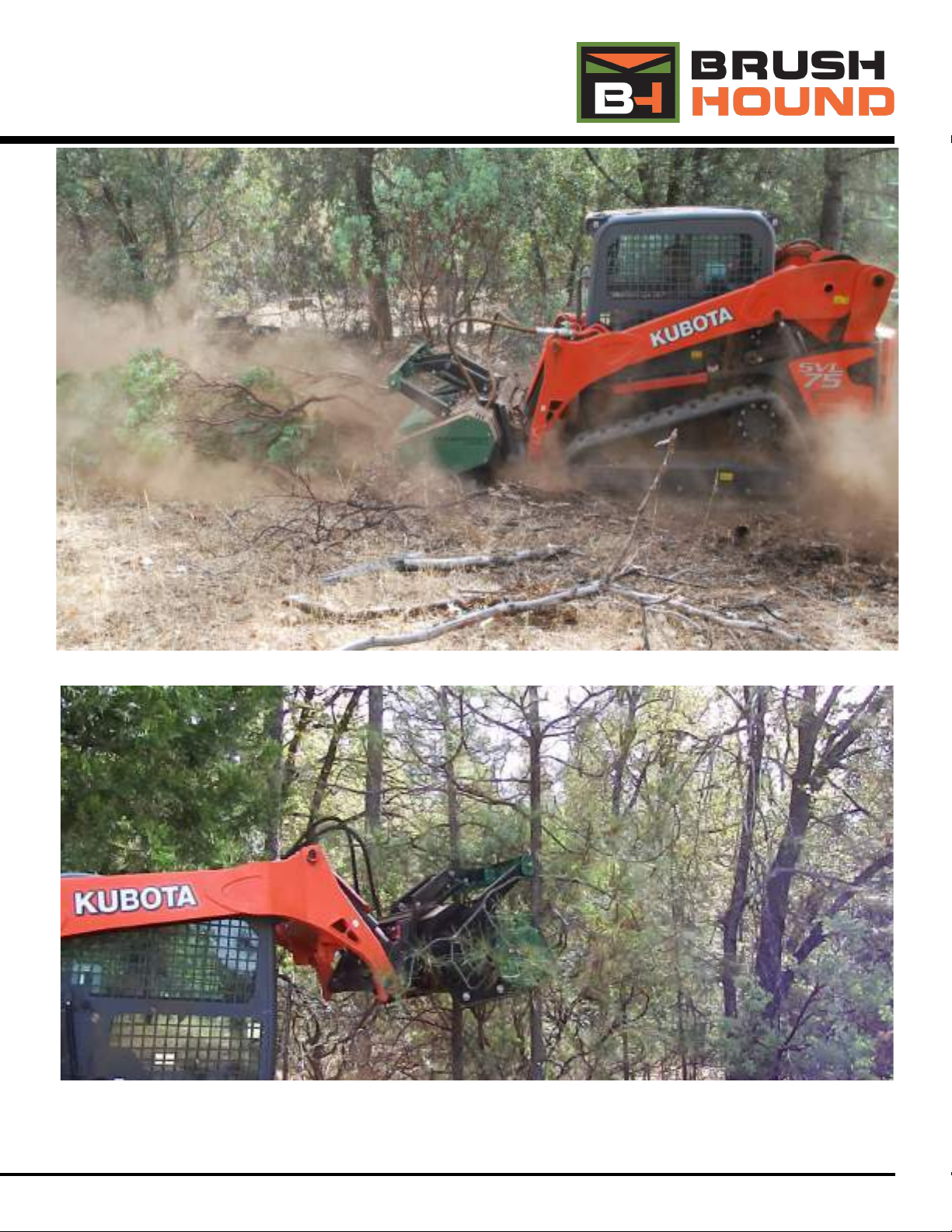

Shredding Brush
Clipping Tree Tops
FHX Series
by

Adjustments & Maintenance
ATTENTION
Review all safety informaon outlined in
safety secon of manual before proceeding
with any adjustments or maintenance.
Lubrication
The FHX Series has 3 lubricaon points,
idenable by the presence of a grease ng.
Use only BrushHound approved grease or a
compable grease with similar specicaons and
EP addives. For all 3 of the FHX’s grease points
BrushHound recommends using Mobilith SHC
100 Grease. Over-greasing seals and bearings
can cause damage, if grease purges from the
bearings’ seals too much grease has been
applied. If the purged grease is black and smells
burnt, this may be a sign of chronic over-
greasing.
a)Cuer Drum Bearings
On each end of the cuer drum, behind the bolt
on covers are the cuer drum bearings. These
are double row spherical bearings with high
speed Teon seals, each comes with a grease
ng and prepacked with high quality grease
from the factory. Greasing intervals are
dependent on condions, but for standard use
the main bearings require 10 pumps of grease
from a manual grease gun every 60-80 hours of
operaon. Abnormally wet condions, where
bearings are connuously moist, may require
more greasing.
b) Overhung Load Adapter
In the motor compartment, mounng the motor
to the side wall is the overhung load adapter. It
has a grease line that runs to the top of the FHX
and comes prepacked with high quality grease
from the factory as well. The grease interval for
the overhung load adapter is 10 pumps every
300 hours, or every fourth cuer drum bearing
greasing.
Wearable Component
Maintenance
a) Rubber Drive Belt
The drive belt is located behind the pulley
housing cover on the drive side of the
aachment. The belt itself has a lifeme of
over 1000 hours, but should be inspected
regularly for excessive wear. If the belt
appears worn thin or torn it should be
replaced. It should also be replaced
whenever the cuer drum is removed.
• Drive Belt Tension - Drive belt tension
can be achieved by rst removing the
drive side pulley cover and the motor
guard cover. With the covers removed
you will gain access to the overhung load
adapter mounng plate. The over hung
load adapter mounng plate has bolts
that when ghtened pull the enre
assembly toward the mounng plate,
pung tension on the drive belt.
b) Hydraulic Hoses
The hydraulic hoses located within the motor
guards have been placed to minimize their wear
caused by rubbing against metal surfaces.
However, due to heavy vibraon their posions
can shi so regular inspecon for excessive wear
should be performed.
c) Bearings
Bearing failure can be indicated by excessive
vibraon or noise or the complete seizing of the
cuer drum altogether. Imminent bearing failure
signs can be more subtle and go unnoced
without appropriate diagnosc equipment. As a
precauon, bearings should be replaced every
1500-2000 hours of operaon depending on the
environment and usage condions.
d) Safety Guards
Safety guards are in place for the protecon of
the Operator, bystanders and nearby property
and should never be removed for operaon.
Therefore, it is important that each safety guard
13 www.brushhound.com

14
FHX Series
by
is capable of performing its guarding funcon. Any
worn guards or guards with rust penetrang deep
enough to compromise their strength should be
replaced. To prolong the guards life, regularly clean
the guards and keep them painted as this provides
protecon from the elements.
• Cuer Drum Door - Cuer drum door can be raised
or lowered by using the adjustable top link Ratchet.
At no point should the Aachment be run without
the
Cuer Drum Door.
e) Safety Decals
Safety decals are not cosmec, they are in place to
warn the Operator and bystanders of the dangers
inherent of this machine. Safety decals should
always be clearly legible, even from a distance, and
should never be covered for any reason. Faded or
worn decals should be replaced.

Adjustments & Maintenance
Knife Maintenance
Since the FHX Series is designed for Forestry
Mulching, it is crical that the knives are present
and that they be kept sharp to keep cung
eciency at a maximum. The standard cung tool is
a hardened steel knife with mulple cung
surfaces, allowing it to be either sharpened, rotated,
or replaced depending on the circumstances (on
certain models an upgraded mul-surface carbide
blade is oered that can be rotated or replaced).
1)Rotang
The standard knife oered has 4 cung surfaces,
allowing for up to 3 rotaons in the eld where
replacements or sharpening equipment may not
be available. To rotate the knife, loosen the
retenon bolt and; First rotaon 180°, Second
Rotaon 90°, and third rotaon at 180°. Reghten
to 2000 -lbs with a grade 8 bolt. You will noce
that the limiter on the knife holder does not allow
the sharp corner to be centered, this is intenonal
as it is the U-shaped surface that is the cung
poron not the edge.
2)Sharpening
When sharpening tools are available, the knives
can be sharpened in the holder using a grinder.
Simply run the grinder in plane with the at V-
shaped side, surfacing the outer edge of the knife.
3)Replacing
The nal opon is replacement, simply unbolt the
knife and replace it with a new one, reghtening
to 2000 -lbs with a grade 8 bolt.
15 www.brushhound.com
Knife Maintenance:
• First Rotaon 180°
• Second Rotaon 90°
• Third Rotaon 180°
Knife Maintenance:
• Grind at in-plane
1
2
3

16
FHX Series
by
Bumper Adjustment
To adjust bumper there will need to be more than
one person. At least one person to hold the weight of
bumper while one person handles the adjustment of
the adjustment pins. (DO NOT ADJUST WITHOUT
RETAINING BOLTS IN PLACE) The process is as follows:
1) Have at least one person hold weight of bumper.
2) Remove adjustment pins.
3) Posion as desired (4 oponal posions)
4) Once in desired posion insert adjustment pins.

Adjustments & Maintenance
Cleaning Your Attachment
Cleaning your Aachment regularly will help prolong
the life of both the paint and the safety decals as well
as minimize the risk of unintenonal re.
1) Check for excessive grease in the bearing areas,
cleaning o any excess found.
2) Clear debris from the hydraulic hose area, bearing
area or any other area that may experience
excessive heat.
3) Clean the inside and top of the Aachment with a
pressure washer, removing any accumulated mud,
grass or other debris. Keep in mind that mud
build up on the cuer drum can cause imbalance.
4) Touch up paint where needed as this will help
prevent your Aachment from rusng.
17 www.brushhound.com
This manual suits for next models
1
Table of contents
Popular Industrial Equipment manuals by other brands

Orion
Orion H66-14 instruction manual

Emerson
Emerson Liebert eXL installation manual

Cooper Power Systems
Cooper Power Systems NOVA 15 Installation and operation instruction

Emerson
Emerson ACC/ARTM-7221/FC installation guide

Festo
Festo DGPI(L)-Series operating instructions

S&C
S&C PME Pad-Mounted Gear manual
