BS RACING DUNE RACER User manual

Instruction Manual
4 Wheel Drive.
Ball Differential Box.
Completely waterproof, driving all whether!
Buggy, Truck, Rollage three different bodies.
DUNE RACER / DUNE RACER PRO
DUNE RACER XB / DUNE RACER XB PRO
DUNE RACER XT / DUNE RACER XT PRO
Model:
Features:
All manuals and user guides at all-guides.com
all-guides.com

1

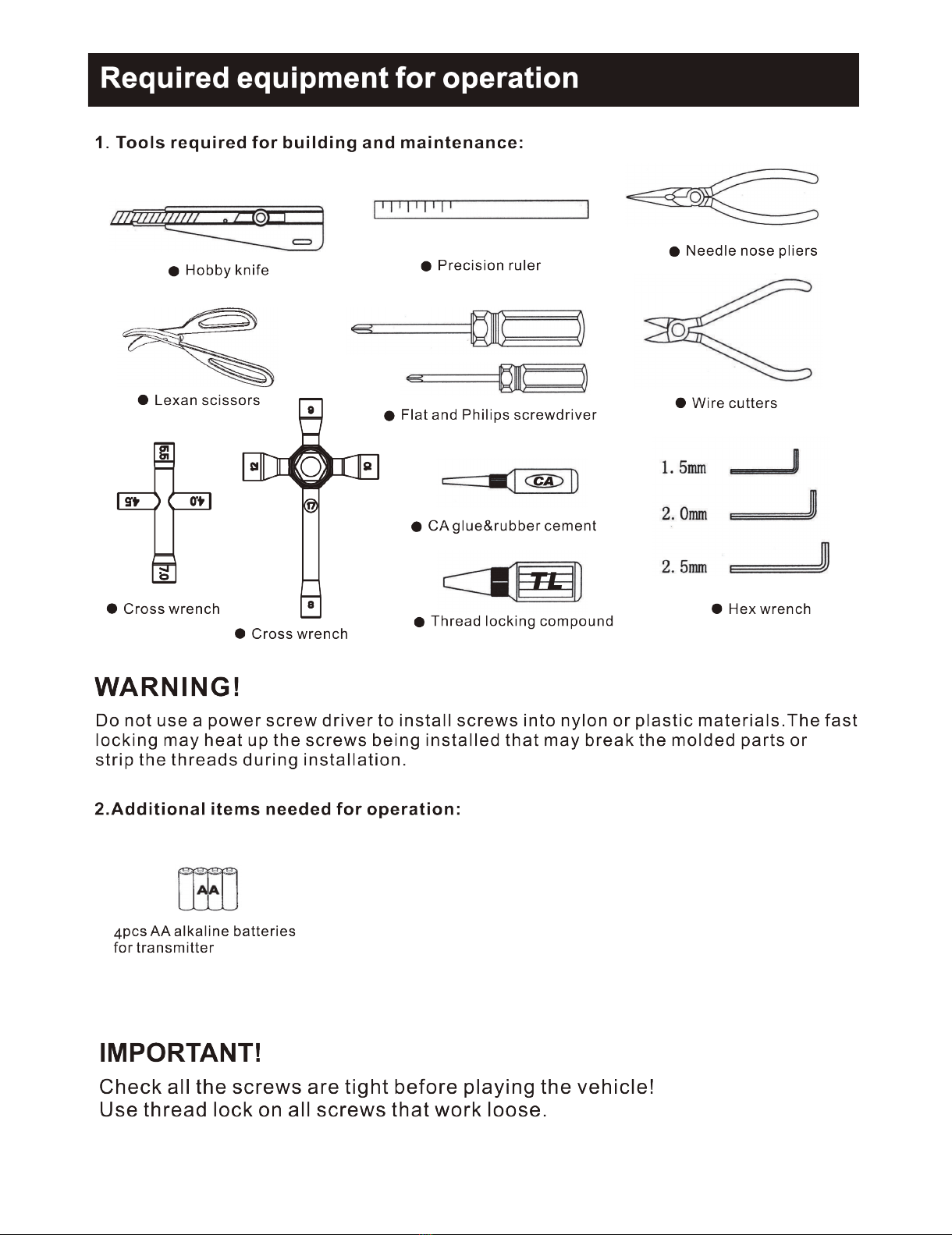

All manuals and user guides at all-guides.com

2

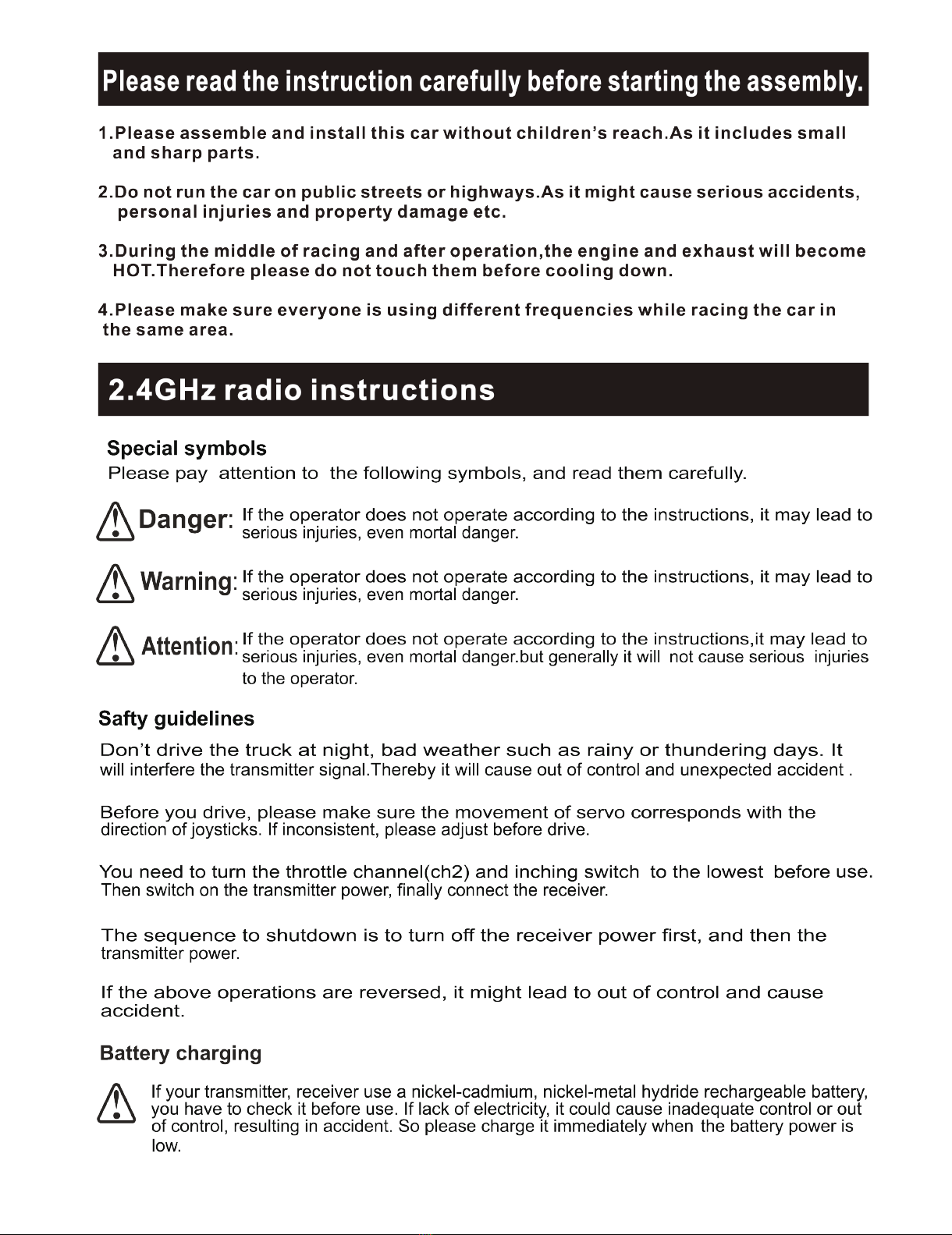

All manuals and user guides at all-guides.com

200mm
162mm
SERVO DIRECTION:

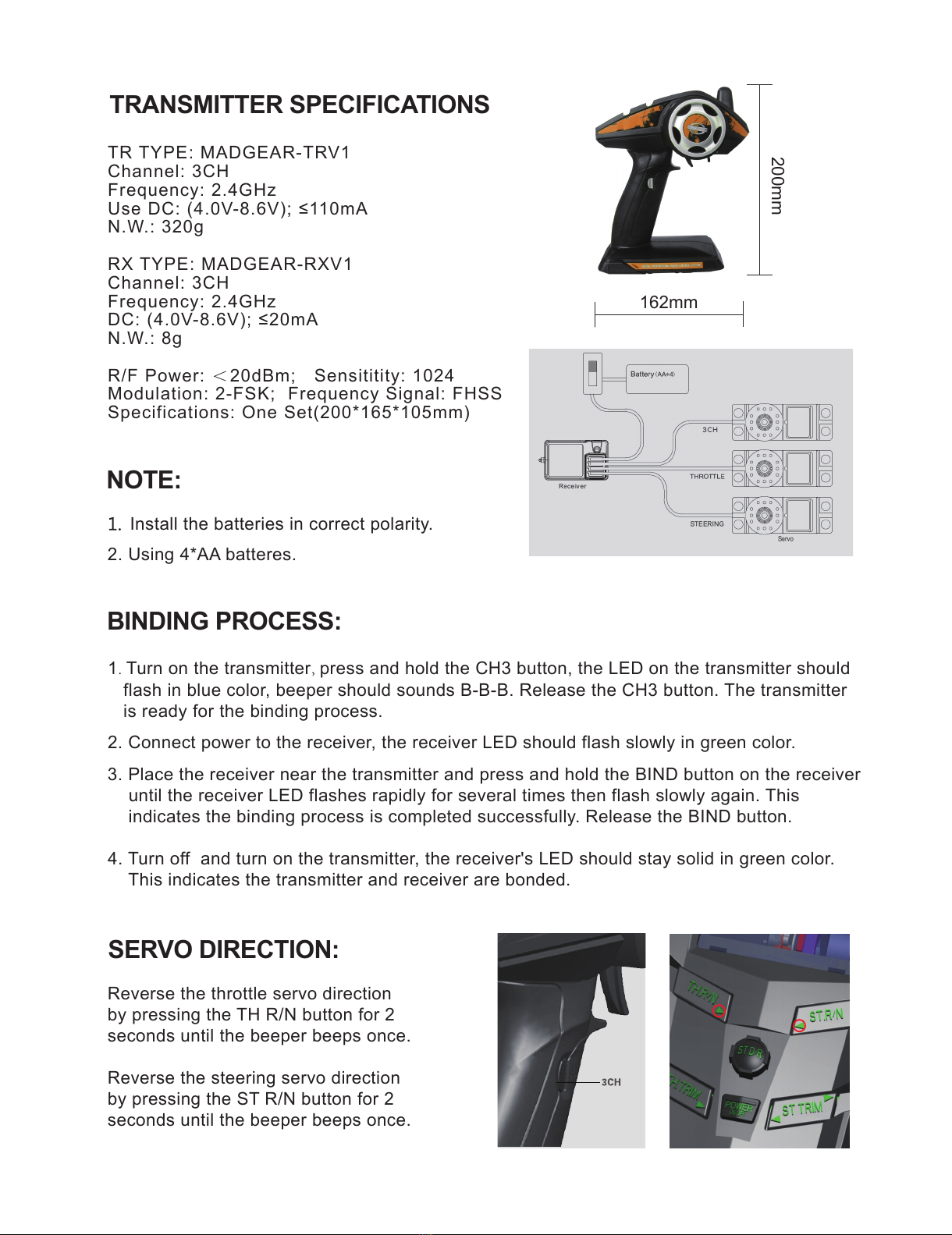

TRANSMITTERSPECIFICATIONS
NOTE:
BINDING PROCESS:
TR TYPE: MADGEAR-TRV1
Channel: 3CH
Frequency: 2.4GHz
Use DC: (4.0V-8.6V); ≤110mA
N.W.: 320g
RX TYPE: MADGEAR-RXV1
Channel: 3CH
Frequency: 2.4GHz
DC: (4.0V-8.6V); ≤20mA
N.W.: 8g
R/F Power: ＜20dBm; Sensititity: 1024
Modulation: 2-FSK; Frequency Signal: FHSS
Specifications: One Set(200*165*105mm)
Install the batteries in correct polarity.
2. Using 4*AA batteres.
Reverse the throttle servo direction
by pressing the TH R/N button for 2
seconds until the beeper beeps once.
Reverse the steering servo direction
by pressing the ST R/N button for 2
seconds until the beeper beeps once.
1. Turn on the transmitter, press and hold the CH3 button, the LED on the transmitter should
flash in blue color, beeper should sounds B-B-B. Release the CH3 button. The transmitter
is ready for the binding process.
2. Connect power tothe receiver, the receiver LED should flash slowly in green color.
3. Place the receiver near the transmitter and press and hold the BIND button on the receiver
until the receiver LED flashes rapidly for several times then flash slowly again. This
indicates the binding process is completed successfully. Release the BIND button.
4. Turn off and turn on the transmitter, the receiver's LED should stay solid in green color.
This indicates the transmitter and receiver are bonded.
3
All manuals and user guides at all-guides.com

NOTE:

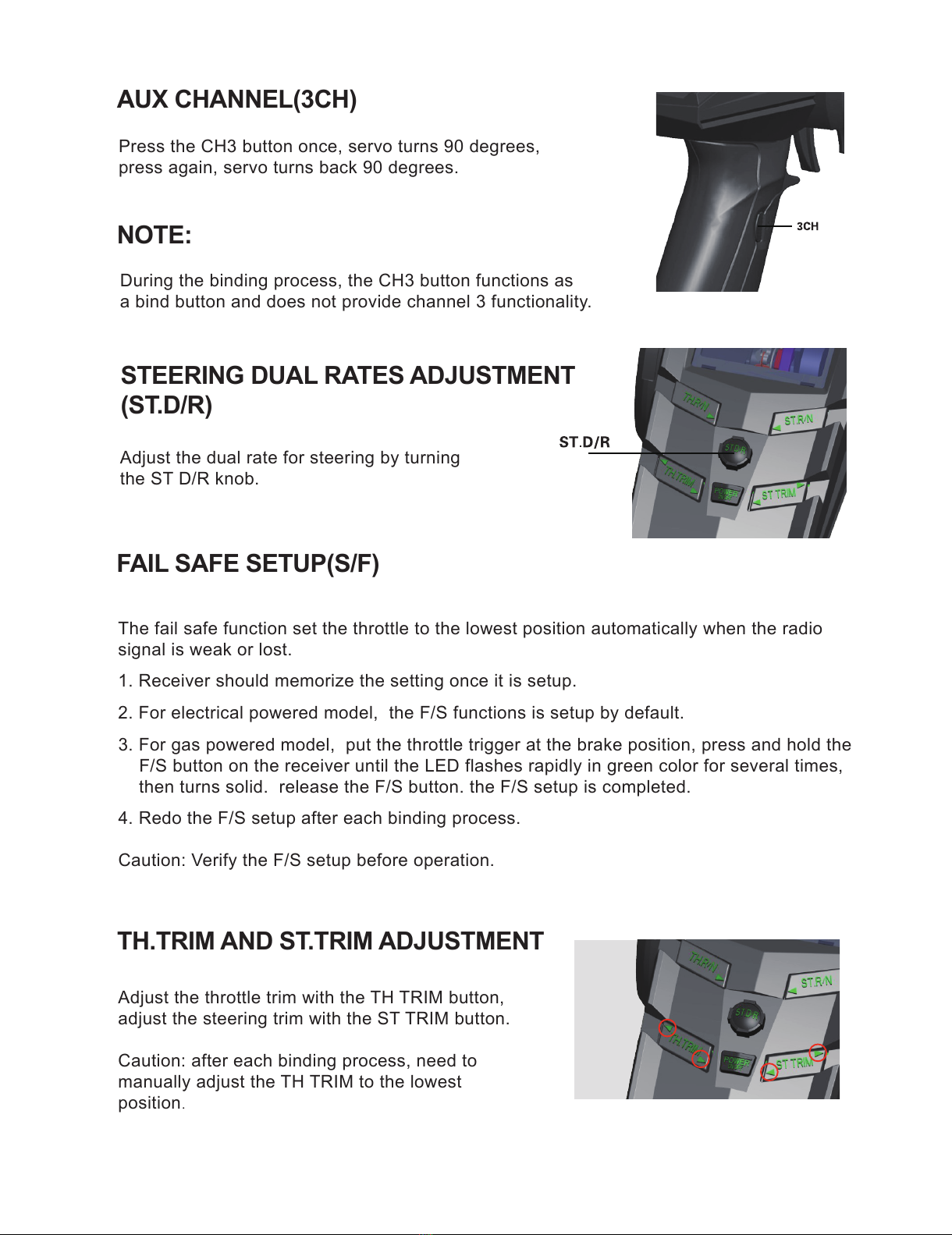

AUX CHANNEL(3CH)
STEERING DUAL RATES ADJUSTMENT
(ST.D/R)
FAIL SAFE SETUP(S/F)
TH.TRIM AND ST.TRIM ADJUSTMENT
Press the CH3 button once, servo turns 90 degrees,
press again, servo turns back 90 degrees.
During the binding process, the CH3 button functions as
a bind button and does not provide channel 3 functionality.
Adjust the dual rate for steering by turning
the ST D/R knob.
The fail safe function set the throttle tothe lowest position automatically when the radio
signal is weak or lost.
1. Receiver should memorize the setting once it is setup.
2. For electrical powered model, the F/S functions is setup by default.
3. For gas powered model, put the throttle trigger at the brake position, press and hold the
F/S button on the receiver until the LED flashes rapidly in green color for several times,
then turns solid. release the F/S button. the F/S setup is completed.
4. Redo the F/S setup after each binding process.
Caution: Verify the F/S setup before operation.
Adjust the throttle trim with the TH TRIM button,
adjust the steering trim with the ST TRIM button.
Caution: after each binding process, need to
manually adjust the TH TRIM tothe lowest
position.
4
All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com
all-guides.com

All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com

BS218-002 Servo mount
2pcs
BS218-003 Chassis
BS218-019 Screw BT2*8 12pcs
BS218-021 Screw BT2*5 12pcs
BS218-020 Screw BT2*12 12pcs
BS218-022 Screw BT2*16 12pcs
BS218-006 Upper Deck-Fr.
BS218-005 Wire Mount
BS218-007 Motor Mount Unit BS218-008 Gear Box Case Unit BS218-011 Screw 3*50 4pcs
BS218-001 Fr.Brace
COMMON PARTS
BS213-002 Upper Susp. Arm Unit
2pcs
BS213-003 Front Transverse Drive
Shaft w/axle 2pcs BS213-005 Rear Axle 2pcs
BS213-011 C Hubs Unit L
BS213-004 Rear Transverse
Drive Shaft 2pcs BS213-006 Rim Hub With Pin
4pcs
BS213-007 Lower Susp. Arm Unit
2pcs BS213-009 Rear Brace BS213-010 Diff. Gearbox Bulkhead
Upper/Lower BS213-012 C Hubs Unit R
BS213-014 Steering System Unit BS213-015 Servo Unit BS213-016 Steering Link 4pcs BS213-021 Drive Shaft Unit
BS213-030 Ball Head Screw
12pcs
BS213-001 Shock Unit 2pcs
BS213-026 Spur Gear 55T
BS213-045 B Head Hex Fine Pitch
Screws M3
12pcs
BS903-067 (TPF3*10) Flat Cross
Screw 12pcs
BS903-070 (ISO3*10) Flat Cross
Screw 12pcs
BS903-083 Diff. Outdrive
D/set Screw
BS903-079 B-Head Cross Screw
(BM3*10) 12pcs
BS903-075 B-Head Cross Screw
(BT3*16) 12pcs
BS903-014 Ball Bearing
(φ6*φ12*4) 2pcs
BS501-067 B head hex fine pitch
screws HM4*22 12 pcs
BS501-056 B head hex fine pitch
screws HM4*12 12 pcs
BS903-093 Nylon locknut
(M4*4) 6pcs
BS301-024 PWB2.5*5.7*5.5
Screw 12pcs
BS205-007 Pin 3*45 5pcs
BS702-039 Screw (BM3*30) 12pcs
Screw (BM3*12) 12pcs
Screw (BM3*16) 12pcs
BS704-023
BS801-020
Screw (BM3*10)
12pcs
BS902-051
All manuals and user guides at all-guides.com

BS218-004 Rollage / Yount
2pcs
BS218-004 Rollage / Yount
2pcs
BS218-009 Body BS218-010 Roll cage set
BS218-015 1/10 Brushed Waterproof
Esc
DUNE RACER PARTS
DUNE RACER PRO PARTS
BS213-032 Body Mount 2pcs
BS213-032 Body Mount 2pcs
BS214-001 Bumper Unit BS214-009 Tire Unit 2pcs
BS701-007 550 Motor BS701-036C 7.2V 1800MAH
Battery BS701-035 Charger BS701-008 Motor Heat Sink BS903-104 Diff. Gear Box Unit
(zinc alloy)
BS213-025 Gear Shaft Unit
(zinc alloy) BS213-035 Motor Gear 20T
(plastic)
BS903-116 Master Gear Unit
(Zinc Alloy)
BS218-009 Body BS218-010 Body Mount BS214-001 Bumper Unit BS214-009 Tire Unit 2pcs
BS701-007R 540 Brushless
Motor KV3421
BS803-028 7.4V 3200 mAh
Battery BS803-026A Di ff. Gear Box
Unit(steel)
BS213-025A Gear Shaft unit
(steel)
BS213-027 Motor Gear 20T
(metal)
BS903-117 Master Gear Unit
(steel)
BS218-014 45A Brushless
Waterproof Esc
All manuals and user guides at all-guides.com

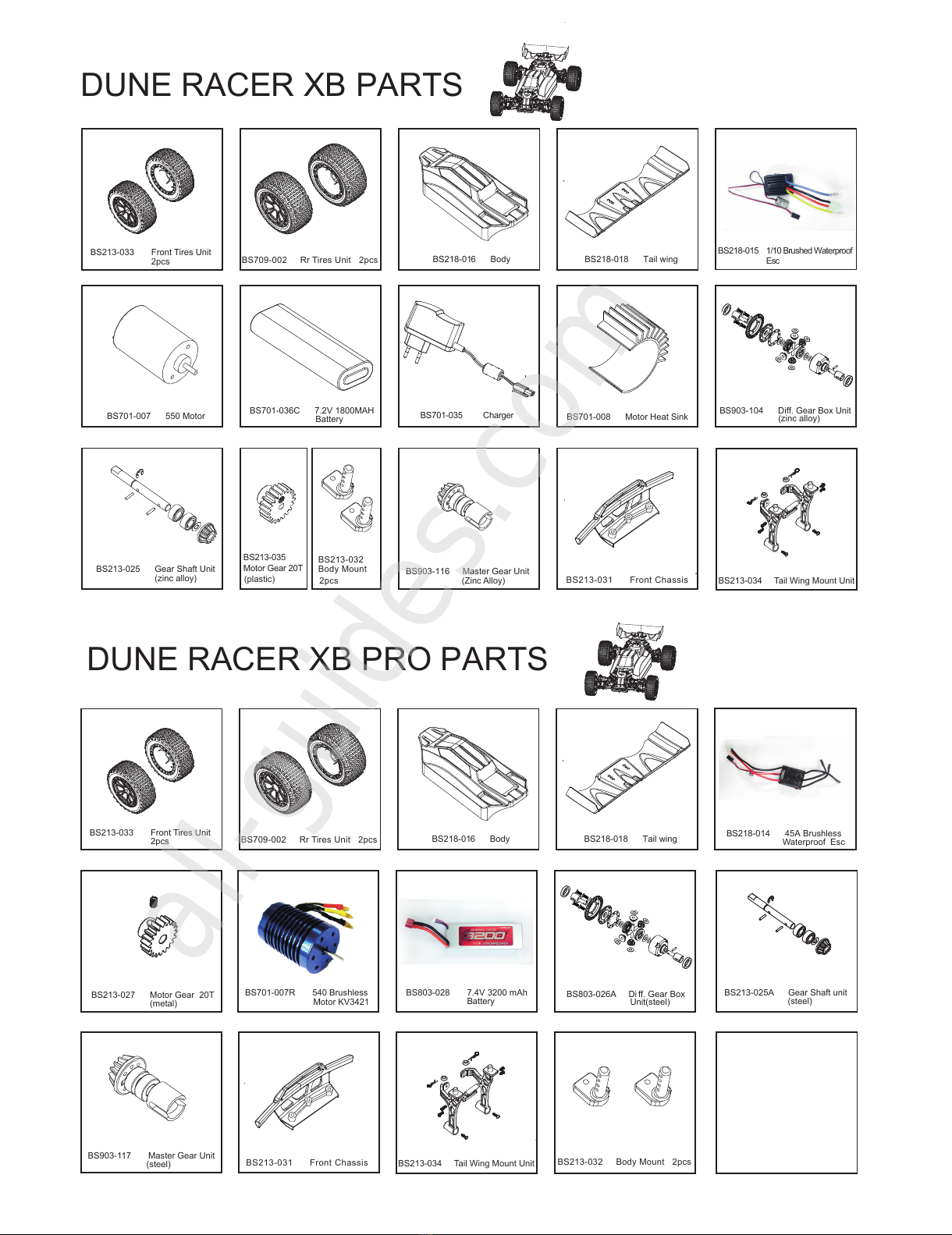

DUNE RACER XB PARTS
DUNE RACER XB PRO PARTS
BS213-032 Body Mount 2pcs
BS213-032
Body Mount
2pcs
BS218-015 1/10 Brushed Waterproof
Esc
-
BS709-002 Rr Tires Unit 2pcs
BS701-007R 540 Brushless
Motor KV3421
BS803-028 7.4V 3200 mAh
Battery BS803-026A Di ff. Gear Box
Unit(steel)
BS213-025A Gear Shaft unit
(steel)
BS213-027 Motor Gear 20T
(metal)
BS903-117 Master Gear Unit
(steel)
BS213-033 Front Tires Unit
2pcs BS218-016 Body BS218-018 Tail wing
BS709-002 Rr Tires Unit 2pcs
BS213-033 Front Tires Unit
2pcs BS218-016 Body BS218-018 Tail wing BS218-014 45A Brushless
Waterproof Esc
BS701-007 550 Motor BS701-036C 7.2V 1800MAH
Battery BS701-035 Charger BS701-008 Motor Heat Sink BS903-104 Diff. Gear Box Unit
(zinc alloy)
BS213-025 Gear Shaft Unit
(zinc alloy)
BS213-035
Motor Gear 20T
(plastic)
BS903-116 Master Gear Unit
(Zinc Alloy) BS213-031 Front Chassis BS213-034 Tail Wing Mount Unit
BS213-031 Front Chassis BS213-034 Tail Wing Mount Unit
All manuals and user guides at all-guides.com
all-guides.com

DUNE RACER XT PARTS
DUNE RACER XT PRO PARTS
BS218-017 Body
BS218-015 1/10 Brushed Waterproof
Esc
BS214-001 Bumper Unit BS214-009 Tire Unit 2pcs
BS218-014 45A Brushless
Waterproof Esc
BS214-002 Body Mount 2pcs
BS218-017 Body BS214-001 Bumper Unit BS214-009 Tire Unit 2pcs
BS214-002 Body Mount 2pcs
BS701-007 550 Motor BS701-036C 7.2V 1800MAH
Battery BS701-035 Charger BS701-008 Motor Heat Sink BS903-104 Diff. Gear Box Unit
(zinc alloy)
BS213-025 Gear Shaft Unit
(zinc alloy) BS213-035 Motor Gear 20T
(plastic)
BS903-116 Master Gear Unit
(Zinc Alloy)
BS701-007R 540 Brushless
Motor KV3421
BS803-028 7.4V 3200 mAh
Battery BS803-026A Di ff. Gear Box
Unit(steel)
BS213-025A Gear Shaft unit
(steel)
BS213-027 Motor Gear 20T
(metal)
BS903-117 Master Gear Unit
(steel)
All manuals and user guides at all-guides.com

24
All manuals and user guides at all-guides.com

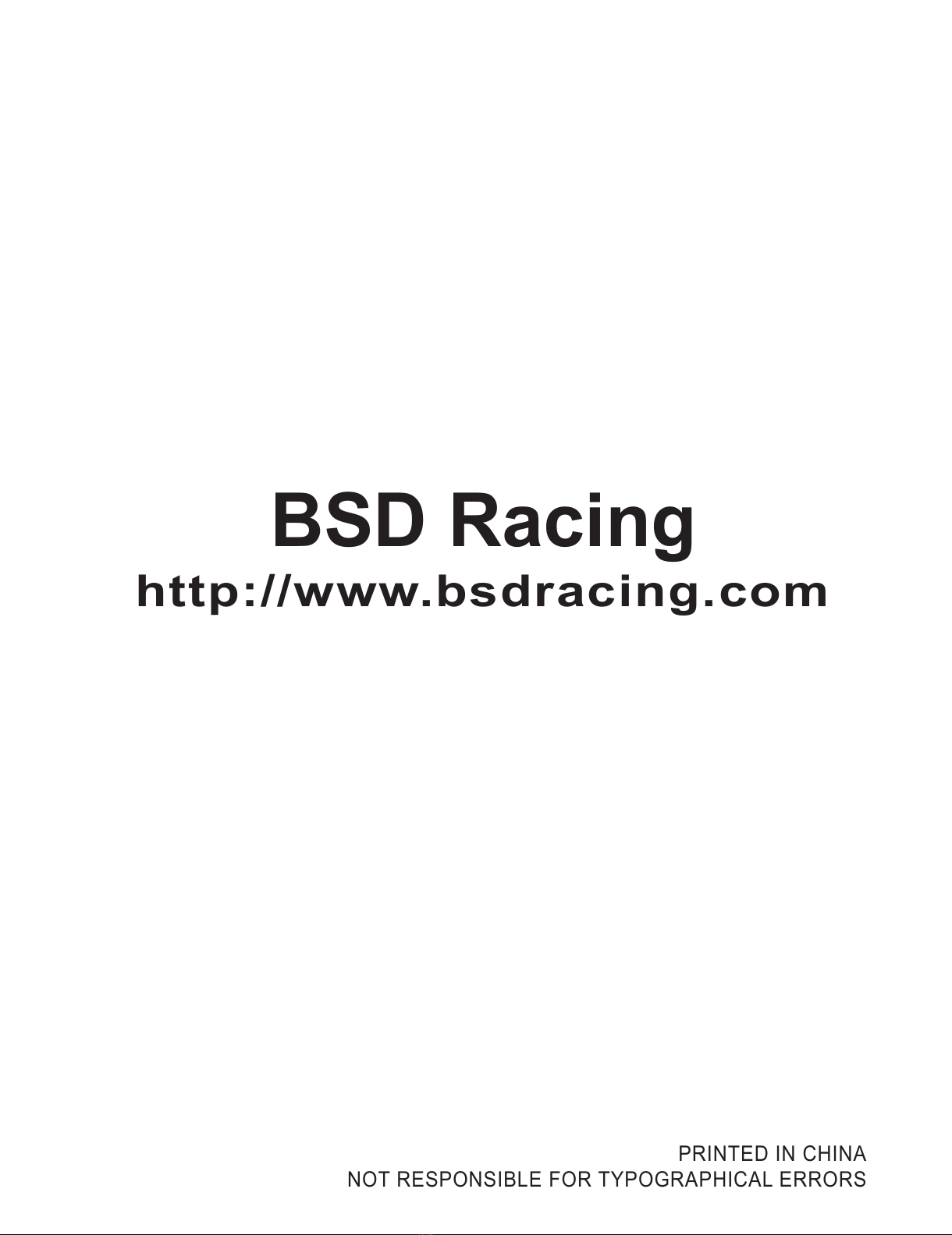

BSD Racing
http://www.bsdracing.com
PRINTEDIN CHINA
NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS
