BSE P-1100 User manual

Commercial Air Mover / Axial Fan Owner's Manual
Model :
P-1100
(115V 60HZ)
Read before use and save these instructions for future reference.
Rev.: 7/20/20

English - 2
! WARNING - READ AND SAVE THIS INSTRUCTIONS BEFORE USING THIS PRODUCT.
The user of electrical products may create hazards that include, but are not limited to
injury, fire, electrical shock. Failure to follow these instructions may damage and/or
impair its operation and void the warranty.
• Before operating, remove all packaging material and check for any damage that may
have occurred during shipping or any missing items.
• Check household power supply to ensure it matches the appliance’s specification.
• DO NOT operate any fan with a damaged cord or plug. Discard fan or return it to an
authorized service facility for examination and/or repair.
• Use only on GFCI protected receptacles. Please contact a qualified electrician for
verification and / or installation of a GFCI receptacle if necessary.
• DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or
similar coverings. DO NOT route cord under furniture or appliances. Arrange cord away
from traffic area and where it will not be tripped over.
• To reduce the risk of fire or electric shock, do not use this fan with any solid-state
speed control device.
• DO NOT touch this appliance or the plug with wet hands or while standing in water.
• DO NOT operate the appliance in any pooled water.
• DO NOT use the product in areas where gasoline, paint or other flammable goods and
objects are used or stored.
• DO NOT insert or allow objects to enter any ventilation or exhaust opening as this may
damage the appliance and void the warranty.
• DO NOT cover the air inlet or outlet on the appliance.
• DO NOT direct the air flow at human faces or bodies.
• DO NOT allow children to play with this appliance.
• AUTOMATICALLY OPERATED DEVICE – To reduce the risk of injury, disconnect from
power supply before servicing.
• Remove the power cord from the electrical receptacle by grasping and pulling on the
power cord plug-end only, DO NOT pull the cord directly.
• DO NOT attempt to repair or adjust any electrical or mechanical functions of this
appliance, as this may cause danger and void the warranty.
• If the appliance is damaged or it malfunctions, DO NOT continue to use it. Unplug the
product from the electrical outlet. Refer to troubleshooting guide or contact distributor.
• Store in a dry area, away from exposure to sunlight, extreme temperature and humidity,
or other extreme environments, when not in use.
• DO NOT stack more than six units of this appliance.
Safety Instructions

English - 3

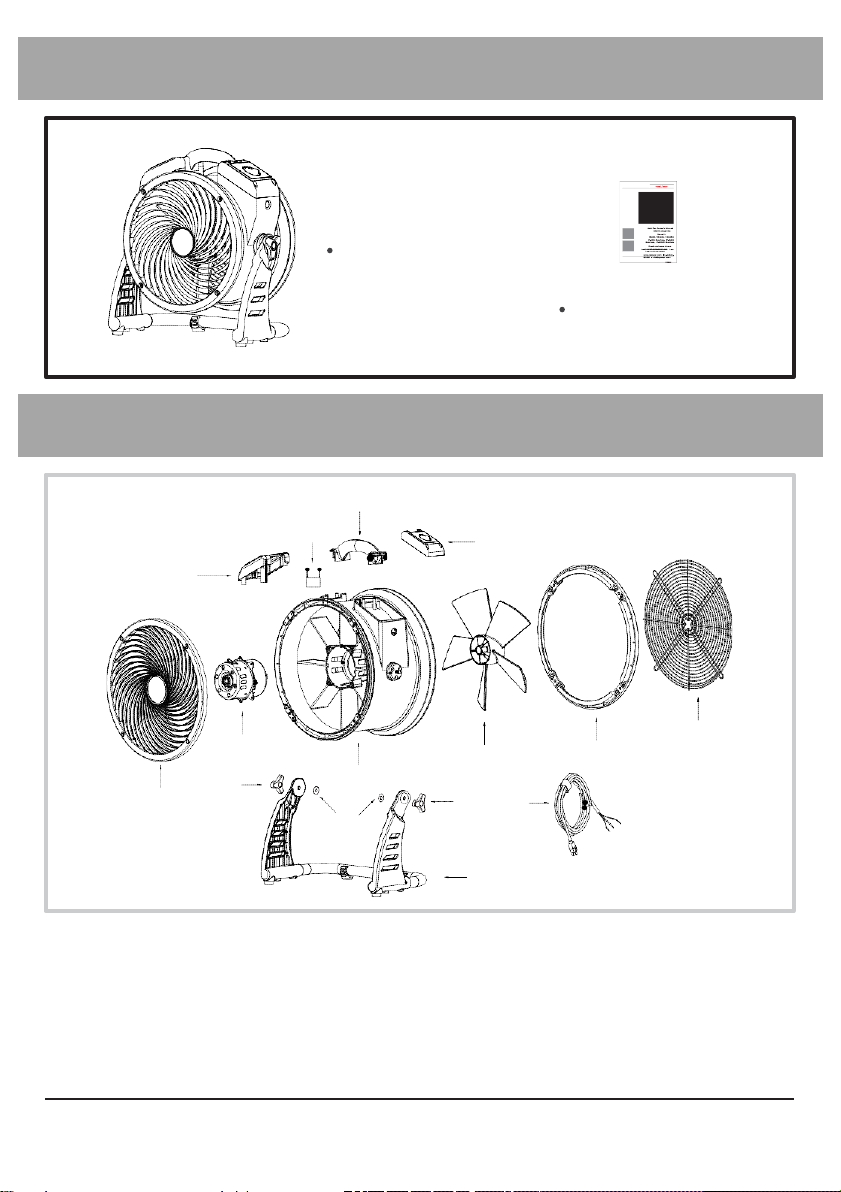

(1) Front Grille Cover
(2) Motor
(3) Housing
(4) Additional Electrical
Receptacle
(5) Capacitor
(6) Housing Handle
(7) Switch Plate
(8) Rack Handle
(9) Rubber Washer
(10) Rack
(11) Fan
(12) Rear End Cover
(13) Rear Grille Cover
(14) Power Cord
(15) Transformer (not shown)
(16) Ionizer (not shown)
Items Included
Axial unit x 1
Owner’s Manual x 1
Parts Description
6
5
7
4
13
2
12
11
3
8
1
8
14
9
10

English - 4
• BSE axial units are designed to offer efficient air
circulation and ion distribution with its high and long-
distance
focused airflow.
• This unit is ideal for use in classrooms, hotel rooms,
service vehicles and more.
2 3
1 4
OFF

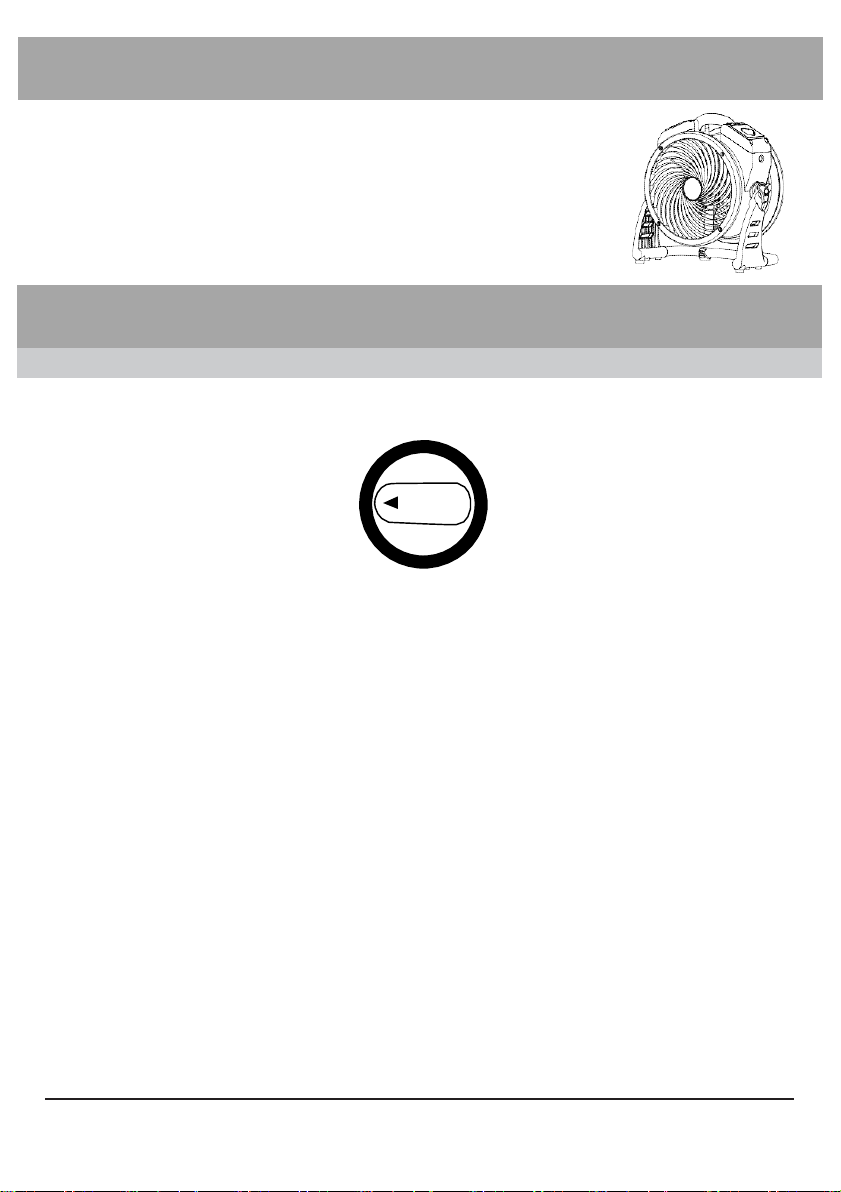

Speed Control
Speed Switch
• Turn to “OFF” position to switch the axial unit OFF. Turn to any speed position to switch
the axial unit ON.
• Turn clockwise to set the desired speed. There are 4 speeds from: 4, 3, 2, 1. “4” is the
highest speed and “1” is the lowest speed .
Axial Fan Introduction
Operation Guide
Switch Plate

English - 5
Adjust Operation Position
Operation Guide
(Continued)
Additional Electrical Receptacle (Daisy Chain)
Other appliances can be plugged in the
additional electrical receptacles and work
whether the axial unit is on or off. However,
the total amperage must be lower than the
amperage instructed. Different models may
have varying instructions.
If the axial unit, or the plugged in appliance
stops working, press the
RESET BUTTON
to
reset the circuit.
The axial unit features 360° Rotation. Tilt the axial unit to desired angle and
screw on rack handles to secure the fan’s position.

English - 6
Frequent maintenance is recommended on this appliance. Failure to follow the
maintenance instructions may cause failure of the appliance and void the warranty.
• When not in use, unplug and store the appliance in a dry and cool indoor place. Make
sure it’s out of reach of children.
• Before performing any maintenance or cleaning, always disconnect the Axial Fan from
its power source.
• Use a damp cloth to wipe the surface of the housing. Do not clean the unit with water
directly.
• IONIZER CLEANING – As needed, carefully clean the ion generating brushes with
canned air or soft brush to remove any build-up of particulate/dust on them.
• Check if the grille covers are clean. Remove dirt or any other objects that could block
the air inlet and air outlet.
Operation Guide
Transportation
(Continued)
Lift with Handle
Lift the axial unit with the
handle on the top.
User Maintenance Instructions

English - 7
User Maintenance Instructions (Continued)
Fasten the Rack Handles
To prevent possible injury, when
you finish using this appliance,
please position the Axial Fan
UPRIGHT.
Fasten the rack handle to lock the
position of the Axial Fan.

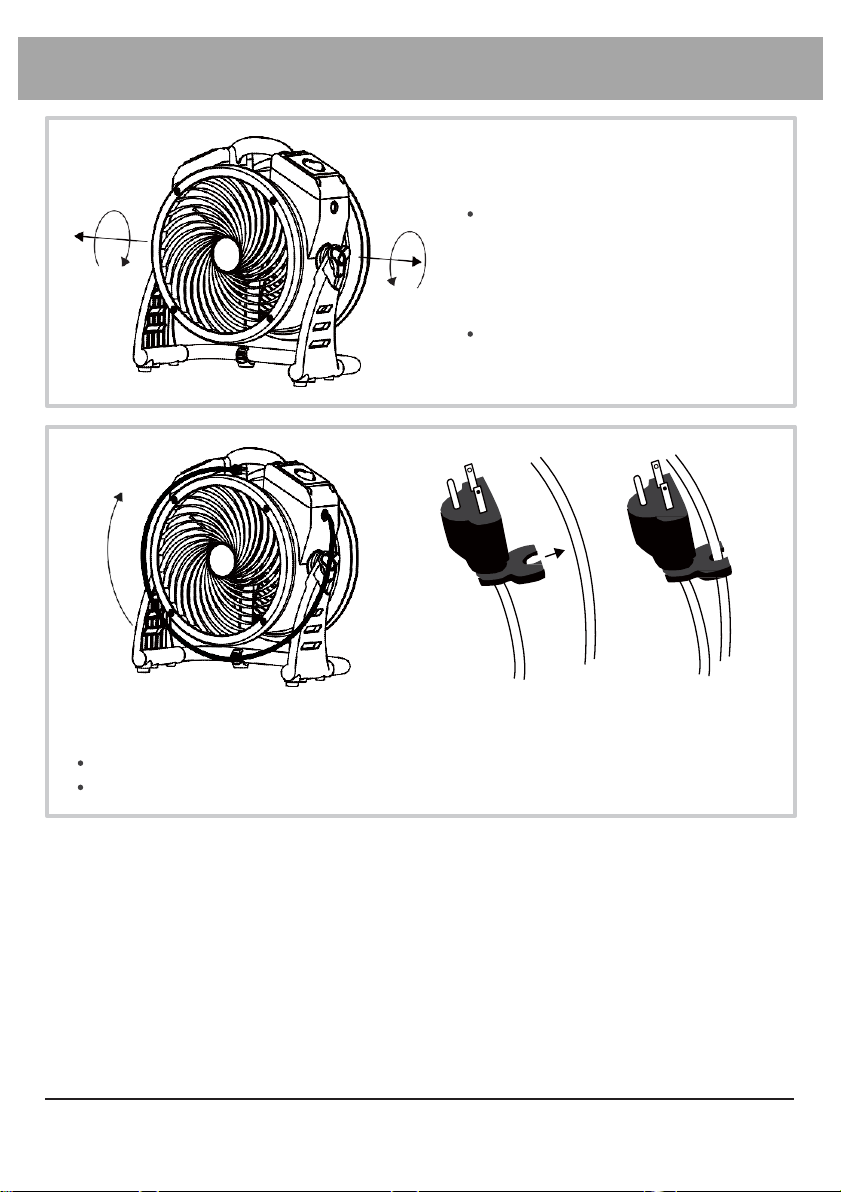

Organize the Power Cord
Wrap the power cord around the housing.
Clip the cord to the cord clip on the plug shown above.

English - 8
PROBLEM POSSIBLE CAUSE SOLUTION
Axial fan does not
start
No electricity. Check for power supply.
The power cord is not properly
plugged in.
Remove and reconnect the
power cord.
The circuit breaker on the
additional electrical receptacle
(Daisy chain) jumps.
Remove all appliance on
the additional electrical
receptacle and press “Reset”.
Unit runs but the
speed is abnormal
Air inlet or air outlet is blocked. Remove blockage.
If troubleshooting does not resolve your problem, please contact your local
distributor, or BSE direct for further instructions.
User Maintenance Instructions (Continued)

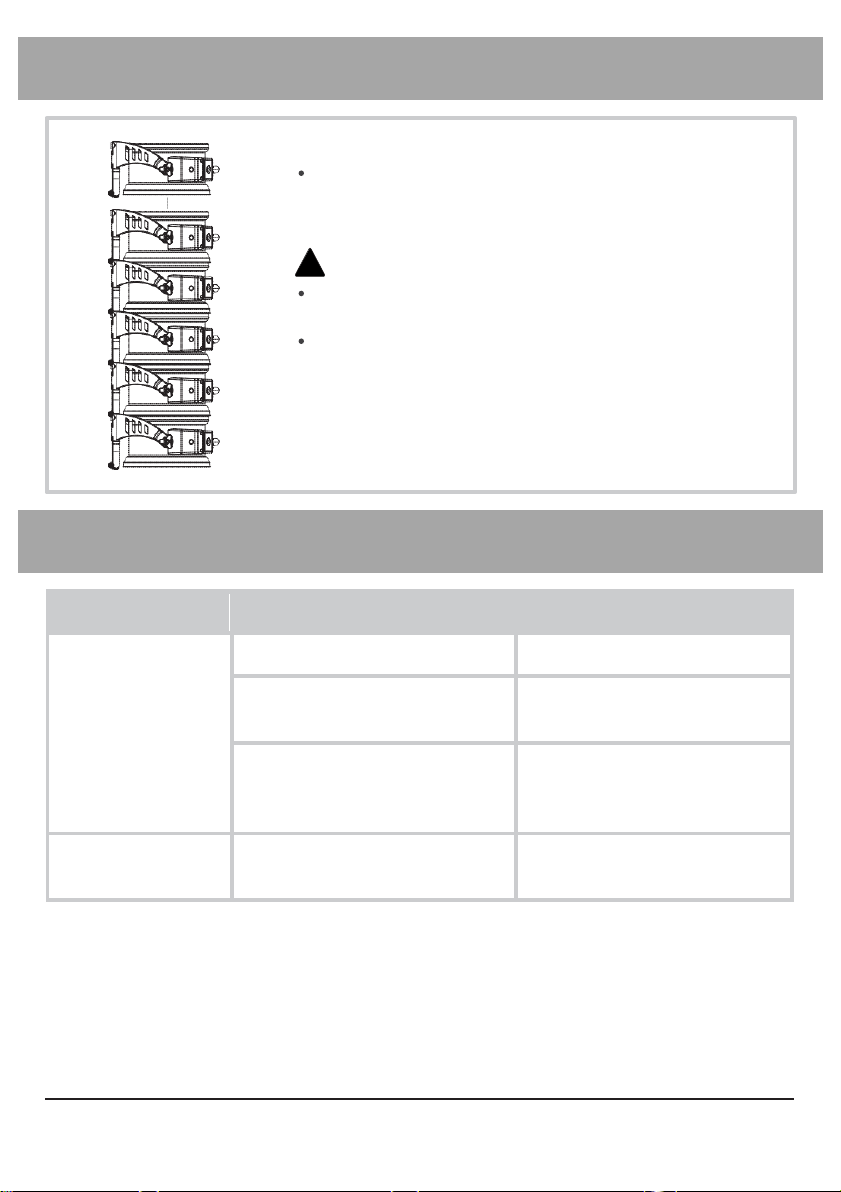

Stack Multiple Units
Stack the axial units on their sides. Align the
air inlets of both axial units.
!
WARNING
Do not stack more than six units of this
appliance.
Stacking function is not secure during
transportation.
Troubleshooting Guide

English - 9
MODEL NUMBER P-1100
Voltage/
Frequency
115 V~60 Hz
Amperage 0.6 A
Rated Airflow 1100 CFM
Speed Control 4 Speeds
Additional
Electrical
Receptacles
(Daisy Chain)
Yes
Cord Length 10 ft.
Housing Polypropylene
Unit Dimensions
(L) x (W) x (H)
16.1 x 8.9 x 14.2 in.
Unit Weight 10.4 lbs.
Technical Specification

English - 10
1 YEAR LIMITED WARRANTY
Your fan product purchased in the U.S. from authorized distributors includes a 1-year
limited warranty. Contact distributor to confirm warranty information about your
product(s).
This limited warranty covers defects in materials and workmanship in your fan,
purchased in the U.S. ONLY.
! IMPORTANT:
Items mentioned but not limited to below are not covered by warranty:
(1) Power cord, filters or any other components considered as a “consumable parts”.
(2) Normal wear and tear.
(3) Problems that result, directly or indirectly, at distributors sole discretion, from:
(3.1) External causes such as accident, abuse, misuse or problems with electrical power
supply.
(3.2) Disassembling, servicing or modification not authorized by distributor or end user.
(3.3) Usage that is not accordant with product instructions stated in Owner’s Manual.
(3.4) Failure to follow the product instructions or lack of necessary maintenance stated
in Owner’s Manual.
Before contacting distributor or BSE, please try one or more of the following:
(1) Consult this Owner’s Manual and follow the instructions of troubleshooting guide.
(2) Contact the distributor from whom the unit was purchased for more advice and
information that could be helpful to
address your problem(s).
If you need additional assistance, please call distributor for next steps.
** Please also have your original proof of purchase and the serial number(s) of your
product(s) ready when you contact distributor.
Limited Warranty (USA)

English - 11
If you are instructed to return the unit for service or replacement, please:
(1) Request a RMA (Return-Merchandise-Authorization) number.
(2) Use the original or an equivalent packaging, prepay shipping charges at your own
expense to the address provided by distributor, with the RMA number on the
shipping label or the packaging.
(3) Include all of the original parts and components.
Distributor or BSE will inspect, assess, and advise the repairs needed and applicable
cost, if any. For products under warranty, we will pay to ship the repaired or replaced
product(s) to
you if you use an address within the Contiguous United States. Otherwise,
we will ship the product(s) to you at your own expense.
Read before use and save these instructions for future reference
Limited Warranty (USA)
