Handset display
Displays the status
of your handset.
Talk button
For making,
answering and
ending calls.
Directory button
10 numbers can be
stored, dialled and
edited in the
directory.
Recall button
For use with
switchboards and
some network
services.
Also, use to enter a
pause in a stored
number.
Redial button
Press to redial the
last number called.
Keypad
Keyguard button
Hold down to lock
and unlock the
keypad.
Set button
Press to confirm
settings.
2
At a glance
Handset
Base
Telephone
line socket
Mains power
socket
Charging
contact points

Handset display icons
Handset is in use
W en steady s ows t e base is registered
to t e andset. W en flas ing s ows t at
t e base is not registered.
Confirms setting as been saved.
#
✱
Recall
Pause
Directory empty
Keypad locked
Handset ready for registration
Handset searc ing for base
Handset found base t at’s ready
for registration
3
Helpline
If you experience any difficulties with your BT Diverse
5000 Solo, please call the BT Diverse Helpline on
0 457 90 070.

Introduction
Unpacking your BT Diverse 5000 Solo
If anything is missing, please contact your place of
purchase as soon as possible.
BT Diverse 5000 Solo base station
BT Diverse 5000 Solo andset
Mains power adaptor
Telep one line cord
Rec argeable battery pack
Battery compartment cover
For your records
Date of purc ase:
Place of purc ase:
For guarantee purposes proof of purchase is required so
please keep your receipt.
4

Safety information
General
Only use the power adaptor supplied with this product.
Using an unauthorised power adaptor will invalidate your
guarantee and may damage the phone. The power adaptor
code is C392 0 –Z4 –C47 .
For the handset use only approved Nickel Cadmium
(NiCad) rechargeable battery pack. Never use other battery
packs or conventional alkaline batteries. They could lead to
a short circuit or destroy the battery casing. Recommended
batteries should have a power rating of at least 300mAh
1.2V. Batteries are available from:
www.withandwithoutwires.com or call 0 70 240 5522.
If the keyguard is switched on, it is not possible to make
calls, including emergency numbers (999/112).
Do not open the base station or handset (other than to
change the battery pack). This could expose you to high
voltages or other risks.
Radio signals transmitted between the handset and base
may cause interference to hearing aids.
This product should not be used near emergency/intensive
care medical equipment and we recommend that it is not
used by people with pacemakers fitted.
Never dispose of batteries in a fire. There is a serious risk
of explosion and/or the release of highly toxic chemicals.
Cleaning
Simply clean the handset and base station with a damp
(not wet) cloth, or an anti-static wipe. Never use household
polish as this will damage the product. Never use a dry
cloth as this may cause a static shock.
Environmental
Do not expose to direct sunlight.
The product may heat up when the batteries are being
recharged. This is normal. However, we recommend that
you do not place the product on antique/veneered wood
to avoid damage.
5

Do not stand your product on carpets or other surfaces
which generate fibres, or place it in locations preventing
the free flow of air over its surfaces.
Do not submerge any part of your product in water and do
not use it in damp or humid conditions, such as bathrooms.
Do not expose your product to fire, explosive or other
hazardous conditions.
There is a slight chance that your phone could be damaged
by an electrical storm. We recommend that you unplug the
power and telephone line cord during an electrical storm.
6

7
Setting up
IMPORTANT
Please note that your handset is not registered to the base
station and the battery pack has not been charged.
You must follow steps 1 to 3 before you can use your
BT Diverse 5000 Solo to make and receive calls.
Plan the location
• Situate your product close enough to the telephone and
mains power sockets so that the cables will reach.
• Make sure it is at least 1 metre away from other
electrical products to avoid interference.
• Do not situate the product in the bathroom or other
humid areas.
1Connect the power adaptor
Plug the power adaptor cable into the power socket on the
underside of your base station.
(diagram)
2Plug the power adaptor into the wall socket and
switch the power on

WARNING
Do not connect the telephone line cord to the phone socket
until your handset is fully charged. This will prevent the
risk of the phone being answered before the battery is
charged. Answering the phone before the battery is fully
charged may prevent it from reaching its optimum capacity.
3Register and charge the handset
The handset display is protected by a plastic film which can
be removed.

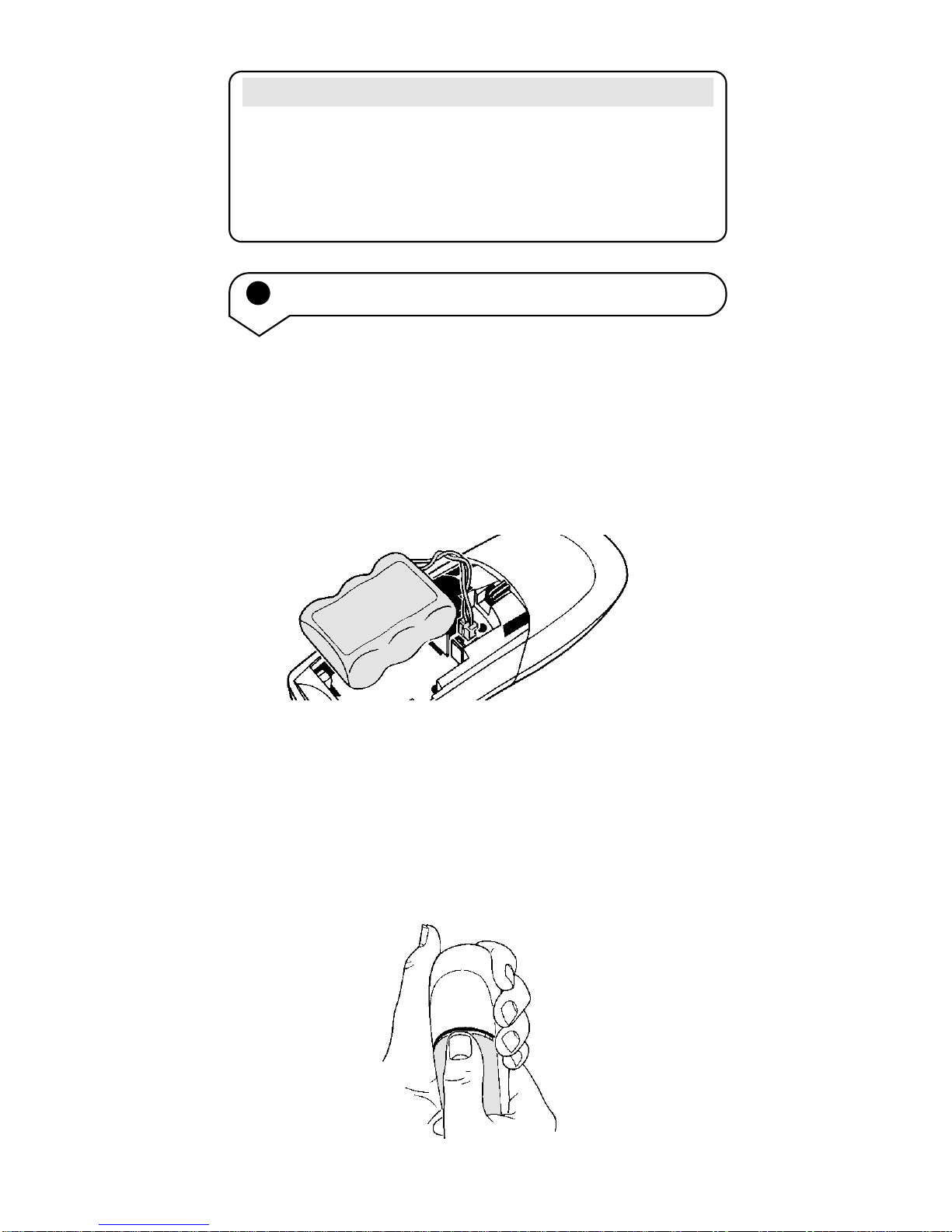

Insert the battery pack
Plug the battery connector into the socket inside the
battery compartment. The connector should click securely
into place.
Insert the battery pack into the battery compartment,
taking care not to trap the cable. Gently position the cable
round the guides provided.
Slide the battery compartment cover on. The cover should
click securely into place. (The battery cover can be found
in the packaging with the battery pack).
8

WARNING
Under no circumstances should non-rechargeable battery
packs be used. Only use the approved NiCad battery pack.
Using unapproved battery packs will invalidate your
guarantee and may damage the telephone.
Register the handset
IMPORTANT
Before registering the handset to the base make sure that
the base station is connected to the mains power, that the
wall socket is switched on and that the battery pack is
inserted into the handset.
To register your handset, place it in the base station with the
display facing forwards. The registration display will appear
(this may take several minutes).
Whilst keeping the handset in the base station, unplug the
power adaptor from the wall socket. After a few seconds
plug the power adaptor back into the mains socket.
The found base confirmation screen, see below, will appear
in approximately 60 seconds.
A few seconds later the normal standby screen, see below,
will appear. This confirms registration is complete.
9
The symbol will
flash in the display.

Charge the handset
You will need to fully charge your handset before you can
use it for the first time. Leave the handset in the base station
for approximately 16 hours to charge the battery pack.
Battery performance
Batteries and case may become warm during charging.
This is normal. Under ideal conditions, the handset
batteries should give about 10 hours talktime or 100
hours standby time on a single charge. However, new
NiCad batteries do not reach their full capacity until they
have been in normal use for several days.
The charge capacity of rechargeable batteries will reduce with
time as they wear out, so reducing the talk/standby time of
the handset. Eventually they will need to be replaced. New
batteries are available from www.withandwithoutwires.com
or call 0870 240 5522.
If you replace the handset batteries with ones that have
been fully charged, the battery indicator will not show full
until the next charge cycle has been completed. Charge the
handset until the batteries register full again. From then
on the display will be correct.

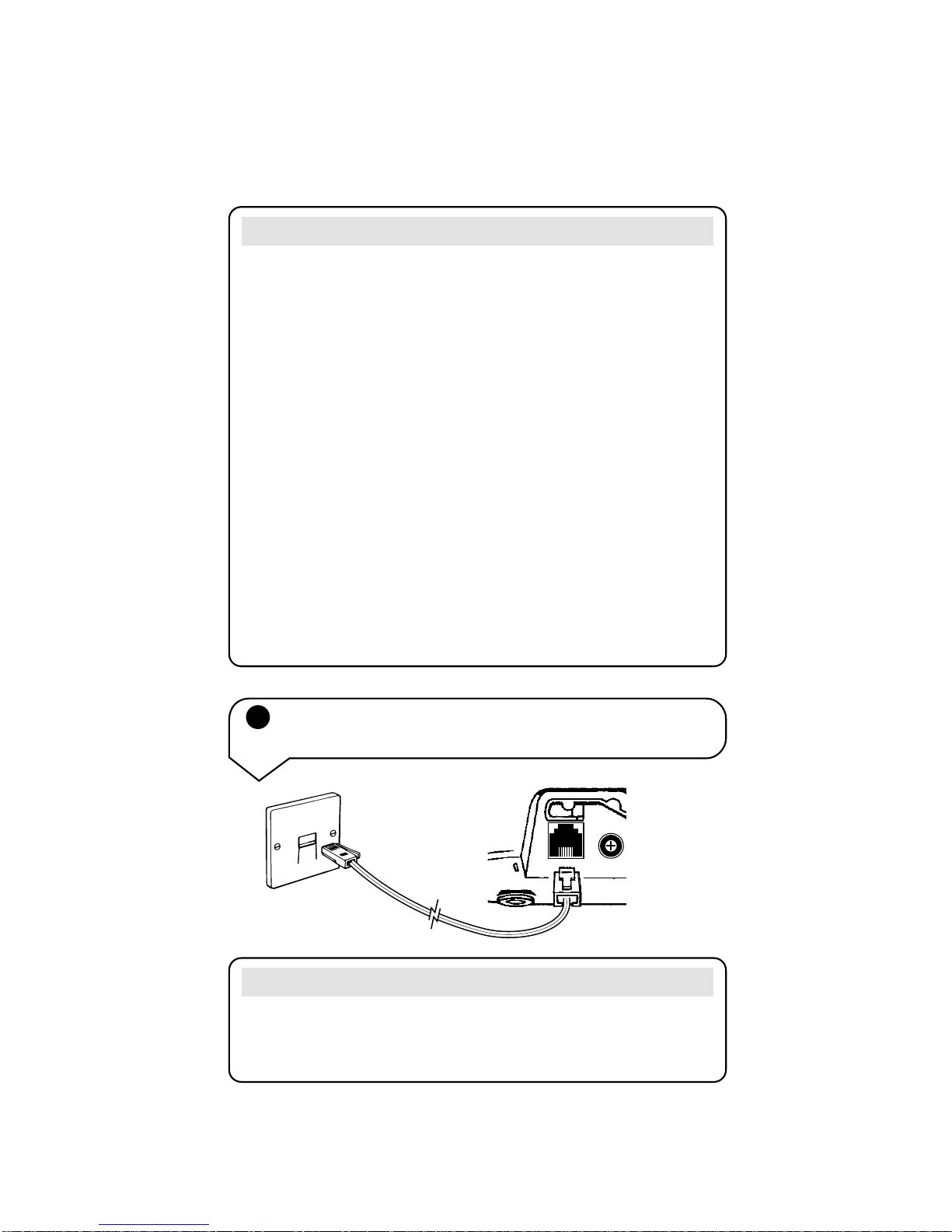

4Connect the telephone line cord to the base and
plug into the wall socket
Helpline
Your BT Diverse 5000 Solo is now ready for use.
However, if you experience any difficulties, please call
the BT Diverse Helpline on 0 457 90 070.
10

Signal strength
The range of your BT Diverse 5000 Solo base station is
300 metres outdoors and up to 50 metres indoors under
ideal conditions. If you go out of range the icon will
flash on the display and you will need to move closer to
the base station.
11

x
Visit us at www.bt.com
Offices worldwide
T e telecommunications services described in t is publication
are subject to availability and may be modified from time to time.
Services and equipment are provided subject to Britis
Telecommunications plc’s respective standard conditions of
contract. Not ing in t is publication forms any part of any contract.
© Britis Telecommunications plc 2003.
Registered Office: 81 Newgate Street, London EC1A 7AJ.
Registered in England No. 1800000.
BT Diverse 5000 Solo Issue 2 (07/03) 1
Designed and produced by T e Art & Design Partners ip Ltd.
Siemens number: A31008–A100–P101–1–7619
CE compliant to R&TTE Directive (1999/5/EC)
06 2

12
Using the telephone
Making and ending calls
To make an external call
Press the Talk button. You will hear the dial tone
and the icon will appear in the display.
Dial the telephone number.
Or…
Preparatory dialling
Enter the telephone number first and check that it
is correct.
Press the Talk button to dial the number. You will
hear the telephone dialling and the will appear
in the display.
To end a call
Press the Talk button. The icon will disappear
from the display.
Or
Place the handset back on the base station.
To receive an external call
When the phone rings, pick up the handset and
press the Talk button to answer the call.

13
Redial
Your handset automatically saves the last telephone
number you dialled.
To redial the last number dialled
Press the Redial button.
Press the Talk button to dial the number.
Using the directory
You can store up to 10 of your most frequently used
telephone numbers in the directory. You can enter
numbers up to 22 digits.
To store a number in the directory
Press the Set button.
Press the Directory button.
Enter the directory location number between 0
and 9under which you want to store the number.
Enter the telephone number you want to store.
Press the Set button to store the number.
You will hear a confirmation beep.
Note
By pressing and holding the Directory button the
telephone number under the 0location in your directory
will be displayed. Press the Talk button to dial the number.
It is advisable to put your most frequently called number
under this location.

14
To insert a pause in a stored number
You may need to insert a pause in a telephone
number you are storing in the directory.
Start storing the number as described previously
and where a pause is needed press and hold the
R(Recall) button. A is shown in the display.
To dial a number in the directory
Press the Directory button.
Press the directory location number between
0and 9under which the number is stored.
Press the Talk button to dial the number.
To change a number in the directory
You can change an existing number in the
directory by overwriting it with a new number.
Simply follow the instructions shown previously
under ‘To store a number in the directory’.
Handset settings
To adjust the handset earpiece volume
There are 3 earpiece volume levels to choose
from (1–3).
Press the Set button.
Press the 0button.
Enter the volume level you want from, 1–3.
Press the Set button to save.

15
To adjust the handset ringer volume
There are 3 ringer volume levels to choose
from (1–3).
Press the Set button.
Press the 5button. You will hear the current
ringer volume.
Enter the volume level you want from, 1–3.
Press the Set button to save.
To adjust the handset ringer melody
There are 2 ringer melodies to choose from.
Press the Set button.
Press the 6button. You will hear the current
ringer melody.
Enter the ringer melody you want (1or 2).
Press the Set button to save.
To switch the keyguard on and off
You can lock the keypad so that it cannot be used
accidentally while carrying it around.
You are still able to answer calls in the usual way.
Press and hold the Keyguard button. The display
will show to indicate that the keyguard is
switched ON.
Press and hold the Keyguard button to switch the
keyguard off. will disappear to indicate that
the keyguard is switched OFF.

16
To manually register the BT Diverse 5000 Solo handset
If automatic registration does not work or if the
original handset has been replaced you will have
to manually register the handset.
Switch off the mains power at the wall socket and
remove the power adaptor.
Press the Set button.
Press the 7button.
Press the Set button again.
Place the handset on the base station.
Plug the power adaptor back into the wall socket
and switch the power on.
The registration display, see below, will appear.
The found base confirmation screen, see below,
will appear after approximately 60 seconds.
A few seconds later, the normal standby screen,
see below, will appear. This confirms registration is
complete.
If for some reason the handset does not register correctly
after about one minute please repeat the instructions
shown above.
Please note
You can cancel the registration process by pressing the
Talk button.
The symbol will
flash in the display.

17
Help
Problem
Handset not
registering.
No display.
Handset is not
c arging.
Handset display
s owing
*--*--*
longer t an
expected (ie. p one
is registered and
as been working
but t is now
appears on t e
andset display).
Possible Cause
T e base is not
powered.
T ere are no
batteries in t e
andset.
T e andset is not
sitting correctly on
t e base.
T e base is not
powered.
Batteries ex austed.
T e andset is
not on t e base
correctly.
T e link between
t e andset and
t e base is
temporarily broken.
Solution
Make sure t e power
supply is plugged in
at t e base and
switc ed on.
Make sure t at t e
rec argeable
batteries (included)
are fitted in t e
andset correctly.
C eck t e andset
is sitting on t e
base correctly.
Make sure t e power
supply is plugged in
at t e base and
switc ed on.
C arge or replace
t e batteries.
C eck t e andset
is sitting on t e
base correctly.
Press any button
and t e andset
s ould return to t e
registered display.
T is be aviour as
no influence on t e
functionality – in
t e case of an
incoming call or
initiating a call t e
andset will be
linked wit t e base
again in a second.

18
Problem Possible Cause Solution
W en you press a
button not ing
appens.
No radio signal to
t e base – display
s ows flas ing .
T e keyguard may
be switc ed on.
Handset out of
range.
Handset not
registered.
Base not switc ed
on.
Hold down t e
button for 1
second.
Move closer to t e
base.
Register t e
andset.
C eck t e base is
connected properly.
Helpline
If you experience any difficulties with your BT Diverse
5000 Solo, please call the BT Diverse Helpline on
0 457 90 070.

19
General information
Guarantee
Your BT Diverse 5000 Solo is guaranteed for a period of
12 months from the date of purchase.
Subject to the terms listed below the guarantee will provide
for the repair of, or at BT’s or its agent’s discretion the
option to replace the BT Diverse 5000 Solo, or any
component thereof, (other than batteries), which is
identified as faulty or below standard, or as a result of
inferior workmanship or materials. Products over 28 days
old from the date of purchase may be replaced with a
refurbished or repaired product.
The conditions of this guarantee are:
• The guarantee shall only apply to defects that occur
within the 12 month guarantee period.
• Proof of purchase is provided.
• The equipment is returned to point of purchase.
• This guarantee does not cover any faults or defects
caused by accidents, misuse, fair wear and tear, neglect,
tampering with the equipment, or any attempt at
adjustment or repair other than through approved agents.
• This guarantee does not affect your statutory rights.
Within the 12-month guarantee period:
If you experience difficulty using the product, prior to
returning your product, please read the ‘Help’ section, or
contact the BT Diverse Helpline on 0 457 90 070 for
assistance.
In the unlikely event of a defect occurring, please follow
the Helpline’s instructions for replacement or repair.
Outside the 12-month guarantee period:
If your product needs repair after the guarantee period has
ended, the repair must meet the approval requirements for
connection to the telephone network. We recommend that
you call the Helpline on 0 457 90 070 and ask for details
of our recommended repair agents.
