Bticino KW4691 User manual

Room thermostat
KW4691- KG4691- KM4691
User manual
www.bticino.com

Room thermostat
User manual

3
Contents
Room thermostat
User manual
Introduction 4
Fundamental concepts 4
Function keys and notification symbols 6
Thermostat use 8
Local functions 9
Set the programmed temperature 9
Protection Mode 12
Fancoil fan adjustment 14
Local contact 15
Functions with MyHOME_Up 16
Hot/cold mode 17
Protection Mode 17
Fancoil fan adjustment 18
Functions with Hotelsupervision 19
Set the programmed temperature 20
Set the system operating mode 20
Set the thermostat operating mode 21
Functions with HOMETOUCH 22
Heating/ Cooling mode 23
Set the programmed temperature 24
Protection Mode 26
Fancoil fan adjustment 27
Messages and errors 28
Messages 28
Errors 30

Room thermostat
User manual
4
Introduction
It is possible to use the thermostat with display both with heating and cooling systems, locally
(using the available keys) and remotely (using the Hotelsupervision software, MyHOME_Up or
HOMETOUCH - see the Thermostat Use) section.
The LED display shows the current mode of operation (Antifreeze/Thermal Protection or Heating/
Cooling), the room temperature measured, the temperature set point, the fan-coil speed, the
window contact status and the zone status.
If the temperature measured is below the reference set point value, the heating system is activated
and the corresponding symbol appears on the display.
If the temperature measured is above the reference set point value, the cooling system is activated
and the corresponding symbol appears on the display.
The thermostat can be programmed (ask your trusted installer) for automatic switching between
heating and cooling based on set thresholds.
Reference temperatures configured by the installer using MyHOME_Suite and Hotelsupervision
(Eco, Comfort and Protection).
After configuration, they can be activated using MyHOME_Up or Hotelsupervision

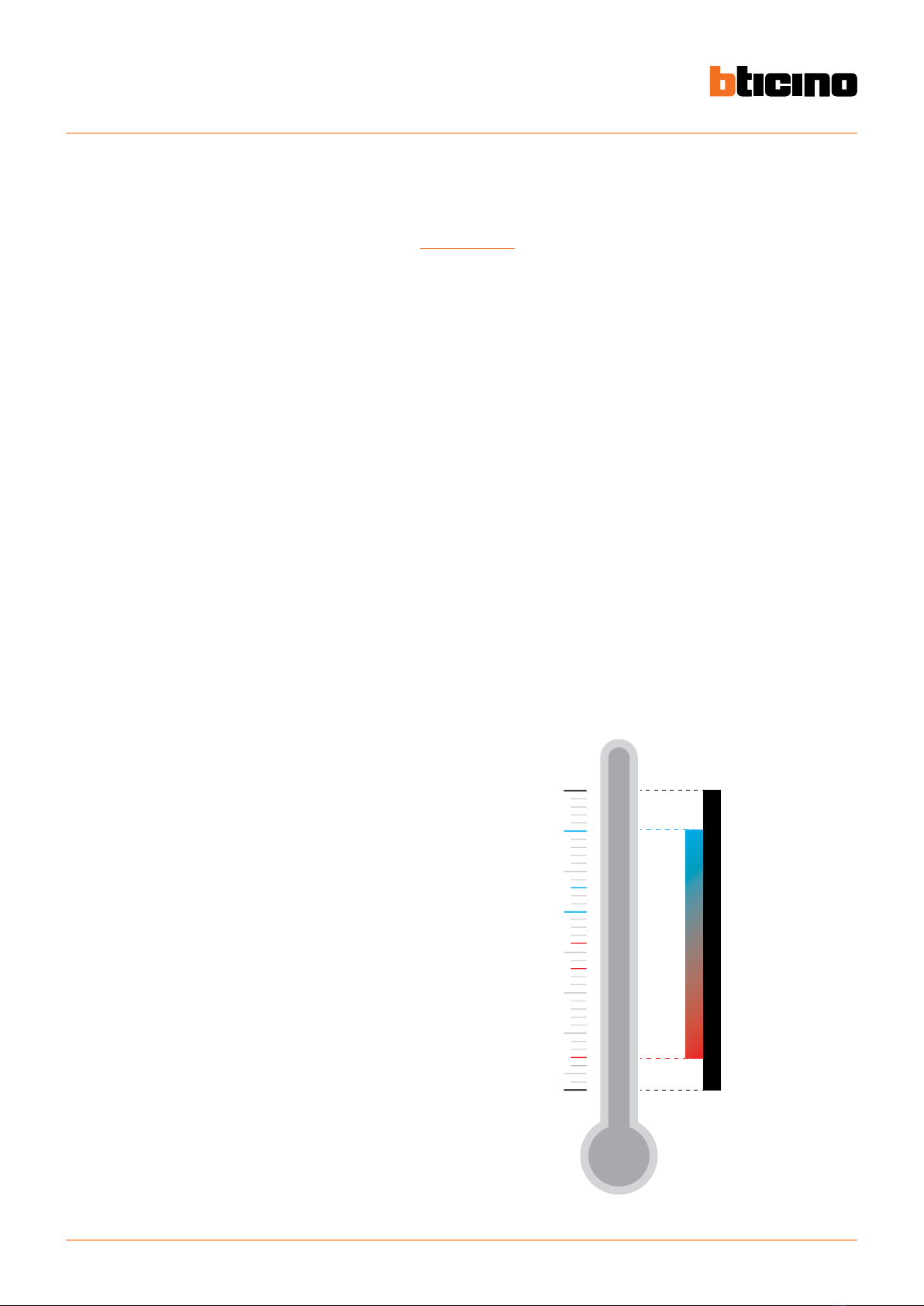

Fundamental concepts
Heating function
Cooling function
Automatic switching mode
Set-point
Reference temperature based on which the temperature control system switches on or off.
The set value must be between a minimum and maximum range configured by the installer
Programmed temperature
Note: the background and icons shown may differ from those on the device.
40
35Thermal protection
Maximum level
Minimum level
30
25
7
Comfort
18
Eco
21
Comfort
28
Eco
Antifreeze
20
15
10
5
3
Set-point
Programmed temperature

Room thermostat
User manual
54
Setpoint that in a heating system sets the minimum safety temperature to 7°C (Antifreeze) and in a
cooling system the maximum safety temperature to 35°C (Thermal Protection).
These values may be changed by your installer using MyHOME_Suite and Hotelsupervision.
Upon opening of the local contact (e.g. window contact), the display shows the corresponding
symbol, which will disappear again once the contact is closed. Using MyHOME_Suite and
MyHOME_Up, the installer can set an action or a scenario to be performed upon opening/closing
of the contact.
Protection mode
Window contact
Function Thermostat MyHOME_Up Hotelsupervision HOMETOUCH
Programmed YES YES YES YES
Thermal protection/antifreeze YES YES YES YES
Eco NO NO YES NO
Comfort NO NO YES NO

Room thermostat
User manual
6
Function keys and notification symbols
A Backlit display
B Function keys (local mode)
C Notification symbols
D Measured/programmed temperature
Function keys
ON / OFF key
Switches from ON to OFF:
If the thermostat is set to ON, the temperature is regulated
based on the programmed temperature.
If the thermostat is set to OFF, the system switches to
protection mode
Fan key To set the fan-coil speed to three different levels plus
automatic
Keys for temperature
setting
To increase or decrease the programmed temperature
value
Note: when the display is in standby, the function keys are not visible. Touch the display to make them
visible
A B
B
C
D
C

Room thermostat
User manual
76
Notification symbols
OFF thermostat The thermostat is set to Protection mode
Temperature setting It appears when the temperature is being set
Heating mode The system is in heating mode and is ON
Cooling mode The system is in cooling mode and is ON
Automatic Fancoil fan The fan-coil is in automatic operation mode,
based on the set temperature
Fancoil fan manual
adjustment The fan-coil is manually regulated on 3 speed levels
Window contact It appears upon opening of the local contact
(e.g. a window)

Room thermostat
User manual
8

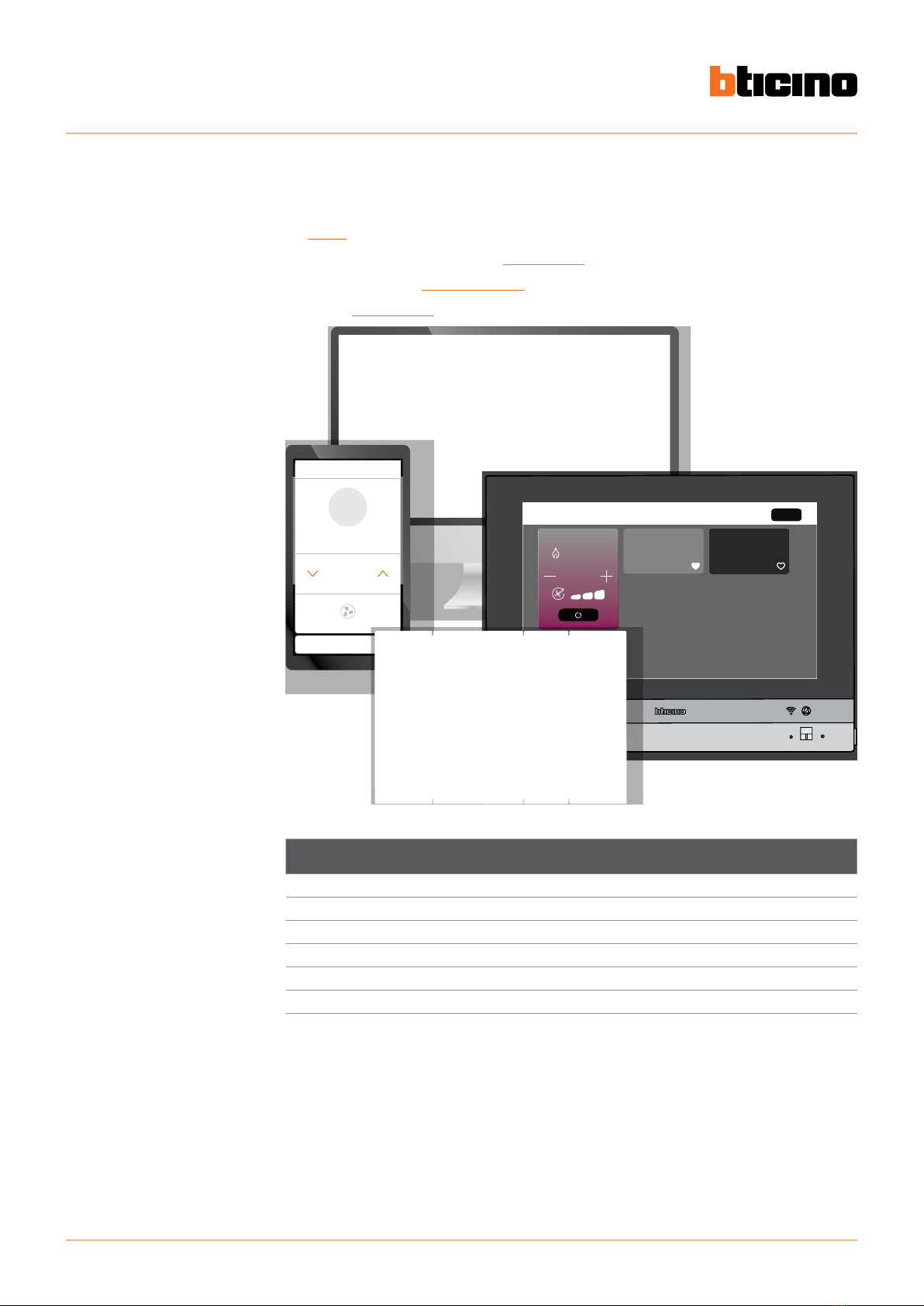

Thermostat use
You can interact with the thermostat in different ways::
– locally, using the thermostat keys
– using a smartphone with the free MyHOME_Up App installed
– using a PC with the Hotelsupervision software installed
– using a HOMETOUCH internal unit installed as part of the system
The functions available vary depending on the interaction mode
Function Thermostat MyHOME_Up Hotelsupervision HOMETOUCH
Programmed temperature SÌ SÌ SÌ SÌ
Protection mode activation SÌ SÌ SÌ SÌ
Setpoint Comfort activation NO NO SÌ NO
Setpoint Eco activation NO NO SÌ NO
OFF (thermostat OFF) NO NO SÌ NO
Fan adjustment SÌ SÌ SÌ SÌ
Termostato Camera matrimoniale...23.3°C
Camera matrimoniale
Prim...
Close
OFF Hot
21
21.0
Children bedroom Thermostat
First floor - Children bedroom
Cold
THERMOREGULATION Other...
Entrance thermostat
21.0 °C
22.5 °C
Kitchen thermostat
22.5 °C
Basement thermostat
16.5 °C

Room thermostat
User manual
98

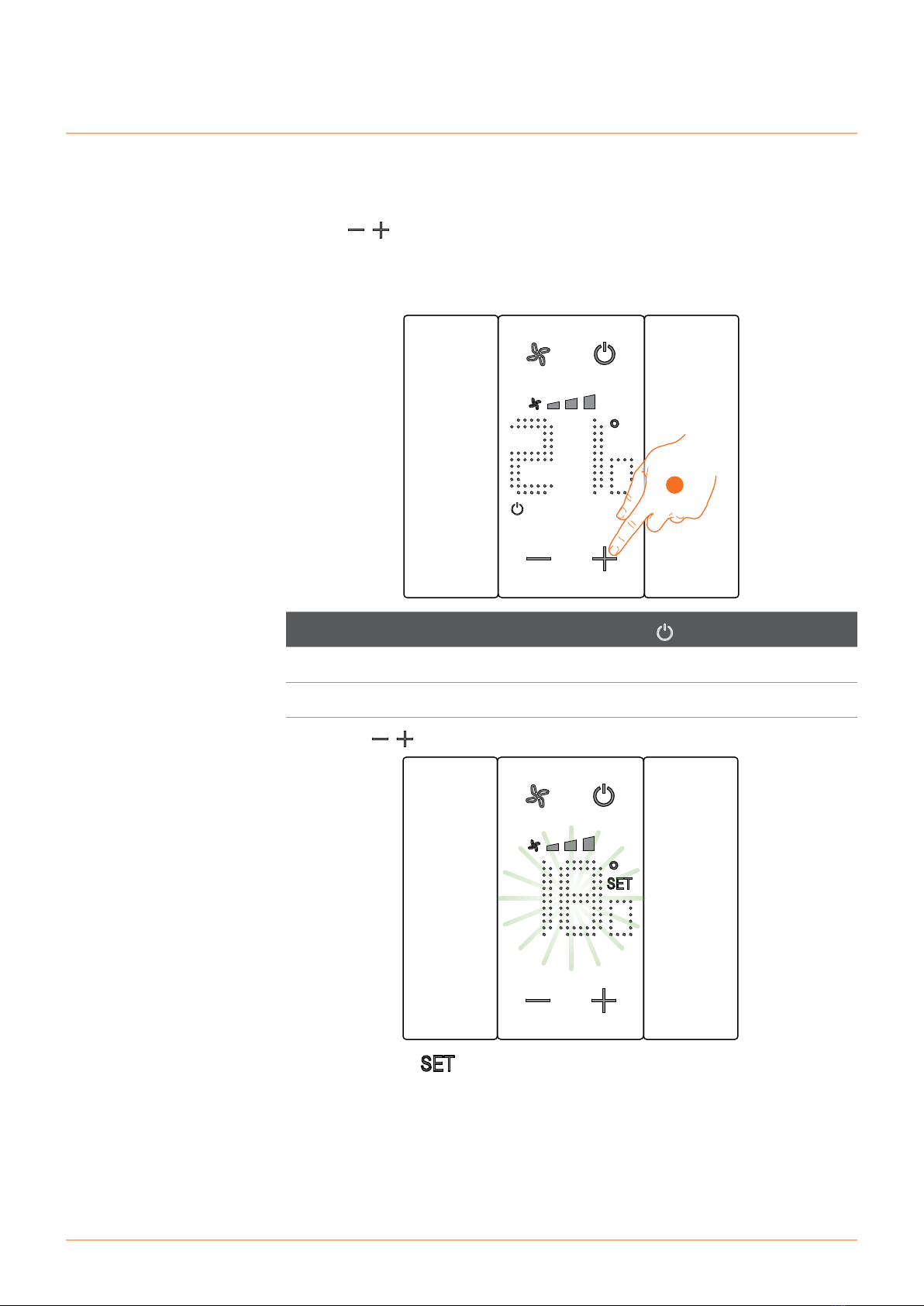

Local functions
Set the programmed temperature
Using the keys, it is possible to change the temperature value that will be used by the
temperature control system to switch on or off.
A subsequent remote temperature change will prevail on this setting.
When idle, the display shows the measured temperature and the programming status.
1. Touch the keys to set the programmed temperature
Programming status – Symbol
Present Protection Mode
Not present Programmed temperature mode
The display shows the symbol and the currently programmed temperature. If this value is
acceptable, wait for flashing to end. The temperature will not be changed.
1

Room thermostat
User manual
10

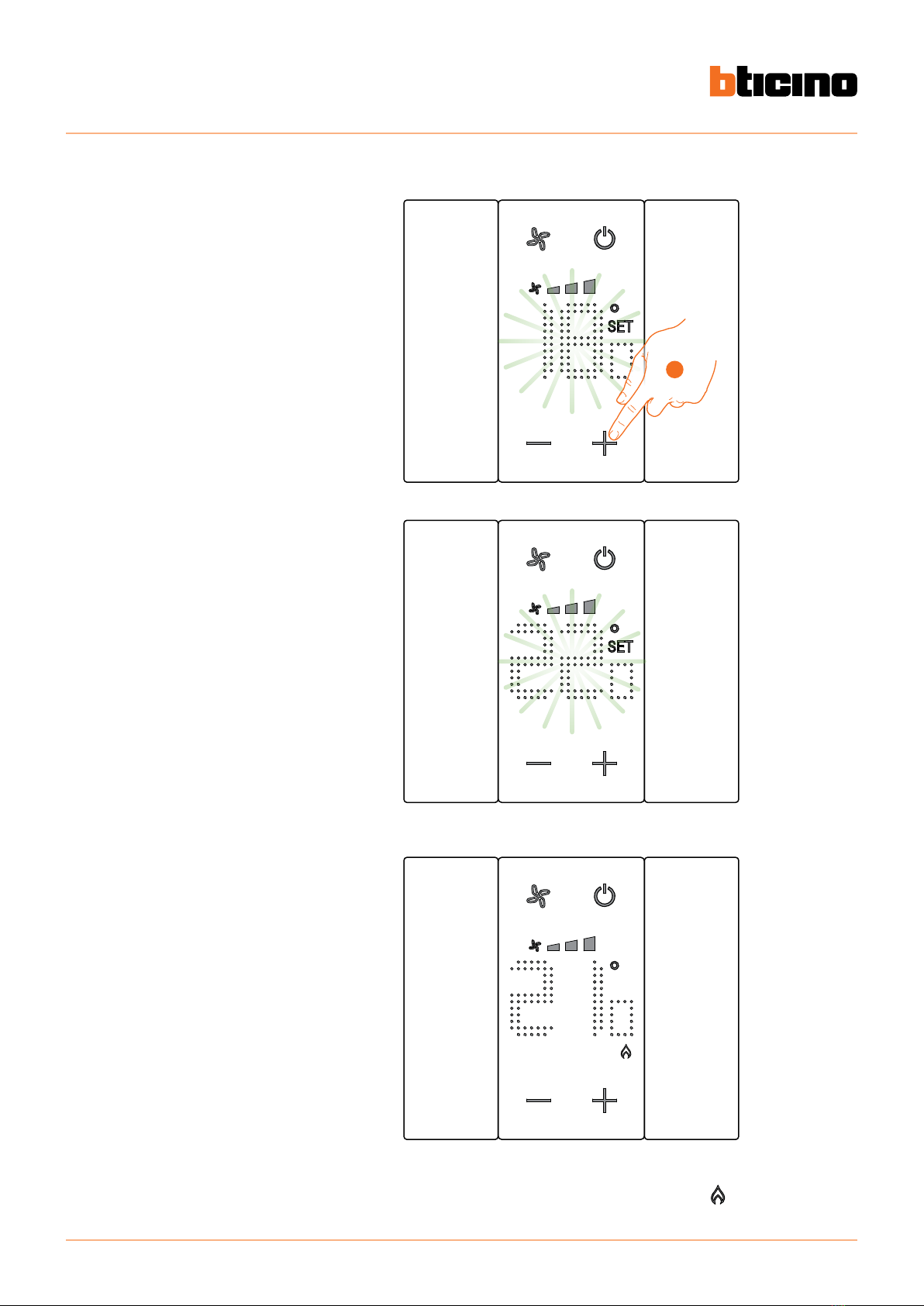

Wait for the end of the flashing.
The temperature is now set to the new programmed value.
After a few seconds, the new setting is saved and the measured temperature appears.
This example shows a set temperature higher than the measured temperature, therefore also
displaying the symbol confirming that the heating system is in operation .
2. Touch to increase or decrease the programmed temperature
To change the value, before flashing ends:
2

Room thermostat
User manual
1110

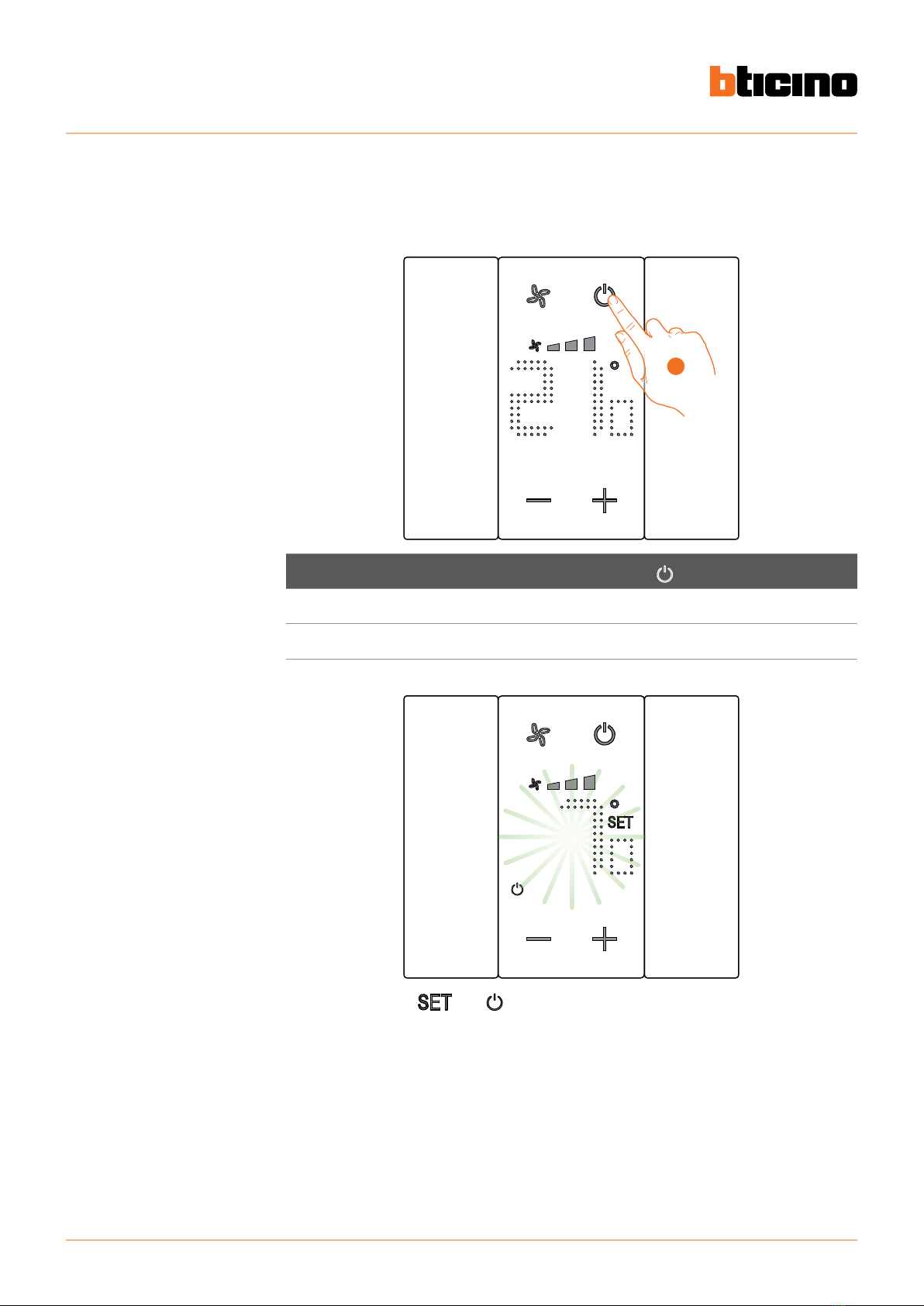

3. Touch ON/OFF and restart from item 1
If the symbol (A) appears, the thermostat is set to Protection Mode.
To switch to Programmed Temperature mode:
3
A

Room thermostat
User manual
12
Protection Mode
This function allows you to set the system to Antifreeze (heating) or Thermal Protection (cooling)
mode When idle, the display shows the measured temperature and the programming status.
1. Touch to set the Protection mode
The display shows the and symbols, together with the default Antifreeze (7°C) or
Thermal Protection (35°C) temperature. Wait for flashing to end.
Programming status – Symbol
Present Protection Mode
Not present Programmed temperature mode
1

Room thermostat
User manual
1312
After a few seconds, the value is saved and the symbol appears, to indicate that the mode is
active.

Room thermostat
User manual
14
During the adjustment the fan symbol and the segment for the speed selected flash.
After a few seconds, the value is saved and the symbol shows the new adjustment.
Fancoil fan adjustment
If the thermostat manages a fan-coil type load, the fan speed can be adjusted using the dedicated
pushbutton.
Speed 1
Speed 2
Speed 3
Automatic operation
1. Touch to set the fan speed at the desired level
1

Room thermostat
User manual
1514
The symbol will disappear when the contact is closed.
Upon opening of a local contact (e.g. window contact), the display shows the corresponding
symbol, which will disappear again once the contact is closed
Local contact

Room thermostat
User manual
16

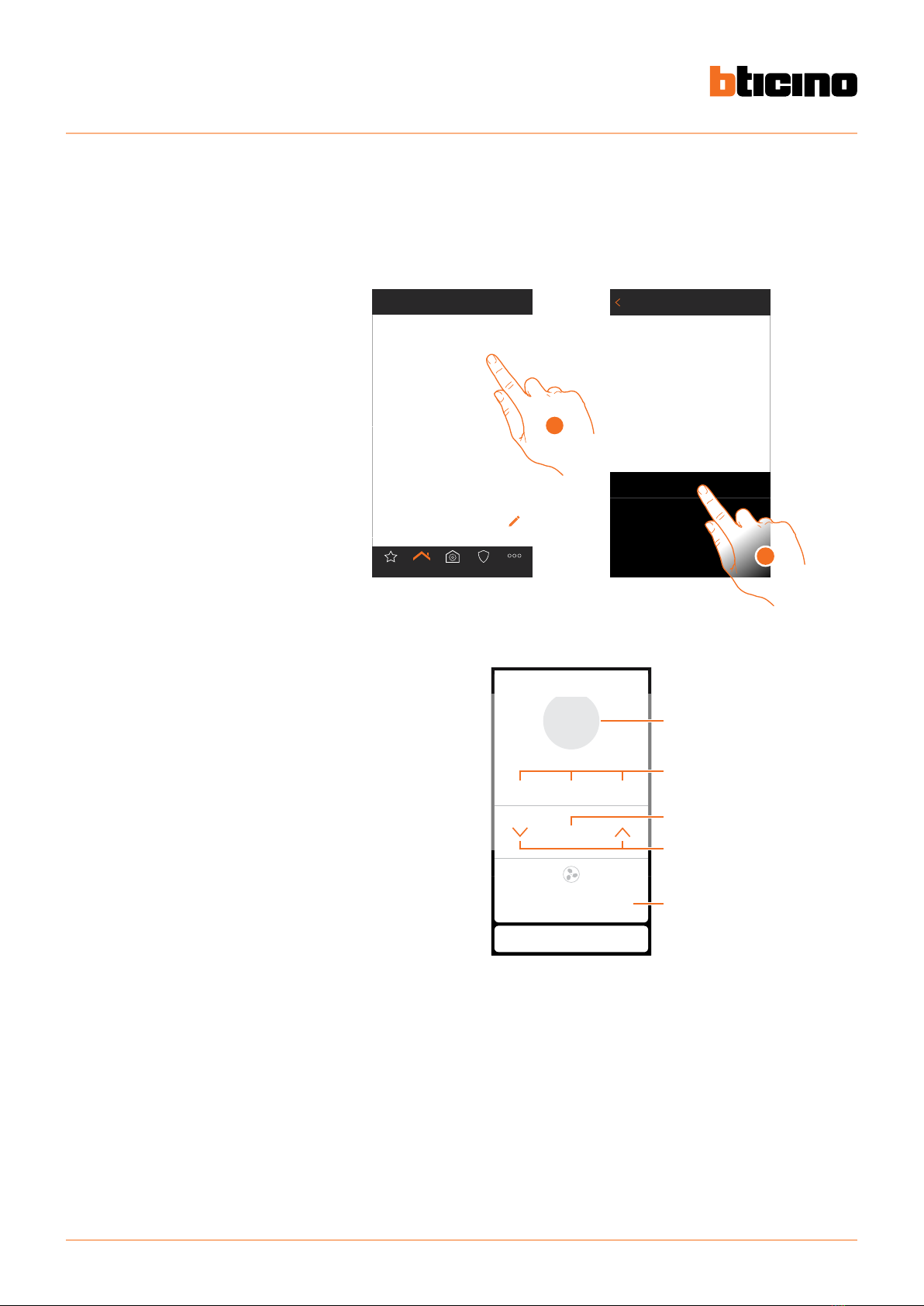

Functions with MyHOME_Up
In order to use the thermostat with MyHOME_Up, it will be necessary to first download the App
(for iOS devices from App Store, for Android devices from Play Store), and then connect to the
system (for the details see the MyHOME_Up manual).
A Display the measured temperature
B Display/enable the operating mode
OFF: set the system in protection mode
Heat: sets the system to heating mode and maintains the set temperature
Cold: sets the system to cooling mode and maintains the set temperature
C Display the programmed temperature
D Set the programmed temperature
E Display/set the FANCOIL fan speed (where present)
Access the system

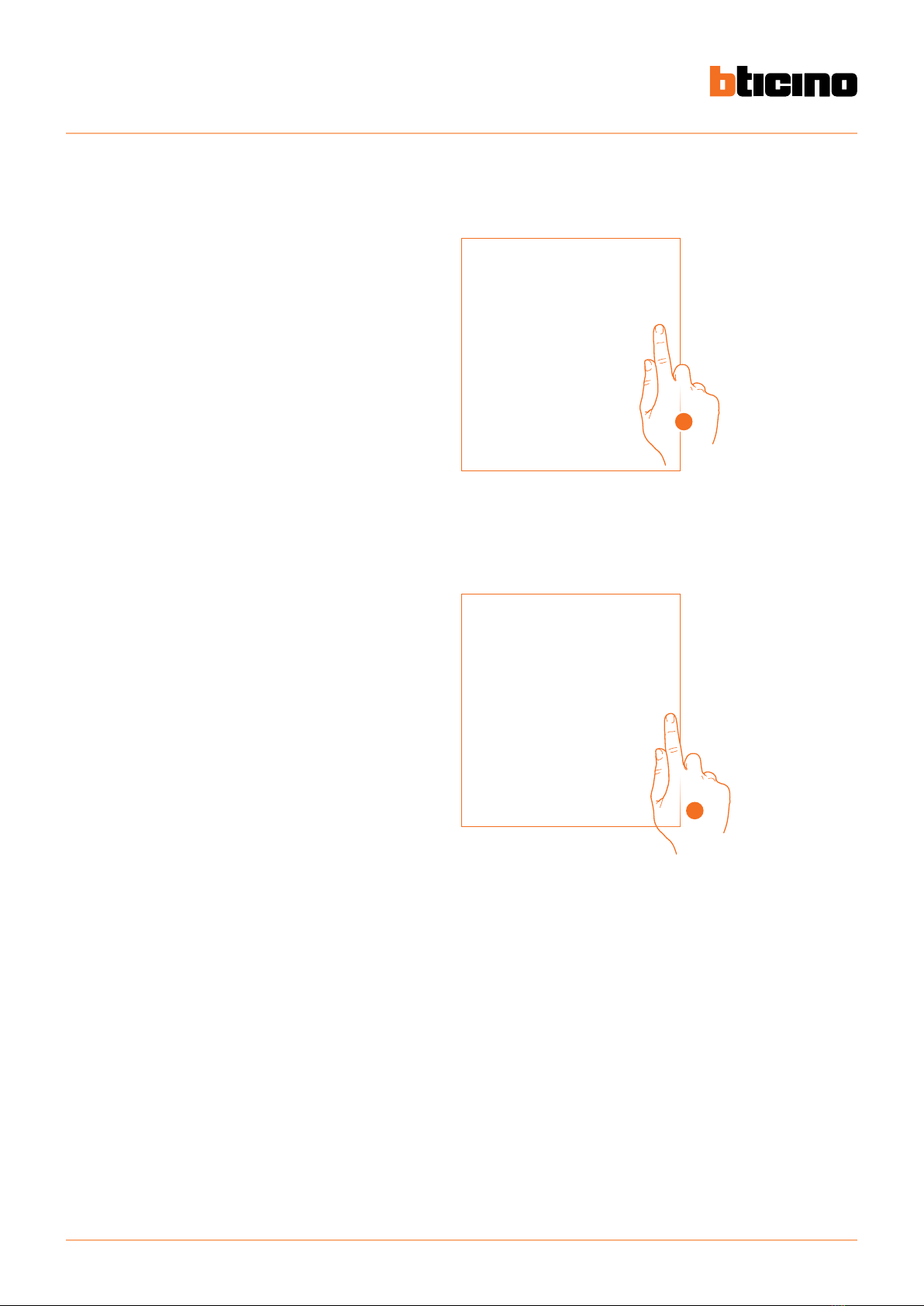

1. In the home page, touch the room for which you want to adjust the temperature
2. Touch the thermostat object
Cameretta
Prim...
Termostato Cucina 1 16.6 °C
Close
OFF
AUTO 321
ColdHot
20
16.6
Children bedroom Thermostat
First floor - Children bedroom
A
E
B
D
C
Children bedroom
First...
Children bedroom Thermostat 16.6 °C
First floor
Children bedroom
Living room
Favourites Home Scenarios Security Other
1
2

Room thermostat
User manual
1716

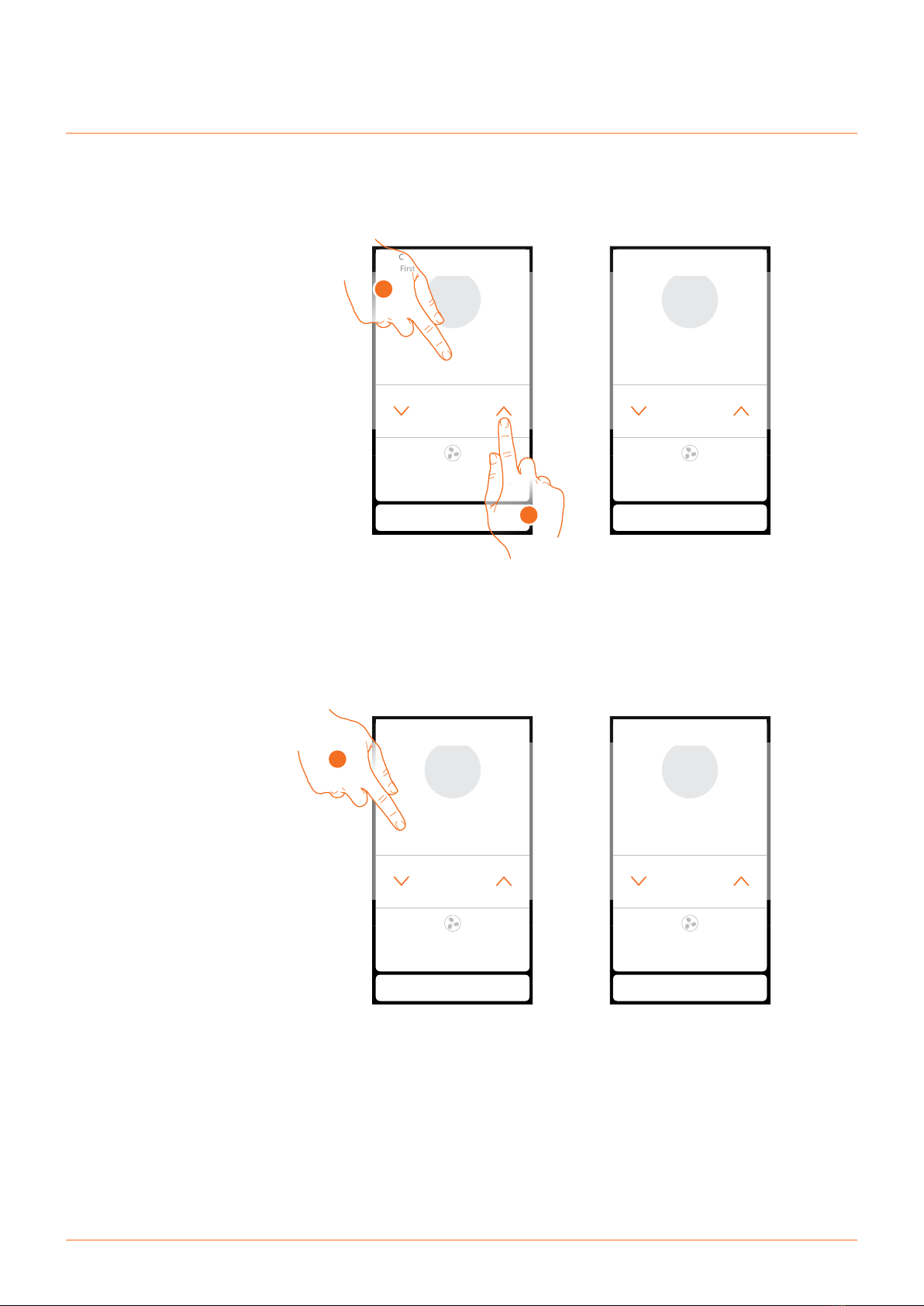

1. Touch to set the system mode
2. Touch to set the programmed temperature
1. Touch to select the protection mode
Hot/cold mode
Protection Mode
Using this function, it is possible to set the system to heating/cooling and a programmed
temperature
Using this function, it is possible to set the minimum safety temperature of 7°C (Antifreeze) for the
heating system, and the maximum safety temperature of 35°C (Thermal Protection) for the cooling
system
Cameretta
Prim...
Termostato Cucina 1 16.6 °C
Close
OFF
AUTO 321
ColdHot
20
16.6
Children bedroom Thermostat
First floor - Children bedroom
Cameretta
Prim...
Termostato Cucina 1 16.6 °C
Close
OFF
AUTO 321
ColdHot
7
16.6
Children bedroom Thermostat
First floor - Children bedroom
1
Cameretta
Prim...
Termostato Cucina 1 16.6 °C
Close
OFF
AUTO 321
ColdHot
20
16.6
Children bedroom Thermostat
First floor - Children bedroom
Cameretta
Prim...
Termostato Cucina 1 16.6 °C
Close
OFF
AUTO 321
ColdHot
21
16.6
Children bedroom Thermostat
First floor - Children bedroom
1
2

Room thermostat
User manual
18
1. Touch to set the fan speed at the desired level
Fancoil fan adjustment
If the thermostat manages a fan-coil type load, the fan speed can be adjusted
1Speed 1
2Speed 2
3Speed 3
Auto Automatic operation
Cameretta
Prim...
Termostato Cucina 1 16.6 °C
Close
OFF
AUTO 321
ColdHot
20
16.6
Children bedroom Thermostat
First floor - Children bedroom
Cameretta
Prim...
Termostato Cucina 1 16.6 °C
Close
OFF
AUTO 321
ColdHot
21
16.6
Children bedroom Thermostat
First floor - Children bedroom
1

Room thermostat
User manual
1918
Functions with Hotelsupervision
In order to use the thermostat with Hotelsupervision, this must first be installed on a PC (for the
details see the Hotelsupervision software manual).
Start the Client module; this is the system user interface, which gives the possibility of managing
the room thermostats from the switchboard.
.
1. Touch the room to manage; the right section (room status) shows the thermostat control panel
A Advanced settings (see the installer manual)
B Display the system mode
C Display the measured temperature
D Display the thermostat operating mode
E Display the FANCOIL fan speed (where present)
F Display the programmed temperature
G Set the programmed temperature
H Set the system operating mode
J Display the thermostat operating mode(Setpoint)
K Set the format of the displayed temperature between Celsius and Fahrenheit degrees
L Enable/disable the thermostat keys. If the function is disabled, it will no longer be possible to
interact with the thermostat but only to display the information.
M Enables the display of the measured temperature directly in the room section.
C
H
J
L
M
A
B
D
E
F
G
K
1

Room thermostat
User manual
20
To set the room temperature, use the +/- keys. This new adjustment will delete any previous
setpoints and will be active until a new setpoint is set.
Using this function, it is possible to set the system to heating or cooling, or both.
Set the programmed temperature
Set the system operating mode
1. Touch to increase or decrease the room temperature to the desired level. The system will then
be switched on or off based on the measured room temperature
1. Touch to select the mode among:
– Heating: : if the temperature measured is below the reference set point value, the heating
system activates.
– Cooling: if the temperature measured is above the reference set point value, the cooling
system activates.
– Automatic switching: the thermostat can be programmed (ask your trusted installer) for
automatic switching between heating and cooling based on set thresholds.
1
1
