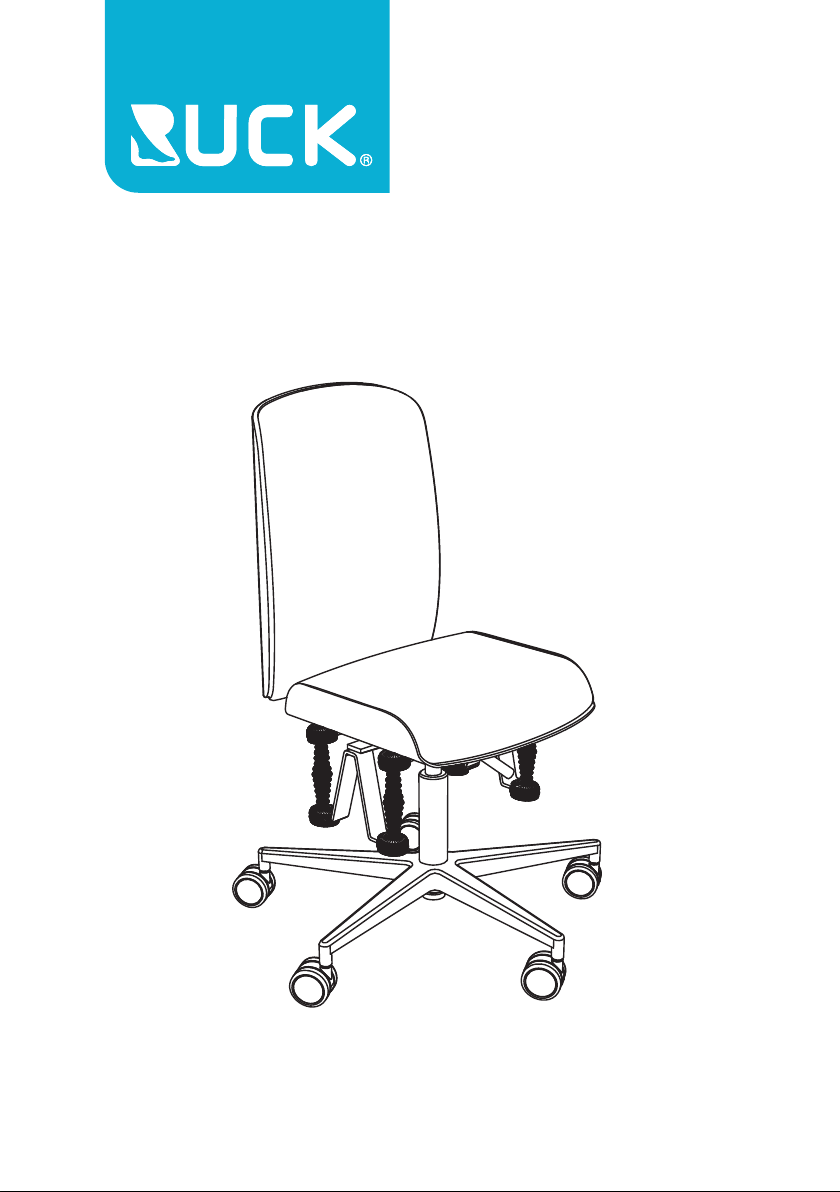

Buck Stool Bioswing User manual

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023EN
Instruction for use
Stool Bioswing

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
2
Copyright
© 2023 Hellmut Ruck GmbH. All rights reserved. This document must not be
copied, edited, reproduced or translated without the prior written permission of
Hellmut Ruck GmbH.
1. hellmut-ruck.de
2. Search term: “Item number”
3. Downloads
RUCK®Stool Bioswing
›Diese Gebrauchsanweisung können Sie in weiteren Sprachen unter nachfolgendem Link herunter-
laden oder telefonisch anfordern.
›Tämän käyttöohjeen voitte ladata useilla eri kielillä seuraavasta linkistä tai pyytää tietoja puhelimitse.
›Puede descargar este manual en diferentes idiomas en el siguiente enlace o bien solicitarlo por teléfono.
›Instrukcje te mogą być pobierane w innych językach pod poniższym linkiem lub telefonicznie
› Tento návod je také k dispozici v jiných jazycích. Použijte prosím následující odkaz ke stažení návodu nebo si je
vyžádejte telefonicky.
›Šo lietošanas instrukciju citās valodās iespējams lejuplādēt zemāk norādītajā saitē vai pieprasīt telefoniski.
›This manual is also available in other languages. Please use the following link to download the manual or request
it on the phone.
› Questo manuale è disponibile anche in altre lingua. Lo si può scaricare utilizzando il seguente link o richiederlo per telefono.
›此說明書另有提供其他國家語言，請點擊此連結下載檔案，或透過電話詢問下載亦可。
›Navodila za uporabo lahko v številnih jezikih pridobite na sledeči povezavi ali naročite prek telefona
›Acest manual este disponibil si in alte versiuni de limba. Accesati link-ul urmator pentru a descarca manualul sau
il puteti solicita telefonic.
› Вы можете загрузить руководства по эксплуатации на других языках кликнув на ссылку или запросив по телефону.
›Τιςοδηγίεςχρήσεωςμπορείτενατιςβρείτεκαισεάλλεςγλώσσες,πατώνταςστοπαρακάτωlinkγιανατις
κατεβάσετεήνατιςζητήσετετηλεφωνικώς.
› U kunt de gebruiksaanwijzing in diverse talen downloaden onder de volgende link. Ook kunt u deze telefonisch aanvragen.
› Ce manuel d‘utilisation est disponible aussi en autre langues. Veuillez utiliser le lien suivant pour le télécharger ou
demandez-le par téléphone.
›Bu kullanım kılavuzunu farklı dillerdede aşağıdaki bağlantıdan indirebilir yada telefon ile istiyebilirsiniz.
›Atsisiųskite instrukcija lietuvių kalbą paspaudę šią nuorodą, arba paskambinę telefonu.
›A használati útmutatót magyar nyelven a következő linkről tudja tölteni, vagy kérheti telefonon.
›.תוכל להוריד את הוראות ההפעלה בשפות נוספות בלינק הבא או לבקש אותן בטלפון
›여러언어로된본사용설명서를다음링크에서다운로드하시거나전화로요청하실수있습니다.
› Hægt er að sækja þessar notkunarleiðbeiningar á öðrum tungumálum með eftirfarandi tengli eða panta þær símleiðis
›Ezen kezelési útmutató további nyelveken a következő linken keresztül tölthető le, vagy telefonon megkérhető
›この取扱説明書はその他の言語でも以下のリンクでダウンロードしていただくことが可能です。またはお電話でお
問い合わせいただければご案内申し上げます。
›Denne brugsanvisning kan du downloade på ere sprog på efterfølgende link eller bestille telefonisk
›Denna bruksanvisning på andra språk kan du antingen ladda ned från följande länk eller beställa på telefon
› Цю інструкцію по експлуатації на інших мовах ви можете завантажити за нижчевказаним посиланням на
сайт або запросити по телефону
Downloads
> Instructions for Use
https://hellmut-ruck.de
Item number

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
3
Congratulations on the purchase of a
RUCK® Stool Bioswing
With the RUCK®Stool Bioswing, you are making an appreciable contribution to
sitting ergonomically and you are supporting your back muscles in a particularly
effective manner. The BIOSWING system is a unique technology. Movable toward all
sides, with controlled cushioning effect and dynamic reflection of the body’s energy.
Continuous micro-impulses influence the postural muscles and encourage an active
sense of equilibrium. This results in improved concentration and higher performance
throughout the working day.
In order to use all settings optimally, please read these operating instructions.
Kind regards,
HELLMUT RUCK GmbH

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
4
Table of Contents
Table of Contents
1 Declaration relating to these instructions for use ...........................5
2 Scope of delivery....................................................................................5
3 Product description...............................................................................6
3.1 Safety Note ................................................................................................. 7
3.2 Adjusting the seat hight ..........................................................................8
3.3 Adjusting the seat inclination.................................................................9
3.3.1 Seat inclination with permanent contact.................................9
3.3.2 Individual adjustment of the seat inclination ..........................9
3.4 Adjusting the seat depth....................................................................... 10
3.5 Adjusting the height of the backrest................................................... 11
3.6 Backrest tilt ............................................................................................... 12
3.7 VarioBackMatic (backrest pressure) ................................................... 13
4 Disinfection and cleaning...................................................................14
5 Replacing cushions..............................................................................16
6 Maintenance ......................................................................................... 17
7 Spare parts............................................................................................ 17
8 Warranty ................................................................................................18
9 Technical data.......................................................................................19
10 Disposal .................................................................................................19

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
5
Scope of delivery
1 Declaration relating to these instructions for use
Hellmut Ruck GmbH reserves all rights to modify and supplement these
instructions for use. Hellmut Ruck GmbH has taken great care to keep these
instructions free of inaccuracies and omissions. Please contact us if you nd
mistakes or inaccuracies. However, Hellmut Ruck GmbH assumes no liability for
mistakes in these instructions for use or consequential damage resulting from the
provision of these instructions for use or their application when using the product.
These instructions for use must not be disseminated or supplemented without
the express approval of Hellmut Ruck GmbH.
 Thissymbolidentiesapotentialpointofdangerforpeopleor
for the device itself. It must be taken note of.
 Thissymbolidentiesusefulinformation.Additionalinformation
about the product and how to use it is provided here.
2 Scope of delivery
Check that the delivery is complete.
1 treatment chair
1 set of instructions for use
Packaging
The packaging has been designed to protect the product while in transit.
The packaging materials used have been selected with due regard for
environmental issues and can be recycled.

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
6
Product description
1.2
1.1
1.1 Seat inclination
1.2 Seat height
1.3 Backrest height
1.3
1
2
3
5
6
7
4
max.
125kg
3 Product description

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
7
Product description
1.4 Backrest tilt (VarioBackMatic)
1.5 Seat depth
1.6 Backrest tilt pressure
1.6
1.4
1.5
3.1 Safety Note
Use the RUCK®Stool Bioswing exclusively for seating purposes
according to the intended use. Never step onto a swivel chair!

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
8
Product description
3.2 Adjustingtheseathight
The angle of the thigh and calf should range from a right angle to a
slightly open angle. The seat height should be set at the level of the
hollow of the knee. Both feet should be make contact with the oor
across their entire length.
Lowering seating surface
Pull the control handle upward while seated and release at the desired position.
Pay attention to the risk of getting caught between the base and the seat
workings when lowering the seating surface.
Raising seating surface
Take pressure o the seat, pull the control handle upwards, and release at the
desired position.

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
9
Product description
3.3 Adjustingtheseatinclination
To support the physiologically correct pelvic tilt, you can adjust the seating
surface either with permanent contact or at any tilt. The tilt ensures the desired
straightening of the spine in its natural double-S position.
3.3.1 Seat inclination with permanent contact
While seated, push the control handle forward and then down. The seating
surface tilts in accordance with the shifting body weight and calf position.
Deactivate it by pulling the control handle upwards.
3.3.2 Individualadjustmentoftheseatinclination
While seated, press the control handle forward and determine the desired tilt
by shifting your weight/thigh position, and then release the control handle.

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
10
Product description
3.4 Adjustingtheseatdepth
With the seat depth adjustment, you can optimally adjust the seating surface
to your thigh. Note that the seat front edge is about 3 nger widths from the
hollow of the knee.
While seated, pull the control handle up and simultaneously change the seat
depth by pushing the seat cushion forward or backward.

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
11
Product description
3.5 Adjustingtheheightofthebackrest
You can adjust the backrest individually to your height. While seated, use both
hands to reach backwards and raise or lower the backrest to the desired height
by sliding it. Please note: The backrest can only be slid down when it is in the
highest position.

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
12
Product description
3.6 Backrest tilt
The backrest adjustment enables stepless tilting. This can be xed or follow
your movements with the permanent function. In this way you promote
dynamic seating behaviour in particular. For the permanent function, pull the
control handle upwards while seated – the backrest follows your movements.
If you release the lever, the backrest tilt is xed. If you press the control handle
up and back, permanent contact is continuously activated.

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
13
Product description
3.7 VarioBackMatic (backrest pressure)
VarioBackMatic is the stepless back pressure adjustment for optimised seating.
Try to choose the setting so that you never have the feeling of using a great
amount of force when you lean back. While seated, pull the control handle up.
The backrest follows your movements. Release the lever and the backrest is
xed in its tilt. You can activate permanent contact by pulling the control hand-
le up and pushing it backwards. You can activate back pressure by pulling the
control handle up while seated and pushing it backwards. The backrest can
be moved in the tilt. Turn the hand wheel, at the front right under the seat,
clockwise to increase the back pressure; turning it anti-clockwise decreases
the pressure.

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
14
Disinfection and cleaning
Danger of damage due to incorrect care of leatherette, plastics
and wood surfaces!
Disinfect the contact surfaces after each treatment with RUCK surface dis-
infection wipes, alcohol-free (item no. 2967002, item no. 2967102 or item no.
2967202) for medical devices.
Please observe the exposure times of the disinfectants according to the
product labelling. One minute for bacteria, ve minutes for fungi. Further
information on the disinfectant.
Danger of damage due to improper care of surfaces. Do not use any concen-
trated disinfectants, solvents, cleaning agents or liquids that contain alcohol
(>50 % alcohol content). Do not use spray disinfection.
Take great care to ensure that the cleaning utensils used are clean. If mineral
contaminants such as grains of sand or dust are embedded in the cleaning
agents, this can destroy the surface. Do not use any scouring agents, such
as abrasive cleaners, cleaning sponges or similar items that may contain ab-
rasive particles. Residues of leaked uids must be removed from the surface
immediately with a soft cloth.
For gentle cleaning of the surfaces, use a soft cotton cloth or the RUCK mi-
crobre cloth which is gentle on surfaces (item no. 29616).
Caution: Other cleaning cloths with plastic bres can have an abrasive eect
and consequently they can damage the surface.
Over time, traces of use can appear on the surfaces. These are more or less
noticeable depending on light incidence. They do not constitute a lessening
of utility. As is the case with all surfaces over the long term, due to the wear
involved in the daily routine of the medical practice, they cannot be avoi-
ded. Spots or stains caused by liquids that may corrode the surface (such as
propolis, tea tree oil, cleaners that contain chlorine or similar substances) are
categorically excluded from the warranty.
4 Disinfection and cleaning

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
15
Disinfection and cleaning
Cushion discolouration due to articles of clothing
Clothing, such as jeans, can cause discolouration of the cushion surfaces. If
possible, you should attempt to remove discolouration residues with a soft
cloth and the RUCK® leatherette cleaner and care product, 500 ml(item
no. 2947001). RUCK recommends that you use disposable covers whenever
possible. After cleaning and disinfection, surface disinfectants must be
allowed to eectively evaporate before the next treatment; i.e. allow surface
disinfectants to thoroughly dry as specied by the manufacturer, but do not
wipe surfaces dry.

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
16
Replacing cushions
5 Replacing cushions
1
23
á
á
1.
2.
Disassembly
Assembly
á
1.
á
2.
1
23
Recommendation for cushion replacement
Because the cushions of the treatment chairs are constantly subjected to
signicant stress, we recommend reupholstery after approx. three years
(with normal use).
As shown in the illustrations below, the cushions of the treatment chair can be
replaced individually.

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
17
Maintenance | Spare parts
6 Maintenance
Your RUCK®Stool Bioswing is maintenance-free during normal use.
Gas-pressurised springs
Replacement and work in the area of the gas-pressurised springs for
height adjustment may only be carried out by trained specialists. Do
not heat or open gas-pressurised springs by force.
Castors
For your safety, the RUCK® BIOSWING CHAIRseries is equipped with self-
braking castors to impede movement in the unloaded state. When you change
your oor covering, make sure to choose the correct castors. When used on
soft oors (such as carpet), the chair should be equipped with hard castors.
The hard castors are monochromatic. When used on hard oors (such as
parquet, tiles, linoleum), the chair should be equipped with soft castors. The
soft castors are dichromatic, that means that the tread has a dierent colour.
If you have any questions, please also contact our RUCK SERVICE
department.
fon [phone]
fax [phone]
E-Mail [e-mail]
Item no. 9705101, castor set for RUCK® STOOL
Item no. 7844001, reupholstery for STOOL Bioswing backrest,
on existing cushion board.
Art. Nr. 7844002 reupholstery for Bioswing STOOL seat,
on existing cushion board.
Please contact RUCK SERVICE for more spare parts.
7 Spare parts

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
18
Warranty
8 Warranty
The product comes with a 2-year warranty. Normal wear of surfaces, casters,
handles etc., and other moving parts is excluded from the warranty. Traces
of use and signs of wear and tear due to age and use, which are based on
normal use corresponding to the performance values and the nature of the
product, are in accordance with the contract and are not defects in the legal
sense.
The warranty runs from the date of purchase when the product was rst
bought. The date of purchase must be conrmed by the sales receipt. Within
the scope of the warranty, HELLMUT RUCK GmbH will, at no charge, either
repair or replace the defective products, at RUCK’s discretion.
The prerequisite is carriage-paid shipment of the defective product together
with the purchase receipt. The local agent is responsible for claims made
outside of Germany. In case of doubt, please check with RUCK before
returning the device.
The warranty becomes null and void if we nd that the problem was caused
by improper or incorrect installation/assembly or usage, by non-observance
of the instructions for use, by external intervention or as a result of a non-
authorised repair or modication.
The warranty is limited to repair or replacement of the product. Further
liability (particularly loss of revenue or earnings) is excluded. If however, it
turns out that it is a problem that is not covered by the terms of the warranty
or that the period of the guarantee has elapsed, any costs for inspection and
repair must be borne by the customer.
We reserve the right to make changes to and deviations from the technical
design.

8000702 | Instructions for use for Stool Bioswing | REV 03
Revision status 30/11/2023
19
Technical data | Disposal
9 Technical data
Seat height with “short”
gas-pressurised spring: 48 - 61 cm
Seating surface (W/D): 41/42,5 cm
Backrest surface (W/H): 40/49 cm
Castors: Lightweight castors for hard oors
Base, aluminium diameter: Aluminium base
Special benets: Bioswing seat workings,
seat depth adjustment of 5 cm
Seat inclination: 8°
Backrest height adjustment: 8 cm
Enviromental hazard!
Incorrect disposal endangers our environment.
> The PODOLOG® STOOL BIOSWING must be disposed of through available
return and collection systems at the end of its service life!
10 Disposal

HELLMUT RUCK GmbH
Daimlerstr. 23
DE -75305 Neuenbürg, Germany
fon [phone]
fax [phone]
[e-mail]
hellmut-ruck.uk
