Page 3
SECTION I
The New Buck Corporation room heater Model 80 is one of the safest and most efficient heating systems
available when installed and operated as specified in these instructions and as stipulated on the operation and
installation labels affixed to the unit. The unit is designed to burn wood fuel only.
Please read this entire manual before you install and use your new room heater. Failure to follow instructions
may result in property damage, bodily injury or even death.
Throughout the manual, you will see this symbol. This indicates areas of importance regarding safety.
Please make a special note of these areas.
Install and use only in accordance with the manufacturer’s installation and operating instructions. Do not

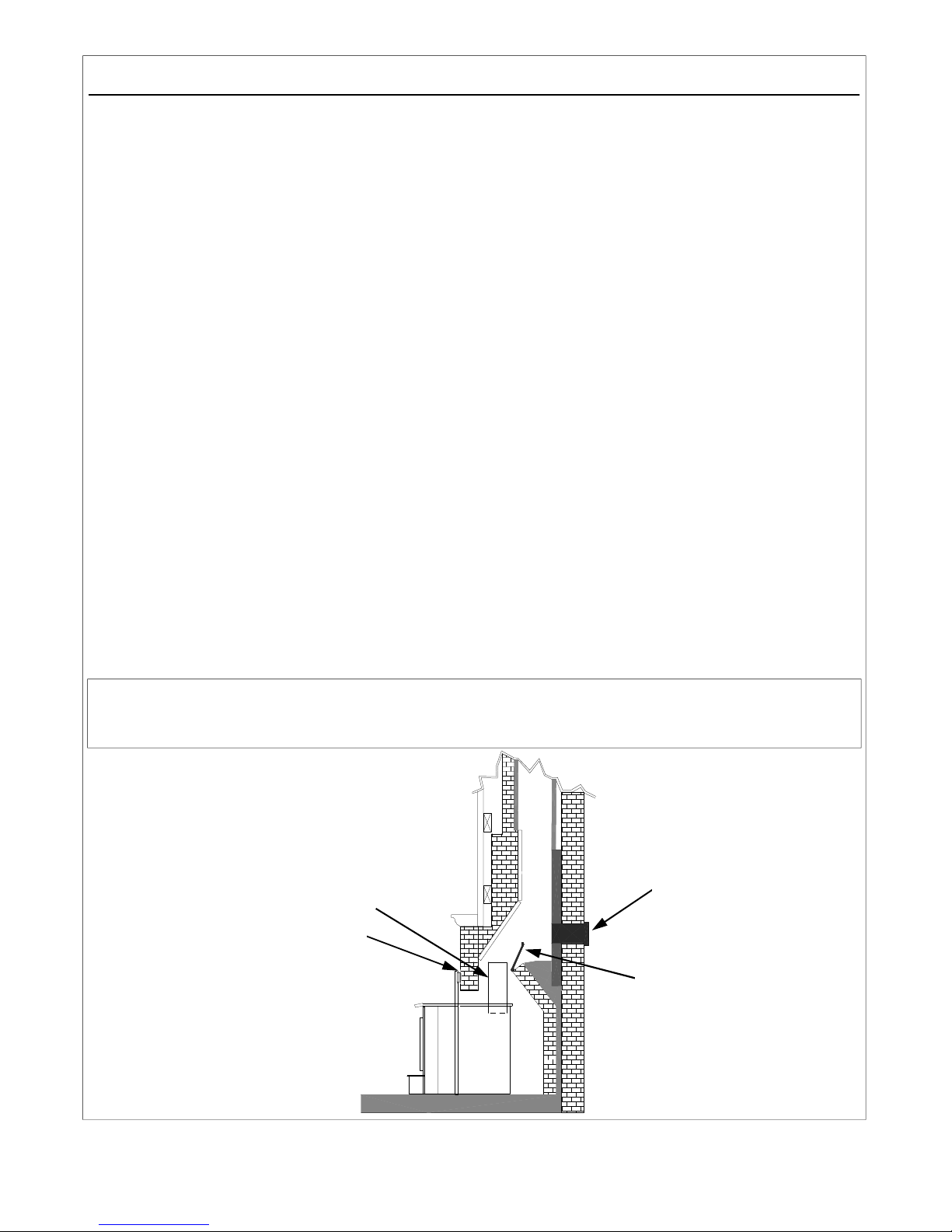

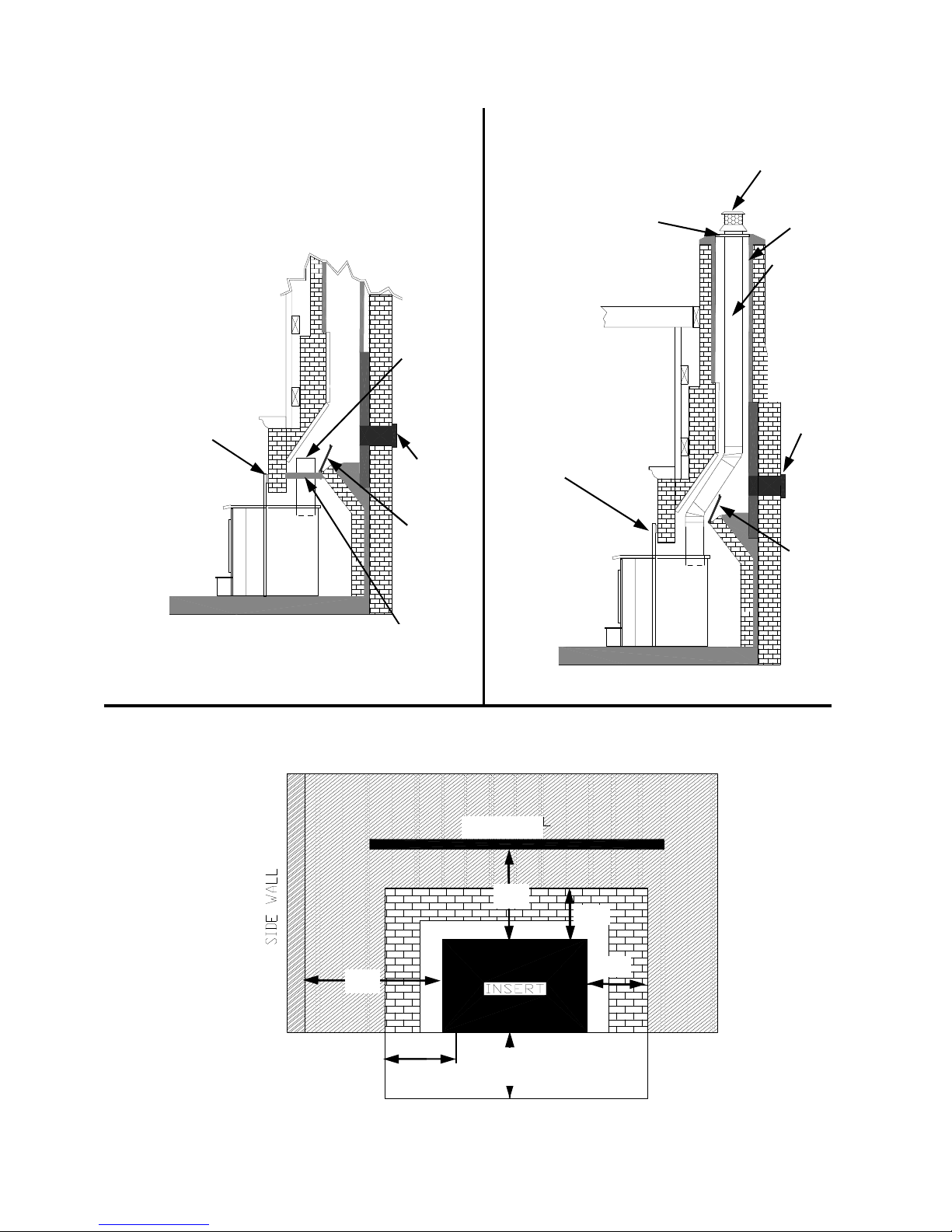

connect this unit to a chimney flue serving another appliance. This unit is not designed for installation into a
Mobile Home.

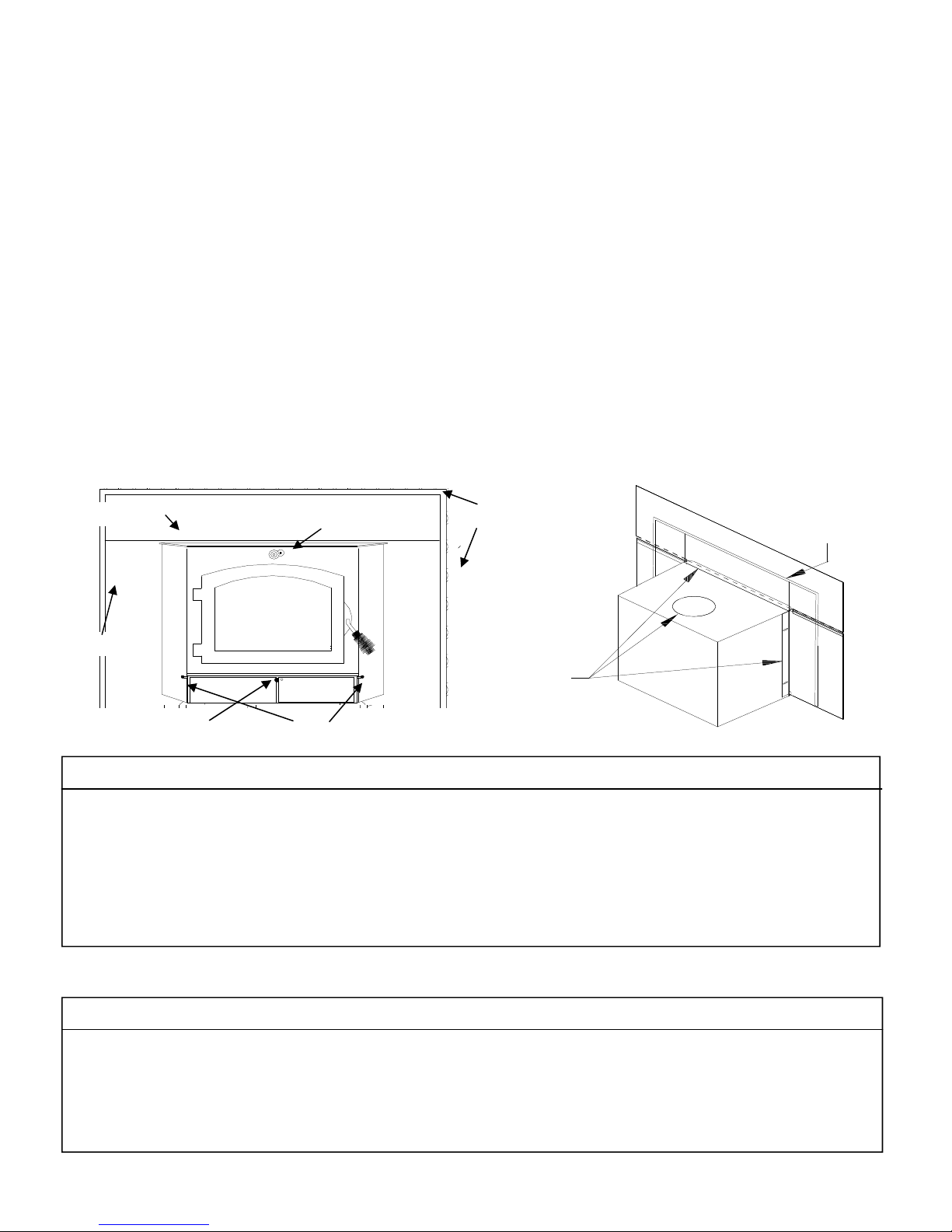

ROOM HEATER FEATURES
Before attempting to install or operate your heater, it is a good idea to familiarize yourself with the features and
operating controls of the unit.
WARNING: Model 80 heater was not designed for fire grates.
NOTE: “Do not use grate or elevate fire. Build wood fire directly on inner bottom of fire box.”
1. Bypass Damper: The bypass damper control is located in top center of heater front just under top. It is
operated by pushing or pulling the rod. The damper is fully open when the handle is pulled out and fully
closed when it is pushed in. The damper must be open before the door is opened.
2. Blower Control: The blower control (Rheostat) is located at bottom under hearth. This switch controls
the variable speed blower. For blower to operate turn switch from “OFF” position to either “LOW”,
“MEDIUM” or “HIGH”. When stove temperature reaches 110oblower will automatically come on.
3. Primary Air Controls: The primary air intake draft controls are located at the left and right side of the
hearth. They are operated by moving in and out to control the amount of primary air entering the firebox.
4. Warm Air Outlets: Provides heat extraction from the top of the firebox.
5. Baffles: Directs air flow around the unit for maximum heat transfer.
6. Air Inlet: Allows cool air near floor to be circulated through blower and back into warm air chamber of
heater.
7. Stand: Elevates heater above the floor for safety and a neat appearance.
8. Door: Provides an “airtight” feature. The door allows a much higher burning efficiency than can be
obtained with an open firebox.
9. Hearth Extension: Offers protection from spilled ashes and cinders.
10. Power Cord: Provides electrical power to operate the blower.

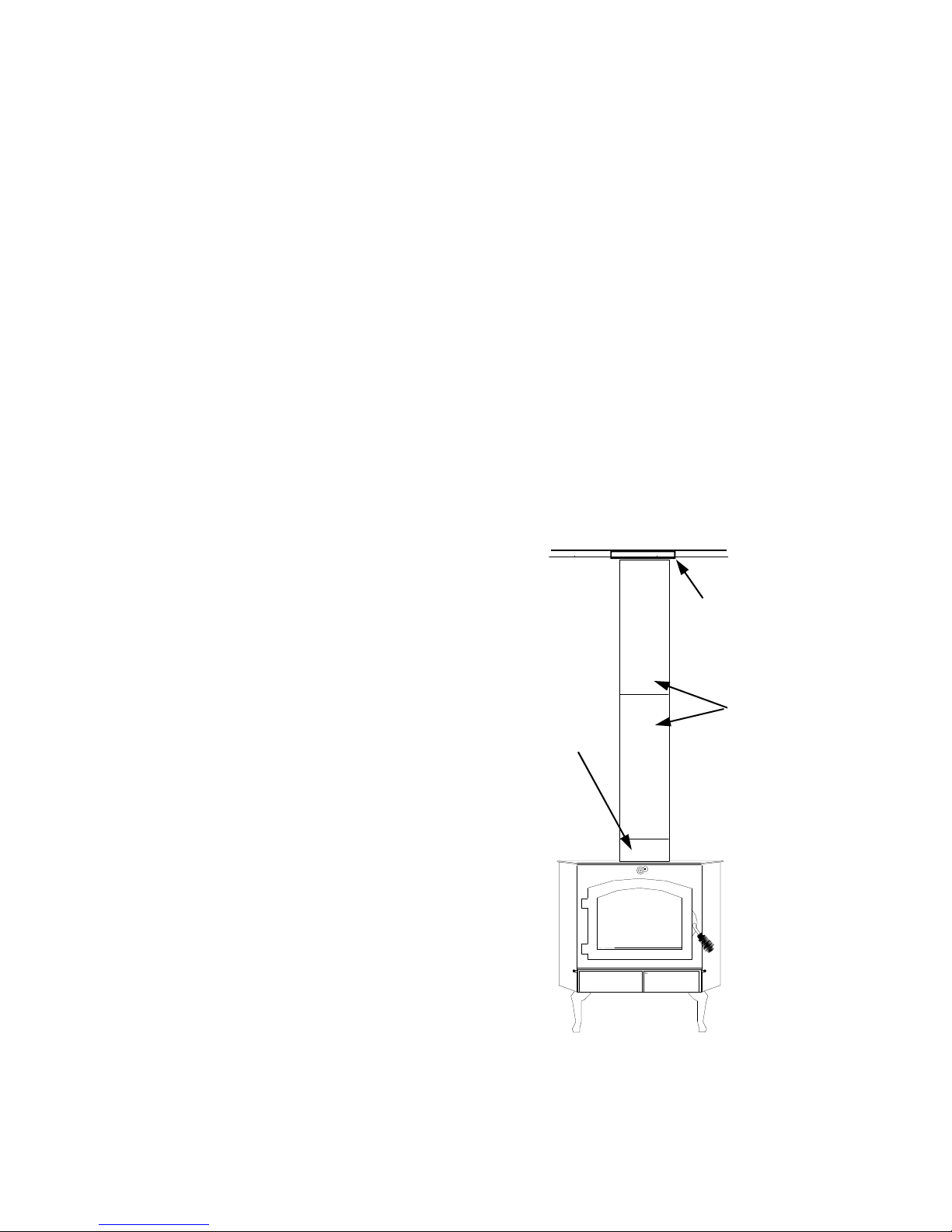

11. Chimney Connector: Used to connect unit to chimney or direct connect kit.
12. Catalysts: Enables the unit to burn cleanly and efficiently.
13. Catalyst Monitor: Hole is located to the right of the damper rod on the front. Remove plug and insert
probe provided by manufacturer.
14. Cover Door: Conceals blower, blower controls and ash pan.
15. Airway: Primary air is directed in such a way as to provide a “sweeping” air wash over the glass to assist
in keeping it clean.
16. Ash Pan: Provides for easy ash removal.
