Pacific energy SUPER 27 SPECTRUM User manual

230514-20 SUPER-SD1 5055.201AS
INSTALLATION
AND OPERATING
INSTRUCTIONS
SAFETY NOTICE
If this stove is not properly installed, a
house re may result. For your safety,
follow the installation instructions. Contact
local building or fire officials about
restrictions and installation inspection
requirements in your area.
IMPORTANT:
THESE INSTRUCTIONS ARE TO
REMAIN WITH THE HOMEOWNER
MODEL - SUPER 27
SPECTRUM
SPECTRUM CLASSIC
DESIGN-D
SERIAL #

2 SUPER-SD1 230514-20
PLEASE SAVE THESE INSTRUCTIONS
NOTE: WE STRONGLY RECOMMEND THAT SMOKE DETECTORS BE INSTALLED.
If smoke detectors have been previously installed, you may notice that they are operating more frequently. This may
be due to curing of stove paint or fumes caused by accidentally leaving the re door open. Do not disconnect the
detectors. If necessary, relocate them to reduce their sensitivity.
SAFETY NOTICE: If this stove is not properly installed, a house re may result. For your safety, follow the
installation instructions. Contact local building or re officials about restrictions and installation inspection
requirements in you area.
Please read this entire manual before you install and use your new room heater. Failure to follow instructions may
result in property damage, bodily injury, or even death.
Contents
Safety and Maintenance...................................................................................... 3
Maintenance Checks ........................................................................................... 4
Creosote ............................................................................................................... 5
Formation and Need for Removal.......................................................................................5
Chimney Fires..................................................................................................................... 5
In Case of a Chimney Fire .................................................................................................. 5
Avoiding a Chimney Fire.....................................................................................................5
Assembly.............................................................................................................. 6
Crate Removal....................................................................................................................6
Optional Ash Cleanout System -(Install rst) ......................................................................6
Pedestal Kit......................................................................................................................... 6
Leg Kit ................................................................................................................................ 6
Installation............................................................................................................ 7
Floor Protector..................................................................................................... 8
Combustion Air.................................................................................................. 11
Operation............................................................................................................ 12
Wood Selection................................................................................................................. 12
How to Test Your Wood ..................................................................................................... 12
Lighting for the First Time ................................................................................................. 12
Lighting a Fire................................................................................................................... 12
Normal Operation ............................................................................................................. 12
Restarting After Extended Burns ...................................................................................... 13
Proper Draft ...................................................................................................................... 13
Ash Removal ....................................................................................................................13
Disposal of Ashes ............................................................................................................. 13
Baffle Removal ................................................................................................... 13
Appendix A......................................................................................................... 14
Troubleshooting ................................................................................................................14
Replacement Parts - Super 27 ......................................................................................... 15
Replacement Parts - Spectrum and Spectrum Classic .................................................... 16
Understanding & Operating Your Pacic Energy Stove..................................................... 17
Compliance Plate.............................................................................................................. 19

230514-20 SUPER-SD1 3
Safety and
Maintenance
1. Burn wood only, dry and well seasoned. The denser or
heavier the wood when dry, the greater its heat value.
This is why hardwoods are generally preferred. Green
or wet wood will cause a rapid buildup of creosote.
If you feel it is necessary to burn wet or unseasoned
wood, do so only with the air inlet set open enough
to maintain a good strong re and fairly high chimney
temperatures. Do not attempt to burn overnight using
green wood or wet wood. Wet wood can cause up
to 25% drop in heater output, as well as contributing
signicantly to creosote buildup.
WARNING: Never use chemicals or any other
volatile liquid to start a re. Do not burn garbage,
or ammable uids such as gasoline, naptha, or
engine oil. We strongly recommend that smoke
detectors be installed.
2. Remove ashes frequently. Embers can roll out the
door and create a re hazard. Maintain a 1" minimum
ash base.
3. If glass becomes darkened through slow burning or
poor wood, it can readily be cleaned with replace
glass cleaner when stove is cold. Never scrape with
an object that might scratch the glass. The type and
amount of deposit on the glass is a good indication
of the ue pipe and chimney buildup. A light brown
dusty deposit that is easily wiped off usually indicates
good combustion and dry, well-seasoned wood and
therefore relatively clean pipes and chimney. On the
other hand, a black greasy deposit that is difficult to
remove is a result of wet and green wood and too
slow a burning rate. This heavy deposit is building
up at least as quickly in the chimney.
WARNING: ONLY USE MATERIALS SUPPLIED BY
MANUFACTURER WHEN DOING MAINTENANCE
OR REPLACEMENTS.
4. DOOR GASKETS -The gasket used by Pacic Energy
(22mm medium density berglass rope) requires only
light pressure to seal. This will prolong seal life. It is
important that the door seal be maintained in good
condition. Periodically inspect seals and replace if
necessary. Follow instructions included in the DR31.
WDGKIT kit obtainable from your nearest Pacic
Energy dealer.
5. DOOR GLASS - Do not slam loading door or otherwise
impact glass. When closing door, make sure that no
logs protrude to impact the glass. If the glass gets
cracked or broken, it must be replaced before using
the stove. Replacement glass can be obtained from
your dealer. Use 224mm x 387mm x 5 mm. Ceramic
glass only. Do not substitute with any other type.
To remove broken glass, undo the four retaining screws
and remove clamps and frame, noting position for re-
assembly. Remove all particles of glass . Be careful as
they are very sharp. Install new glass complete with
gasket. Replace frame, clamps and screws.
CAUTION:
- do not overtighten, tighten screws very carefully
- do not clean glass when hot
- do not use abrasive cleaners on glass
6. Do not store wood within heater installation clearances,
or within the space required for fuel loading and ash
removal. Keep the area around the heater clean and
free of loose combustibles, furniture, newspapers, etc.
7. If gold door requires cleaning, use mild soap and water
only. Use of abrasive cleaners will void warranty.
8. Establish a routine for the fuel, woodburning and r-
ing technique. Check daily for creosote buildup until
experience shows how often you need to clean to be
safe.
9. Be aware that the hotter the re, the less creosote
is deposited. Weekly cleaning may be necessary in
mild weather, even though monthly cleaning is usually
enough in the coldest months when burning rates are
higher.
10. Instruct all members of your family on the safe
operation of the heater. Ensure they have enough
knowledge of the entire system if they are expected
to operate it. Stress the section on chimney res
and the importance of following the steps outlined
"In Case of Chimney Fire".

4 SUPER-SD1 230514-20
Maintenance Checks
Check the following parts for damage such as cracks, excessive corrosion, burned out sections
and excessive warping: (See website for descriptions and more detail)
Weekly:
- Firebrick - Visual, for cracking.
- Door Gasket - sagging, placement, damage.
Monthly
- Brick rail tabs and brick rails.
- Air riser tube in the back of the rebox.
- Back side of airwash chamber.
- Baffle locking pin.
- Boost tube cover.
When Cleaning the
Chimney System:
- Top baffle board/blanket.
- Baffle.
- Top heat shield and mounting bolt.
- Baffle Gasket.
- Brick Rails.
- Manifold.
Blower:
- The blower should be cleaned out a minimum every six months by using a vacumn on the grill
openings in the back and bottom of the blower casing to remove any dust and debris.
- Some warping of the baffle is normal(up to .65cm).
- Replace if the baffle has permanent warping greater than this or has cracking or breakage.
- Please contact your Dealer if you experience any of the damage listed above. Continuing to
operate your stove with broken parts may accelerate damage to other parts and may void your
warranty

230514-20 SUPER-SD1 5
Creosote
Formation and Need for Removal
When wood is burned slowly, it produces tar and other
organic vapours, which combine with expelled moisture
to form creosote. The creosote vapours condense in the
relatively cool chimney ue of a slow burning re. As a
result, creosote residue accumulates on the ue lining.
When ignited, this creosote makes an extremely hot re.
The chimney connector and chimney should be inspected
periodically (at least once every two months) during the
heating season to determine if a creosote buildup has
occurred. If creosote has accumulated (3 mm. or more),
it should be removed to reduce the risk of a chimney re.
1. Highest smoke densities occur when a large amount of
wood is added to a bed of hot coals and the air inlet is
closed. The heated wood generates smoke, but without
ample air, the smoke cannot burn. Smoke-free, clean
burning requires small fuel loads, two or three logs at
a time or 1/4 to 1/2 of fuel load and leaving the air inlet
relatively wide open, especially during the rst 10 to 30
minutes after each loading, when most of the smoke
generating reactions are occurring. After 30 minutes
or so, the air inlet can be turned down substantially
without excessive smoke generation. Wood coals
create very little creosote-producing smoke.
2. The cooler the surface over which the wood smoke is
passing, the more creosote will be condensed. Wet
or green wood contributes signicantly to creosote
formation as the excess moisture that is boiled off
cools the re, making it difficult for the tars and gases
to ignite, thus creating dense smoke and poor combus-
tion. This moisture-laden smoke cools the chimney,
compounding the problem by offering the smoke the
ideal place to condense.
In summary, a certain amount of creosote is inevitable
and must be lived with. Regular inspection and clean-
ing is the solution. The use of dry, seasoned wood
and ample combustion air will help to minimize the
buildup.
Chimney Fires
The result of excessive creosote buildup is a chimney re.
Chimney res are dangerous. Chimney inside tempera-
tures can exceed 1100°C. This causes much higher than
normal temperatures in the chimney and on its exterior
surfaces. Thus ignition of nearby or touching combusti-
ble material is more likely during a chimney re. Proper
clearances are critical during such a re.
Chimney res are easy to detect; they usually involve one
or more of the following:
-Flames and sparks shooting out of the top of the
chimney
-A roaring sound
-Vibration of the chimney
In Case of a Chimney Fire
1. Prepare to evacuate to ensure everyone's safety. Have
a well understood plan of action for evacuation. Have
a place outside where everyone is to meet.
2. Close air inlet on stove.
3. Call local re department. Have a re extinguisher
handy. Contact your local municipal or provincial re
authority for further information on how to handle a
chimney re. It is most important that you have a
clearly understood plan on how to handle a chimney
 r e .
4. After the chimney re is out, the chimney must be
cleaned and checked for stress and cracks before
starting another re. Also check combustibles around
the chimney and the roof.
- The services of a competent or certied installer are
strongly recommended.
Avoiding a Chimney Fire
There are two ways to avoid chimney res:
1. Do not let creosote build up to a point where a big
chimney re is possible.
2. Do not have res in the heater that may ignite chim-
ney res. These are hot res, such as when burning
household trash, cardboard, Christmas tree limbs, or
even ordinary fuel wood; (e.g.. with a full load on a hot
bed of coals and with the air inlet excessively open.)

6 SUPER-SD1 230514-20
610mm
740mm
702mm
610mm
711mm
600mm
254mm
740mm
721mm
606mm 254mm
600mm
699mm
737mm
699mm
711mm
600mm
254mm
737mm
718mm
606mm
254mm
600mm
699mm
Super 27 - Pedestal Model Spectrum
Super 27 - Leg Model Spectrum Classic
Leg Kit
1) With the unit on its back, align the ash drawer enclo-
sure mounting holes (removable cover facing up) with
the holes on the stove.
2) Position the legs over top of the same holes on the
stove.
2) Secure in place with 1" x 1/2" bolts previously removed.
3) Carefully place the unit in the upright position.
- Super 27 only -
Assembly
Crate Removal
1) Carefully remove wood top and supports.
2) Remove plastic cover.
3) Using a 7/16" wrench, remove lag bolts that secure
stove body to bottom pallet.
4) Place stove body carefully on its back.
5) Using two 3/4" wrench, remove 1" x 1/2" bolts and
save for later use.
6) Remove pallet retaining brackets from stove bottom.
Optional Ash Cleanout System -(Install
rst)
1) With stove body laying on its back, remove the ash
system hole cover and gasket located under the stove.
Discard cover plate and gasket.
2) Inside the stove, remove the two bolts for the ash dump
from the rebox bottom and insert into the brick retainer
with the anges on the the brick retainer pointed away
from the threads on the bolts.
3) Replace bolts with brick retainer in the rebox bottom.
4) Place new gasket provided over existing bolts.
5) Install ash dump system over gasket and secure with
two nuts previously removed.
Pedestal Kit
1) With the unit on its back and the removable cover
facing up, align the pedestal mounting holes with the
holes on the stove.\
2) Secure in place with 1" x 1/2" bolts previously removed.
3) Carefully place the unit in the upright position.
FIG. #1

230514-20 SUPER-SD1 7
Installation
Warning:
Under no circumstances is this heater to be installed in a make-
shift or "temporary" manner. It may be red only after the stove
is installed properly.
DO NOT ATTEMPT TO CONNECT THIS HEATER TO ANY AIR
DISTRIBUTION DUCT.
Outside combustion air or fresh air into the room may be required
in your area, consult local building codes (see Combustion Air
section).
WARNING:THEAPPLIANCEAND FLUE-SYSTEM SHALL BE
INSTALLED IN ACCORDANCE WITH AS/NZS 2918 ANDTHE
APPROPRIATE REQUIRMENTS OF THE RLEVANT BUILD-
ING CODE OR CODES
WARNING: APPLIANCES INSTALLED IN ACCORDANCE
WITH THIS STANDARD SHALL COMPLY WITH THE RE-
QUIREMENTS OF AS/NZS 4013WHERE REQUIRED BYTHE
REGULATORY AUTHORITY, I.E. THE APPLIANCE SHALL
BE IDENTIFIABLE BY A COMPLIANCE PLATE WITH THE
MARKING ‘TESTED TO AS/NZS 4013’.
ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT
BEEN APPROVED IN WRITING BY THE TESTING AUTHOR-
ITY IS CONSIDEREDTO BE IN BREACH OFTHE APPROVAL
GRANTED FOR COMPLIANCE WITH AS/NZS 4013.
CAUTION:MIXING OF APPLIANCE OR LFUE-SYSTEM COM-
PONENTS FROM DIFFERENT SOURCES OR MODIFYING
THE DIMENSIONAL SPECIFICATION OF COMPONENTS
MAY RESULT IN HAZARDOUS CONDITIONS.WHERE SUCH
ACTION IS CONSIDERED, THE MANUFACTURER SHOULD
BE CONSULTED IN THE FIRST INSTANCE.
CAUTION: CRACKED OR BROKEN COMPONENTS, e.g.
GLASS PANELS OR CERAMIC TILES, MAY RENDER THE
INSTALLATION UNSAFE.
WARNING: ANY MODIFICATION OF THE APPLIANCE THAT
HAS NOT BEEN APPROVED IN WRITING BY THE TESTING
AUTHORITY IS CONSUDEREDAS BREACHINGAS/NZS 4013.
CAUTION: THIS APPLIANCE SHOULD NOT BE OPERATED
WITH A CRACKED GLASS.
CAUTION:THIS APPLIANCE SHOULD BE MAINTAINED AND
OPERATED AT ALL TIMES IN ACCORDANCE WITH THESE
INSTRUCTIONS.
CAUTION: THE USE OF SOME TYPES OF PRESEVATIVE-
TREATED WOOD AS A FUEL CAN BE HAZARDOUS.

8 SUPER-SD1 230514-20
559mm 350mm
375mm
762mm
893mm
275mm
275mm
559mm 100mm
375mm
762mm
787mm
200mm
200mm
Minimum Clearance to Combustibles
FIG. #2
Single Wall Connector
FIG. #3
Floor Protector
The stove may be installed on a combustible oor provided ember
protection made from a 6mm thick non-combustible material with
a thermal conductivity value of .4w/m degree K.
This protection must extend as follows:
(300 mm) on the ring side and 200mm both sides of the door
opening. See Figure #2.
Non-combustible oor
protector
[300mm]
[826mm]
[923mm]
[200mm] [200mm]
Minimum Width - 826mm
Minimum Overall Depth - 923mm
Minimum Thickness - 6mm
Single Wall Connector with Shield

230514-20 SUPER-SD1 9
Chimney and Connector
WARNING: INSTALL CHIMNEY AND ALL COMPONENTS OF CHIMNEY SYSTEM
ACCORDING TO CHIMNEY MANUFACTURER’S INSTRUCTIONS.
Connect to a listed chimney complying with the requirements of AS/NZS2918/2001 and a
chimney suitable for use with solid fuel that is lined and in good condition and meets local
building codes. The chimney ue size should be the same as the stove outlet for optimal
performance. Reducing or increasing the ue size may adversely affect stove performance.
Chimney ue exit is to be minimum 1000mm above roof and 600mm above highest projec-
tion within 3000mm. The installation must meet all local codes. Do not connect this unit to
a chimney ue serving another appliance. Minimum system height is 4600mm (measured
from base of appliance).
Installation Procedure
1. Install all components to the chimney manufacturer's installation requirements. (Outside
combustion air may be required, consult local building codes. See Combustion Air
section on page 11.)
2. Installed with the crimped or male ends pointing down. This will carry any liquid creosote
or condensation back into the stove.
3. If a roof or ceiling support is used in the installation, you will nd the chimney manufacturer's
complete instructions packed with the roof support.
4. To start installing smoke pipe (chimney connector), slip crimped edge of the pipe inside
the stove collar. Use holes provided in collar to secure pipe with three screws.
5. Install the remaining lengths of pipe, one on top of the other, to the nished height of
the chimney connector and secure to each other.

10 SUPER-SD1 230514-20
ITEM/ ARTICLE DIMENSIONS PART NUMBER/ NUMÉRO DE PIÈCE
A (39 mm x 115 mm x 32 mm) 248.0
B (77 mm x 115 mm x 32 mm) 247.0
C (102 mm x 115 mm x 32 mm) 246.0
D (184 mm x 115 mm x 32 mm) 245.0
E (230 mm x 115 mm x 32 mm) 5096.99
Super 27, Spectrum, Spectrum Classic,
and Fusion
Firebrick Installation Instructions
This package contains 18 full-size firebricks, as well as 3 various cut-size bricks.
If your heater came with an ash cleanout system, or an optional one is being installed, discard the extra full brick.
With the heater in the upright position, install firebricks as follows:
- Place firebricks on the bottom of the heater first. Total of 6 full-size then either “A, B & C” as shown below, if you
are installing the optional ash cleanout system or 1 full brick in place of “A & B” if you are not installing the ash
cleanout system.
- Next, install the side firebricks, 4 full-size each side.
- Lastly, install 3 full-size firebricks against the rear wall.

230514-20 SUPER-SD1 11
Combustion Air
Intake or combustion air can be supplied to the stove
in one of two ways. Consult your local building code or
Installation Code for Solid-Fuel-Burning Appliances and
Equipment before proceeding.
1. Outside air supply - (Necessary for mobile home
installation, optional for residential installation.) Out-
side air may be drawn from either underneath the
stove or from behind.
To draw outside air through the oor, leave the
100mmknockout or cover plate in place in the rear
of the pedestal or leg kit ash box enclosure.
Pedestal Model: Cut or drill a 100mm diameter hole
in the oor anywhere inside the perimeter of the ped-
estal. Cover the hole with a 100mm x 100mm rodent
screen and staple/nail in place.
Leg Model: Cut or drill a 100mm diameter hole di-
rectly below the bottom hole of the ash box enclosure.
Connect enclosure to the oor with a short 100mmdi-
ameter pipe. If you wish to connect the outside air to
the rear hole on the ash box, then remove the 100mm
knockout or cover plate at the rear of the ash box.
This hole must get its air from a ventilated crawl
space or be extended with duct to the outdoors (see
Figure #4). The use of outside combustion air for
residential installation requires the unit to be secured
to the structure to prevent dislodging of the air duct.
To draw outside air from behind the stove cut or drill
a 100mm hole through a wall behind the unit. Use an
appropriate household 100mm inlet.You must remove
the rear cover plate from the pedestal or move the
cover plate at the rear of the leg kit ash box enclosure
to cover the bottom hole.
Note: This unit is not designed to be operated with the
ring door open. In addition to the obvious hazard of
sparks landing on combustibles, an open re door
will cause the heater to draw air from the living space
and possibly cause suffocation.
2. Room air supply - Remove the cover plate from the
rear of the pedestal or leg kit ash box enclosure. The
stove will now draw its air from the room through this
opening and into the rebox intake.
Note: The living space around the heater must be well
ventilated with good air circulation. Anything that may
cause a negative pressure can cause gases or fumes
to be pulled into the living area. During extremely cold
weather, and especially when burning at very slow
rates, the upper parts of the exposed chimney may
ice up, partially blocking the ue gases. If blockage
occurs, ue gases may enter living space.

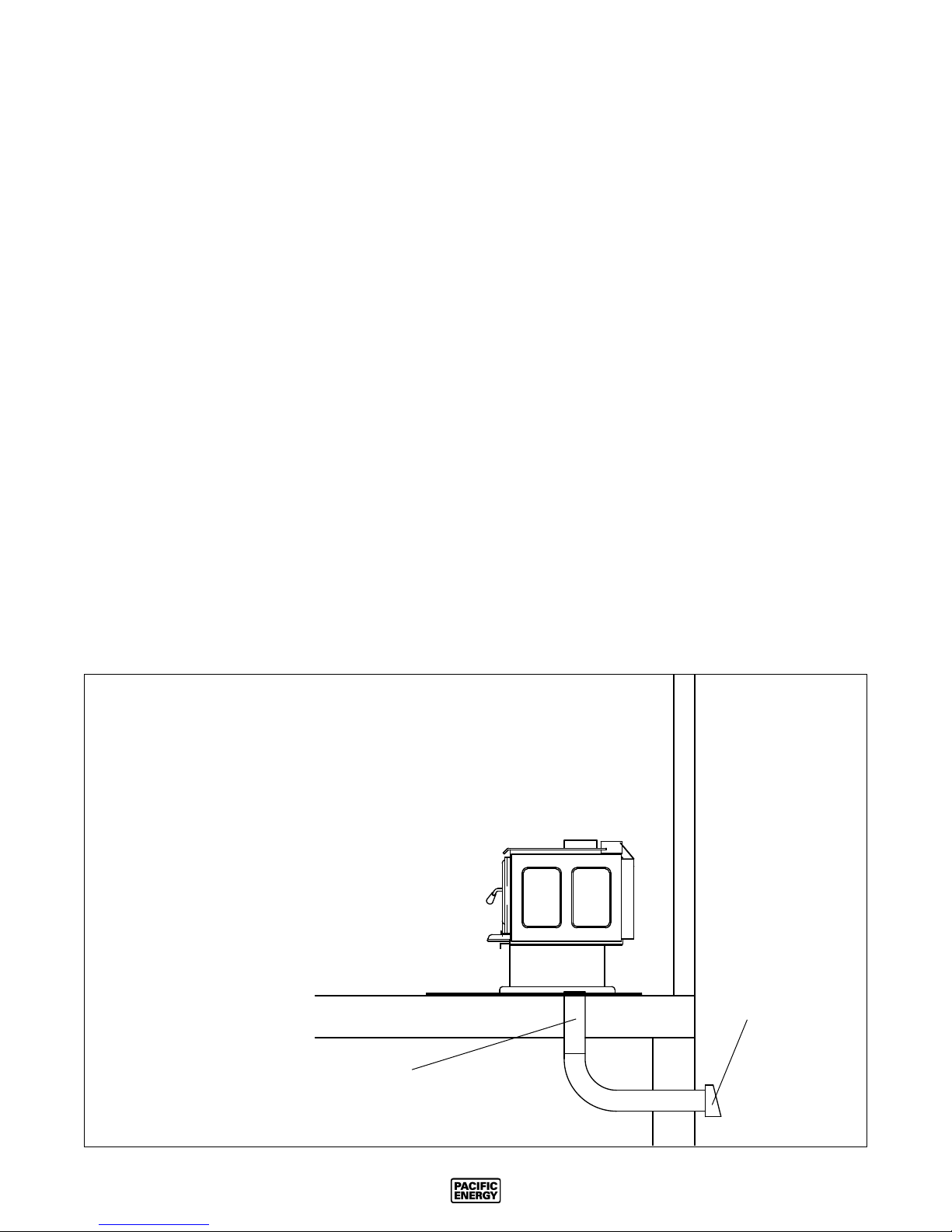

* 100mm diameter air inlet with rodent screen
* If the crawl space is well ventilated it is not
necessary to extend air inlet to outside
HOODED VENT OR
90º ELBOW TURNED
DOWN
FIG. #4

12 SUPER-SD1 230514-20
Operation
CAUTION: Never use gasoline, gasoline type lantern fuel, kero-
sene, charcoal lighter uid or similar liquids to start or “freshen
up” a re in this heater. Keep all such liquids well away from
the heater while it is in use.
CAUTION: Hot while in operation. Keep children, clothing
and furniture away. Contact may cause skin burns.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AERO-
SOLS TO START OR REKINDLE THE FIRE.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AERO-
SOLS IN THE VICINITY OF THIS APPLIANCE WHEN IT IS
OPERATING.
WARNING:DO NOT STORE FUELWITHIN HEATER INSTAL-
LATION CLEARANCES.
WARNING: DO NOT OPERATE THIS APPLIANCE AS AN
OPEN FIRE.
WARNING: OPEN AIR CONTROL (AND DAMPER WHEN
FITTED) BEFORE OPENING FIRING DOOR.
DO NOT OVERFIRE THIS HEATER:
Attempts to achieve heat output rates that exceed heater
design specications can result in permanent damage to
the heater and chimney.
Your PACIFIC ENERGY heater is designed for maximum overall
efficiency at a moderate ring rate. Overring is hazardous and
a waste of fuel. Too slow a burn contributes to creosote buildup
and lowers combustion efficiency.
NOTE: Left and Right as referred to in this manual are
considered your left and right when facing the front of
the woodstove.
Wood Selection
This heater is designed to burn natural wood only. Higher
efficiency and lower emissions generally result when
burning air-dried seasoned hardwoods, as compared to
softwoods or to green or freshly cut hardwoods.
Wood should be properly air dried (seasoned) for six
months or more. Wet or undried wood will cause the re
to smoulder and produce large amounts of creosote.
Wet wood also produces very little heat and tends to go
out often.
DO NOT BURN :
-Salt water wood * -Treated wood
-Wet or green wood -Coal/charcoal
-Garbage/Plastic * -Solvents
* These materials contain chlorides which will rapidly
destroy metal surfaces and void warranty.
Do not burn anything but wood. Other fuels, eg.charcoal,
can produce large amounts of carbon monoxide, a taste-
less, odourless gas that can kill. Under no circumstances
should you attempt to barbecue in this heater.
How to Test Your Wood
Add a large piece of wood to the stove when it has a good
large bed of coals. It is dry if it is burning on more than
one side within one minute. It is damp if it turns black
and lights within three minutes. If it sizzles, hisses and
blackens without igniting in ve minutes it is soaked and
should not be burnt.
Lighting for the First Time
Curing of the Paint Finish
To achieve the best nish, the paint on your stove must
be baked on. When burning your stove for the rst 2-3
times it is very important that the room be well ventilated.
Open all windows and doors. Smoke and fumes caused
by the curing process may cause discomfort to some
individuals.
Lighting a Fire
WARNING: Never use chemicals or any other volatile
liquid to start a re.
1. Adjust air control to position “H” (Start) position and
open door.
2. Place crumpled newspaper in the centre of the heater
and criss-cross with several pieces of dry kindling.
Add a few small pieces of dry wood on top.
3. Ignite the paper and close the door.
4. After the re has established itself, open the door and
add a few small logs. Close door.
5. Begin normal operation after a good coal base exists
and wood has charred.
Normal Operation
1. Set air control to a desired setting. If smoke pours
down across the glass (waterfall effect) this indicates
you have shut the control down too soon or you are
using too low a setting. The wide range control panel
makes nding the desired setting for your application
easy. As every home’s heating needs vary (ie. insu-
lation, windows, climate, etc.) the proper setting can
only be found by trial and error and should be noted
for future burns.
2. To refuel, adjust air control to ”H” (Start) position, and
give the re time to brighten. Open the door slowly,
this will prevent backpuffing.
3. Use wood of different shape, diameter and length
(up to 457mm). Load your wood and try to place the
logs so that the air can ow between them. Always
use dry wood.
4. Do not load fuel to a height or in such a manner that
would be hazardous when opening the door.

230514-20 SUPER-SD1 13
WARNING: Always keep loading door closed when
burning. This heater is not designed for open door
burning.
WARNING: No alteration or modication of the com-
bustion air control assembly is permitted. Any tamper-
ing will void warranty and could be very hazardous.
WARNING: Do not use grates or andirons to elevate
the fuel. Burn directly on the re bricks. Replace
broken or missing bricks. Failure to do so may cre-
ate a hazardous condition.
Restarting After Extended Burns
1. Open door and rake hot embers towards the front of
the heater. Add a couple of dry, split logs on top of
embers, close door.
2. Adjust air control to "H" (high) and in just a few minutes,
logs should begin burning.
3. After wood has charred, reset air control to desired
setting.
4. To achieve maximum ring rate, set control to "H"
(high). Do not use this setting other than for starting
or preheating fresh fuel loads.
DO NOT OVERFIRE THIS HEATER: Attempts to
achieve heat output rates that exceed heater design
specications can result in permanent damage to the
heater and chimney.
Proper Draft
1. Draft is the force which moves air from the appliance
up through the chimney. The amount of draft in your
chimney depends on the length of the chimney, local
geography, nearby obstructions and other factors.
2. Too much draft may cause excessive temperatures
in the appliance. An uncontrollable burn or a glowing
red stove part or chimney indicates excessive draft.
3. Inadequate draft may cause backpuffing into the room
and plugging of the chimney. Smoke leaking into the
room through appliance and chimney connector joints
indicates inadequate draft.
Ash Removal
Whenever ashes get 76mm to 100mm deep in your
rebox, and when re has burned down and cooled,
remove excess ashes. Leave an ash bed approximately
25mm deep on the rebox bottom to help maintain a hot
charcoal bed.
Optional ash cleanout system: The ash dump han-
dle is located under the ash lip on the left hand side.
To operate ash dump, pull handle out 13mm and turn
clockwise. This will unlock the ash dump and allow it
to open. Hold handle open while pulling ashes into the
hole. Avoid large charcoal pieces as these still contain
heat value. Release handle and push in to lock. Ensure
ash dump door is properly engaged. Fill the cavity with
the remaining ash level with the rebox oor. Lift and
pull out ashpan and discard ashes into metal container.
Replace ashpan and ensure it is seated properly. Do not
burn with ash dump door open. Doing so will create
a hazardous condition.
Disposal of Ashes
Ashes should be placed in a metal container with a tight
tting lid.The closed container of ashes should be placed
on a non-combustible oor or on the ground, well away
from all combustible materials, pending nal disposal. If
the ashes are disposed of by burial in soil or otherwise
locally dispersed, they should be retained in closed
container until all cinders have thoroughly cooled. Other
waste should not be placed in this container.
Baffle Removal
Chimney connector pipe should be disconnected from
stove to clean and inspect chimney. Only if this is not pos-
sible should you remove the baffle. DO NOT OPERATE
WITH BAFFLE OR INSULATION REMOVED.
Remove retaining pin at the back top of the rebox, just
under the baffle. Remove rail extensions in front of the
baffle. Lift baffle up and pull forward to disconnect from
the supply tube. Tilt baffle sideways to drop down and
remove from rebox. Inspect gasket between baffle and
supply tube. If necessary, replace with gasket Part#
SSER.1395 available from your Pacic Energy dealer.
Re-install baffle assembly and insulation by reversing
order. Ensure that the insulation is not obstructing the
ue outlet or the area above the baffle.

14 SUPER-SD1 230514-20
Troubleshooting
Problem Cause Cure
Glass is Dirty 1. Wood is wet - Use dry wood
2.Turning down air control - Do not turn down until
or damper too soon a) there is a good bed of coals
b) the wood is charred
3.Draft too low - Improper chimney height and / or diameter
- Chimney plugged or restricted, check ue
- Provide outside air for combustion
4. Door gasket leakage - Replace gasket
- Check latch
Excessive Creosote Buildup - See 1,2,3, above.
Low Heat Output 1. Wood is wet - Use dry wood
2.Fire too small - Build a larger re
3.Draft too low - Chimney plugged or restricted, inspect and
clean
Won't Burn Overnight 1. Air control is set too high - Set control lower
2. Not enough wood - Unsplit wood is preferred for overnight burns
3. Draft too high - Excessive chimney height and/or diameter,
see page 11
Stove Won't Burn 1. Combustion air supply blocked - Check outside air supply for obstruction
- Check that room air cover is removed
2.Draft too low - Chimney plugged or restricted, inspect and
clean
Appendix A

230514-20 SUPER-SD1 15

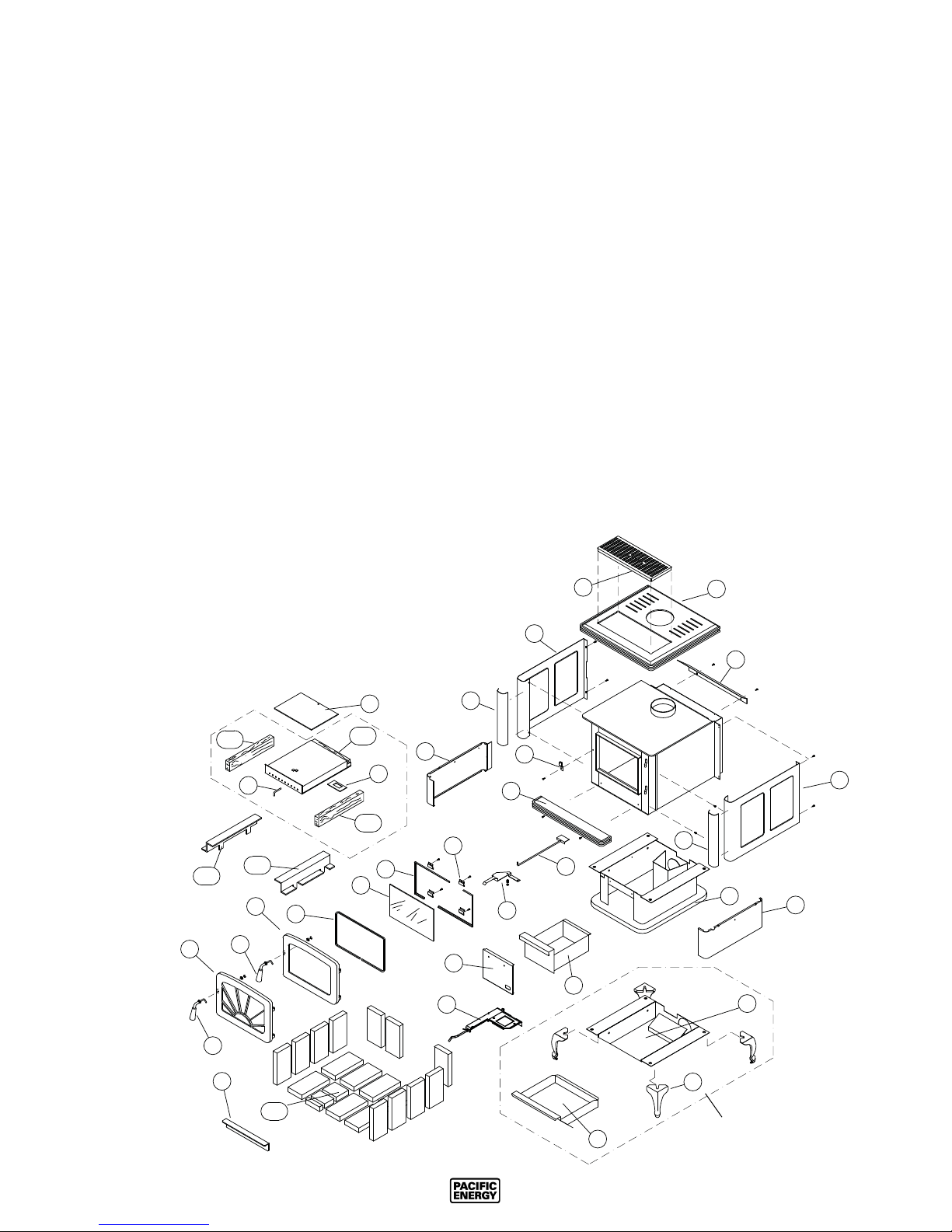

Replacement Parts - Super 27
(WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION)
ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO.
1............Side Shield, Left or Right.................... SUPD.4302
2............Rear Deector ...................................... SSER.229
3............ Door Catch ........................................ WODC.1461
4............Ash Lip (c/w Trim & Hardware)..ALIP.5037473MB
5............Glass Clamps (4 pc.)......................... SSER.1425
6............Glass Bar Set (2 pc.)...................... WODC.41405
7............Replacement Glass (c/w Tape) .....DR31.WGLKIT
8............Door Gasket Kit............................. DR31.WDGKIT
9............Door Casting, Arched Black ................CAST.31ST
..............Door Casting, Radiant Black ..........CAST.31RSST
..............Door Casting, Arched Gold.................CAST.31GD
..............Door Casting, Radiant Gold ..........CAST.31RSGD
..............Door Casting, Arched Nickel.................CAST.31NI
..............Door Casting, Radiant Nickel ..........CAST.31RSNI
10.......... Door Handle Assembly................... WODC.4147C
11.......... Boost Manifold .............................................. 4105
12.......... Firebrick Set .................................... BRIC.SSERA
13a........ Brick Rail, Left/Right.................... SSER.RAILSET
14.......... Replacement Baffle Kit.................. SSER.DBAKIT
15.......... Baffle Pin .........................................SSER.125001
16.......... Baffle Gasket...................................... SSER.1395
17.......... Flame Shield (c/w Bolt and Nut).........SSER.4115
18.......... Pedestal Front Cover.......................... SSER.2075
19.......... Pedestal Assembly ..............................SUPD.PED All parts may be ordered from your nearest Pacic Energy
dealer. Contact Pacic Energy for the location of the dealer
20..........Ash System (Leg Model) ................ SUPD.LGADA
21..........Leg, Black.........................................CAST.LEGST
..............Leg, Gold Plated............................CAST.LEGGLD
..............Leg, Nickel Plated ............................ CAST.LEGNI
24..........Ash Dump Assembly .........................WODC.2261
25..........Ash Box (Pedestal Model)................ WODC.4316
26..........Air Shutter Assembly .........................WODC.4531
27..........Baffle Air Control Assembly .................. SSER.214
1
24
25
11
20
18
21
19
1
28
28
2
10
8
9
10
7
6 26
5
4
27
17
3
9
13a
13b
14
14
12
14
15
16
20
20

16 SUPER-SD1 230514-20
2
1
6
27
20
29
8
13
11
12
24
24
25
21
9
10
7
1
19
22
31
23
3
4
28
12
11
31
18
30
5
15b
15a
16
17
16
16
14

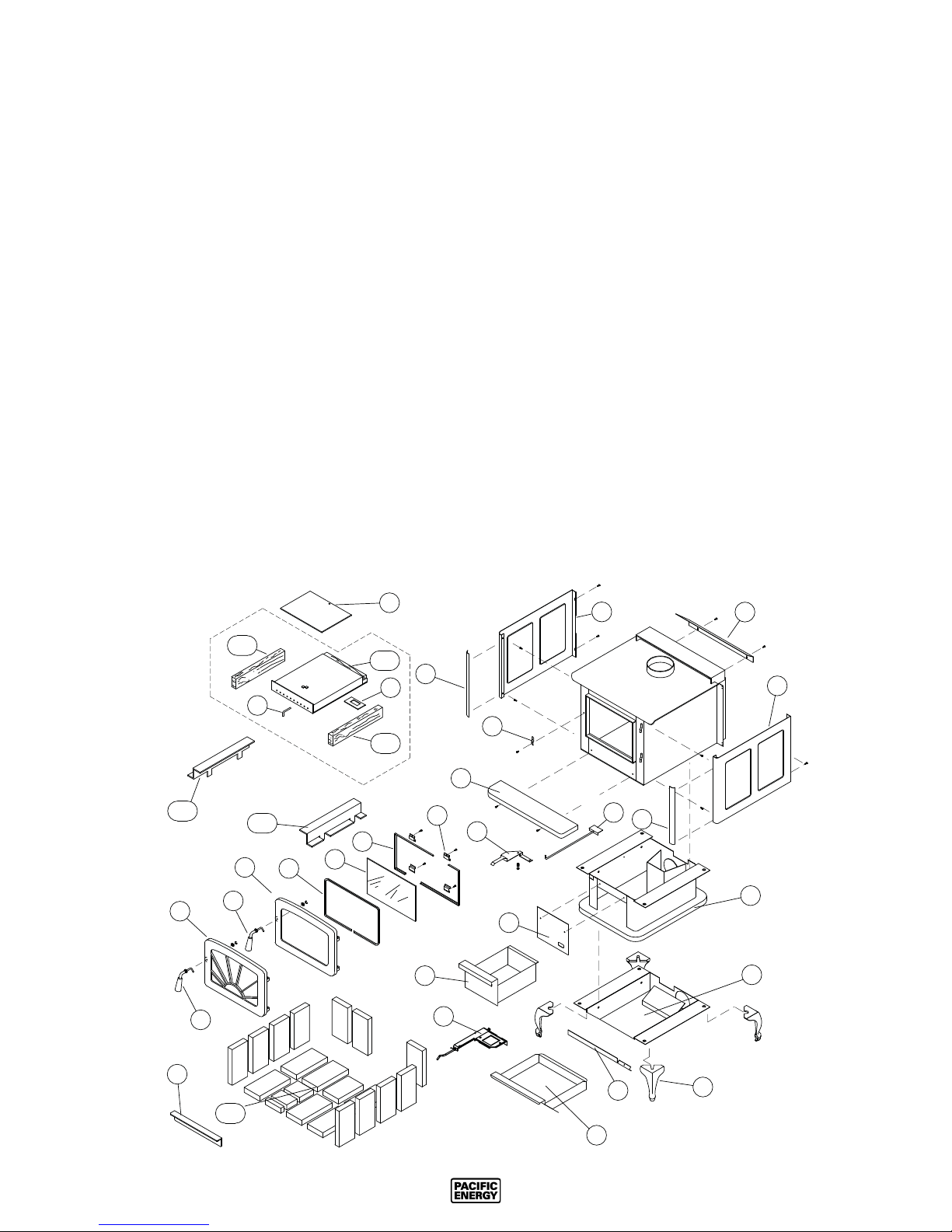

Replacement Parts - Spectrum and Spectrum Classic
(WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION)
ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO.
1............Side Shield, Left or Right............. SPED.4403_ _B
2............Rear Deector .....................................SPEC.4418
3............Top Panel (Porcelain Finish)......... SPED.401_ _A
4............Screen Trivet, Classic Gold ............ CLAD.CTGDA
..............Screen Trivet, Classic Nickel ............ CLAD.CTNIA
..............Screen Trivet, Black.........................CLAD.CTBKA
5............ Door Catch ........................................ WODC.1461
6............Ash Lip ........................................ SPED.4401_ _B
7............Glass Clamps (4 pc.)......................... SSER.1425
8............Glass Bar Set (2 pc.)...................... WODC.41405
9............Replacement Glass (c/w Tape) .....DR31.WGLKIT
10.......... Door Gasket Kit............................. DR31.WDGKIT
11.......... Door Casting, Arched Black ................CAST.31ST
..............Door Casting, Radiant Black ..........CAST.31RSST
..............Door Casting, Arched Gold.................CAST.31GD
..............Door Casting, Radiant Gold ..........CAST.31RSGD
..............Door Casting, Arched Nickel.................CAST.31NI
..............Door Casting, Radiant Nickel ..........CAST.31RSNI
12..........Door Handle Assembly................... WODC.4147C
13.......... Boost Manifold .............................................. 4105
14.......... Firebrick Set .................................... BRIC.SSERA
15a........ Brick Rail, Left/Right.................... SSER.RAILSET
16.......... Replacement Baffle Kit.................. SSER.DBAKIT
17.......... Baffle Pin .........................................SSER.125001
18.......... Baffle Gasket...................................... SSER.1395
19.......... Flame Shield (c/w Bolt and Nut).........SSER.4115
20.......... Ash Box (Spectrum) ......................... WODC.4316
21..........Pedestal Assembly ..............................SUPD.PED
22..........Pedestal Cladding (Hinge Side) .......... SPEC.402
23..........Pedestal Cladding (Latch Side)........... SPEC.403
24..........Ash Drawer Enclosure (Classic)..SUPD.ASHLEG
25..........Leg, Gold Plated............................CAST.LEGGLD
..............Leg, Nickel Plated ............................CAST.LEGST
..............Leg, Black......................................... CAST.LEGNI
27..........Ash Dump Assembly .........................WODC.2261
28..........Ash Box Cladding (Por. Finish)......SPED.4406_ _
29..........Air Shutter Assembly .........................WODC.4531
30..........Baffle Air Control .................................. SSER.214
LEG KIT FOR SPECTRUM
CLASSIC ONLY
All parts may be ordered from your nearest Pacic Energy
dealer. Contact Pacic Energy for the location of the dealer
nearest you.
When ordering porcelain nish parts, please specify the
appropriate code as follows:
Black ......BK Black Pearl.........BP
Ivory .......IY Coffee Brown.....CB
Blue........BE Copper...............CU
Red ........RD Titanium.............TI

230514-20 SUPER-SD1 17
OPERATING TIPS
1.Always use dry, seasoned rewood, up to
457mm long. Load wood endwise, a mixture
of large and small pieces, on top of a good ash
base (25mm minimum).
2. Operate on a medium to high setting, for up
to 1 hour from cold start. After the initial warm
up period, refuel and leave the air control on a
medium setting for 5 to 10 minutes more and
then set the air control to the desired position.
3. If a slow burn is desired, set the air control to
low. Active secondary burning should be present
above the wood load. If it is not present or goes
out shortly after, proper operating temperature
has not been reached and the stove needs ad-
ditional warm up time.
Understanding & Operating Your Pacic Energy Stove
The Pacic Energy SUPER SERIES line of
woodstoves is a culmination of years of research
and development. Designed to be efficient,
clean-burning and user-friendly, this heater will
give you years of warm service. However, a
knowledgeable operator is still the most impor-
tant factor for maximum performance and part
of this is understanding the basic functions of
this design.
Traditional wood stoves had a basic combustion
system which allowed a considerable amount of
heat energy to escape up the chimney as un-
burned gases and particulates (smoke). Pacic
Energy has designed a system that solves the
problem by burning the smoke and releasing
the additional heat to the room.
This system has two critical design features:
1. Above re secondary air injection:
The hollow "air baffle" injects super-heated sec-
ondary air just above the load. With the stove
at the proper operating temperature, this will
create a secondary ame that will be evident for
approximately 1/3 of the total burn time.
2. High mass and thermal insulation:
The high mass (weight) acts as a heat storage
and the thermal insulation keeps the combustion
zone hot. Active aming takes place during the
rst part of the burn. During this stage, heat is
stored in the mass of the unit and is later released
slowly and evenly. As wood chars, active aming
will diminish. This clean charcoal burning stage
will last for a considerable length of time and
refuelling should be avoided until the charcoal
base has become quite small.
1
2
3
5
6
4

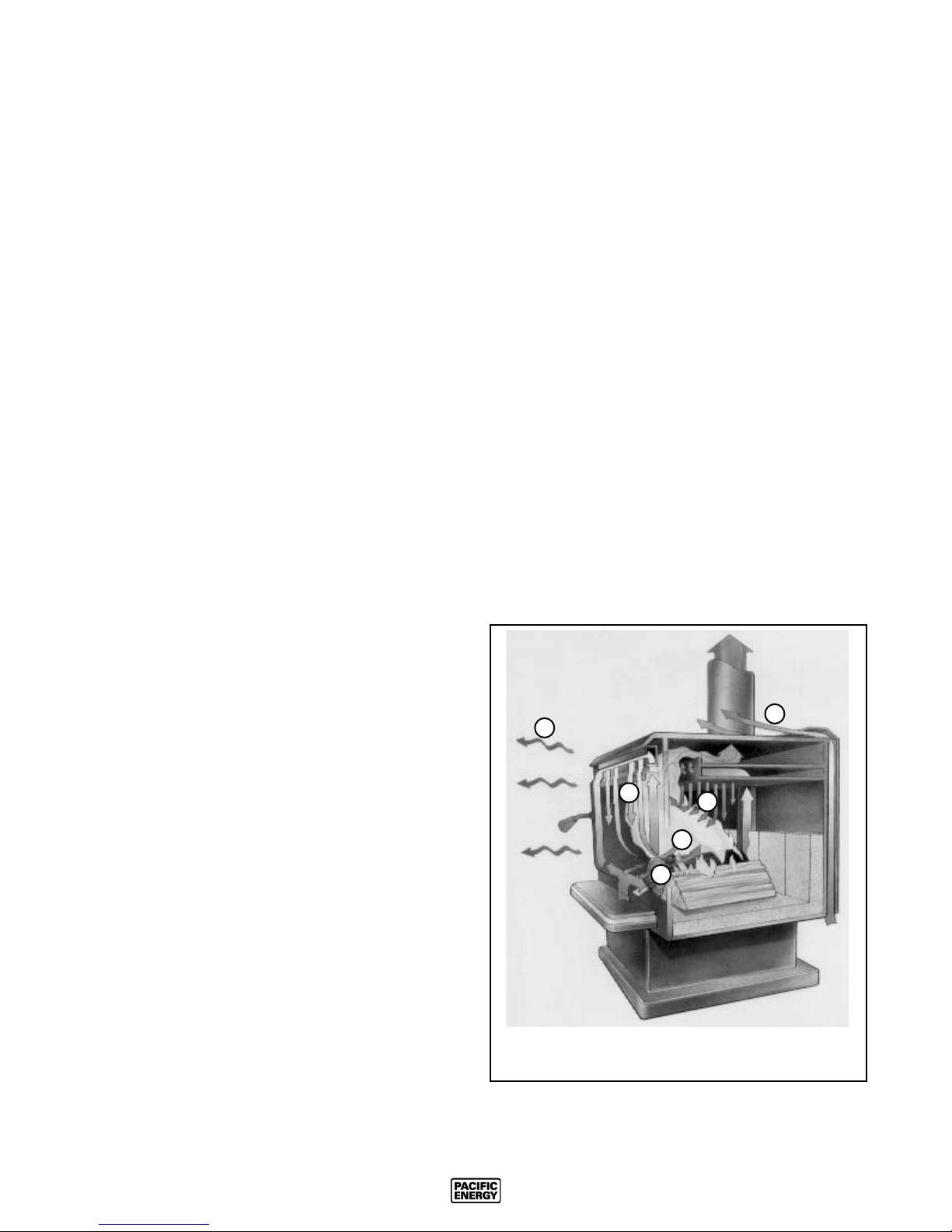

1 -Boost Air 4 -Secondary Combustion Zone
2 -Main Combustion Air 5 -Radiant Heat
3 -Air Wash System 6 -Convected Heat

18 SUPER-SD1 230514-20

230514-20 SUPER-SD1 19
Compliance Plate
300114 5050.42AS
Model: ALDERLEA T5, SUPER 27, SPECTRUM,
SPECTRUM CLASSIC, FUSION, STED D1
Series: D Type: FREESTANDING
MADE IN CANADA
MAXIMUMAVERAGE HEAT OUTPUT BURNING
HARDWOOD - 10.0 kW
OVERALLAVERAGE EFFICIENCY BURNING
HARDWOOD - 67%
WHEN TESTED IN ACCORDANCE WITH
AS/NZS 4012
PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
2975 ALLENBY RD., DUNCAN, BC V9L 6V8
Tested by: HRL TECHNOLOGY PTY LTD
TRAMWAY ROAD, MORWELL, VICTORIA
Test report no: HCMG/13/048 1/OCT/2013
Tested to: AS/NZS 4013:1999
Distributed by: PIVOT STOVE & HEATING CO
234-238 MOORABOOL STREET, GEELONG VIC 3220
pivotstoves.com.au

PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
2975 Allenby Rd., Duncan, B.C. V9L 6V8
Phone: [phone]
Web site: http://www.pacicenergy.net
Printed in Canada
