Buffalo Tech AirStation WHR-HP-AG108 User manual

www.buffalotech.com
User Manual - AirStation WHR-HP-AG108
High Power Dual A + G Smart Wireless Router
v1.3

2
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
AOSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Bridge/AP Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
AirStation Conguration Utility . . . . . . . . . . . . . . . . . . . . . . . . 17
Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Port Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Windows (MSN) Messenger. . . . . . . . . . . . . . . . . . 20
Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Wireless Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Firmware Update . . . . . . . . . . . . . . . . . . . . . . . . 23
Internet Connection Reset . . . . . . . . . . . . . . . . . . . . . 24
Advanced Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
WAN Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
WAN port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
PPPoE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
LAN Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
LAN Port . . . . . . . . . . . . . . . . . . . . . . . . 28
DHCP Server . . . . . . . . . . . . . . . . . . . . . 29

3
Table of Contents
Manual Assignment of IP Address . . . 30
Network Conguration. . . . . . . . . . . . . . . . . . . . . 31
Route information . . . . . . . . . . . . . . . . . . . . 31
Address Translation . . . . . . . . . . . . . . . . 33
IP Filter . . . . . . . . . . . . . . . . . . . . . . 35
Intrusion Detector . . . . . . . . . . . . . . . . . 38
UPnP . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Wireless Conguration . . . . . . . . . . . . . . . . . . . . . . . . 40
AOSS. . . . . . . . . . . . . . . . . . . . . . . . . 40
802.11a . . . . . . . . . . . . . . . . . . . . . . 41
Basic . . . . . . . . . . . . . . . . . . . . . . 41
Security . . . . . . . . . . . . . . . . . 42
802.11g . . . . . . . . . . . . . . . . . . . . . . 43
Basic . . . . . . . . . . . . . . . . . . . . . . 43
Security . . . . . . . . . . . . . . . . . 44
MAC access limit . . . . . . . . . . . . . . . . . . . . . . . . 45
Admin Configuration . . . . . . . . . . . . . . . . . . . 46
Password . . . . . . . . . . . . . . . . . . . 47

4
Table of Contents
Date/NTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Syslog Transfer . . . . . . . . . . . . . . . . . . . . . . . . 49
Save/Load Conguration . . . . . . . . . . . . 50
Initialize/Reboot . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Firmware Update. . . . . . . . . . . . . . . . . . . . . . 52
Diagnostic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
System Information. . . . . . . . . . . . . . . . . . . . . . 53
Log Info. . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Packets Info. . . . . . . . . . . . . . . . . . . . . . . . . 55
Client Monitor. . . . . . . . . . . . . . . . . . . . . . 56
Ping Test. . . . . . . . . . . . . . . . . . . . . . 57
Connecting to an existing network. . . . . . . . . . . . . . . . . . . . . . 58
Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Warranty Information. . . . . . . . . . . . . . . . . . . . . 86
Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

5
Congratulations on your purchase! The AirStation High Power Combo A + G Wireless Router
provides two separate wireless networks at the same time, one on the 2.4ghz 802.11g fre-
quency and another on the 5ghz 802.11a frequency.
System Requirements
• A high-speed (Broadband) Internet connection or existing local area connection.
• A computer with a network connection (wired or wireless) and a good web browser. The
screenshots in this manual were taken with Firefox, but Netscape and Internet Explorer
are also supported in versions 4.5 or later, and Safari 1.0 and later is supported with
Macintosh OS X 10.2 and later.
AirStation WHR-HP-AG108 Package Contents
•WHR-HP-AG108 Base Station
•Antenna
• AC adapter and power cable
• CAT5 LAN cable
• Utility CD with Manual
•Quick Setup Guides
• Warranty Statement
Introduction

6
Begin by nding a good place to set up your router/access point. Some things to
consider:
• You’ll need to be able to plug your internet connection into it, so it should go within
reach of the LAN cable from your DSL or Cable modem. You’ll also want a power outlet
nearby.
• Keep the access point as central in your work area as possible. Signal strength and
speed fall off with distance.
• Higher is often better. For instance, set it up on the top shelf of a bookcase rather than
the bottom one, if possible.
Screw the antenna into the top of your AirStation. It will probably work best if
you orient it to point straight up.
Basic Setup

7
Make note of the AirStation’s wired MAC address. The LAN
or Wired MAC address is the default SSID (wireless network
name) of the AirStation. You can find it on the bottom of the
AirStation.
You may also wish to contact your ISP to ask if other information, such as global IP
address, subnet mask address, default gateway address, DNS server address, or PPPoE
parameters, is necessary to access your internet connection. Write down any necessary
information that your ISP requires for connection.
Buffalo recommends using a wired network connection, where your computer is
physically connected to the AirStation with a CAT5 straight cable plugged into one of the
four LAN ports, to initially set up your router. This type of setup will eliminate possible
setup problems with the wireless adapter on the computer being used to congure the
AirStation.
The computer used to congure the AirStation should be set to obtain an IP address
automatically using a DHCP server. The WHR-HP-AG108 has a default LAN IP address of
192.168.11.1 and Subnet Mask of 255.255.255.0.
Getting Ready

8
1. Power down the Cable or DSL modem and the computer which will be used to
congure the AirStation router.
2. Plug the Cable or DSL’s LAN Ethernet cable into the AirStation’s WAN port. Initially,
you may need to unplug this cable from your computer, hub or other router.
3. Plug the provided Ethernet cable into a LAN port on the AirStation and plug the other
end into your computer’s Ethernet adapter (NIC). If you plan to initially congure the
AirStation wirelessly (not recommended), you may skip this step.
4. Power on your cable or DSL modem and wait one full minute, then power on the
AirStation router and wait one full minute, and nally power on the computer which
will be used to congure the AirStation. If the red DIAG light on the AirStation is lit or
ashing after several minutes of being powered on, please consult Buffalo Technology
Technical Support.
Connecting your AirStation

9
Launch a web browser on the computer that you’re
going to use to congure the AirStation.
Enter 192.168.11.1 into the URL eld. Naturally, if you
change your AirStation’s IP address, you’ll have to enter
the new address instead.
A window will open, prompting you to enter a User ID
and Password.
Enter root as the User name and leave the password
eld blank unless you have previously congured a
password.
Log in to the Configuration Tool

10
Your AirStation’s SmartRouter technology will determine the type of internet
connection you have automatically, and ask you for any needed information. If
your ISP assigns IPs automatically (most cable providers do), their DHCP server
will give your router an IP address. If additional login information is required
to connect to the internet, the wizard will ask for it. Enter any required login
Detecting Your Broadband Connection
information if asked. Contact your DSL
provider for any missing login information.
If your DSL provider requires that PPPoE
information be entered manually, see page
25.

11

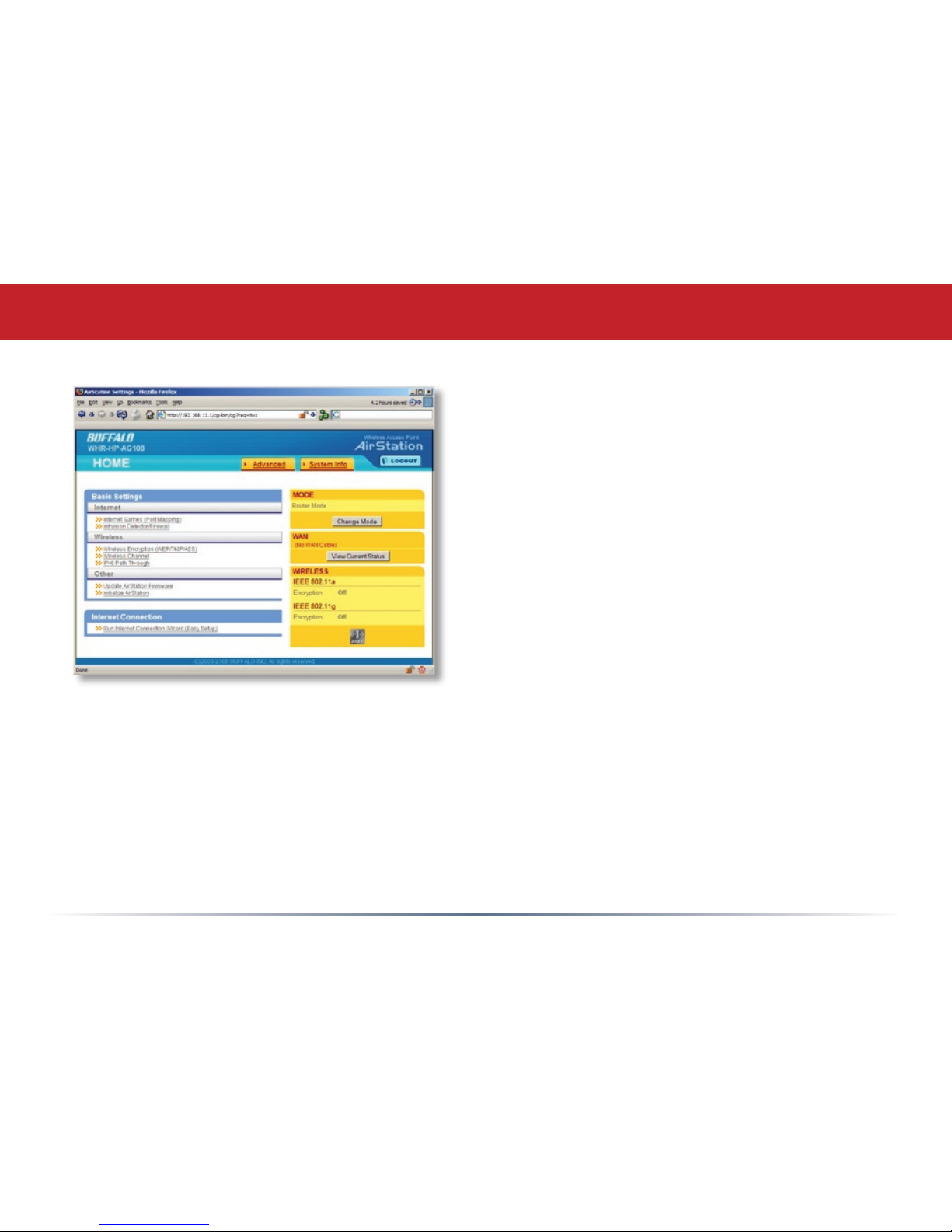

This is the opening page of your
AirStation’s conguration tool. You
can always get to it from within the
conguration screens by clicking on
Home. From here, you can congure
port mapping for your internet games,
turn on UPnP for Windows (MSN)
Messenger, congure your Firewall,
setup Encryption, choose your Wireless
channel, Enable IPv6, update your
AirStation’s rmware, and reset your
Internet connection’s conguration. As
you explore the conguration tool, you
can usually get context sensitive help by clicking on the Help link at the top right
of the page.
To go to Advanced Settings (page 25), click on the Advanced tab. To get the
system information you need to set up a wireless client that doesn’t support
AOSS, click on the System Info tab. See page 17 for more on Home.
Home

12
AOSS
AOSS (AirStation One-Touch Secure System) is a simple system for conguring
your wireless network securely. If your router and your client device are
installed and both support AOSS, then making a secure wireless connection
between them is very easy.
Push the AOSS button on the top of your router and hold it in for a few
seconds. The AOSS light will begin to ash amber. You now have two minutes
to push the AOSS button on your client device and nish the connection.
If you have a standalone client device,
it will probably have a little red button
labled “AOSS” on it. Push the button!
About 15 seconds later, you’ll have a
secure network connection.
If your client device is a PCI or CardBus
card, CardBus, the AOSS button will
probably be in its Client Manager
Software. Check your client device’s
user manual for instructions on where
to push or click the AOSS button.
After you’ve pressed both buttons, it will
take about 15 seconds for the connection to complete. When it’s nished, the AOSS light
will glow a solid amber. You now have a secure network connection!
standalone cli-
ent device
PC card Client Manager
Software
AOSS

13
Some things to keep in mind
• Only one AOSS wireless client adapter can be congured with the AOSS router at a
time. The buttons will need to be re-pressed to connect each additional AOSS wireless
client adapter.
• It is not necessary to AOSS client devices that have already been congured via AOSS,
unless signicant changes have been made to the wireless network.
• Do not attempt to congure two separate AOSS networks at the same time, as it may
cause undesired congurations.
• If an undesired client has connected via AOSS, it can be disconnected from within the
WHR-HP-AG108’s advanced conguration menus.
AOSS Notes

14
This AirStation supports quickly changing the
product from a wireless router to a conventional
access point.
Put your Airstation into Bridge/Access Point
Mode by moving the switch on the bottom
of your AirStation from AUTO to BRI. This
changes the default IP address of the AirStation
from 192.168.11.1 to 192.168.11.100, and
DHCP, NAT, and the WAN port are disabled.
Bridge/AP Mode might be desirable if you’re adding wireless capability to an existing
network with a router. It is not suitable for most home congurations. If you plan to
use the AirStation as an normal wireless router, make sure that this switch is in the normal
(AUTO) position!
Bridge/AP Mode

15
If your wireless client doesn’t support
AOSS, you’ll have to congure it
manually. From the Home page, click
on the System Info tab.
Manual Client Configuration

16
This page gives you all the information
you might need to congure your
non-AOSS wireless client. Probably
you’ll just need the SSID, encryption
type, and password. Consult your
wireless client’s documentation for
more information on conguring it if
necessary.
You can get here from Home by
clicking the System Info tab.
System Info

17
AirStation Configuration Tool (Home)
When you rst open your AirStation
Conguration Tool, it will take you to Home
(see also page 11). From Home, you can
congure port mapping for your internet
games, set UPnP for Windows (MSN)
Messenger, congure your rewall, setup
encryption, choose your wireless channel,
enable IPv6, update your AirStation’s
rmware, and reset your Internet
Connection’s conguration. Clicking the
Advanced tab gives you access to all of the
AirStation’s conguration tools.
You can get back to Home from anywhere
in the management tool by clicking on the
Home button at the top left of the screen.
Let’s begin exploring advanced settings by
clicking on Internet Games (Port Mapping).

18
Internet Games (Port Mapping)
Select any ports that need to be
opened for your internet games to
function correctly. Consult your
game’s documentation for more
information on what ports need to be
congured.

19
Firewall/Intrusion Detector
From this page, choose the level of rewall
security you desire. You may also choose
to have alerts sent to a different PC, if you
like. Click Next when done to restart the
router.
Get to this page from Home by clicking on
Firewall/Intrusion Detector.

20
Windows (MSN) Messinger/UPnP
Windows (MSN) Messinger requires
UPnP for proper operation. You may
Enable UPnP here. UPnP may need to be
congured on your PC as well.
If you need to congure UPnP on your PC,
the links at the bottom of the page have
instructions for doing so on Windows ME
and XP computers.
Get to this page from Home by clicking on
Windows (MSN) Messinger.
