Buffalo WBMR-G300N User manual

www.bualo-technology.com
WBMR-G300N
Wireless-N Nniti
ADSL2+ Modem Router
MANUAL

Table of Contents
1 Introduction 1
Product Features 1
Benets of a Home Network 3
Advantages of a Bualo Wireless Network 3
Package Contents 4
System Requirements 4
Internet Connection Settings 4
2 Understanding your Router 5
3 Connecting your Computers 8
4 Manually Conguring Client Adapters 11
5 Accessing the User Interface 14
6 Understanding the Web-Based User Interface 15
7 Internet/LAN 15
8 Wireless Cong 19
9 Security 27
10 Gaming Ports 28
11 Admin Cong 30
12 Diagnostic 33
13 EU - Declaration of Conformity 35

1
Introduction 1
Thank you for purchasing the Bualo ADSL2+ Wireless- N Modem Router. In
minutes you will be able to share your Internet connection and network your
computers with your new Router. The following is a list of features that make
your Router an ideal solution for your home or small oce network. Please be
sure to read through this User Manual completely.
Product Features
OS Compatibility
The Router supports a variety of operating environments including
Windows® 98SE, Me, 2000, XP and Vista. You will need an Internet browser
and a network adapter that supports TCP/IP (the standard language of the
Internet).
Front-Panel LED Display
Lighted LEDs on the front of the Router indicate which functions are in
operation. You’ll know at-a-glance whether your Router is connected to the
Internet. This feature eliminates the need for advanced software and status-
monitoring procedures.
Web-Based Advanced User Interface
You can set up the Router’s advanced functions easily through your web
browser, without having to install additional software onto the computer.
There are no disks to install or keep track of and, best of all, you can make
changes and perform setup functions from any computer on the network
quickly and easily.
Integrated 10/100 4-Port Switch
The Router has a built-in, 4-port network switch to allow your wired
computers to share printers, data and music les, digital photos, and much
more. The switch features automatic detection so it will adjust to the speed of
connected devices. The switch will transfer data between computers and the
Internet simultaneously without interrupting or consuming resources.

2
Nniti - Draft 802.11n
Nniti is based on the next-generation wireless standard (Draft 802.11n)*.
Nniti™ is up to 12 times faster than standard Wireless-G, delivering faster and
more reliable performance than ever before! Enjoy everything from watching
High Denition videos, listening to music, playing online games and sharing
les, all at the same time throughout the home or oce.
With 4 times more range than standard 802.11g products, Bualo Wireless-N
ensures you receive the ultimate coverage possible, allowing you to stay
connected throughout the home or oce. Draft 802.11n is also backwards
compatible with wireless 802.11b/g networks.
Built-In Dynamic Host Conguration Protocol (DHCP)
Built-In Dynamic Host Conguration Protocol (DHCP) on-board makes for
the easiest possible connection of a network. The DHCP server will assign
IP addresses to each computer automatically so there is no need for a
complicated networking setup.
SPI Firewall
Your Router is equipped with a rewall that will protect your network from a
wide array of common hacker attacks.
Universal Plug-and-Play (UPnP) Compatibility
UPnP (Universal Plug-and-Play) is a technology that oers seamless operation
of voice messaging, video messaging, games, and other applications that are
UPnP-compliant.
Support for VPN Pass-Through
If you connect to your oce network from home using a VPN connection,
your Router will allow your VPN-equipped computer to pass through the
Router and to your oce network.
*270 Mbps is the maximum wireless signal rate derived from IEEE802.11n
draft standard 1.0 specications. Actual data throughput and range will vary
depending upon network conditions and environmental factors, including
volume of network trac, building materials and construction, and network
overhead.

3
Benets of a Home Network
By following our simple setup instructions, you will be able to use your
Bualo home network to:
• Share one high-speed Internet connection with all the computers in your
home
• Share resources, such as les, and hard drives among all the connected
computers in your home
• Share documents, music, video, and digital pictures
• Store, retrieve, and copy les from one computer to another
• Simultaneously play games online, check Internet email, and chat
Advantages of a Bualo Wireless Network
Mobility – you’ll no longer need a dedicated “computer room”— now you
can work on a networked laptop or desktop computer anywhere within your
wireless range
Easy Setup – Bualo's Easy Installation Wizard makes setup simple
Flexibility – set up and access printers, computers, and other networking
devices from anywhere in your home
No cabling required – you can spare the expense and hassle of retrotting
Ethernet cabling throughout the home or oce
Package Contents
• Wireless-N Nniti ADSL2+ Modem Router (WBMR-G300N)
• Utility CD-ROM w/ User Manual
• Quick Setup Guide
• AC Adapter
• Ethernet Cable
• DSL Cable
• Warranty Statement

4
System Requirements
• Activated Broadband ADSL Line
• PC with a Client Adapter
• Microsoft® Windows 98SE / Me / 2000 / XP / Vista™,
Macintosh OS or other Operating System with TCP/IP
Protocol Installed
• Internet Explorer 5.0 or higher
Netscape Navigator 4.7 or higher
for Web-based Conguration
• CD-ROM Drive
Internet Connection Settings
Please collect the following information from your Internet Service Provider
(ISP) before setting up the ADSL2+ Wireless-N Nniti Modem Router.
• Internet connection protocol - (PPPoE, PPPoA, Dynamic IP, Static IP)
• Multiplexing method or Encapsulation - (LLC or VC MUX)
• Virtual circuit - VPI (Virtual Path Identier) - (a number between 0 and 255)
• VCI - (Virtual Channel Identier) - (a number between 1 and 65535)
• For PPPoE and PPPoA users - ADSL account user name and password
Please refer to the Quick Setup Guide for a list of the most commonly used
settings for your country.

5
Understanding Your Router 2
Front Panel
No Name Colour Description
1 POWER Green or Red ON (Green): Power On
OFF : Power O
Blinks continuous (Red): Writing in Flash-
ROM (e.g. change settings, update rmware)
Blinks once (Red): RAM error (e.g. access,
recognized storage size)
Blinks twice (Red): Flash-ROM error (e.g.
access, parameter settings)
Blinks three times (Red): Wired device error
(Example: wired driver install error)
Blinks four times (Red): Wireless device error,
Wired device error (e.g. Wireless Driver install
error)
Blinks ve times (Red): Network error (e.g. IP
address at WAN side is within LAN network)
Blinks nine times (Red): System error (e.g. it
stopped working)
34
5
6
21

6
2 LAN Green ON: LAN Port is ready (LINK)
OFF: LAN Port is not ready (no LINK)
Blinks: LAN Port is communicating
3 Wireless Green ON: Wireless is active
OFF : Wireless is inactive/cannot com-
municate
Blinks: Communicating wirelessly
4 SECURITY Orange ON: Wireless Security is active
OFF: Wireless Security is inactive
Blinks twice: Waiting for AOSS/WPS (PBC) to
be activated.
Blinks continuously: AOSS/WPS (PBC) setup
is failed (timeout/negotiation error – it keps
blinking for 30 mins, then it will turn o the
LED if security is not set.)
5 DSL Green ON: DSL is synchronizing
OFF: Modem function is o
Series of 2 blinks: Searching for carrier signal
Series of 4 blinks: Carrier signal found, and
connecting modem.
6 INTERNET Green or Red ON (Green): IP Address at WAN obtained
ON (Red): Failed to obtain IP Address at WAN
OFF : Modem function is o, or ADSL is not
connected. (Bridge Mode)
Blinks: INTERNET port is communicating

7
Back Panel
6. DSL Line
Connect your ADSL line to this port.
7. Ethernet Ports
The Ethernet ports are RJ45, 10/100 auto-negotiation. The ports are labeled 1
through 4. These ports correspond to the numbered LEDs on the front of the
Router. Connect your network-enabled computers or any networking devices
to one of these ports.
8. Reset Button
The “Reset”button is used in rare cases when the Router may function
improperly. Resetting the Router will restore the Router’s normal operation
while maintaining the programmed settings.
You can also restore the factory default settings by using the Reset button.
Use the restore option in instances where you may have forgotten your
custom password.
a. Resetting the Router - Push and hold the Reset button for one second
then release it. When the Power/Ready light becomes solid again, the reset is
complete.
b. Restoring the Factory Defaults - Press and hold the Reset button for 10
seconds then release it. When the Power/Ready light becomes solid again,
the restore is complete.
9. Power Plug
Connect the included power supply to this inlet. Use the power supply
provided as using the wrong type of power adapter may cause damage to
your Router.
7
89
6

8
Positioning your Router
Your wireless connection will be stronger the closer your computer is to
your Router. Typical indoor operating range for your wireless devices is
between 30m and 60m. In the same way, your wireless connection and
performance will degrade somewhat as the distance between your Router
connected devices increases. This may or may not be noticeable to you. As
you move farther from your Router, connection speed may decrease. Factors
that can weaken signals simply by getting in the way of your network’s radio
waves are metal appliances, or obstructions, and walls. If you have concerns
about your network’s performance that might be related to range or
obstruction factors, try moving the computer to a position between 1.5m and
3.0m from the Router, in order to see if distance is the problem.
Setup Wizard
A Setup wizard is provided on the Air Navigator CD to assist in establishing
your DSL internet connection. To use the wizard, insert the CD, launch the
application and follow the steps as indicated.
Alternatively, if you would like to set up the connection manually, proceed to
the next section.

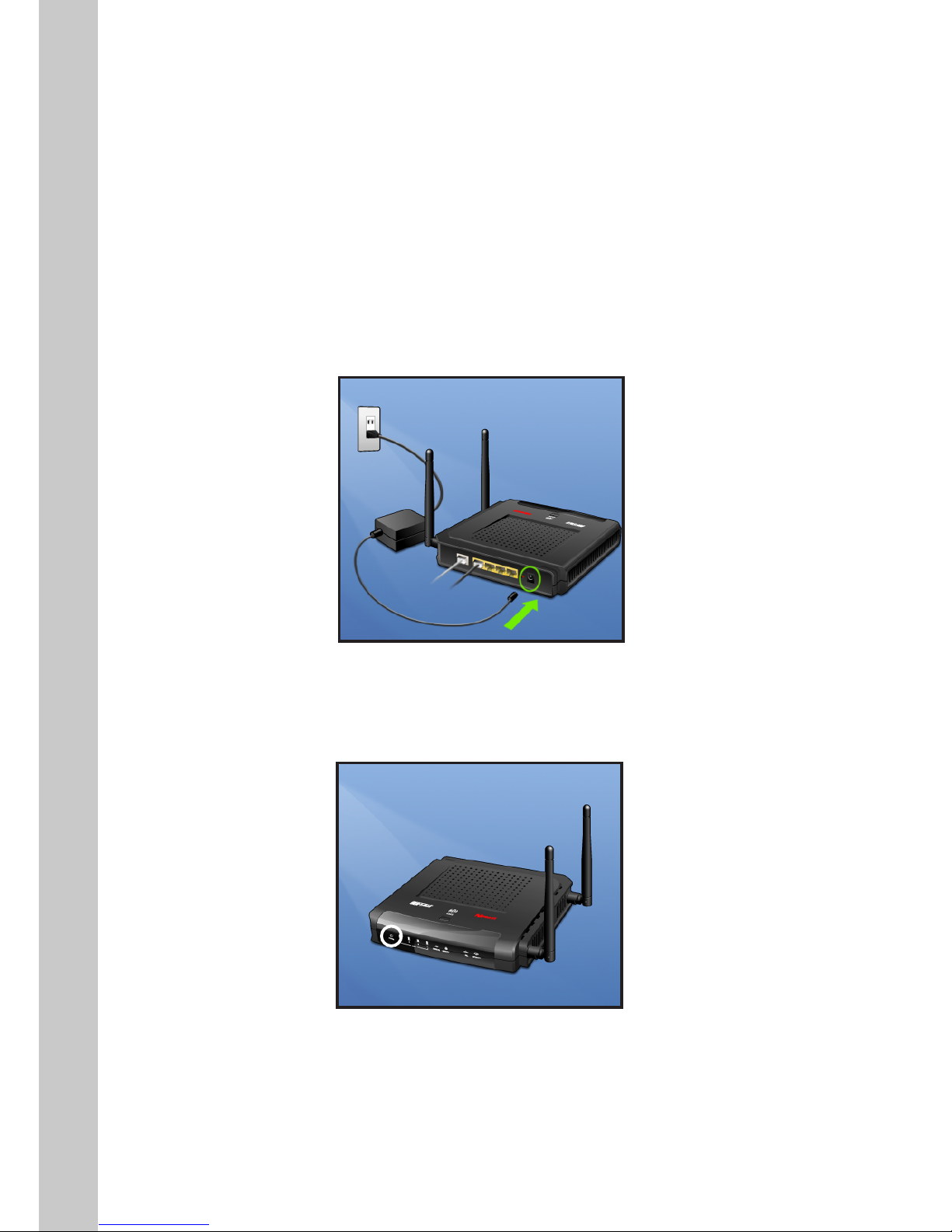

1. Power o your computers and networking equipment.

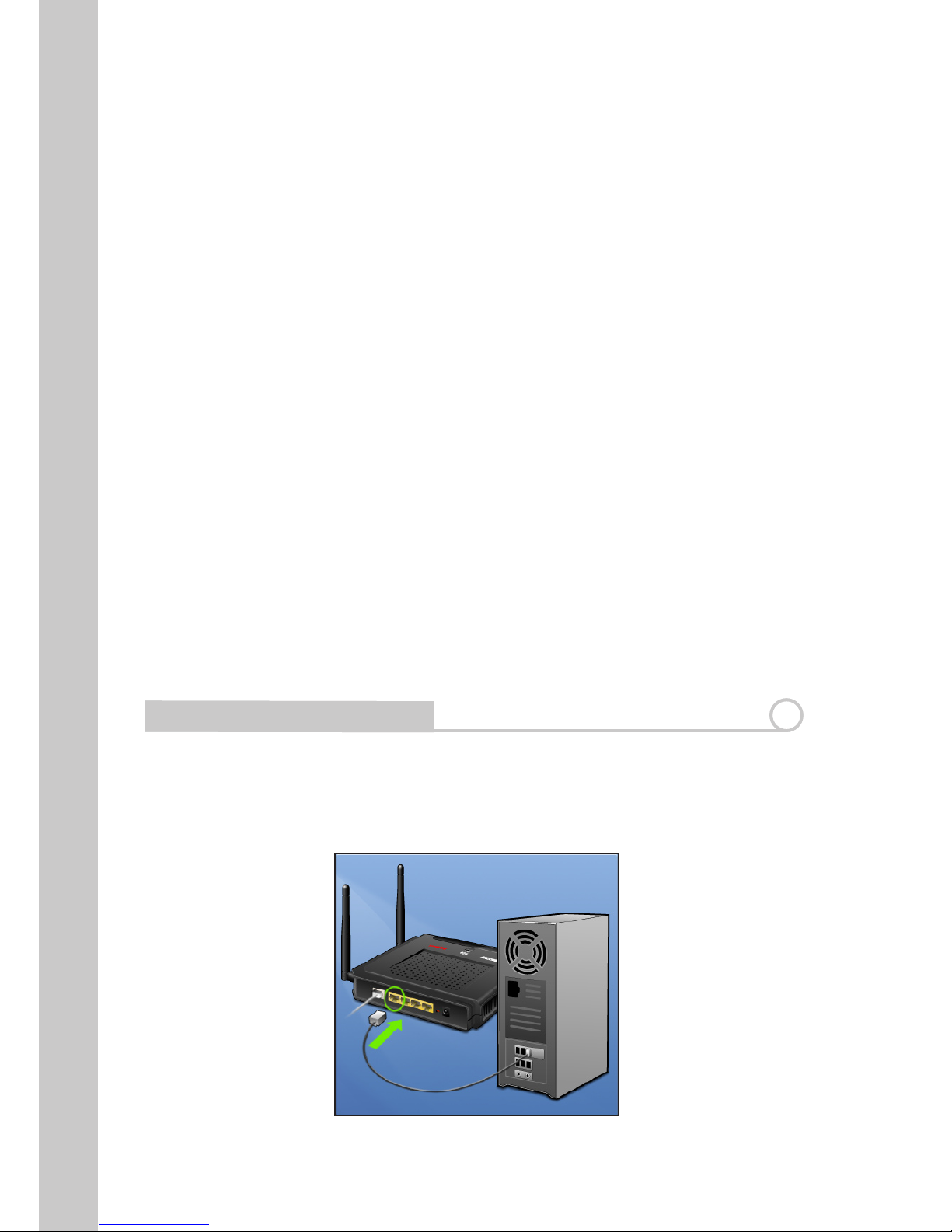

2. Connect your computer to one of the YELLOW RJ45 ports on the rear of
the Router labeled “connections to your computers”by using an Ethernet
networking cable (one Ethernet network cable is supplied).
Connecting Your Computers 3 Connecting Your Computers 3
